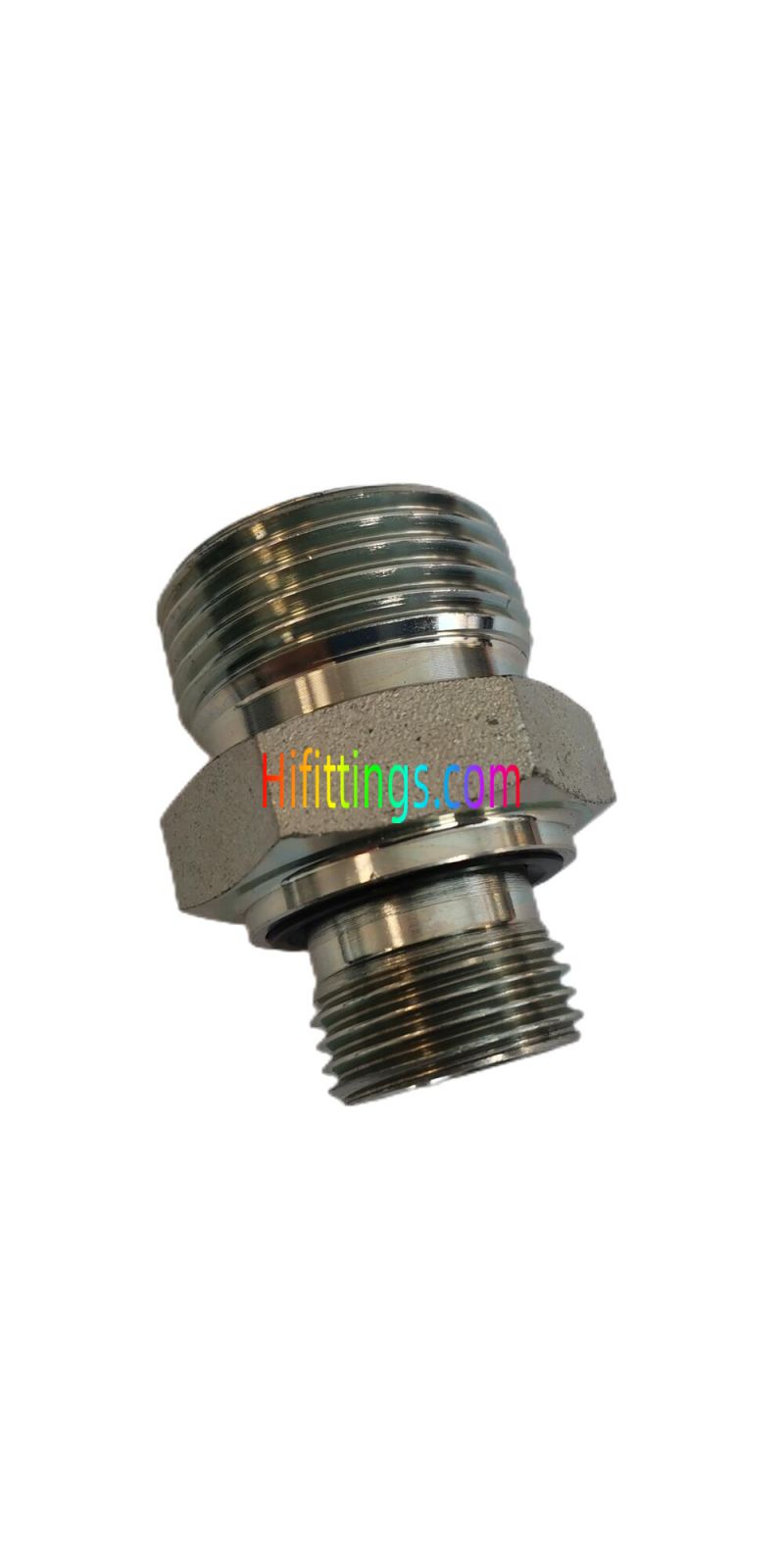

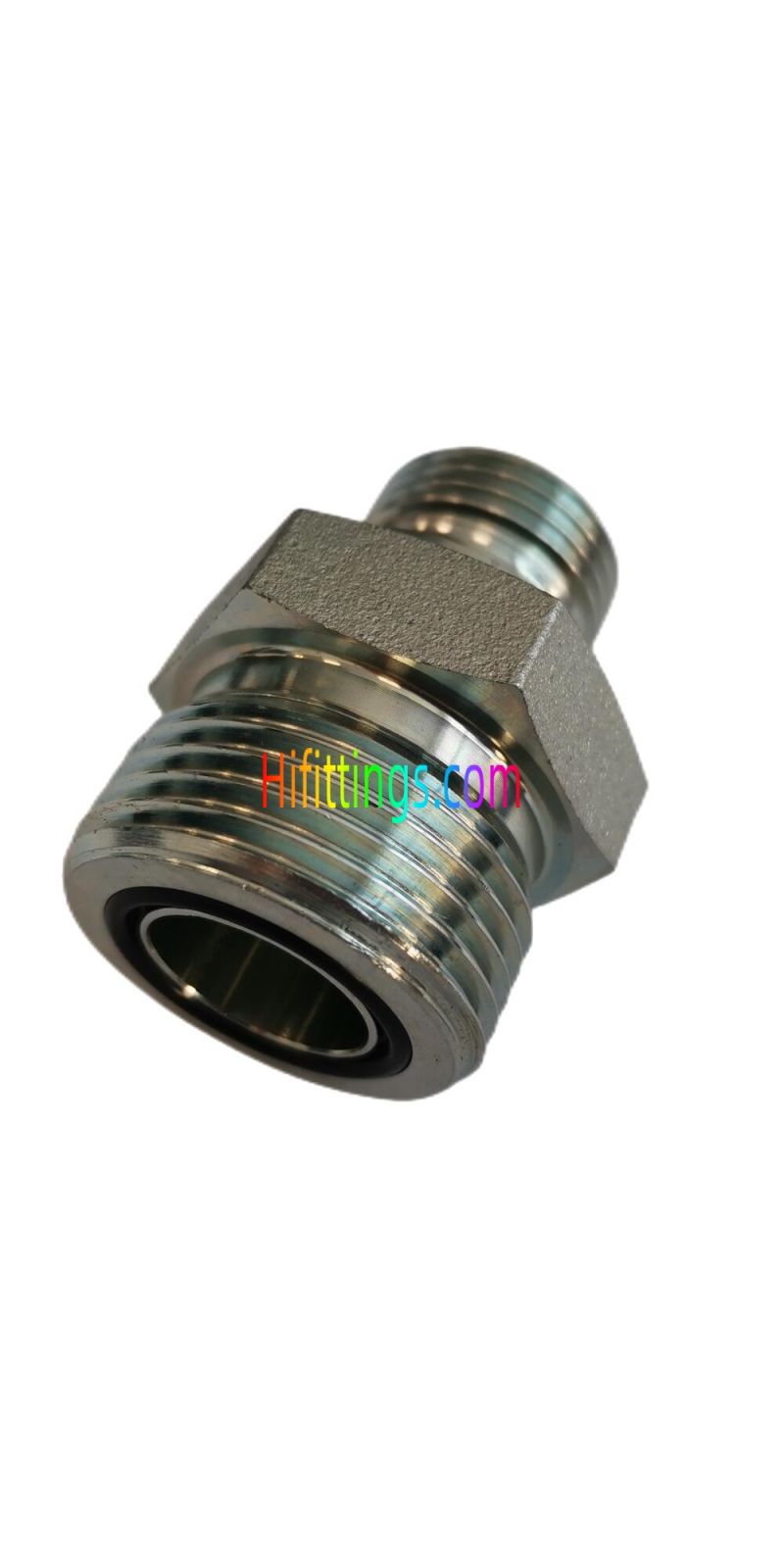

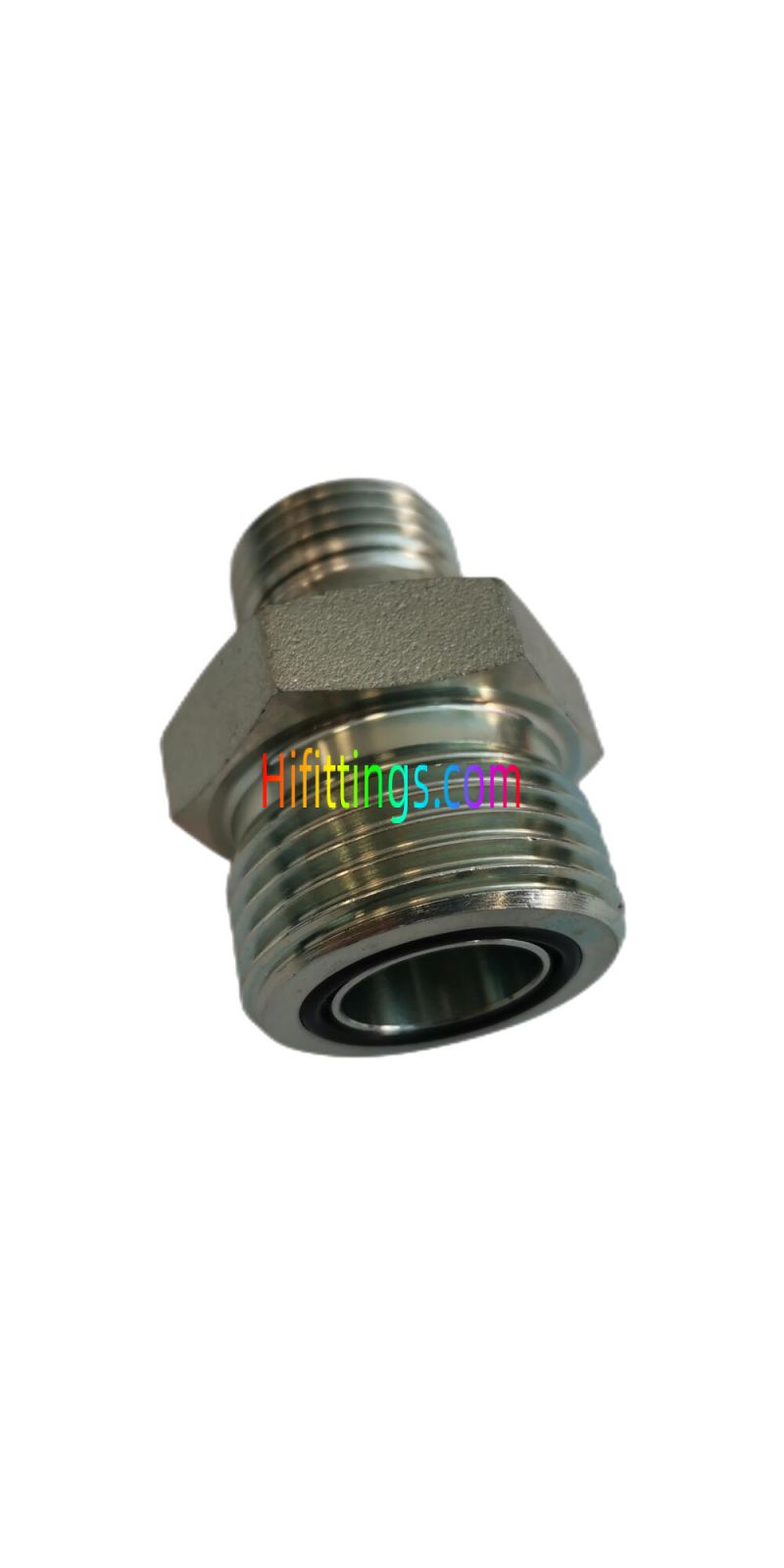

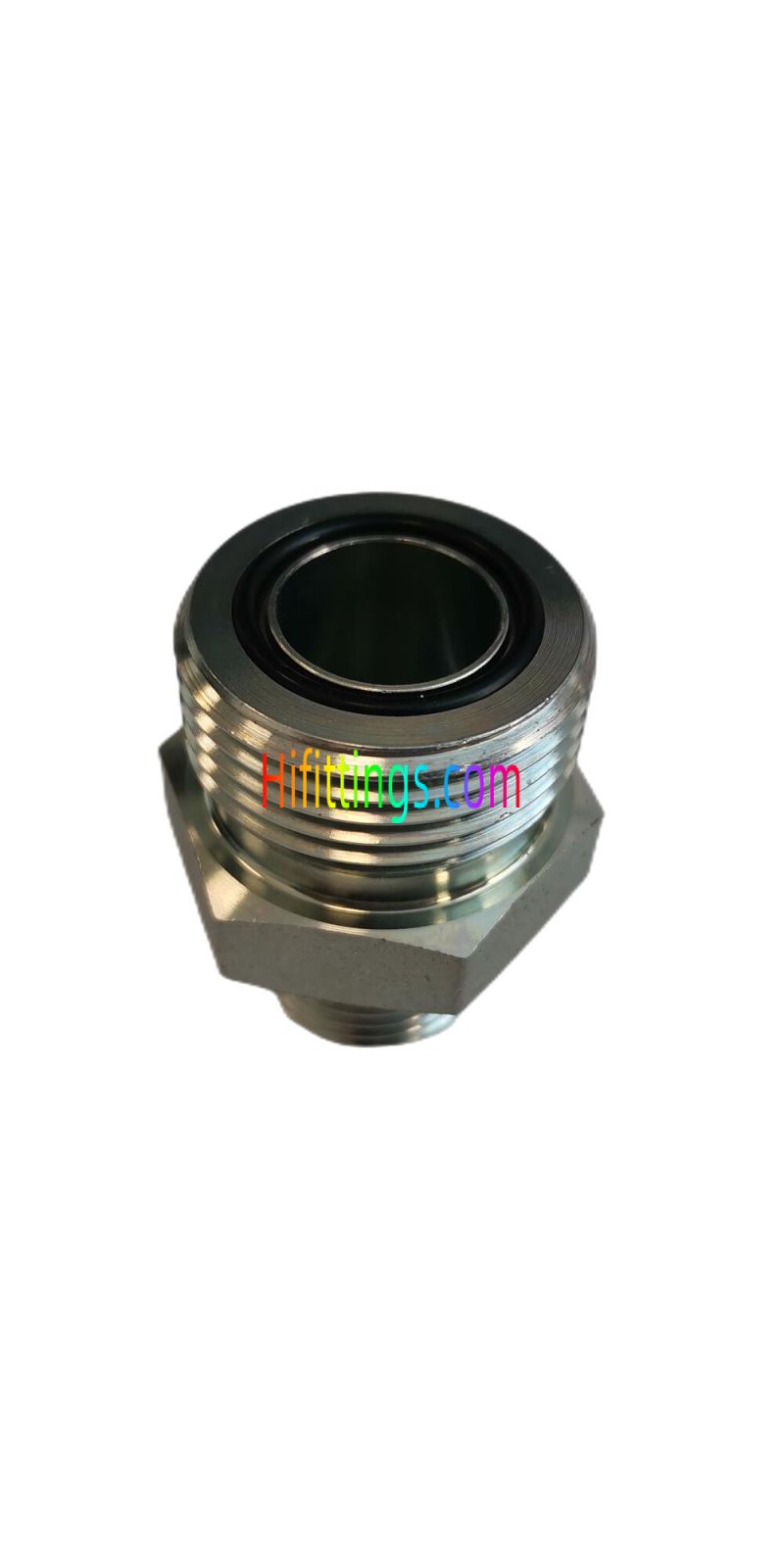

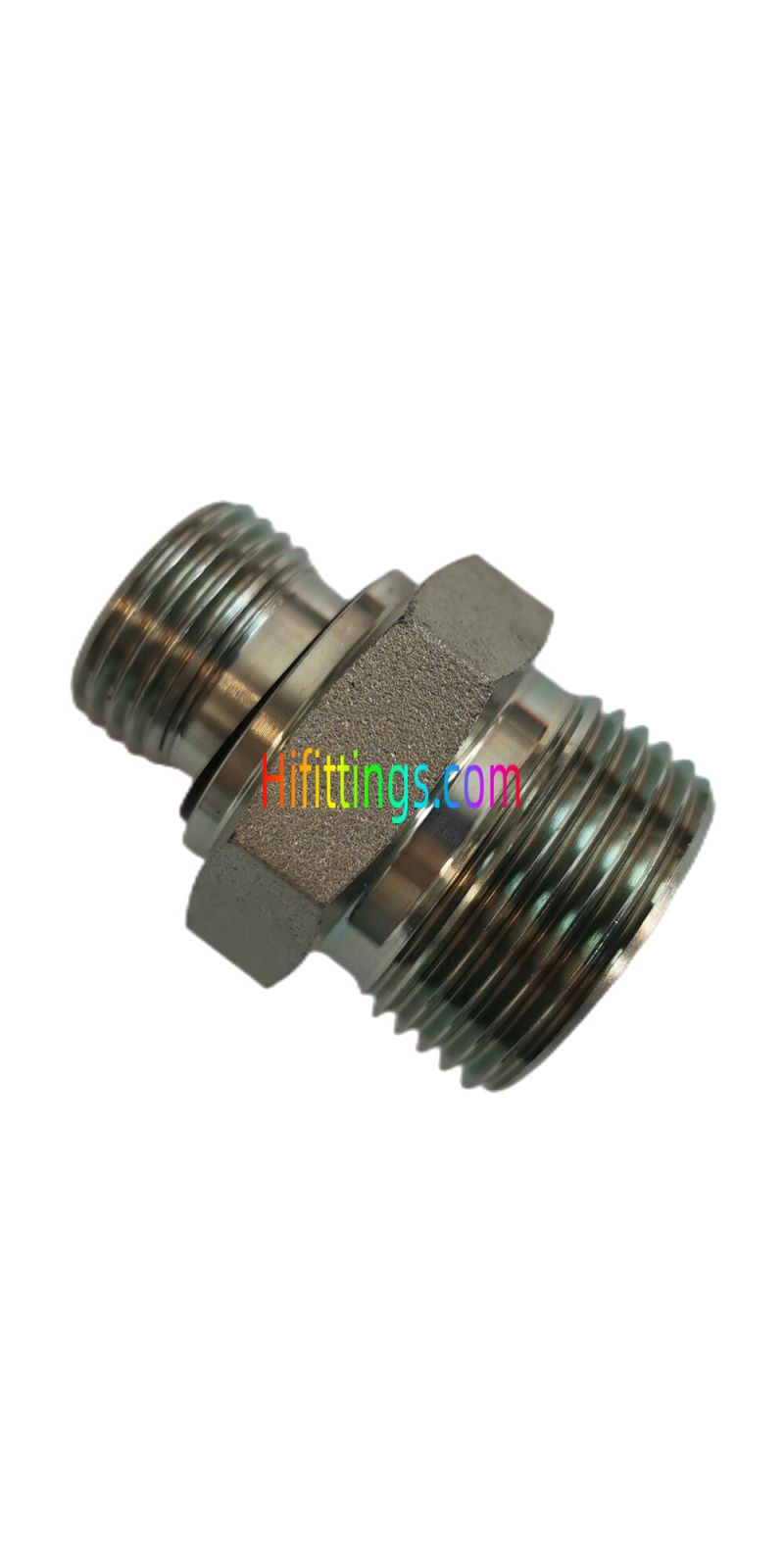

ORFS Male O-Ring / Metric Male S-Series ISO 6149-2 Hydraulic Adapter Pipe Fittings 1FH
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1FH-04-10 |
9/16" X18 |
M10X1 |
11 |
008.1X1.6 |
9.8 |
9.5 |
28 |
17 |
PN400 |
|
1FH-04-12 |
9/16" X18 |
M12X1.5 |
11 |
009.3X2.4 |
9.8 |
11 |
29.5 |
17 |
PN400 |
|
1FH-06-12 |
11/16"X16 |
M12X1.5 |
12 |
009.3X2.4 |
11.2 |
11 |
31 |
19 |
PN400 |
|
1FH-06-14 |
11/16X16 |
M14X1.5 |
12 |
011.3X2,4 |
11.2 |
11 |
31 |
19 |
PN400 |
|
1FH-06-16 |
11/16"X16 |
M16X1.5 |
12 |
013.3X2.4 |
11.2 |
12.5 |
33.5 |
22 |
PN315 |
|
1FH-08-16 |
13/16"X16 |
M16X1.5 |
14 |
013.3X2.4 |
12.8 |
12.5 |
36 |
22 |
PN315 |
|
1FH-08-18 |
13/16"X16 |
M18X1.5 |
14 |
015.3X2.4 |
12.8 |
14 |
36.5 |
24 |
PN315 |
|
1FH-08-22 |
13/16"X16 |
M22X1.5 |
14 |
019.3X2,4 |
12.8 |
15 |
37.5 |
27 |
PN315 |
|
1FH-10-22 |
1"X14 |
M22X1.5 |
16 |
019.3X2.4 |
15.5 |
15 |
40.5 |
27 |
PN315 |
|
1FH-12-22 |
1.3/16"X12 |
M22X1.5 |
18 |
019.3X2.4 |
17 |
15 |
45.5 |
32 |
PN315 |
|
1FH-12-27 |
1.3/16"X12 |
M27X2 |
18 |
023.5X3.0 |
17 |
18.5 |
44 |
32 |
PN200 |
|
1FH-16-33 |
1.7/16"X12 |
M33X2 |
21 |
029.5X3.0 |
17.5 |
18.5 |
51 |
41 |
PN200 |
|
1FH-20-42 |
1.11/16"X12 |
M42X2 |
25 |
038.5X3.0 |
17.5 |
19 |
54.5 |
50 |
PN200 |
|
1FH-24-48 |
2"X12 |
M48X2 |
29 |
044.5X3.0 |
17.5 |
21.5 |
57 |
55 |
PN200 |
|
Note: 1. F end is fit for ISO 6149-1 port. 2. PN = Nominal Pressure |
|||||||||
| Forma | Straight |
|---|---|
| Tipo de montaje | Face Seal |
| Tipo de hilo | Male |
| Connection Type | Metric, ORFS |
