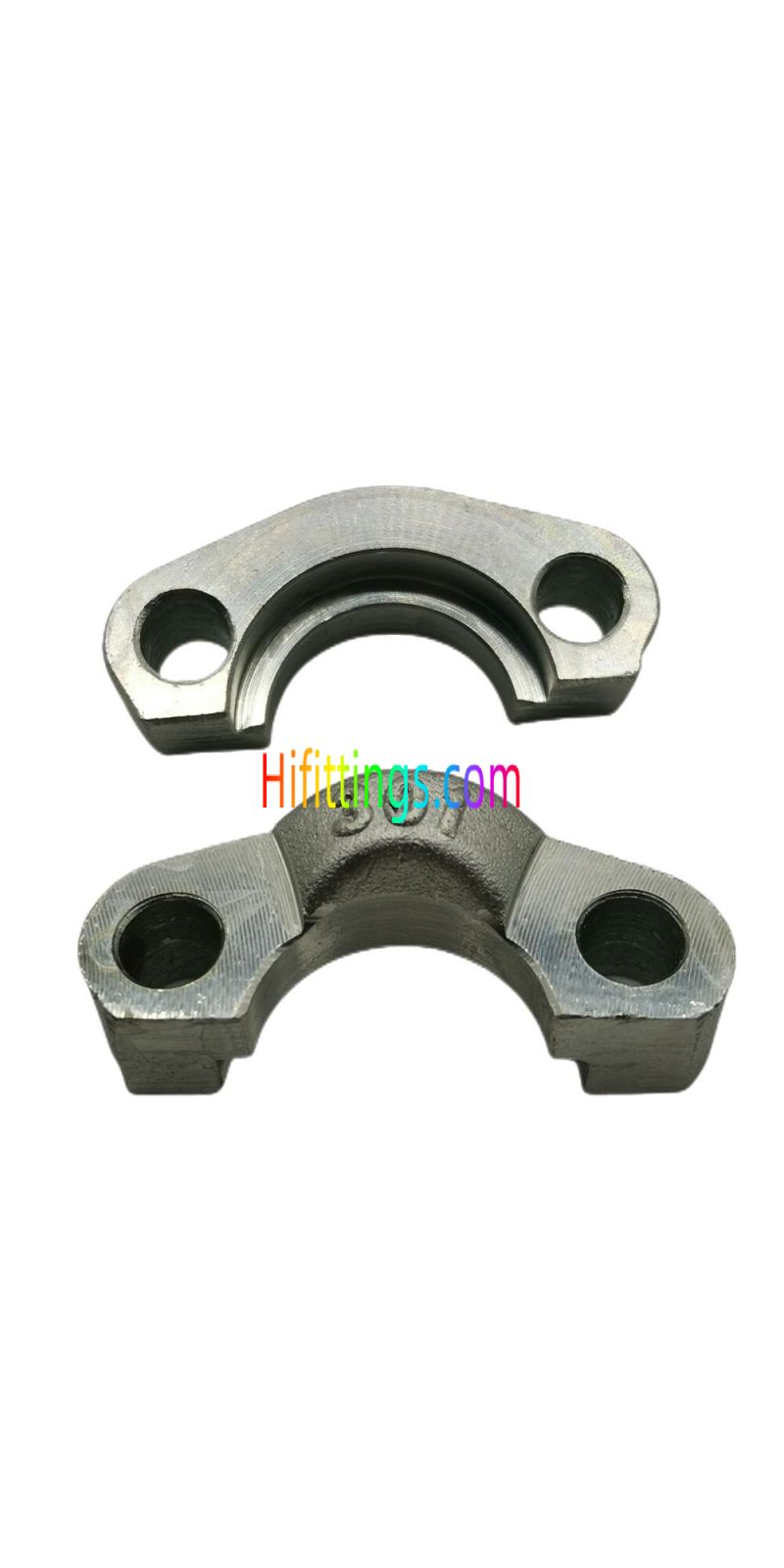

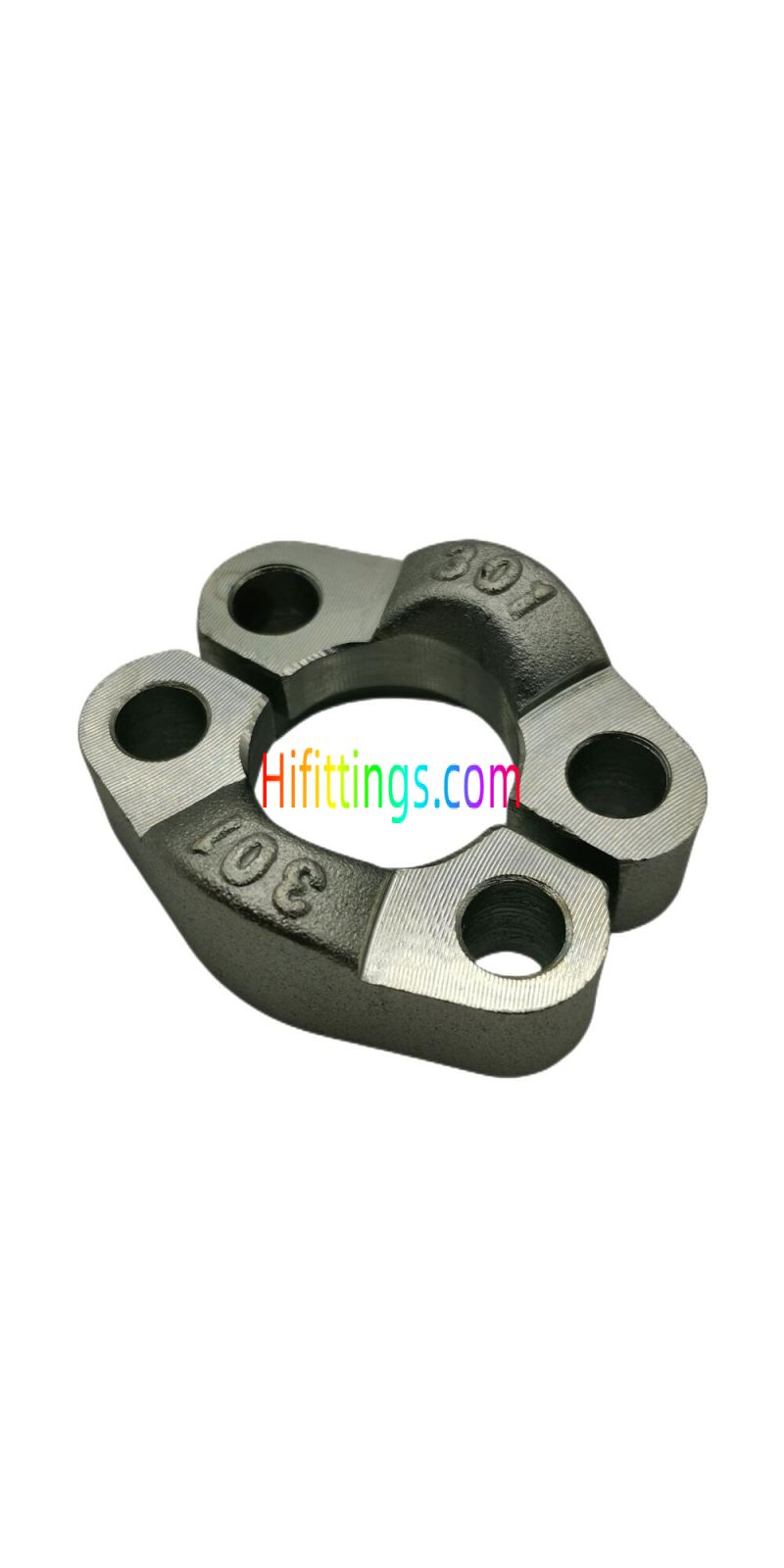

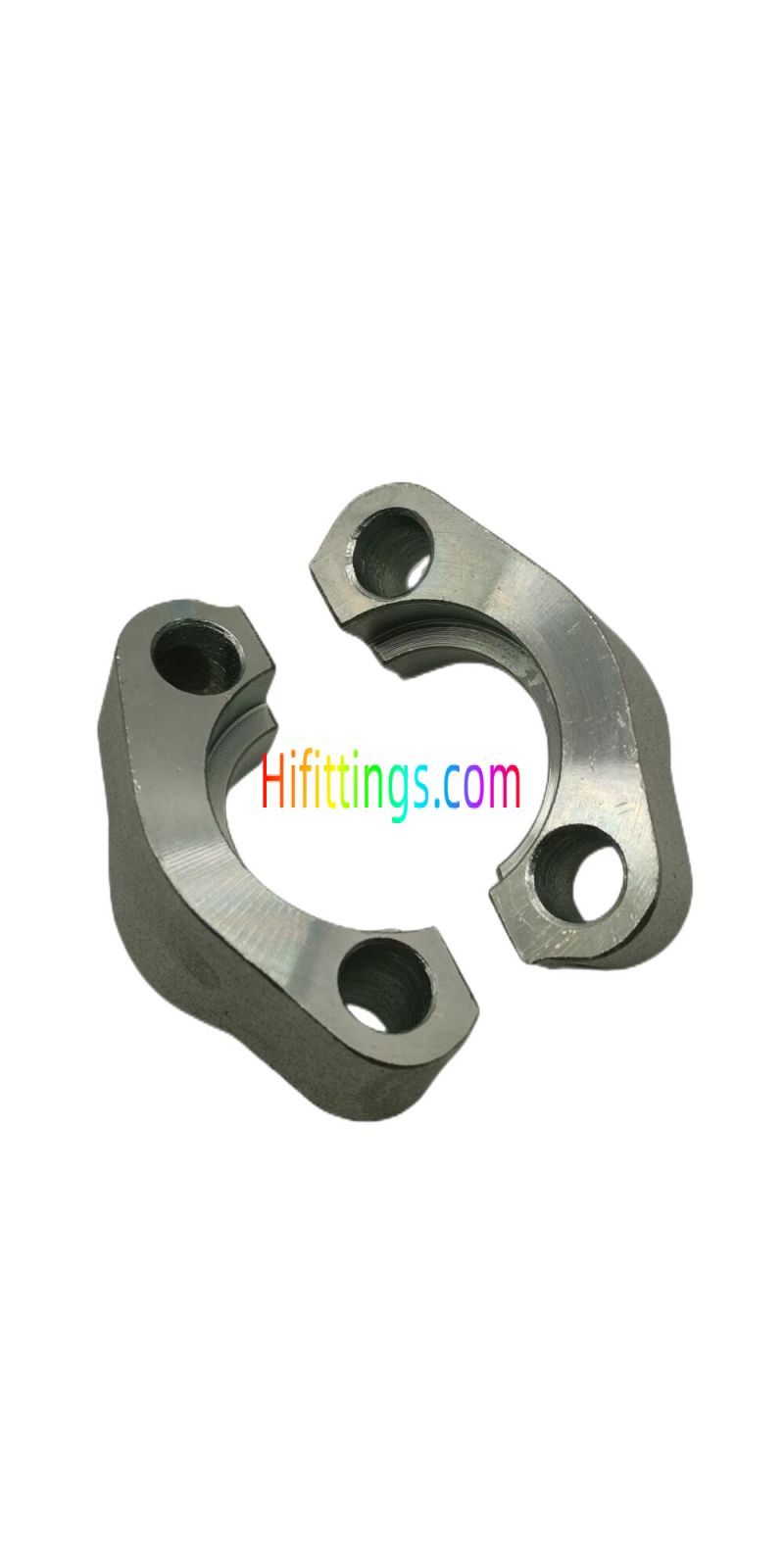

ISO 6162-1—SAE J518 L-Series Split Flange Clamps FL
|
Part NO. |
Flange Size |
A |
B |
d |
h |
M |
N |
Bolt |
O-Ring |
Working Pressure bar |
|
FL-08 |
1/2" |
54 |
46.1 |
9 |
6.2 |
38.1 |
17.5 |
M8X25 |
210 |
PN345
|
|
FL-12 |
3/4" |
65 |
52.4 |
11 |
6.2 |
47.6 |
22.2 |
M10X30 |
214 |
|
|
FL-16 |
1" |
69.9 |
58.7 |
11 |
7.5 |
52.4 |
26.2 |
M10X30 |
219 |
|
|
FL-20 |
1.1/4" |
79.2 |
73 |
11 |
7.5 |
58.7 |
30.2 |
M10X30 |
222 |
PN276 |
|
FL-24 |
1.1/2" |
93.7 |
82.6 |
13.5 |
7.5 |
69.9 |
35.7 |
M12X35 |
225 |
PN207
|
|
FL-32 |
2" |
101.6 |
96.8 |
13.5 |
9 |
77.8 |
42.9 |
M12X35 |
228 |
|
|
FL-40 |
2.1/2" |
114 |
109 |
13.5 |
9 |
88.9 |
50.8 |
M12X40 |
232 |
PN172 |
|
FL-48 |
3" |
135 |
130.6 |
17.5 |
9 |
106.4 |
61.9 |
M16X50 |
237 |
PN138 |
| Connection Type | Flange |
|---|---|
| Tipo de hilo | - |
| Forma | Straight |
| Tipo de montaje | Flange |
