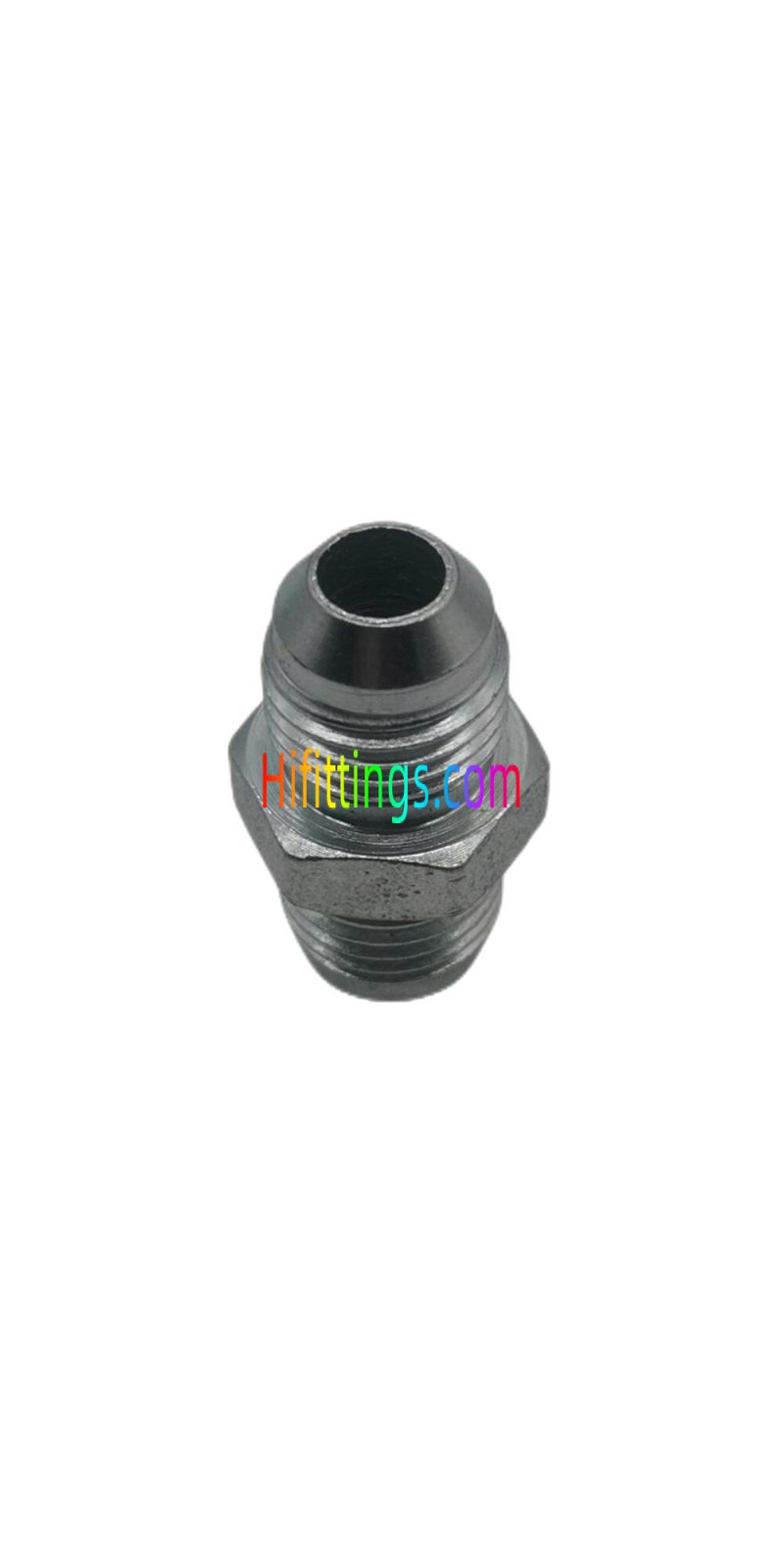

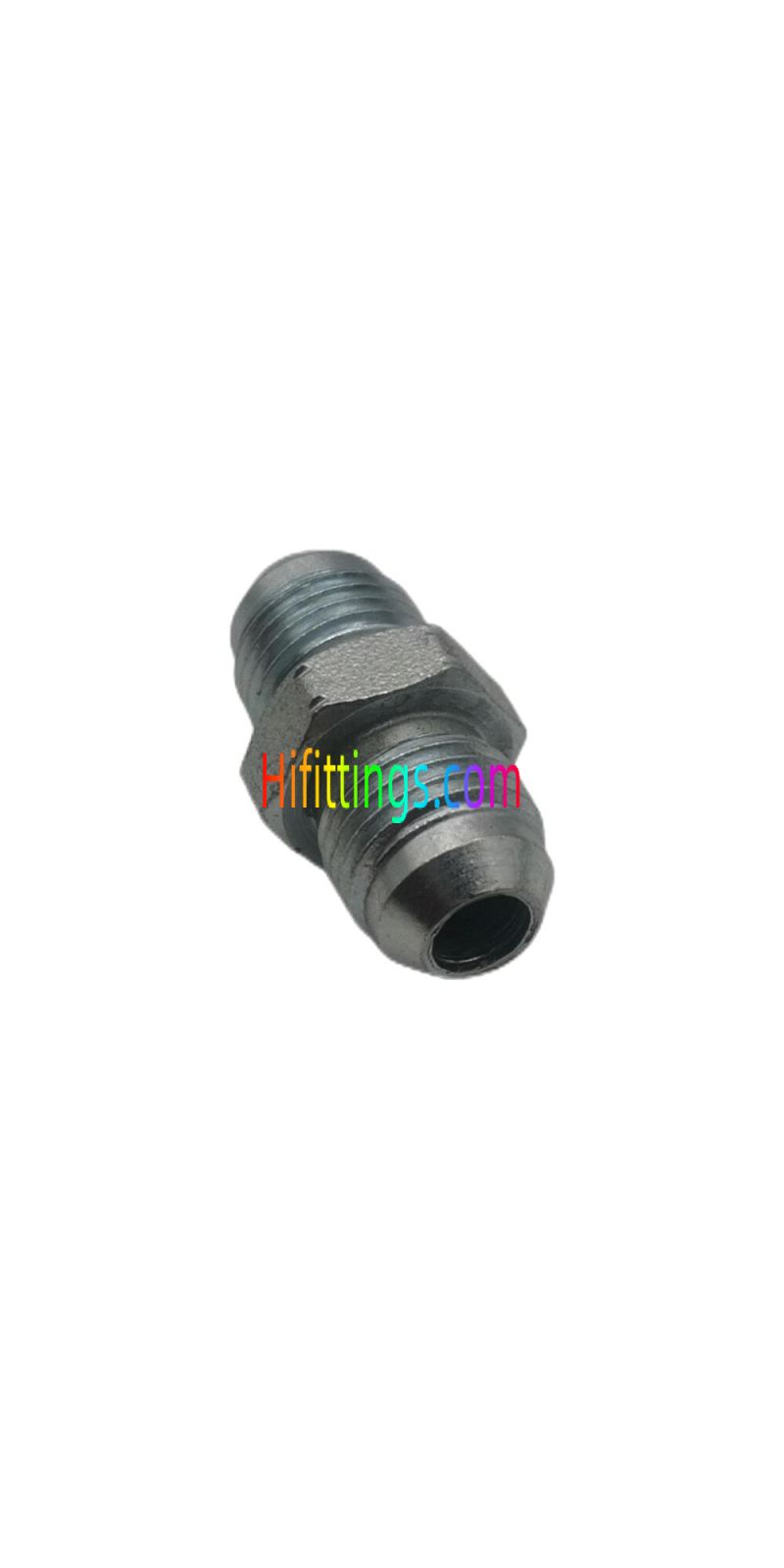

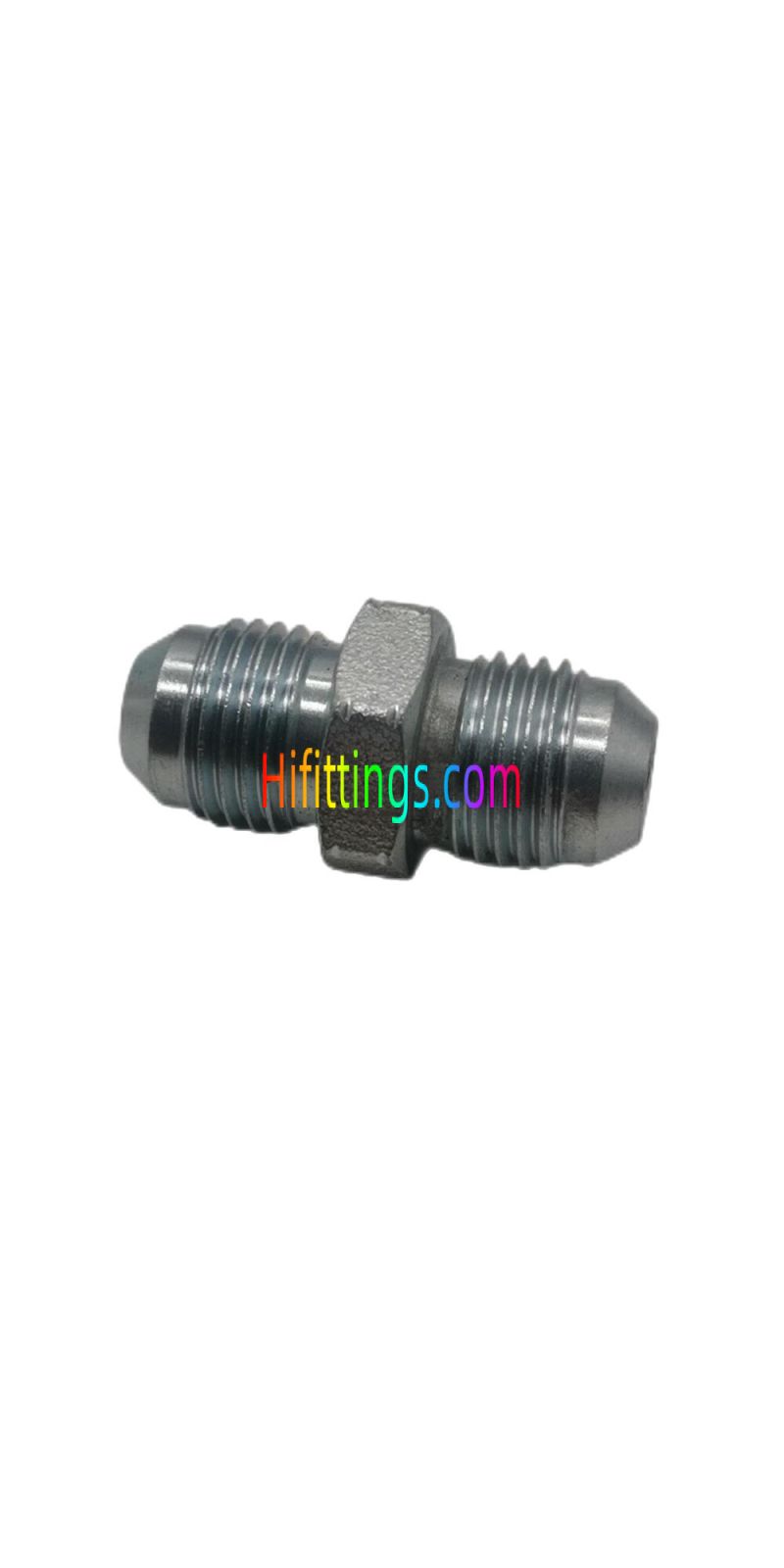

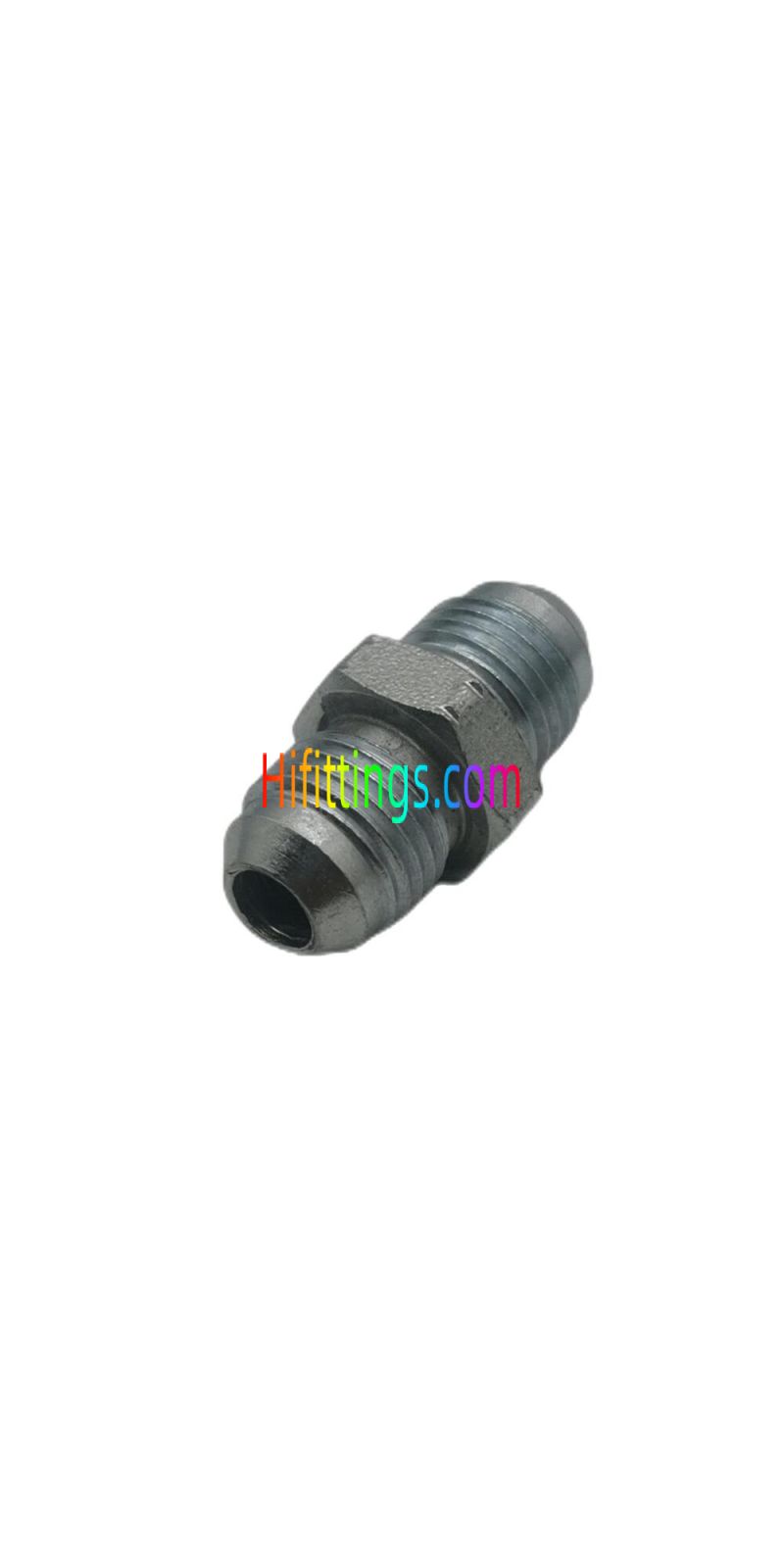

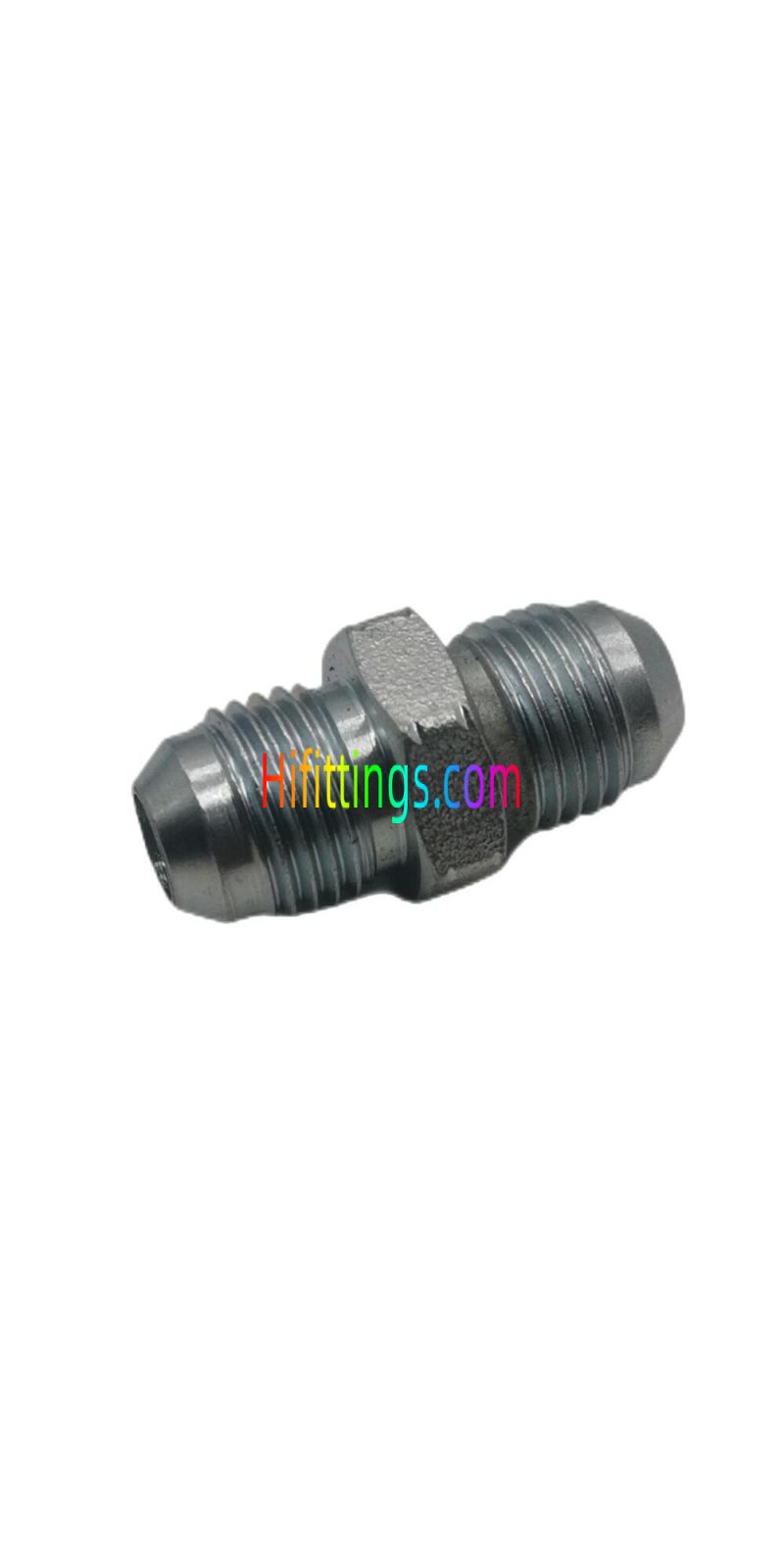

Straight JIC Male 74° Cone Flared Hydraulic Tube Fittings 1J
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
Working Pressure bar |
|
1J-02 |
5/16"X24 |
5/16"X24 |
11.4 |
11.4 |
29 |
12 |
PN345 |
|
1J-02-03 |
5/16"X24 |
3/8"X24 |
11.4 |
12.2 |
29.5 |
12 |
PN345 |
|
1J-03 |
3/8"X24 |
3/8"X24 |
12.2 |
12.2 |
30.5 |
12 |
PN345 |
|
1J-04 |
7/16"X20 |
7/16"X20 |
14 |
14 |
34 |
12 |
PN345 |
|
1J-04-05 |
7/16"X20 |
1/2"X20 |
14 |
14 |
34 |
14 |
PN345 |
|
1J-04-06 |
7/16"X20 |
9/16"X18 |
14 |
14.1 |
34.1 |
17 |
PN345 |
|
1J-04-08 |
7/16"X20 |
3/4"X16 |
14 |
16.7 |
38.5 |
22 |
PN345 |
|
1J-05 |
1/2"X20 |
1/2"X20 |
14 |
14 |
34 |
14 |
PN345 |
|
1J-05-06 |
1/2"X20 |
9/16"X18 |
14 |
14.1 |
34 |
17 |
PN345 |
|
1J-05-08 |
1/2"X20 |
3/4"X16 . |
14 |
16.7 |
38.5 |
22 |
PN345 |
|
1J-05-10 |
1/2"X20 |
7/8"X14 |
14 |
19.3 |
41 |
24 |
PN345 |
|
1J-06 |
9/16"X18 |
9/16"X18 |
14.4 |
14.1 |
34.2 |
17 |
PN345 |
|
1J-06-08 |
9/16"X18 |
3/4"X16 |
14.1 |
16.7 |
38.5 |
22 |
PN345 |
|
1J-06-10 |
9/16"X18 |
7/8"X14 |
14.1 |
19.3 |
41.5 |
24 |
PN345 |
|
1J-06-12 |
9/16"X18 |
1.1/16"X12 |
14.1 |
21.9 |
46 |
30 |
PN345 |
|
1J-08 |
3/4"X16 |
3/4"X16 |
16.7 |
16.7 |
42 |
22 |
PN310 |
|
1J-08-10 |
3/4"X16 |
7/8"X14 |
16.7 |
19.3 |
44 |
24 |
PN310 |
|
1J-08-12 |
3/4"X16 |
1.1/16"X12 |
16.7 |
21.9 |
48.5 |
30 |
PN310 |
|
1J-08-16 |
3/4"X16 |
1.5/16"X12 |
16.7 |
23.1 |
51 |
36 |
PN310 |
|
1J-10 |
7/8"X14 |
7/8"X14 |
19.3 |
19.3 |
46.5 |
24 |
PN240 |
|
1J-10-12 |
7/8"X14 |
1.1/16"X12 |
19.3 |
21.9 |
51 |
30 |
PN240 |
|
1J-10-16 |
7/8"X14 |
1.5/16"X12 |
19.3 |
23.1 |
53.5 |
36 |
PN240 |
|
1J-12 |
1.1/16"X12 |
1.1/16"X12 |
21.9 |
21.9 |
54 |
30 |
PN240 |
|
1J-12-14 |
1.1/16"X12 |
1.3/16"X12 |
21.9 |
22.6 |
55.5 |
32 |
PN240 |
|
1J-12-16 |
1.1/16"X12 |
1.5/16"X12 |
21.9 |
23.1 |
56 |
36 |
PN240 |
|
1J-14 |
1.3/16"X12 |
1.3/16"X12 |
22.6 |
22.6 |
56 |
32 |
PN210 |
|
1J-14-16 |
1.3/16"X12 |
1.5/16"X12 |
22.6 |
23.1 |
56.5 |
36 |
PN210 |
|
1J-16 |
1.5/16"X12 |
11.5/16"X12 |
23.1 |
23.1 |
57 |
36 |
PN210 |
|
1J-16-20 |
1.5/16"X12 |
1.5/8"X12 |
23.1 |
24.3 |
60.5 |
46 |
PN210 |
|
1J-16-24 |
1.5/16"X12 |
1.7/8"X12 |
23.1 |
27.5 |
65.5 |
50 |
PN210 |
|
1J-20 |
1.5/8"X12 |
1.5/8"X12 |
24.3 |
24.3 |
62 |
46 |
PN170 |
|
1J-20-24 |
1.5/8"X12 |
1.7/8"X12 |
24.3 |
27.5 |
67 |
50 |
PN170 |
|
1J-20-32 |
1.5/8"X12 |
2.1/2"X12 |
24.3 |
33.9 |
75 |
65 |
PN170 |
|
1J-24 |
1.7/8"X12 |
1.7/8"X12 |
27.5 |
27.5 |
70 |
50 |
PN140 |
|
1J-24-32 |
1.7/8"X12 |
2.1/2"X12 |
27.5 |
33.9 |
78.5 |
65 |
PN140 |
|
1J-32 |
2.1/2"X12 |
2.1/2"X12 |
33.9 |
33.9 |
85 |
65 |
PN105 |
| Forma | Straight |
|---|---|
| Tipo de montaje | Cone Flared |
| Tipo de hilo | Male |
| Connection Type | JIC |
