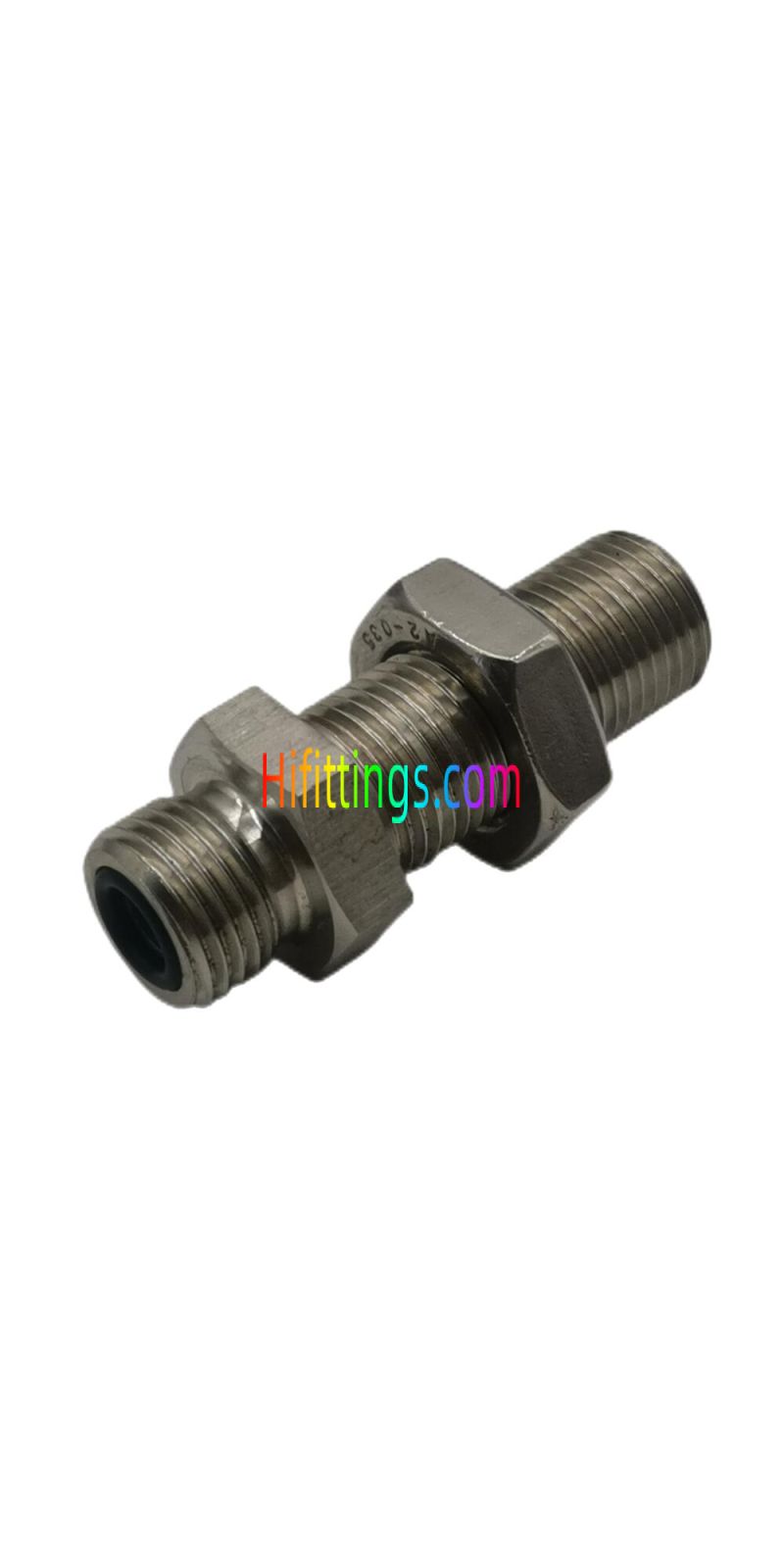

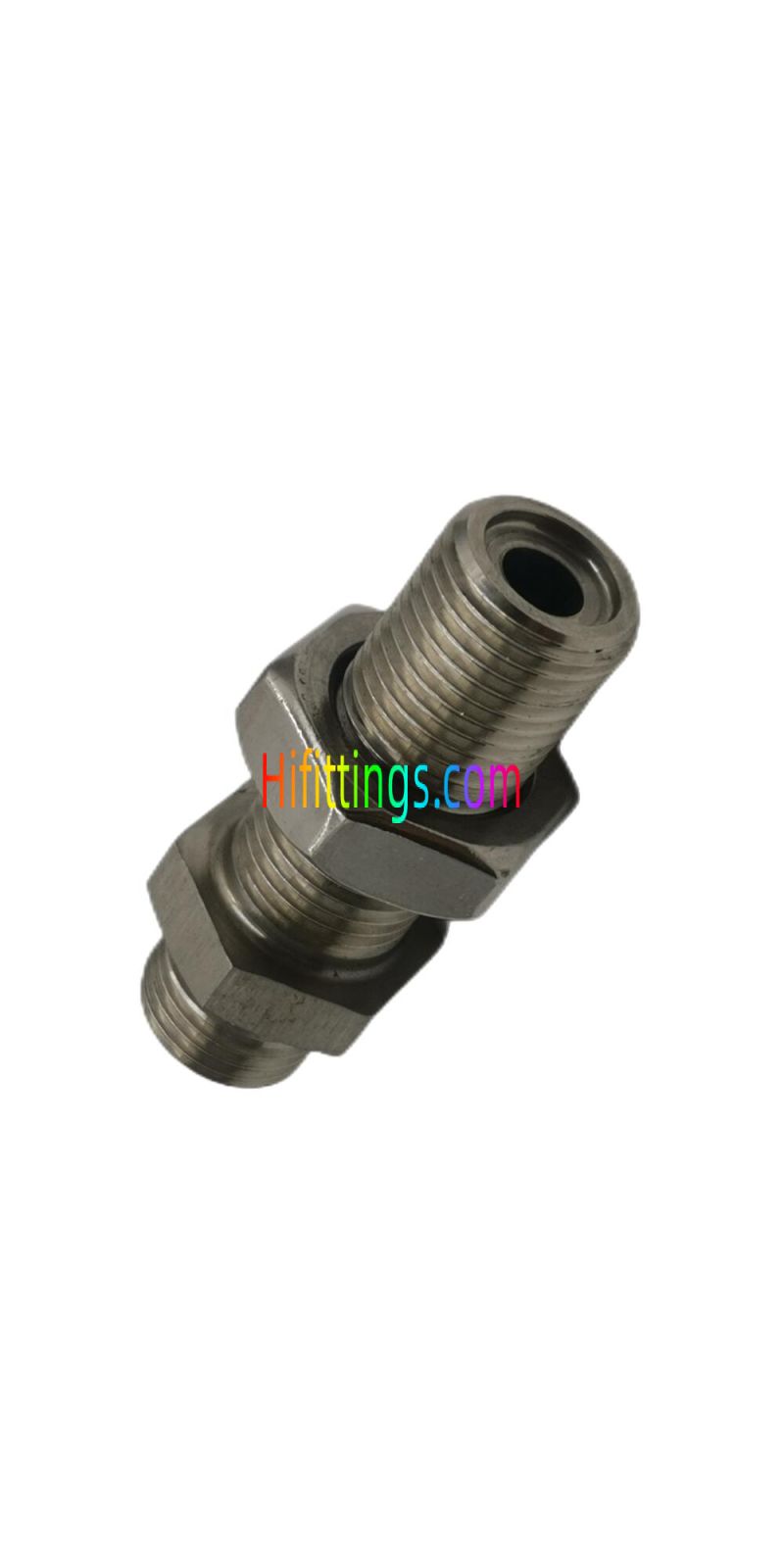

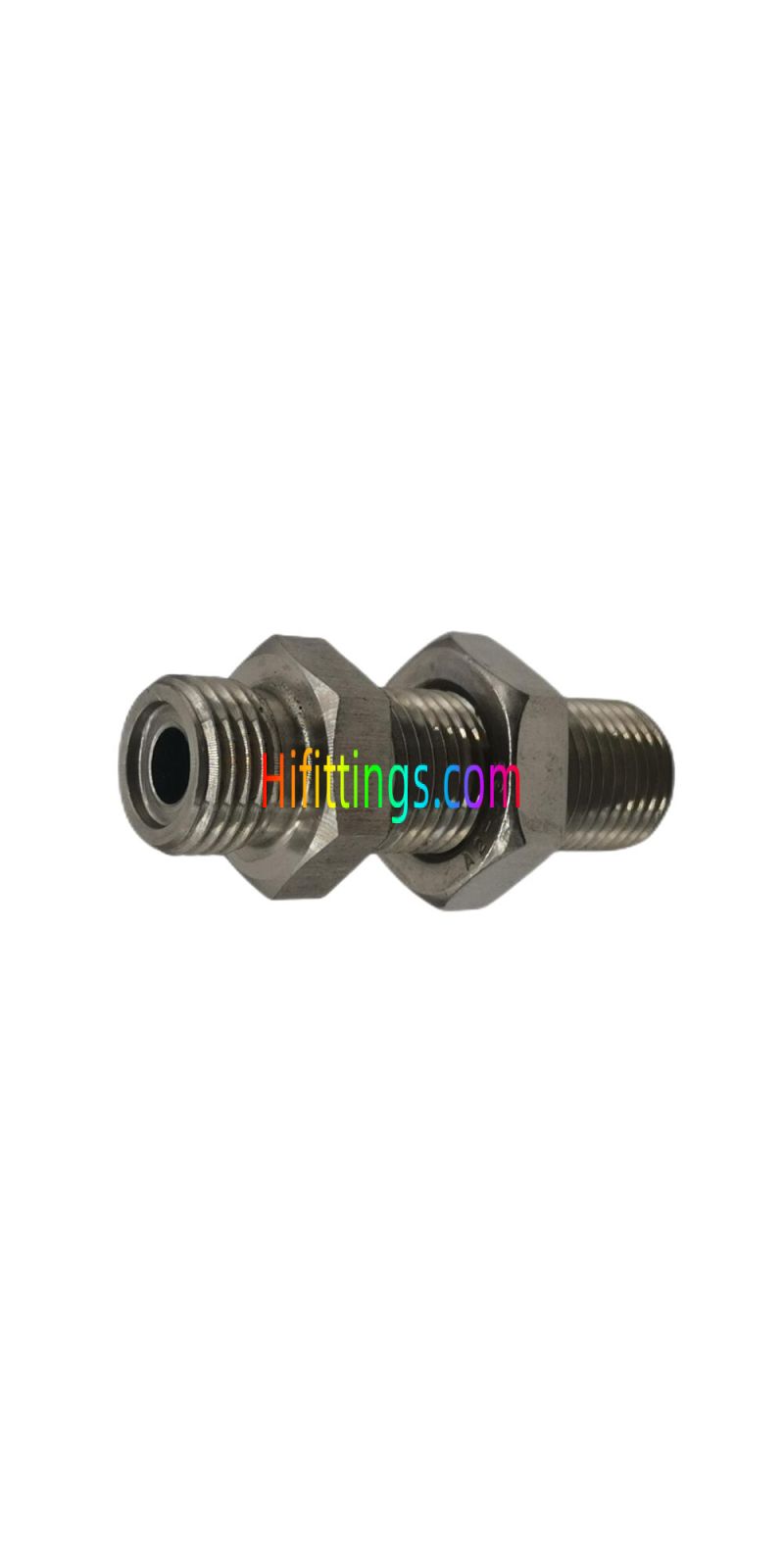

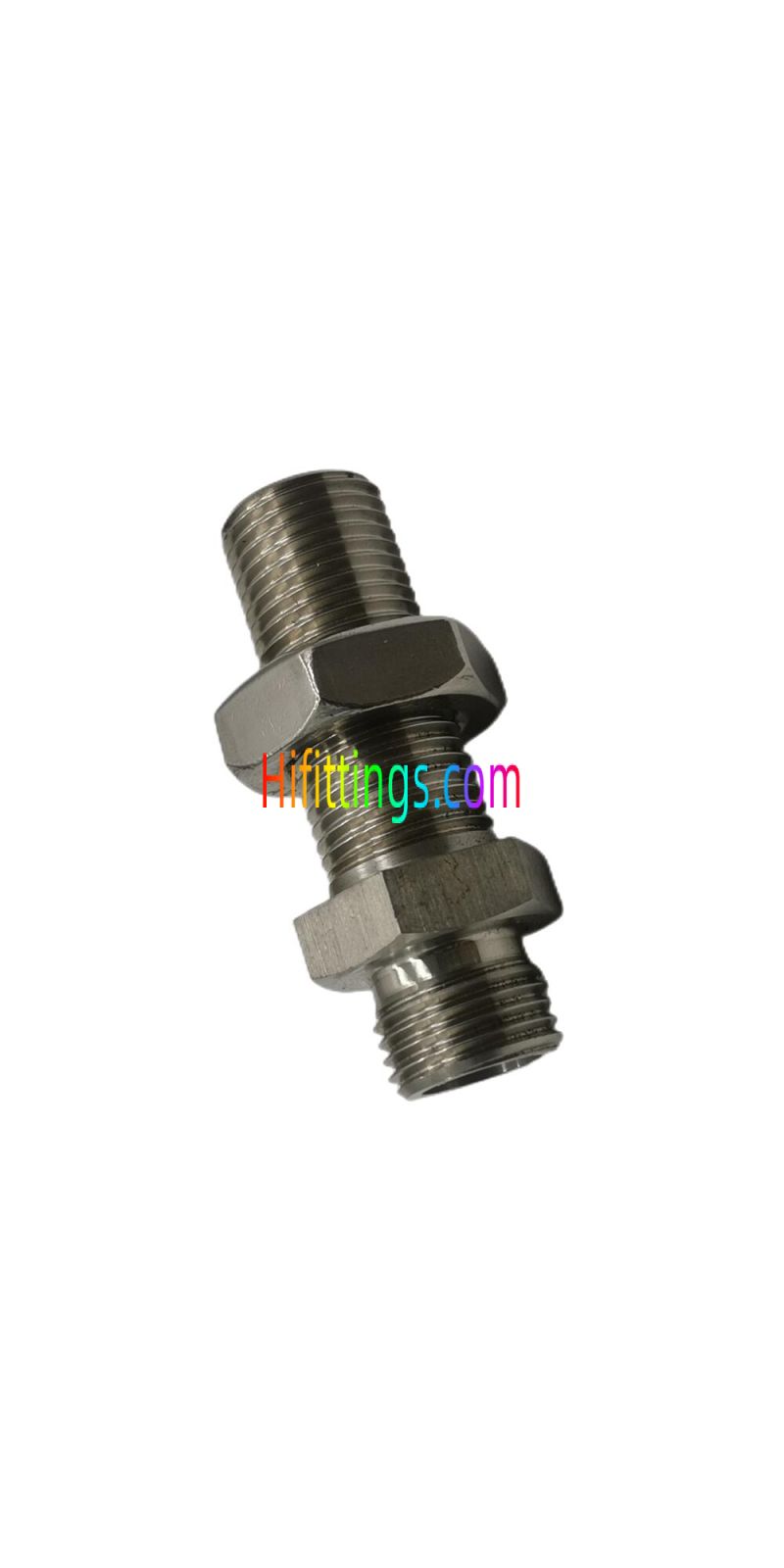

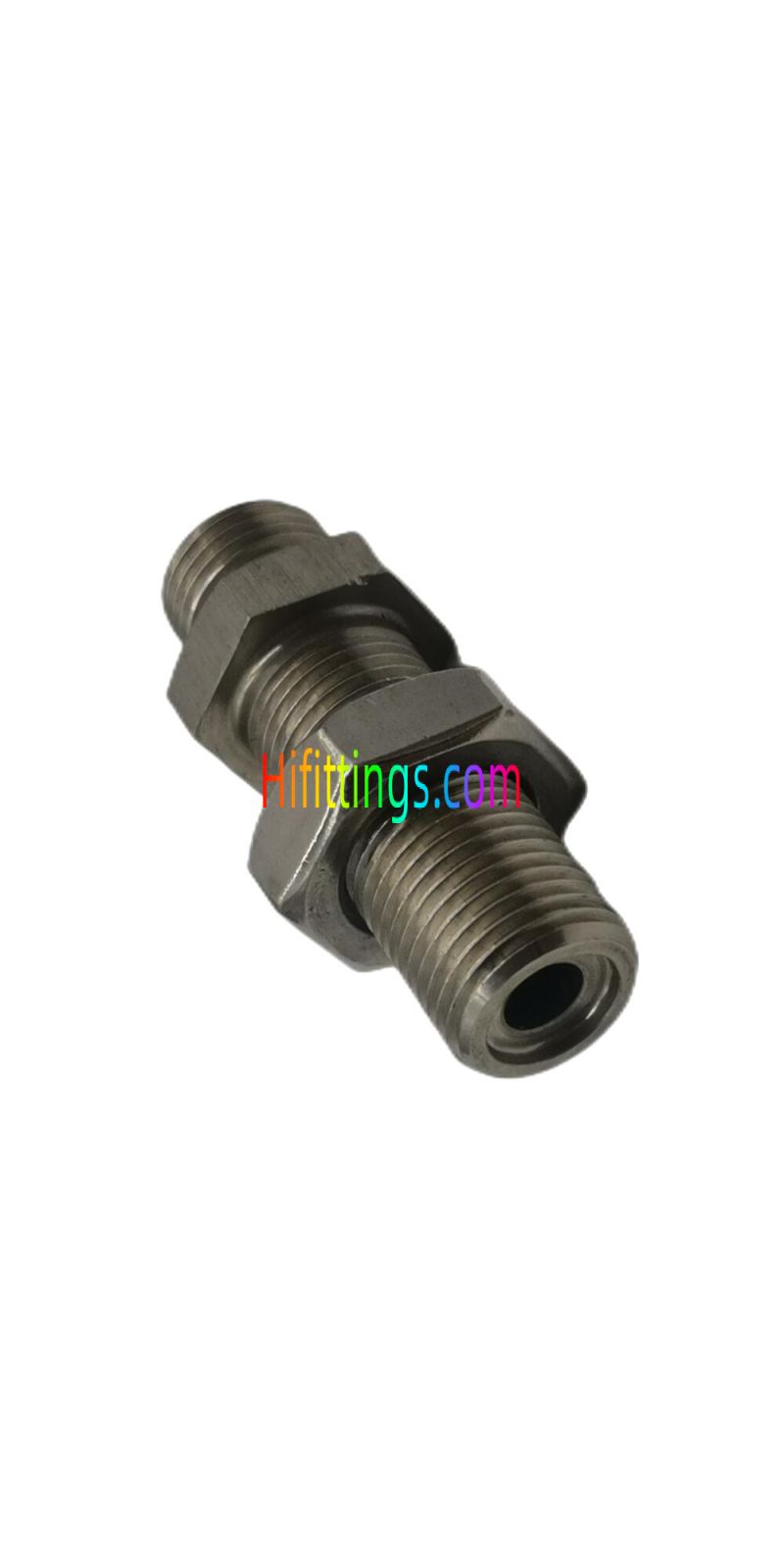

Straight Metric Male O-Ring Face Seal Bulkhead Fittings 6E
|
Part NO. |
E ,F |
O-Ring - E ,F End |
A |
B |
L |
S1 |
S2 |
Working Pressure bar |
|
6E-12 |
M12X1.25 |
8X1.9 |
11 |
31.5 |
47.5 |
17 |
17 |
PN630 |
|
6E-14 |
M14X1.5 |
10X1.9 |
11 |
32.5 |
49.5 |
19 |
19 |
PN630 |
|
6E-16 |
M16X1.5 |
11X1.9 |
11 |
32.5 |
51.5 |
22 |
22 |
PN630 |
|
6E-18 |
M18X1.5 |
13X1.9 |
11 |
33 |
52 |
24 |
24 |
PN630 |
|
6E-22 |
M22X1.5 |
16X2.4 |
12 |
35.5 |
58 |
27 |
30 |
PN630 |
|
6E-27 |
M27X1.5 |
20X2.4 |
13 |
37 |
61 |
32 |
36 |
PN400 |
|
6E-30 |
M30X1.5 |
24X2.4 |
14 |
38 |
63 |
36 |
41 |
PN400 |
|
6E-36 |
M36X2 |
30X3.1 |
16 |
42 |
71 |
41 |
46 |
PN400 |
|
6E-39 |
M39X2 |
32X3.1 |
18 |
44 |
75 |
46 |
50 |
PN250 |
|
6E-42 |
M42X2 |
35X3.1 |
20 |
46 |
81 |
50 |
50 |
PN250 |
|
6E-45 |
M45X2 |
38X3.1 |
21 |
46 |
81 |
55 |
55 |
PN250 |
|
6E-52 |
M52X2 |
40X3.1 |
22 |
49 |
86 |
60 |
65 |
PN250 |
|
Note: 1. The parameter of O-ring is ring outside diameter and ring width. 2. PN = Nominal Pressure |
||||||||
| Forma | Straight |
|---|---|
| Tipo de hilo | Male |
| Connection Type | Metric |
| Tipo de montaje | Face Seal |
