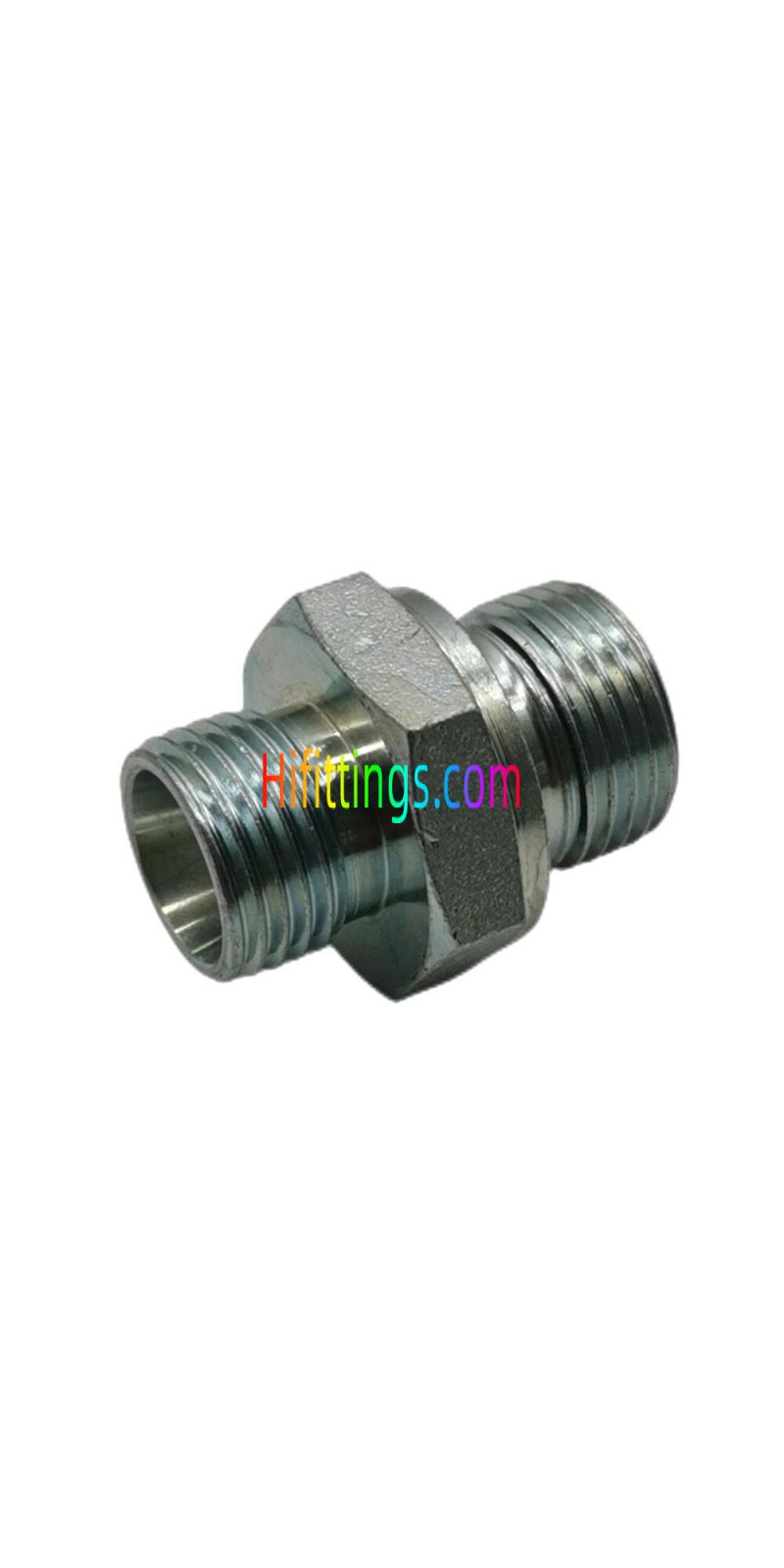

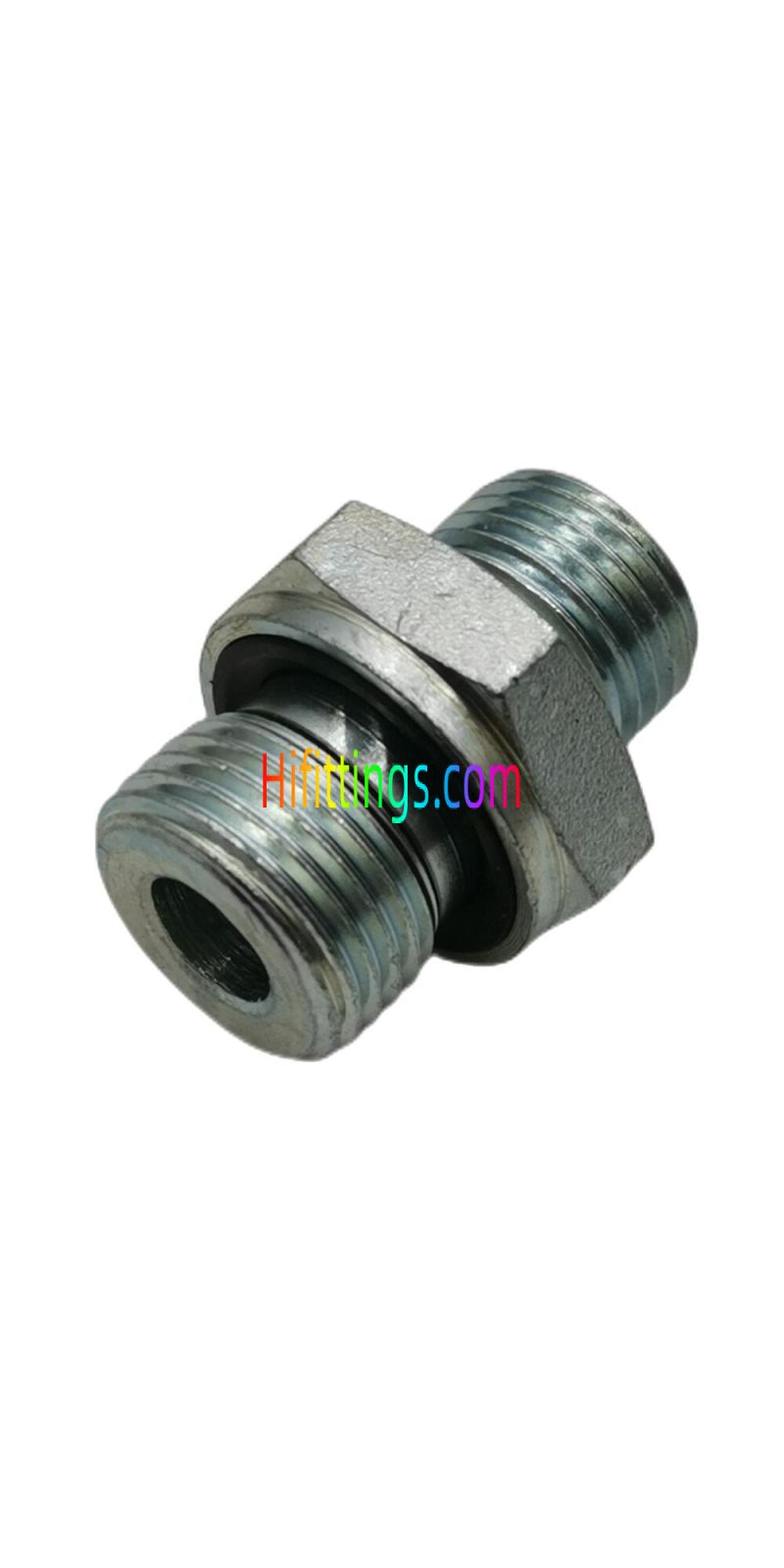

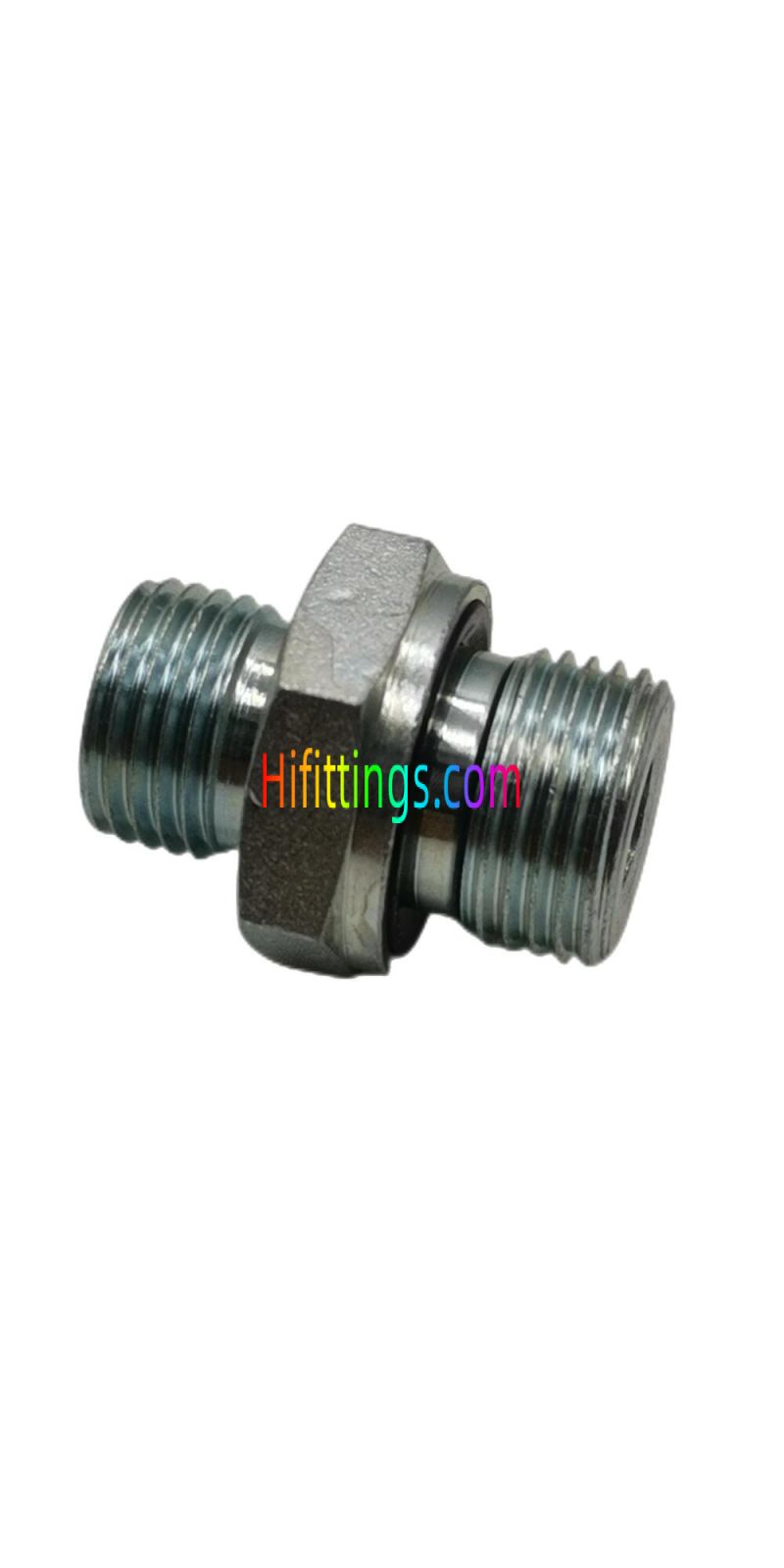

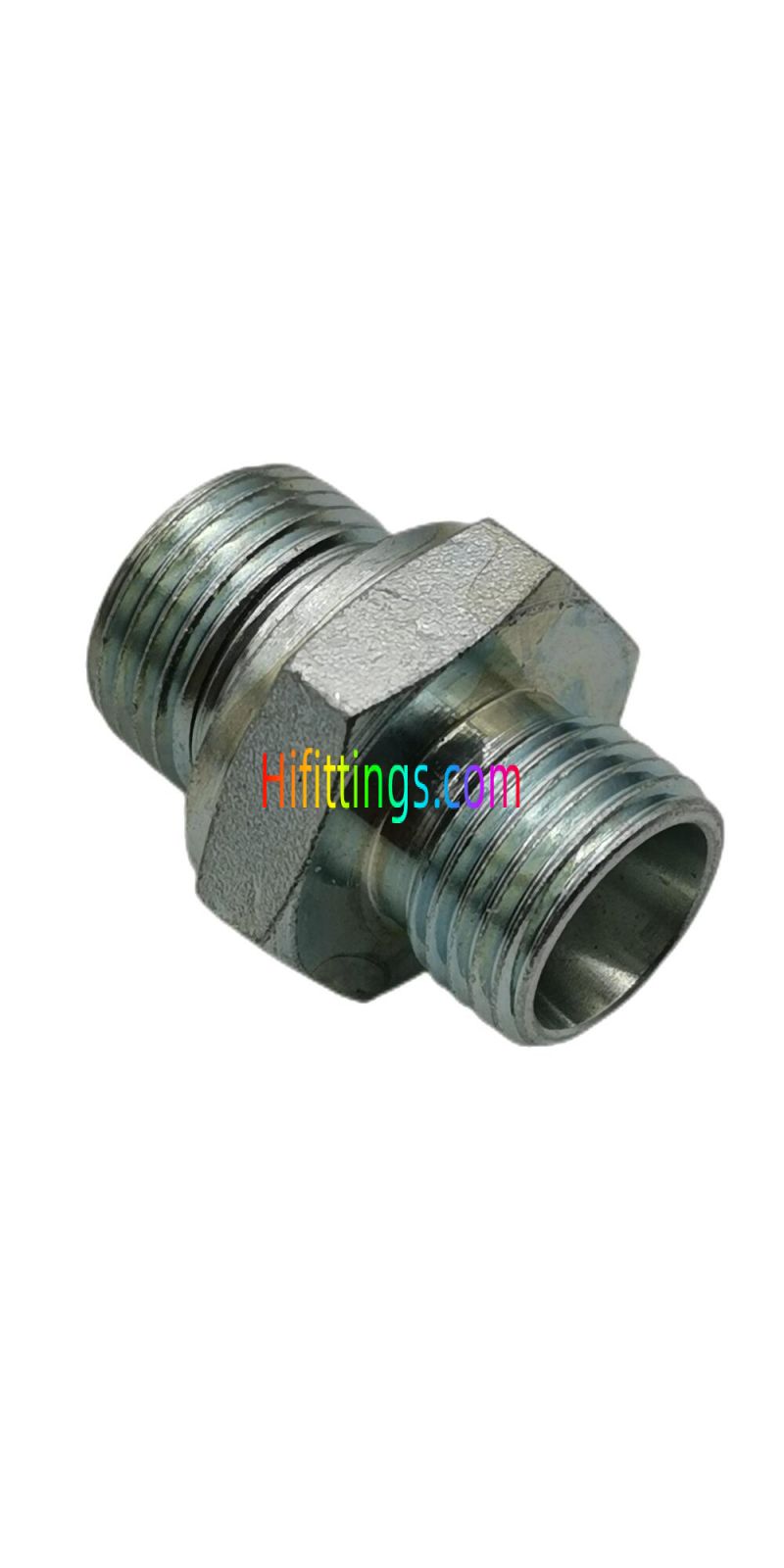

Straight Metric Male With Captive Seal Bite Type Hydraulic Adapter Pipe Fittings 1CM-WD/1DM-WD
|
Part NO. |
E |
F |
D1 |
SEAL |
B |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1CM-12-10WD |
M12X1.5 |
M10X1 |
6 |
WD-B02 |
8 |
8.5 |
23 |
14 |
14 |
PN315 |
|
1CM-14-12WD |
M14X1.5 |
M12X1.5 |
8 |
WD-M12 |
12 |
10 |
25 |
17 |
17 |
PN315 |
|
1CM-16-12WD |
M16X1.5 |
M12X1.5 |
10 |
WD-M12 |
12 |
11 |
25 |
17 |
19 |
PN315 |
|
1CM-16-14WD |
M16X1.5 |
M14X1.5 |
10 |
WD-B04 |
12 |
11 |
26 |
19 |
19 |
PN315 |
|
1CM-16-18WD |
M16X1.5 |
M18X1.5 |
10 |
WD-M18 |
12 |
12.5 |
27 |
24 |
19 |
PN315 |
|
1CM-18-16WD |
M18X1.5 |
M16X1.5 |
12 |
WD-M16 |
12 |
12.5 |
27 |
22 |
22 |
PN315 |
|
1CM-18WD |
M18X1.5 |
M18X1.5 |
12 |
WD-M18 |
12 |
12.5 |
27 |
24 |
22 |
PN315 |
|
1CM-18-22WD |
M18X1.5 |
M22X1.5 |
12 |
WD-M22 |
14 |
14 |
29 |
27 |
22 |
PN315 |
|
1CM-22-18WD |
M22X1.5 |
M18X1.5 |
15 |
WD-M18 |
12 |
13.5 |
29 |
24 |
27 |
PN315 |
|
1CM-22WD |
M22X1.5 |
M22X1.5 |
15 |
WD-M22 |
14 |
15 |
30 |
27 |
27 |
PN315 |
|
1CM-26-22WD |
M26X1.5 |
M22X1.5 |
18 |
WD-M22 |
14 |
14.5 |
31 |
27 |
32 |
PN315 |
|
1CM-30-26WD |
M30X2 |
M26X1.5 |
22 |
WD-B12 |
16 |
16.5 |
33 |
32 |
36 |
PN160 |
|
1CM-30-27WD |
M30X2 |
M27X2 |
22 |
WD-B12 |
16 |
16.5 |
33 |
32 |
36 |
PN160 |
|
1CM-36-33WD |
M36X2 |
M33X2 |
28 |
WD-B16 |
18 |
17.5 |
34 |
41 |
41 |
PN160 |
|
1CM-45-42WD |
M45X2 |
M42X2 |
35 |
WD-B20 |
20 |
17.5 |
39 |
50 |
50 |
PN160 |
|
1CM-52-48WD |
M52X2 |
M48X2 |
42 |
WD-B24 |
22 |
19 |
42 |
55 |
60 |
PN160 |
|
1DM-14-12WD |
M14X1.5 |
M12X1.5 |
6 |
WD-M12 |
12 |
13 |
28 |
17 |
17 |
PN630 |
|
1DM-16-14WD |
M16X1.5 |
M14X1.5 |
8 |
WD-B04 |
12 |
15 |
30 |
19 |
19 |
PN630 |
|
1DM-18-16WD |
M18X1.5 |
M16X1.5 |
10 |
WD-M16 |
12 |
15 |
31 |
22 |
22 |
PN630 |
|
1DM-20-18WD |
M20X1.5 |
M18X1.5 |
12 |
WD-M18 |
12 |
17 |
33 |
24 |
24 |
PN630 |
|
1DM-22-20WD |
M22X1.5 |
M20X1.5 |
14 |
WD-M20 |
14 |
19 |
37 |
27 |
27 |
PN630 |
|
1DM-24-22WD |
M24X1.5 |
M22X1.5 |
16 |
WD-M22 |
14 |
18.5 |
37 |
27 |
30 |
PN400 |
|
1DM-30-27WD |
M30X2 |
M27X2 |
20 |
WD-B12 |
16 |
20.5 |
42 |
32 |
36 |
PN400 |
|
1DM-36-33WD |
M36X2 |
M33X2 |
25 |
WD-B16 |
18 |
23 |
47 |
41 |
46 |
PN400 |
|
1DM-42WD |
M42X2 |
M42X2 |
30 |
WD-B20 |
20 |
23.5 |
50 |
50 |
50 |
PN400 |
|
1DM-52-48WD |
M52X2 |
M48X2 |
38 |
WD-B24 |
22 |
26 |
57 |
55 |
60 |
PN315 |
|

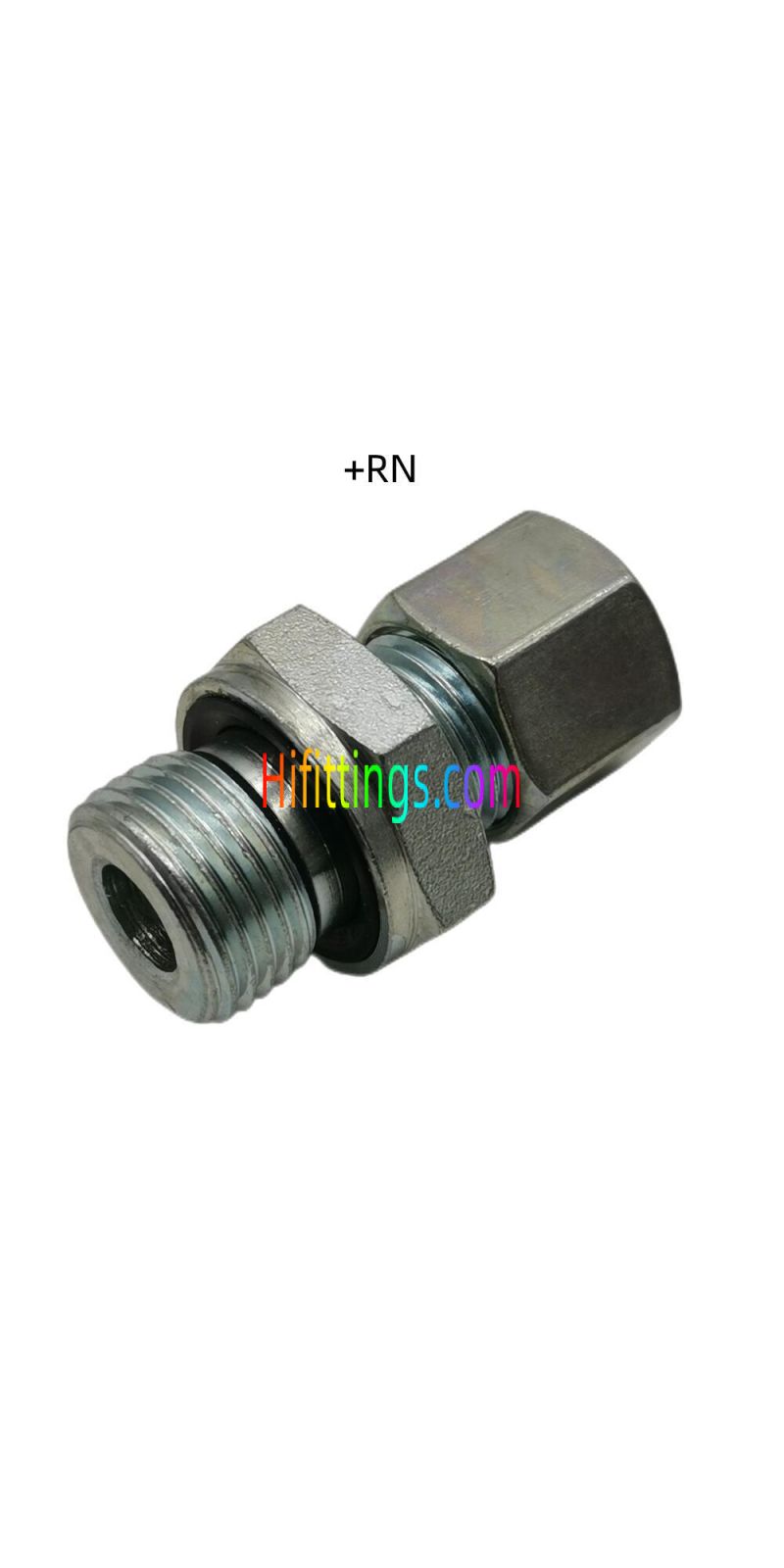

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DM-20-18WD/RN. 2. PN = Nominal Pressure |
||||||||||
| Forma | Straight |
|---|---|
| Tipo de hilo | Male |
| Connection Type | Metric |
| Tipo de montaje | Bite Type |
