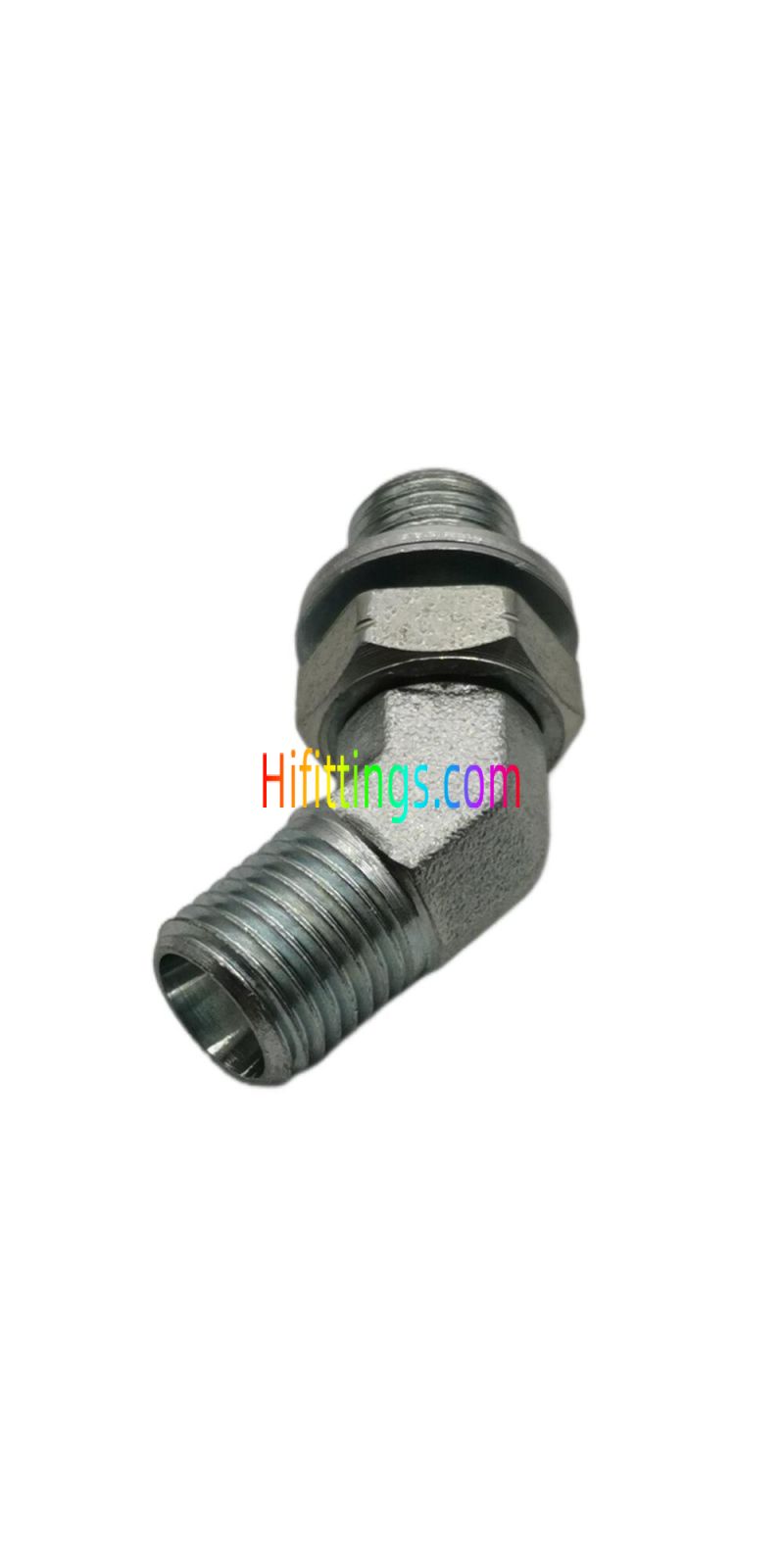

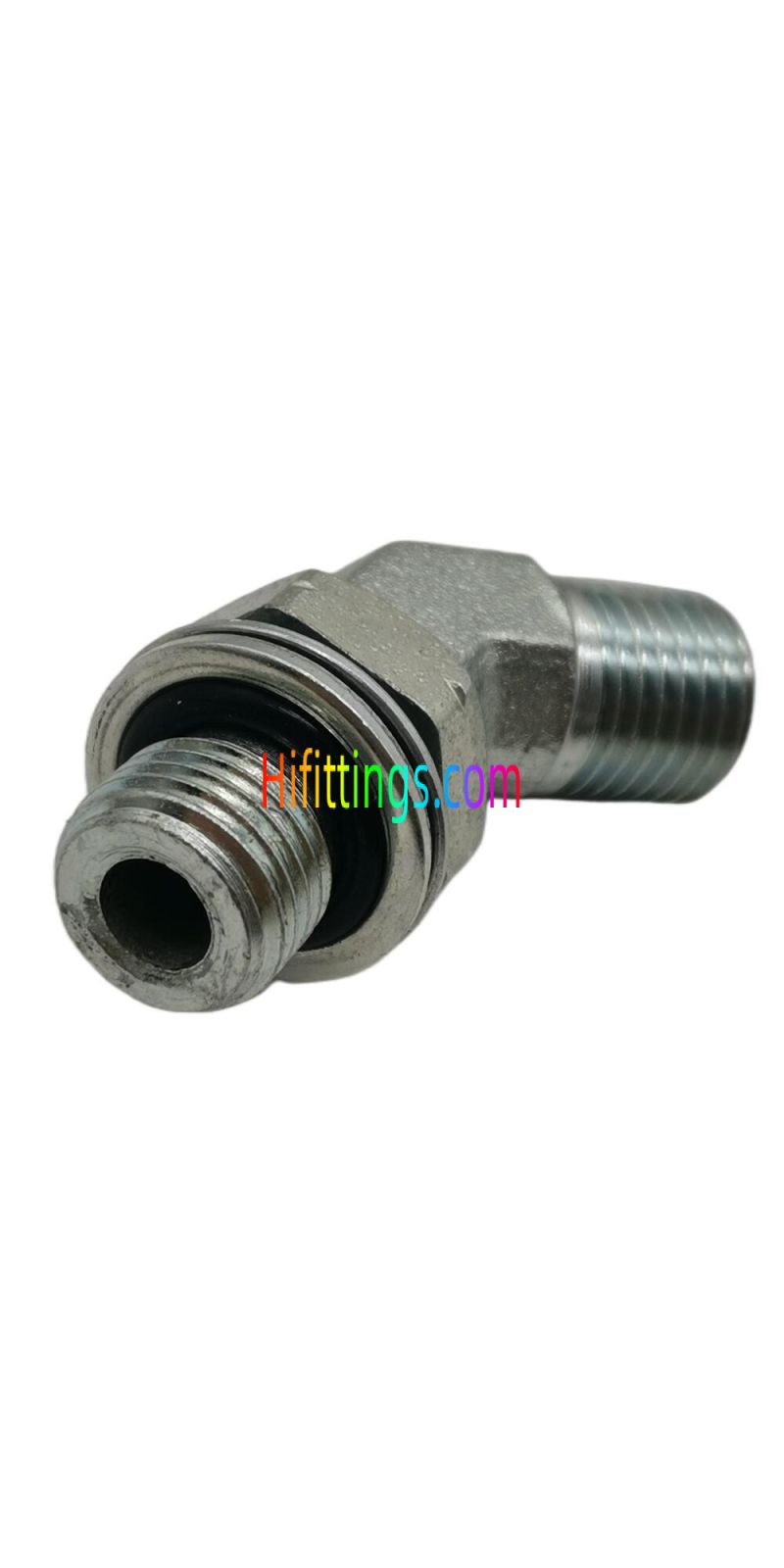

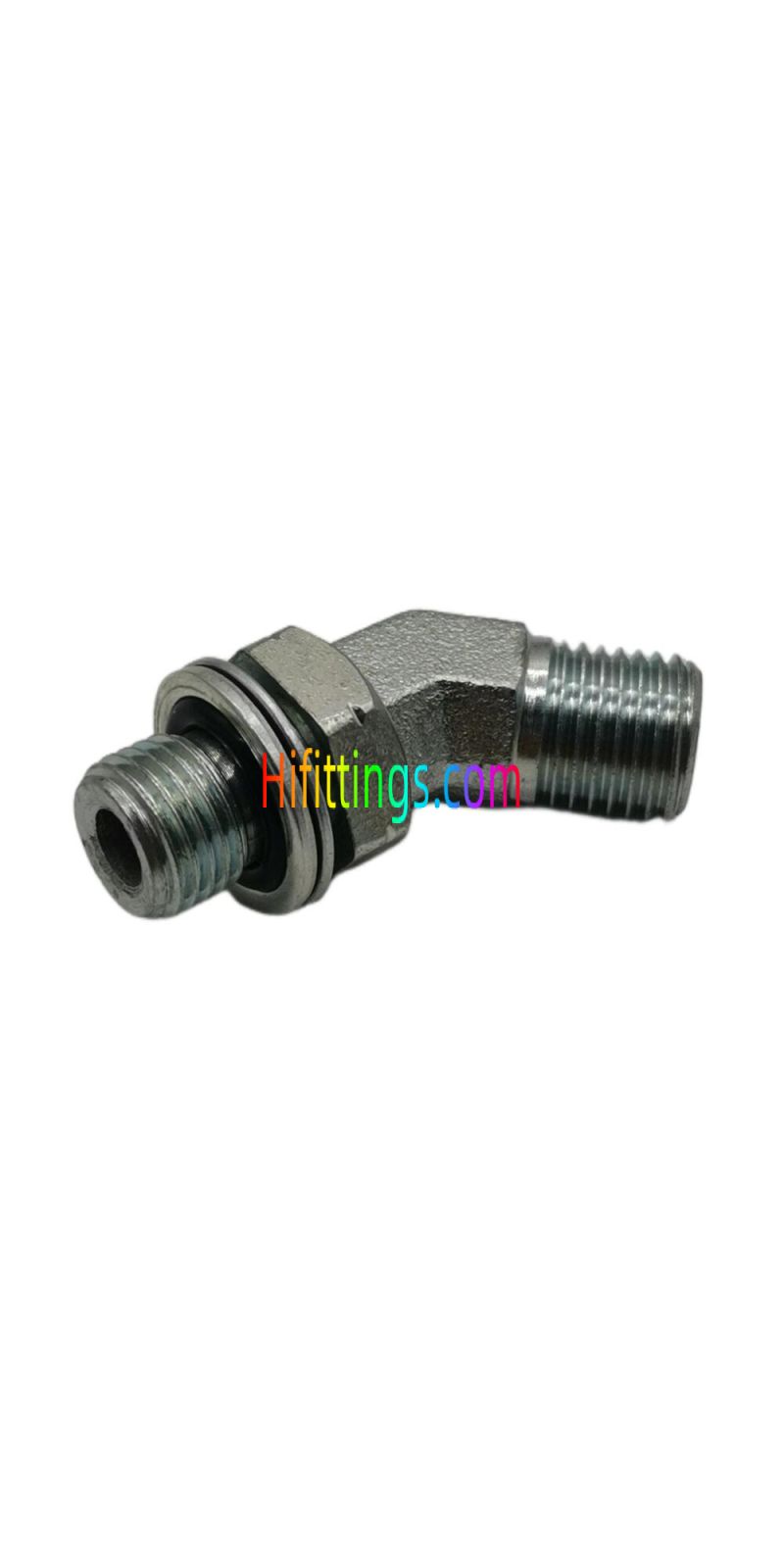

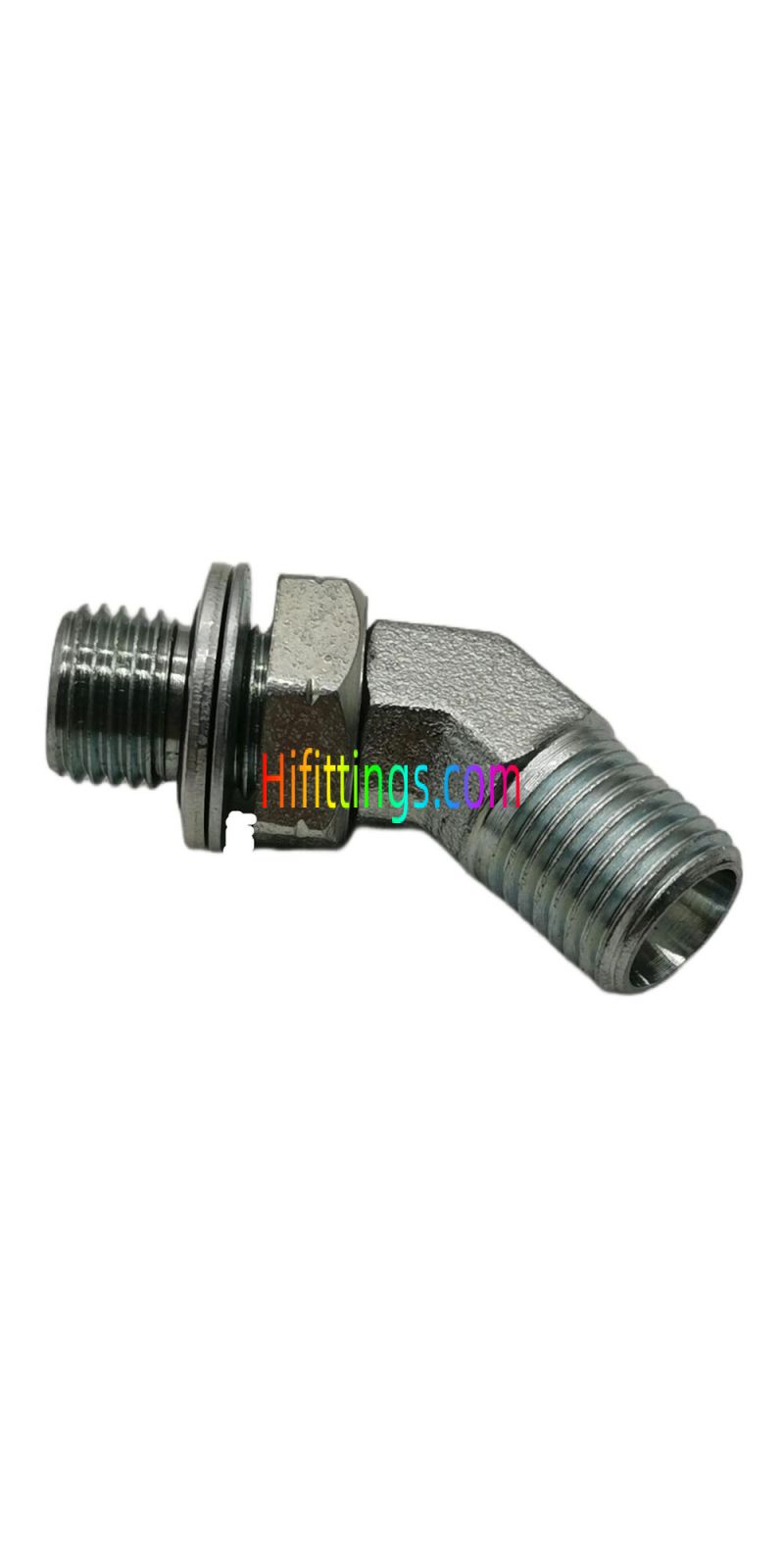

45 Degree Elbow BSP Male Adjustable Stud Ends With O-Ring Sealing / Metric Male DIN Bite Type High Pressure Hydraulic Adapter Pipe Fittings 1CG4-OG/1DG4-OG
|
Part NO. |
E |
F |
D1 |
11 |
L1 |
L2 |
S1 |
S2 |
S3 |
Working Pressure bar |
|
1CG4-12-02OG |
M12X1.5 |
G1/8"X28 |
6 |
10 |
25 |
24 |
11 |
14 |
14 |
PN315 |
|
1CG4-14-04OG |
M14X1.5 |
G1/4"X19 |
8 |
11 |
26 |
27 |
14 |
17 |
19 |
PN315 |
|
1CG4-16-04OG |
M16X1.5 |
G1/4"X19 |
10 |
12.3 |
27.3 |
27 |
16 |
19 |
19 |
PN315 |
|
1CG4-16-06OG |
M16X1.5 |
G3/8"X19 |
10 |
12.3 |
27.3 |
30 |
16 |
19 |
22 |
PN315 |
|
1CG4-18-06OG |
M18X1.5 |
G3/8"X19 |
12 |
13 |
28 |
31 |
19 |
22 |
22 |
PN315 |
|
1CG4-22-08OG |
M22X1.5 |
G1/2"X14 |
15 |
15 |
30 |
36 |
22 |
27 |
27 |
PN315 |
|
1CG4-26-08OG |
M26X1.5 |
G1/2"X14 |
18 |
16.5 |
33 |
37.5 |
27 |
32 |
27 |
PN315 |
|
1CG4-26-12OG |
M26X1.5 |
G3/4"X14 |
18 |
16.5 |
33 |
42 |
27 |
32 |
32 |
PN315 |
|
1CG4-30-12OG |
M30X2 |
G3/4"X14 |
22 |
19.7 |
36.2 |
42.5 |
30 |
36 |
32 |
PN160 |
|
1CG4-36-16OG |
M36X2 |
G1"X11 |
28 |
21.5 |
38 |
44.5 |
36 |
41 |
41 |
PN160 |
|
1CG4-45-20OG |
M45X2 |
G1.1/4"X11 |
35 |
25.5 |
47 |
50.5 |
48 |
50 |
50 |
PN160 |
|
1DG4-14-04OG |
M14X1.5 |
G1/4"X19 |
6 |
13 |
28 |
27 |
14 |
17 |
19 |
PN630 |
|
1DG4-16-04OG |
M16X1.5 |
G1/4"X19 |
8 |
13.3 |
28.3 |
27 |
16 |
19 |
19 |
PN630 |
|
1DG4-18-06OG |
M18X1.5 |
G3/8"X19 |
10 |
13.5 |
30 |
31 |
19 |
22 |
22 |
PN630 |
|
1DG4-20-060G |
M20X1.5 |
G3/8"X19 |
12 |
13.5 |
30 |
31 |
19 |
24 |
22 |
PN630 |
|
1DG4-22-08OG |
M22X1.5 |
G1/2"X14 |
14 |
16.3 |
34.3 |
36 |
22 |
27 |
27 |
PN630 |
|
1DG4-24-08OG |
M24X1.5 |
G1/2"X14 |
16 |
16.2 |
34.7 |
36.5 |
24 |
30 |
27 |
PN400 |
|
1DG4-30-12OG |
M30X2 |
G3/4"X14 |
20 |
18.7 |
40.2 |
42.5 |
30 |
36 |
32 |
PN400 |
|
1DG4-36-16OG |
M36X2 |
G1"X11 |
25 |
21 |
45 |
44.5 |
36 |
46 |
41 |
PN400 |
|
1DG4-42-20OG |
M42X2 |
G1.1/4"X11 |
30 |
24.3 |
50.8 |
47.5 |
41 |
50 |
50 |
PN400 |
|

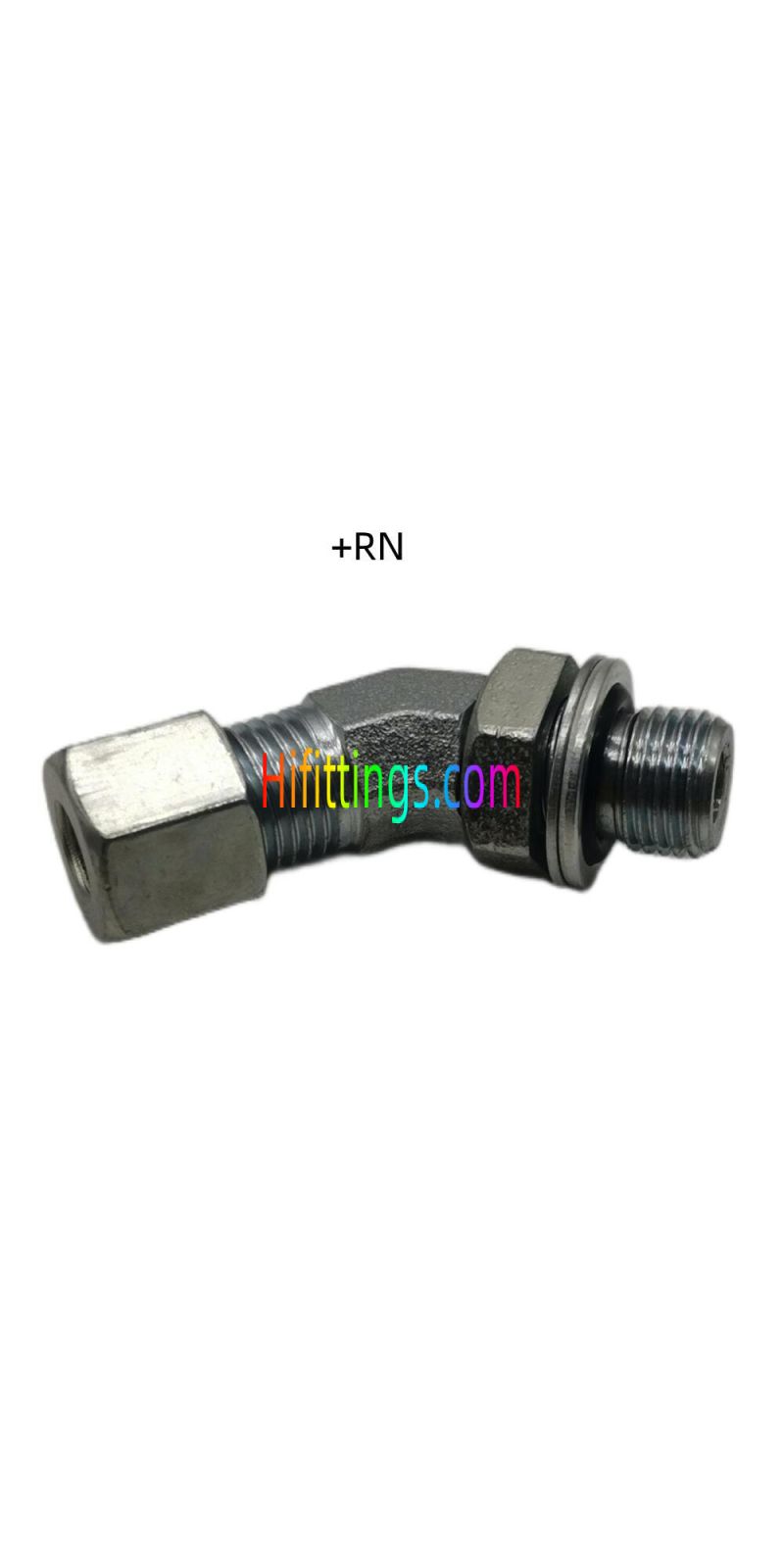

Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 1CG4-30-12OG/RN. 2. PN = Nominal Pressure |
||||||||||
