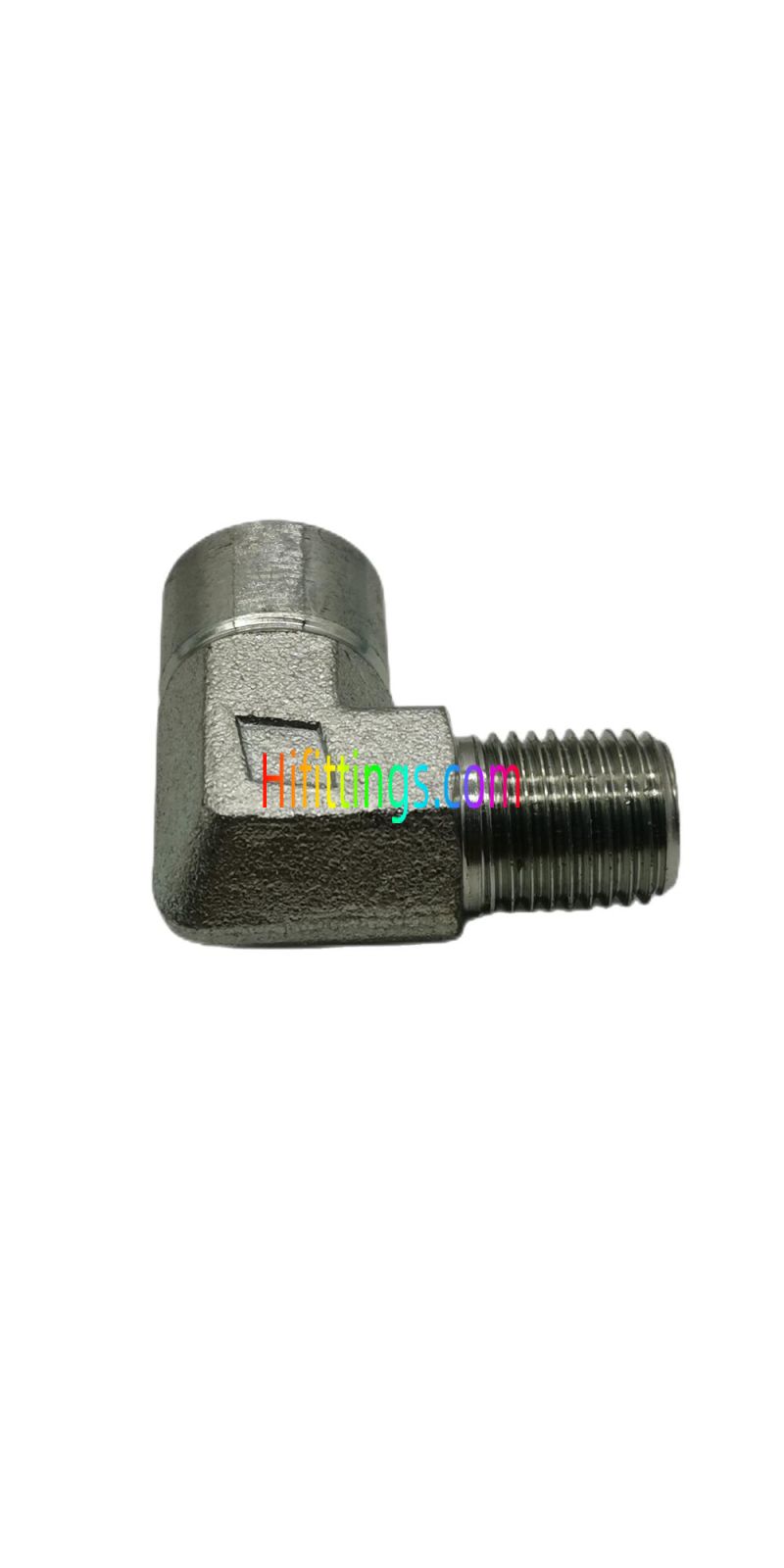

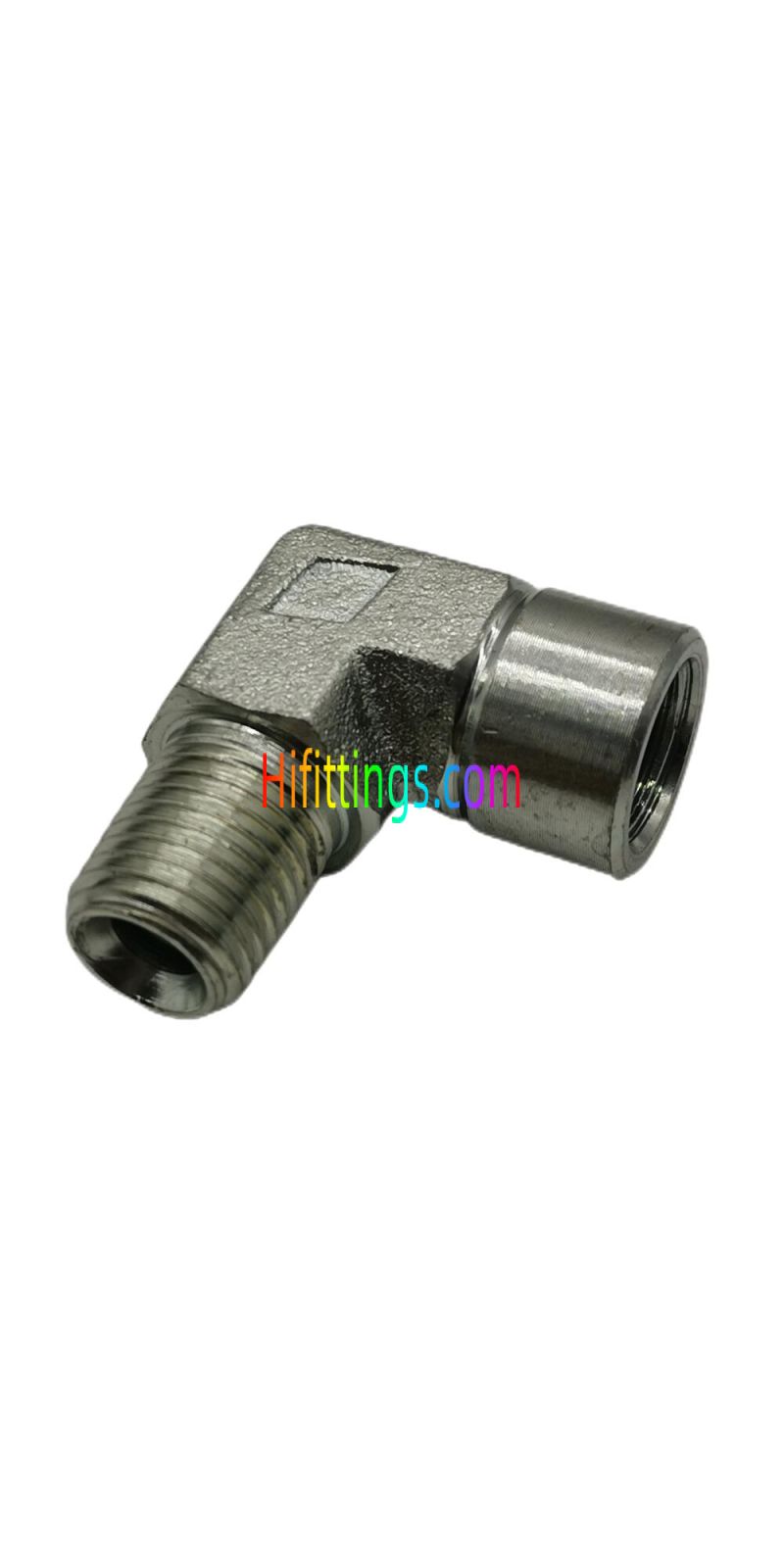

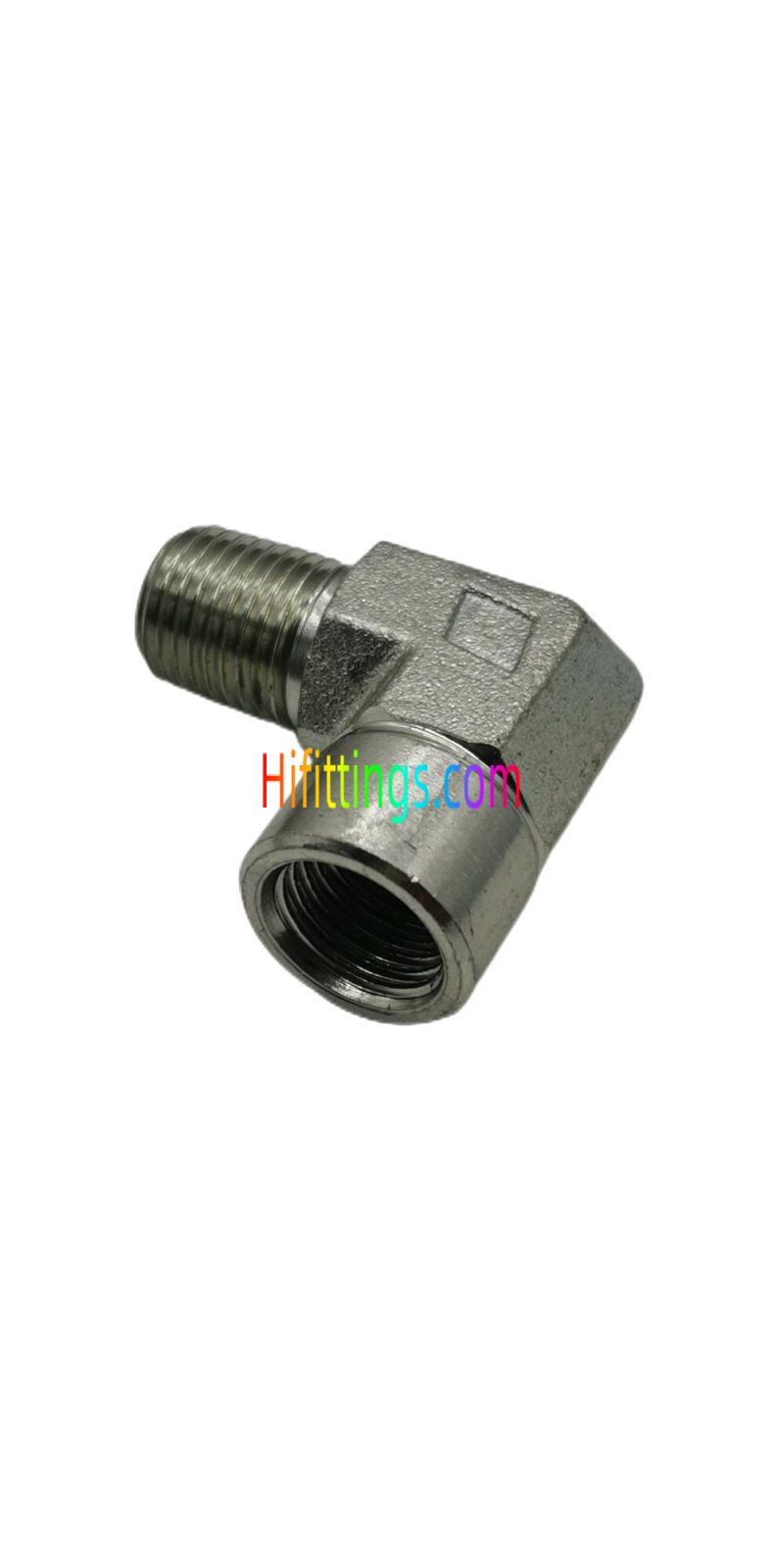

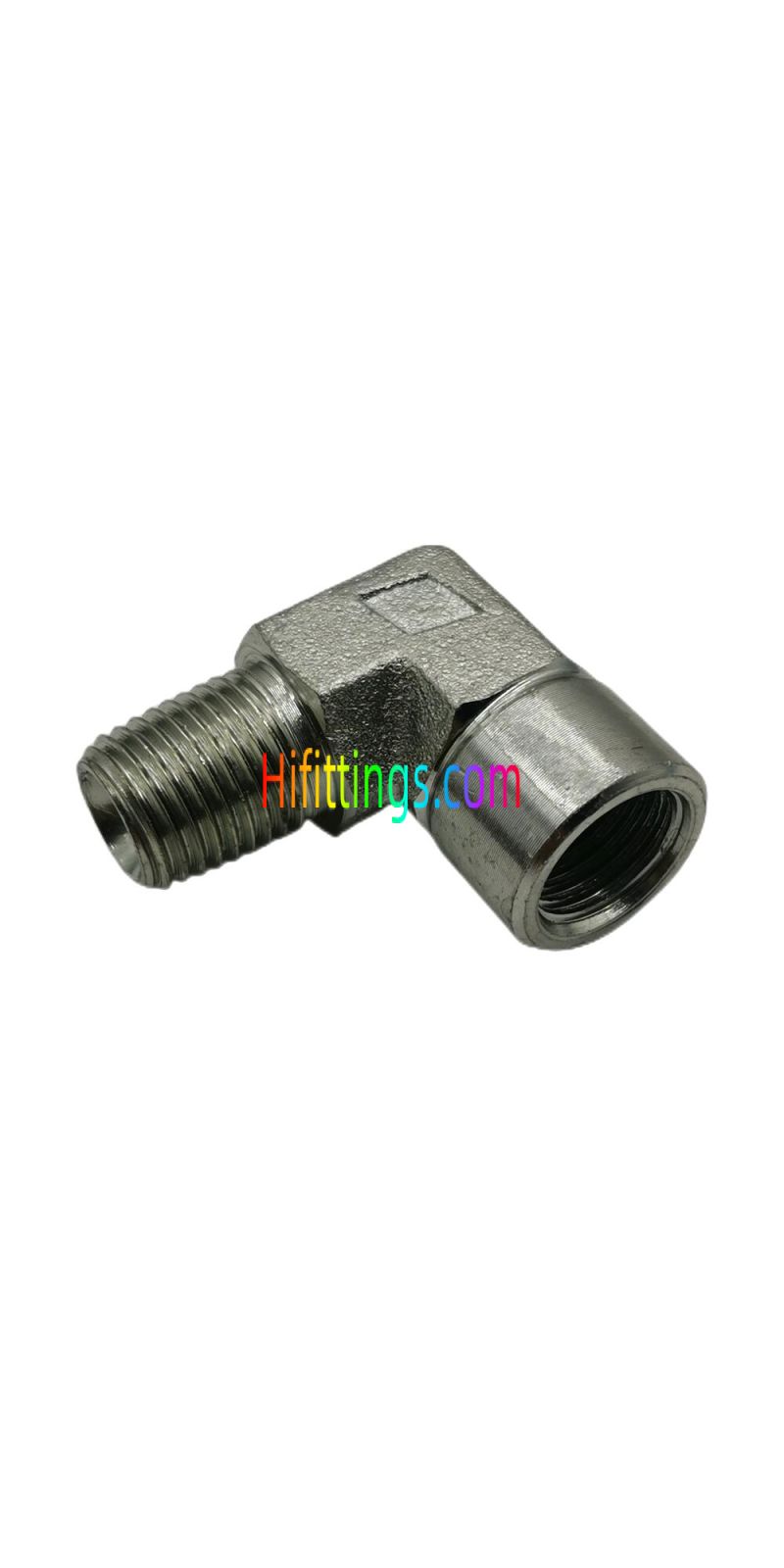

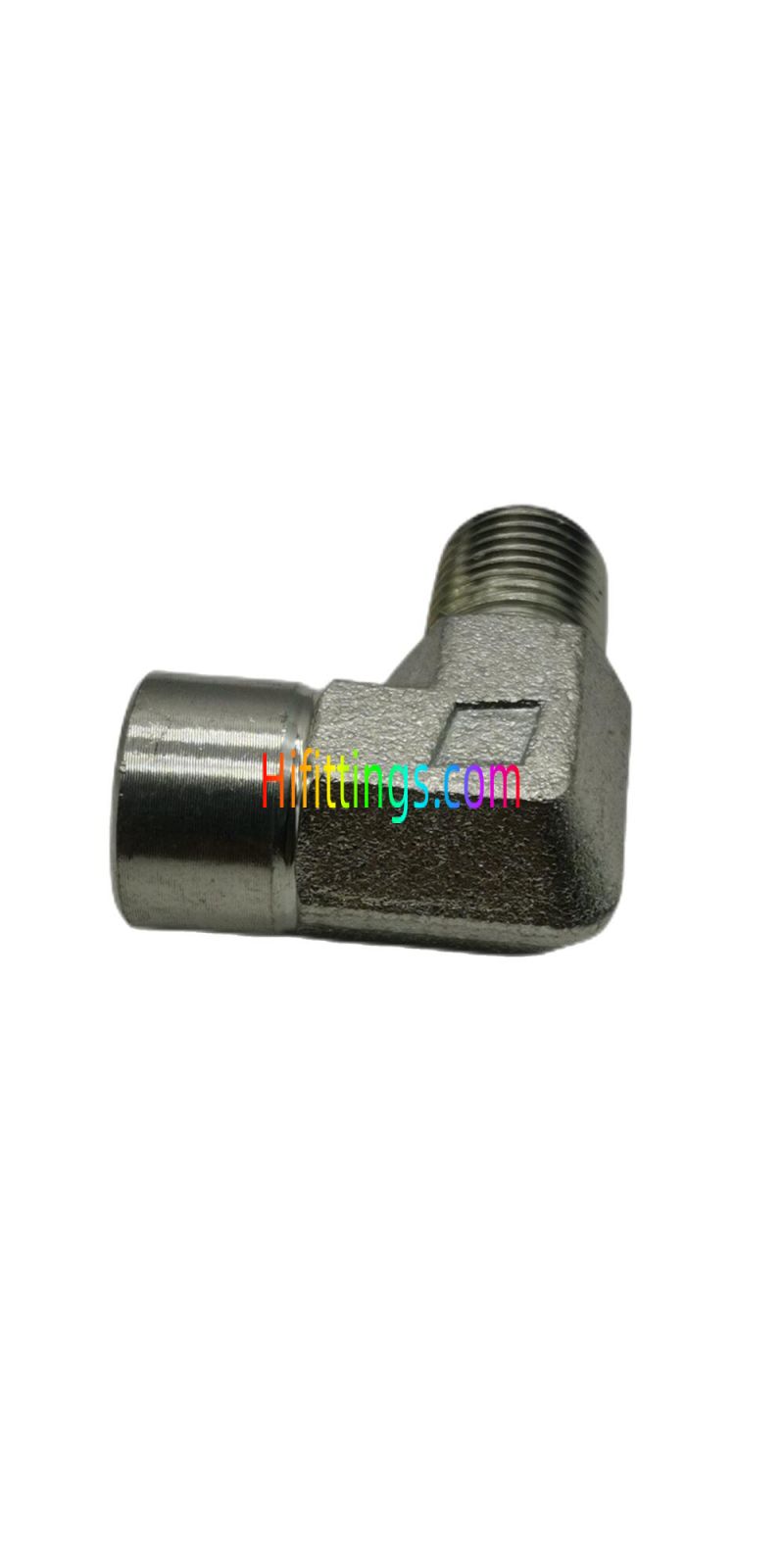

90° Elbow BSPT Male / BSPT Female Hydraulic Adapter Pipe Fittings 5T9-SP
|
Part NO. |
E |
F |
A |
B |
S1 |
Working Pressure bar |
|
5T9-02SP |
R1/8"X28 |
Rc1/8"X28 |
24.5 |
23 |
16 |
PN345 |
|
5T9-04SP |
R1/4"X19 |
Rc1/4"X19 |
28.5 |
25 |
19 |
PN345 |
|
5T9-06SP |
R3/8"X19 |
Rc3/8"X19 |
33.5 |
25 |
24 |
PN345 |
|
5T9-08SP |
R1/2"X14 |
Rc1/2"X14 |
40.8 |
31.5 |
30 |
PN345 |
|
5T9-12SP |
R3/4"X14 |
Rc3/4"X14 |
47.5 |
37 |
33 |
PN275 |
|
5T9-16SP |
R1"X11 |
Rc1"X11 |
56.5 |
43 |
41 |
PN205 |
|
5T9-20SP |
R1.1/4"X11 |
Rc1.1/4"X11 |
61 |
50 |
48 |
PN170 |
|
5T9-24SP |
R1.1/2"X11 |
Rc1.1/2"X11 |
75 |
55 |
63 |
PN105 |
|
Note:1.PN = Nominal Pressure |
||||||
| Forme | Elbow |
|---|---|
| Connection Type | BSPT |
| Type de fil | Male-Female |
| Type de montage | Pipe Thread |
