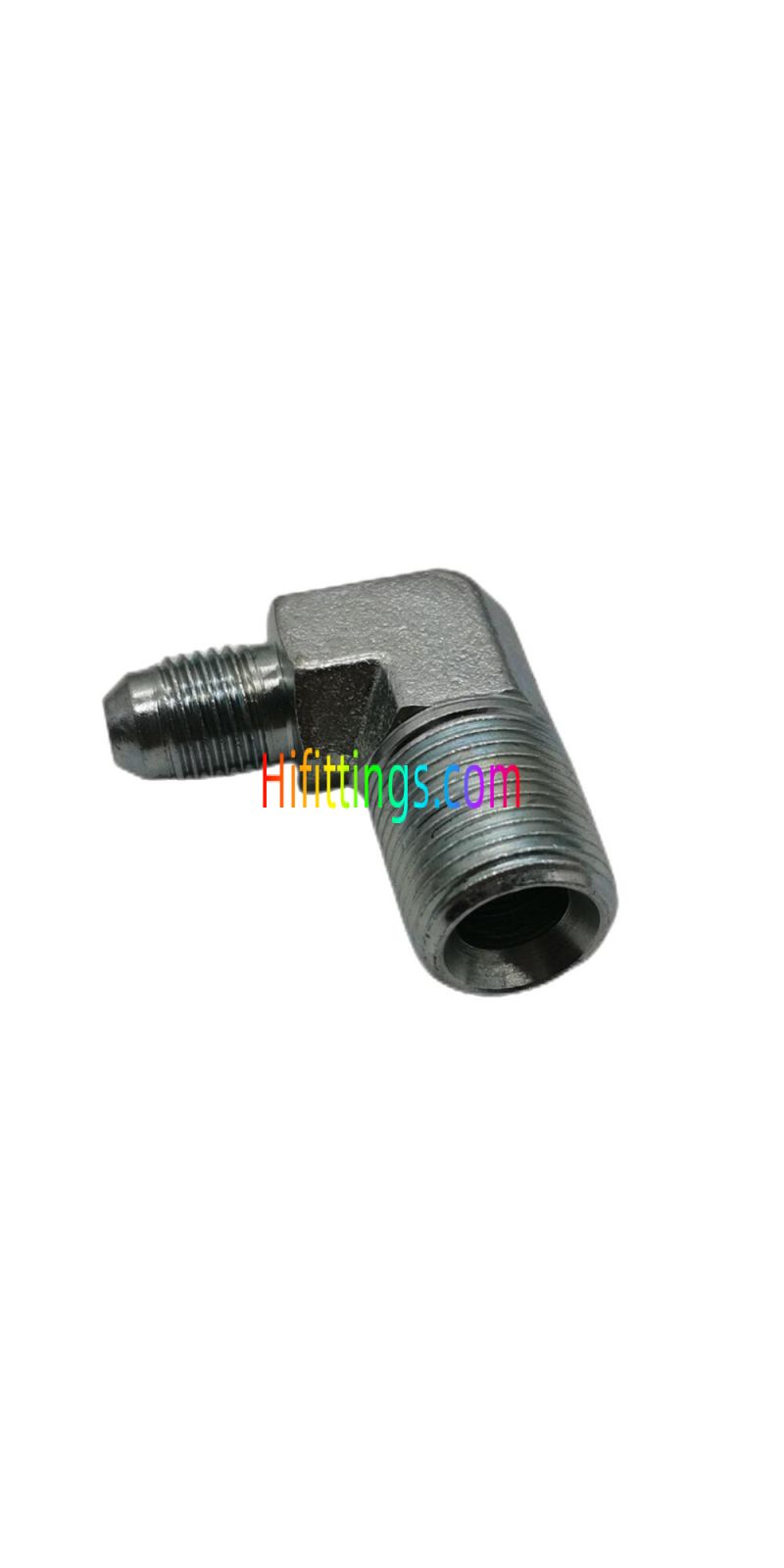

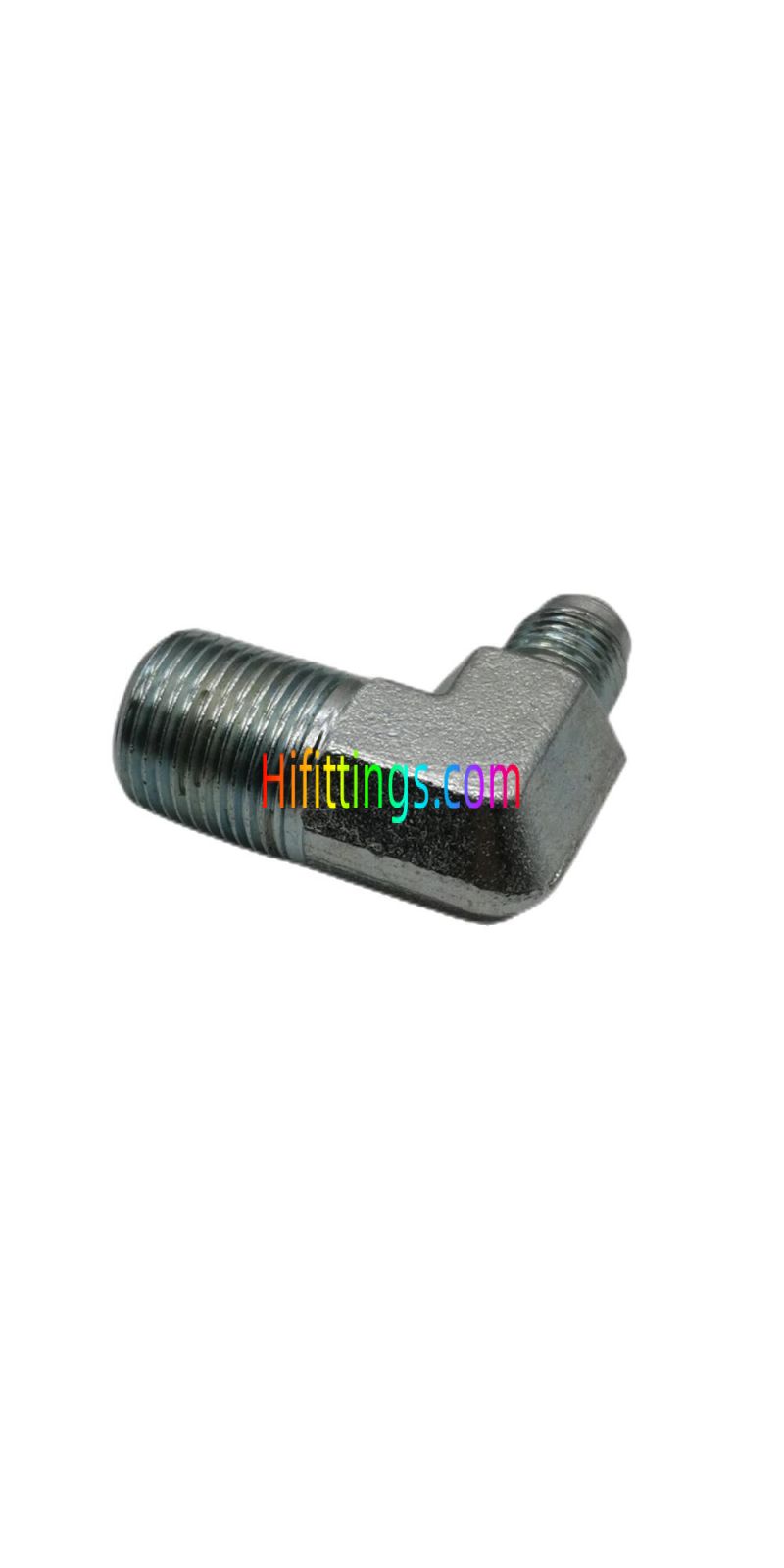

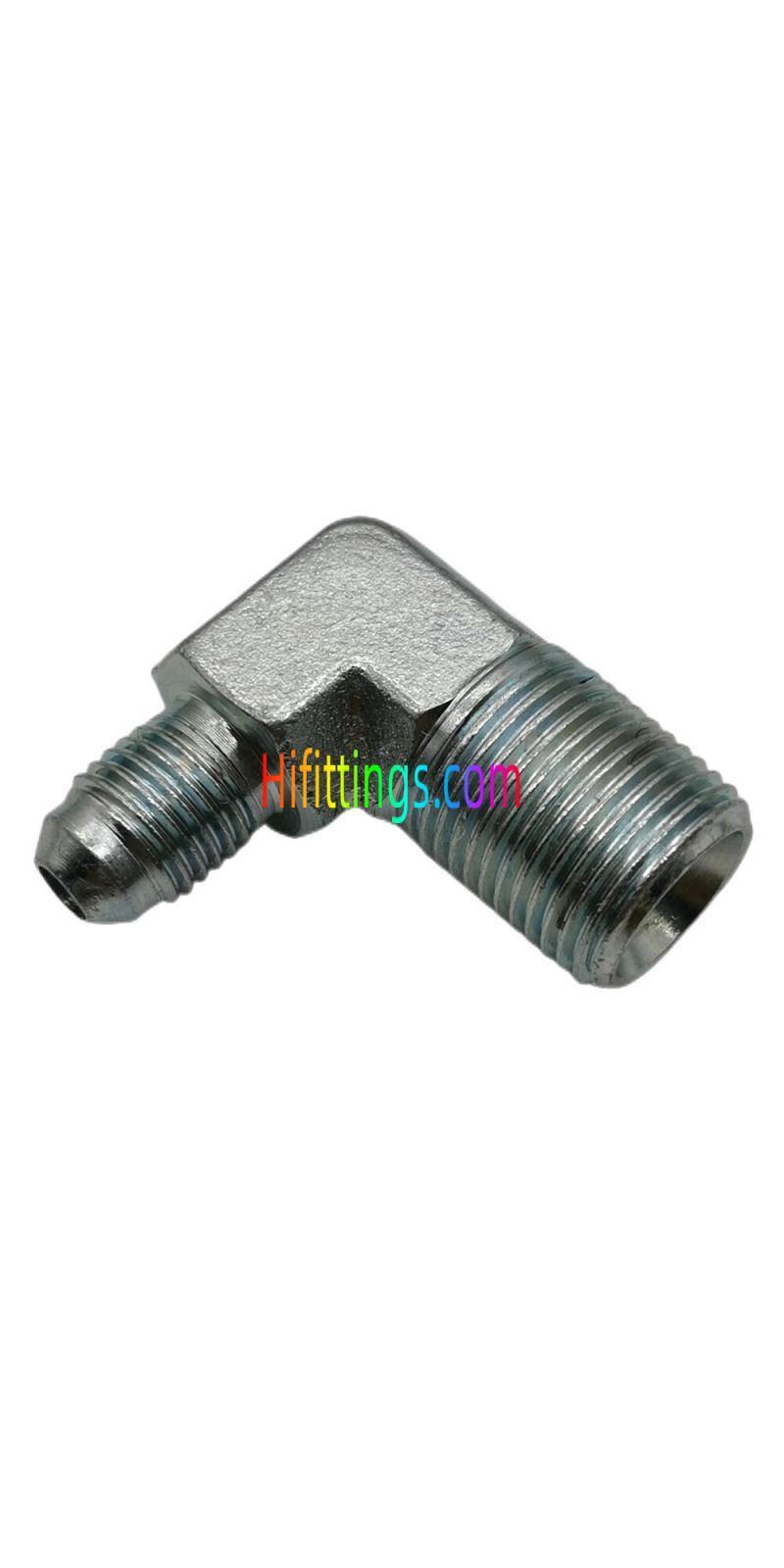

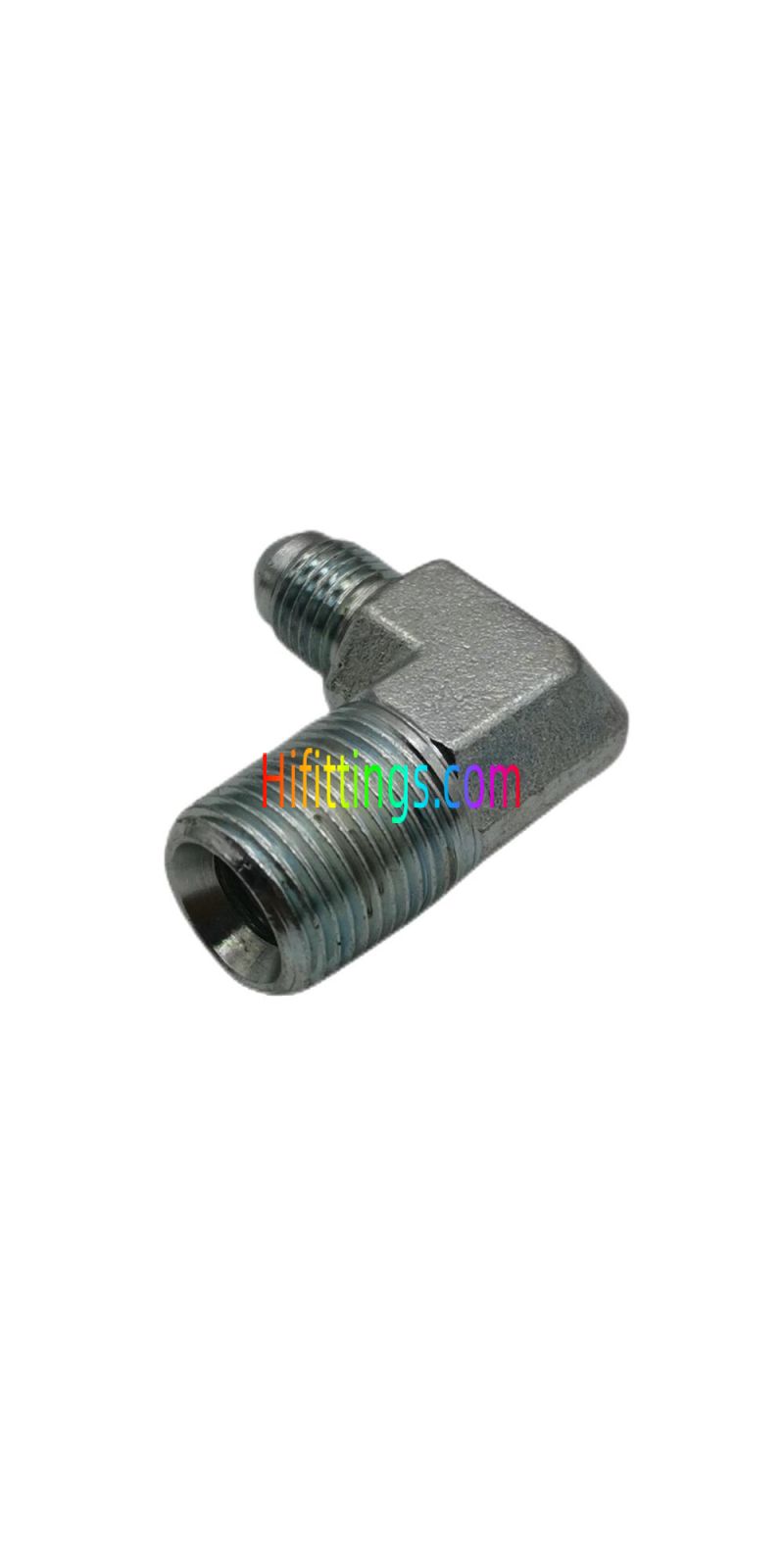

90° Elbow BSPT Male / JIC Male 74° Cone Flared Tube Fittings 1JT9-SP
|
Part NO. |
E |
F |
A |
B |
S1 |
Working Pressure bar |
|
1JT9-02SP |
5/16"X24 |
R1/8"X28 |
20.5 |
21 |
11 |
PN345 |
|
1JT9-04-02SP |
7/16"X20 |
R1/8"X28 |
24.5 |
21 |
11 |
PN345 |
|
1JT9-04SP |
7/16"X20 |
R1/4"X19 |
26.6 |
25.5 |
14 |
PN345 |
|
1JT9-04-06SP |
7/16"X20 |
R3/8"X19 |
27.5 |
28 |
16 |
PN345 |
|
1JT9-05-02SP |
1/2"X20 |
R1/8"X28 |
26.6 |
23.5 |
14 |
PN345 |
|
1JT9-05-04SP |
1/2"X20 |
R1/4"X19 |
26.6 |
25.5 |
14 |
PN345 |
|
1JT9-05-06SP |
1/2"X20 |
R3/8"X19 |
27.5 |
28 |
16 |
PN345 |
|
1JT9-06-02SP |
9/16"X18 |
R1/8"X28 |
26.9 |
23.5 |
14 |
PN345 |
|
1JT9-06-04SP |
9/16"X18 |
R1/4"X19 |
26.9 |
25.5 |
14 |
PN345 |
|
1JT9-06SP |
9/16"X18 |
R3/8"X19 |
28.5 |
28.5 |
16 |
PN345 |
|
1JT9-06-08SP |
9/16"X18 |
R1/2"X14 |
32 |
36 |
22 |
PN345 |
|
1JT9-08-04SP |
3/4"X16 |
R1/4"X19 |
32 |
28 |
19 |
PN310 |
|
1JT9-08-06SP |
3/4"X16 |
R3/8"X19 |
32 |
30.5 |
19 |
PN310 |
|
1JT9-08SP |
3/4"X16 |
R1/2"X14 |
34.8 |
36 |
22 |
PN310 |
|
1JT9-08-12SP |
3/4"X16 |
R3/4"X14 |
37.9 |
43.5 |
27 |
PN275 |
|
1JT9-10-06SP |
7/8"X14 |
R3/8"X19 |
38 |
32 |
22 |
PN240 |
|
1JT9-10-08SP |
7/8"X14 |
R1/2"X14 |
37.8 |
36 |
22 |
PN240 |
|
1JT9-10-12SP |
7/8"X14 |
R3/4"X14 |
41 |
43.5 |
27 |
PN240 |
|
1JT9-12-08SP |
1.1/16"X12 |
R1/2"X14 |
44.2 |
40 |
27 |
PN240 |
|
1JT9-12SP |
1.1/16"X12 |
R3/4"X14 |
44.2 |
43.5 |
27 |
PN240 |
|
1JT9-12-16SP |
1.1/16"X12 |
R1"X11 |
47.8 |
50 |
33 |
PN205 |
|
1JT9-16-12SP |
1.5/16"X12 |
R3/4"X14 |
49 |
47.5 |
33 |
PN210 |
|
1JT9-16SP |
1.5/16"X12 |
R1"X11 |
49 |
50 |
33 |
PN205 |
|
1JT9-16-20SP |
1.5/16"X12 |
R1.1/4"X11 |
54 |
56.5 |
41 |
PN170 |
|
1JT9-20-16SP |
1.5/8"X12 |
R1"X11 |
55.5 |
56.5 |
41 |
PN170 |
|
1JT9-20SP |
1.5/8"X12 |
R1.1/4"X11 |
55.5 |
56.5 |
41 |
PN170 |
|
1JT9-24-20SP |
1.7/8"X12 |
R1.1/4"X11 |
62.5 |
61 |
48 |
PN140 |
|
1JT9-24SP |
1.7/8"X12 |
R1.1/2"X11 |
62.5 |
62.5 |
48 |
PN105 |
|
1JT9-24-32SP |
1.7/8"X12 |
R2"X11 |
74.5 |
67 |
63 |
PN105 |
|
1JT9-32SP |
2.1/2"X12 |
R2"X11 |
75.4 |
67 |
63 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
||||||
| Forme | Elbow |
|---|---|
| Type de montage | Cone Flared |
| Type de fil | Male |
| Connection Type | BSPT, JIC |
