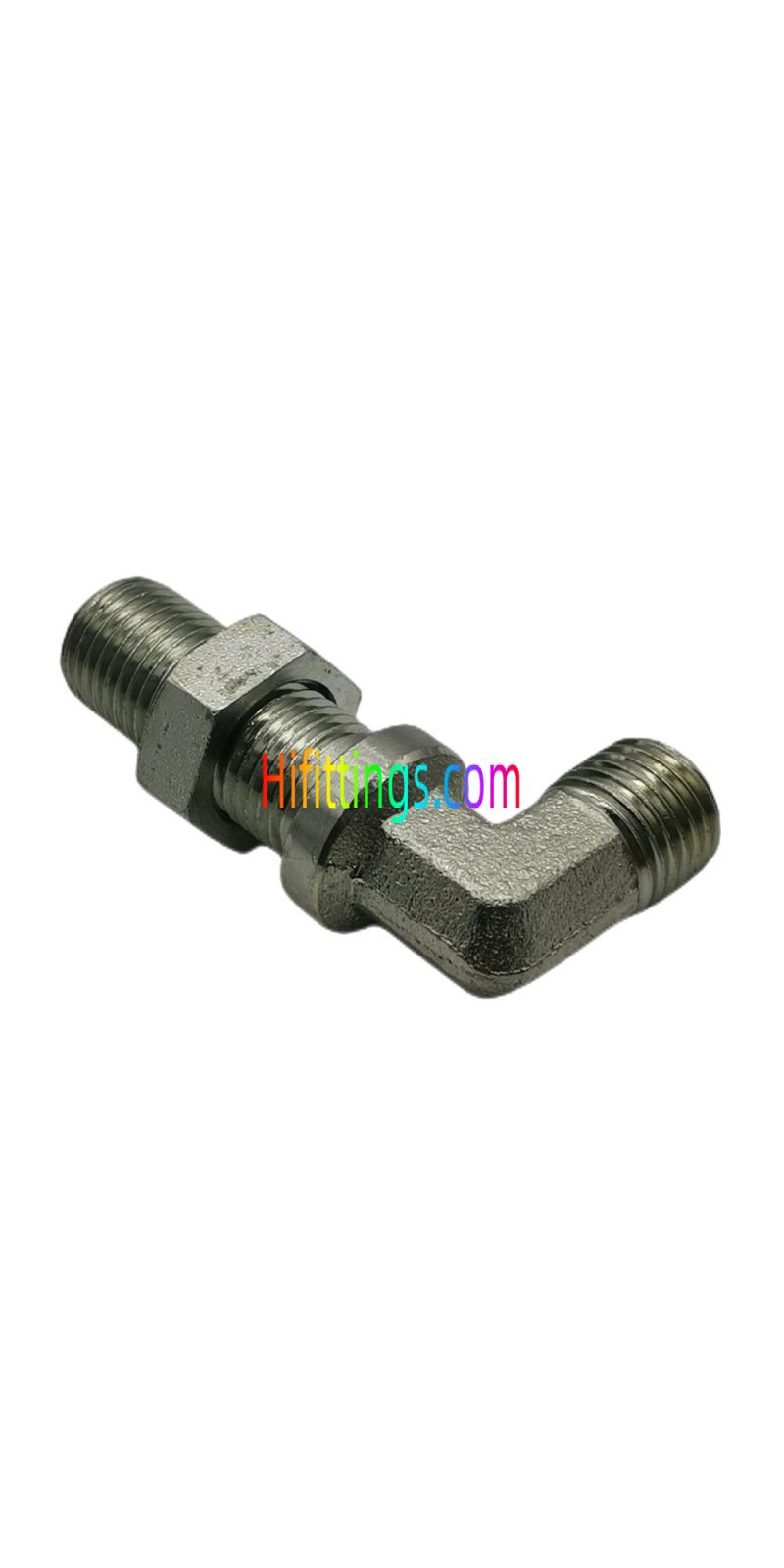

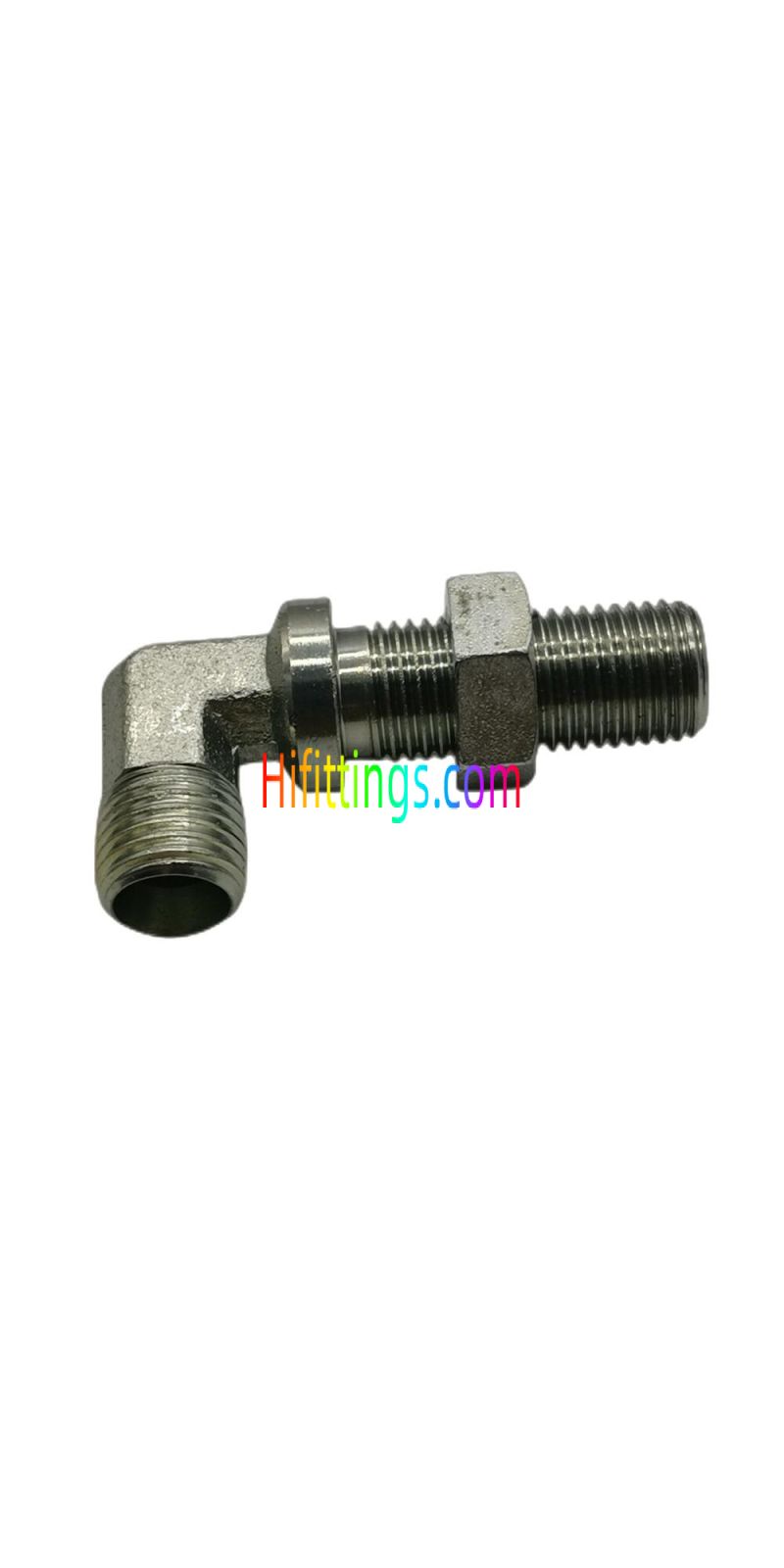

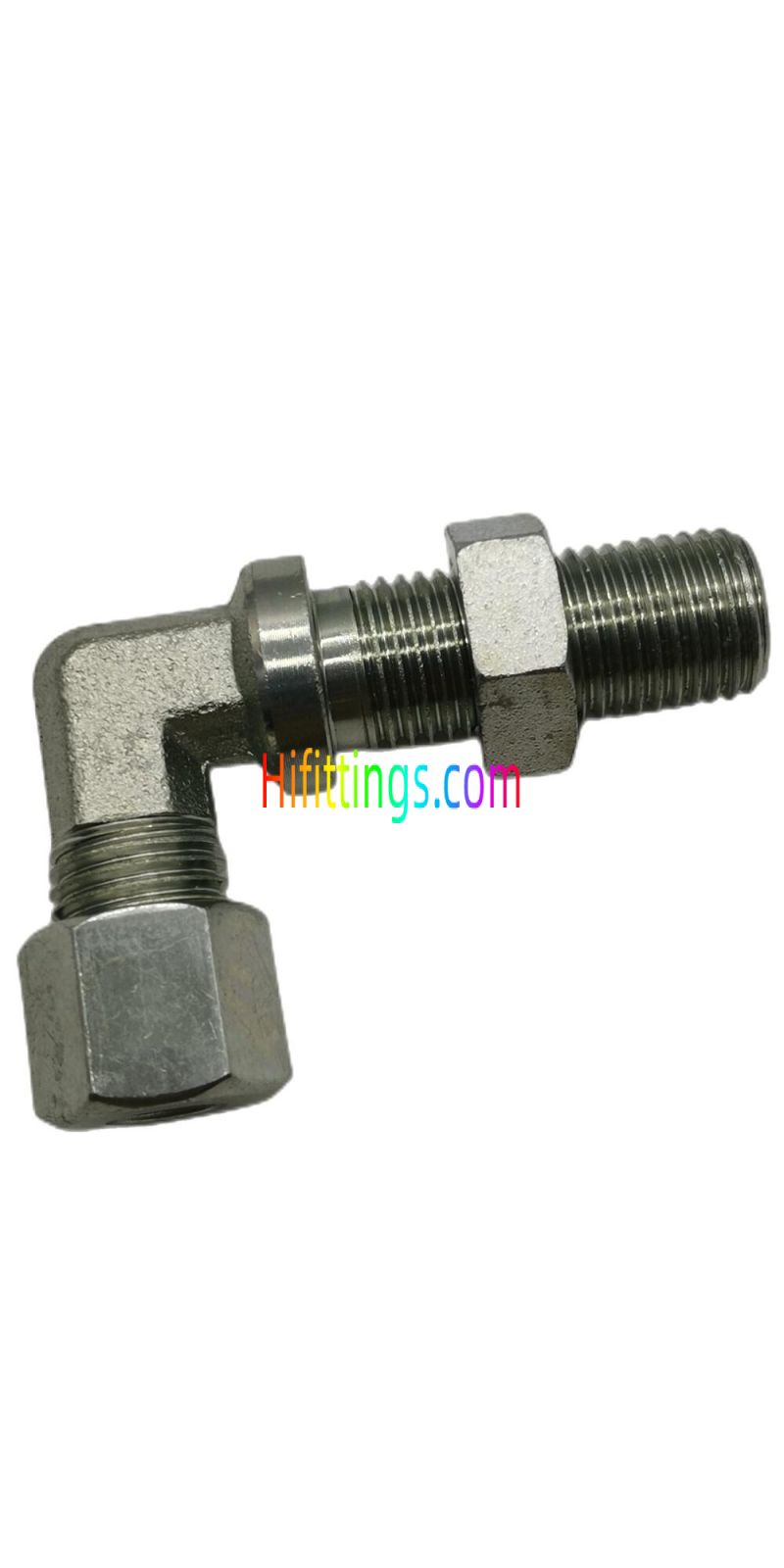

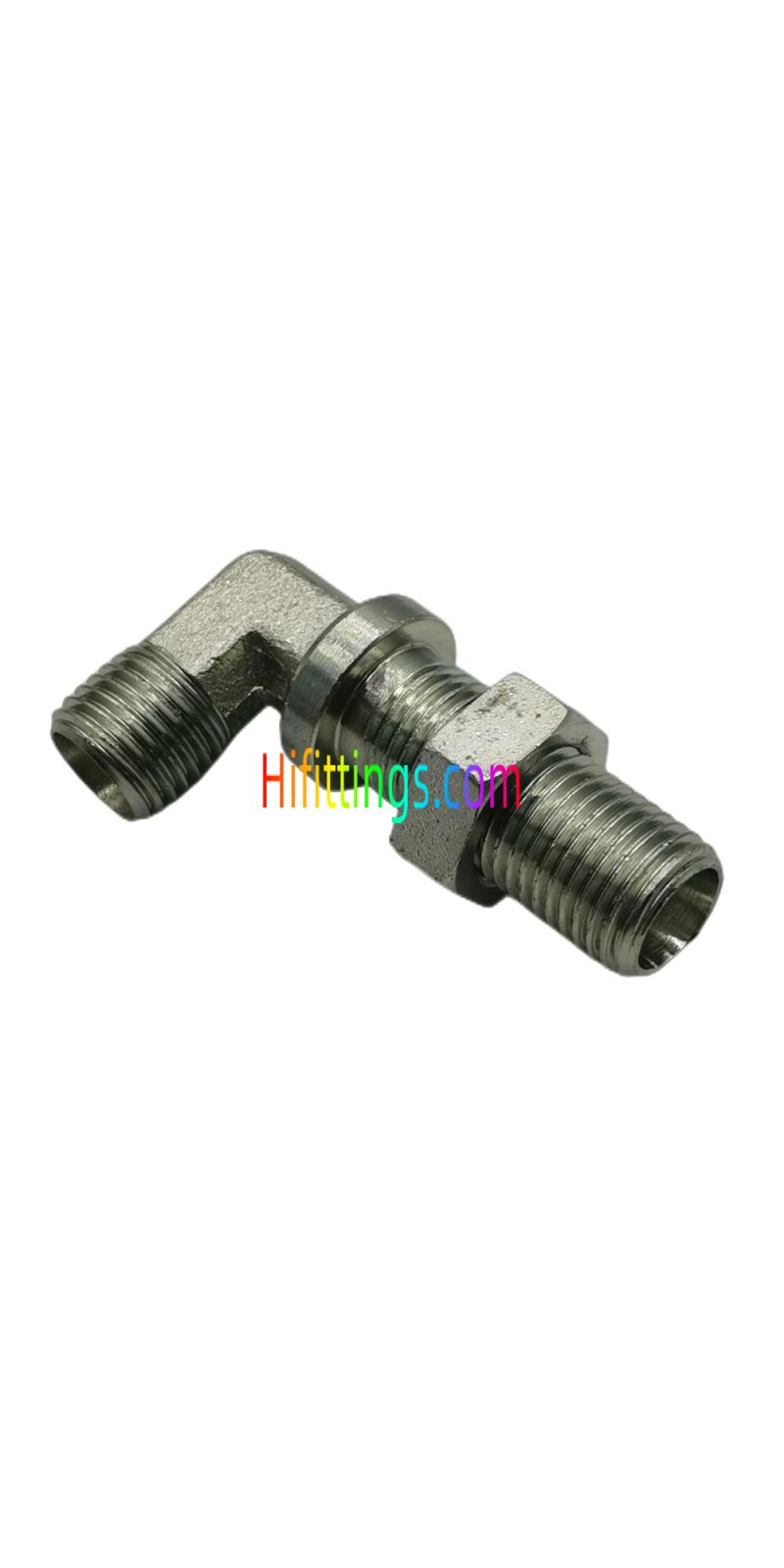

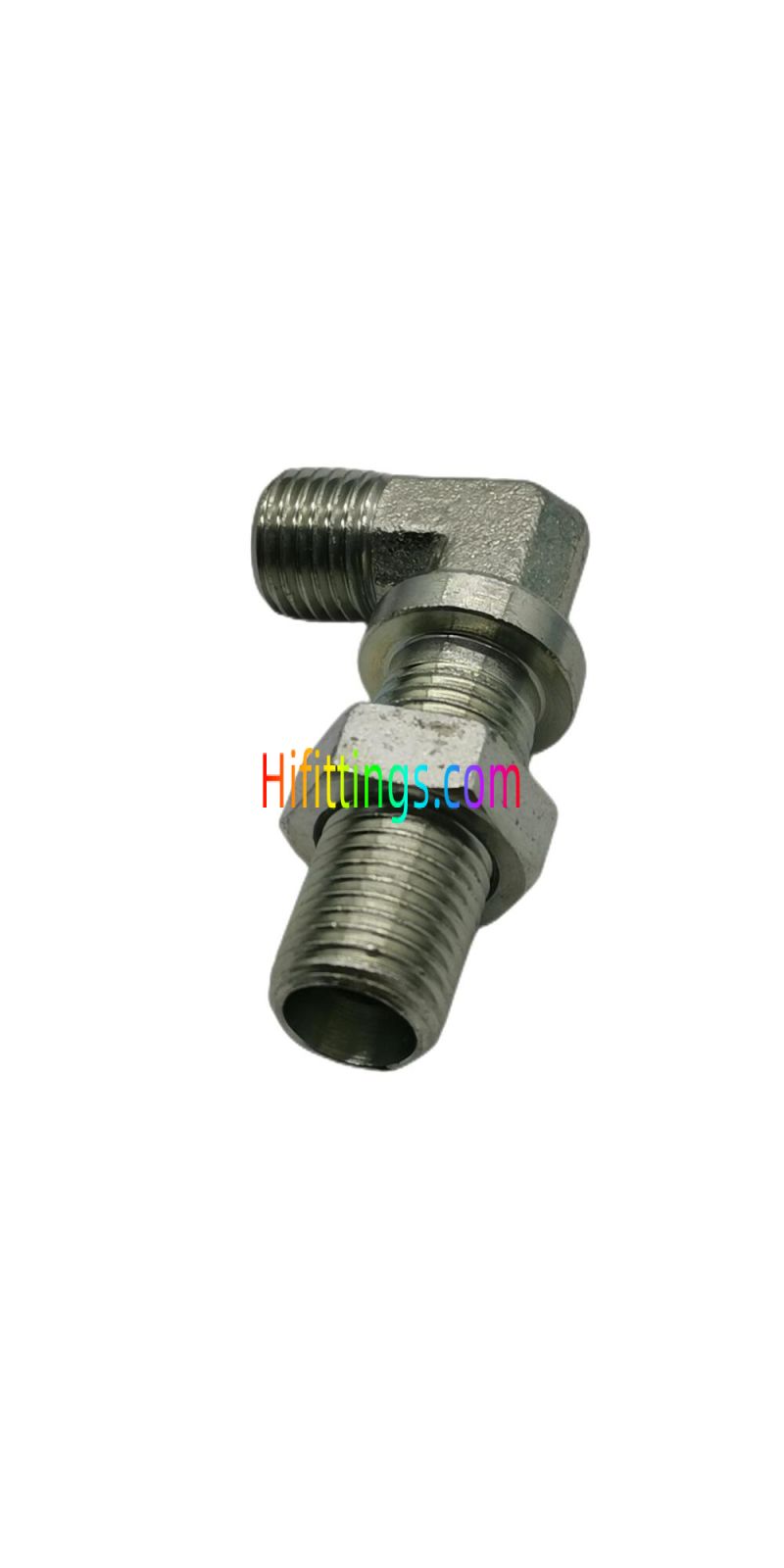

90° Elbow Metric Male Bite Type Bulkhead Tube Fittings 6C9/6D9
|
Part NO. |
E |
F |
D1 |
D2 |
11 |
l2 |
l3 |
L1 |
L2 |
S1 |
S2.S3 |
S4 |
Working Pressure bar |
|
6C9-12 |
M12X1.5 |
M12X1.5 |
6 |
6 |
27 |
12 |
14 |
42 |
27 |
12 |
14 |
17 |
PN315 |
|
6C9-14 |
M14X1.5 |
M14X1.5 |
8 |
8 |
27 |
14 |
17 |
42 |
29 |
12 |
17 |
19 |
PN315 |
|
6C9-16 |
M16X1.5 |
M16X1.5 |
10 |
10 |
28 |
15 |
18 |
43 |
30 |
14 |
19 |
22 |
PN315 |
|
6C9-18 |
M18X1.5 |
M18X1.5 |
12 |
12 |
29 |
17 |
20 |
44 |
32 |
17 |
22 |
24 |
PN315 |
|
6C9-22 |
M22X1.5 |
M22X1.5 |
15 |
15 |
31 |
21 |
23 |
46 |
36 |
19 |
27 |
30 |
PN315 |
|
6C9-26 |
M26X1.5 |
M26X1.5 |
18 |
18 |
32.5 |
23.5 |
24 |
49 |
40 |
24 |
32 |
36 |
PN315 |
|
6C9-30 |
M30X2 |
M30X2 |
22 |
22 |
34.5 |
27.5 |
30 |
51 |
44 |
27 |
36 |
41 |
PN160 |
|
6C9-36 |
M36X2 |
M36X2 |
28 |
28 |
35.5 |
30.5 |
34 |
52 |
47 |
36 |
41 |
46 |
PN160 |
|
6C9-45 |
M45X2 |
M45X2 |
35 |
35 |
36.5 |
34.5 |
39 |
58 |
56 |
41 |
50 |
55 |
PN160 |
|
6C9-52 |
M52X2 |
M52X2 |
42 |
42 |
36 |
40 |
43 |
59 |
63 |
50 |
60 |
65 |
PN160 |
|
6D9-14 |
M14X1.5 |
M14X1.5 |
6 |
6 |
29 |
16 |
17 |
44 |
31 |
12 |
17 |
19 |
PN630 |
|
6D9-16 |
M16X1.5 |
M16X1.5 |
8 |
8 |
29 |
17 |
18 |
44 |
32 |
14 |
19 |
22 |
PN630 |
|
6D9-18 |
M18X1.5 |
M18X1.5 |
10 |
10 |
29.5 |
17.5 |
20 |
46 |
34 |
17 |
22 |
24 |
PN630 |
|
6D9-20 |
M20X1.5 |
M20X1.5 |
12 |
12 |
30.5 |
21.5 |
21 |
47 |
38 |
17 |
24 |
27 |
PN630 |
|
6D9-22 |
M22X1.5 |
M22X1.5 |
14 |
14 |
32 |
22 |
23 |
50 |
40 |
19 |
27 |
30 |
PN630 |
|
6D9-24 |
M24X1.5 |
M24X1.5 |
16 |
16 |
31.5 |
24.5 |
24 |
50 |
43 |
24 |
30 |
32 |
PN400 |
|
6D9-30 |
M30X2 |
M30X2 |
20 |
20 |
33.5 |
26.5 |
30 |
55 |
48 |
27 |
36 |
41 |
PN400 |
|
6D9-36 |
M36X2 |
M36X2 |
25 |
25 |
35 |
30 |
34 |
59 |
54 |
36 |
46 |
46 |
PN400 |
|
6D9-42 |
M42X2 |
M42X2 |
30 |
30 |
37.5 |
35.5 |
39 |
64 |
62 |
41 |
50 |
50 |
PN400 |
|
6D9-52 |
M52X2 |
M52X2 |
38 |
38 |
37 |
41 |
43 |
68 |
72 |
50 |
60 |
65 |
PN315 |
|
Note: 1. In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part NO., for example 6C9-30LN,order the adapter with cutting ring and nut,insert suffix "RN" after part NO.,for example 6C9-30RN. 2. PN = Nominal Pressure |
|||||||||||||
| Forme | Straight |
|---|---|
| Type de fil | Male |
| Connection Type | Metric |
| Type de montage | Bite Type |
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price. We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
