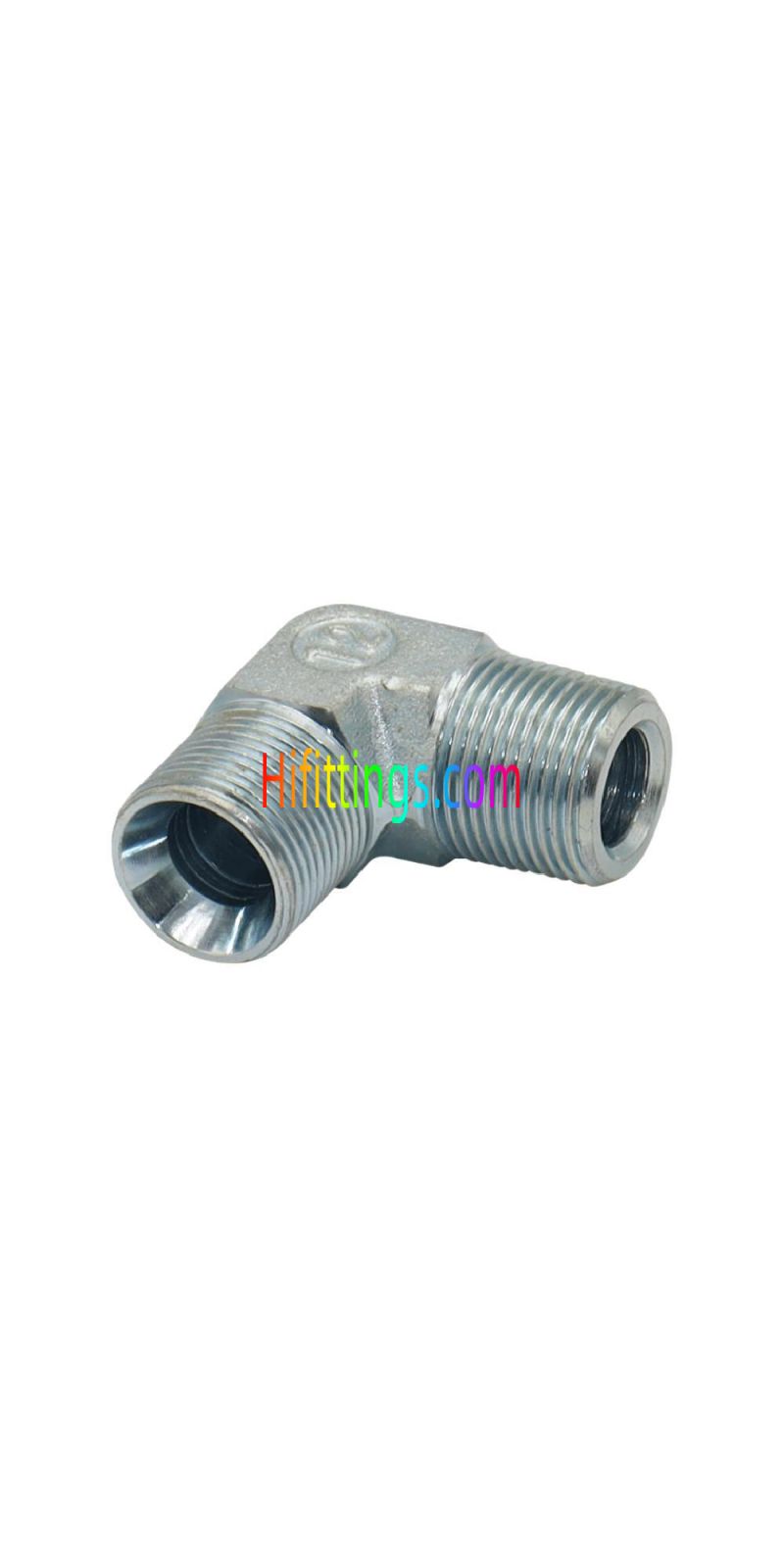

90° Elbow BSP Male 60° Seat / NPT Male Adapter Hydraulic Fittings 1BN9
|
Part NO. |
E |
F |
A |
B |
S1 |
Working Pressure bar |
|
1BN9-04 |
G1/4"X19 |
Z1/4"X18 |
24.5 |
25.5 |
14 |
PN275 |
|
1BN9-04-02 |
G1/4"X19 |
Z1/8"X27 |
24.5 |
23.5 |
14 |
PN345 |
|
1BN9-06 |
G3/8"X19 |
Z3/8"X18 |
28.5 |
31 |
19 |
PN210 |
|
1BN9-06-04 |
G3/8"X19 |
Z1/4"X18 |
27.5 |
26.5 |
16 |
PN275 |
|
1BN9-06-08 |
G3/8"X19 |
Z1/2"X14 |
31 |
36.5 |
22 |
PN210 |
|
1BN9-06-12 |
G3/8"X19 |
Z3/4"X14 |
34.5 |
44 |
27 |
PN170 |
|
1BN9-08 |
G1/2"X14 |
Z1/2"X14 |
34.5 |
37.5 |
22 |
PN210 |
|
1BN9-08-06 |
G1/2"X14 |
Z3/8"X18 |
34.5 |
33 |
22 |
PN210 |
|
1BN9-12 |
G3/4"X14 |
Z3/4"X14 |
38 |
43.5 |
27 |
PN170 |
|
1BN9-12-08 |
G3/4"X14 |
Z1/2"X14 |
39 |
40 |
27 |
PN210 |
|
1BN9-12-16 |
G3/4"X14 |
Z1"X11.5 |
43 |
50 |
33 |
PN140 |
|
1BN9-16 |
G1"X11 |
Z1"X11.5 |
46 |
50 |
33 |
PN140 |
|
1BN9-16-12 |
G1"X11 |
Z3/4"X14 |
46 |
46.5 |
33 |
PN170 |
| Forme | Elbow |
|---|---|
| Type de montage | Cone |
| Type de fil | Male |
| Connection Type | BSP, NPT |
