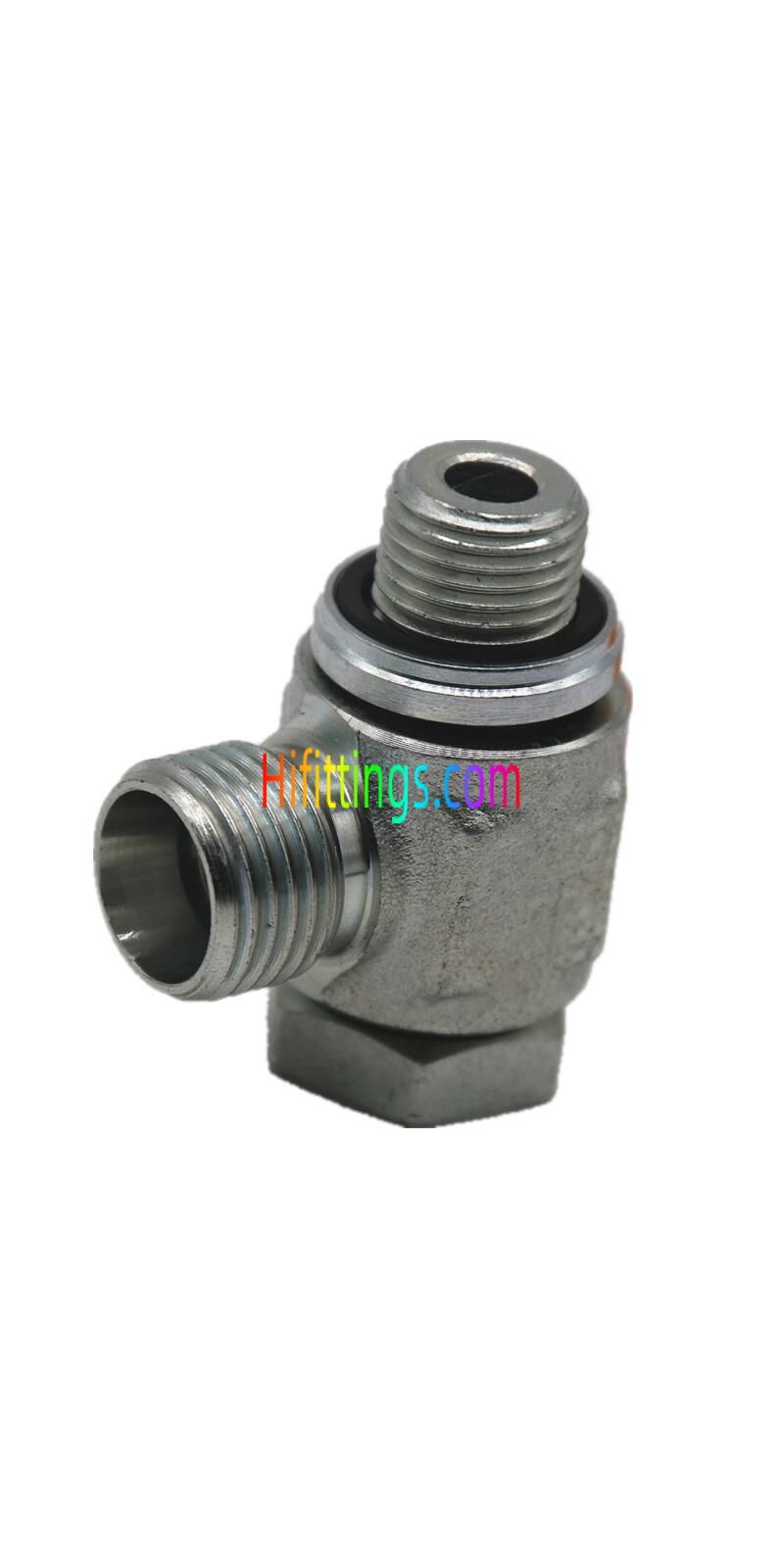

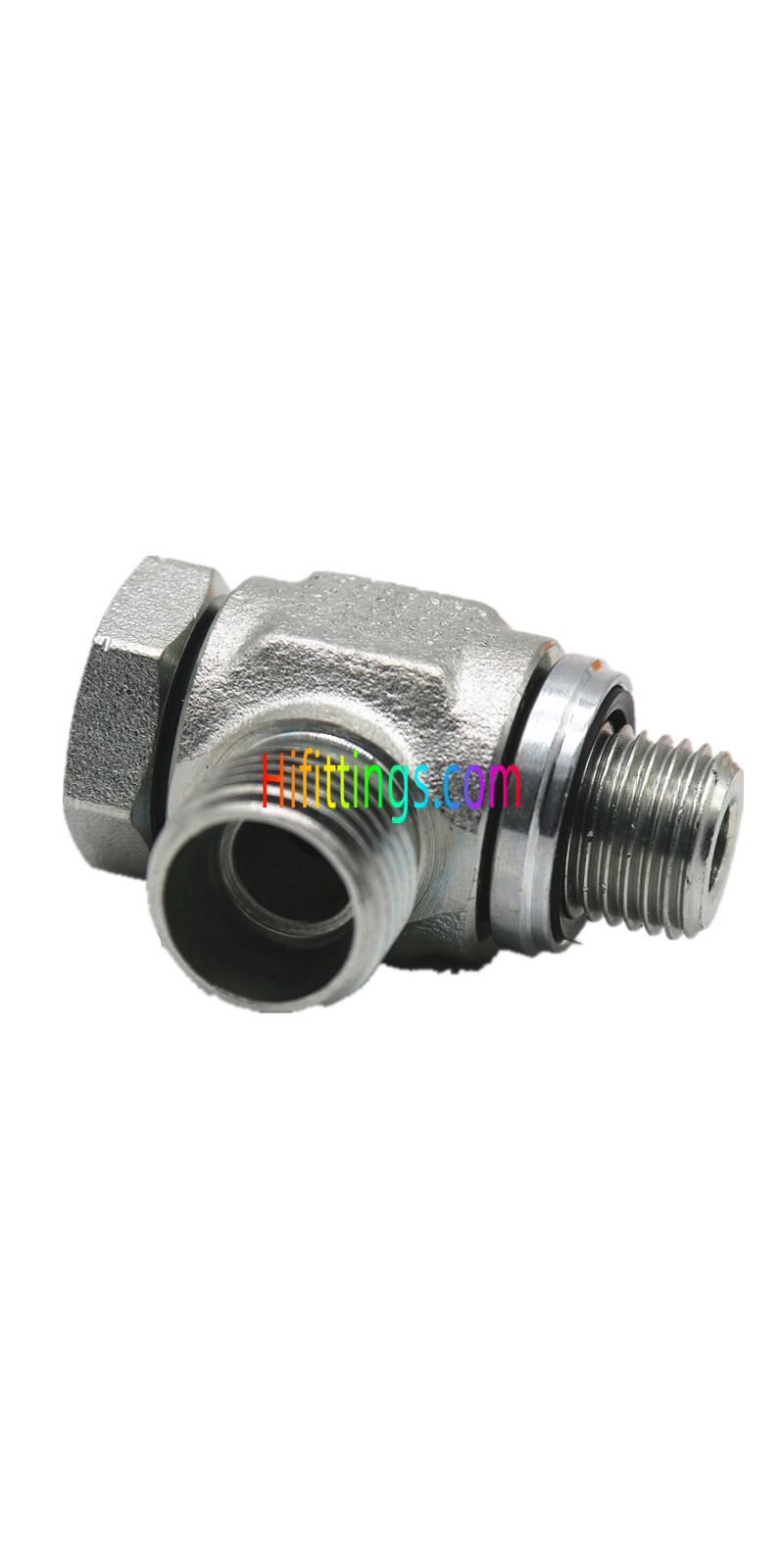

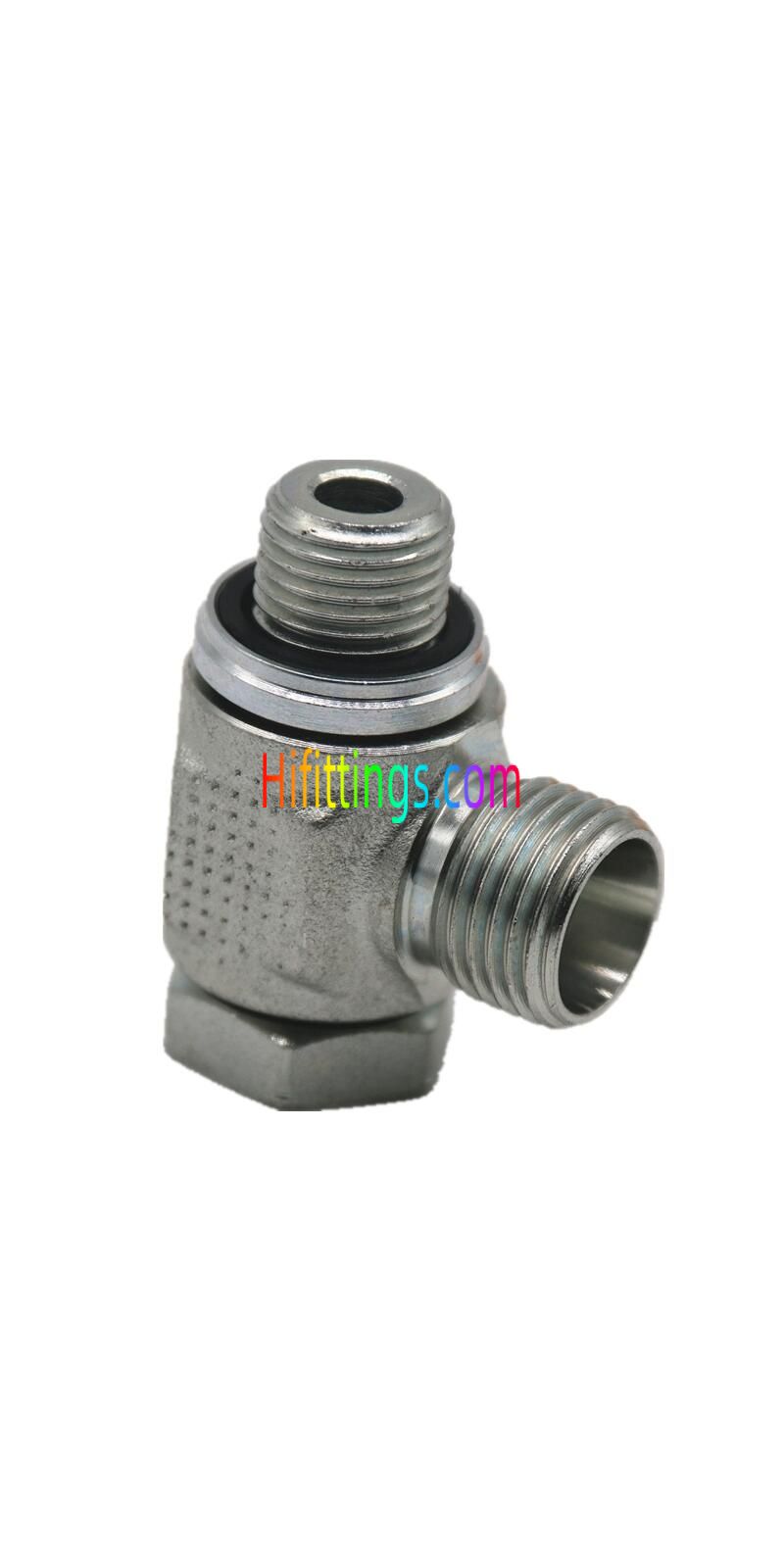

Metric BANJO Bite Type Hydraulic Adapter Pipe Fittings DIN 7642 1CI /1DI
|
Part NO. |
E |
F |
D1 |
l |
l1 |
L1 |
l2 |
L2 |
S1 |
S2 |
S3 |
Sealing Ring |
Working Pressure bar |
|
1CI-12-10 |
M12X1.5 |
M10X1 |
6 |
8 |
10.5 |
25.5 |
12 |
27 |
14 |
17 |
14 |
DP-10I |
PN315 |
|
1CI-14-12 |
M14X1.5 |
M12X1.5 |
8 |
12 |
14 |
32.5 |
14.5 |
29 |
17 |
22 |
17 |
DP-12I |
PN315 |
|
1CI-16-14 |
M16X1.5 |
M14X1.5 |
10 |
12 |
14 |
32.5 |
16.5 |
31 |
19 |
24 |
19 |
DP-14I |
PN315 |
|
1CI-18-16 |
M18X1.5 |
M16X1.5 |
12 |
12 |
16.5 |
38.5 |
18 |
33 |
22 |
27 |
22 |
DP-16I |
PN315 |
|
1CI-22-18 |
M22X1.5 |
M18X1.5 |
15 |
12 |
18.5 |
42 |
20.5 |
36 |
24 |
30 |
27 |
DP-18I |
PN315 |
|
1CI-26-22 |
M26X1.5 |
M22X1.5 |
18 |
14 |
21.5 |
49 |
21 |
37 |
27 |
32 |
32 |
DP-22I |
PN315 |
|
1CI-30-26 |
M30X2 |
M26X1.5 |
22 |
16 |
24 |
56 |
27.5 |
44 |
32 |
41 |
36 |
DP-26I |
PN160 |
|
1CI-36-33 |
M36X2 |
M33X2 |
28 |
18 |
30.5 |
71 |
32 |
49 |
41 |
50 |
41 |
DP-33I |
PN160 |
|
1CI-45-42 |
M45X2 |
M42X2 |
35 |
20 |
35.5 |
82 |
36 |
58 |
50 |
60 |
50 |
DP-42I |
PN160 |
|
1CI-52-48 |
M52X2 |
M48X2 |
42 |
22 |
40.5 |
93 |
40.5 |
63 |
55 |
70 |
60 |
DP-48I |
PN160 |
|
1DI-14-12 |
M14X1.5 |
M12X1.5 |
6 |
12 |
14 |
32.5 |
16.5 |
31 |
17 |
22 |
17 |
DP-12I |
PN630 |
|
1DI-16-14 |
M16X1.5 |
M14X1.5 |
8 |
12 |
14 |
32.5 |
17.5 |
32 |
19 |
24 |
19 |
DP-14I |
PN630 |
|
1DI-18-16 |
M18X1.5 |
M16X1.5 |
10 |
12 |
16.5 |
38.5 |
18.5 |
35 |
22 |
27 |
22 |
DP-16I |
PN630 |
|
1DI-20-18 |
M20X1.5 |
M18X1.5 |
12 |
12 |
18.5 |
42 |
20 |
36 |
24 |
30 |
24 |
DP-18I |
PN630 |
|
1DI-22-20 |
M22X1.5 |
M20X1.5 |
14 |
14 |
20 |
46 |
22.5 |
40 |
27 |
32 |
27 |
DP-20I |
PN630 |
|
1DI-24-22 |
M24X1.5 |
M22X1.5 |
16 |
14 |
21.5 |
49 |
22 |
40 |
27 |
32 |
30 |
DP-22I |
PN630 |
|
1DI-30-27 |
M30X2 |
M27X2 |
20 |
16 |
24 |
56 |
26.5 |
48 |
32 |
41 |
36 |
DP-27I |
PN400 |
|
1DI-36-33 |
M36X2 |
M33X2 |
25 |
18 |
30.5 |
71 |
31.5 |
56 |
41 |
50 |
46 |
DP-33I |
PN400 |
|
1DI-42 |
M42X2 |
M42X2 |
30 |
20 |
35.5 |
82 |
37 |
64 |
50 |
60 |
50 |
DP-42I |
PN400 |
|
1DI-52-48 |
M52X2 |
M48X2 |
38 |
22 |
40.5 |
93 |
41.5 |
72 |
55 |
70 |
60 |
DP-48I |
PN400 |
|
Note： In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO.,for example 1DI-36-33RN. 2. PN = Nominal Pressure |
|||||||||||||
| Forme | Banjo |
|---|---|
| Type de fil | Male |
| Connection Type | Metric |
| Type de montage | Bite Type |
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price. We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
