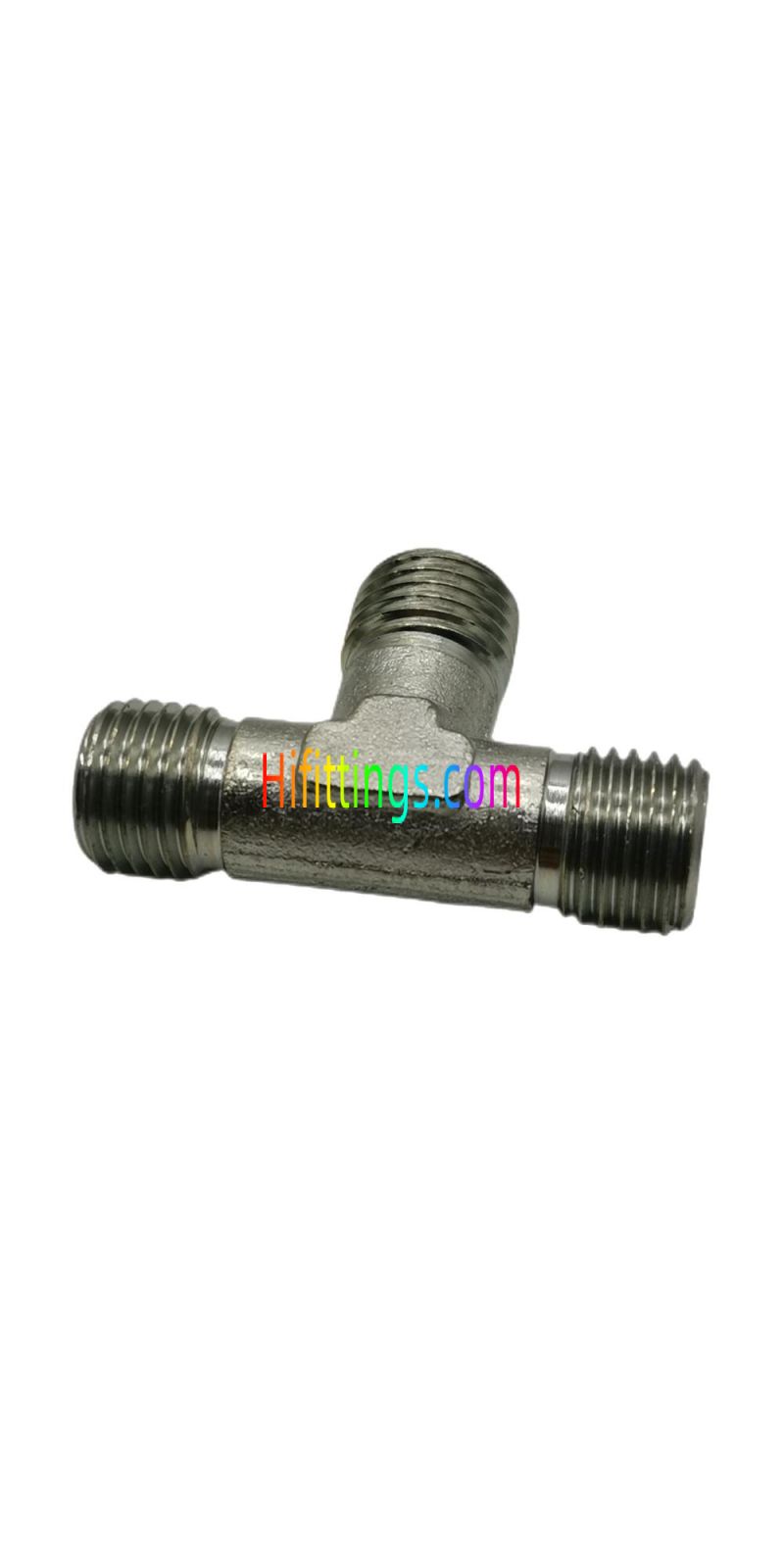

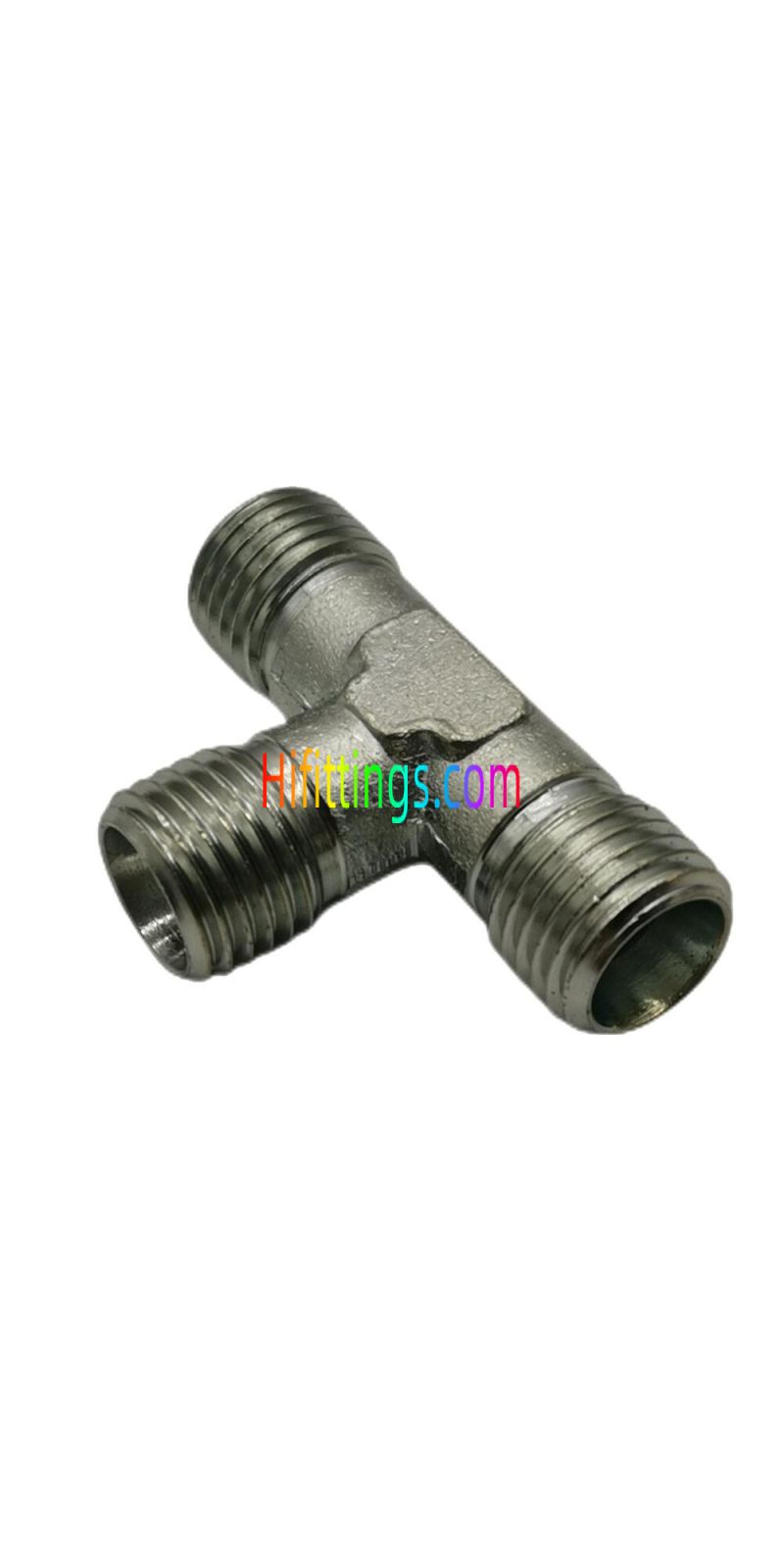

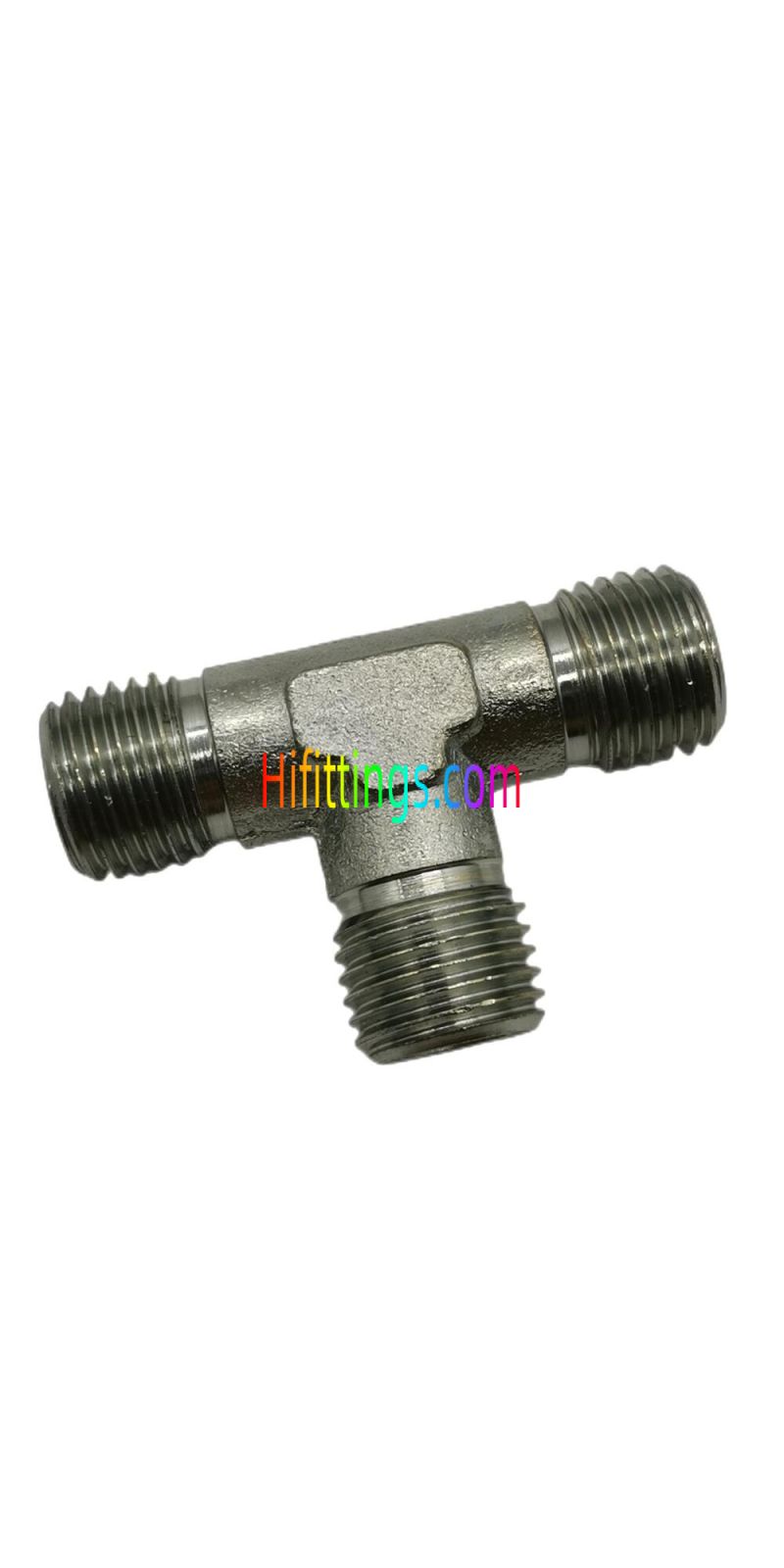

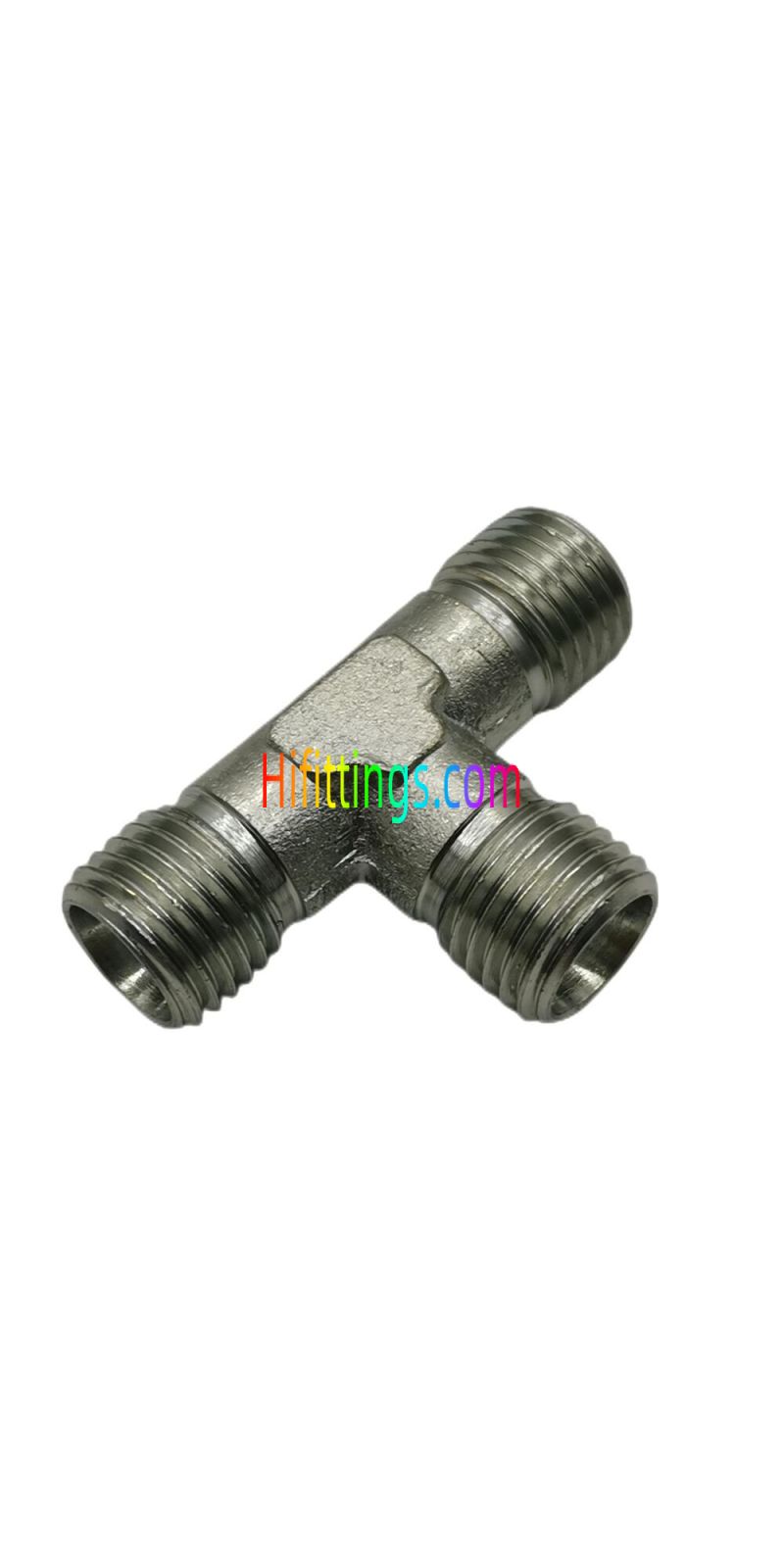

Metric Male Bite Type Equal Tee Hydraulic Adapter Pipe Fittings AC/AD
|
Part NO. |
E,F,G |
D1,D2,D3 |
l1,l2,l3 |
L1,L2,L3 |
S1 |
S2,S3,S4 |
Working Pressure bar |
|
AC-08 |
M8X1 |
4 |
11 |
21 |
9 |
10 |
PN100 |
|
AC-10 |
M10X1 |
5 |
9.5 |
21 |
9 |
12 |
PN100 |
|
AC-10LL |
M10X1 |
6 |
9.51 |
21 |
9 |
12 |
PN100 |
|
AC-12LL |
M12X1 |
8 |
11.5 |
23 |
12 |
14 |
PN100 |
|
AC-12 |
M12X1.5 |
6 |
12 |
27 |
12 |
14 |
PN250 |
|
AC-14 |
M14X1.5 |
8 |
14 |
29 |
12 |
17 |
PN250 |
|
AC-16 |
M16X1.5 |
10 |
15 |
30 |
14 |
19 |
PN250 |
|
AC-18 |
M18X1.5 |
12 |
17 |
32 |
17 |
22 |
PN250 |
|
AC-22 |
M22X1.5 |
15 |
21 |
36 |
19 |
27 |
PN250 |
|
AC-26 |
M26X1.5 |
18 |
23.5 |
40 |
24 |
32 |
PN250 |
|
AC-30 |
M30X2 |
22 |
27.5 |
44 |
27 |
36 |
PN160 |
|
AC-36 |
M36X2 |
28 |
30.5 |
47 |
36 |
41 |
PN160 |
|
AC-45 |
M45X2 |
35 |
34.5 |
56 |
41 |
50 |
PN160 |
|
AC-52 |
M52X2 |
42 |
40 |
63 |
50 |
60 |
PN160 |
|
AD-14 |
M14X1.5 |
6 |
16 |
31 |
12 |
17 |
PN630 |
|
AD-16 |
M16X1.5 |
8 |
17 |
32 |
14 |
19 |
PN630 |
|
AD-18 |
M18X1.5 |
10 |
17.5 |
'34 |
17 |
22 |
PN630 |
|
AD-20 |
M20X1.5 |
12 |
21.5 |
38 |
17 |
24 |
PN630 |
|
AD-22 |
M22X1.5 |
14 |
22 |
40 |
19 |
27 |
PN630 |
|
AD-24 |
M24X1.5 |
16 |
24.5 |
43 |
24 |
30 |
PN400 |
|
AD-30 |
M30X2 |
20 |
26.5 |
48 |
27 |
36 |
PN400 |
|
AD-36 |
M36X2 |
25 |
30 |
54 |
365 |
46 |
PN400 |
|
AD-42 |
M42X2 |
,30 |
35.5 |
62 . |
41 |
50 |
PN400 |
|
AD-52 |
M52X2 |
38 |
41 |
72 |
50 |
60 |
PN315 |
|

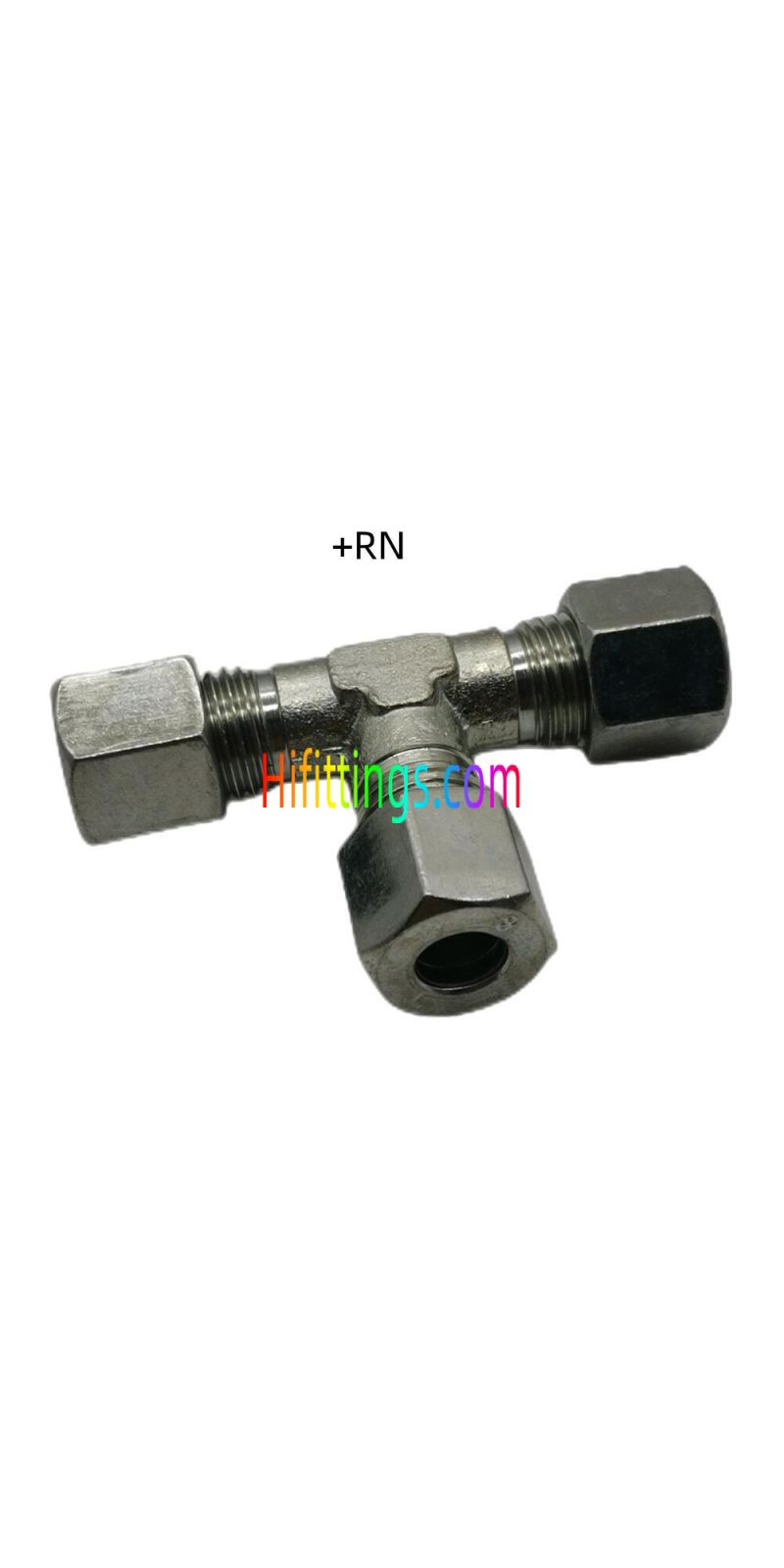

Note：1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO.,for example AC-22RN. 2. PN = Nominal Pressure |
|||||||
| Forme | Tee |
|---|---|
| Type de fil | Male |
| Connection Type | Metric |
| Type de montage | Bite Type |
