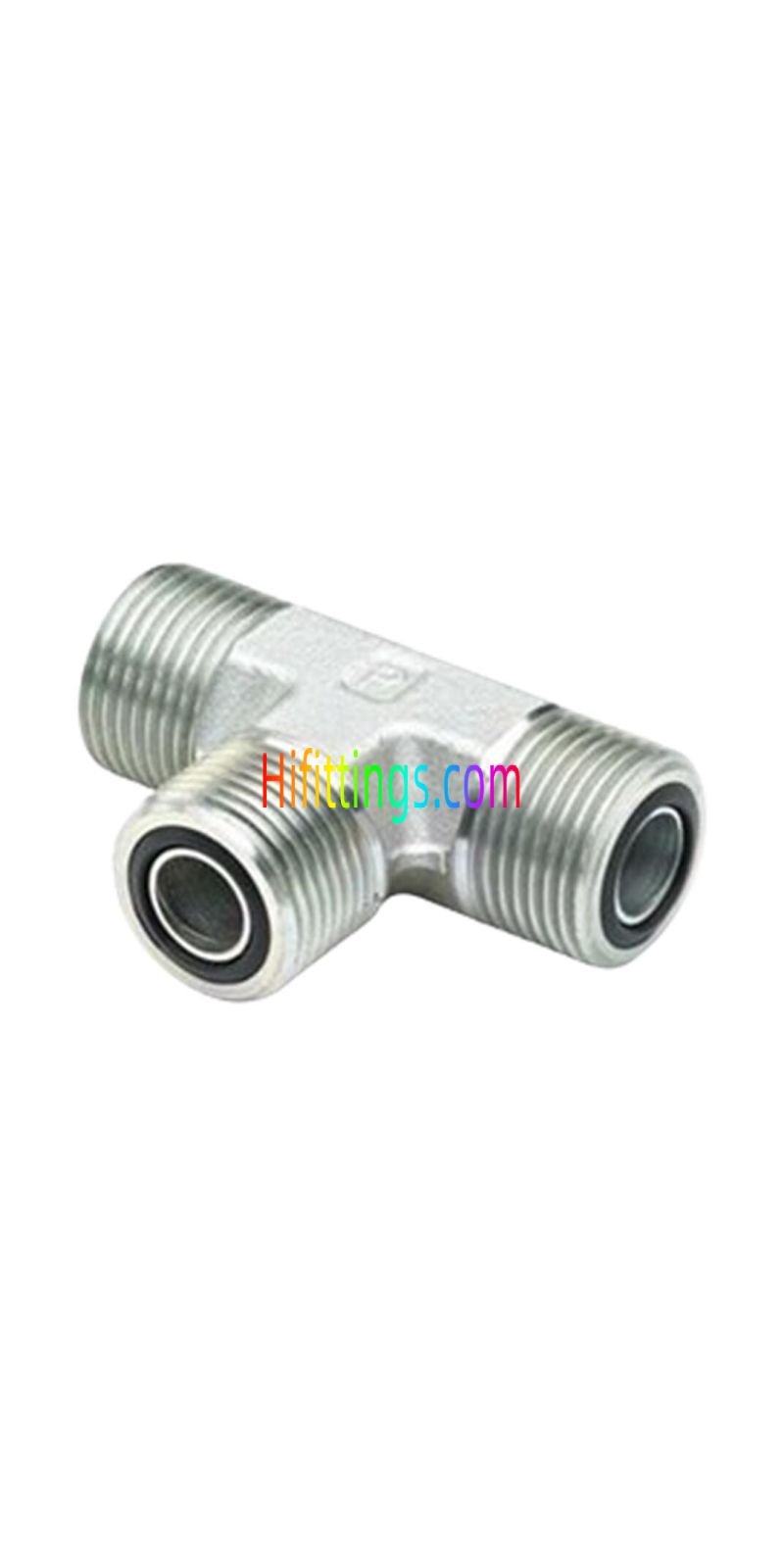

ORFS Male O-Ring Tee Hydraulic Pipe Fittings AF
|
Part NO. |
E |
F |
G |
E,F,G End |
A |
B |
C |
S1 |
Working Pressure bar |
|
AF-04 |
9/16"X18 |
9/16"X18 |
9/16"X18 |
11 |
23 |
23 |
23 |
14 |
PN630 |
|
AF-06 |
11/16"X16 |
11/16"X16 |
11/16"X16 |
12 |
27 |
27 |
27 |
19 |
PN630 |
|
AF-08 |
13/16"X16 |
13/16"X16 |
13/16"X16 |
14 |
31 |
31 |
31 |
22 |
PN630 |
|
AF-10 |
1"X14 |
1"X14 |
1"X14 |
16 |
36.5 |
36.5 |
36.5 |
27 |
PN400 |
|
AF-12 |
1.3/16"X12 |
1.3/16"X12 |
1.3/16"X12 |
18 |
40.3 |
40.3 |
40.3 |
30 |
PN400 |
|
AF-16 |
1.7/16"X12 |
1.7/16"X12 |
1.7/16"X12 |
21 |
44.5 |
44.5 |
44.5 |
36 |
PN400 |
|
AF-20 |
1.11/16"X12 |
1.11/16"X12 |
1.11/16"X12 |
25 |
47.5 |
47.5 |
47.5 |
41 |
PN250 |
|
AF-24 |
2"X12 |
2"X12 |
2"X12 |
29 |
53.5 |
53.5 |
53.5 |
50 |
PN250 |
| Forme | Tee |
|---|---|
| Type de montage | Face Seal |
| Type de fil | Male |
| Connection Type | ORFS |
