| Q/ZB275-77 Specifications | |||||||||
| Body Size(in) | M16X1.5 | M22X1.5 | M27X1.5 | M30X1.5 | M36X2 | M42X2 | M52X2 | M60X2 | M68X2 |
| Rated Pressure(PSI) | 5000 | 5000 | 5000 | 5000 | 4000 | 4000 | 3000 | 2000 | 2000 |
| Temperature Range(NBR) | -20 ℃ ~+120℃ | ||||||||

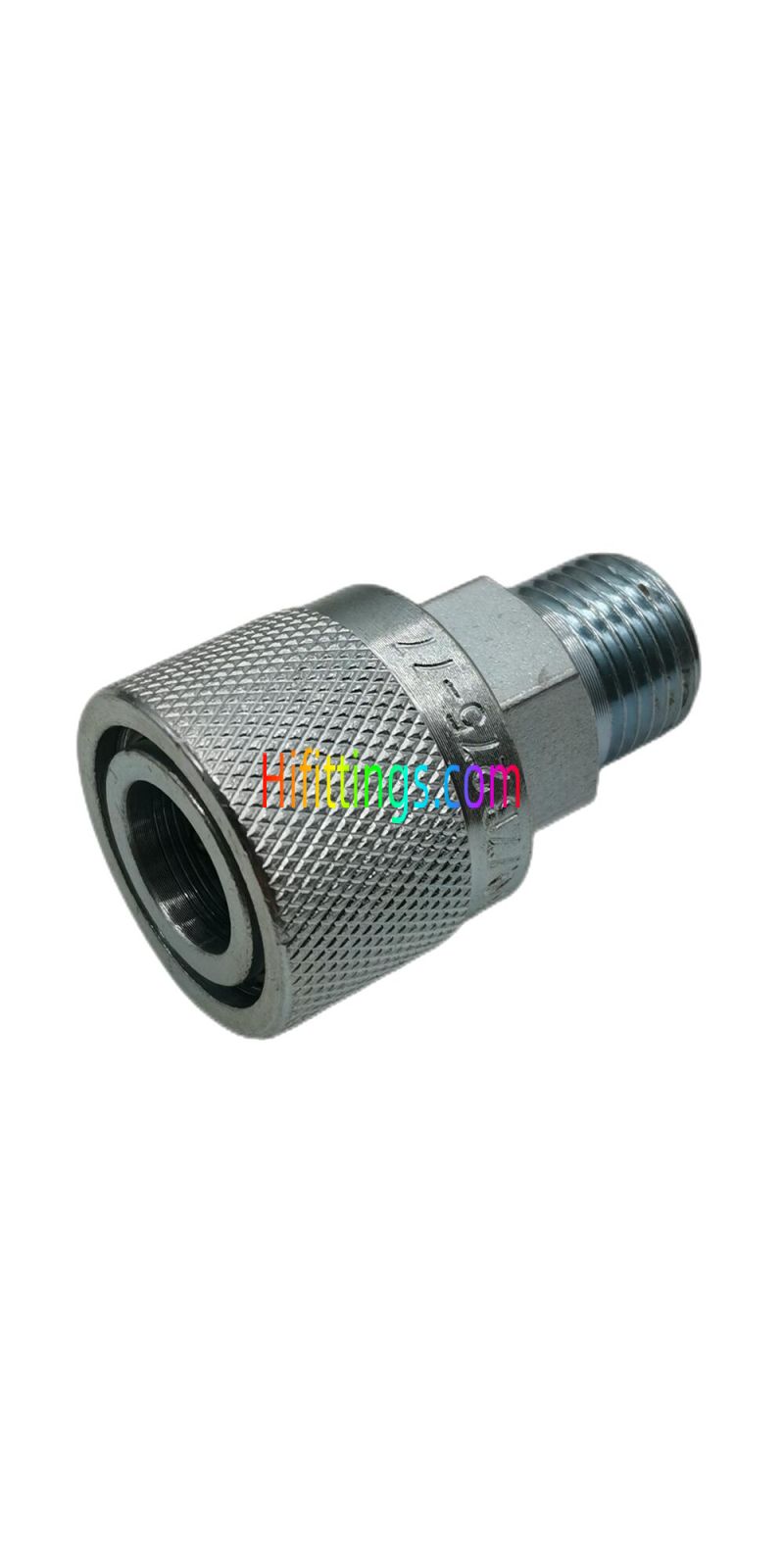

Socket
| Part NO. | Thread | LS | φD | S1 | A |
| Q/ZB275-77-06SM-M14 | M14*l.5 | 44 | 28 | 19 | 13 |
| Q/ZB275-77-06SM-M16 | M16*l.5 | 44 | 28 | 19 | 13 |
| Q/ZB275-77-08SM-M18 | M18*l.5 | 44 | 28 | 19 | 13 |
| Q/ZB275-77-08SM-M22 | M22*l.5 | 46 | 31 | 22 | 13 |
| Q/ZB275-7-1OSM-M27 | M27*2 | 52 | 36 | 27 | 13 |
| Q/ZB275-77-15SM-M30 | M30*2 | 56 | 40 | 30 | 16 |
| Q/ZB275-77-20SM-M36 | M36*2 | 65 | 48 | 36 | 16.5 |
| Q/ZB275-77-25SM-M42 | M42*2 | 78 | 56 | 46 | 20 |
| Q/ZB275-77-32SM-M52 | M52*2 | 84 | 66 | 55 | 22 |
| Q/ZB275-77-40SM-M60 | M60*2 | 93 | 77 | 65 | 26 |
| Q/ZB275-77-50SM-M68 | M68*2 | 99 | 82 | 70 | 30 |

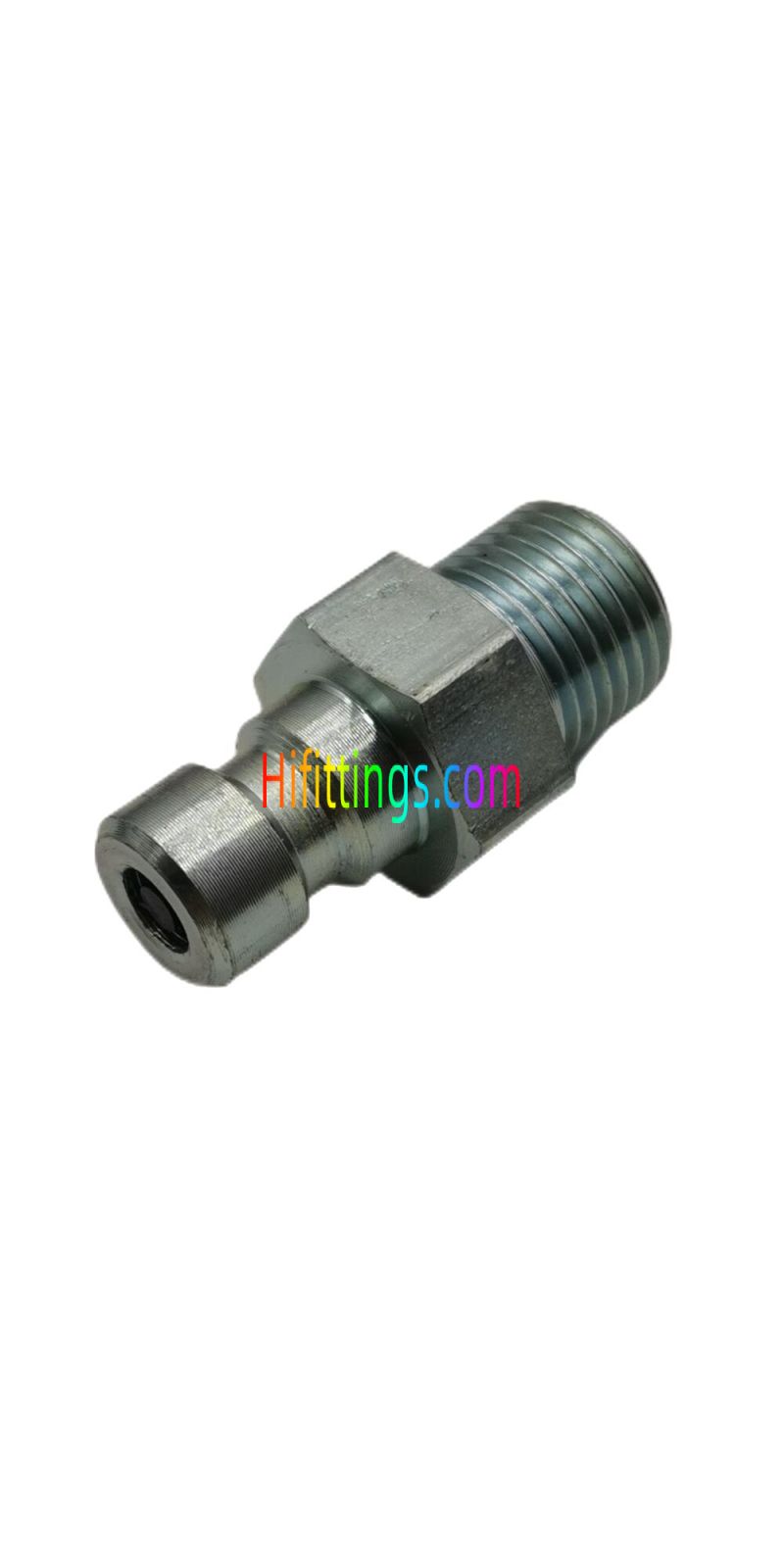

Plug
| Part NO. | Thread | LP | C | S2 | A |
| Q/ZB275-77-06PM-M14 | M14*l.5 | 40 | 18 | 19 | 13 |
| Q/ZB275-77-06PM-M16 | M16*l.5 | 40 | 18 | 19 | 13 |
| Q/ZB275-77-08PM-M18 | M18*l.5 | 40 | 18 | 19 | 13 |
| Q/ZB275-77-08PM-M22 | M22*l.5 | 41 | 19 | 22 | 13 |
| Q/ZB275-7-10PM-M27 | M27*2 | 46 | 22 | 27 | 13 |
| Q/ZB275-77-15PM-M30 | M30*2 | 53 | 24 | 30 | 16 |
| Q/ZB275-77-2OPM-M36 | M36*2 | 59 | 29 | 36 | 16.5 |
| Q/ZB275-77-25PM-M42 | M42*2 | 66 | 31 | 46 | 20 |
| Q/ZB275-77-32PM-M52 | M52*2 | 79 | 36 | 55 | 22 |
| Q/ZB275-77-40PM-M60 | M60*2 | 90 | 39.5 | 65 | 26 |
| Q/ZB275-77-50PM-M68 | M68*2 | 97 | 41 | 70 | 30 |
| Type de fil | Male |
|---|
