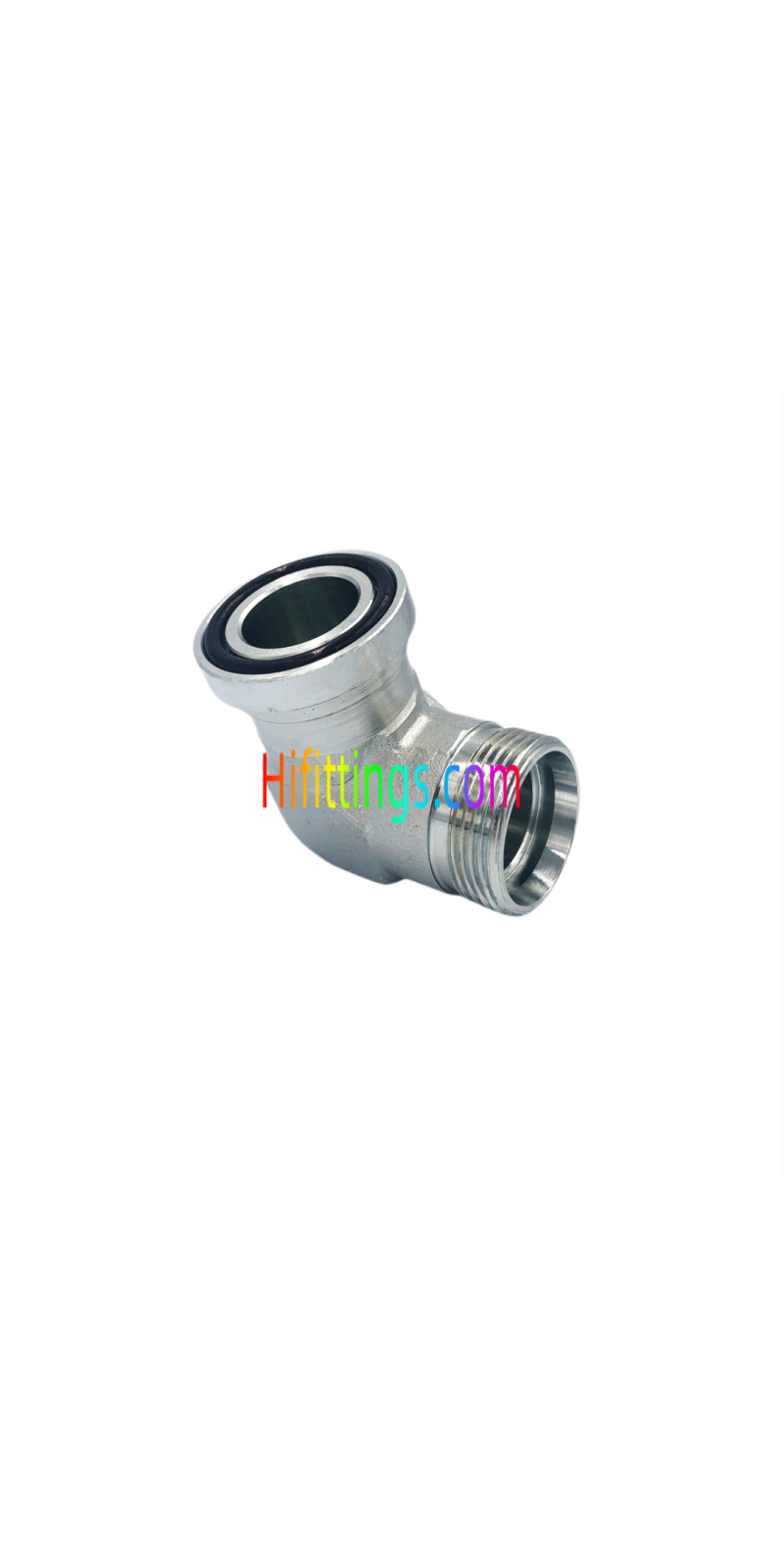

90° Elbow Metric Male Bite Type /SAE L-Series Hydraulic Flange Fittings ISO 6162-1
|
Part NO. |
E |
Flange Size |
D1 |
d1 |
I |
11 |
L1 |
L2 |
S1 |
S2 |
Working Pressure bar |
|
1CFL9-22-08 |
M22X1.5 |
1/2" |
15 |
30.2 |
6.7 |
29 |
44 |
36 |
24 |
27 |
PN315 |
|
1CFL9-26-12 |
M26X1.5 |
3/4" |
18 |
38.1 |
6.7 |
31.5 |
48 |
42 |
30 |
32 |
PN315 |
|
1CFL9-30-12 |
M30X2 |
3/4" |
22 |
38.1 |
6.7 |
33.5 |
50 |
42 |
30 |
36 |
PN160 |
|
1CFL9-36-16 |
M36X2 |
1" |
28 |
44.4 |
8 |
36.5 |
53 |
45 |
36 |
41 |
PN160 |
|
1CFL9-45-20 |
M45X2 |
1.1/4" |
35 |
50.8 |
8 |
46.5 |
68 |
50 |
41 |
50 |
PN160 |
|
1CFL9-52-24 |
M52X2 |
1.1/2" |
42 |
60.3 |
8 |
47 |
70 |
55 |
50 |
60 |
PN160 |
|
1DFL9-24-08 |
M24X1.5 |
1/2" |
16 |
30.2 |
6.7 |
29.5 |
48 |
36 |
24 |
30 |
PN350 |
|
1DFL9-30-12 |
M30X2 |
3/4" |
20 |
38.1 |
6.7 |
32.5 |
54 |
42 |
30 |
36 |
PN350 |
|
1DFL9-36-12 |
M36X2 |
3/4" |
25 |
38.1 |
6.7 |
33 |
57 |
42 |
30 |
46 |
PN350 |
|
1DFL9-42-16 |
M42X2 |
1" |
30 |
44.4 |
8 |
36.5 |
63 |
45 |
36 |
50 |
PN350 |
|
1DFL9-36-20 |
M36X2 |
1.1/4" |
25 |
50.8 |
8 |
43 |
67 |
50 |
41 |
46 |
PN280 |
|
1DFL9-42-20 |
M42X2 |
1.1/4" |
30 |
50.8 |
8 |
43.5 |
70 |
50 |
41 |
50 |
PN280 |
|
1DFL9-52-20 |
M52X2 |
1.1/4" |
38 |
50.8 |
8 |
43 |
74 |
50 |
41 |
60 |
PN280 |
|
1DFL9-52-24 |
M52X2 |
1.1/2" |
38 |
60.3 |
8 |
48 |
79 |
55 |
50 |
60 |
PN210 |
|
Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no, for example 1DFL9-52-24RN. 2. PN = Nominal Pressure |
|||||||||||
| Connection Type | Flange, Metric |
|---|---|
| Type de fil | Male |
| Forme | Elbow |
| Type de montage | Bite Type, Flange |
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price. We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
