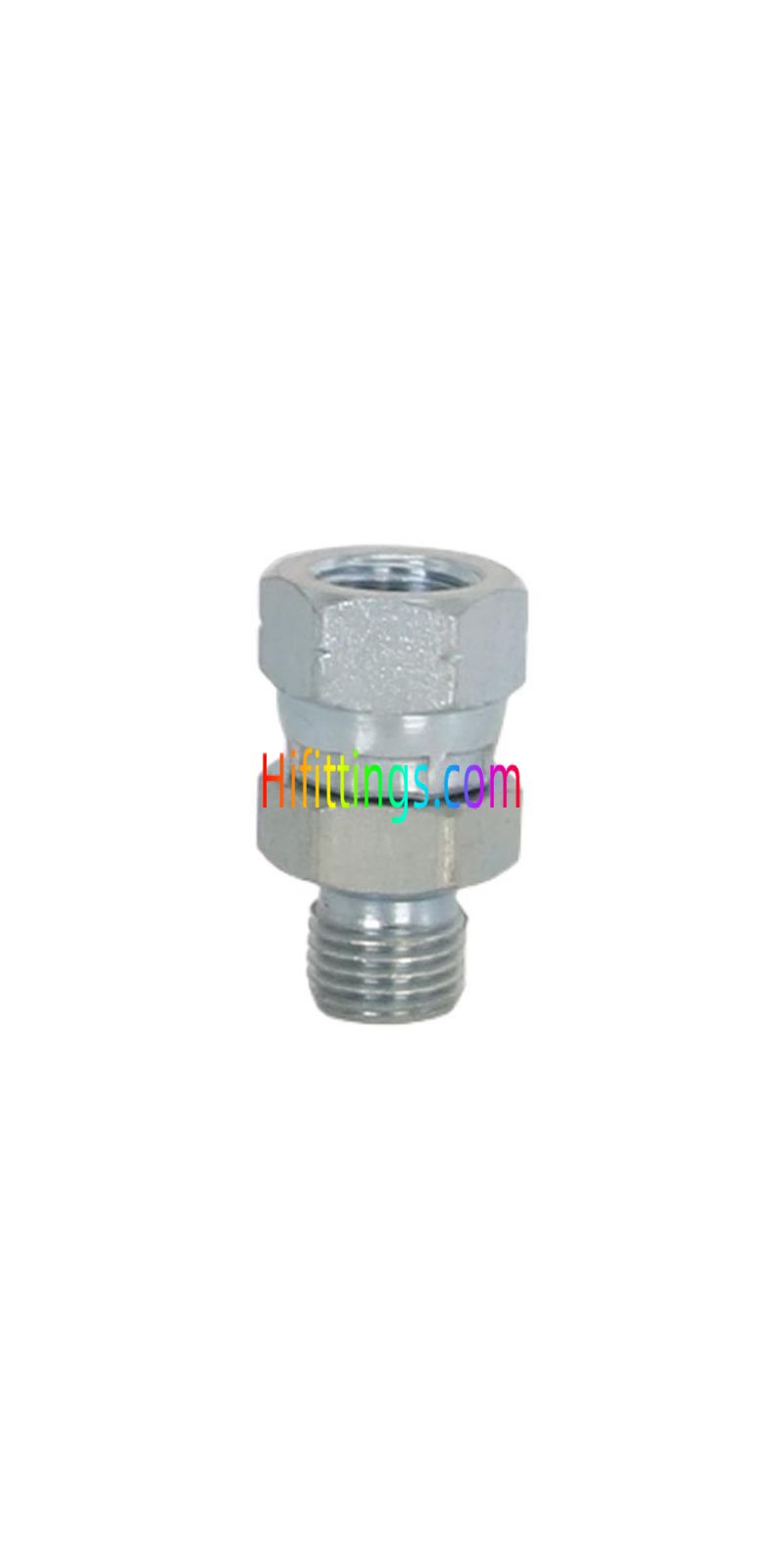

Straight BSP Male 60° Seat BSP Female 60° Cone Fittings 2B
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
S2 |
Working Pressure bar |
|
2B-02 |
G1/8"X28 |
G1/8"X28 |
10 |
5.5 |
25 |
14 |
14 |
PN345 |
|
2B-02-04 |
G1/8"X28 |
G1/4"X19 |
10 |
5.5 |
27 |
14 |
19 |
PN345 |
|
2B-04 |
G1/4"X19 |
G1/4"X19 |
12 |
5.5 |
29 |
19 |
19 |
PN345 |
|
2B-04-06 |
G1/4"X19 |
G3/8"X19 |
12 |
6.3 |
30.5 |
19 |
22 |
PN345 |
|
2B-04-08 |
G1/4"X19 |
G1/2"X14 |
12 |
7.5 |
32 |
19 |
27 |
PN345 |
|
2B-06 |
G3/8"X19 |
G3/8"X19 |
13.5 |
6.3 |
34 |
22 |
22 |
PN345 |
|
2B-06-08 |
G3/8"X19 |
G1/2"X14 |
13.5 |
7.5 |
35.5 |
22 |
27 |
PN345 |
|
2B-06-10 |
G3/8"X19 |
G5/8"X14 |
13.5 |
9.5 |
36 |
22 |
30 |
PN345 |
|
2B-08 |
G1/2"X14 |
G1/2"X14 |
16 |
7.5 |
40 |
27 |
27 |
PN345 |
|
2B-08-06 |
G1/2"X14 |
G3/8"X19 |
16 |
6.3 |
38.5 |
27 |
22 |
PN345 |
|
2B-08-12 |
G1/2"X14 |
G3/4"X14 |
16 |
10.9 |
41 |
27 |
32 |
PN275 |
|
2B-10 |
G5/8"X14 |
G5/8"X14 |
17.5 |
9.5 |
42 |
30 |
30 |
PN275 |
|
2B-10-08 |
G5/8"X14 |
G1/2"X14 |
17.5 |
7.5 |
41.5 |
30 |
27 |
PN275 |
|
2B-10-12 |
G5/8"X14 |
G3/4"X14 |
17.5 |
10.9 |
42.5 |
30 |
32 |
PN275 |
|
2B-12 |
G3/4"X14 |
G3/4"X14 |
18.5 |
10.9 |
44.5 |
32 |
32 |
PN275 |
|
2B-12-10 |
G3/4"X14 |
G5/8"X14 |
18.5 |
9.5 |
44 |
32 |
30 |
PN275 |
|
2B-12-16 |
G3/4"X14 |
G1"X11 |
18.5 |
11.7 |
46 |
32 |
41 |
PN205 |
|
2B-16 |
G1"X11 |
G1"X11 |
20.5 |
11.7 |
50 |
41 |
41 |
PN205 |
|
2B-16-12 |
G1"X11 |
G3/4"X14 |
20.5 |
10.9 |
49 |
41 |
32 |
PN205 |
|
2B-16-20 |
G1"X11 |
G1.1/4"X11 |
20.5 |
11 |
53 |
41 |
50 |
PN205 |
|
2B-20 |
G1.1/4"X11 |
G1.1/4"X11 |
20.5 |
11 |
55 |
50 |
50 |
PN170 |
|
2B-20-16 |
G1.1/4"X11 |
G1"X11 |
20.5 |
11.7 |
52 |
50 |
41 |
PN170 |
|
2B-20-24 |
G1.1/4"X11 |
G1.1/2"X11 |
20.5 |
13 |
55.5 |
50 |
55 |
PN105 |
|
2B-24 |
G1.1/2"X11 |
G1.1/2"X11 |
23 |
13 |
58 |
55 |
55 |
PN105 |
|
2B-32 |
G2"X11 |
G2"X11 |
25.5 |
16 |
63.5 |
70 |
70 |
PN105 |
| Forme | Straight |
|---|---|
| Type de montage | Cone |
| Type de fil | Male-Female |
| Connection Type | BSP |
