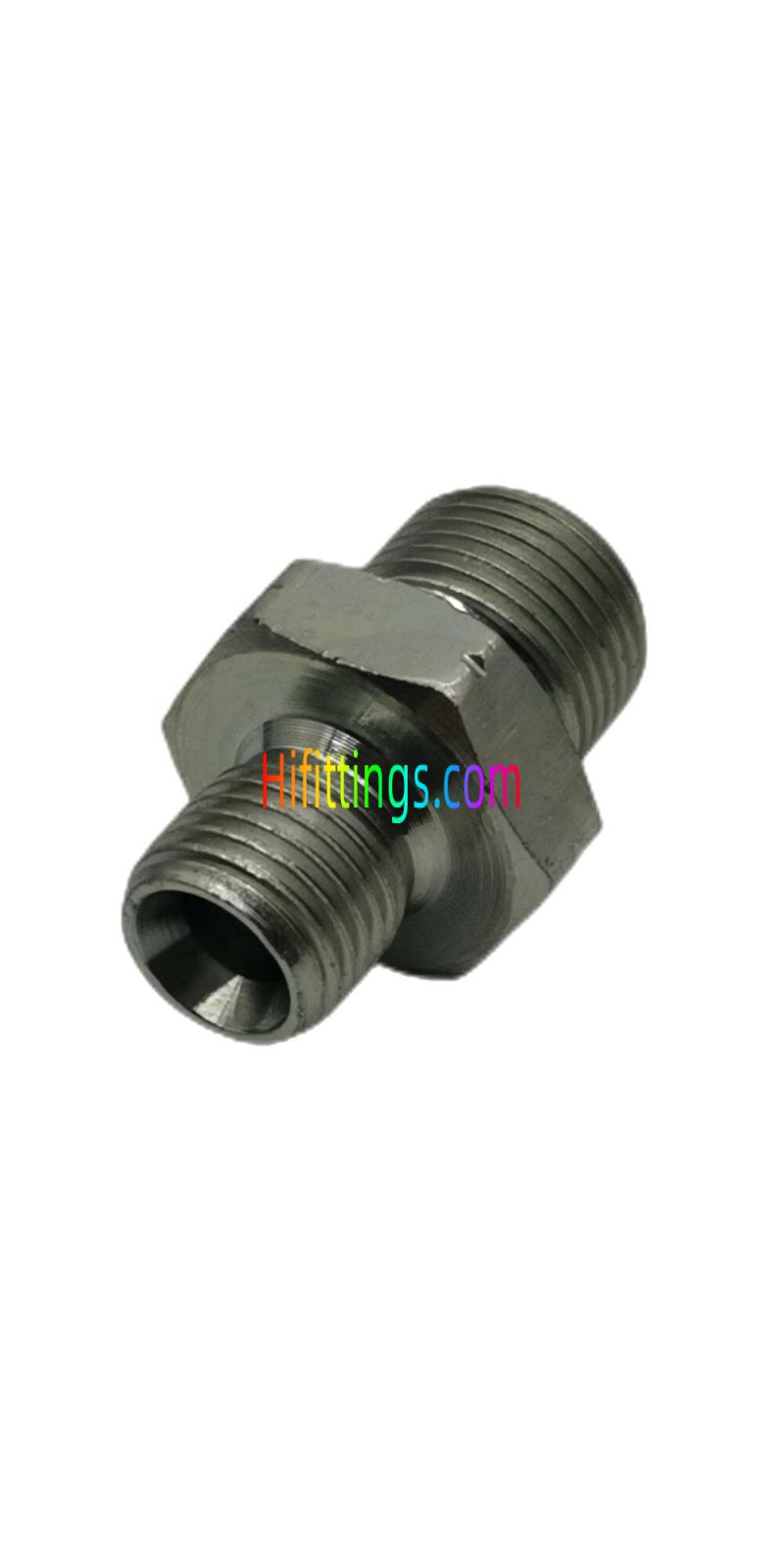

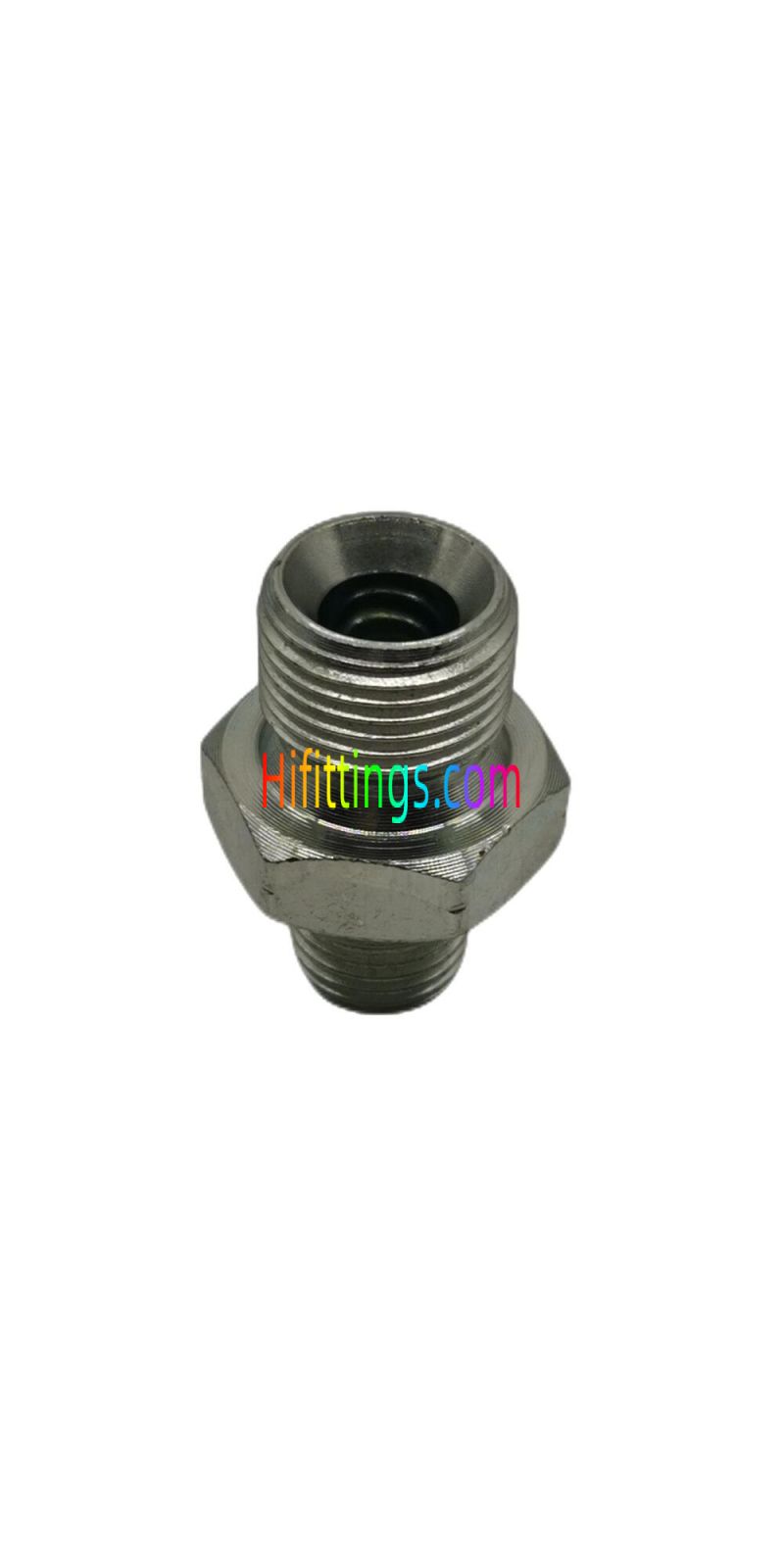

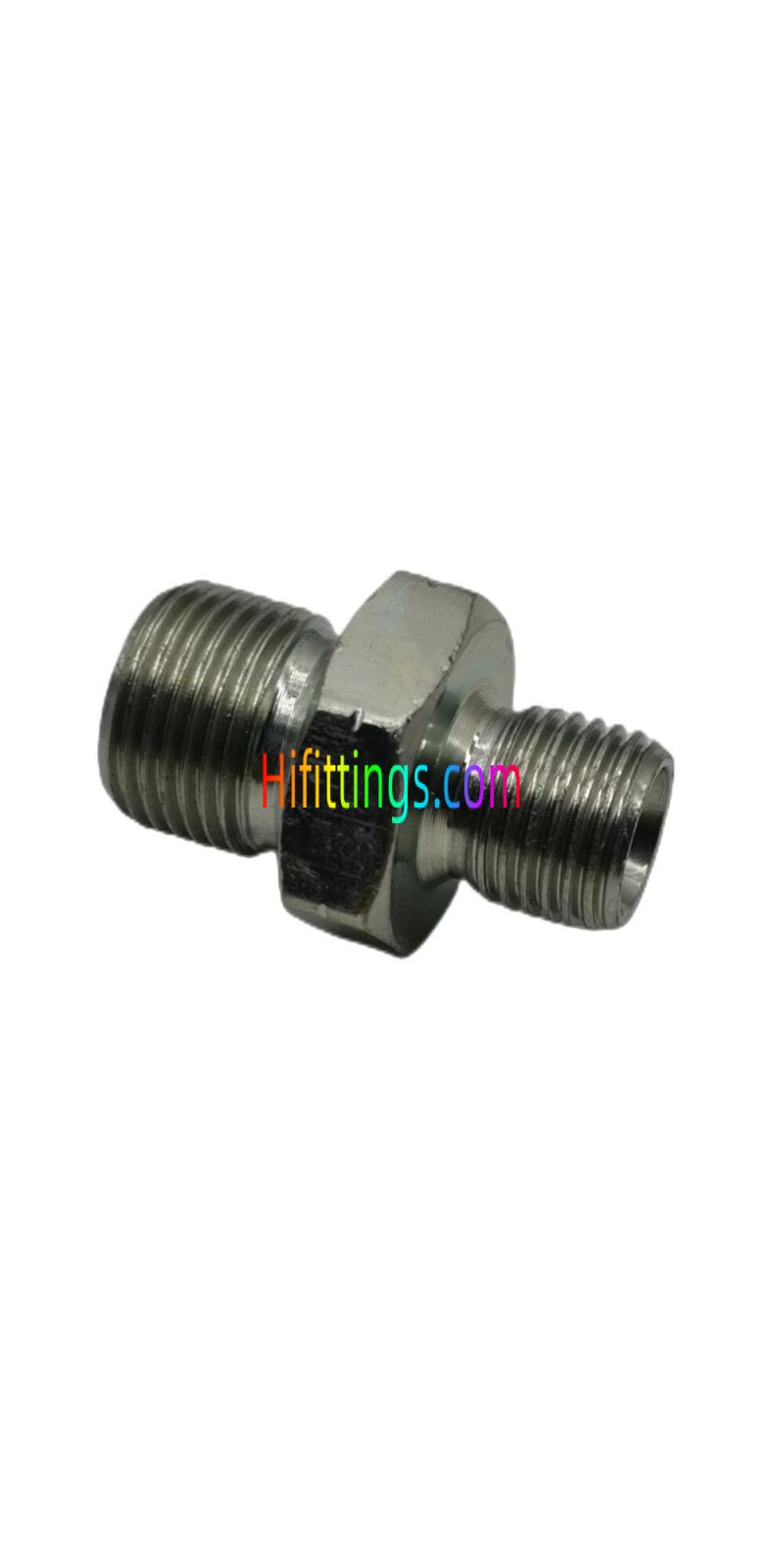

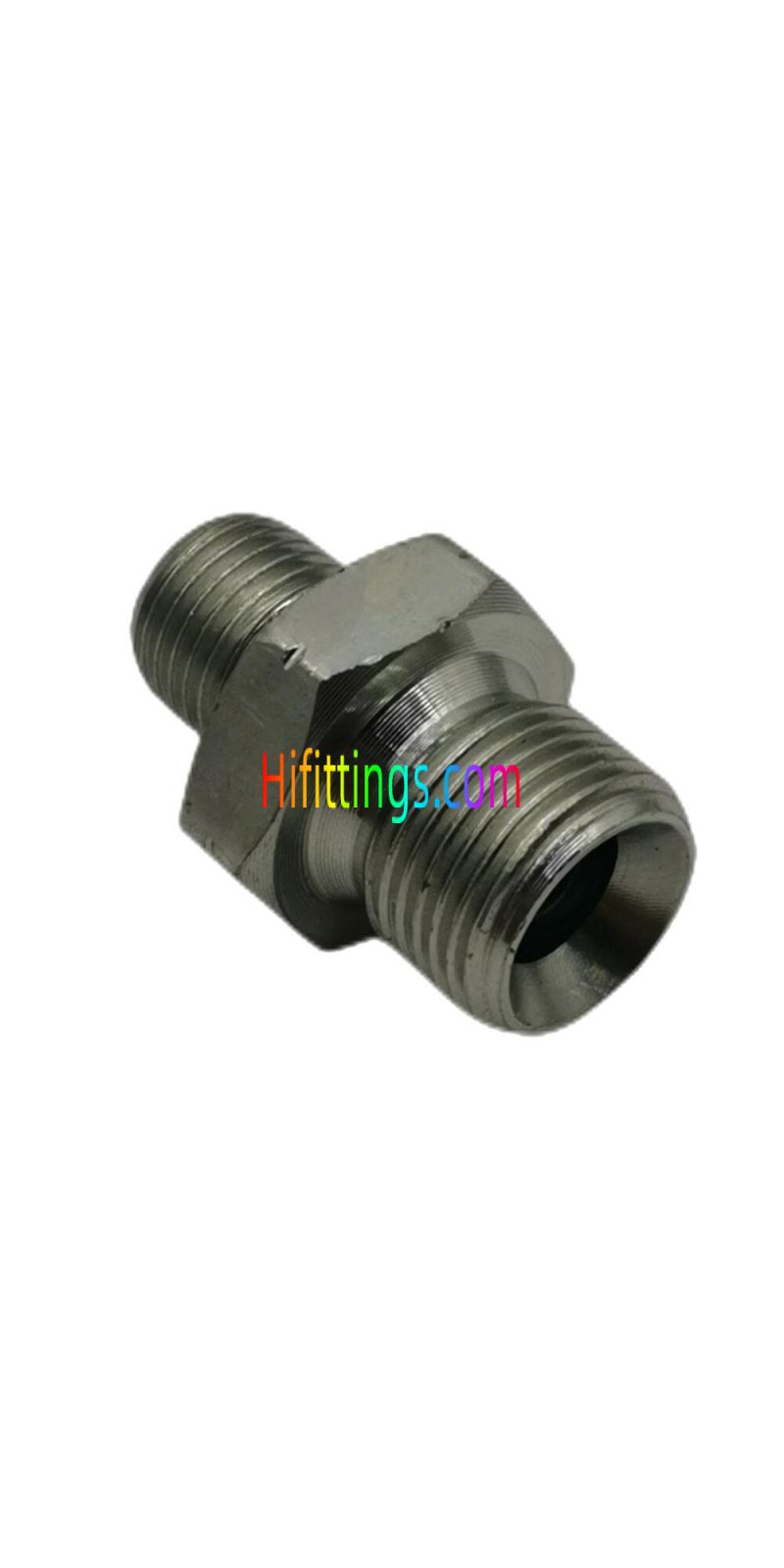

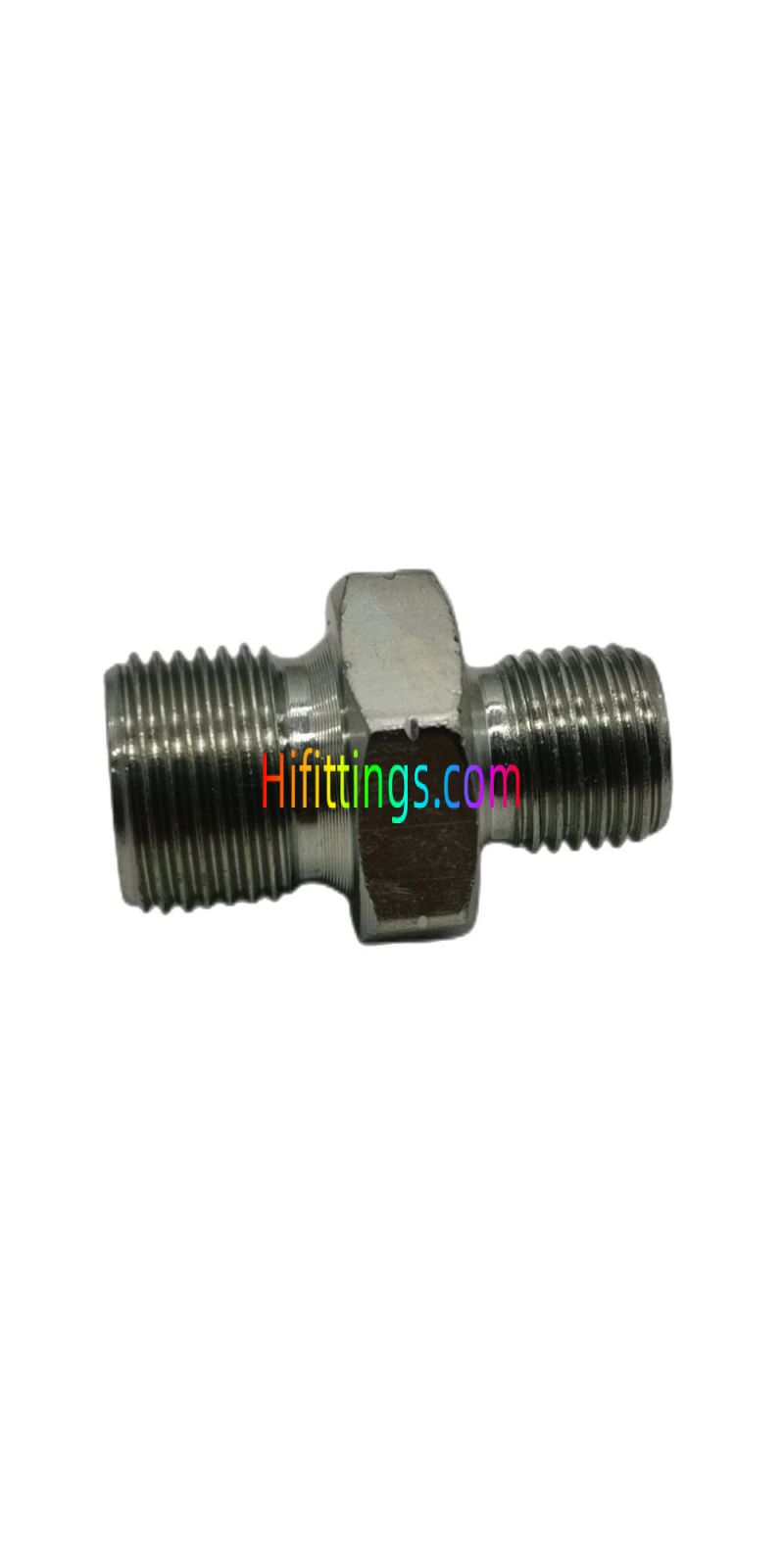

BSP Male Double Use For 60° Seat Or Bonded Seal Hydraulic Fittings
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
Working Pressure bar |
|
1B-02 |
G1/8"X28 |
G1/8"X28 |
10 |
10 |
26 |
14 |
PN345 |
|
1B-02-04 |
G1/8"X28 |
G1/4"X19 |
10 |
12 |
28 |
19 |
PN345 |
|
1B-02-06 |
G1/8"X28 |
G3/8"X19 |
10 |
13.5 |
31.5 |
22 |
PN345 |
|
1B-02-08 |
G1/8"X28 |
G1/2"X14 |
10 |
16 |
36 |
27 |
PN345 |
|
1B-04 |
G1/4"X19 |
G1/4"X19 |
12 |
12 |
30 |
19 |
PN345 |
|
1B-04-06 |
G1/4"X19 |
G3/8"X19 |
12 |
13.5 |
33.5 |
22 |
PN345 |
|
1B-04-08 |
G1/4"X19 |
G1/2"X14 |
12 |
16 |
38 |
27 |
PN345 |
|
1B-04-10 |
G1/4"X19 |
G5/8"X14 |
12 |
17.5 |
39.5 |
30 |
PN345 |
|
1B-06 |
G3/8"X19 |
G3/8"X19 |
13.5 |
13.5 |
35 |
22 |
PN345 |
|
1B-06-08 |
G3/8"X19 |
G1/2"X14 |
13.5 |
16 |
39.5 |
27 |
PN345 |
|
1B-06-10 |
G3/8"X19 |
G5/8"X14 |
13.5 |
17.5 |
42 |
30 |
PN345 |
|
1B-06-12 |
G3/8"X19 |
G3/4"X14 |
13.5 |
18.5 |
43 |
32 |
PN275 |
|
1B-08 |
G1/2"X14 |
G1/2"X14 |
16 |
16 |
42 |
27 |
PN345 |
|
1B-08-10 |
G1/2"X14 |
G5/8"X14 |
16 |
17.5 |
43.5 |
30 |
PN275 |
|
1B-08-12 |
G1/2"X14 |
G3/4"X14 |
16 |
18.5 |
45.5 |
32 |
PN275 |
|
1B-10 |
G5/8"X14 |
G5/8"X14 |
17.5 |
17.5 |
45 |
30 |
PN275 |
|
1B-10-12 |
G5/8"X14 |
G3/4"X14 |
17.5 |
18.5 |
47 |
32 |
PN275 |
|
1B-10-16 |
G5/8"X14 |
G1"X11 |
17.5 |
20.5 |
51.5 |
41 |
PN205 |
|
1B-12 |
G3/4"X14 |
G3/4"X14 |
18.5 |
18.5 |
48 |
32 |
PN275 |
|
1B-12-16 |
G3/4"X14 |
G1"X11 |
18.5 |
20.5 |
52.5 |
41 |
PN205 |
|
1B-12-20 |
G3/4"X14 |
G1.1/4"X11 |
18.5 |
20.5 |
56 |
50 |
PN170 |
|
1B-16 |
G1"X11 |
G1"X11 |
20.5 |
20.5 |
54 |
41 |
PN205 |
|
1B-16-20 |
G1"X11 |
G1.1/4"X11 |
20.5 |
20.5 |
58 |
50 |
PN170 |
|
1B-16-24 |
G1"X11 |
G1.1/2"X11 |
20.5 |
23 |
60.5 |
55 |
PN105 |
|
1B-20 |
G1.1/4"X11 |
G1.1/4"X11 |
20.5 |
20.5 |
58 |
50 |
PN170 |
|
1B-20-24 |
G1.1/4"X11 |
G1.1/2"X11 |
20.5 |
23 |
60.5 |
55 |
PN105 |
|
1B-24 |
G1.1/2"X11 |
G1.1/2"X11 |
23 |
23 |
63 |
55 |
PN105 |
|
1B-24-32 |
G1.1/2"X11 |
G2"X11 |
23 |
25.5 |
66.5 |
70 |
PN105 |
|
1B-32 |
G2"X11 |
G2"X11 |
25.5 |
25.5 |
68 |
70 |
PN105 |
|
1B-40 |
G2.1/2"X11 |
G2.1/2"X11 |
32 |
32 |
81 |
90 |
PN105 |
|
1B-48 |
G3"X11 |
G3"X11 |
36 |
36 |
92 |
100 |
PN105 |
| Forme | Straight |
|---|---|
| Type de montage | Cone |
| Type de fil | Male |
| Connection Type | BSP |
