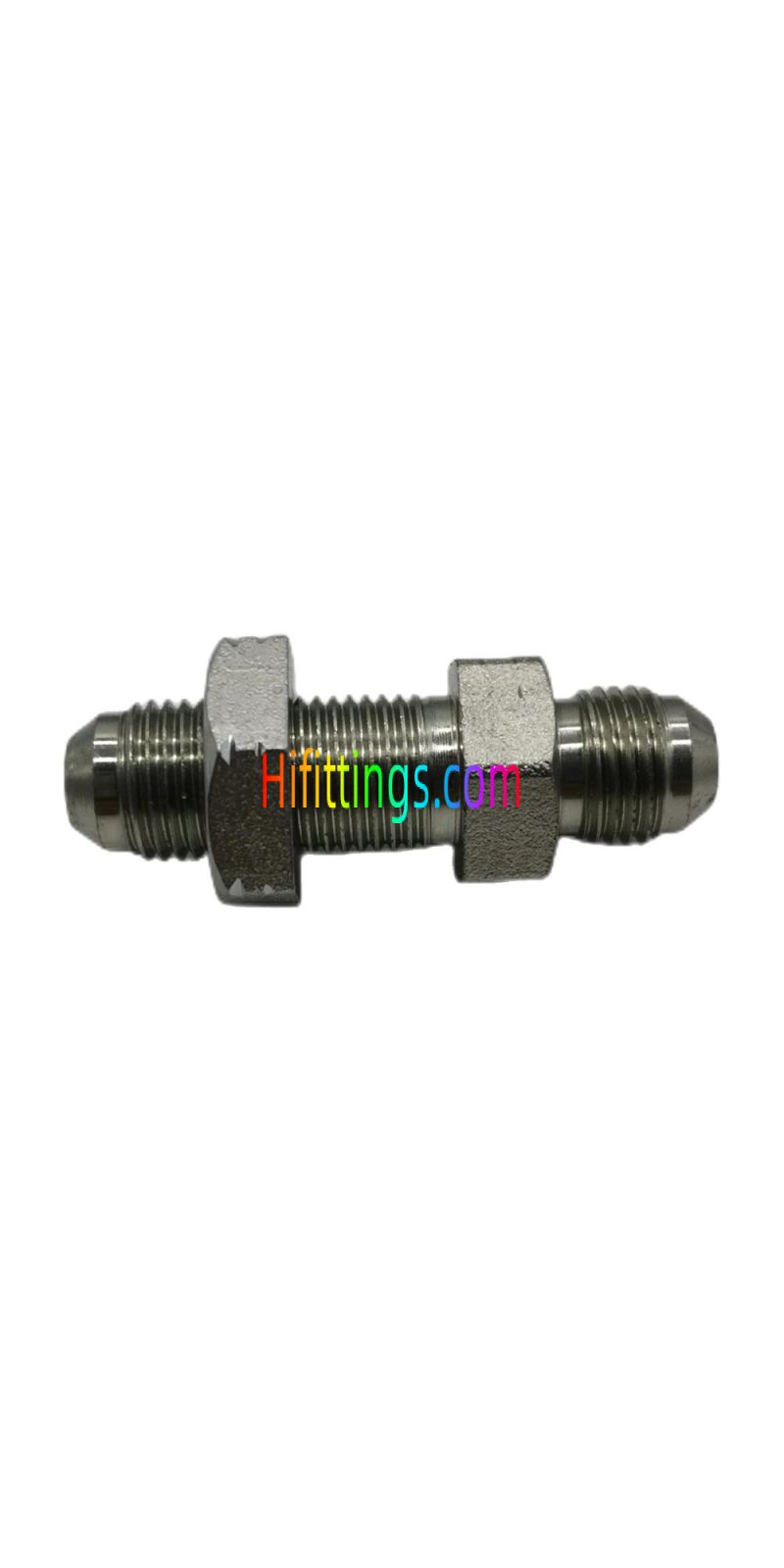

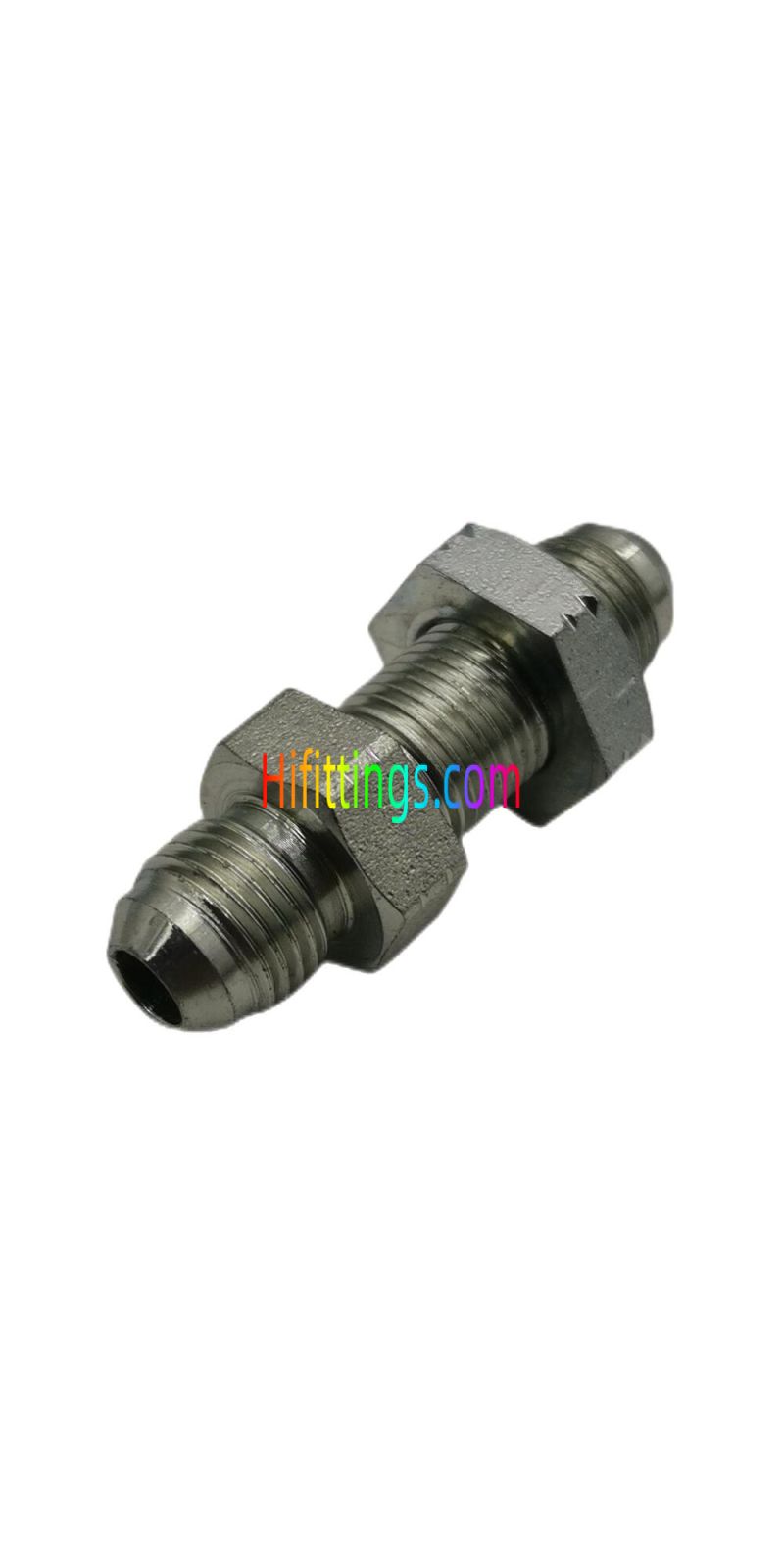

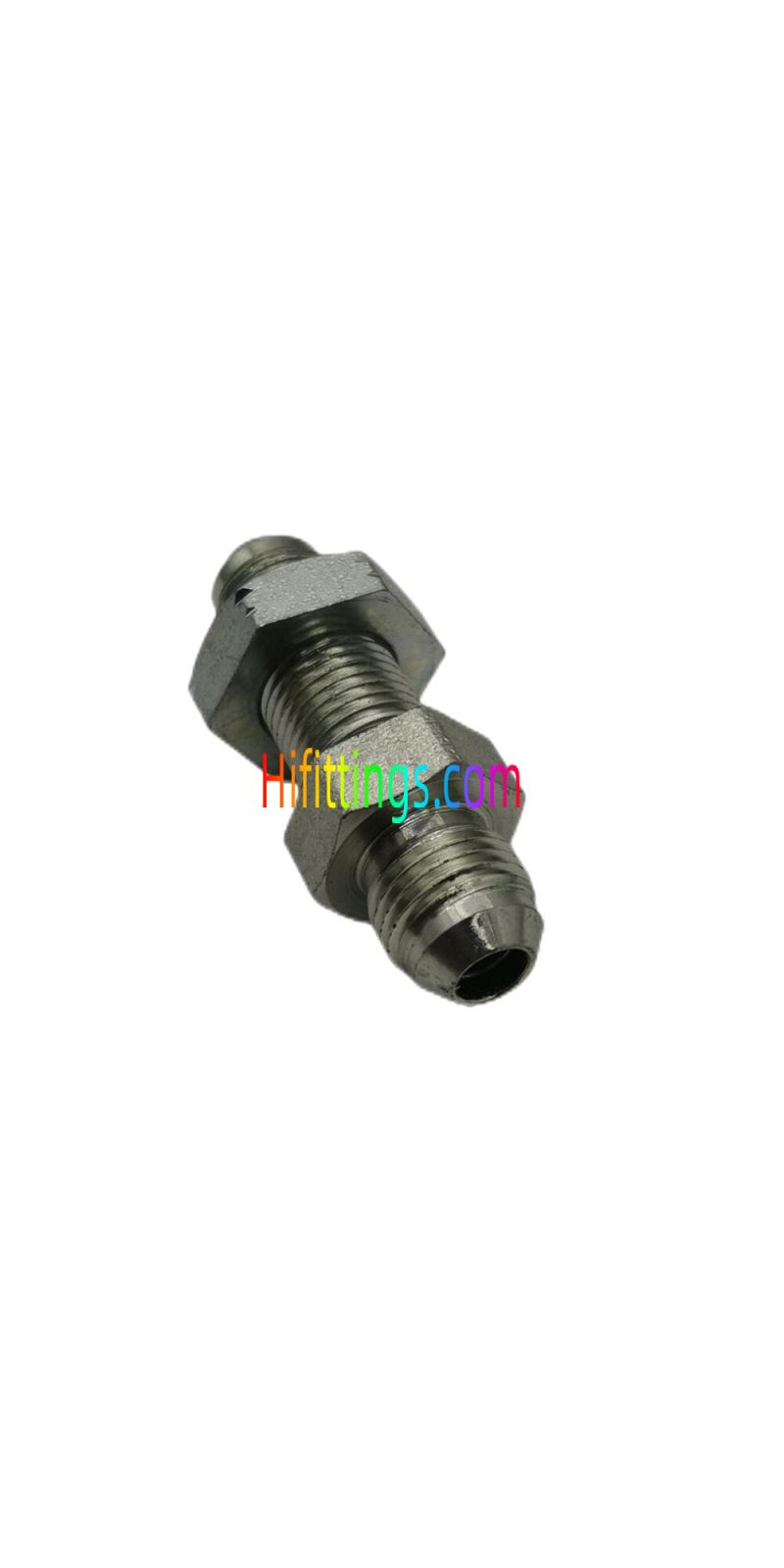

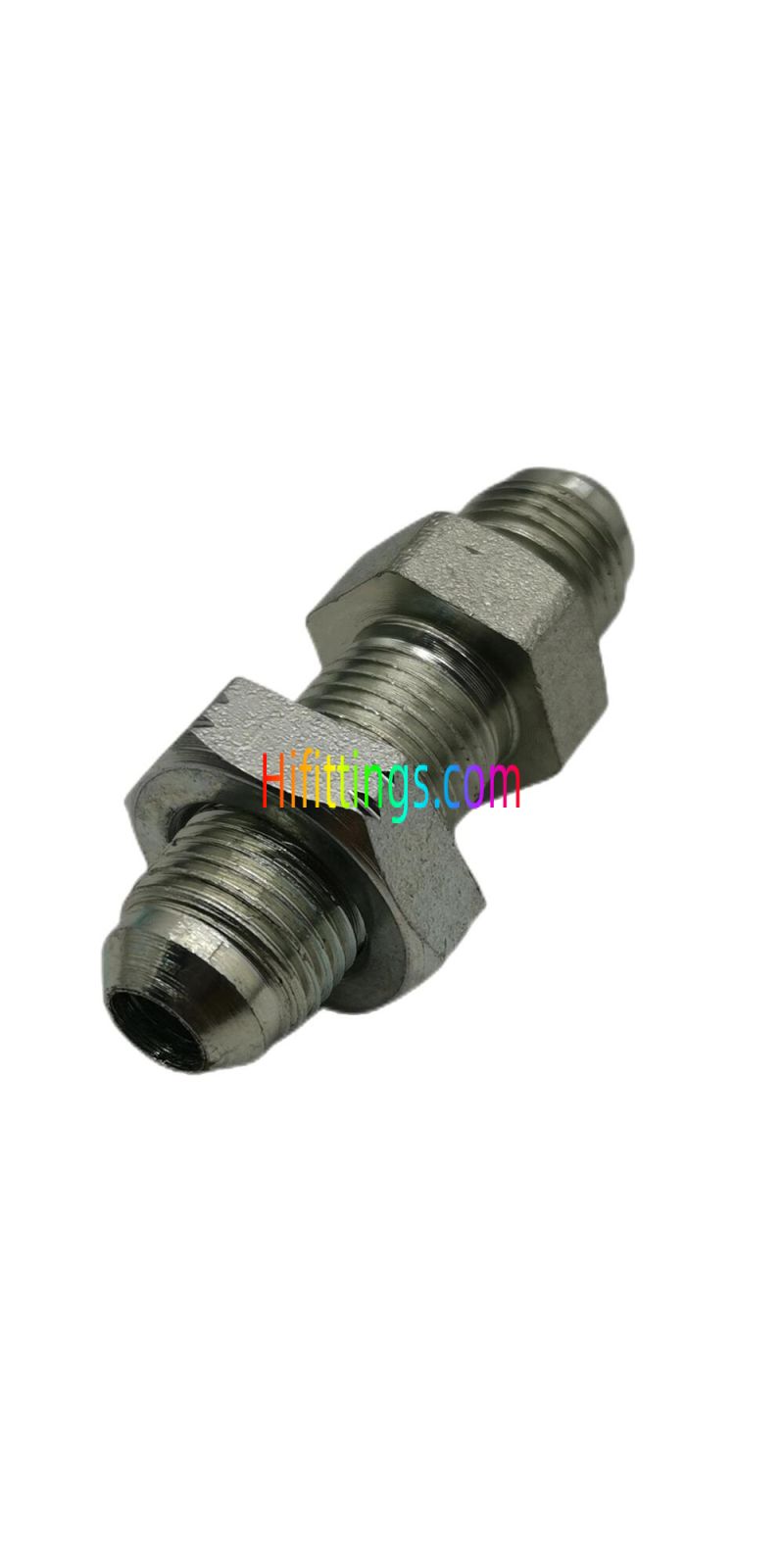

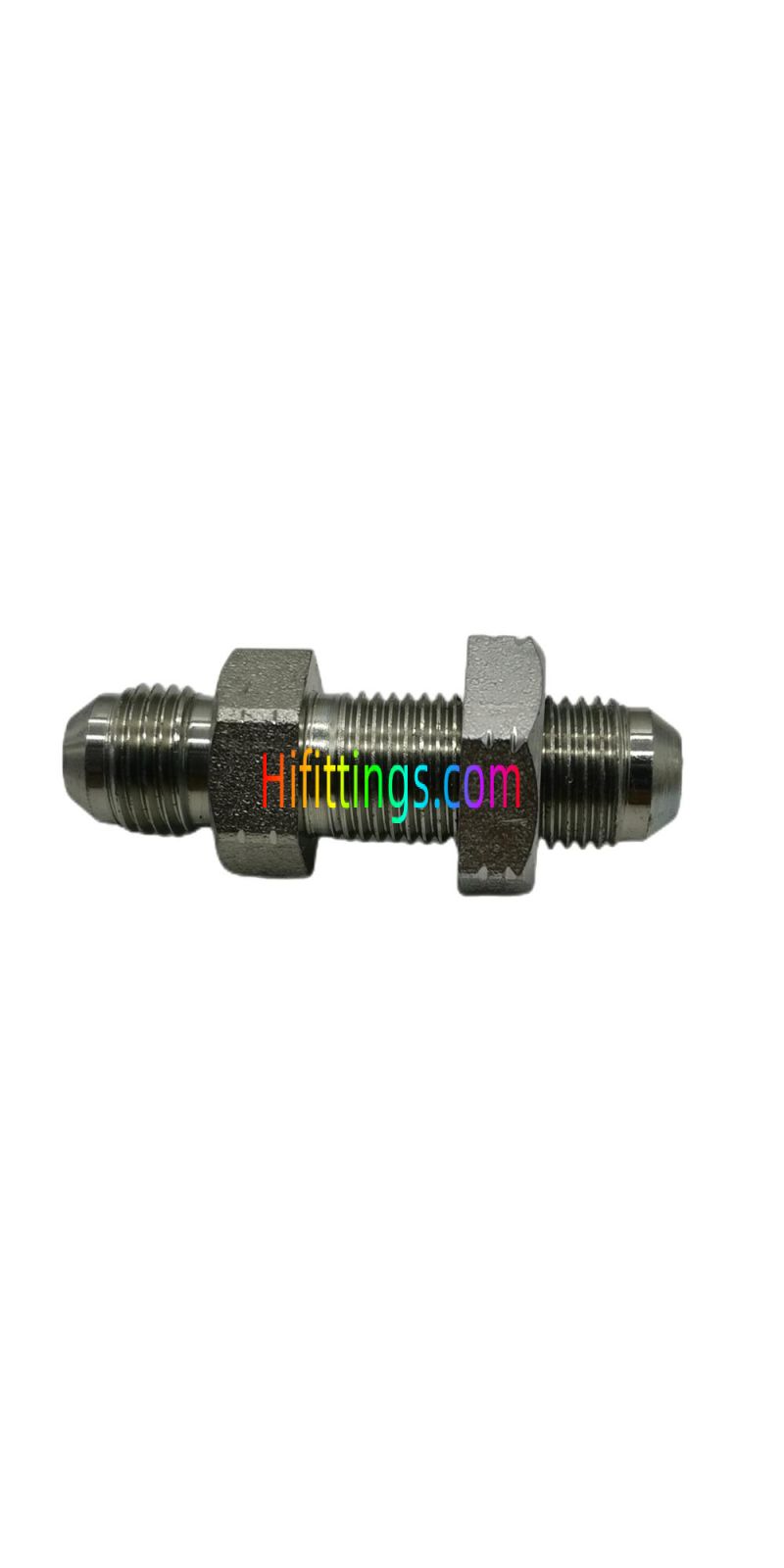

Straight JIC Male 74° Cone Flared Bulkhead Tube Fittings 6J
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
S2 |
Working Pressure bar |
|
6J-04 |
7/16"X20 |
7/16"X20 |
14 |
32.5 |
52.5 |
17 |
17 |
PN345 |
|
6J-05 |
1/2"X20 |
1/2"X20 |
14 |
32.5 |
52.5 |
19 |
19 |
PN345 |
|
6J-06 |
9/16"X18 |
9/16"X18 |
14.1 |
32.5 |
54.5 |
22 |
22 |
PN345 |
|
6J-08 |
3/4"X16 |
3/4"X16 |
16.7 |
36.5 |
61.5 |
24 |
24 |
PN310 |
|
6J-10 |
7/8"X14 |
7/8"X14 |
19.3 |
40 |
69.5 |
30 |
30 |
PN240 |
|
6J-12 |
1.1/16"X12 |
1.1/16"X12 |
21.9 |
44.5 |
78.5 |
36 |
36 |
PN240 |
|
6J-14 |
1.3/16"X12 |
1.3/16"X12 |
22.6 |
44.5 |
79.2 |
38 |
38 |
PN210 |
|
6J-16 |
1.5/16"X12 |
1.5/16"X12 |
23.1 |
44.5 |
79.8 |
41 |
41 |
PN210 |
|
6J-20 |
1.5/8"X12 |
1.5/8"X12 |
24.3 |
45.7 |
84 |
50 |
50 |
PN170 |
|
6J-24 |
1.7/8"X12 |
1.7/8"X12 |
27.5 |
46 |
89.5 |
55 |
55 |
PN140 |
|
6J-32 |
2.1/2"X12 |
2.1/2"X12 |
33.9 |
53.1 |
106.5 |
70 |
70 |
PN105 |
| Forme | Straight |
|---|---|
| Type de montage | Cone Flared |
| Type de fil | Male |
| Connection Type | JIC |
