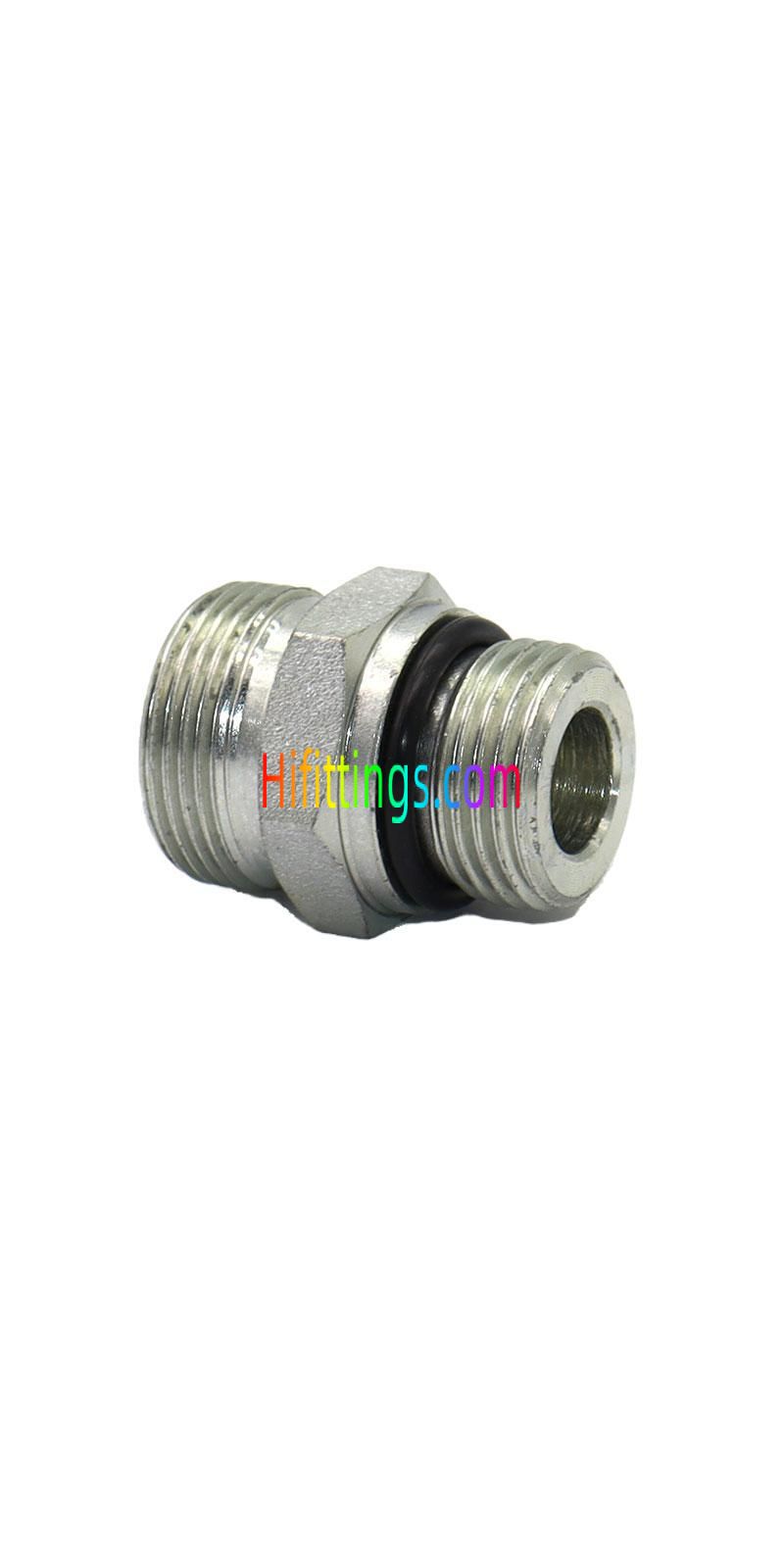

Straight UNF Male Stud End With O-Ring Sealing / Metric Male DIN Bite Type Hydraulic Adapter Pipe Fittings ISO11926 1CO/1DO
|
Part NO. |
E |
F |
D1 |
B |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1 CO-14-04 |
M14X1.5 |
7/16"X20 |
8 |
9 |
10 |
25 |
17 |
17 |
PN315 |
|
1 CO-16-04 |
M16X1.5 |
7/16"X20 |
10 |
9 |
11 |
26 |
17 |
19 |
PN315 |
|
1 CO-18-06 |
M18X1.5 |
9/16"X18 |
12 |
10 |
11 |
26 |
19 |
22 |
PN315 |
|
1 CO-18-08 |
M18X1.5 |
3/4"X16 |
12 |
11 |
13 |
28 |
24 |
22 |
PN315 |
|
1 CO-18-10 |
M18X1.5 |
7/8"X14 |
12 |
12.7 |
14.3 |
29 |
27 |
22 |
PN315 |
|
1 CO-22-08 |
M22X1.5 |
3/4"X16 |
15 |
11 |
14 |
29 |
24 |
27 |
PN315 |
|
1 CO-22-10 |
M22X1.5 |
7/8"X14 |
15 |
12.7 |
15.3 |
30 |
27 |
27 |
PN315 |
|
1 CO-22-12 |
M22X1.5 |
1.1/16"X12 |
15 |
15.1 |
11.9 |
30 |
32 |
27 |
PN315 |
|
1 CO-26-08 |
M26X1.5 |
3/4"X16 |
18 |
11 |
14.5 |
31 |
27 |
32 |
PN315 |
|
1 CO-26-10 |
M26X1.5 |
7/8"X14 |
18 |
12.7 |
14.8 |
31 |
27 |
32 |
PN315 |
|
1 CO-30-08 |
M30X2 |
3/4"X16 |
18 |
11.1 |
13.9 |
33 |
32 |
36 |
PN160 |
|
1C0-30-10 |
M30X2 |
7/8"X14 |
22 |
12.7 |
16.8 |
33 |
32 |
36 |
PN160 |
|
1 CO-30-12 |
M30X2 |
1.1/16"X12 |
22 |
15 |
16.5 |
33 |
32 |
36 |
PN160 |
|
1 CO-30-16 |
M30X2 |
1.5/16"X12 |
22 |
15 |
17.5 |
34 |
41 |
36 |
PN160 |
|
1 CO-36-12 |
M36X2 |
1.1/16"X12 |
28 |
15.1 |
14.4 |
34 |
41 |
41 |
PN160 |
|
1 CO-36-16 |
M36X2 |
1.5/16"X12 |
28 |
15 |
17.5 |
34 |
41 |
41 |
PN160 |
|
1 CO-45-16 |
M45X2 |
1.5/16"X12 |
35 |
15 |
17.5 |
39 |
46 |
50 |
PN160 |
|
1 CO-45-20 |
M45X2 |
1.5/8"X12 |
35 |
15.1 |
16.4 |
39 |
50 |
50 |
PN160 |
|
1 CO-52-20 |
M52X2 |
1.5/8"X12 |
42 |
15.1 |
15.9 |
42 |
55 |
60 |
PN160 |
|
1 DO-16-04 |
M16X1.5 |
7/16"X20 |
8 |
9 |
15 |
30 |
17 |
19 |
PN630 |
|
1 DO-18-06 |
M18X1.5 |
9/16"X18 |
10 |
10 |
14.5 |
31 |
19 |
22 |
PN630 |
|
1 DO-20-06 |
M20X1.5 |
9/16"X18 |
12 |
10 |
14.5 |
31 |
22 |
24 |
PN630 |
|
1 DO-20-08 |
M20X1.5 |
3/4"X16 |
12 |
11 |
17.5 |
34 |
24 |
24 |
PN630 |
|
1 DO-24-08 |
M24X1.5 |
3/4"X16 |
16 |
11 |
15.5 |
34 |
24 |
30 |
PN400 |
|
1 DO-24-10 |
M24X1.5 |
7/8"X14 |
16 |
12.7 |
18.8 |
37 |
27 |
30 |
PN400 |
|
1 DO-30-08 |
M30X2 |
3/4"X16 |
20 |
11 |
20.5 |
42 |
32 |
36 |
PN400 |
|
1 DO-30-10 |
M30X2 |
7/8"X14 |
20 |
12.7 |
20.8 |
42 |
32 |
36 |
PN400 |
|
1 DO-30-12 |
M30X2 |
1.1/16"X12 |
20 |
15 |
20.5 |
42 |
32 |
36 |
PN400 |
|
1 DO-36-12 |
M36X2 |
1.1/16"X12 |
25 |
15.1 |
19.9 |
47 |
41 |
46 |
PN400 |
|
1 DO-36-16 |
M36X2 |
1.5/16"X12 |
25 |
15 |
23 |
47 |
41 |
46 |
PN400 |
|
1 DO-42-16 |
M42X2 |
1.5/16"X12 |
30 |
15 |
23.5 |
50 |
46 |
50 |
PN400 |
|
1 DO-42-20 |
M42X2 |
1.5/8"X12 |
30 |
15 |
23.5 |
50 |
50 |
50 |
PN400 |
|
1 DO-52-20 |
M52X2 |
1.5/8"X12 |
38 |
15.1 |
22.9 |
53.9 |
55 |
60 |
PN315 |
|
Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DO-30-12RN. 2. PN = Nominal Pressure |
|||||||||
| Forme | Straight |
|---|---|
| Type de fil | Male |
| Connection Type | Metric, UNF |
| Type de montage | Bite Type |
