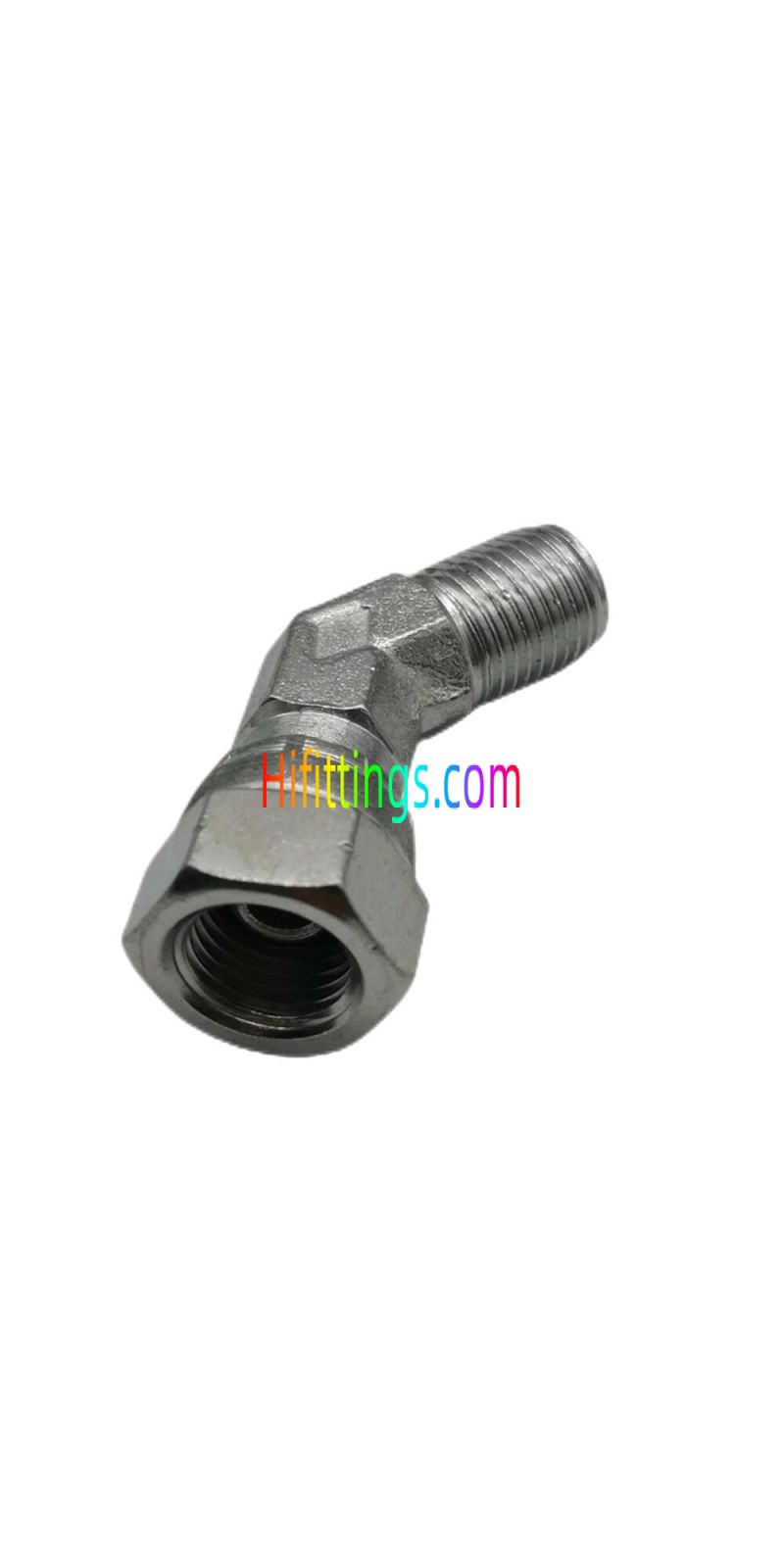

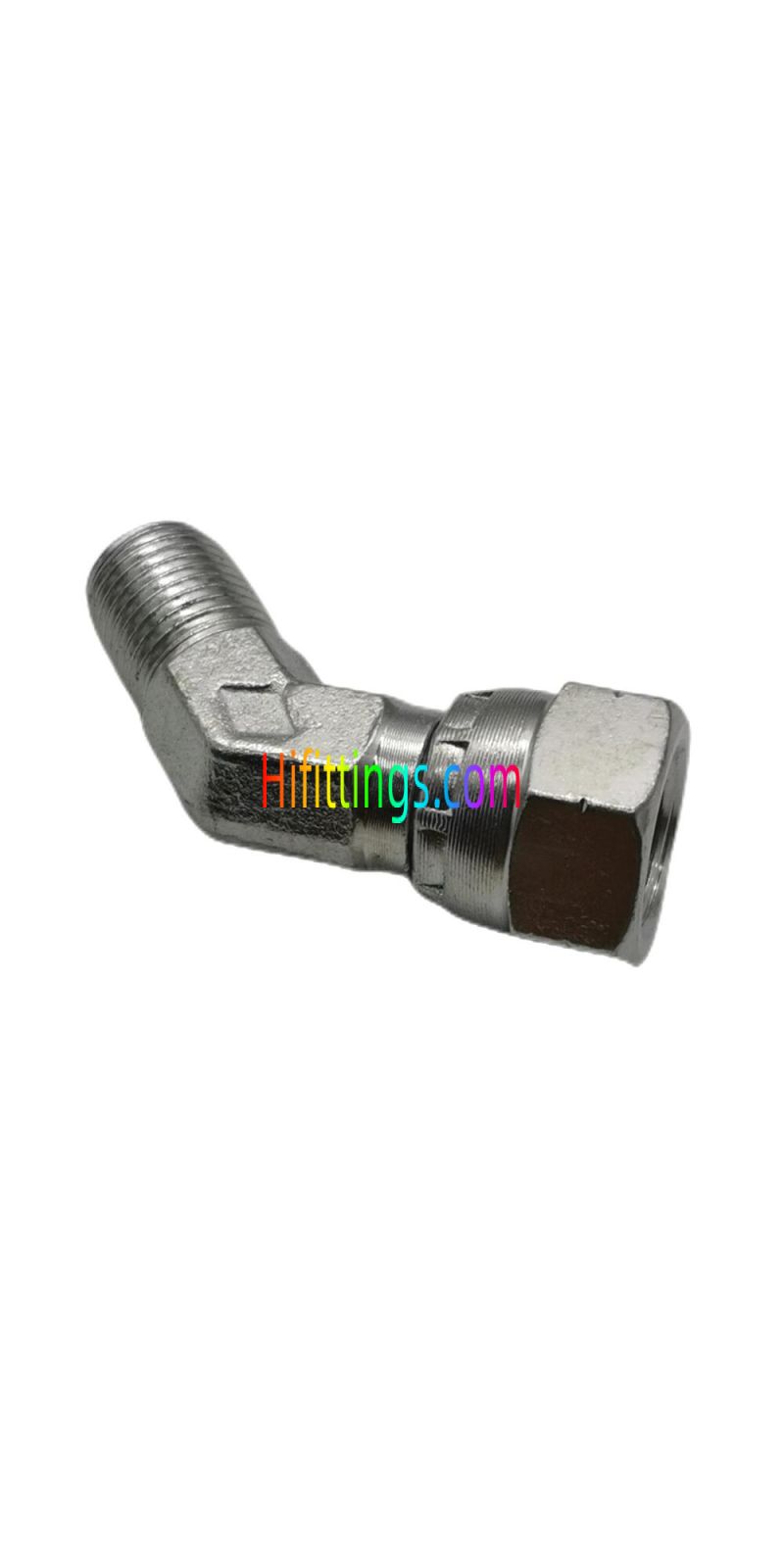

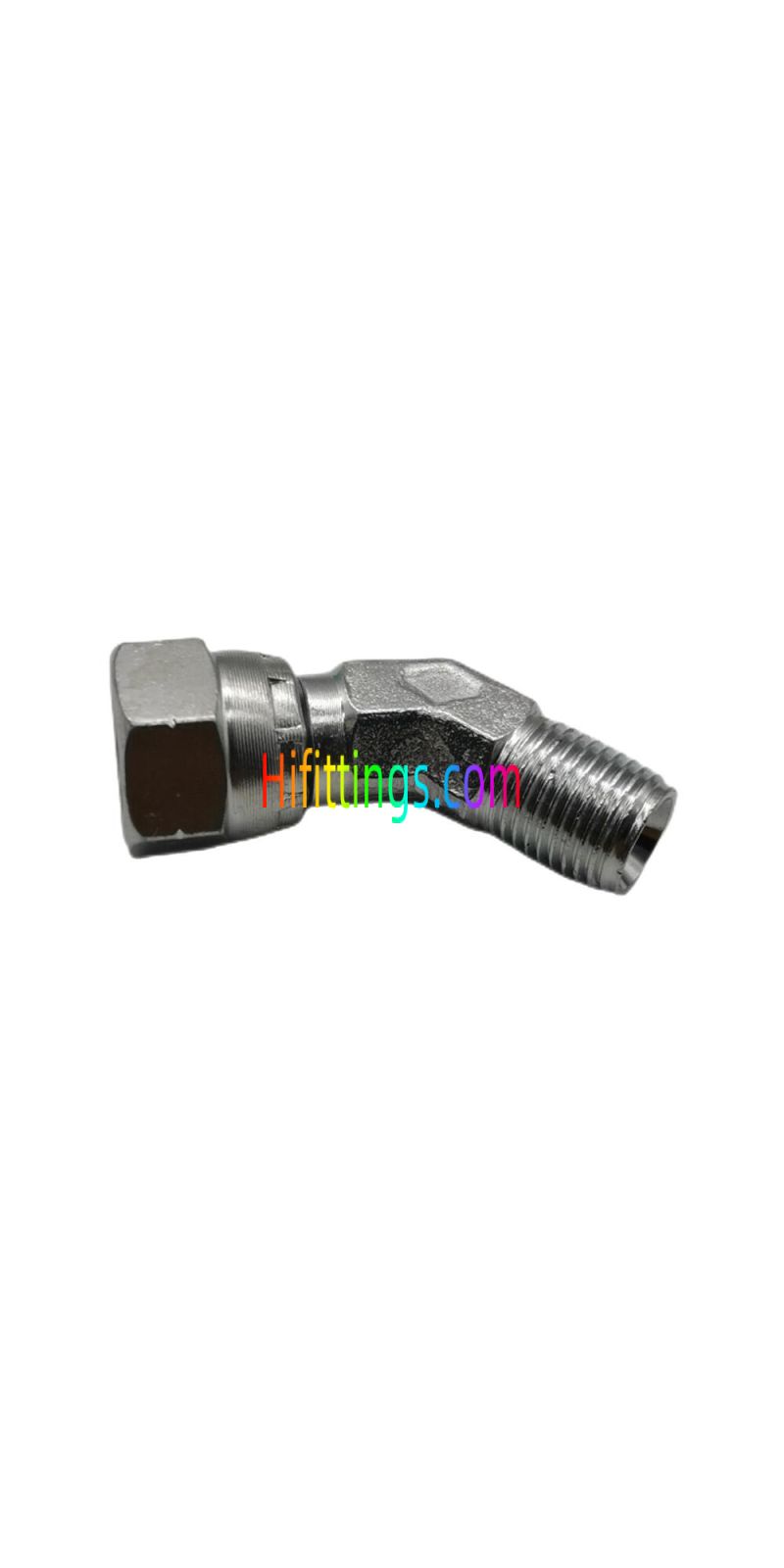

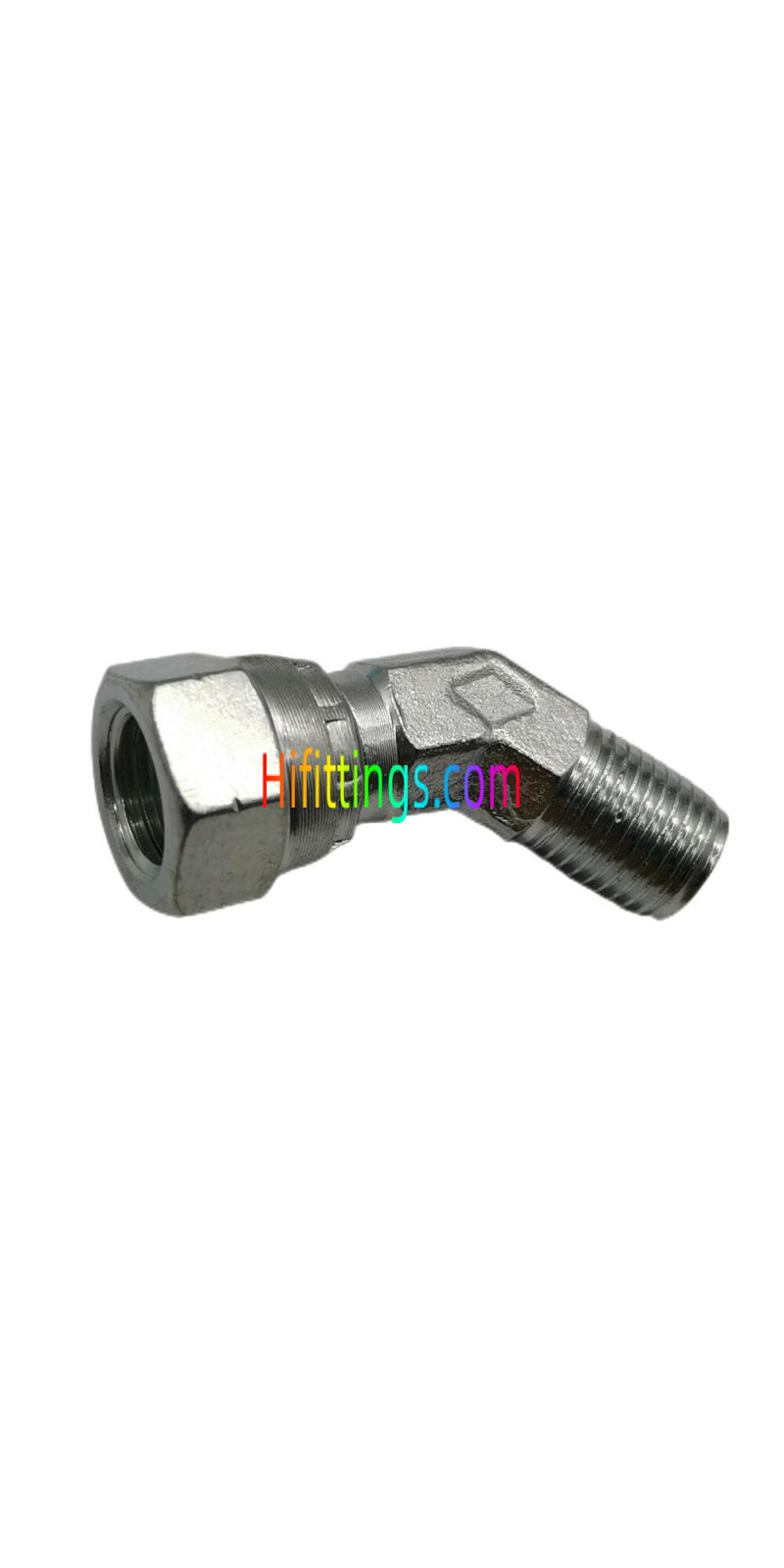

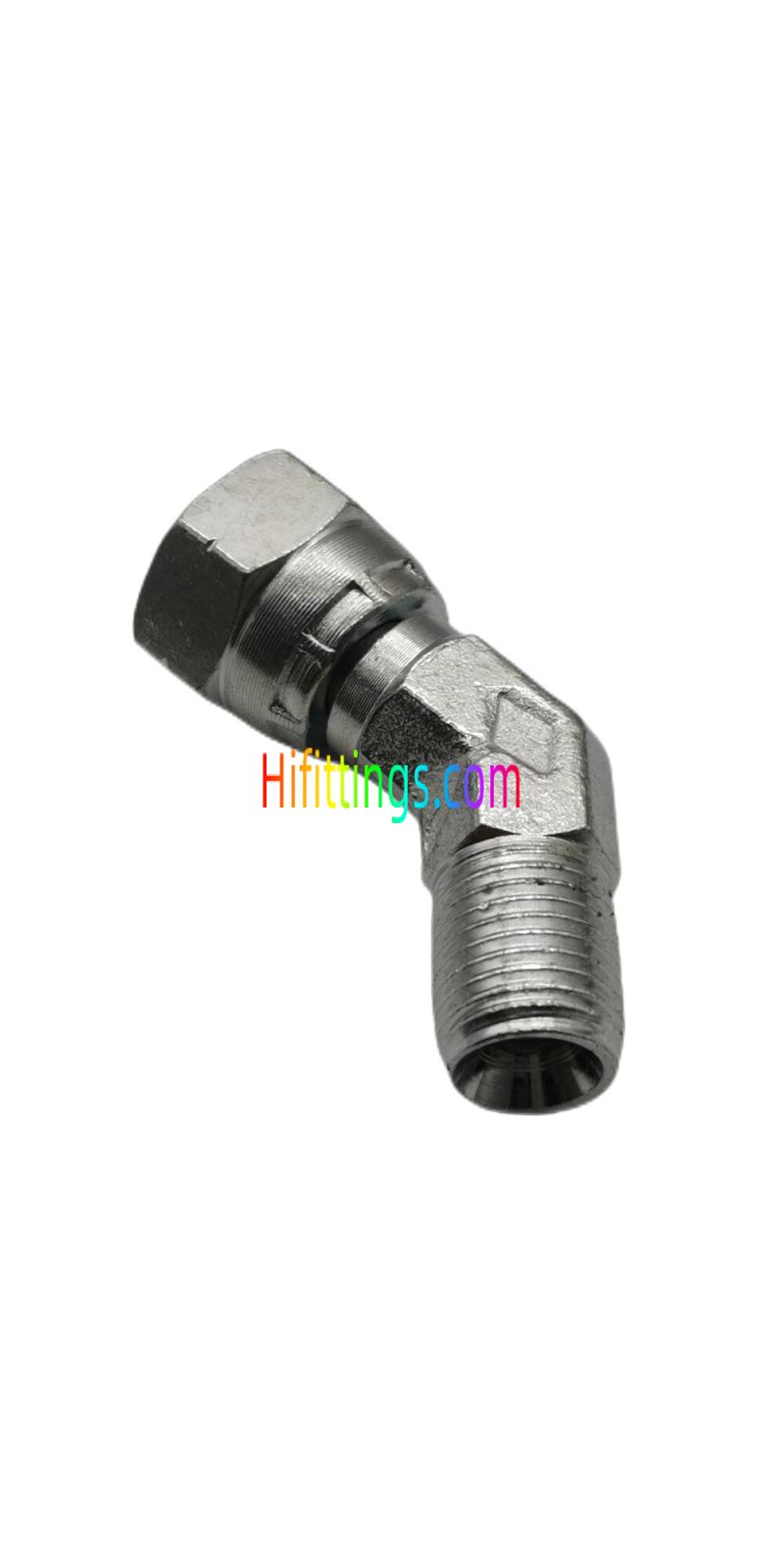

45° Elbow BSP Male 60° Seat / BSP Female 60° Cone Fittings
|
Part NO. |
E |
F |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
2B4-04 |
G1/4"X19 |
G1/4"X19 |
20.3 |
5.5 |
14 |
19 |
PN345 |
|
2B4-04-06 |
G1/4"X19 |
G3/8"X19 |
20.3 |
6.3 |
14 |
22 |
PN345 |
|
2B4-06 |
G3/8"X19 |
G3/8"X19 |
22 |
6.3 |
16 |
22 |
PN345 |
|
2B4-06-04 |
G3/8"X19 |
G1/4"X19 |
22 |
5.5 |
16 |
19 |
PN345 |
|
2B4-08 |
G1/2"X14 |
G1/2"X14 |
27 |
7.5 |
22 |
27 |
PN345 |
|
2B4-08-06 |
G1/2"X14 |
G3/8"X19 |
27 |
6.3 |
22 |
22 |
PN345 |
|
2B4-10 |
G5/8"X14 |
G5/8"X14 |
28.5 |
9.5 |
22 |
30 |
PN275 |
|
2B4-10-08 |
G5/8"X14 |
G1/2"X14 |
28.5 |
7.5 |
22 |
27 |
PN275 |
|
2B4-12 |
G3/4"X14 |
G3/4"X14 |
31 |
10.9 |
27 |
32 |
PN275 |
|
2B4-16 |
G1"X11 |
G1"X11 |
35 |
11.7 |
33 |
41 |
PN205 |
|
2B4-20 |
G1.1/4"X11 |
G1.1/4"X11 |
38.5 |
11 |
41 |
50 |
PN170 |
|
2B4-24 |
G1.1/2"X11 |
G1.1/2"X11 |
44 |
13 |
48 |
55 |
PN105 |
|
2B4-32 |
G2"X11 |
G2"X11 |
51 |
16 |
63 |
70 |
PN105 |
| Forma | Elbow |
|---|---|
| Tipo di montaggio | Cone |
| Tipo di filettatura | Male-Female |
| Connection Type | BSP |
