Part NO. |
Thread E |
Hose Bore - DN |
Hose Bore - Dash |
Tube O.D |
A |
C |
H |
S2 |
|
20441-14-04 |
M14X1.5 |
6 |
4 |
8 |
49 |
2 |
27 |
19 |
|
20441-16-05 |
M16X1.5 |
8 |
5 |
10 |
51.5 |
2 |
28.2 |
22 |
|
20441-16-06 |
M16X1.5 |
10 |
6 |
10 |
53.4 |
2 |
29.2 |
22 |
|
20441-18-05T |
M18X1.5 |
8 |
5 |
12 |
46.6 |
1.5 |
23.2 |
22 |
|
20441-18-06 |
M18X1.5 |
10 |
6 |
12 |
54.2 |
2.5 |
29.9 |
24 |
|
20441-22-05T |
M22X1.5 |
8 |
5 |
15 |
46.5 |
3 |
23.2 |
27 |
|
20441-22-06T |
M22X1.5 |
10 |
6 |
15 |
48.5 |
3 |
24.2 |
27 |
|
20441-22-08 |
M22X1.5 |
12 |
8 |
15 |
68.1 |
2.5 |
33.2 |
27 |
|
20441-26-08T |
M26X1.5 |
12 |
8 |
18 |
60.6 |
2.1 |
25.7 |
32 |
|
20441-26-10 |
M26X1.5 |
16 |
10 |
18 |
80.7 |
2.5 |
35.9 |
32 |
|
20441-26-12 |
M26X1.5 |
20 |
12 |
18 |
86.9 |
2.5 |
39.5 |
32 |
|
20441-27-10T |
M27X1.5 |
16 |
10 |
18 |
72 |
2.1 |
27.7 |
32 |
|
20441-27-12 |
M27X1.5 |
20 |
12 |
18 |
86.9 |
2.5 |
39.5 |
32 |
|
20441-30-10T |
M30X2 |
16 |
10 |
22 |
73.5 |
3.8 |
28.6 |
36 |
|
20441-30-12 |
M30X2 |
20 |
12 |
22 |
89.1 |
4 |
41.7 |
36 |
|
20441-36-12T |
M36X2 |
20 |
12 |
28 |
79.5 |
4.5 |
32.1 |
46 |
|
20441-36-14T |
M36X2 |
22 |
14 |
28 |
81.9 |
4.5 |
31.6 |
46 |
|
20441-45-20T |
M45X2 |
32 |
20 |
35 |
99.8 |
4 |
39.1 |
55 |
|
20441-52-20T |
M52X2 |
32 |
20 |
42 |
102 |
4 |
39.8 |
60 |
|
20441-52-24T |
M52X2 |
40 |
24 |
42 |
114.5 |
4 |
43.7 |
60 |
|
Note: I.For use with braided hoses. 2.lf use with spiral hoses, hose fitting series number is 20442-xx-xx |
||||||||

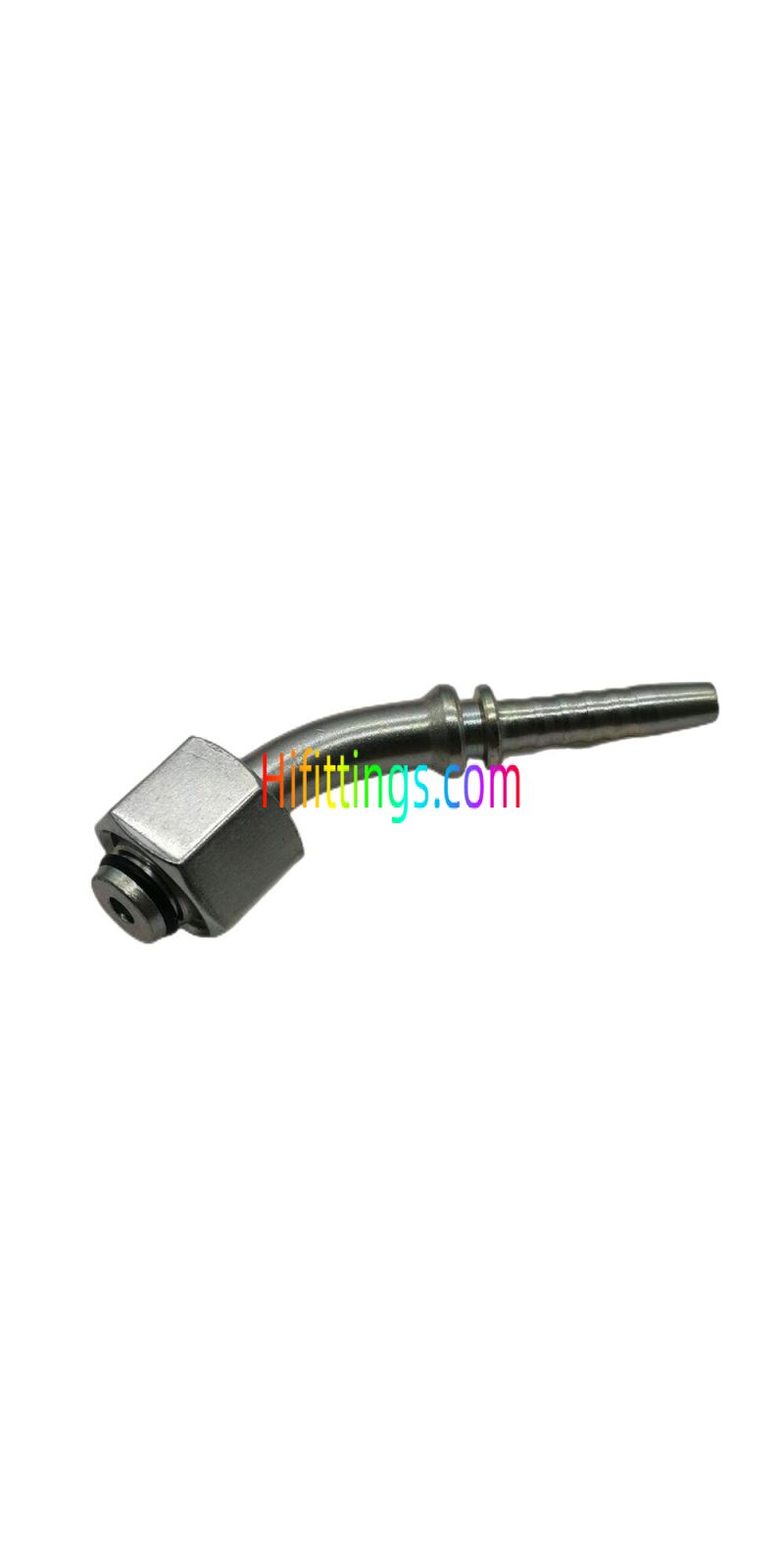

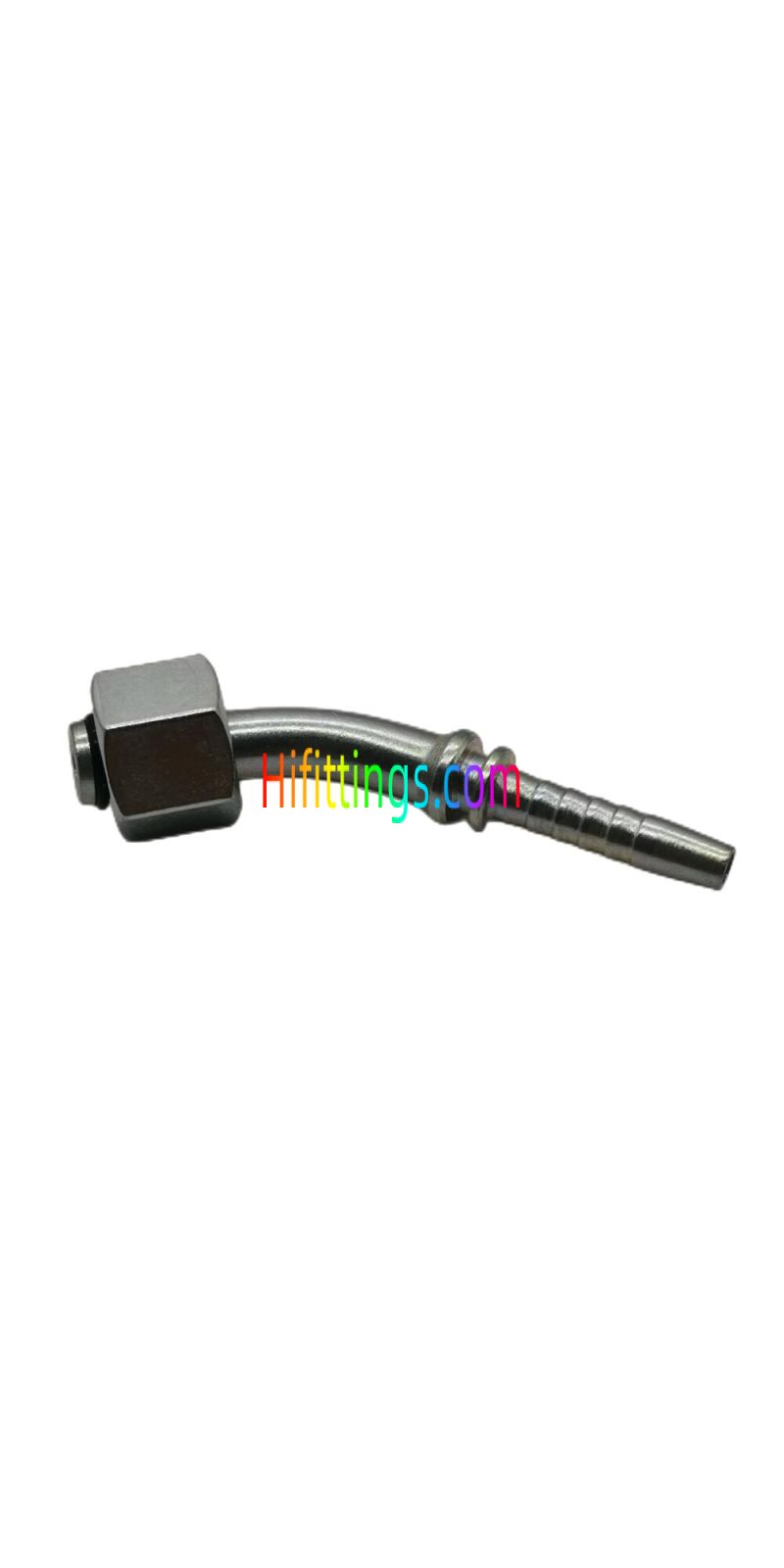

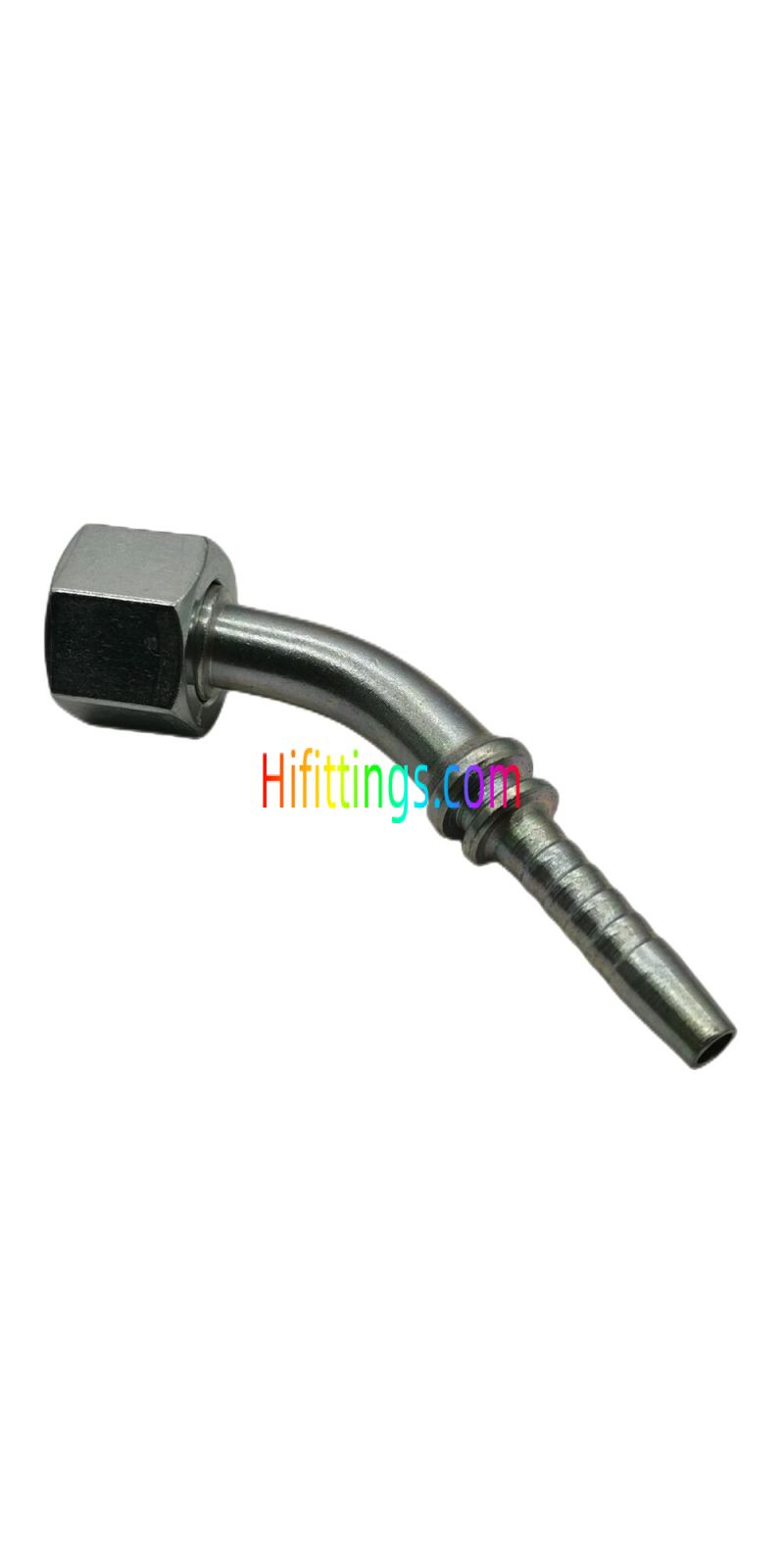

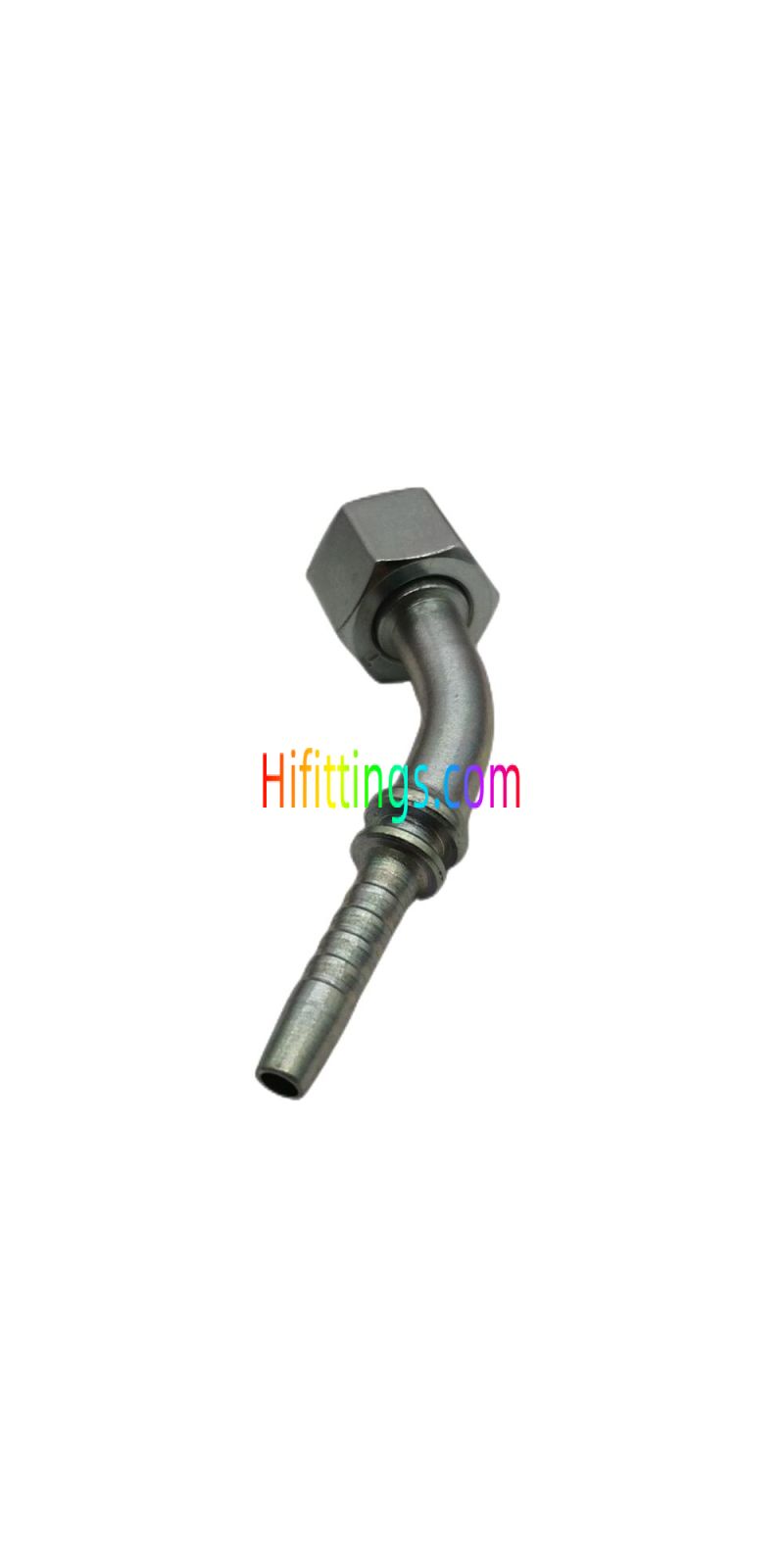

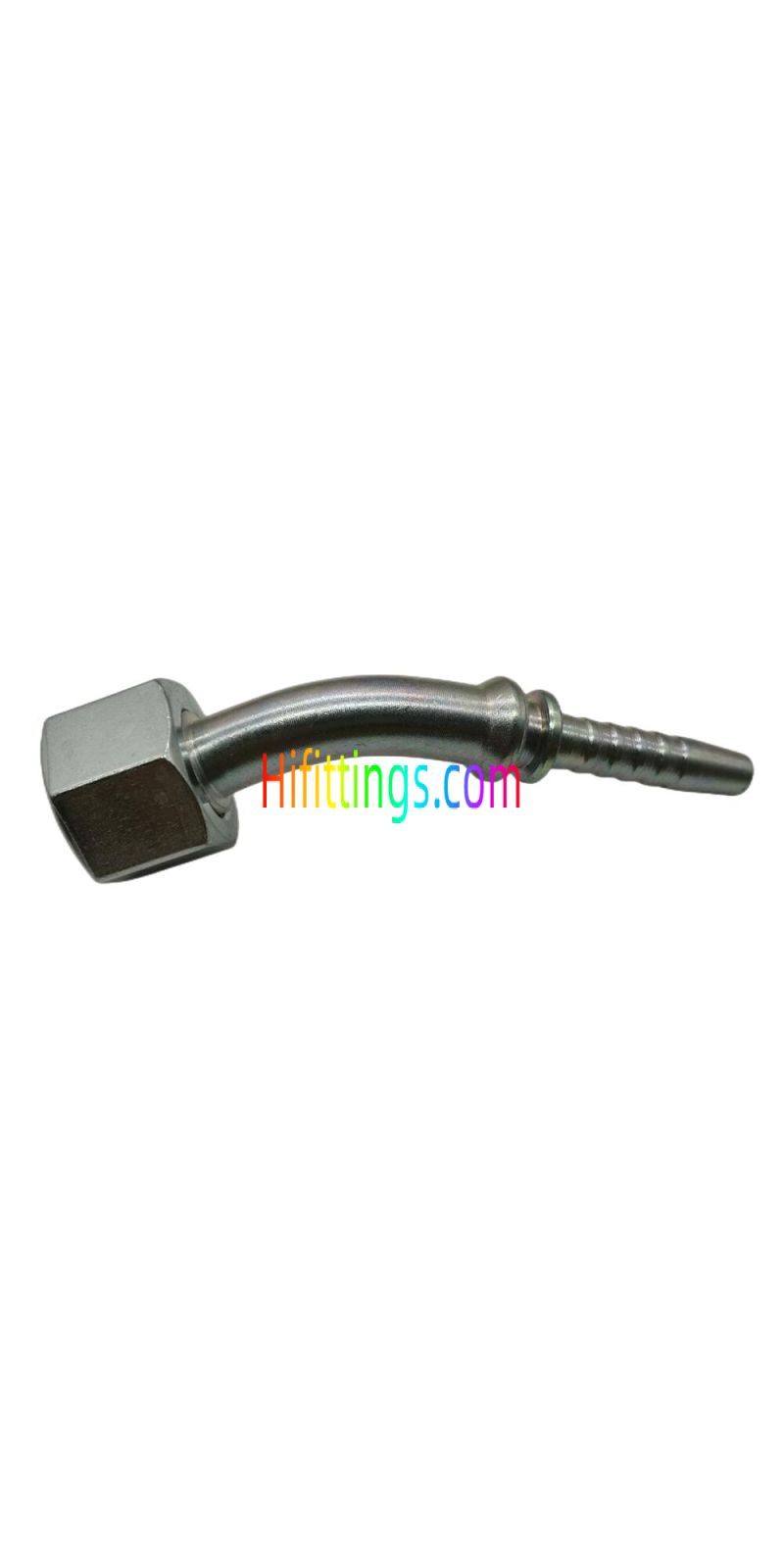

| Forma | Elbow |
|---|---|
| Tipo di montaggio | Cone |
| Tipo di filettatura | Female |
| Connection Type | Metric |
