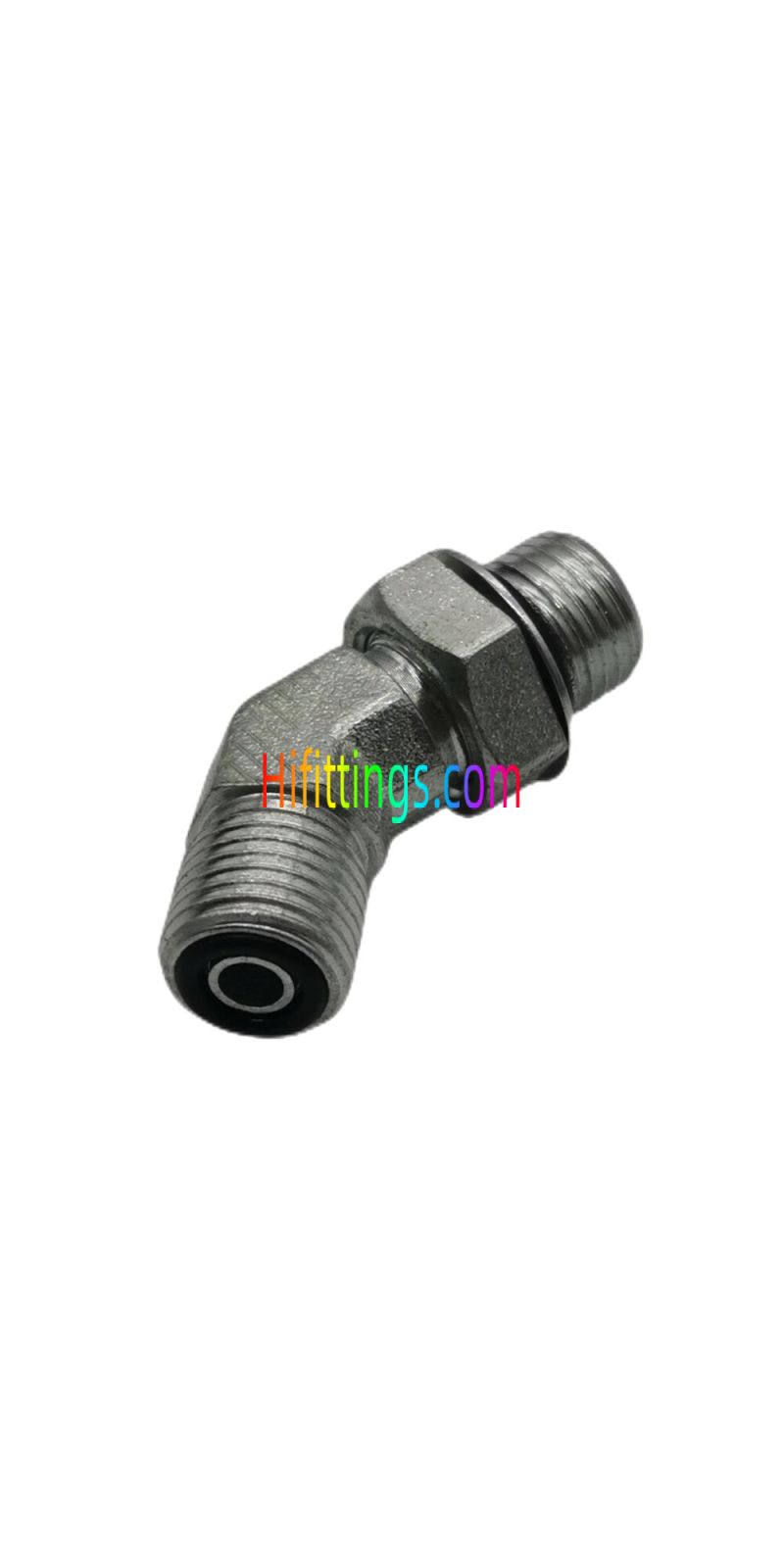

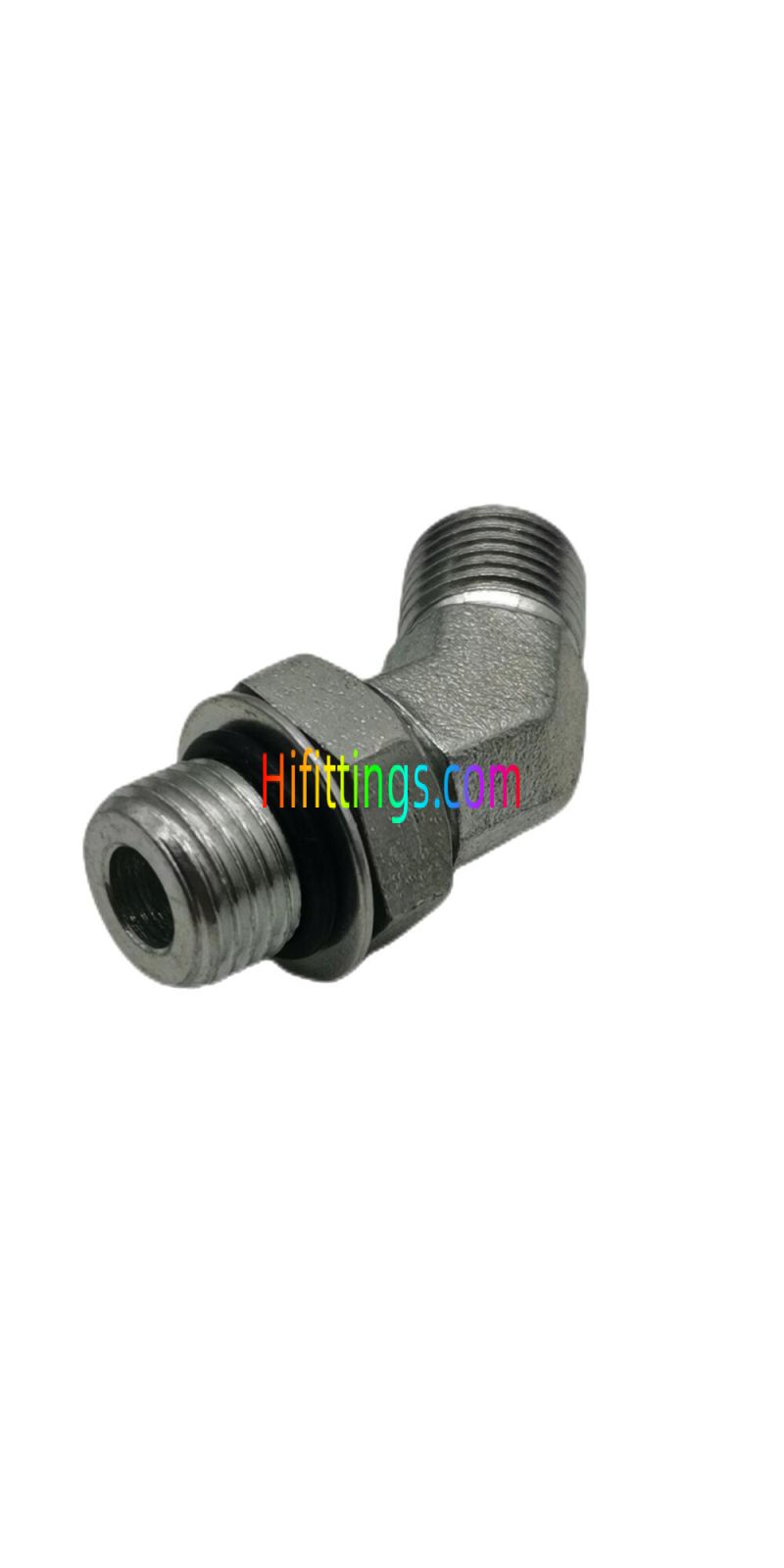

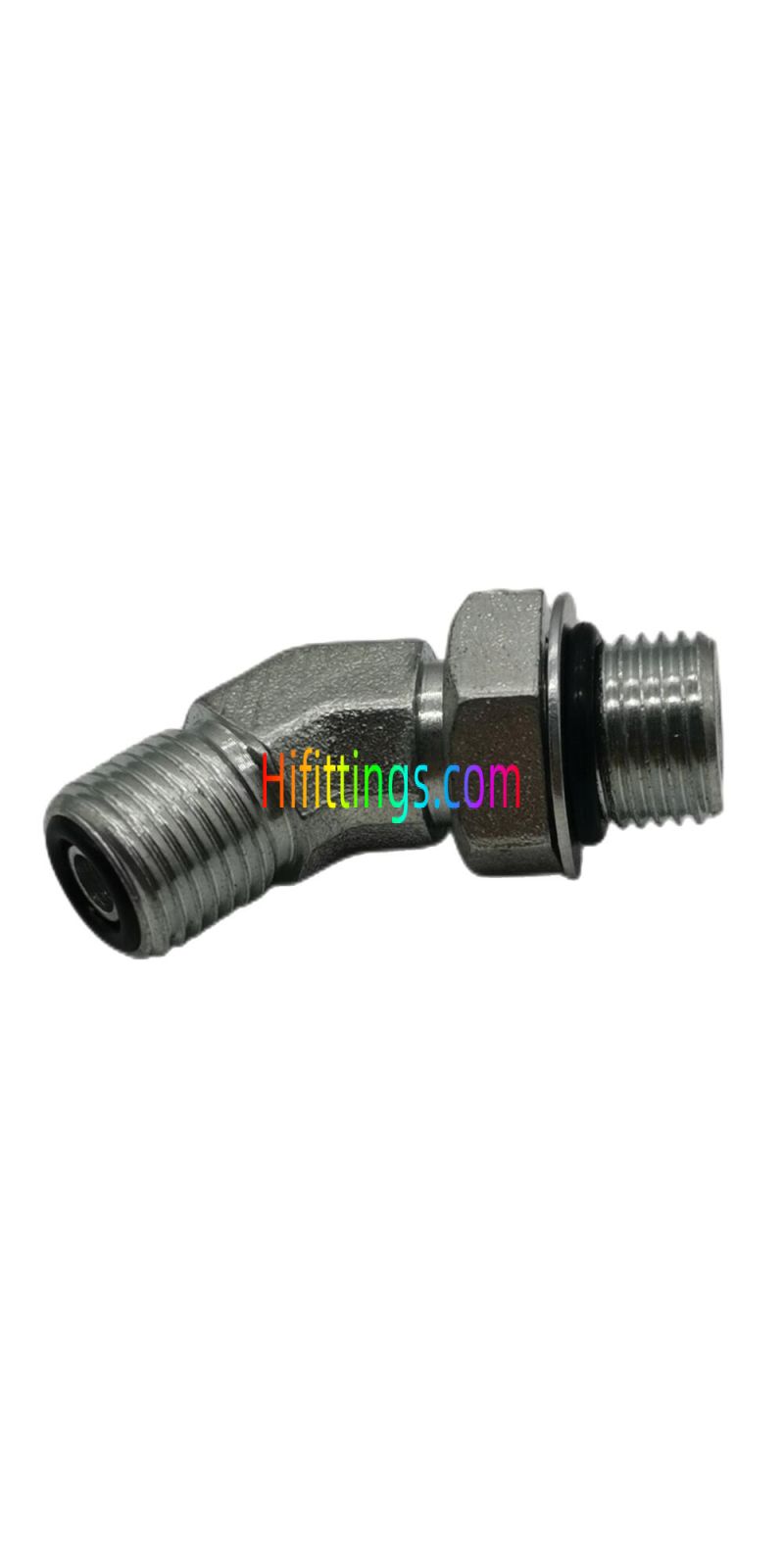

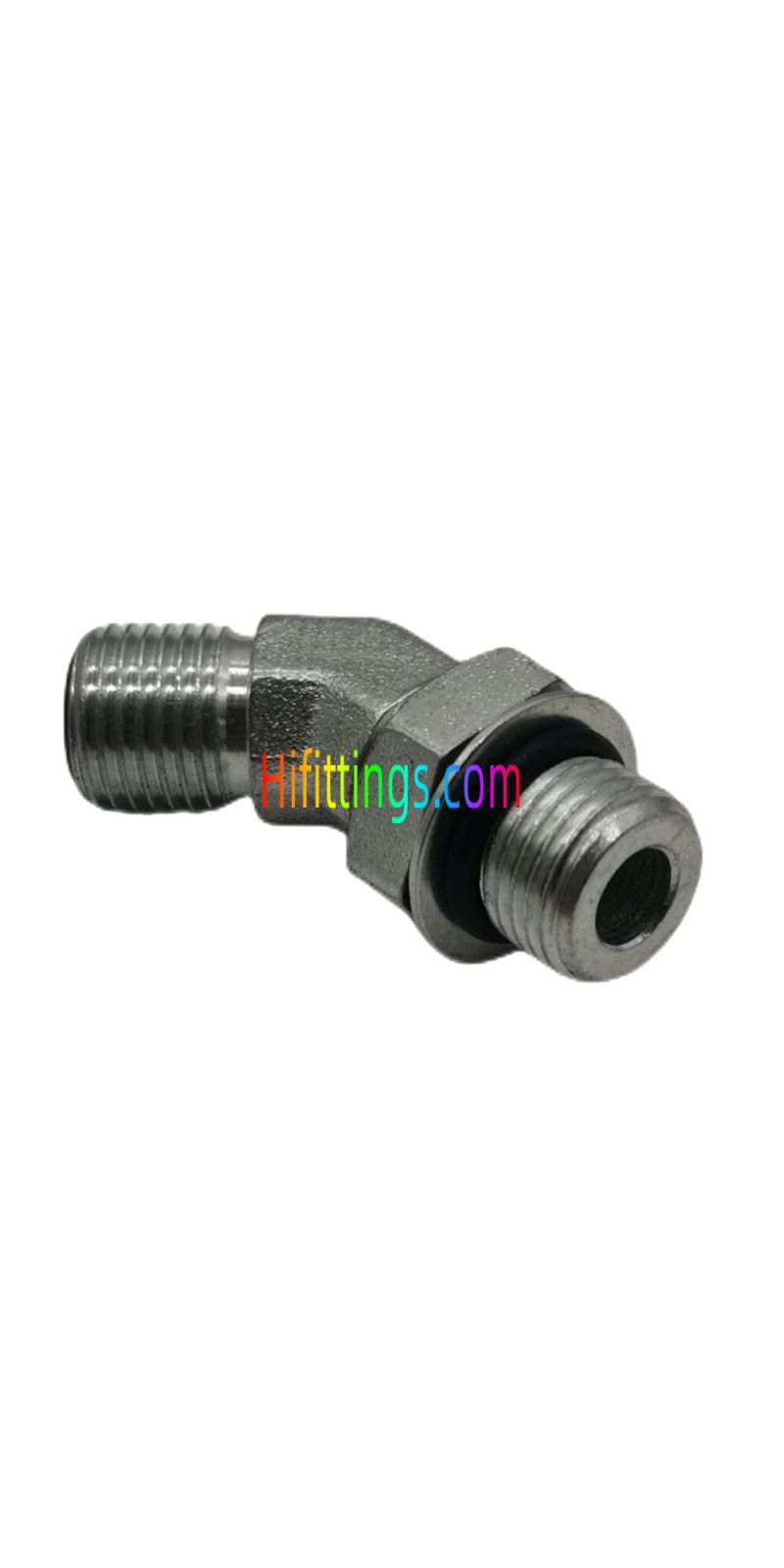

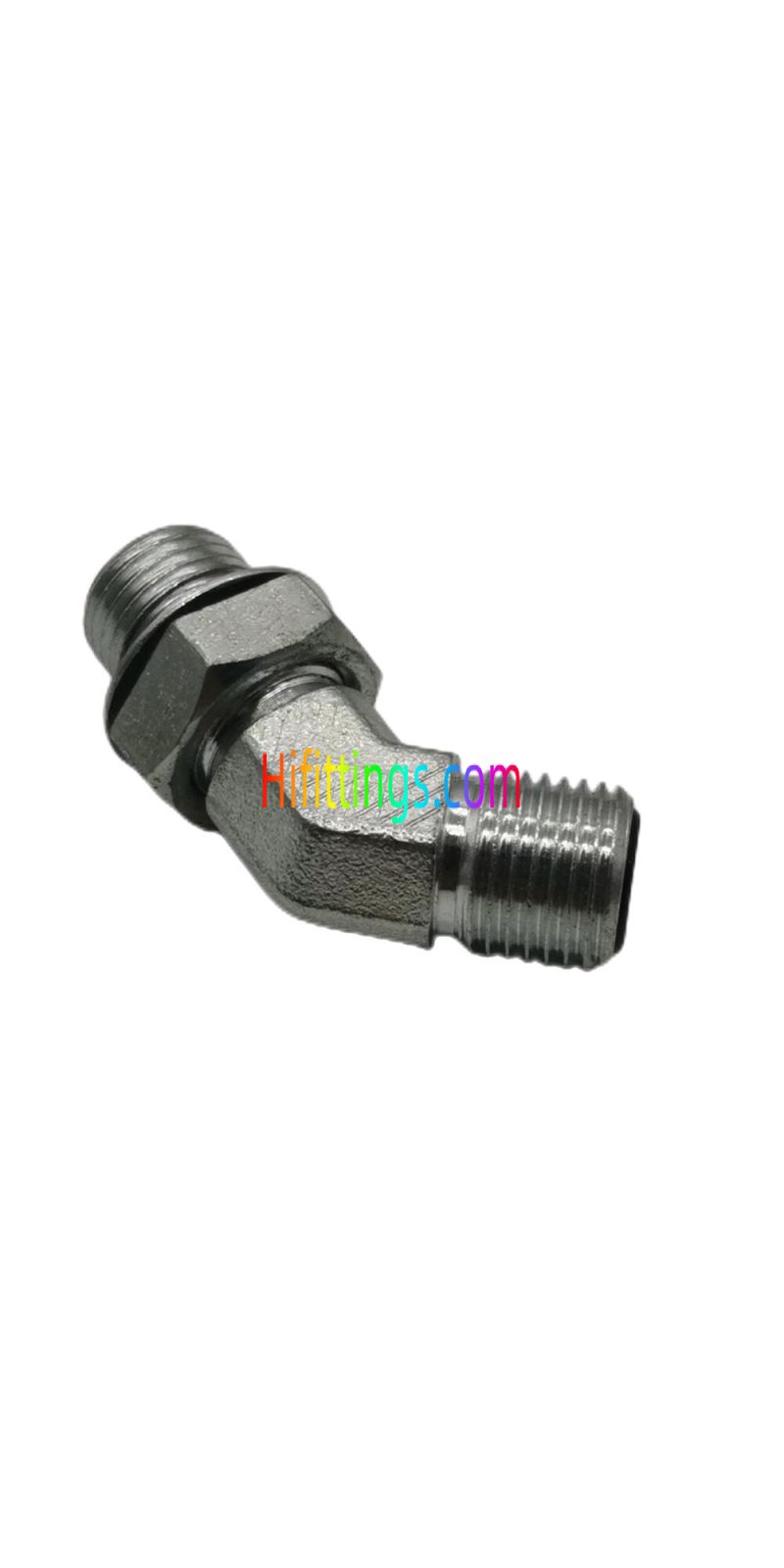

45° Elbow ORFS Male O-Ring / SAE O-Ring Boss S-Series ISO 11926-2 Hydraulic Adapter Pipe Fittings 1FO4-OG
|
Part NO. |
E |
F |
E End |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1FO4-04OG |
9/16"X18 |
7/16"X20 |
11 |
904 |
18.3 |
26 |
14 |
17 |
PN400 |
|
1FO4-04-06OG |
9/16"X18 |
9/16"X18 |
O011 |
O906 |
18.3 |
28 |
14 |
19 |
PN400 |
|
1FO4-06-04OG |
11/16"X16 |
7/16"X20 |
0012 |
O904 |
20.5 |
27.3 |
19 |
17 |
PN400 |
|
1FO4-06OG |
11/16"X16 |
9/16"X18 |
0012 |
O906 |
20.5 |
29.5 |
19 |
19 |
PN400 |
|
1FO4-06-08OG |
11/16"X16 |
3/4"X16 |
O012 |
O908 |
20.5 |
32.5 |
19 |
24 |
PN400 |
|
1FO4-08-06OG |
13/16"X16 |
9/16"X18 |
O014 |
O906 |
24 |
30.8 |
22 |
19 |
PN400 |
|
1FO4-08OG |
13/16"X16 |
3/4"X16 |
014 |
0908 |
24 |
34 |
22 |
24 |
PN400 |
|
1FO4-08-10OG |
13/16"X16 |
7/8"X14 |
O014 |
0910 |
24 |
39.5 |
22 |
27 |
PN400 |
|
1FO4-08-12OG |
13/16"X16 |
1.1/16X12 |
O014 |
0912 |
25.5 |
44 |
27 |
32 |
PN400 |
|
1FO4-10-08OG |
1"X14 |
3/4"X16 |
0016 |
0908 |
28 |
34 |
27 |
24 |
PN400 |
|
1FO4-10OG |
1"X14 |
7/8"X14 |
0016 |
0910 |
28 |
41.5 |
27 |
27 |
PN400 |
|
1FO4-10-12OG |
1"X14 |
1.1/16"X12 |
0016 |
0912 |
28 |
44 |
27 |
32 |
PN400 |
|
1FO4-12-10OG |
1.3/16"X12 |
7/8"X14 |
O018 |
O910 |
30.7 |
42 |
30 |
27 |
PN400 |
|
1FO4-12OG |
1.3/16"X12 |
1.1/16"X12 |
O018 |
O912 |
30.7 |
45.5 |
30 |
32 |
PN400 |
|
1FO4-12-16OG |
1.3/16"X12 |
1.5/16"X12 |
0018 |
O916 |
32.5 |
47.9 |
36 |
41 |
PN315 |
|
1FO4-16-12OG |
1.7/16"X12 |
1.1/16"X12 |
O021 |
O912 |
33 |
47.9 |
36 |
32 |
PN400 |
|
1FO4-16OG |
1.7/16"X12 |
1.5/16X12 |
O021 |
0916 |
33 |
47.9 |
36 |
41 |
PN315 |
|
1FO4-16-20OG |
1.7/16"X12 |
1.5/8"X12 |
O021 |
0920 |
35.5 |
48.5 |
41 |
50 |
PN250 |
|
1FO4-20OG |
1.11/16"X12 |
1.5/8"X12 |
0025 |
0920 |
35.5 |
48.8 |
41 |
50 |
PN250 |
|
1FO4-20-24OG |
1.11/16"X12 |
1.7/8"X12 |
0025 |
0924 |
38 |
51 |
48 |
55 |
PN200 |
|
1FO4-24OG |
2"X12 |
1.7/8"X12 |
0029 |
0924 |
39 |
52 |
50 |
55 |
PN200 |
|
Note: 1.: F end is connected with ISO 11926-1port. 2. PN = Nominal Pressure |
|||||||||
| Forma | Elbow |
|---|---|
| Tipo di montaggio | Face Seal |
| Tipo di filettatura | Male |
| Connection Type | ORFS, UNF |
