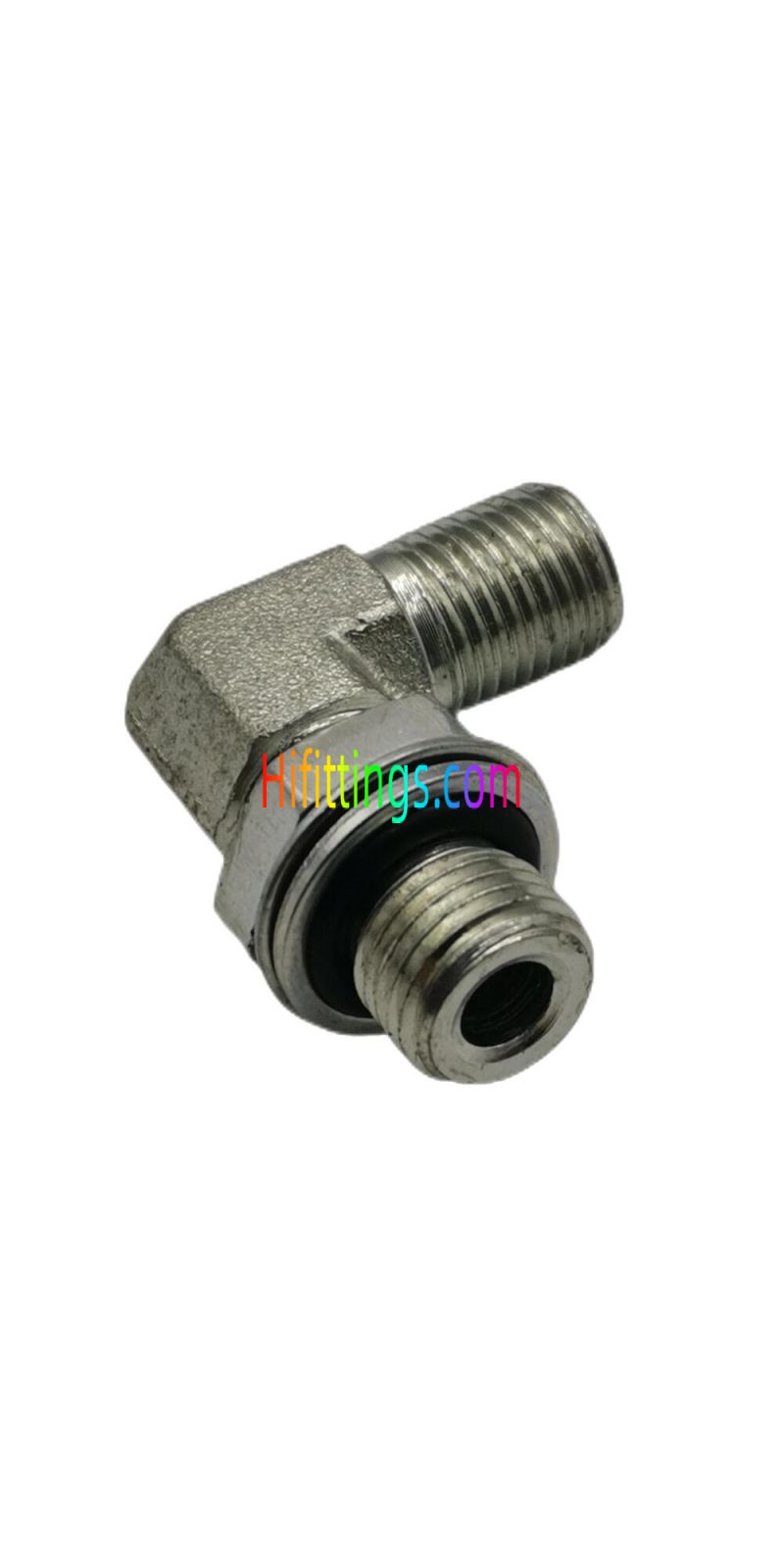

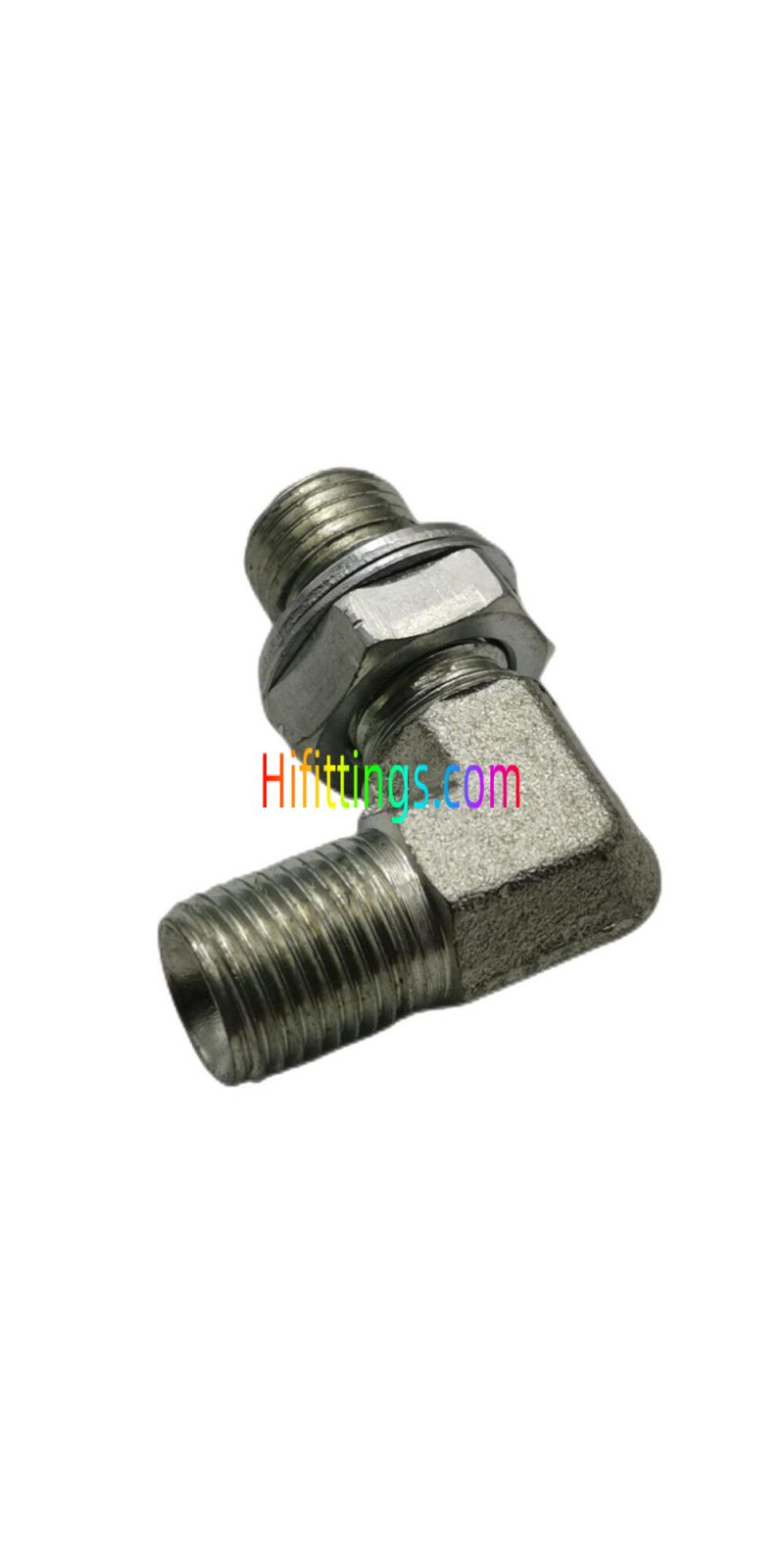

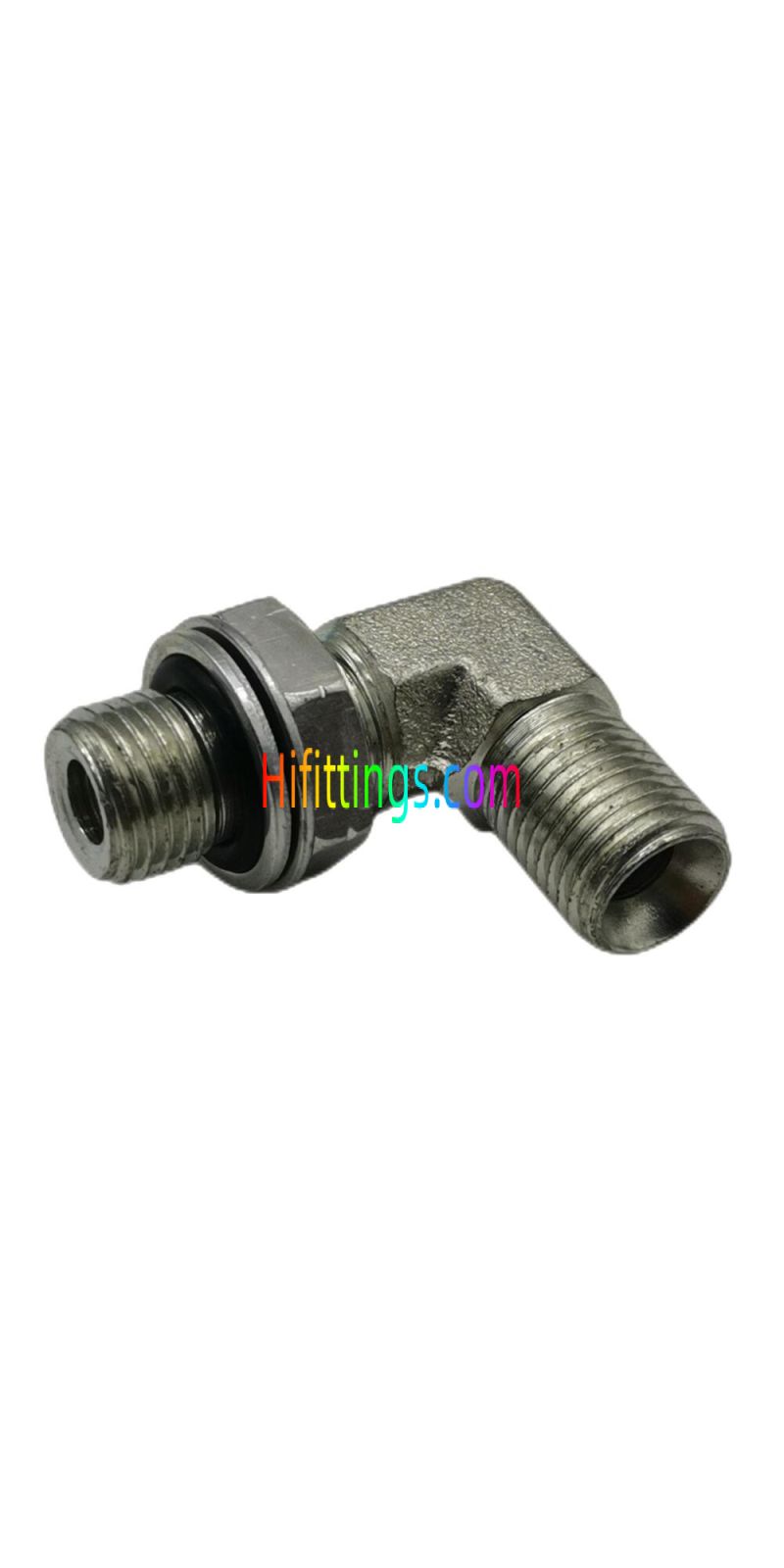

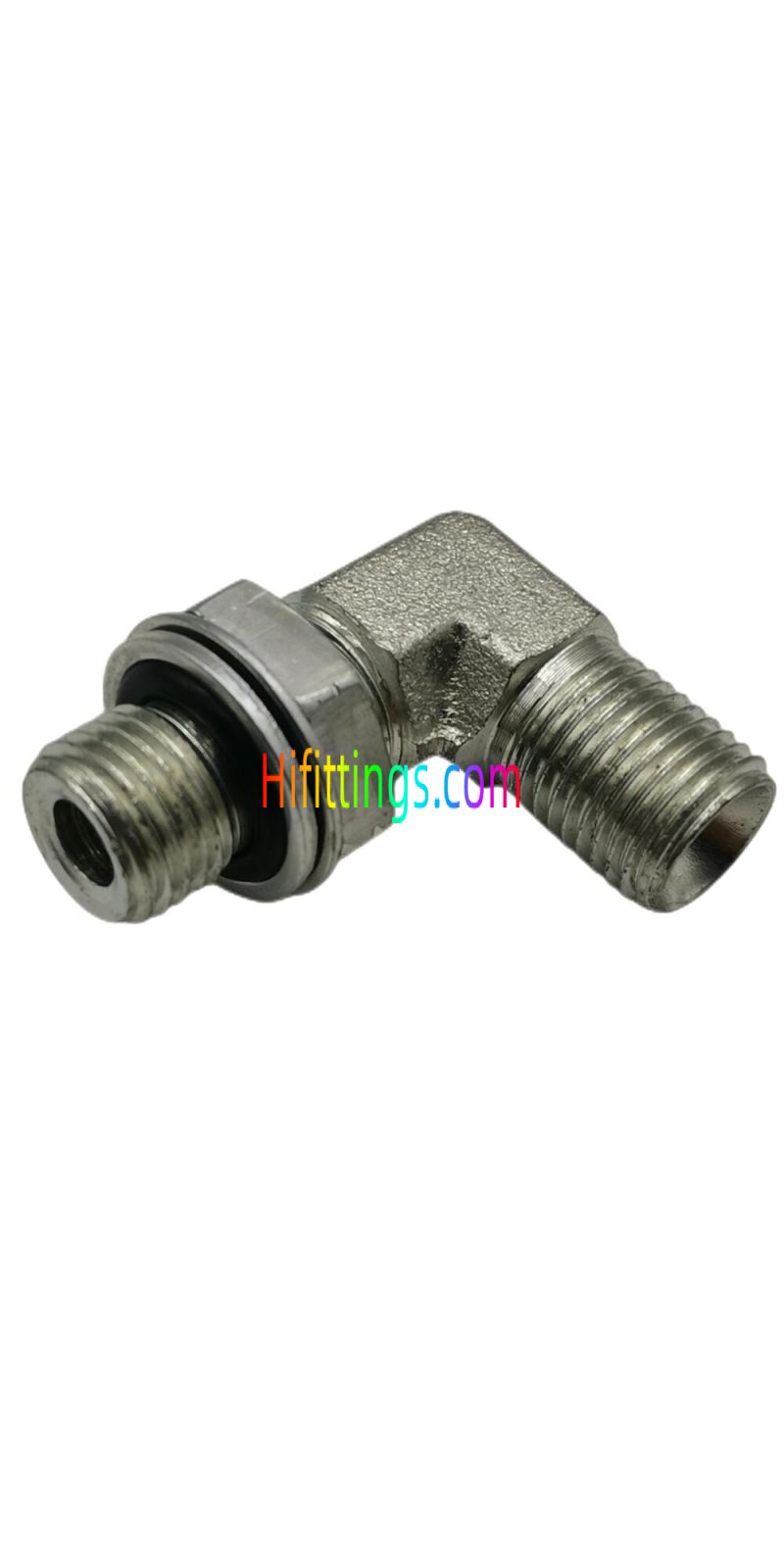

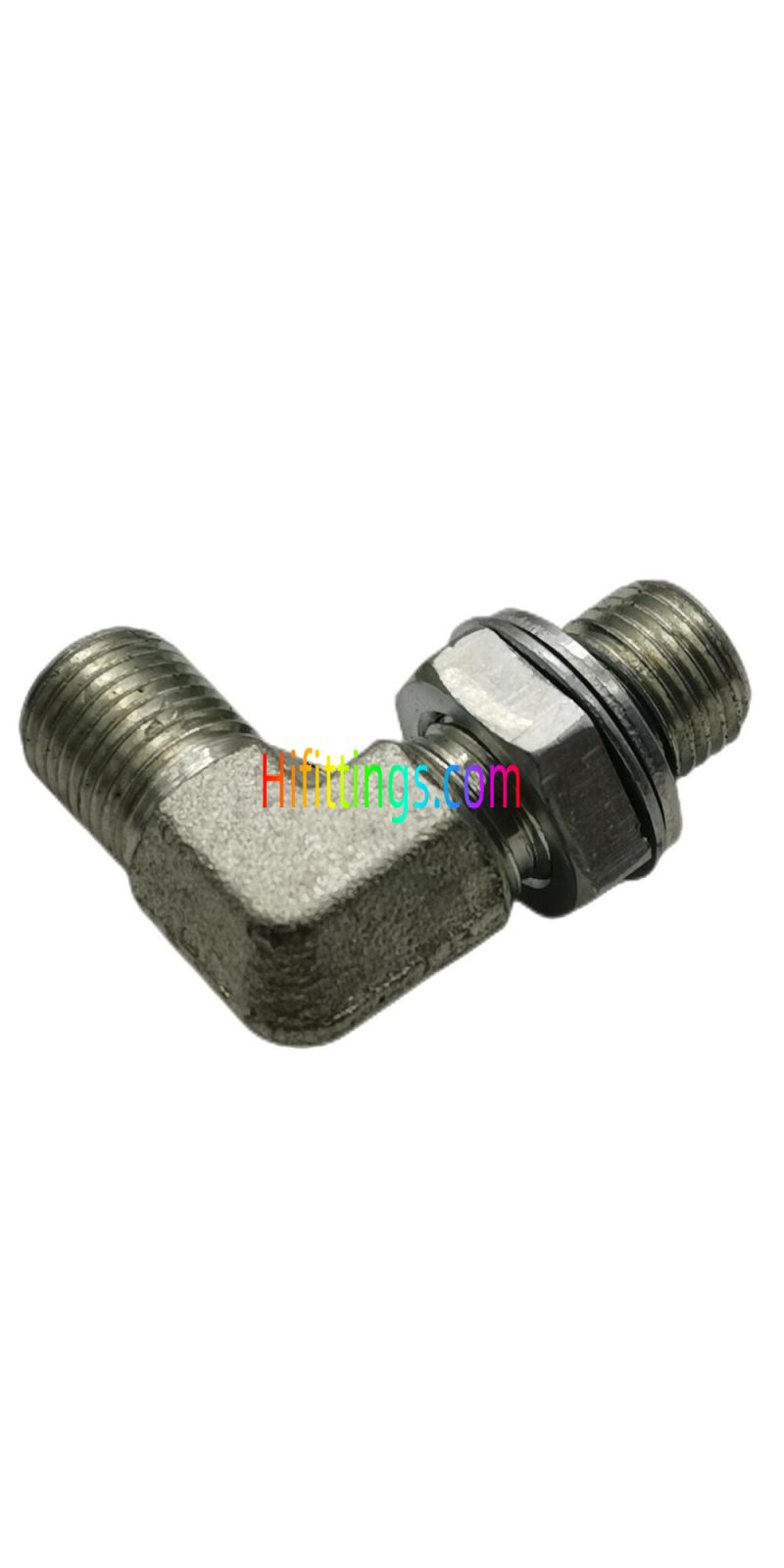

90° Elbow BSP Male 60° Seat / BSP Male O-Ring Adjustable Stud End Hydraulic Fittings 1BG9-OG
|
Part NO. |
E |
F |
O-Ring F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1BG9-04OG |
G1/4"X19 |
G1/4"X19 |
111 |
25 |
31.5 |
14 |
19 |
PN345 |
|
1BG9-04-060G |
G1/4"X19 |
G3/8"X19 |
113 |
26.5 |
36.8 |
16 |
22 |
PN345 |
|
1BG9-06OG |
G3/8"X19 |
G3/8"X19 |
113 |
28 |
36.8 |
16 |
22 |
PN345 |
|
1BG9-06-080G |
G3/8”X19 |
G1/2"X14 |
115 |
31 |
43.2 |
22 |
27 |
PN345 |
|
1BG9-08OG |
G1/2"X14 |
G1/2"X14 |
115 |
34.5 |
43.2 |
22 |
27 |
PN345 |
|
1BG9-08-12OG |
G1/2"X14 |
G3/4"X14 |
119 |
40 |
49.3 |
27 |
32 |
PN275 |
|
1BG9-12OG |
G3/4"X14 |
G3/4"X14 |
119 |
40 |
49.3 |
27 |
32 |
PN275 |
|
1BG9-12-16OG |
G3/4"X14 |
G1"X11 |
217 |
45 |
53 |
33 |
41 |
PN205 |
|
1BG9-16OG |
G1"X11 |
G1"X11 |
217 |
46 |
53 |
33 |
41 |
PN205 |
|
1BG9-20-16OG |
G1.1/4"X11 |
G1"X11 |
217 |
50.5 |
58 |
41 |
41 |
PN170 |
|
1BG9-20OG |
G1.1/4"X11 |
G1.1/4"X11 |
222 |
51.5 |
58 |
41 |
50 |
PN170 |
|
1BG9-24OG |
G1.1/2"X11 |
G1.1/2"X11 |
224 |
58.5 |
63 |
48 |
55 |
PN105 |
|
Note 1. F end is connected with DIN 3852 port. 2. PN = Nominal Pressure |
||||||||
| Forma | Elbow |
|---|---|
| Tipo di montaggio | Cone |
| Tipo di filettatura | Male |
| Connection Type | BSP |
