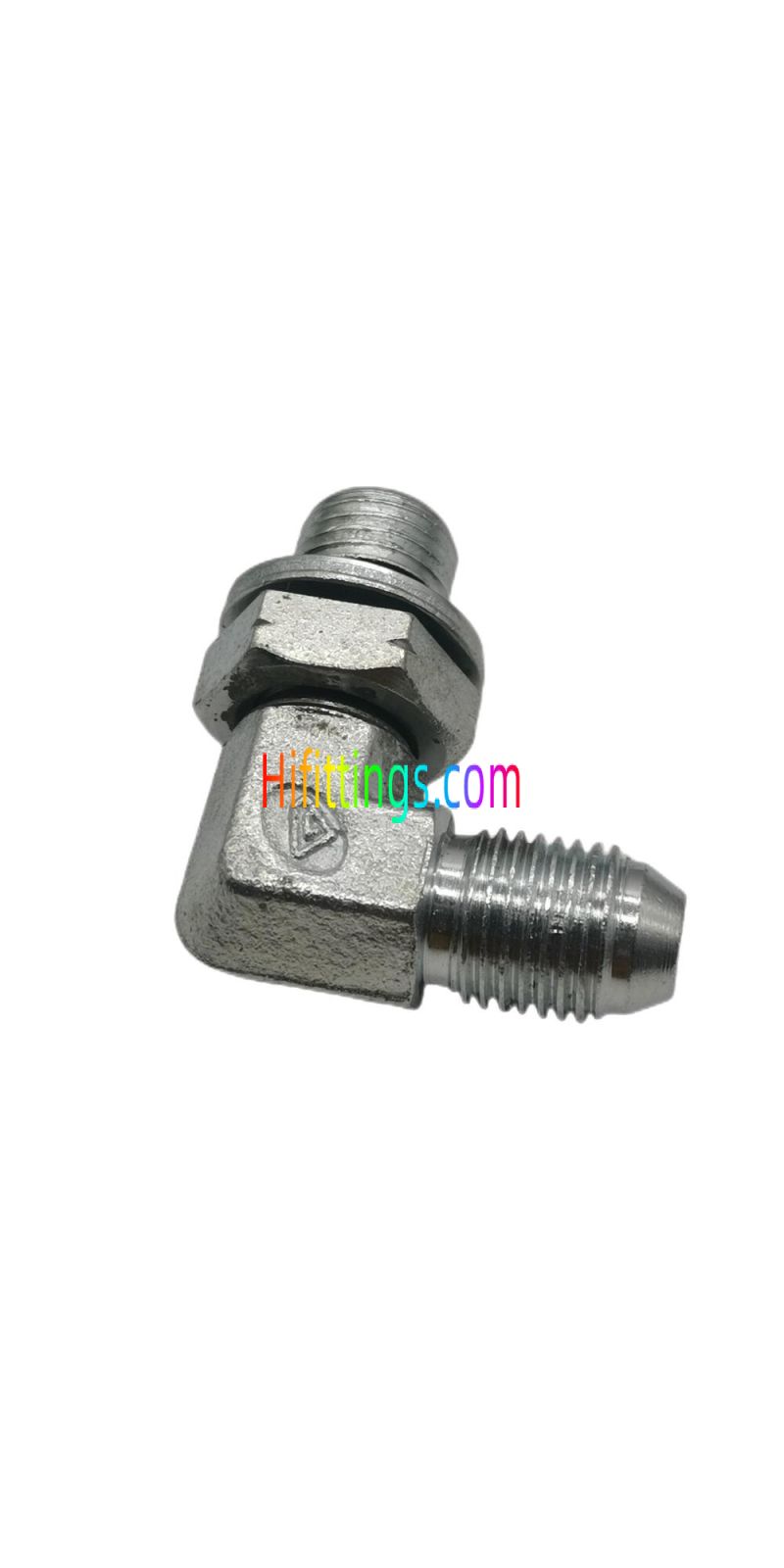

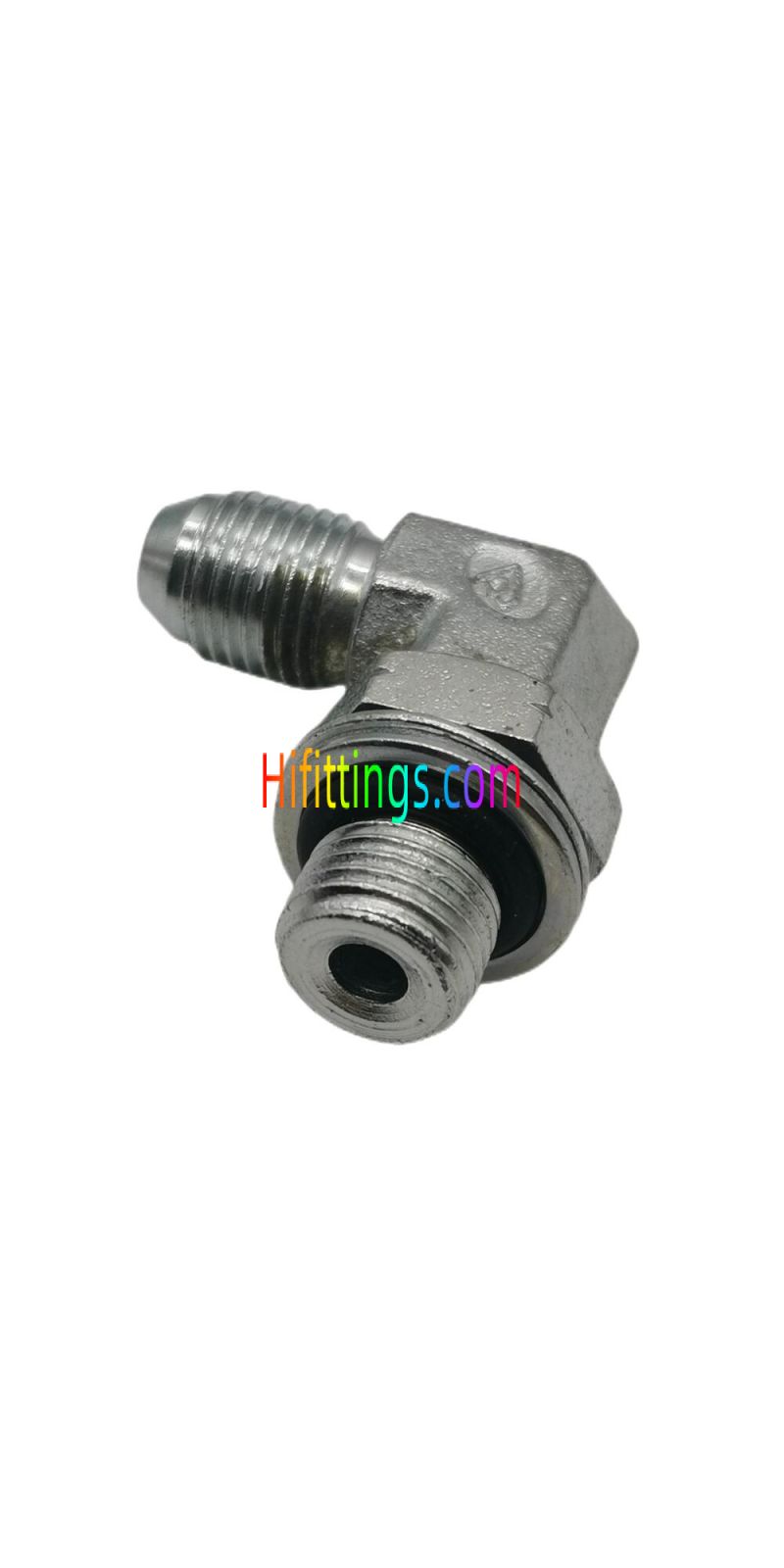

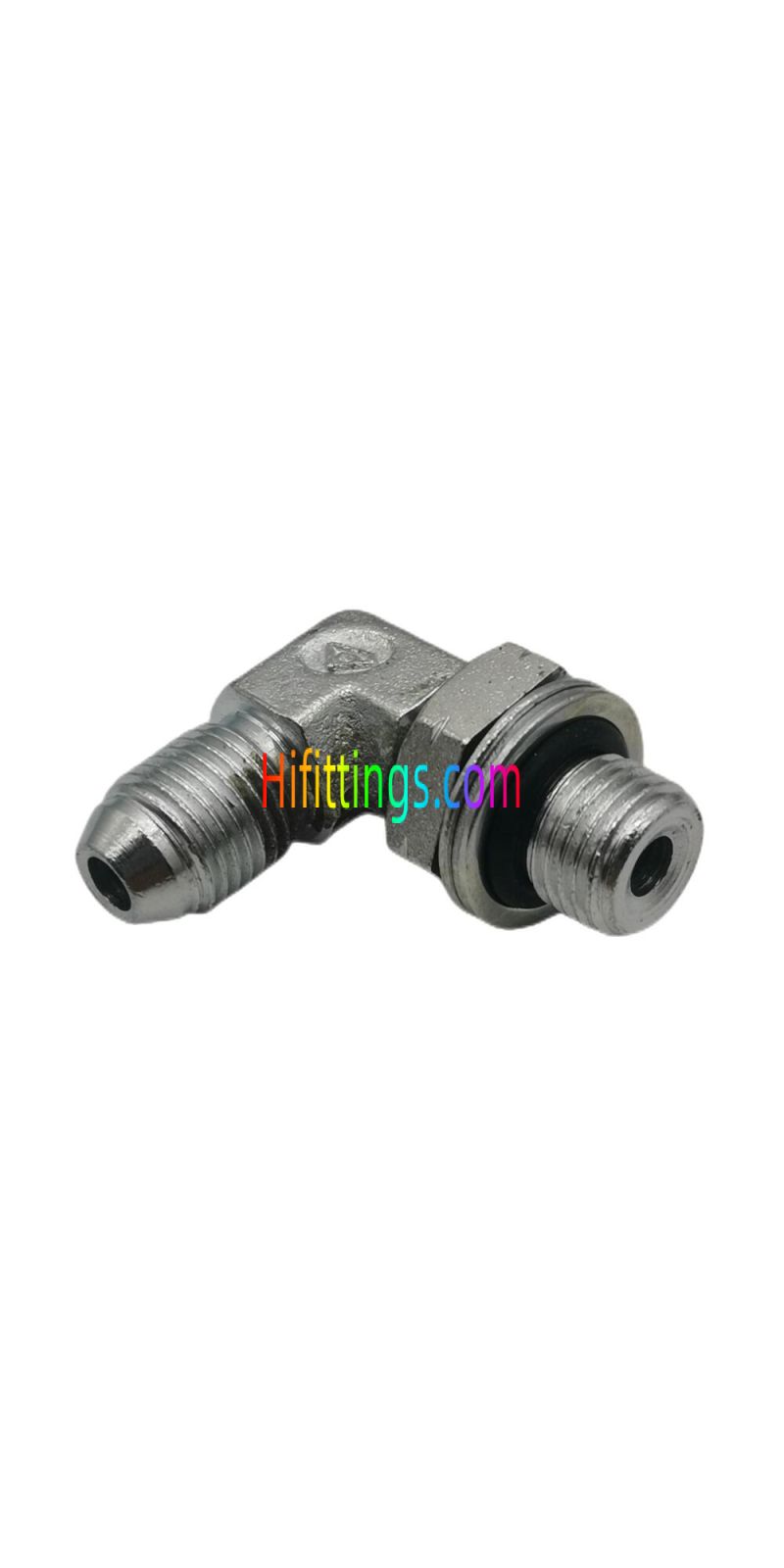

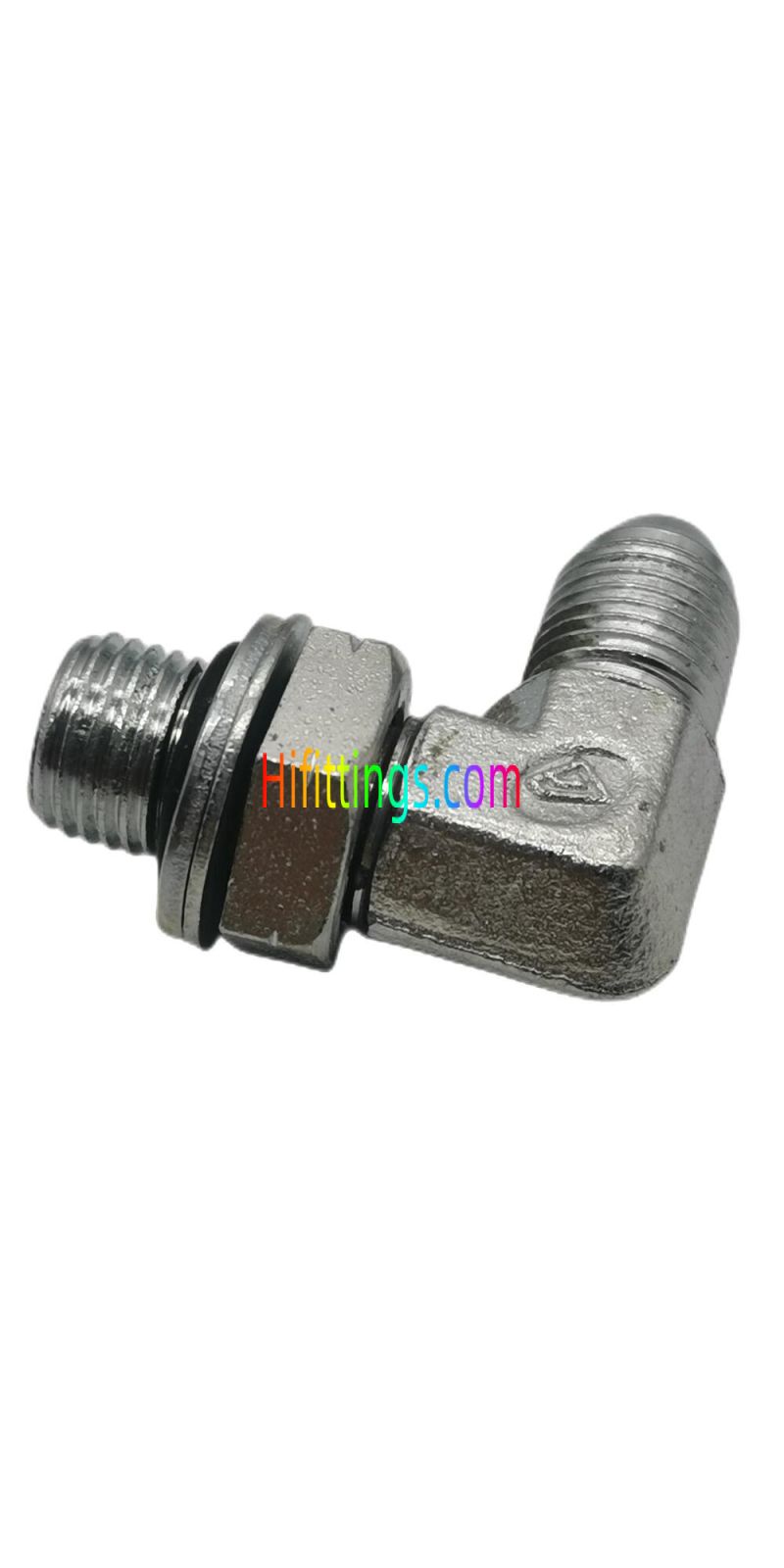

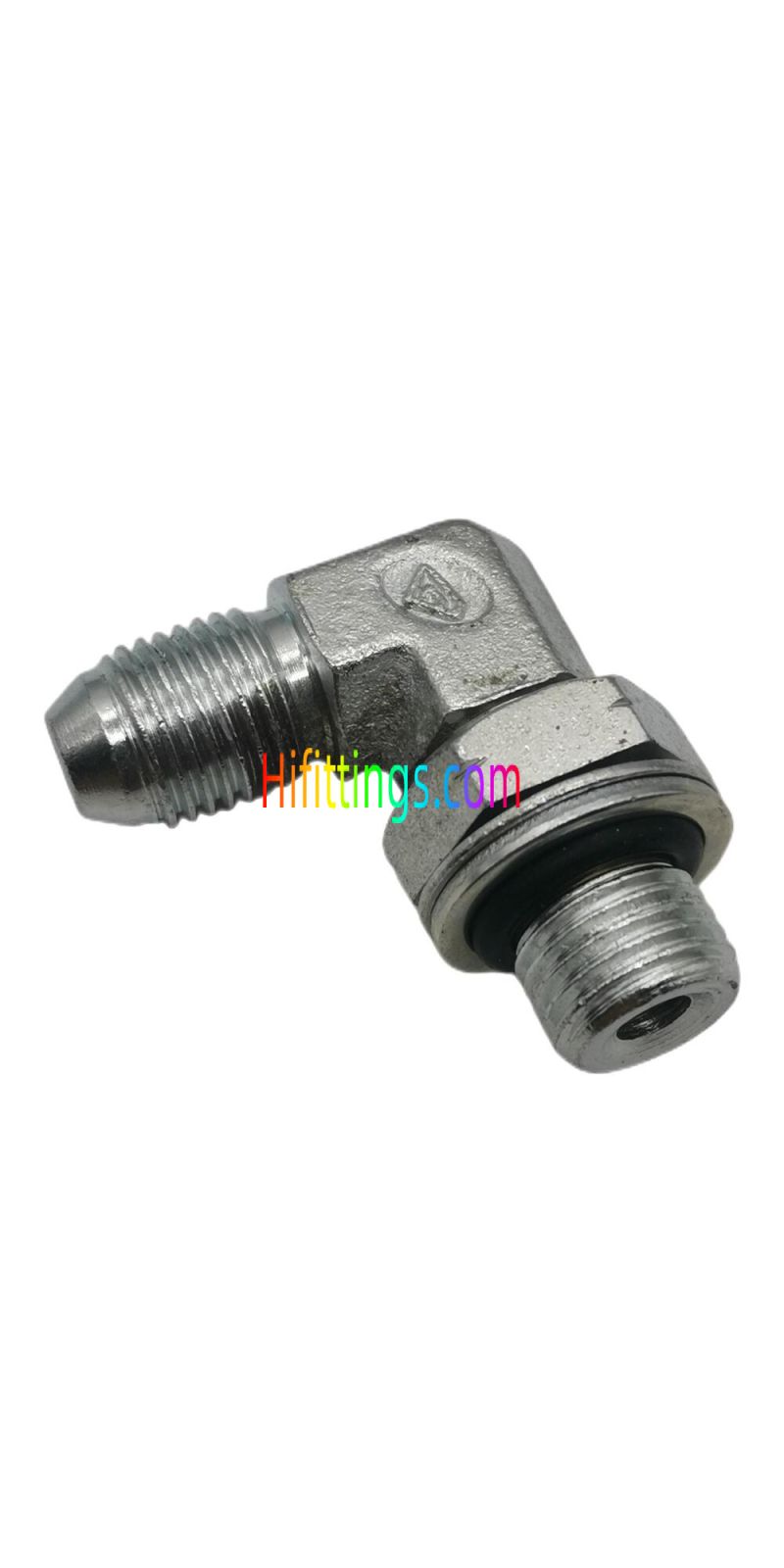

90° Elbow BSP Male O-Ring / JIC Male 74° Cone Flared Hydraulic Adapter Tube Fittings 1JG9-OG
|
Part NO. |
E |
F |
F End |
A |
B |
S1 |
S2 |
Working Pressure bar |
|
1JG9-04-02OG |
7/16"X20 |
G1/8"X28 |
11 |
24.5 |
26.2 |
11 |
14 |
PN345 |
|
1JG9-04-06OG |
7/16"X20 |
G3/8"X19 |
113 |
27.5 |
36.8 |
16 |
22 |
PN345 |
|
1JG9-04OG |
7/16"X20 |
G1/4"X19 |
111 |
26.6 |
31.3 |
14 |
19 |
PN345 |
|
1JG9-05-04OG |
1/2"X20 |
G1/4"X19 |
111 |
26.5 |
31.8 |
14 |
19 |
PN345 |
|
1JG9-05-06OG |
1/2"X20 |
G3/8"X19 |
113 |
27.5 |
35.8 |
16 |
22 |
PN345 |
|
1JG9-05-08OG |
1/2"X20 |
G1/2"X14 |
115 |
31.5 |
43.2 |
22 |
27 |
PN345 |
|
1JG9-06-04OG |
9/16"X18 |
G1/4"X19 |
111 |
26.9 |
31.3 |
14 |
19 |
PN345 |
|
1JG9-06-08OG |
9/16"X18 |
G1/2"X14 |
115 |
32.5 |
43.2 |
22 |
27 |
PN345 |
|
1JG9-06OG |
9/16"X18 |
G3/8"X19 |
113 |
28.5 |
35.8 |
16 |
22 |
PN345 |
|
1JG9-08-04OG |
3/4"X16 |
G1/4"X19 |
111 |
32 |
33.5 |
19 |
19 |
PN310 |
|
1JG9-08OG |
3/4"X16 |
G1/2"X14 |
115 |
34.8 |
43.2 |
22 |
27 |
PN310 |
|
1JG9-08-06OG |
3/4"X16 |
G3/8"X19 |
113 |
32 |
36.8 |
19 |
22 |
PN310 |
|
1JG9-08-12OG |
3/4"X16 |
G3/4"X14 |
119 |
37.9 |
49.3 |
27 |
32 |
PN310 |
|
1JG9-10-06OG |
7/8"X14 |
G3/8"X19 |
113 |
37.8 |
39.2 |
22 |
22 |
PN240 |
|
1JG9-10-08OG |
7/8"X14 |
G1/2"X14 |
115 |
37.8 |
43.2 |
22 |
27 |
PN240 |
|
1JG9-10-12OG |
7/8"X14 |
G3/4"X14 |
119 |
41 |
49.3 |
27 |
32 |
PN240 |
|
1JG9-12OG |
1.1/16"X12 |
G3/4"X14 |
119 |
44.2 |
49.3 |
27 |
32 |
PN240 |
|
1JG9-12-08OG |
1.1/16"X12 |
G1/2"X14 |
115 |
44.2 |
46.5 |
27 |
27 |
PN240 |
|
1JG9-12-16OG |
1.1/16"X12 |
G1"X11 |
217 |
48 |
53 |
33 |
41 |
PN240 |
|
1JG9-16OG |
1.5/16"X12 |
G1"X11 |
217 |
49 |
53 |
33 |
41 |
PN210 |
|
1JG9-16-12OG |
1.5/16"X12 |
G3/4"X14 |
119 |
49 |
53 |
33 |
32 |
PN210 |
|
1JG9-16-20OG |
1.5/16"X12 |
G1.1/4"X11 |
222 |
53.8 |
58 |
41 |
50 |
PN210 |
|
1JG9-20OG |
1.5/8"X12 |
G1.1/4"X11 |
222 |
55.5. |
58 |
41 |
50 |
PN170 |
|
1JG9-20-16OG |
1.5/8"X12 |
GV'XH |
217 |
55.5. |
58 |
41 |
41 |
PN170 |
|
1JG9-24-16OG |
1.7/8"X12 |
G1"X11 |
217 |
62.5 |
63 |
48 |
41 |
PN140 |
|
1JG9-24-20OG |
1.7/8"X12 |
G1.1/4"X11 |
222 |
62.5 |
63 |
48 |
50 |
PN140 |
|
1JG9-24OG |
1.7/8"X12 |
G1.1/2"X11 |
224 |
62.5 |
63 |
48 |
55 |
PN140 |
|
Note：1Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2. F end is connected with DIN 3852 port. 3.PN = Nominal Pressure |
||||||||
| Forma | Elbow |
|---|---|
| Tipo di montaggio | Cone Flared |
| Tipo di filettatura | Male |
| Connection Type | BSP, JIC |
