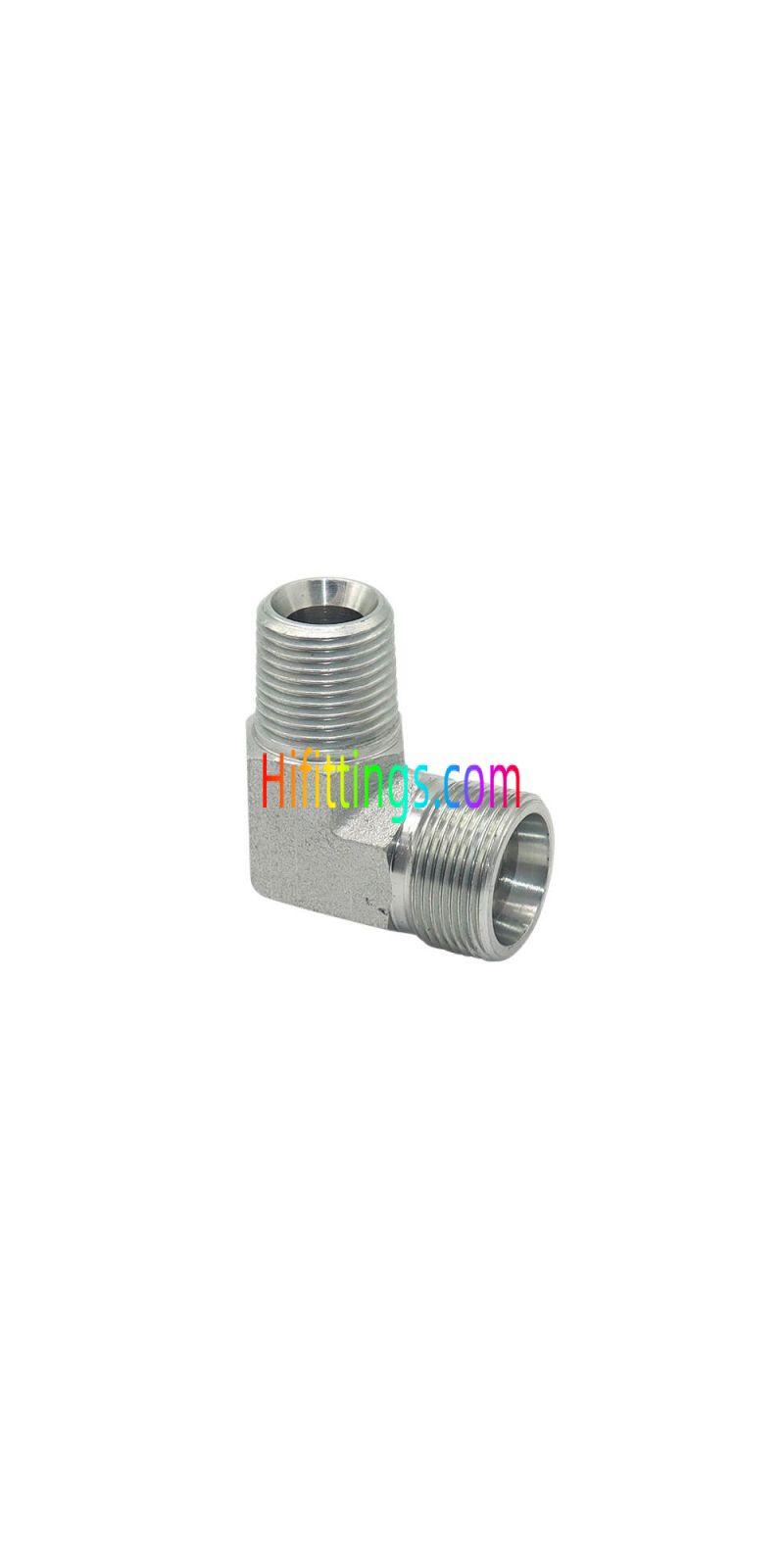

90° Elbow BSPT Male Metric Male Bite Type Tube Fittings 1CT9-SP/1DT9-SP
| Part NO. | Thread | Tube O.D. | Dimensions | Working Pressure | |||||
| E | F | D1 | l1 | L1 | L2 | S1 | S2 | bar | |
|
1CT9-12-02SP |
M12X1.5 |
R1/8"X28 |
6 |
13 |
28 |
21 |
11 |
14 |
PN250 |
|
1CT9-12-04SP |
M12X1.5 |
R1/4"X19 |
6 |
15.5 |
30.5 |
25.5 |
14 |
14 |
PN250 |
|
1CT9-14-02SP |
M14X1.5- |
R1/8"X28 |
8 |
15.5 |
30.5 |
23.5 |
14 |
17 |
PN250 |
|
1CT9-14-04SP |
M14X1.5 |
R1/4"X19 |
8 |
15.5 |
30.5 |
25.5 |
14 |
17 |
PN250 |
|
1CT9-16-04SP |
M16X1.5 |
R1/4"X19 |
10 |
17.5 |
32.5 |
26.5 |
16 |
19 |
PN250 |
|
1CT9-16-06SP |
M16X1.5 |
R3/8"X19 |
10 |
17.5 |
32.5 |
28.5 |
16 |
19 |
PN250 |
|
1CT9-16-08SP |
M16X1.5 |
R1/2"X14 |
10 |
21 |
36 |
36 |
22 |
19 |
PN250 |
|
1CT9-18-04SP |
M18X1.5 |
R1/4"X19 |
12 |
21 |
34 |
28 |
19 |
22 |
PN250 |
|
1CT9-18-06SP |
M18X1.5 |
R3/8"X19 |
12 |
19 |
34 |
30.5 |
19 |
22 |
PN250 |
|
1CT9-18-08SP |
M18X1.5 |
R1/2"X14 |
12 |
21 |
36 |
36 |
22 |
22 |
PN250 |
|
1CT9-22-06SP |
M22X1.5 |
R3/8"X19 |
15 |
22 |
37 |
32.5 |
22 |
27 |
PN250 |
|
1CT9-22-08SP |
M22X1.5 |
R1/2"X14 |
15 |
22 |
37 |
36 |
22 |
27 |
PN250 |
|
1CT9-22-12SP |
M22X1.5 |
R3/4"X14 |
15 |
25.5 |
40.5 |
43.5 |
27 |
27 |
PN250 |
|
1CT9-26-08SP |
M26X1.5 |
R1/2"X14 |
18 |
25.5 |
42 |
39.5 |
27 |
32 |
PN160 |
|
1CT9-26-12SP |
M26X1.5 |
R3/4"X14 |
18 |
25.5 |
42 |
43.5 |
27 |
32 |
PN160 |
|
1CT9-30-12SP |
M30X2 |
R3/4"X14 |
22 |
29.5 |
45.8 |
45.3 |
30 |
36 |
PN160 |
|
1CT9-30-16SP |
M30X2 |
R1"X11 |
22 |
31.5 |
48 |
50 |
33 |
36 |
PN160 |
|
1CT9-36-16SP |
M36X2 |
R1"X11 |
28 |
33.3 |
49.8 |
52 |
36 |
41 |
PN160 |
|
1CT9-36-20SP |
M36X2 |
R1.1/4"X11 |
28 |
36.2 |
52.7 |
57 |
41 |
41 |
PN160 |
|
1CT9-45-20SP |
M45X2 |
R1.1/4"X11 |
35 |
39.2 |
60.7 |
61 |
48 |
50 |
PN160 |
|
1CT9-52-24SP |
M52X2 |
R1.1/2"X11 |
42 |
44.8 |
67.8 |
68 |
55 |
60 |
PN160 |
|
1DT9-14-04SP |
M14X1.5 |
R1/4"X19 |
6 |
17.5 |
32.5 |
25.5 |
14 |
17 |
PN400 |
|
1DT9-16-04SP |
M16X1.5 |
R1/4"X19 |
8 |
18.7 |
33.7 |
26.5 |
16 |
19 |
PN400 |
|
1DT9-18-06SP |
M18X1.5 |
R3/8"X19 |
10 |
19.5 |
36 |
30.5 |
19 |
22 |
PN400 |
|
1DT9-20-04SP |
M20X1.5 |
R1/4"X19 |
12 |
19.5 |
36 |
28 |
19 |
24 |
PN400 |
|
1DT9-20-06SP |
M20X1.5 |
R3/8"X19 |
12 |
19.5 |
36 |
30.5 |
19 |
24 |
PN400 |
|
1DT9-22-06SP |
M22X1.5 |
R3/8"X19 |
14 |
23 |
41 |
32.5 |
22 |
27 |
PN400 |
|
1DT9-22-08SP |
M22X1.5 |
R1/2"X14 |
14 |
23 |
41 |
36 |
22 |
27 |
PN400 |
|
1DT9-24-06SP |
M24X1.5 |
R3/8"X19 |
16 |
24 |
42.5 |
33.5 |
24 |
30 |
PN400 |
|
1DT9-24-08SP |
M24X1.5 |
R1/2"X14 |
16 |
24 |
42.5 |
37.3 |
24 |
30 |
PN400 |
|
1DT9-30-08SP |
M30X2 |
R1/2"X14 |
20 |
28.3 |
49.8 |
41 |
30 |
36 |
PN250 |
|
1DT9-30-12SP |
M30X2 |
R3/4"X14 |
20 |
28.3 |
49.8 |
45.3 |
30 |
36 |
PN250 |
|
1DT9-36-12SP |
M36X2 |
R3/4"X14 |
25 |
33.3 |
57.3 |
52 |
36 |
46 |
PN250 |
|
1DT9-36-16SP |
M36X2 |
R1"X11 |
25 |
32.8 |
56.8 |
52.5 |
36 |
46 |
PN250 |
|
1DT9-42-16SP |
M42X2 |
R1"X11 |
30 |
36.2 |
62.7 |
56.5 |
41 |
50 |
PN250 |
|
1DT9-42-20SP |
M42X2 |
R1.1/4"X11 |
30 |
36.2 |
62.7 |
57 |
41 |
50 |
PN250 |
|
1DT9-52-20SP |
M52X2 |
R1.1/4"X11 |
38 |
45.8 |
76.8 |
67 |
55 |
60 |
PN250 |
|
1DT9-52-24SP |
M52X2 |
R1.1/2"X11 |
38 |
45.8 |
76.8 |
68 |
55 |
60 |
PN250 |
|

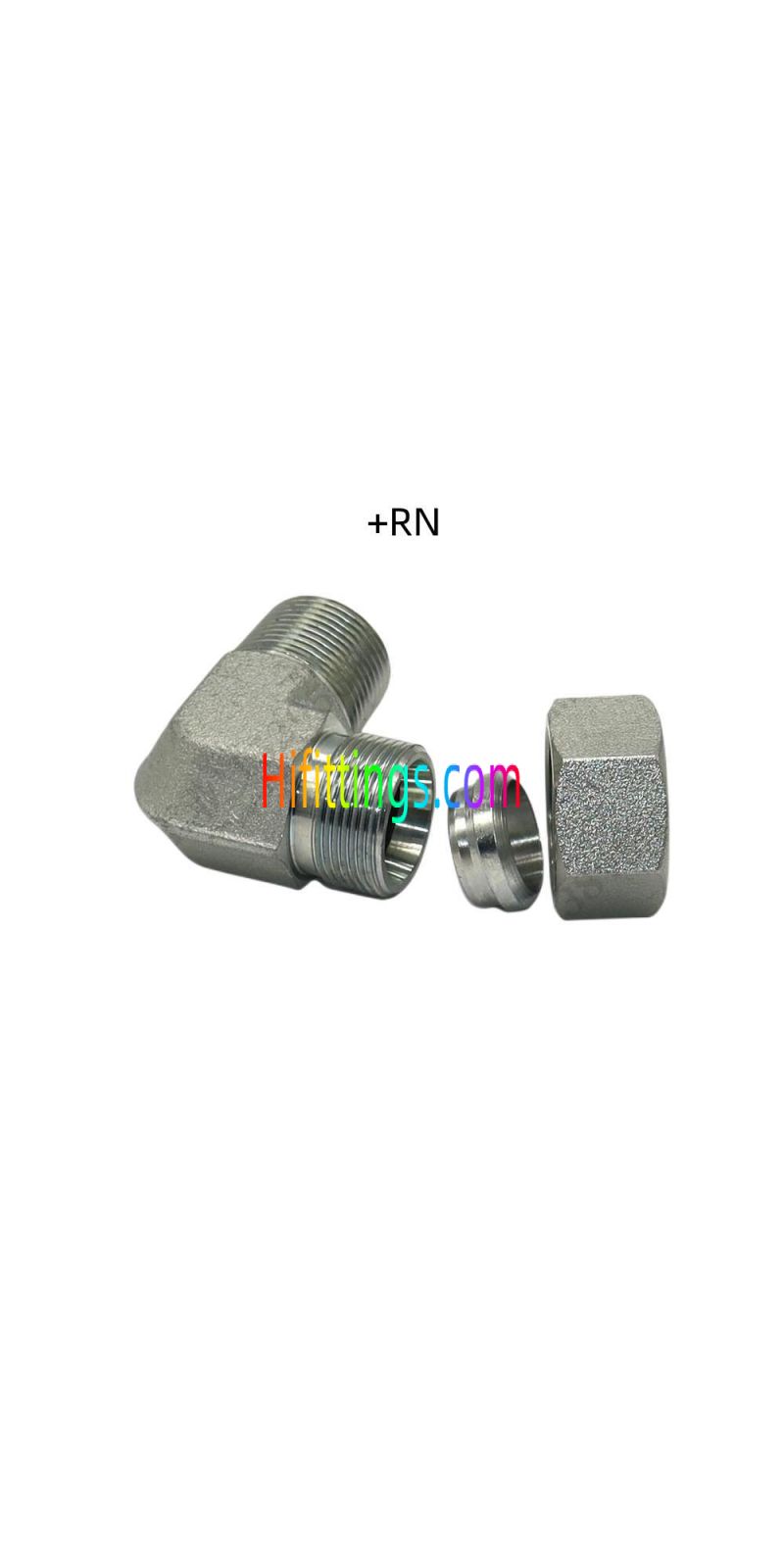

Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" afterour part NO. , for example 1CT9-30-12RN. 2. PN = Nominal Pressure |
|||||||||
| Forma | Elbow |
|---|---|
| Tipo di filettatura | Male |
| Connection Type | BSPT, Metric |
| Tipo di montaggio | Bite Type |
