Part NO. |
Thread E |
Hose Bore - DN |
Hose Bore - Dash |
Tube O.D |
O Ring |
A |
C |
H |
S2 |
|
20591-14-04 |
M16X1.5 |
6 |
4 |
6 |
004.5X1.5 |
30 |
1.5 |
39.5 |
19 |
|
20591-16-04 |
M16X1.5 |
6 |
4 |
8 |
006.5X1.5 |
30 |
1.5 |
39.5 |
22 |
|
20591-16-05 |
M16X1.5 |
8 |
5 |
8 |
006.5X1.5 |
33 |
1.5 |
42.5 |
22 |
|
20591-18-05T |
M18X1.5 |
8 |
5 |
10 |
008.0X1.5 |
33 |
1.5 |
41.5 |
22 |
|
20591-18-06 |
M18X1.5 |
10 |
6 |
10 |
008.0X1.5 |
35.3 |
2 |
45.8 |
24 |
|
20591-20-06T |
M20X1.5 |
10 |
6 |
12 |
010.0X1.5 |
35.3 |
2.5 |
44.3 |
24 |
|
20591-20-08 |
M20X1.5 |
12 |
8 |
12 |
010.0X1.5 |
41 |
2.5 |
61 |
27 |
|
20591-22-06T |
M22X1.5 |
10 |
6 |
14 |
011.0X2.0 |
35.3 |
3 |
44.8 |
27 |
|
20591-22-08 |
M22X1.5 |
12 |
8 |
14 |
011.0X2.0 |
41 |
2.5 |
53 |
27 |
|
20591-24-08T |
M24X1.5 |
12 |
8 |
16 |
013.0X2.0 |
41 |
3 |
50.5 |
30 |
|
20591-24-10 |
M24X1.5 |
16 |
10 |
16 |
013.0X2.0 |
56.5 |
2.5 |
56.5 |
30 |
|
20591-30-10T |
M30X2 |
16 |
10 |
20 |
016.3X2.4 |
56 |
2.5 |
58 |
36 |
|
20591-30-12 |
M30X2 |
20 |
12 |
20 |
016.3X2.4 |
64.9 |
3 |
64 |
36 |
|
20591-36-12T |
M36X2 |
20 |
12 |
25 |
020.3X2.4 |
66.2 |
3.2 |
67.8 |
46 |
|
20591-36-14T |
M36X2 |
22 |
14 |
25 |
020.3X2.4 |
71.2 |
3.2 |
68.8 |
46 |
|
20591-42-16T |
M42X2 |
25 |
16 |
30 |
025.3X2.4 |
78 |
3.9 |
75.1 |
50 |
|
20591-52-20T |
M52X2 |
32 |
20 |
38 |
033.3X2.4 |
93 |
4.5 |
86.5 |
60 |
|
20591-52-24T |
M52X2 |
40 |
24 |
38 |
033.3X2.4 |
109.4 |
4.5 |
100 |
60 |
|
Note: I.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20592-XX-XX。 |
|||||||||

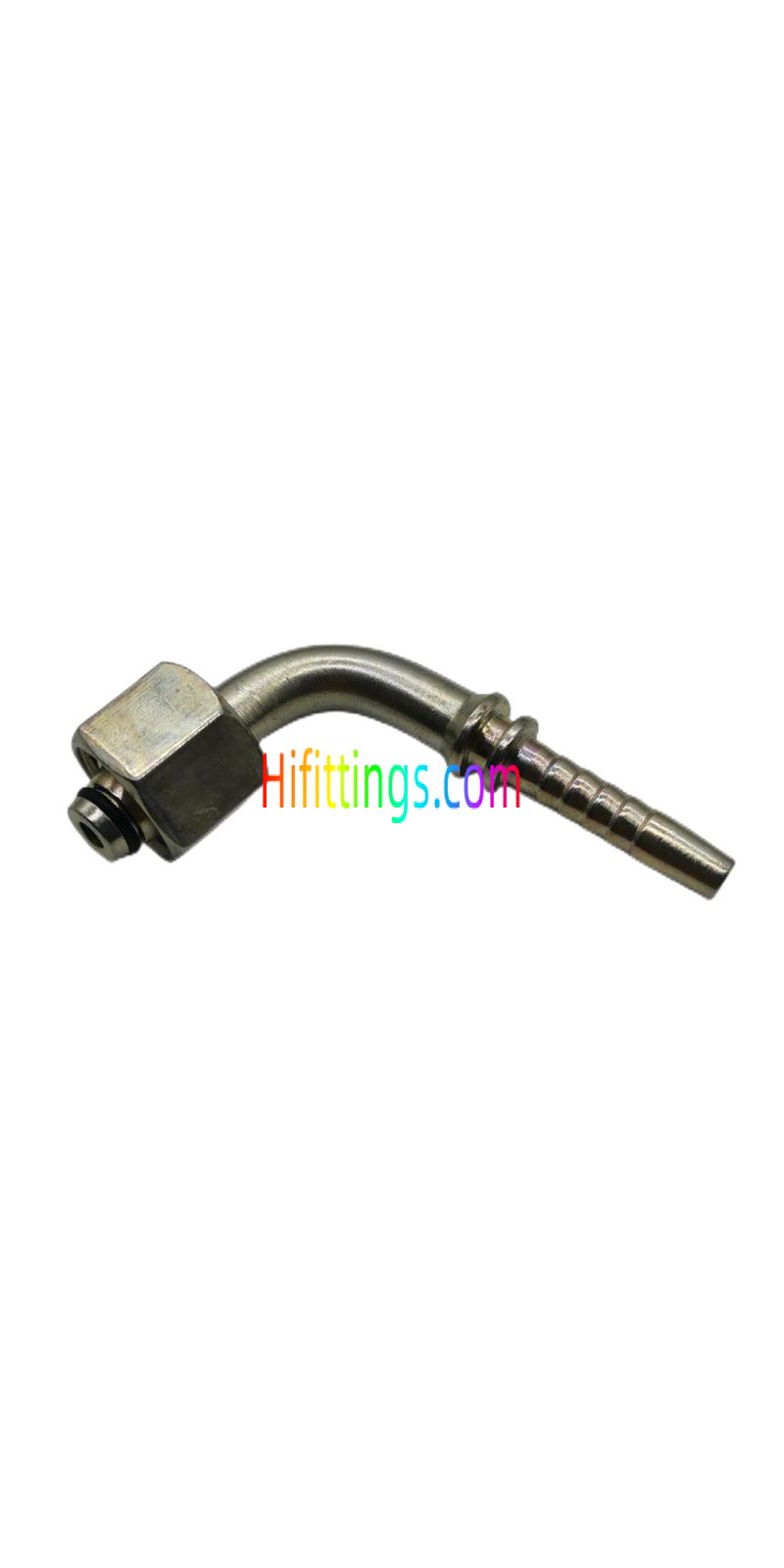

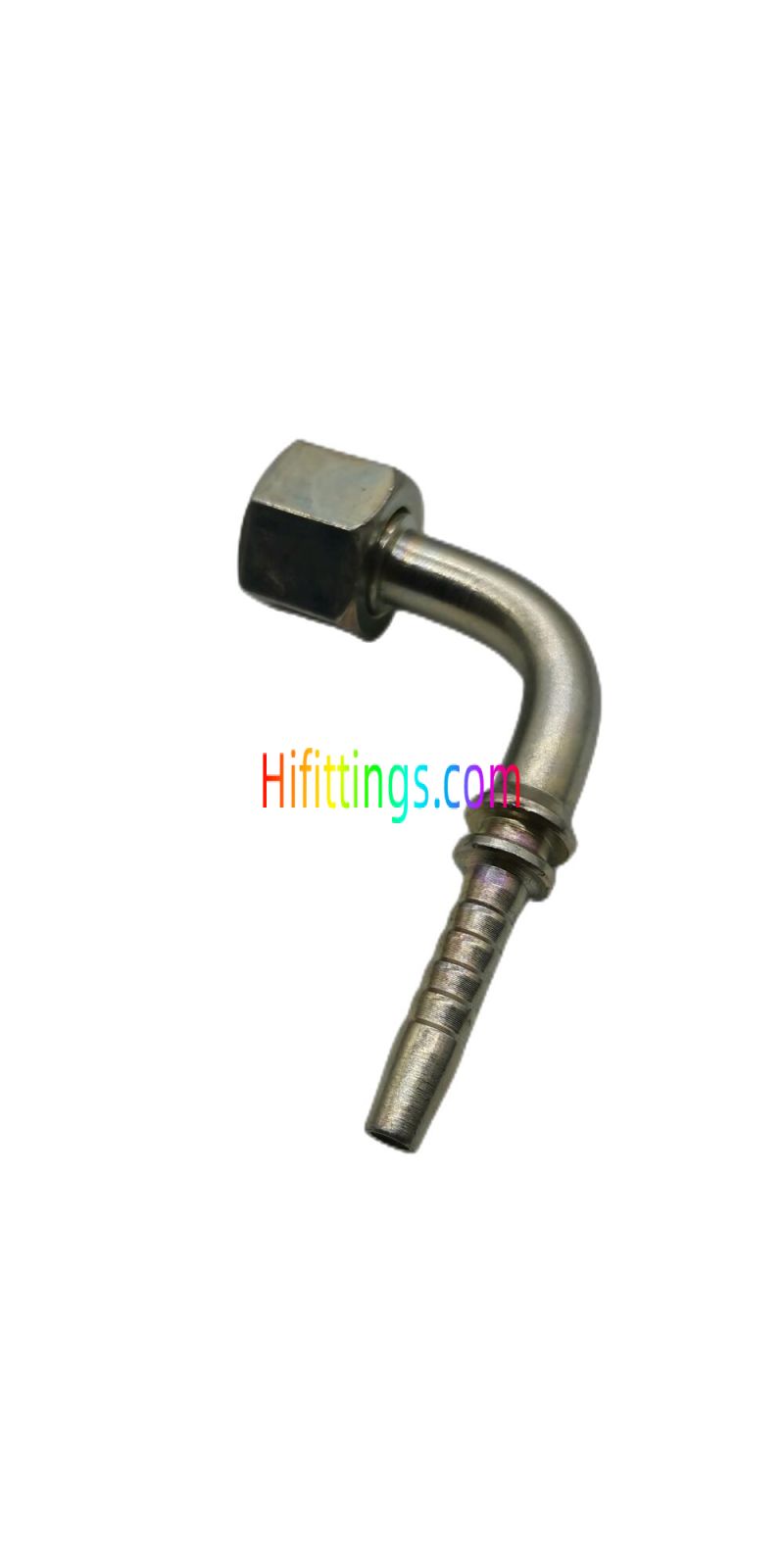

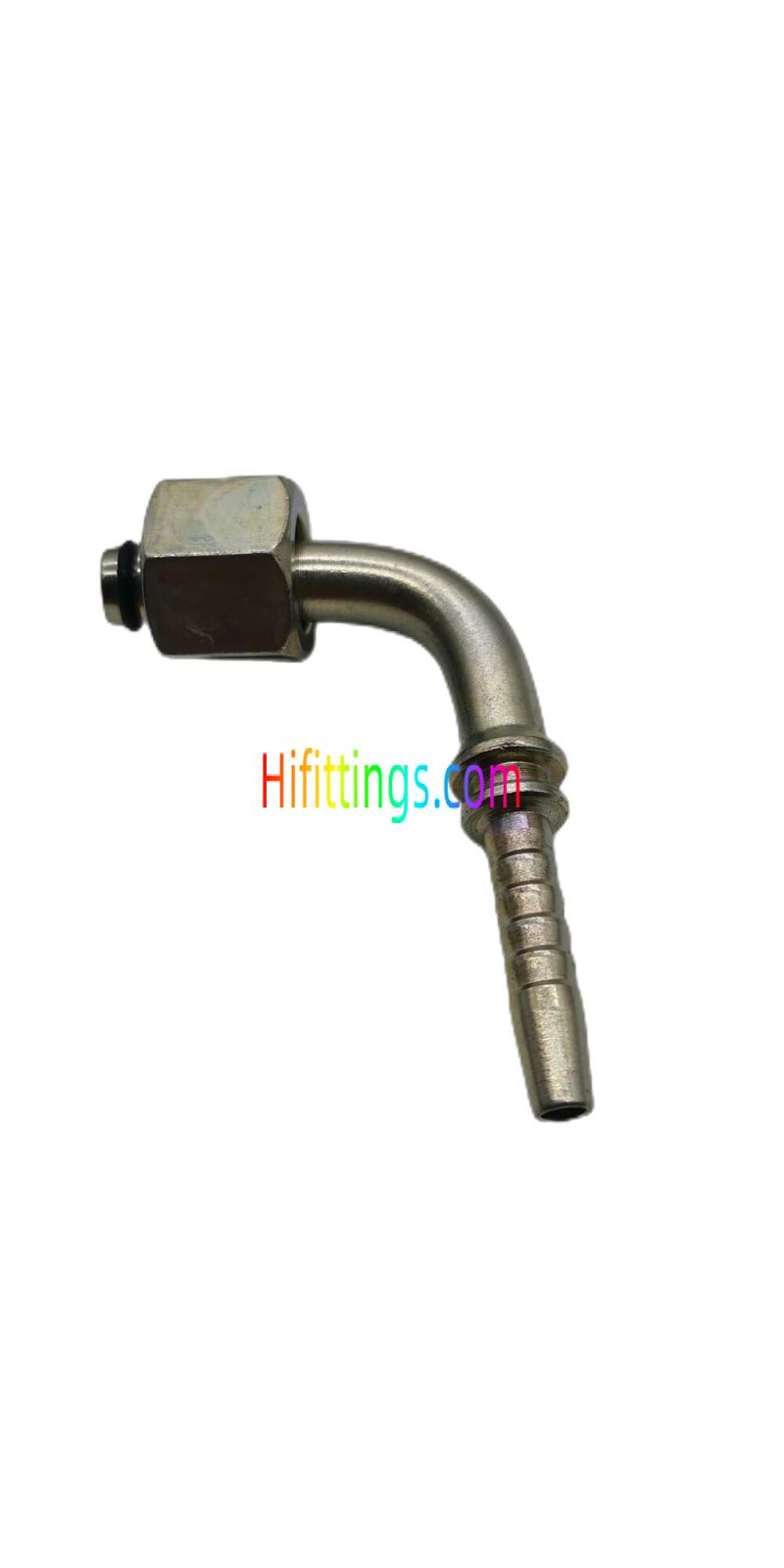

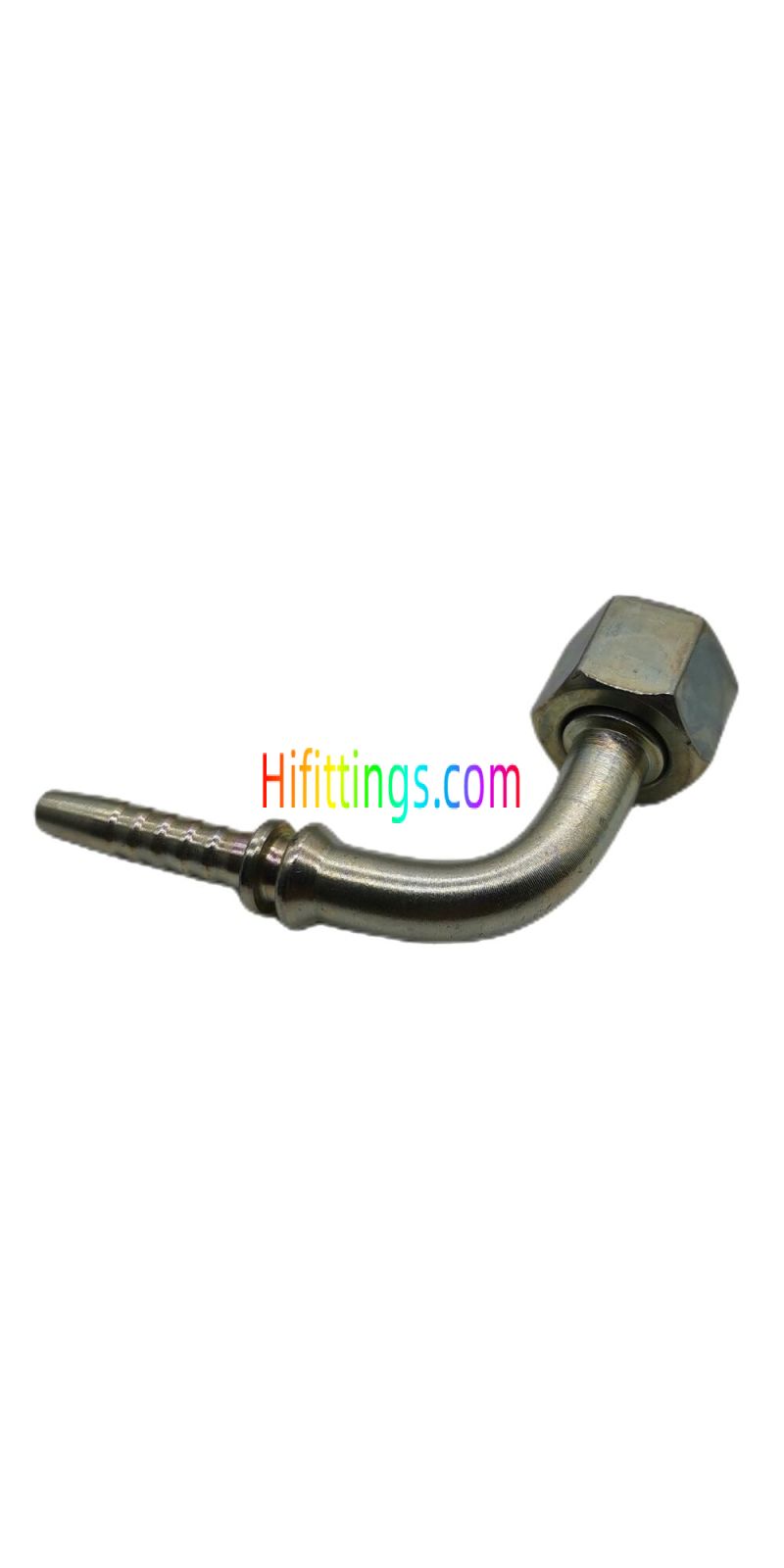

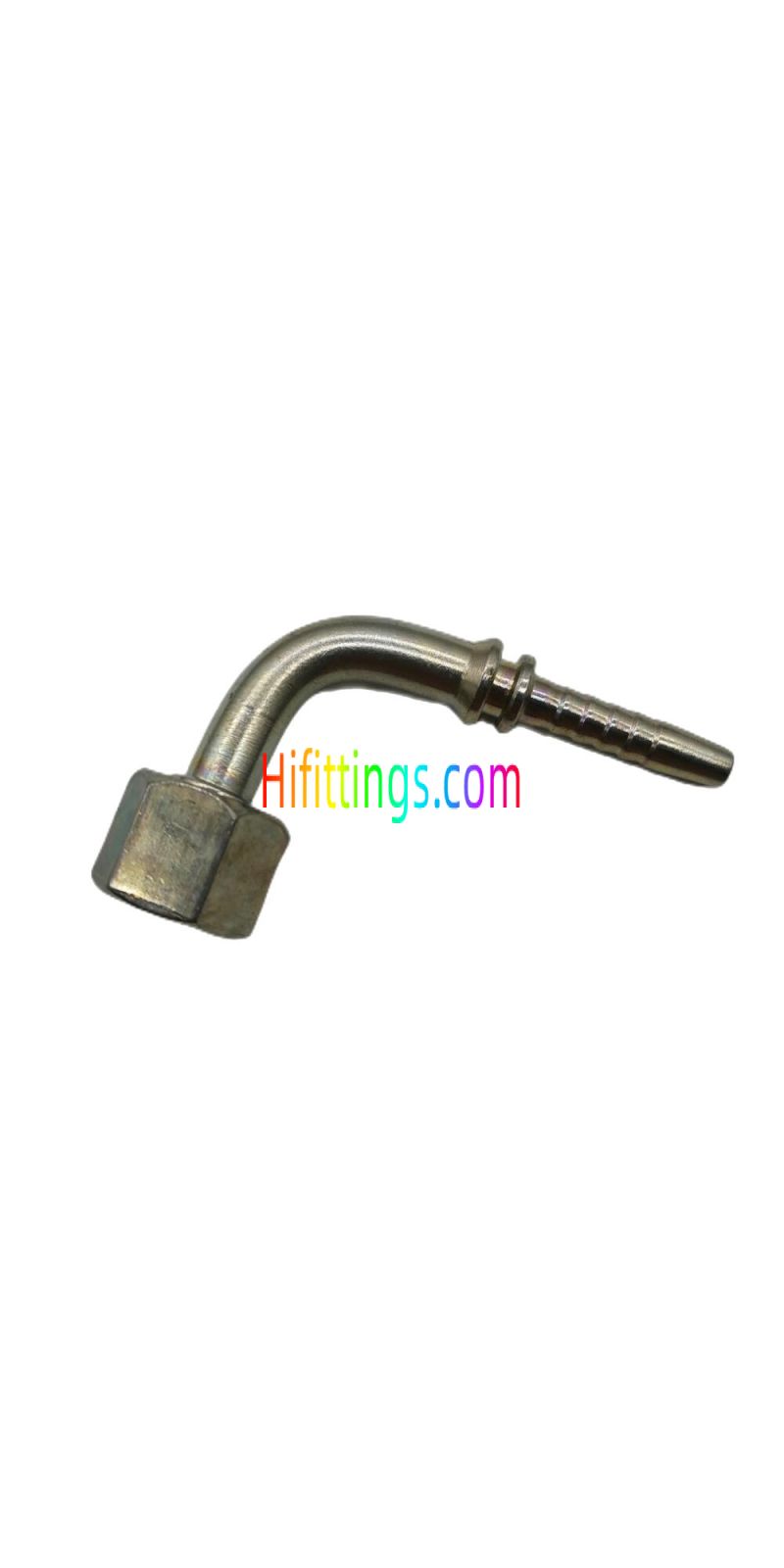

| Forma | Elbow |
|---|---|
| Tipo di montaggio | Cone |
| Tipo di filettatura | Female |
| Connection Type | Metric |
