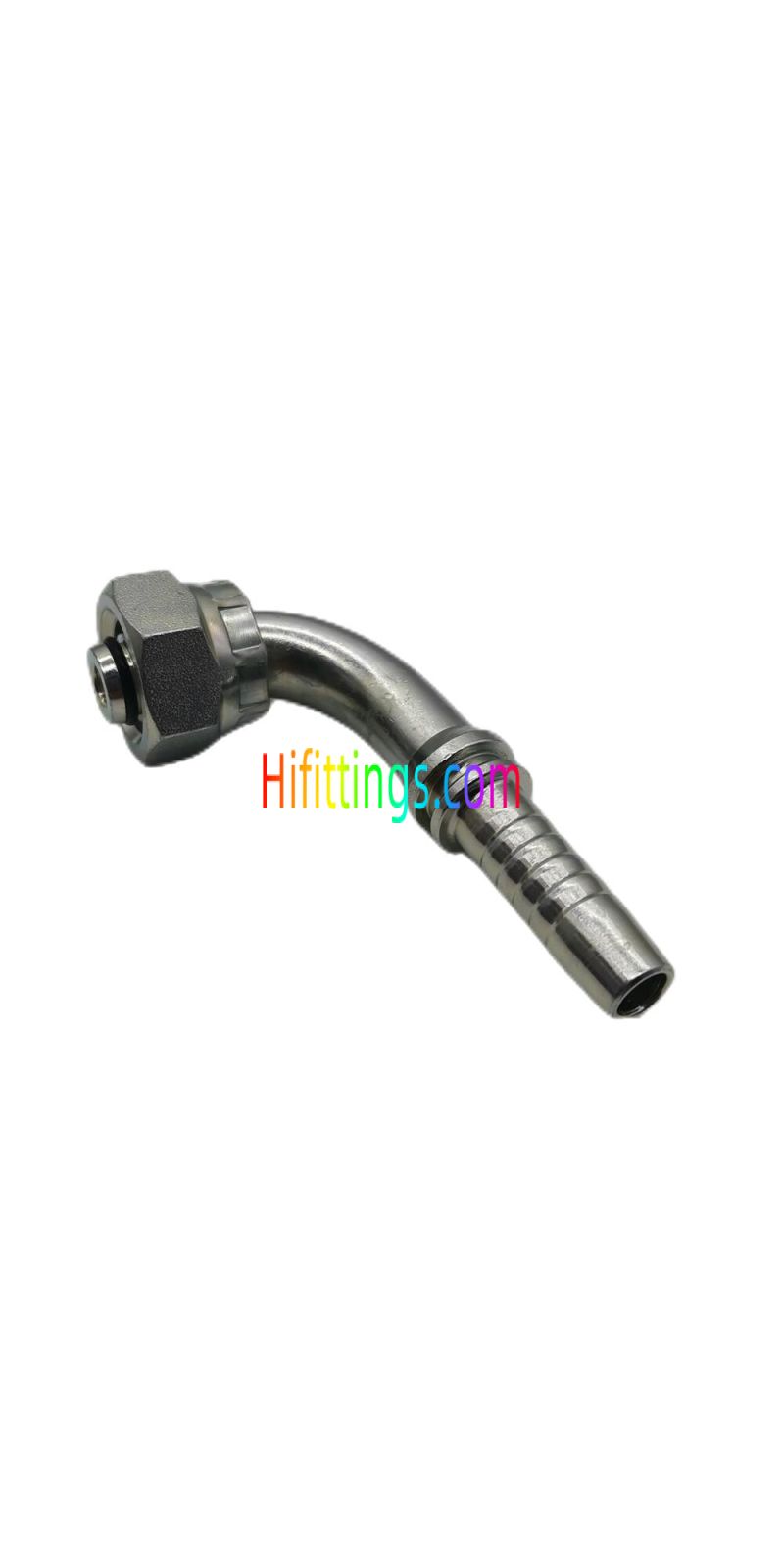

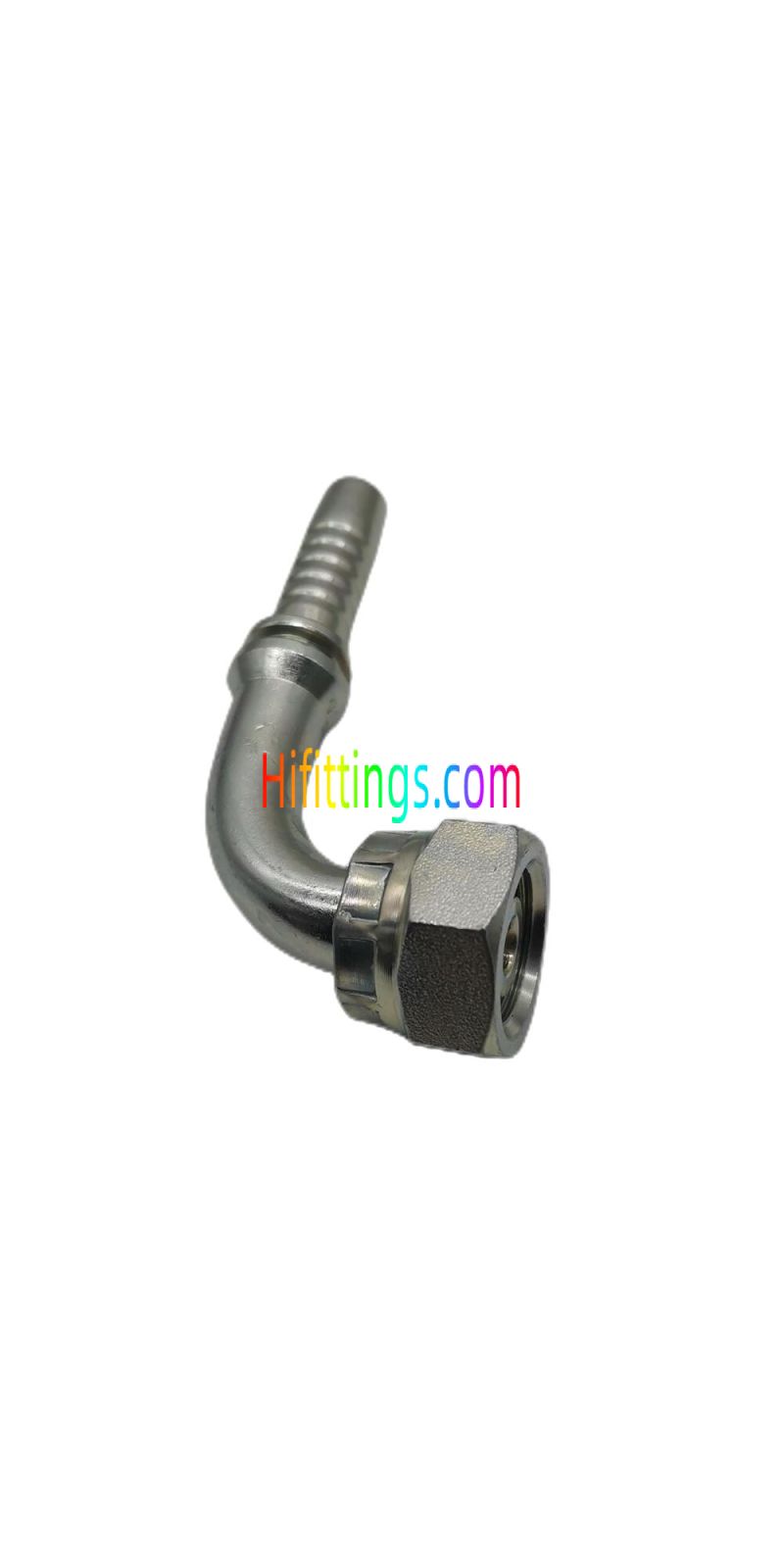

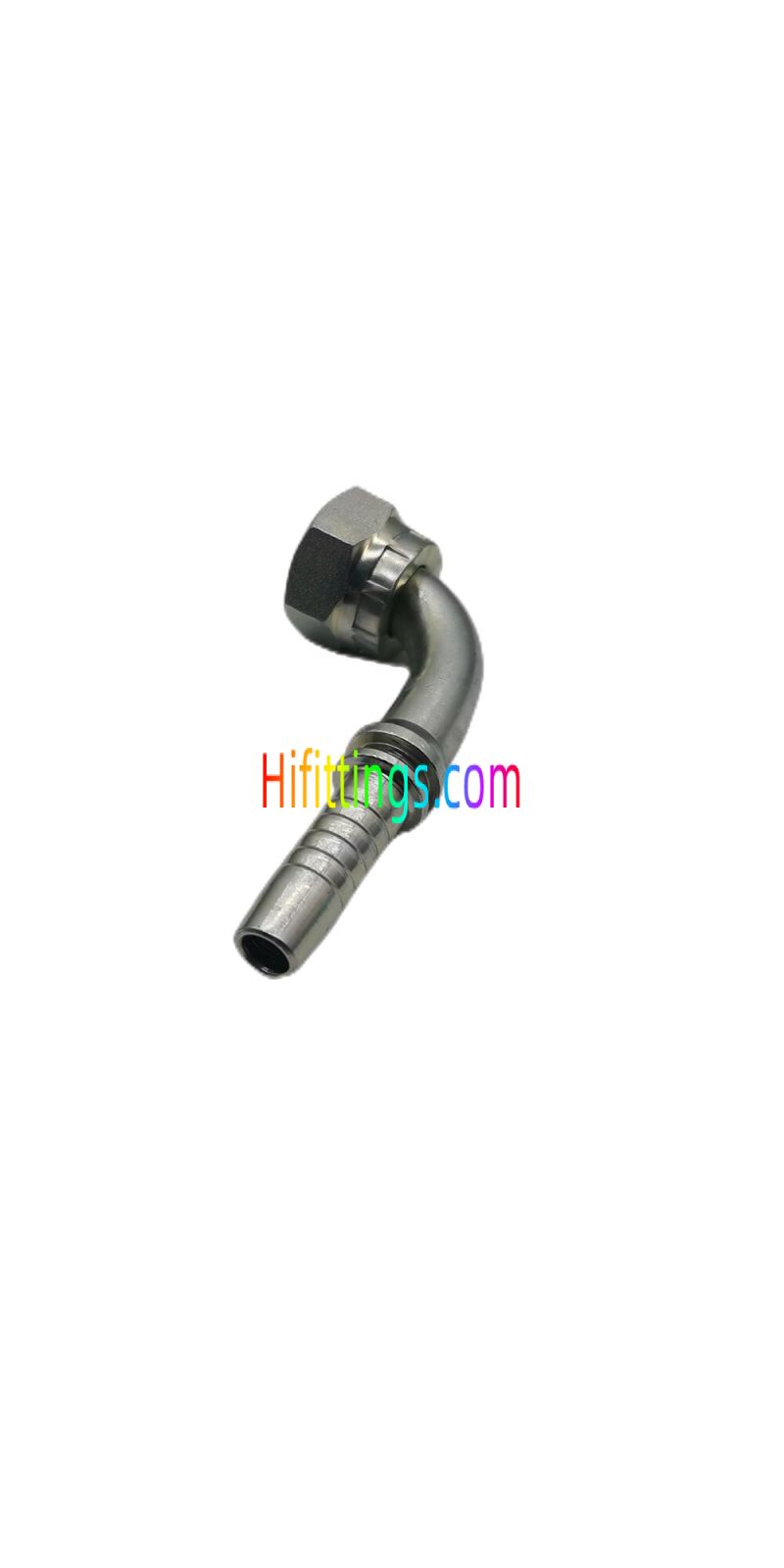

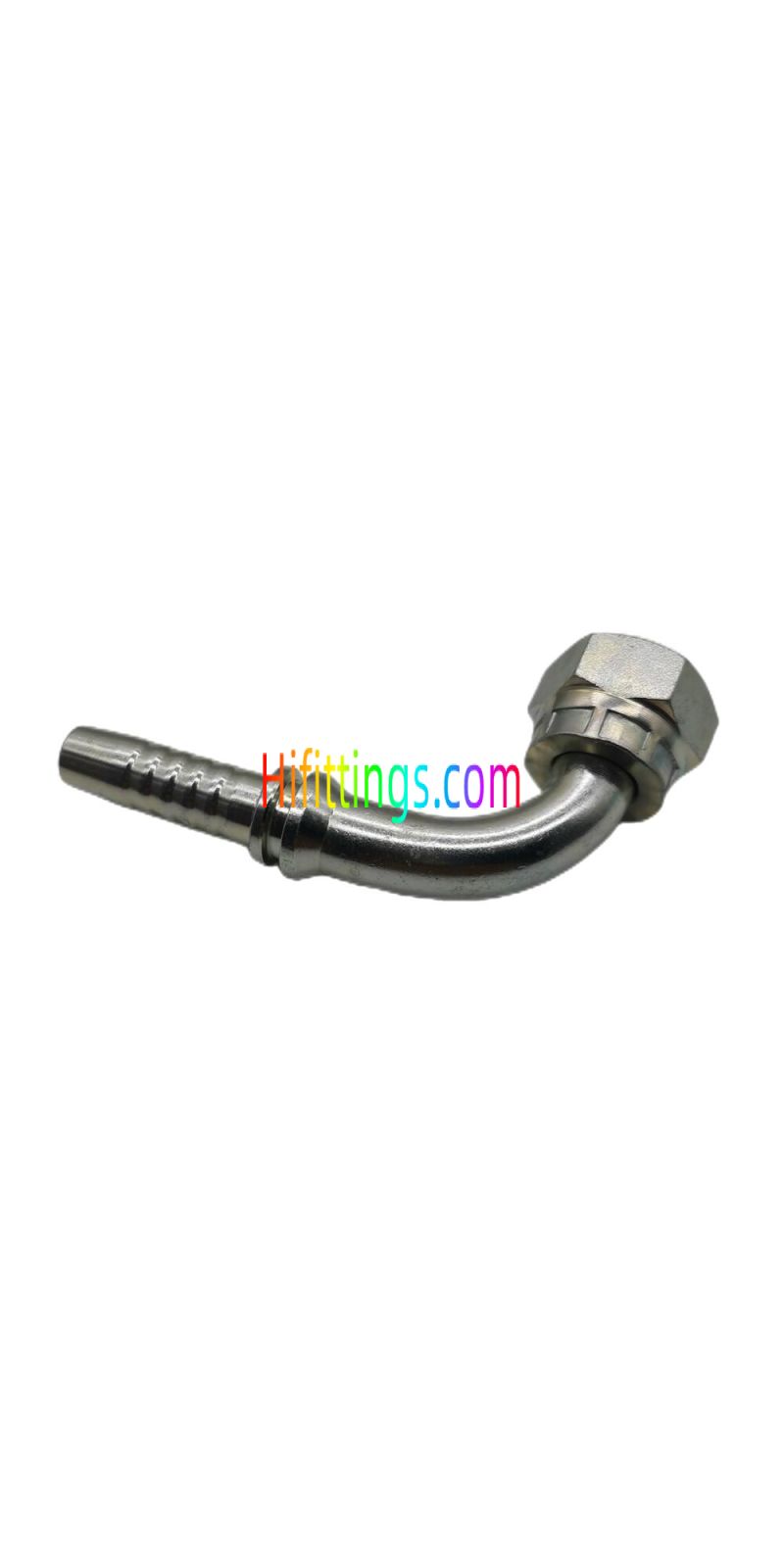

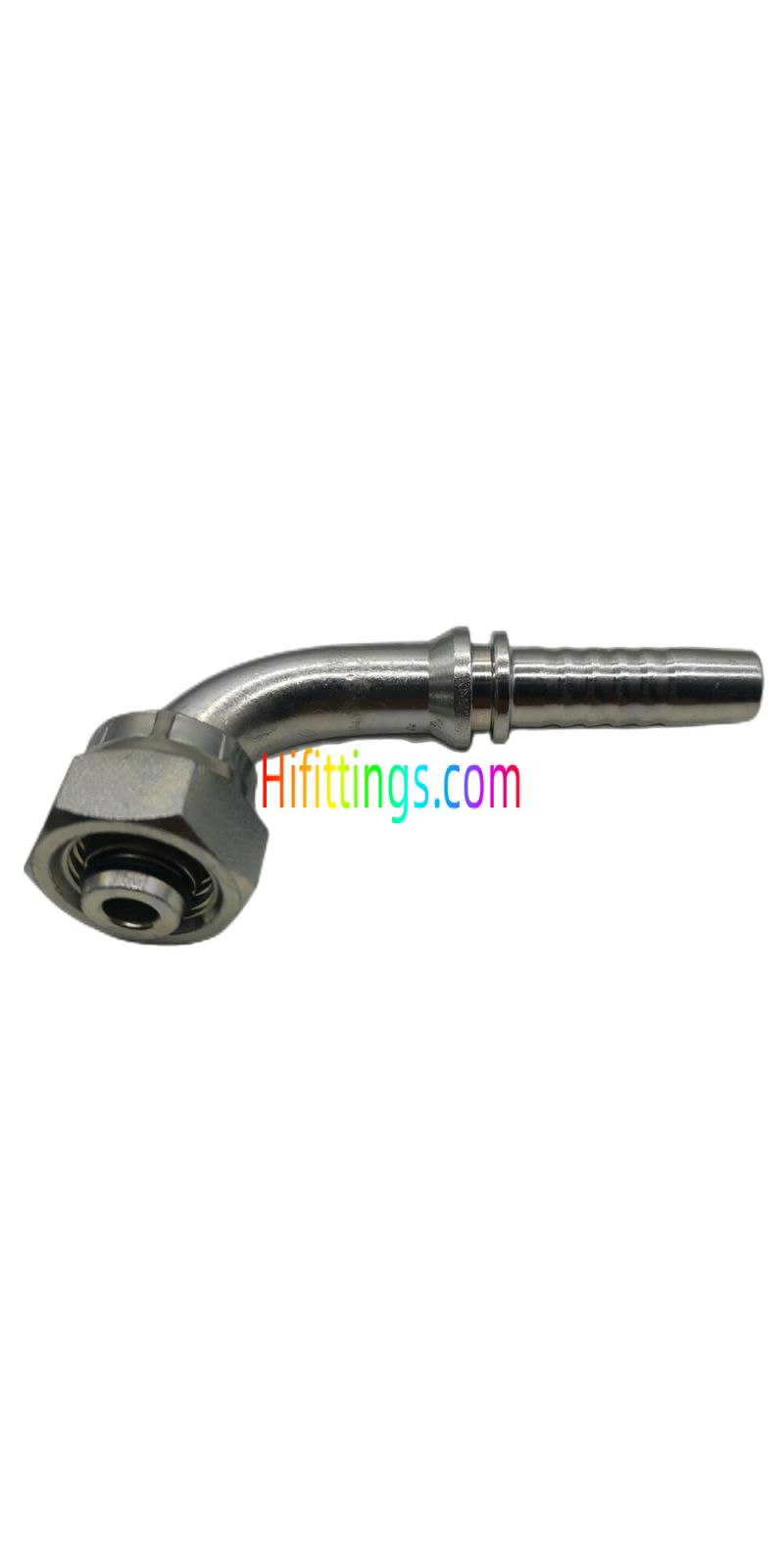

Gomito a 90° femmina metrico a cono 24° con O-Ring girevole Raccordo flessibile serie leggera 20491

Part NO.

Thread  E

Hose Bore - DN

Hose Bore - Dash

Tube O.D

O Ring

A

C

H

S2

20491-12-03

M12X1.5

5

3

6

004.5X1.5

26.5

1

35

17

20491-12-04

M12X1.5

6

4

6

004.5X1.5

30

1

44.5

17

20491-14-04

M14X1.5

6

4

8

006.5X1.5

30

2

38

19

20491-16-04

M16X1.5

6

4

10

008.0X1.5

30

2

39

22

20491-16-05

M16X1.5

8

5

10

008.0X1.5

33

2

42

22

20491-16-06

M16X1.5

10

6

10

008.0X1.5

35.3

2

51.8

22

20491-18-05T

M18X1.5

8

5

12

010.0X1.5

33

1.5

42.5

22

20491-18-06

M18X1.5

10

6

12

010.0X1.5

35.3

2.5

44.3

24

20491-22-06T

M22X1.5

10

6

15

012.0X2.0

35.3

3

44.8

27

20491-22-08

M22X1.5

12

8

15

012.0X2.0

41

2.5

52

27

20491-26-08T

M26X1.5

12

8

18

015.0X2.0

41

2.1

51

32

20491-26-10

M26X1.5

16

10

18

015.0X2.0

56

2.5

58.5

32

20491-26-12

M26X1.5

20

12

18

015.0X2.0

64.9

2.5

77

32

20491-27-10T

M27X1.5

16

10

18

015.0X2.0

56

2.1

54.9

32

20491-27-12

M27X1.5

20

12

18

015.0X2.0

64.9

2.5

77

32

20491-30-10T

M30X2

16

10

22

020.0X2.0

56

3.8

57.2

36

20491-30-12

M30X2

20

12

22

020.0X2.0

65.5

4

63

36

20491-36-12T

M36X2

20

12

28

026.0X2.0

65.5

4.5

66.5

46

20491-36-14T

M36X2

22

14

28

026.0X2.0

71.2

4.5

67.5

46

20491-45-16T

M45X2

25

16

35

032.0X2.5

76.7

4

75

55

20491-45-20T

M45X2

32

20

35

032.0X2.5

91.5

4

86

55

20491-52-20T

M52X2

32

20

42

038.0X2.5

93

4

87

60

20491-52-24T

M52X2

40

24

42

038.0X2.5

109.4

4

100.5

60

Note: I.For use with braided hoses. 2.lf use with spiral hoses, hose fitting series number is 20492-xx-xx.
