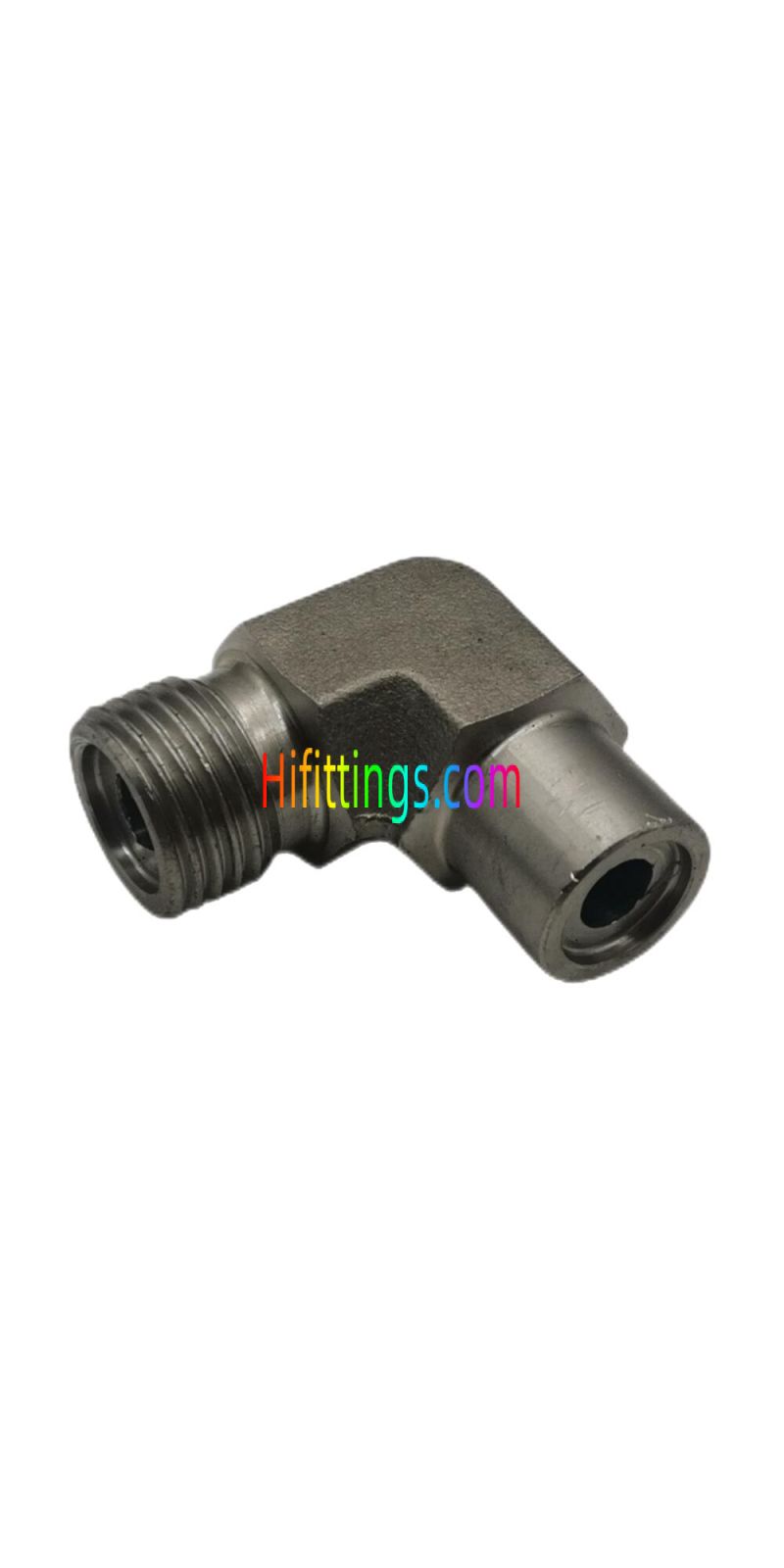

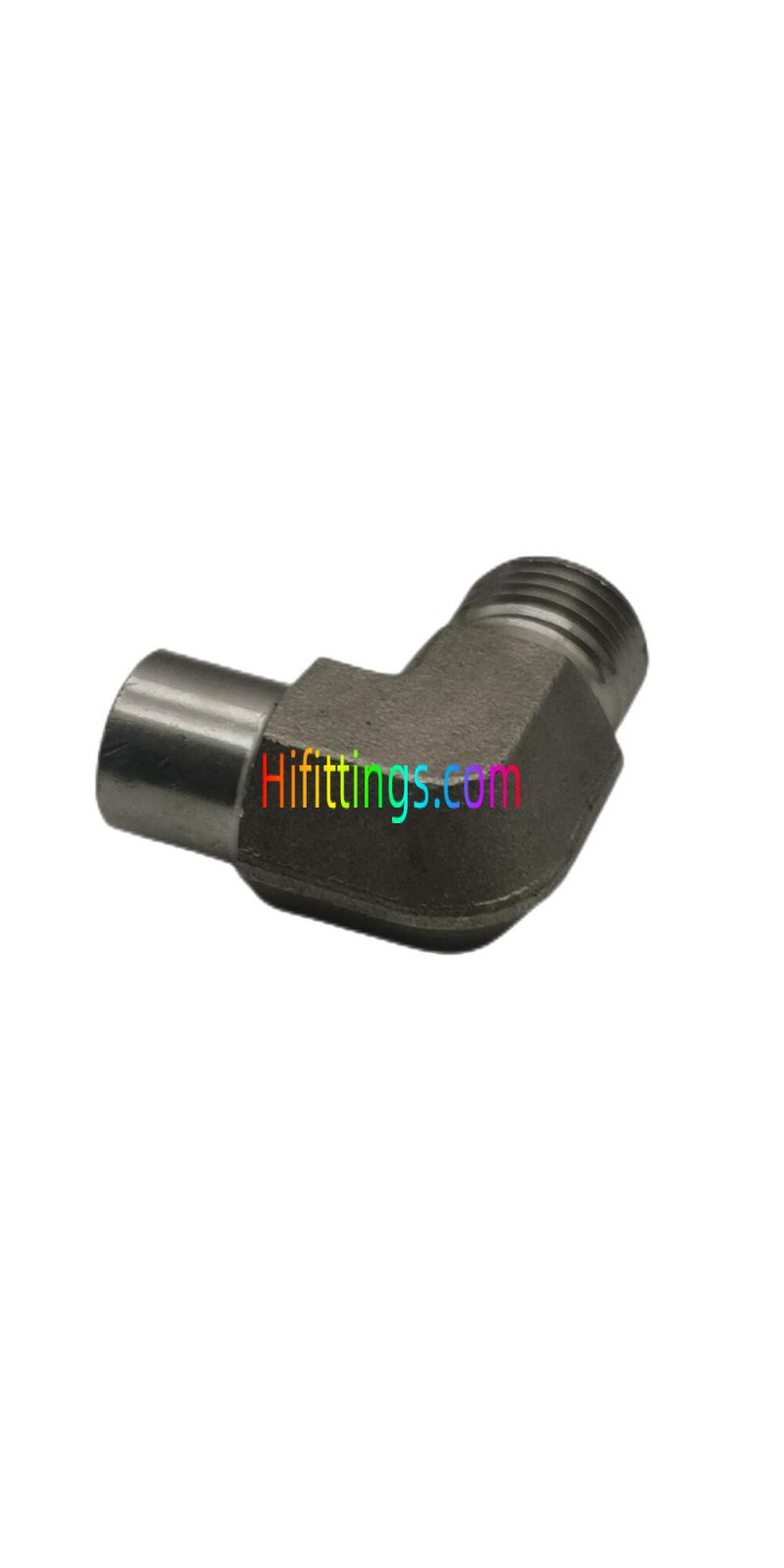

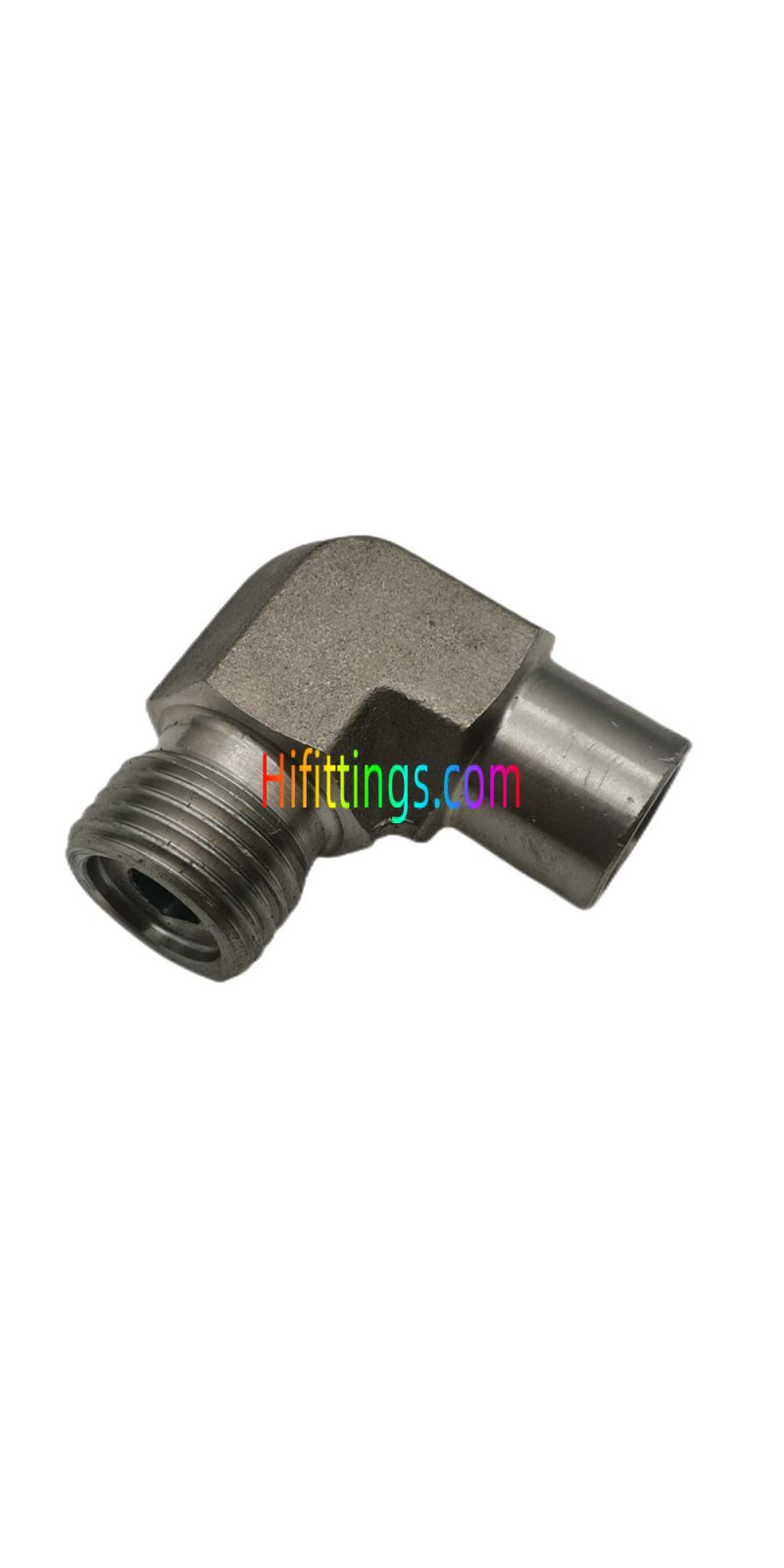

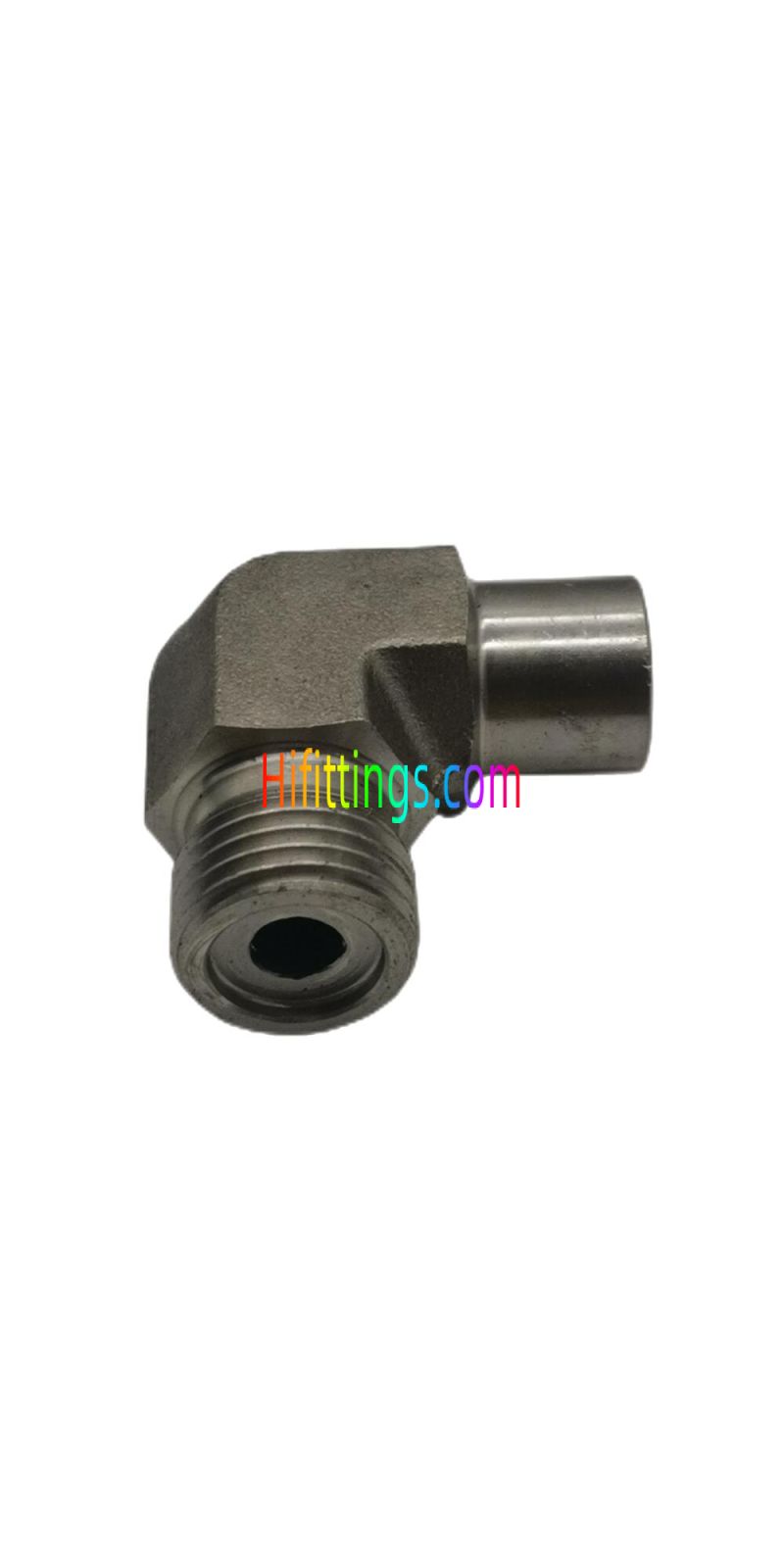

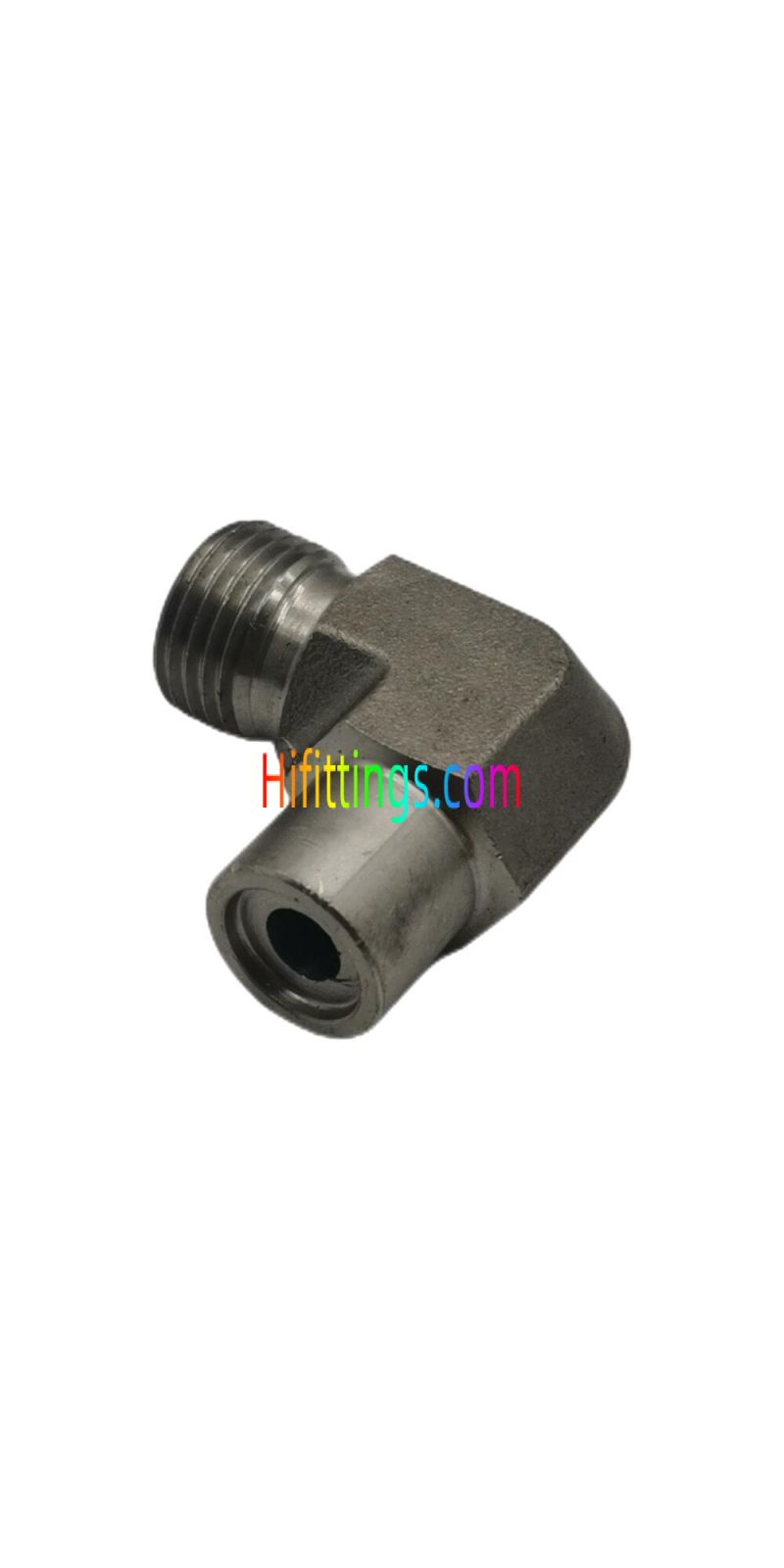

90° Elbow Metric Male O-Ring / Butt-Weld Tube 1EW9
|
Part NO. |
E |
Tube O.D. |
O-Ring E End |
A |
B |
D |
S1 |
Working Pressure bar |
|
1EW9-12-06 |
M12X1.25 |
6 |
8X1.9 |
20.5 |
16.5 |
6 |
12 |
PN630 |
|
1EW9-14-08 |
M14X1.5 |
8 |
10X1.9 |
22.5 |
17.5 |
8 |
14 |
PN630 |
|
1EW9-16-10 |
M16X1.5 |
10 |
11X1.9 |
24 |
I4 |
10 |
17 |
PN630 |
|
1EW9-18-12 |
M18X1.5 |
12 |
13X1.9 |
26 |
25 |
12 |
19 |
PN630 |
|
1EW9-22-14 |
M22X1.5 |
14 |
16X2.4 |
29 |
27 |
14 |
22 |
PN630 |
|
1EW9-27-18 |
M27X1.5 |
18 |
20X2.4 |
32.5 |
29.5 |
18 |
27 |
PN400 |
|
1EW9-30-22 |
M30X1.5 |
22 |
24X2.4 |
35.5 |
33.5 |
22 |
30 |
PN400 |
|
1EW9-36-28 |
M36X2 |
28 |
30X3.1 |
42 |
39 |
28 |
36 |
PN400 |
|
1EW9-39-30 |
M39X2 |
30 |
32X3.1 |
47.5 |
43 |
30 |
41 |
PN250 |
|
1EW9-42-34 |
M42X2 |
34 |
35X3.1 |
49.5 |
43 |
34 |
41 |
PN250 |
|
1EW9-45-38 |
M45X2 |
38 |
38X3.1 |
52.5 |
47.5 |
38 |
46 |
PN250 |
|
1EW9-52-42 |
M52X2 |
42 |
40X3.1 |
57 |
50 |
42 |
50 |
PN250 |
|
Note: 1. The parameter of E end O-ring is ring outside diameter and ring width. 2. PN = Nominal Pressure |
||||||||
| Forma | Elbow |
|---|---|
| Tipo di filettatura | Male |
| Connection Type | Metric, Weld |
| Tipo di montaggio | Face Seal, Weld |
