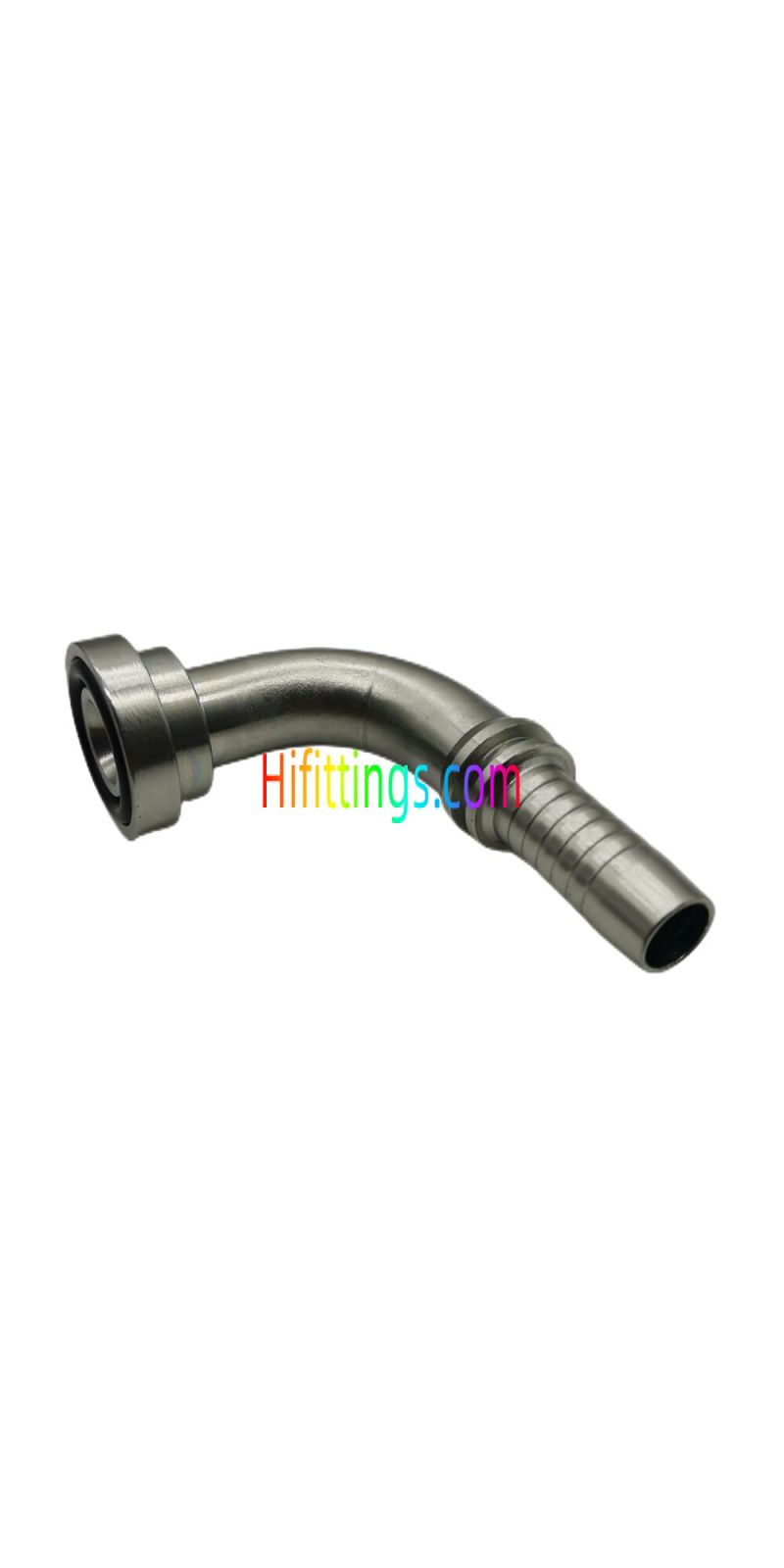

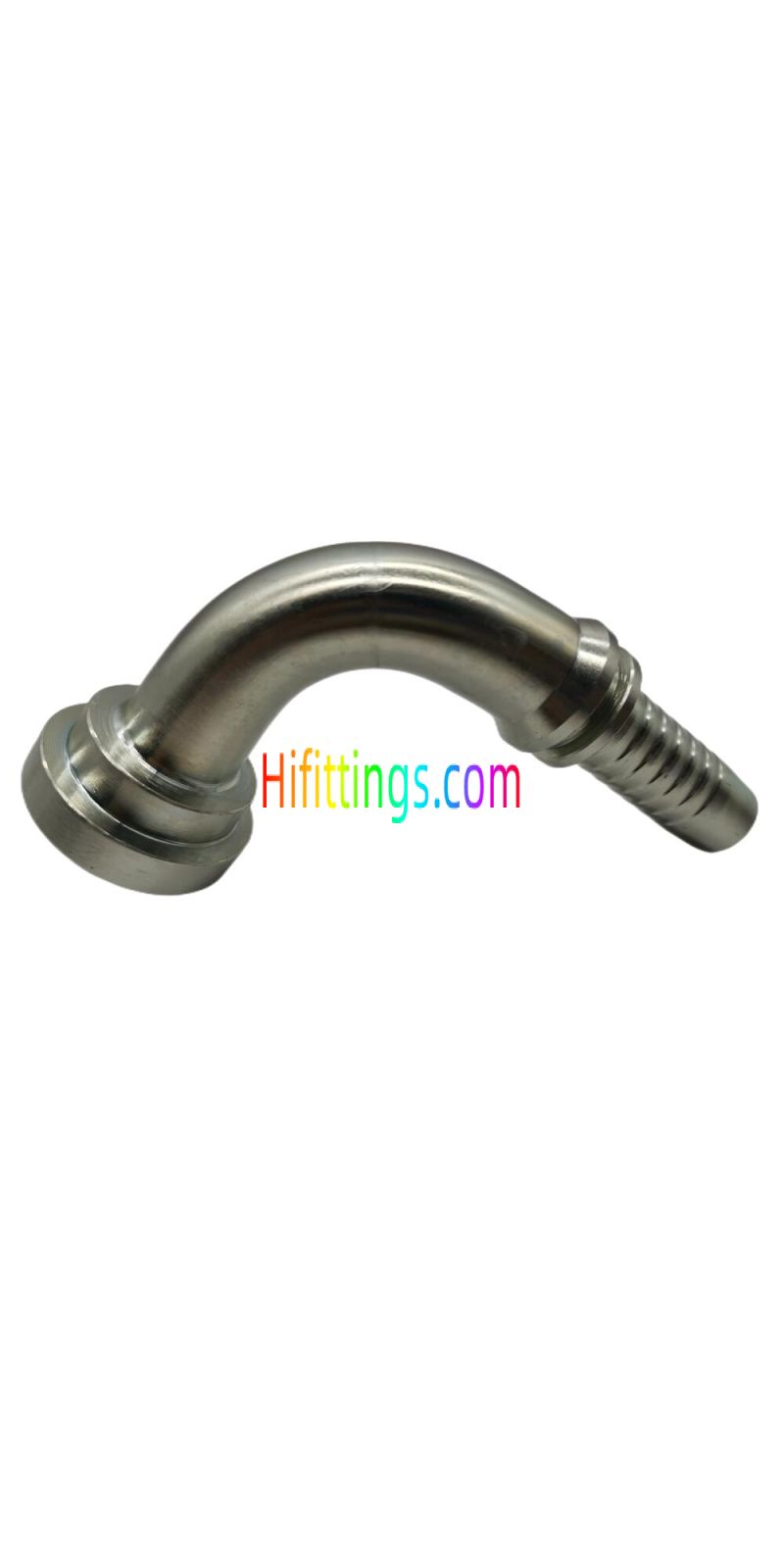

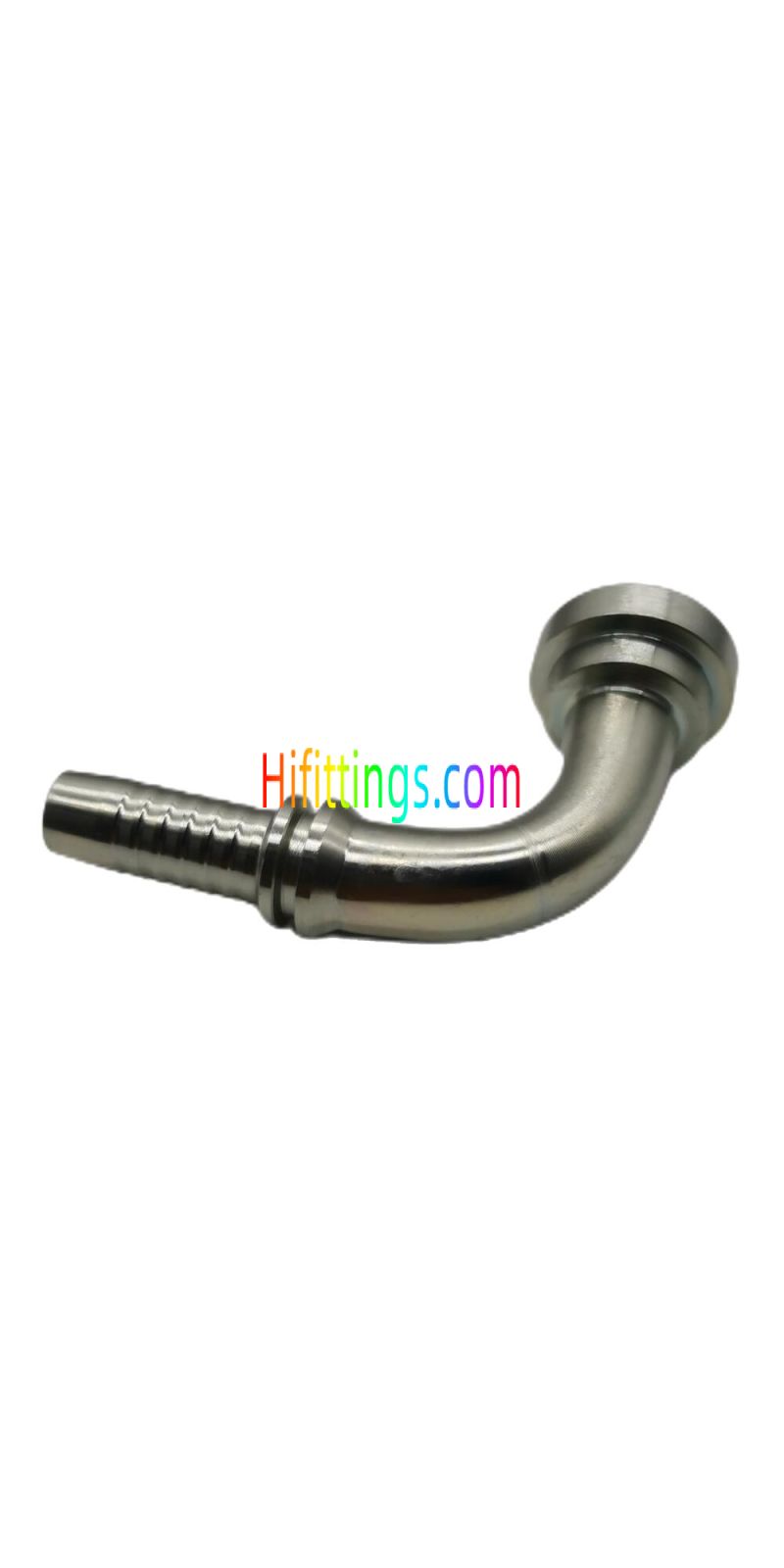

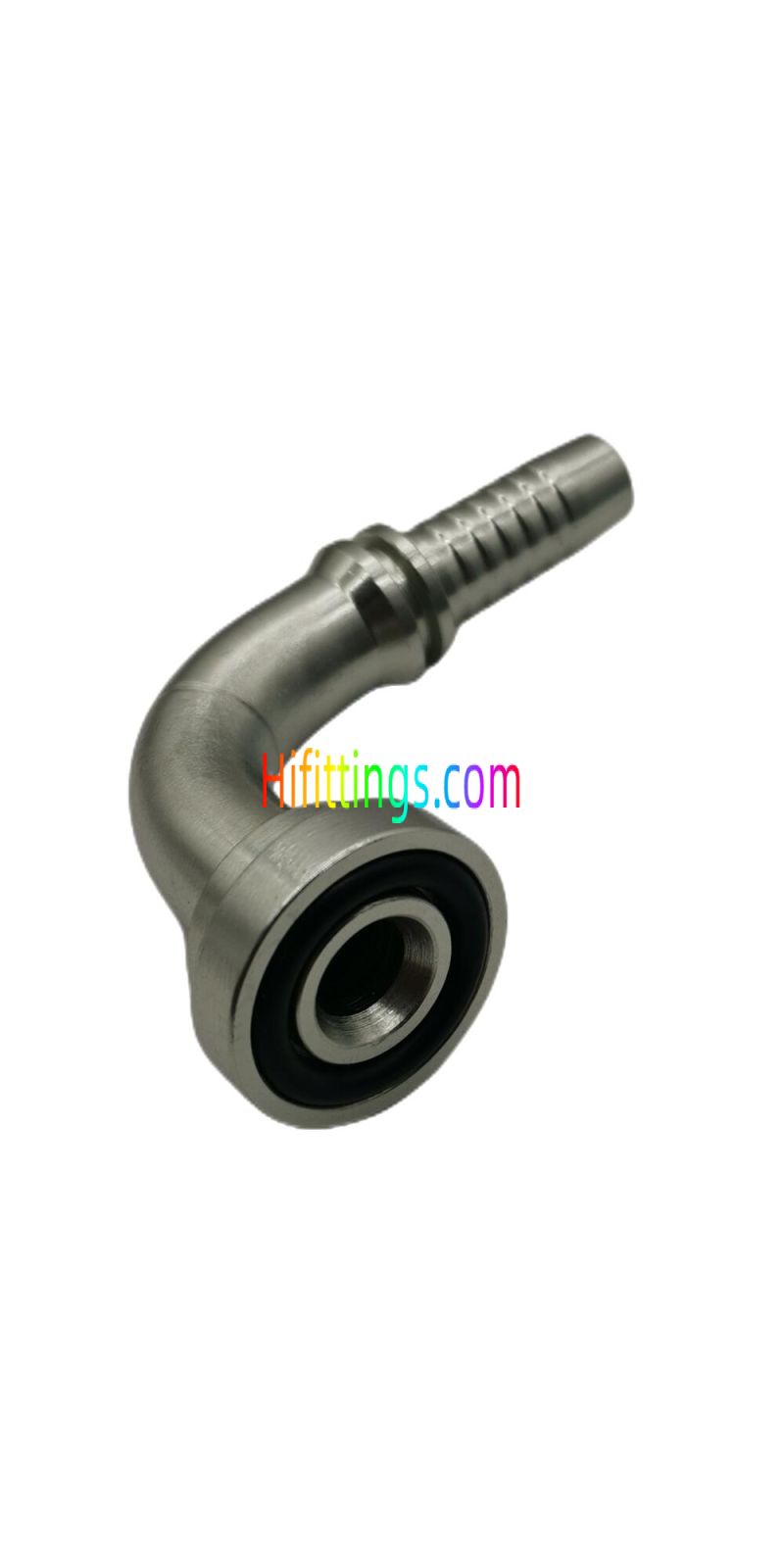

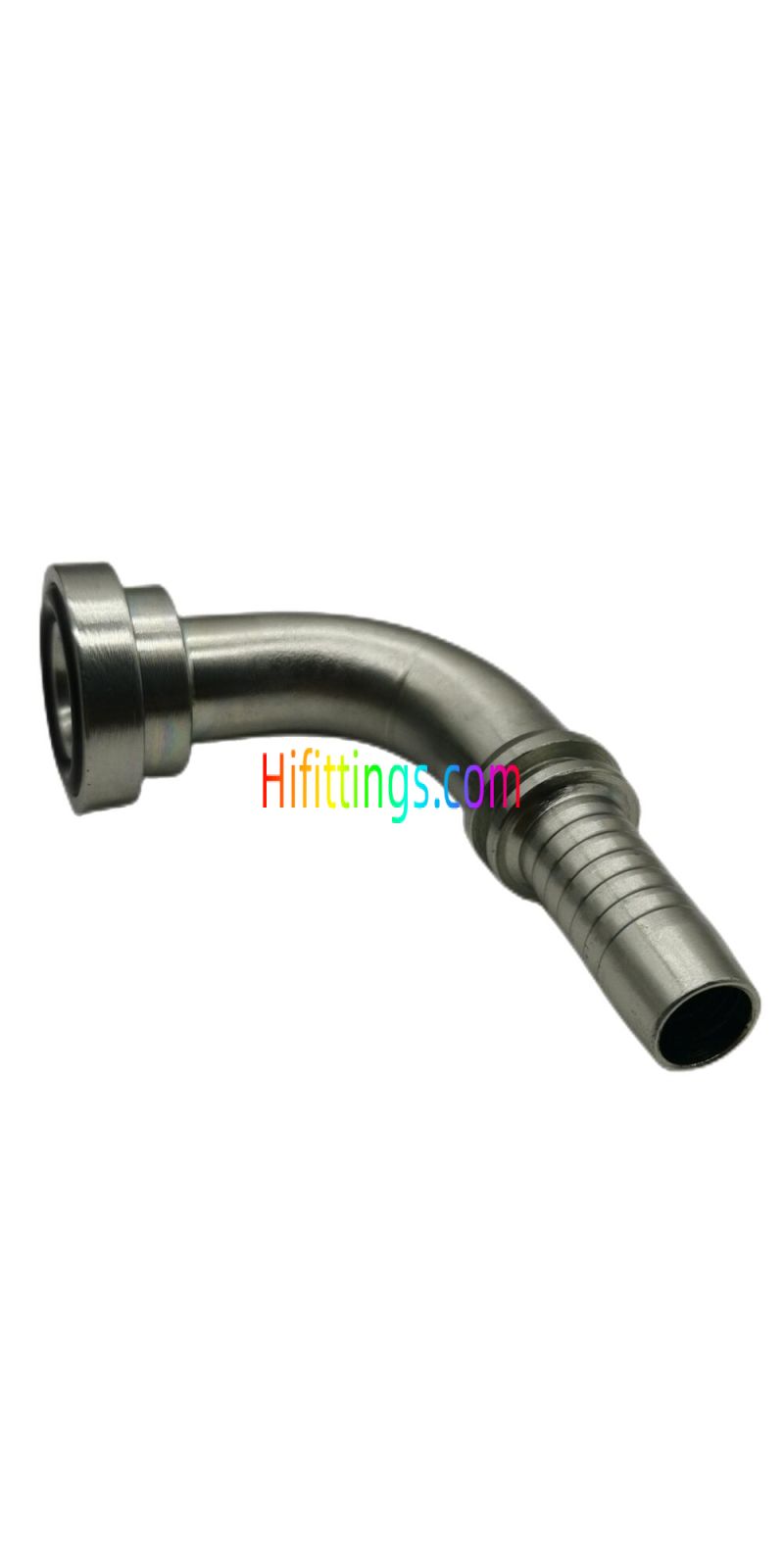

Part NO. |
Flange Size |
Hose Bore - DN |
Hose Bore - Dash |
A |
C |
D |
H |
L |
|
87391-08-08 |
1/2" |
12 |
8 |
41 |
30.2 |
24 |
47 |
6.73 |
|
87391-12-08 |
3/4" |
12 |
8 |
41 |
38.1 |
31.7 |
48 |
6.73 |
|
87391-12-10 |
3/4" |
16 |
10 |
56 |
38.1 |
31.7 |
52.5 |
6.73 |
|
87391-12-12 |
3/4" |
20 |
12 |
66.2 |
38.1 |
31.7 |
62 |
6.73 |
|
87391-12-16 |
3/4" |
25 |
16 |
76.7 |
38.1 |
31.7 |
67.5 |
6.73 |
|
87391-16-12 |
1" |
20 |
12 |
65.5 |
44.4 |
38 |
62 |
8 |
|
87391-16-16 |
1" |
25 |
16 |
76.7 |
44.4 |
38 |
67.5 |
8 |
|
87391-16-20 |
1" |
32 |
20 |
91.5 |
44.4 |
38 |
78.5 |
8 |
|
87391-20-16 |
1.1/4" |
25 |
16 |
76.7 |
50.8 |
43 |
67.5 |
8 |
|
87391-20-20 |
1.1/4" |
32 |
20 |
91.5 |
50.8 |
43 |
78.5 |
8 |
|
87391-20-24 |
1.1/4" |
40 |
24 |
107 |
50.8 |
43 |
78.5 |
8 |
|
87391-24-20 |
1.1/2" |
32 |
20 |
91.5 |
60.3 |
50 |
80.5 |
8 |
|
87391-24-24 |
1.1/2" |
40 |
24 |
109.4 |
60.3 |
50 |
94 |
8 |
|
87391-32-24 |
2" |
40 |
24 |
109.4 |
71.4 |
62 |
94 |
9.53 |
|
87391-32-32 |
2" |
50 |
32 |
131.8 |
71.4 |
62 |
114.3 |
9.53 |
|
87391-40-32 |
2.1/2" |
50 |
32 |
131.8 |
84.1 |
74.4 |
116.3 |
9.53 |
|
Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 87392-xx-xx |
||||||||
| Forma | Elbow |
|---|---|
| Tipo di montaggio | Flange |
| Tipo di filettatura | - |
| Connection Type | Flange |
