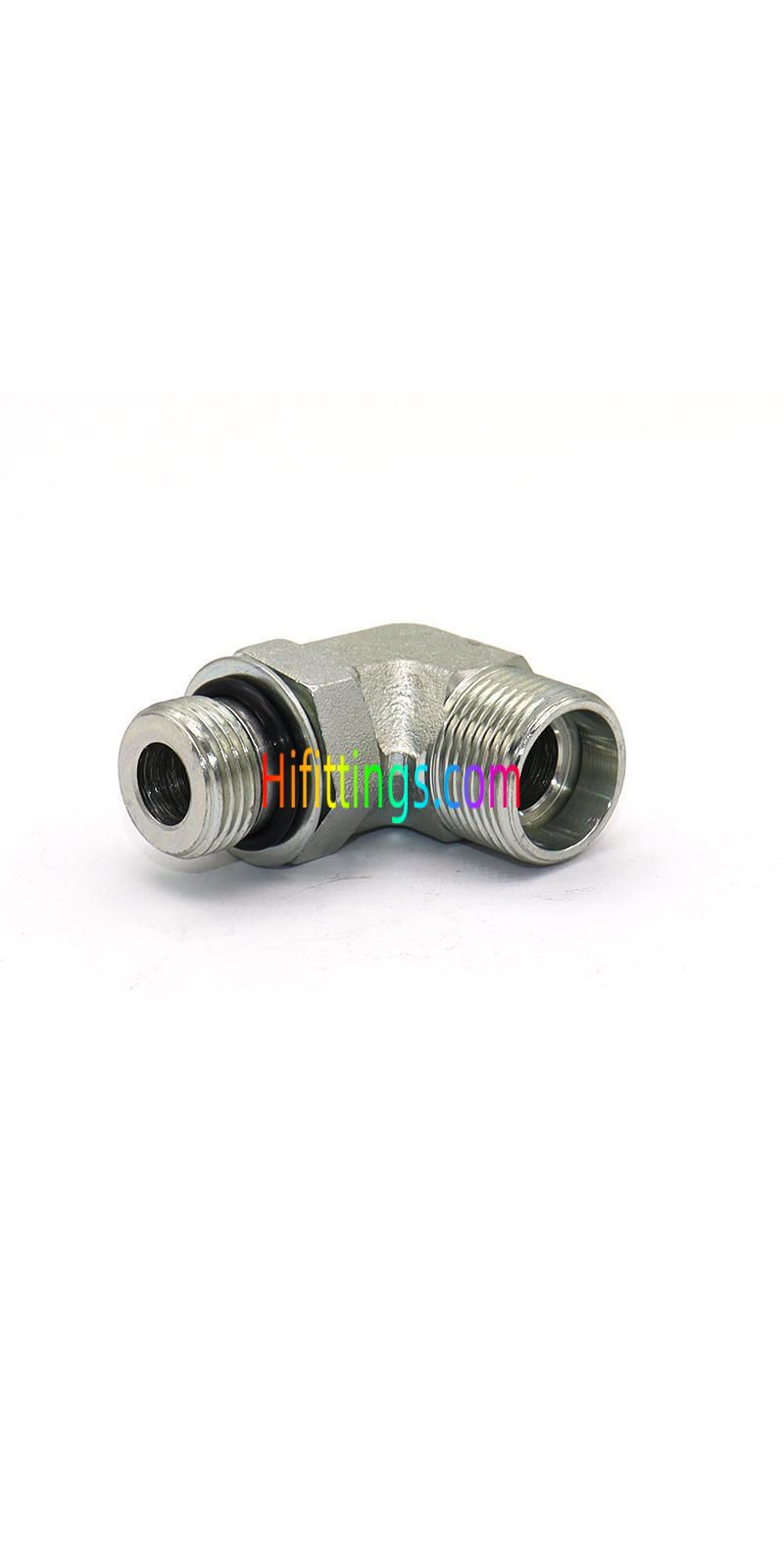

90° Elbow UNF Male Adjustable Stud End With O-Ring Sealing / Metric Male Bite Type Hydraulic Adapter Pipe Fittings ISO11926
|
Part NO. |
E |
F |
D1 |
11 |
L1 |
L2 |
S1 |
S2 |
S3 |
Working Pressure bar |
|
1CO9-12-04OG |
M12X1.5 |
7/16"X20 |
6 |
13 |
28 |
27.2 |
11 |
14 |
17 |
PN315 |
|
1CO9-14-06OG |
M14X1.5 |
9/16"X18 |
8 |
15.5 |
30.5 |
31.8 |
14 |
17 |
19 |
PN315 |
|
1CO9-16-06OG |
M16X1.5 |
9/16"X18 |
10 |
17.5 |
32.5 |
33.3 |
16 |
19 |
19 |
PN315 |
|
1CO9-18-08OG |
M18X1.5 |
3/4"X16 |
12 |
19 |
34 |
37.5 |
19 |
22 |
24 |
PN315 |
|
1CO9-22-10OG |
M22X1.5 |
7/8"X14 |
15 |
22 |
37 |
44 |
22 |
27 |
27 |
PN315 |
|
1CO9-22-08OG |
M22X1.5 |
3/4"X16 |
15 |
22 |
37 |
39.5 |
22 |
27 |
24 |
PN315 |
|
1CO9-26-12OG |
M26X1.5 |
1.1/16"X12 |
18 |
25.5 |
42 |
51 |
27 |
32 |
32 |
PN315 |
|
1CO9-30-12OG |
M30X2 |
1.1/16"X12 |
22 |
29.3 |
45.8 |
53.5 |
30 |
36 |
32 |
PN160 |
|
1CO9-36-12OG |
M36X2 |
1.1/16"X12 |
28 |
33.5 |
47.8 |
57.5 |
36 |
41 |
41 |
PN160 |
|
1CO9-36-16OG |
M36X2 |
1.5/16"X12 |
28 |
33.3 |
49.8 |
57.5 |
36 |
41 |
41 |
PN160 |
|
1CO9-45-20OG |
M45X2 |
1.5/8"X12 |
35 |
39.2 |
60.7 |
63 |
48 |
50 |
50 |
PN160 |
|
1CO9-52-24OG |
M52X2 |
1.7/8"X12 |
42 |
44.8 |
67.8 |
70.5 |
55 |
60 |
55 |
PN160 |
|
1DO9-14-04OG |
M14X1.5 |
7/16"X20 |
6 |
17.5 |
32.5 |
30 |
14 |
17 |
17 |
PN630 |
|
1DO9-16-06OG |
M16X1.5 |
9/16"X18 |
8 |
18.7 |
33.7 |
33.3 |
16 |
19 |
19 |
PN630 |
|
1DO9-18-06OG |
M18X1.5 |
9/16"X18 |
10 |
19.5 |
36 |
33.5 |
19 |
22 |
19 |
PN630 |
|
1DO9-18-08OG |
M18X1.5 |
3/4"X16 |
10 |
19.5 |
36 |
37.5 |
19 |
22 |
24 |
PN630 |
|
1D09-20-080G |
M20X1.5 |
3/4"X16 |
12 |
19.5 |
36 |
37.5 |
19 |
24 |
24 |
PN630 |
|
1DO9-22-10OG |
M22X1.5 |
7/8"X14 |
14 |
23 |
41 |
44 |
22 |
27 |
27 |
PN630 |
|
1DO9-24-10OG |
M24X1.5 |
7/8"X14 |
16 |
24 |
42.5 |
46.5 |
24 |
30 |
27 |
PN400 |
|
1DO9-30-12OG |
M30X2 |
1.1/16"X12 |
20 |
28.3 |
49.8 |
53.5 |
30 |
36 |
32 |
PN400 |
|
1DO9-36-16OG |
M36X2 |
1.5/16"X12 |
25 |
32.8 |
56.8 |
57.5 |
36 |
46 |
41 |
PN400 |
|
1DO9-42-20OG |
M42X2 |
1.5/8"X12 |
30 |
36.2 |
62.7 |
59.5 |
41 |
50 |
50 |
PN400 |
|
1DO9-52-24OG |
M52X2 |
1.7/8"X12 |
38 |
45.8 |
76.8 |
70.5 |
55 |
60 |
55 |
PN315 |
|
Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 1CO9-30-12OG/RN. 2. PN = Nominal Pressure |
||||||||||
| Forma | Elbow |
|---|---|
| Tipo di filettatura | Male |
| Connection Type | Metric, UNF |
| Tipo di montaggio | Bite Type |
