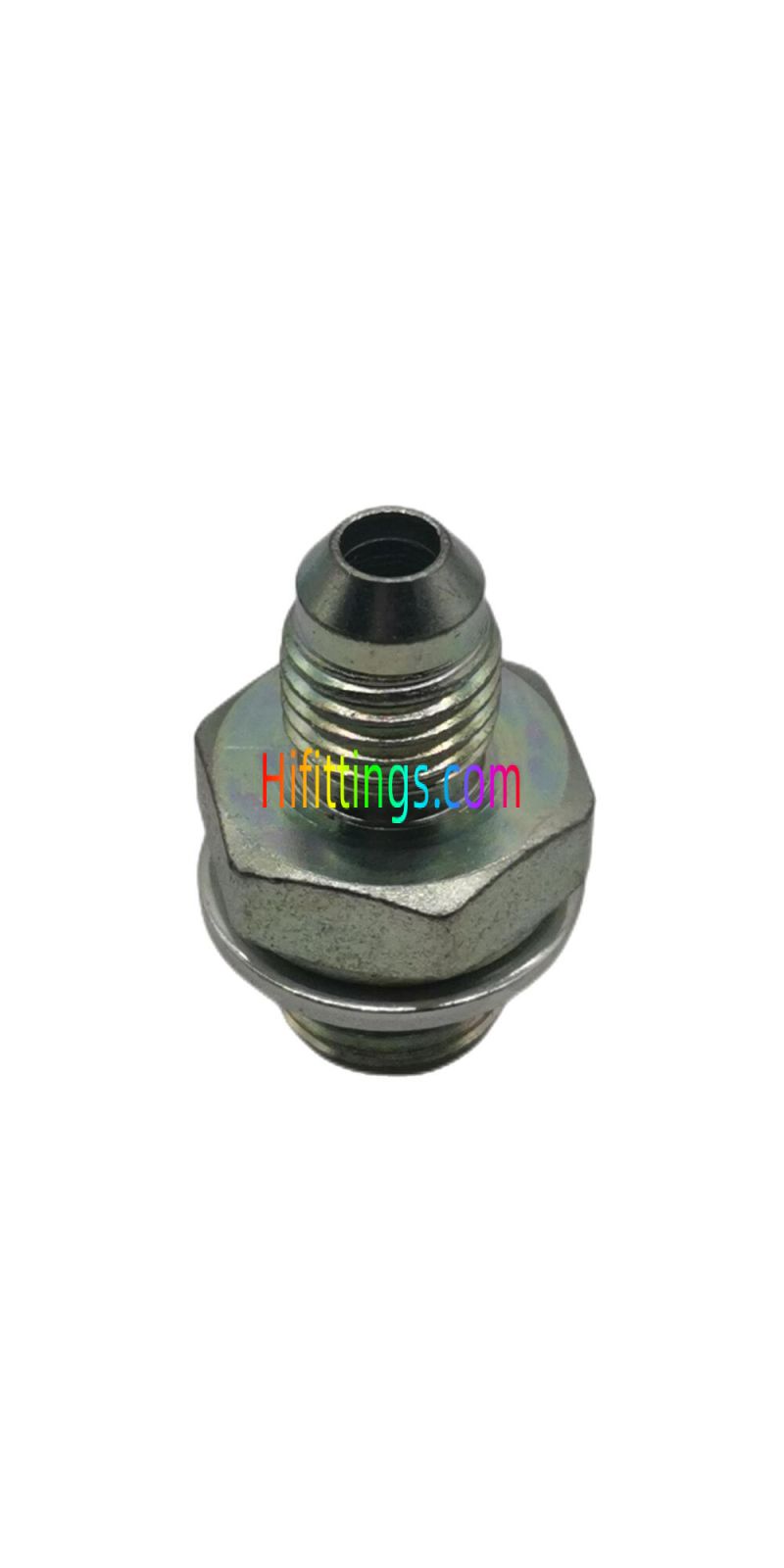

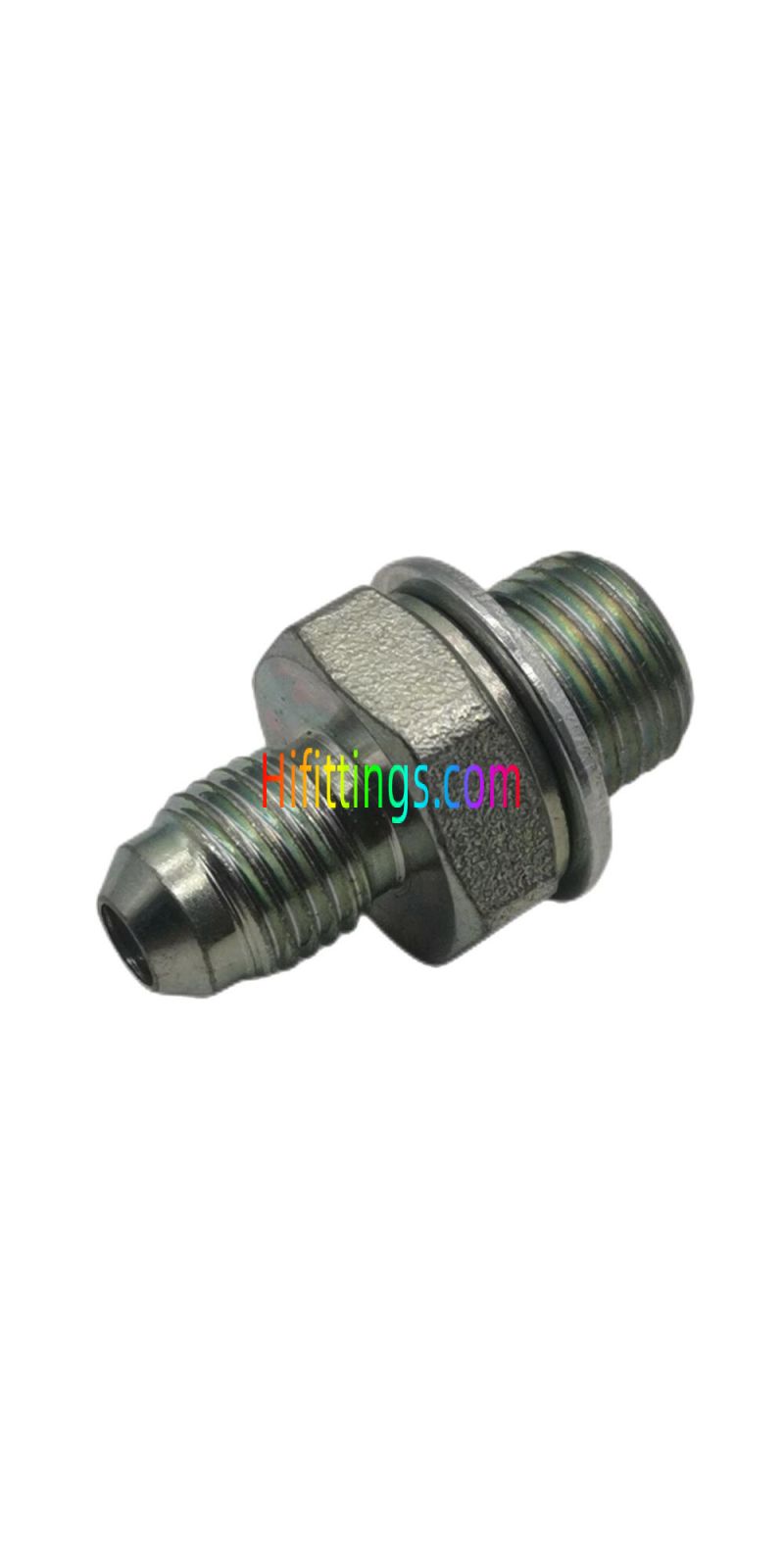

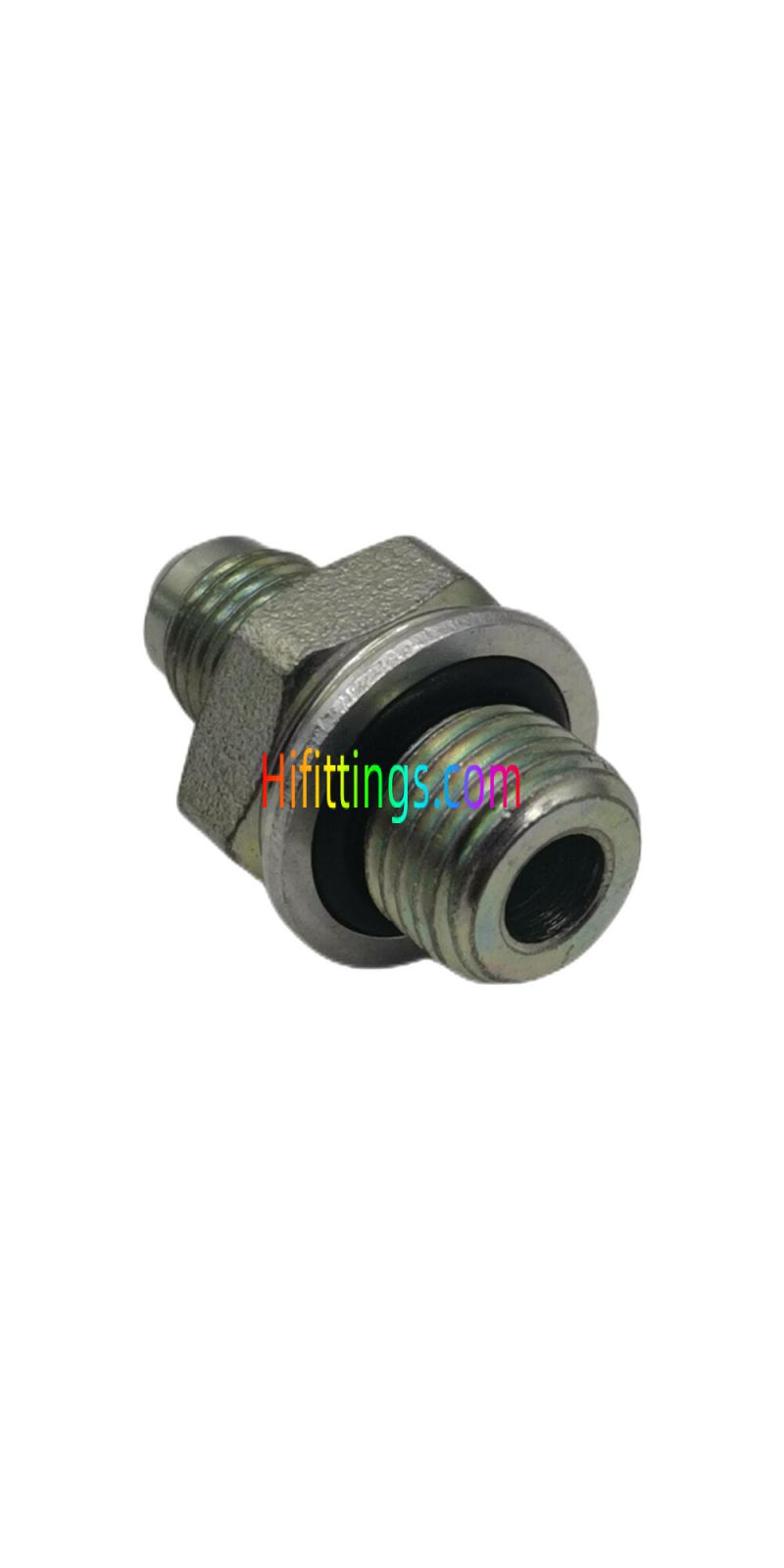

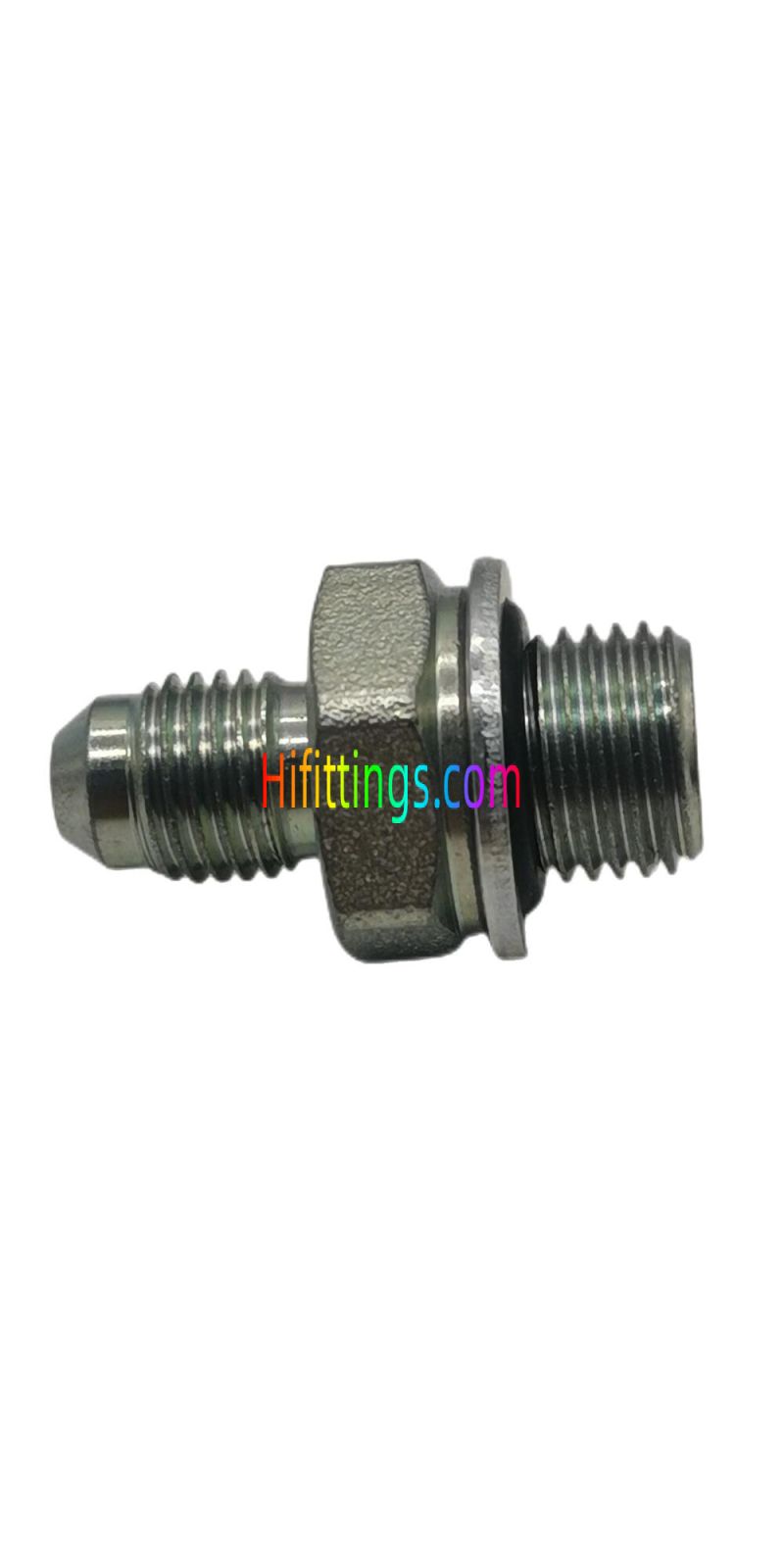

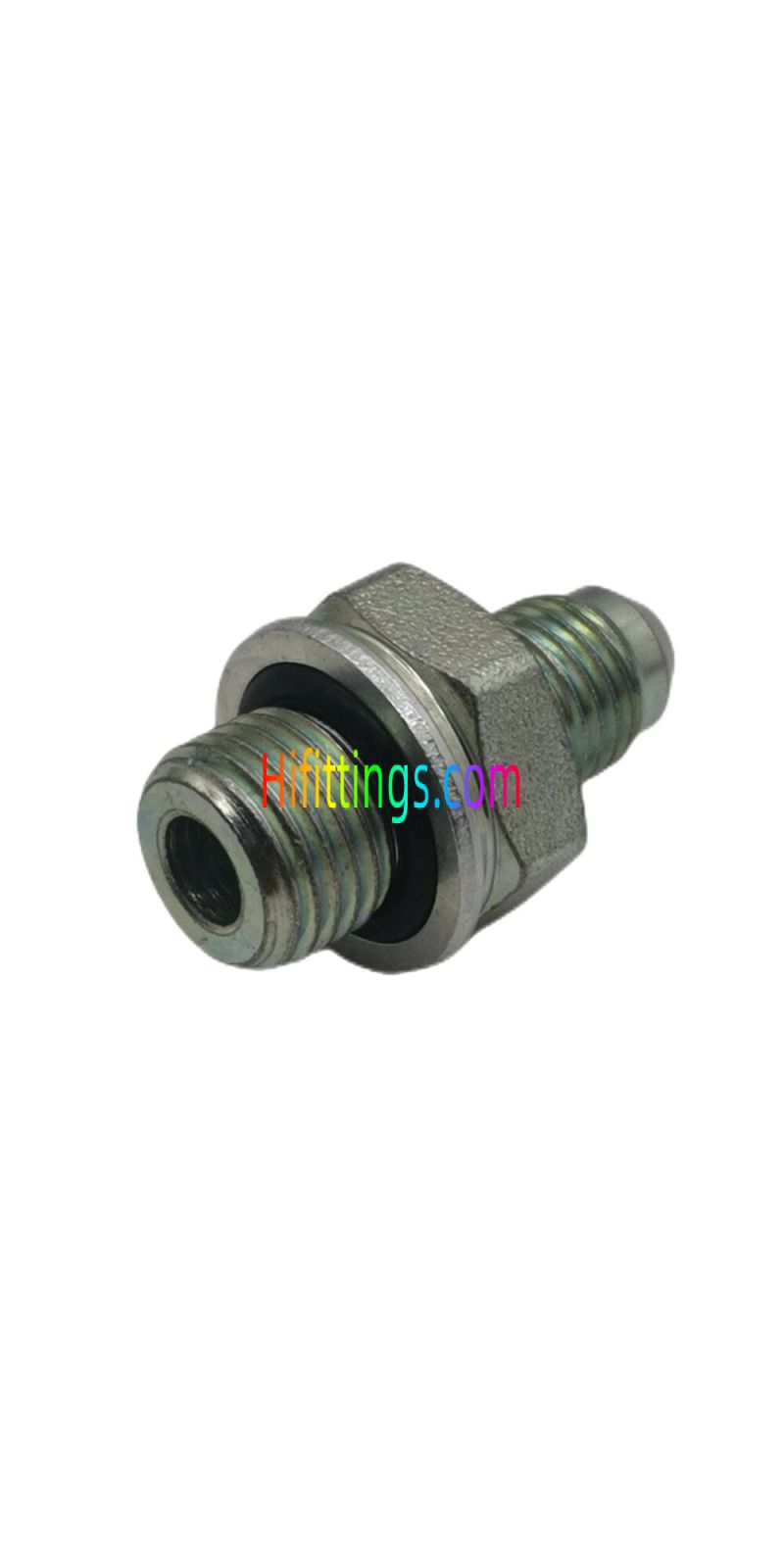

JIC Male 74° Cone / BSP Male Captive Seal Cone Flared Hydraulic Adapter Tube Fittings 1JB-WD
|
Part NO. |
E |
F |
F End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1JB-04-02WD |
7/16"X20 |
G1/8"X28 |
WD-B02 |
14 |
8 |
29.5 |
14 |
PN345 |
|
1JB-04WD |
7/16"X20 |
G1/4"X19 |
WD-B04 |
14 |
12 |
34 |
19 |
PN345 |
|
1JB-04-06WD |
7/16"X20 |
G3/8"X19 |
WD-B06 |
14 |
12 |
34.5 |
22 |
PN345 |
|
1JB-04-08WD |
7/16"X20 |
G1/2"X14 |
WD-B08 |
14 |
14 |
41 |
27 |
PN345 |
|
1JB-05-04WD |
1/2"X20 |
G1/4"X19 |
WD-B04 |
14 |
12 |
34 |
19 |
PN345 |
|
1JB-05-06WD |
1/2"X20 |
G3/8"X19 |
WD-B06 |
14 |
12 |
34.5 |
22 |
PN345 |
|
1JB-06-02WD |
9/16"X18 |
G1/8"X28 |
WD-B02 |
14.1 |
8 |
29.5 |
17 |
PN345 |
|
1JB-06-04WD |
9/16"X18 |
G1/4"X19 |
WD-B04 |
14.1 |
12 |
34 |
19 |
PN345 |
|
1JB-06WD |
9/16"X18 |
G3/8"X19 |
WD-B06 |
14.1 |
12 |
34.5 |
22 |
PN345 |
|
1JB-06-08WD |
9/16"X18 |
G1/2"X14 |
WD-B08 |
14.1 |
14 |
41 |
27 |
PN345 |
|
1JB-08-04WD |
3/4"X16 |
G1/4"X19 |
WD-B04 |
16.7 |
12 |
37 |
22 |
PN310 |
|
1JB-08-06WD |
3/4"X16 |
G3/8"X19 |
WD-B06 |
16.7 |
12 |
37.5 |
22 |
PN310 |
|
1JB-08WD |
3/4"X16 |
G1/2"X14 |
WD-B08 |
16.7 |
14 |
43.5 |
27 |
PN310 |
|
1JB-10-08WD |
7/8"X14 |
G1/2"X14 |
WD-B08 |
19.3 |
14 |
46.5 |
27 |
PN240 |
|
1JB-10-12WD |
7/8"X14 |
G3/4"X14 |
WD-B12 |
19.3 |
16 |
47.5 |
32 |
PN240 |
|
1JB-12-08WD |
1.1/16"X12 |
G1/2"X14 |
WD-B08 |
21.9 |
14 |
48.5 |
30 |
PN240 |
|
1JB-12WD |
1.1/16"X12 |
G3/4"X14 |
WD-B12 |
21.9 |
16 |
50 |
32 |
PN240 |
|
1JB-12-16WD |
1.1/16"X12 |
G1"X11 |
WD-B16 |
21.9 |
18 |
56 |
41 |
PN240 |
|
1JB-16-12WD |
1.5/16"X12 |
G3/4"X14 |
WD-B12 |
23.1 |
16 |
53 |
36 |
PN210 |
|
1JB-16WD |
1.5/16"X12 |
G1"X11 |
WD-B16 |
23.1 |
18 |
57 |
41 |
PN210 |
|
1JB-16-20WD |
1.5/16"X12 |
G1.1/4"X11 |
WD-B20 |
23.1 |
20 |
61 |
50 |
PN210 |
|
1JB-20-16WD |
1.5/8"X12 |
G1"X11 |
WD-B16 |
24.3 |
18 |
58 |
46 |
PN170 |
|
1JB-20WD |
1.5/8"X12 |
G1.1/4"X11 |
WD-B20 |
24.3 |
20 |
62 |
50 |
PN170 |
|
1JB-20-24WD |
1.5/8"X12 |
G1.1/2"X11 |
WD-B24 |
24.3 |
22 |
64 |
55 |
PN170 |
|
1JB-24-20WD |
1.7/8"X12 |
G1.1/4"X11 |
WD-B20 |
27.5 |
20 |
65.5 |
50 |
PN140 |
|
1JB-24WD |
1.7/8"X12 |
G1.1/2"X11 |
WD-B24 |
27.5 |
22 |
67.5 |
55 |
PN140 |
|
Note：1Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2. PN = Nominal Pressure |
||||||||
| Forma | Straight |
|---|---|
| Tipo di montaggio | Cone Flared |
| Tipo di filettatura | Male |
| Connection Type | BSP, JIC |
