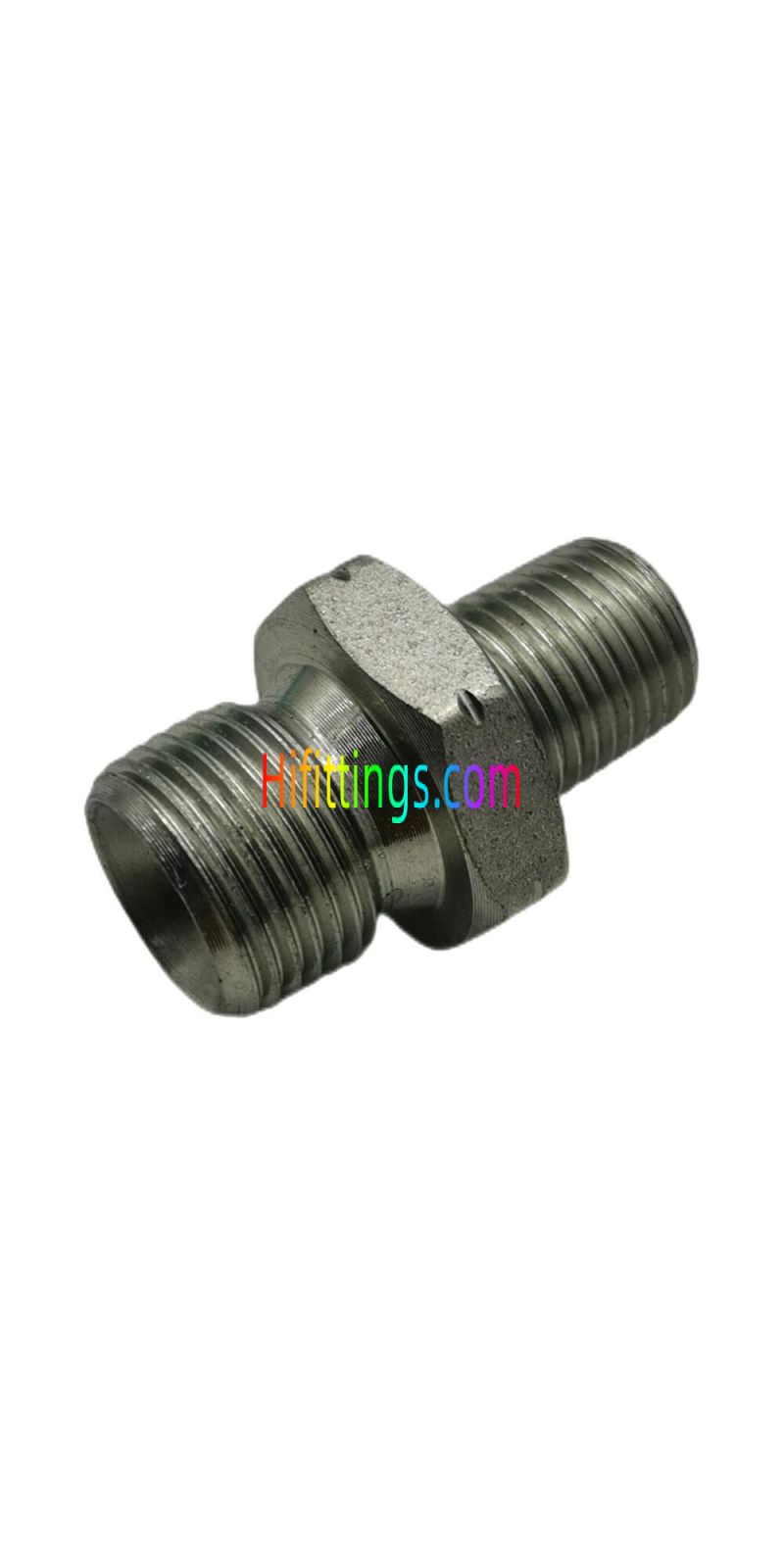

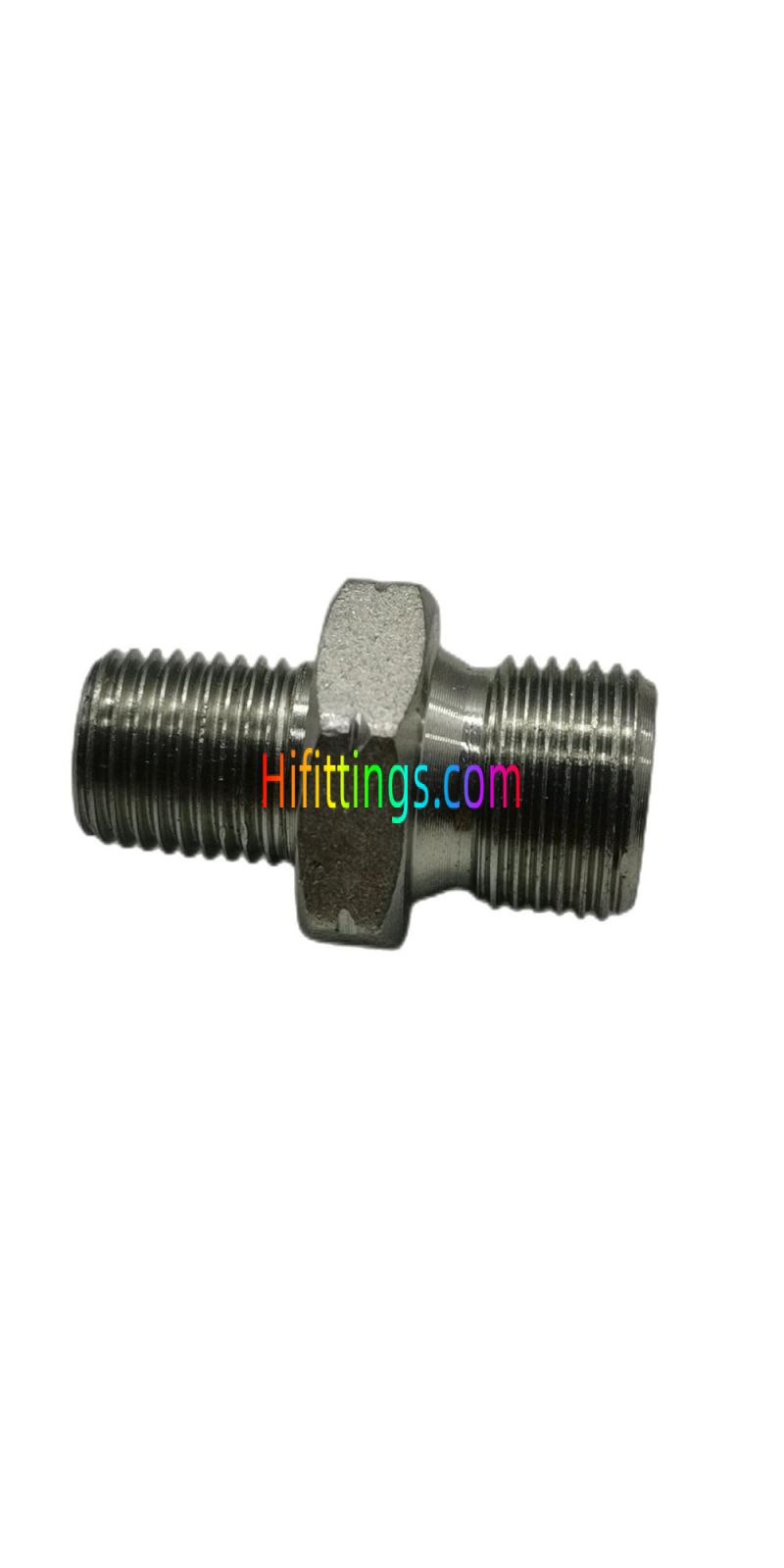

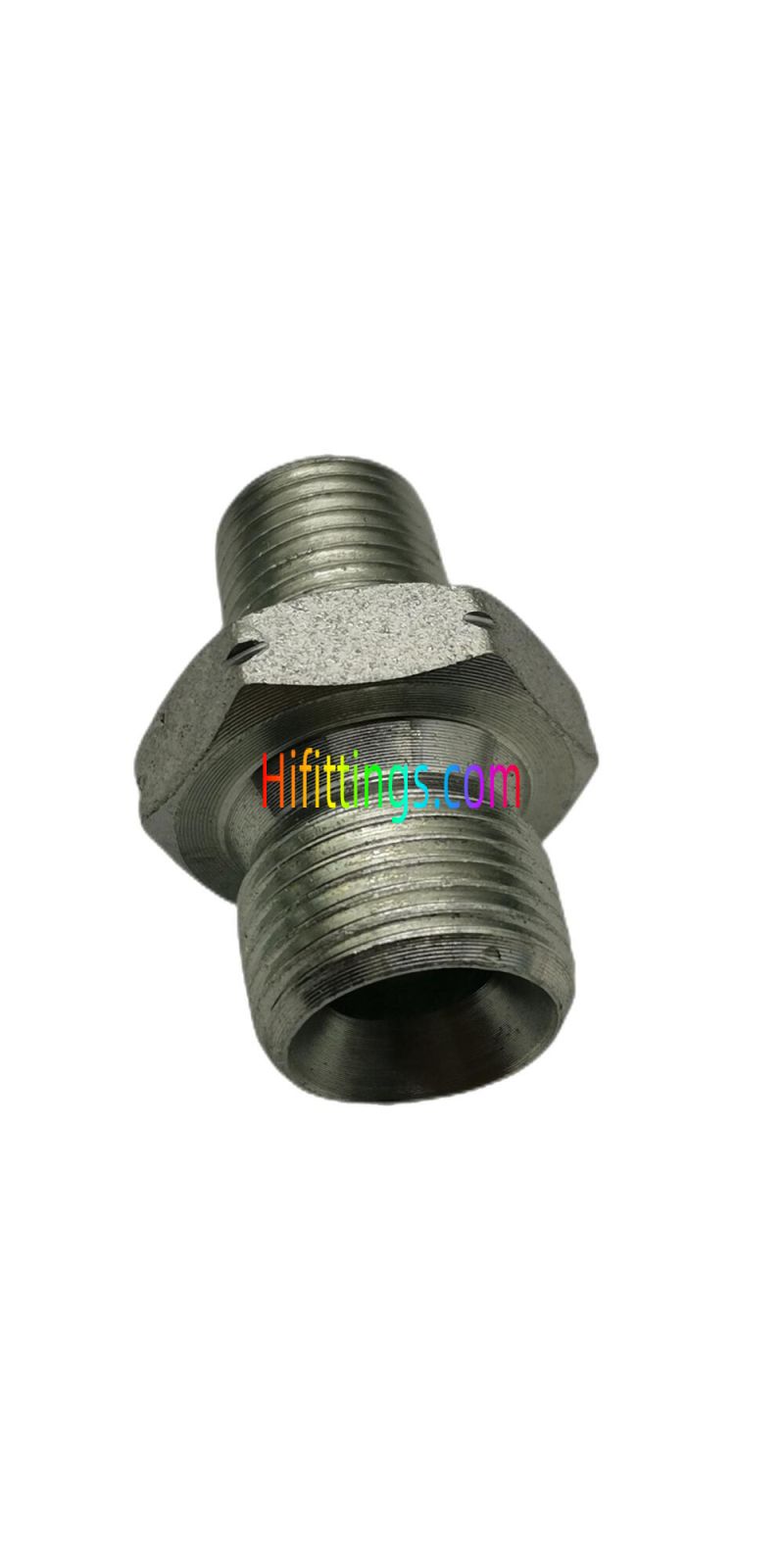

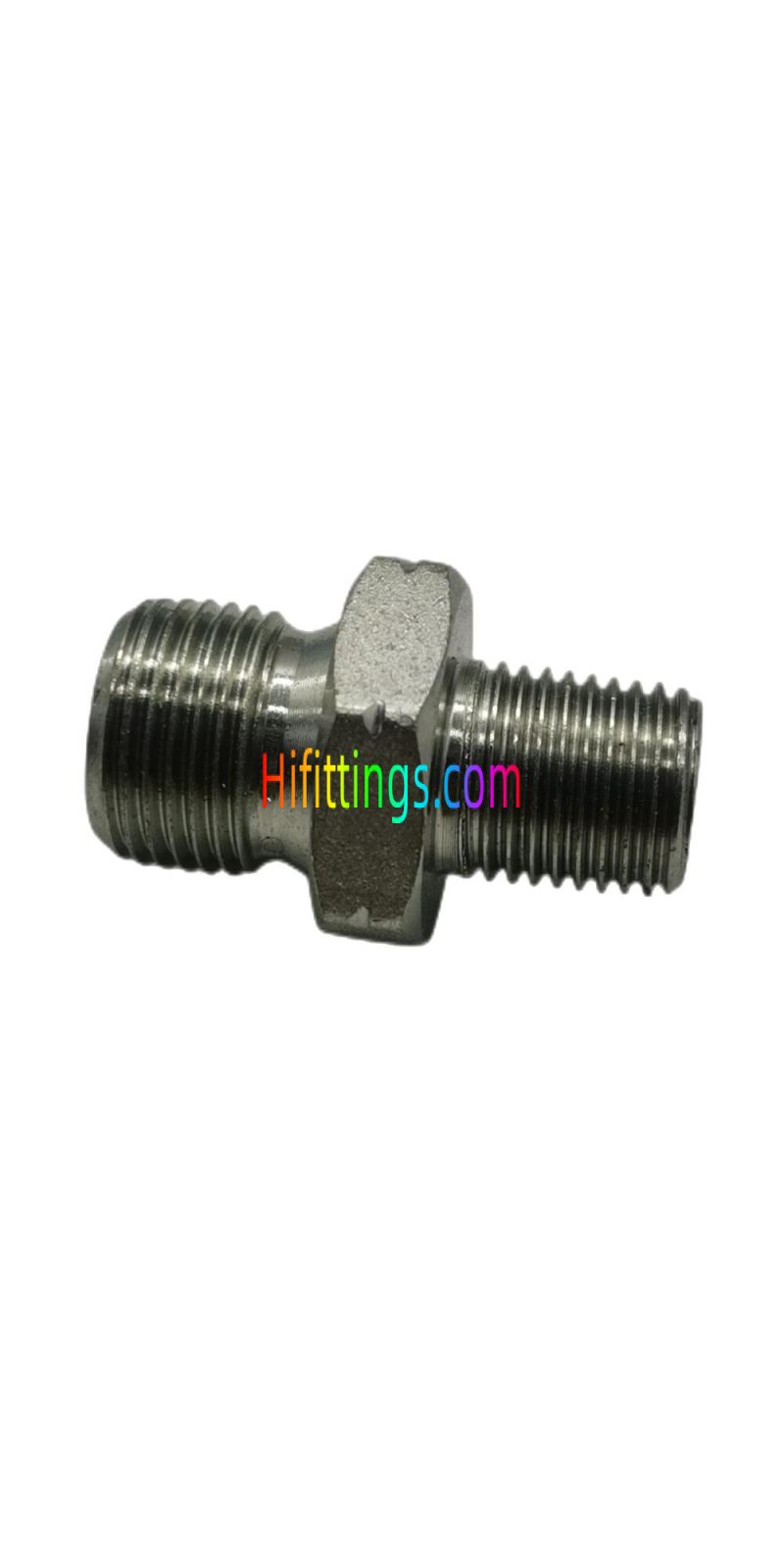

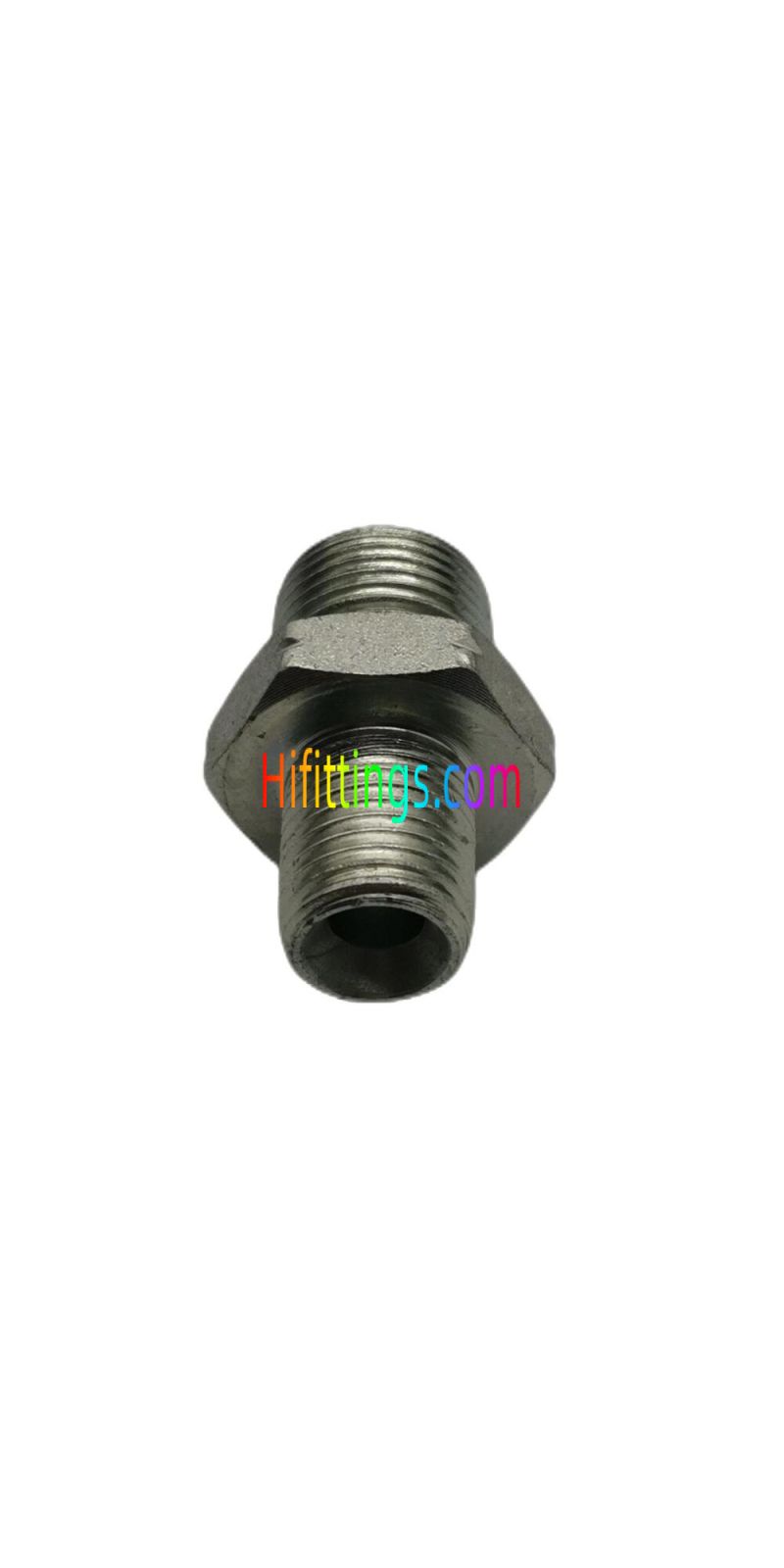

BSP Male Double Use For 60° Cone Seat Or Bonded Seal /BSPT Male Cone Fittings 1BT-SP
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
Working Pressure bar |
|
1BT-02SP |
G1/8"X28 |
R1/8"X28 |
10 |
10 |
26 |
14 |
PN345 |
|
1BT-02-04SP |
G1/8"X28 |
R1/4"X19 |
10 |
14.5 |
30.5 |
14 |
PN345 |
|
1BT-04SP |
G1/4"X19 |
R1/4"X19 |
12 |
14.5 |
32 |
19 |
PN345 |
|
1BT-04-02SP |
G1/4"X19 |
R1/8"X28 |
12 |
10 |
28 |
19 |
PN345 |
|
1BT-04-06SP |
G1/4"X19 |
R3/8"X19 |
12 |
15 |
32 |
19 |
PN345 |
|
1BT-04-08SP |
G1/4"X19 |
R1/2"X14 |
12 |
20 |
40 |
24 |
PN345 |
|
1BT-06SP |
G3/8"X19 |
R3/8"X19 |
13.5 |
15 |
35.5 |
22 |
PN345 |
|
1BT-06-04SP |
G3/8"X19 |
R1/4"X19 |
13.5 |
14.5 |
35.5 |
22 |
PN345 |
|
1BT-06-08SP |
G3/8"X19 |
R1/2"X14 |
13.5 |
20 |
40.5 |
24 |
PN345 |
|
1BT-08SP |
G1/2"X14 |
R1/2"X14 |
16 |
20 |
45 |
27 |
PN345 |
|
1BT-08-04SP |
G1/2"X14 |
R1/4"X19 |
16 |
14.5 |
40.5 |
27 |
PN345 |
|
1BT-08-06SP |
G1/2"X14 |
R3/8"X19 |
16 |
15 |
40 |
27 |
PN345 |
|
1BT-08-12SP |
G1/2"X14 |
R3/4"X14 |
16 |
20 |
45 |
30 |
PN275 |
|
1BT-10-06SP |
G5/8"X14 |
R3/8"X19 |
17.5 |
15 |
41.5 |
30 |
PN275 |
|
1BT-10-08SP |
G5/8"X14 |
R1/2"X14 |
17.5 |
20 |
46.5 |
30 |
PN275 |
|
1BT-10-12SP |
G5/8"X14 |
R3/4"X14 |
17.5 |
20 |
46.5 |
30 |
PN275 |
|
1BT-10-16SP |
G5/8"X14 |
R1"X11 |
17.5 |
25.5 |
54 |
36 |
PN205 |
|
1BT-12SP |
G3/4"X14 |
R3/4"X14 |
18.5 |
20 |
48.5 |
32 |
PN275 |
|
1BT-12-08SP |
G3/4"X14 |
R1/2"X14 |
18.5 |
20 |
49.5 |
32 |
PN275 |
|
1BT-12-16SP |
G3/4"X14 |
R1"X11 |
18.5 |
25.5 |
53.5 |
36 |
PN205 |
|
1BT-12-20SP |
G3/4"X14 |
R1.1/4"X11 |
18.5 |
26.5 |
58 |
46 |
PN170 |
|
1BT-16SP |
G1"X11 |
R1"X11 |
20.5 |
25.5 |
58 |
41 |
PN205 |
|
1BT-16-12SP |
G1"X11 |
R3/4"X14 |
20.5 |
20 |
53 |
41 |
PN205 |
|
1BT-16-20SP |
G1"X11 |
R1.1/4"X11 |
20.5 |
26.5 |
60 |
46 |
PN170 |
|
1BT-20SP |
G1.1/4"X11 |
R1.1/4"X11 |
20.5 |
26.5 |
62 |
50 |
PN170 |
|
1BT-20-12SP |
G1.1/4"X11 |
R3/4"X14 |
20.5 |
20.5 |
56 |
50 |
PN170 |
|
1BT-20-16SP |
G1.1/4"X11 |
R1"X11 |
20.5 |
25.5 |
61 |
50 |
PN170 |
|
1BT-20-24SP |
G1.1/4"X11 |
R1.1/2"X11 |
20.5 |
26.5 |
62 |
50 |
PN105 |
|
1BT-24SP |
G1.1/2"X11 |
R1.1/2"X11 |
23 |
26.5 |
64.5 |
55 |
PN105 |
|
1BT-24-16SP |
G1.1/2"X11 |
R1"X11 |
23 |
25.5 |
63.5 |
55 |
PN105 |
|
1BT-24-20SP |
G1.1/2"X11 |
R1.1/4"X11 |
23 |
26.5 |
64.5 |
55 |
PN105 |
|
1BT-24-32SP |
G1.1/2"X11 |
R2"X11 |
23 |
30 |
70 |
65 |
PN105 |
|
1BT-32SP |
G2"X11 |
R2"X11 |
25.5 |
30 |
72.5 |
70 |
PN105 |
|
1BT-32-20SP |
G2"X11 |
R1.1/4"X11 |
25.5 |
27 |
68.5 |
70 |
PN105 |
|
1BT-32-24SP |
G2"X11 |
R1.1/2"X11 |
25.5 |
26.5 |
68.5 |
70 |
PN105 |
|
1BT-40SP |
G2.1/2"X11 |
R2.1/2"X11 |
32 |
34 |
83 |
90 |
PN105 |
|
1BT-48SP |
G3"X11 |
R3"X11 |
36 |
38 |
94 |
100 |
PN105 |
| Forma | Straight |
|---|---|
| Tipo di montaggio | Cone |
| Tipo di filettatura | Male |
| Connection Type | BSP, BSPT |
