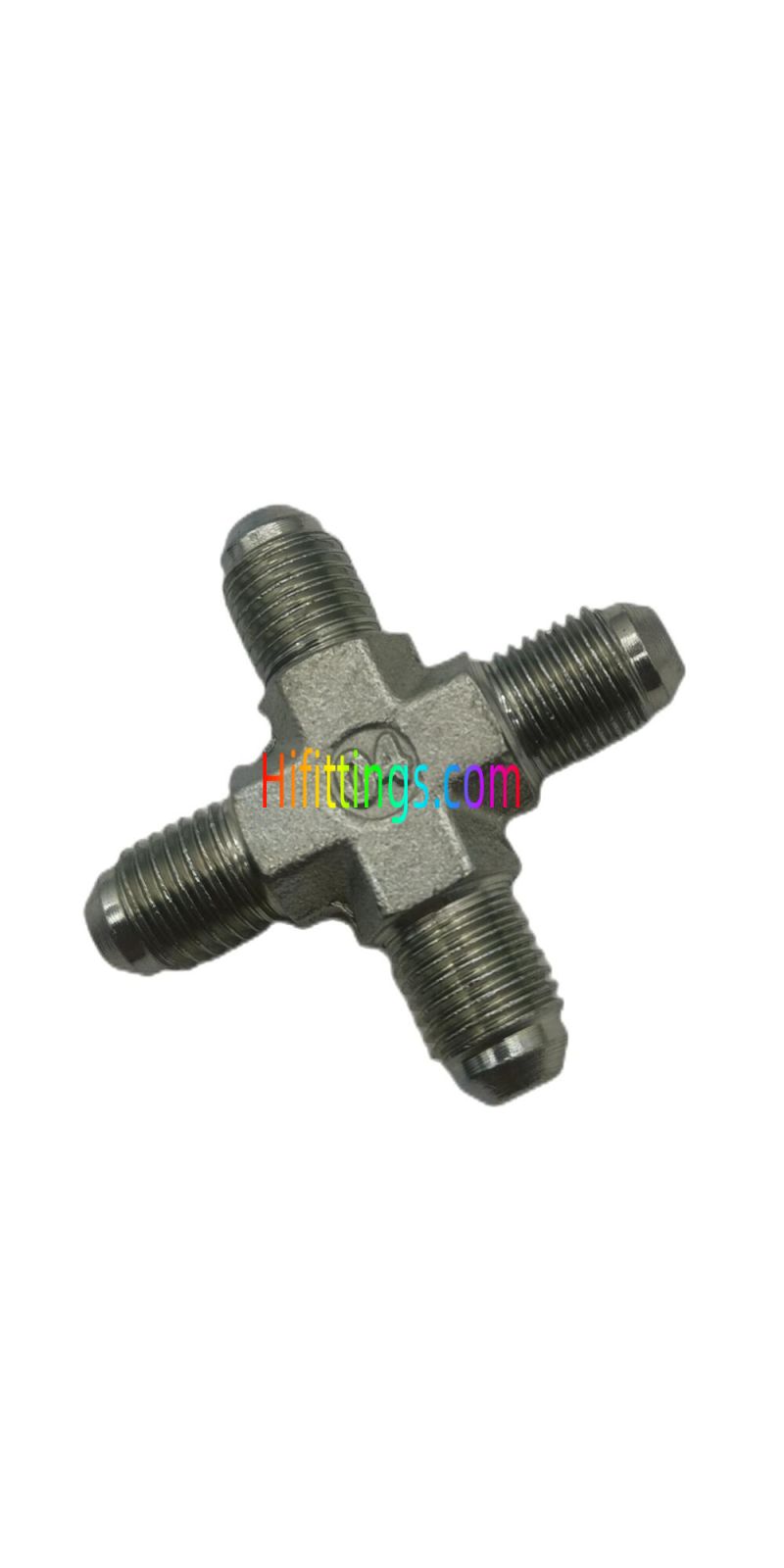

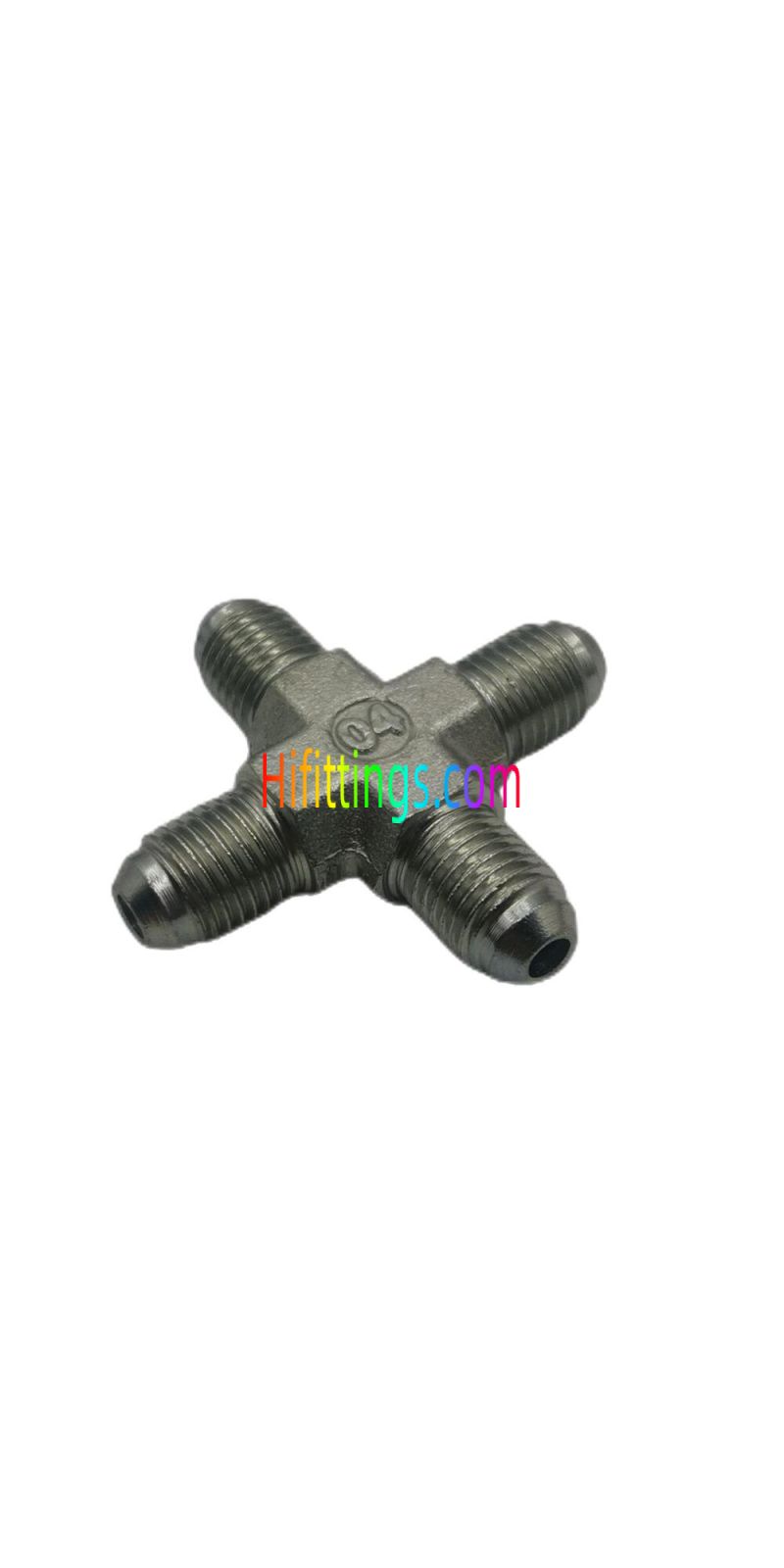

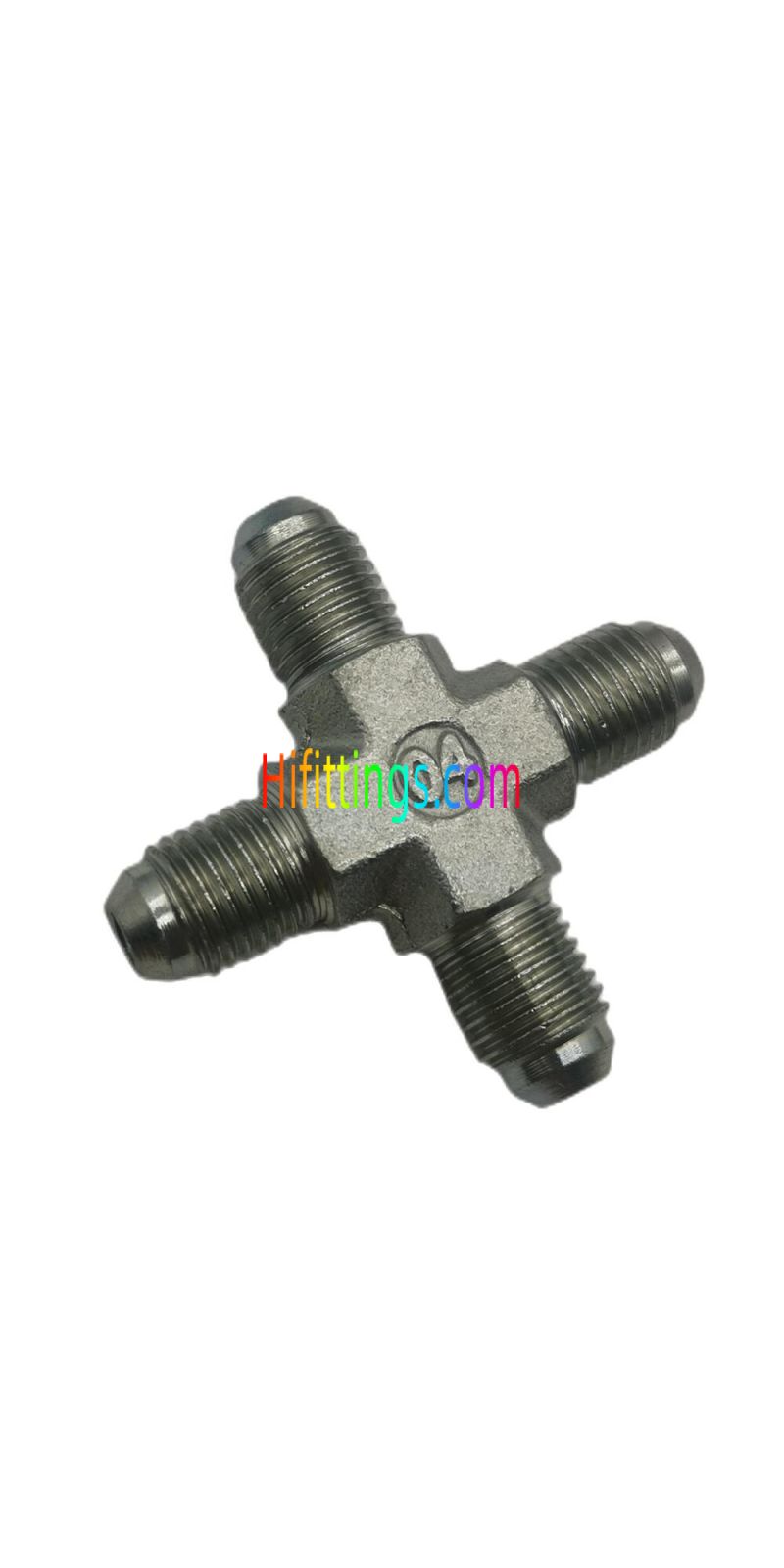

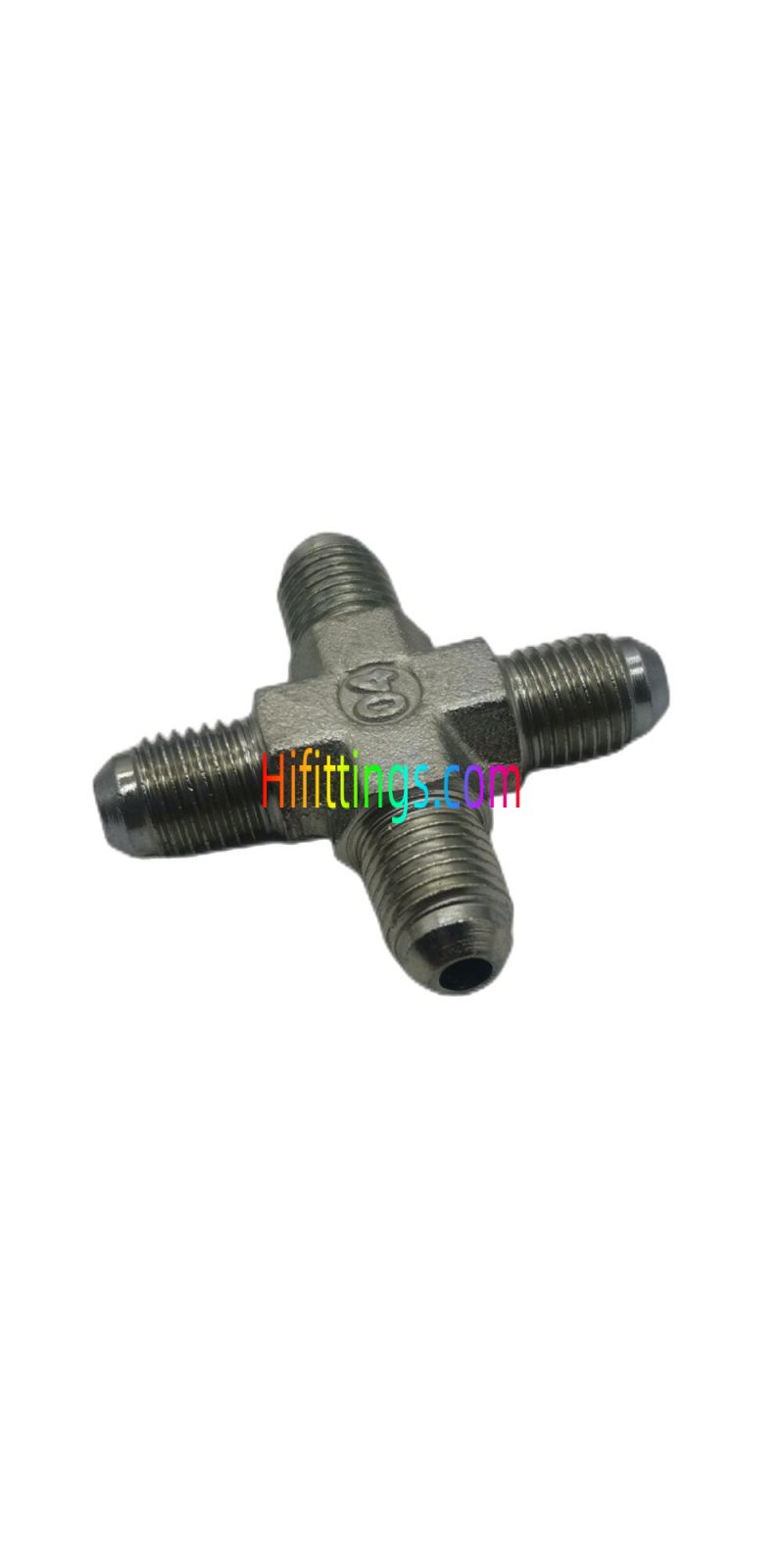

JIC Male 74° Cone Cross Flared Tube Fittings XJ
|
Part NO. |
E,F,G,H |
A,B,C,D |
S1 |
Working Pressure bar |
|
XJ-04 |
7/16"X20 |
24.5 |
11 |
PN345 |
|
XJ-05 |
1/2"X20 |
26.5 |
14 |
PN345 |
|
XJ-06 |
9/16"X18 |
26.9 |
14 |
PN345 |
|
XJ-08 |
3/4"X16 |
32 |
19 |
PN310 |
|
XJ-10 |
7/8"X14 |
37.8 |
22 |
PN240 |
|
XJ-12 |
1.1/16"X12 |
44.2 |
27 |
PN240 |
|
XJ-16 |
1.5/16"X12 |
49 |
33 |
PN210 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
||||
| Forma | Cross |
|---|---|
| Tipo di montaggio | Cone Flared |
| Tipo di filettatura | Male |
| Connection Type | JIC |
