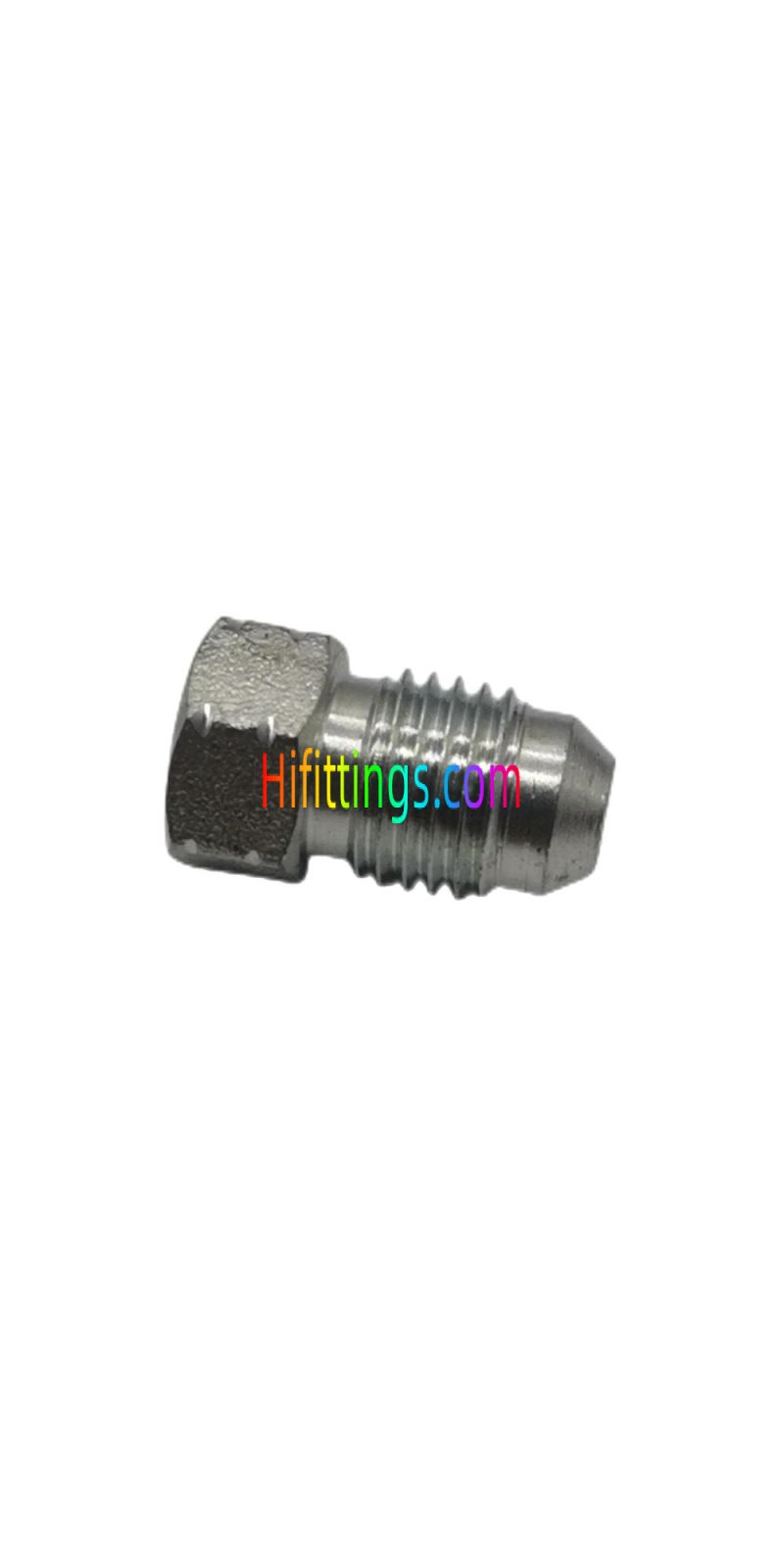

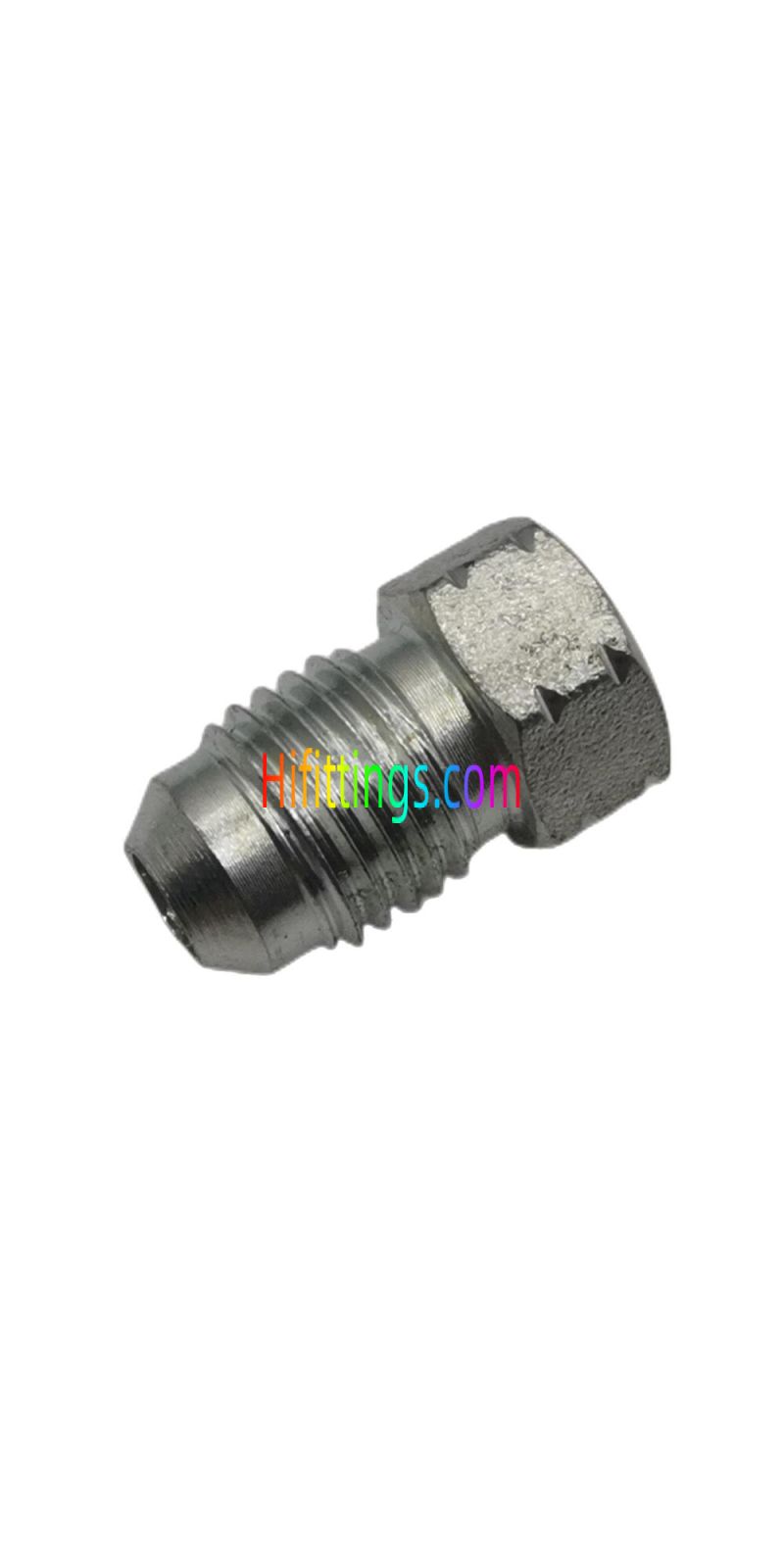

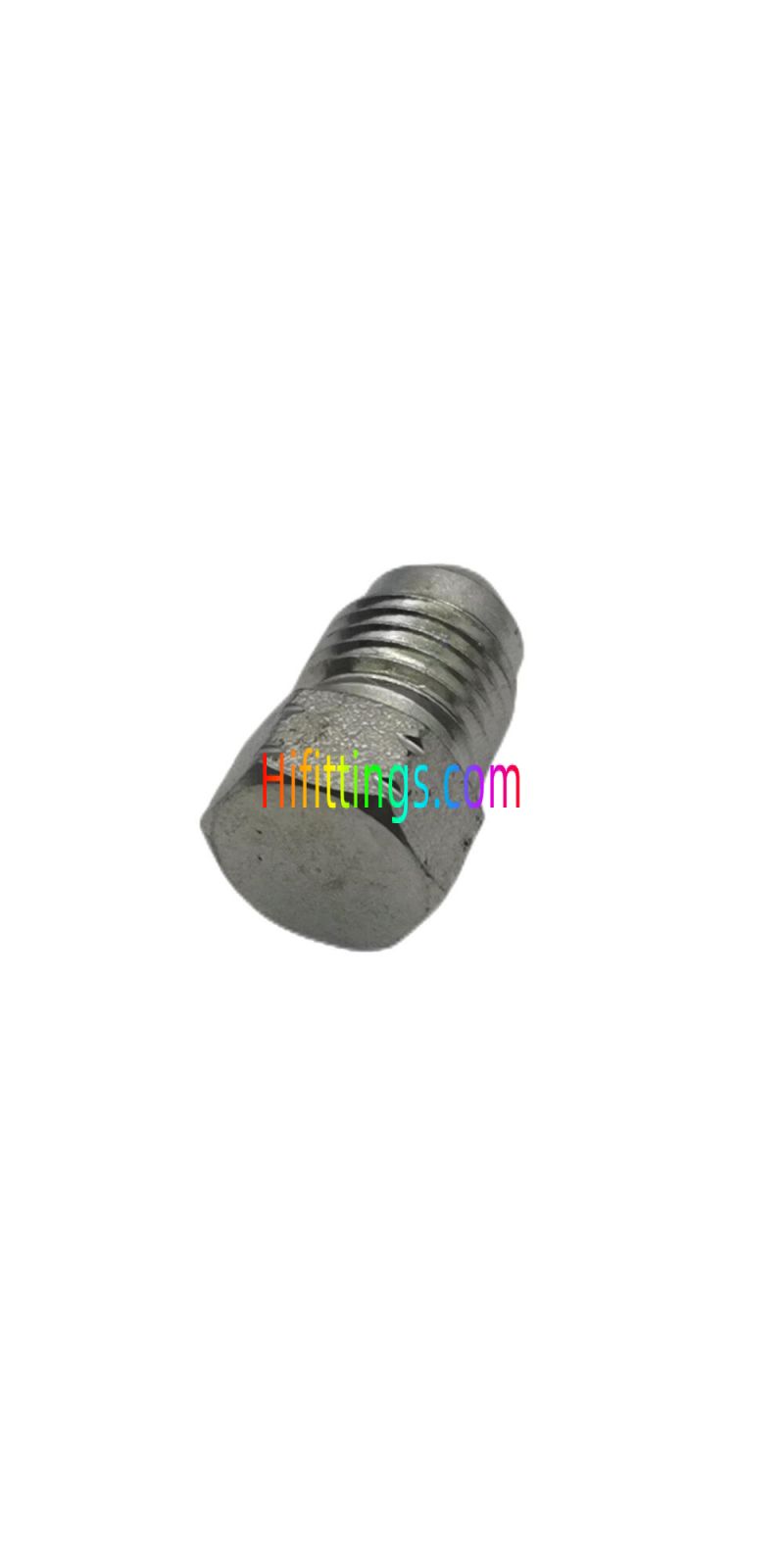

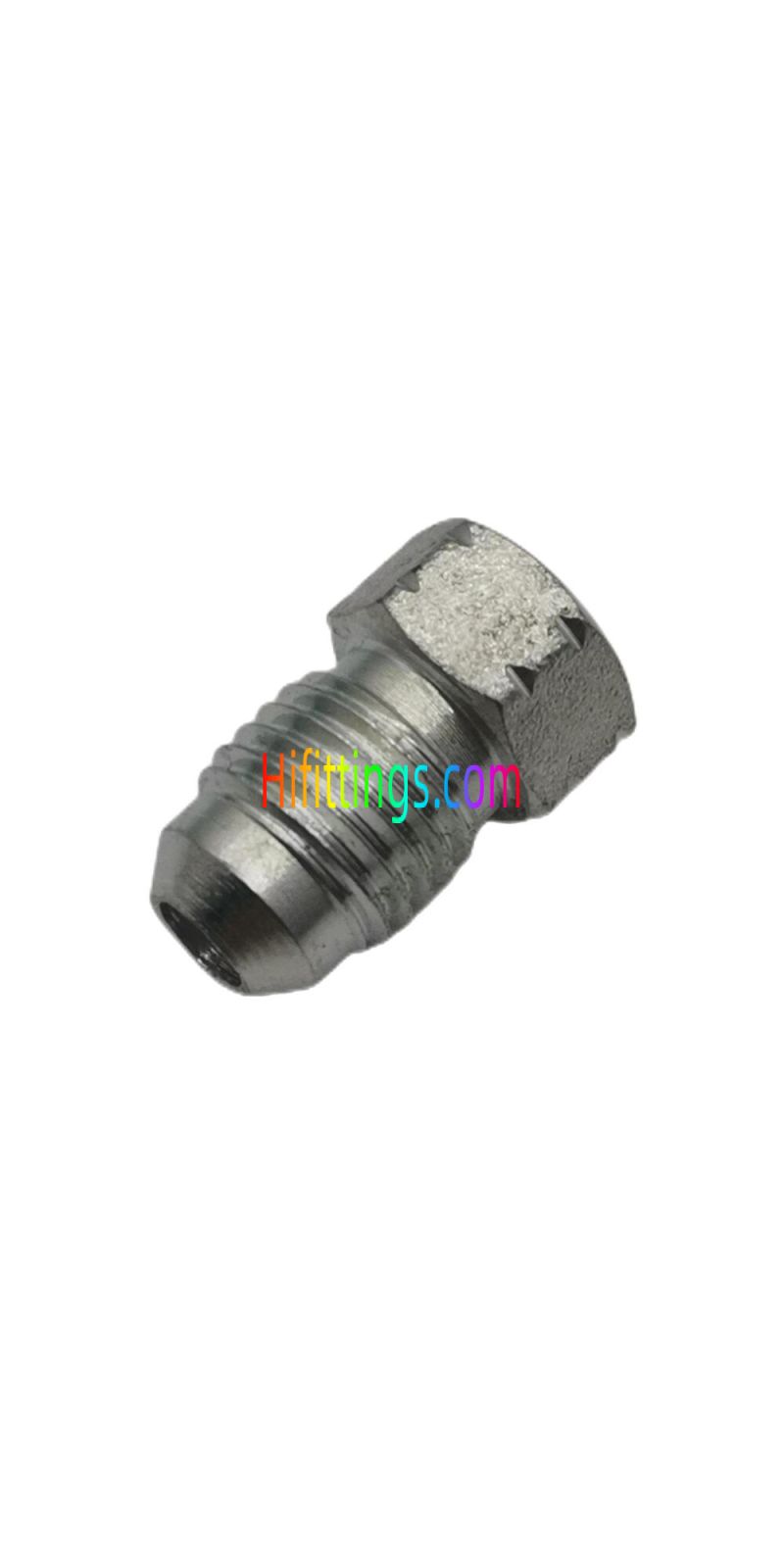

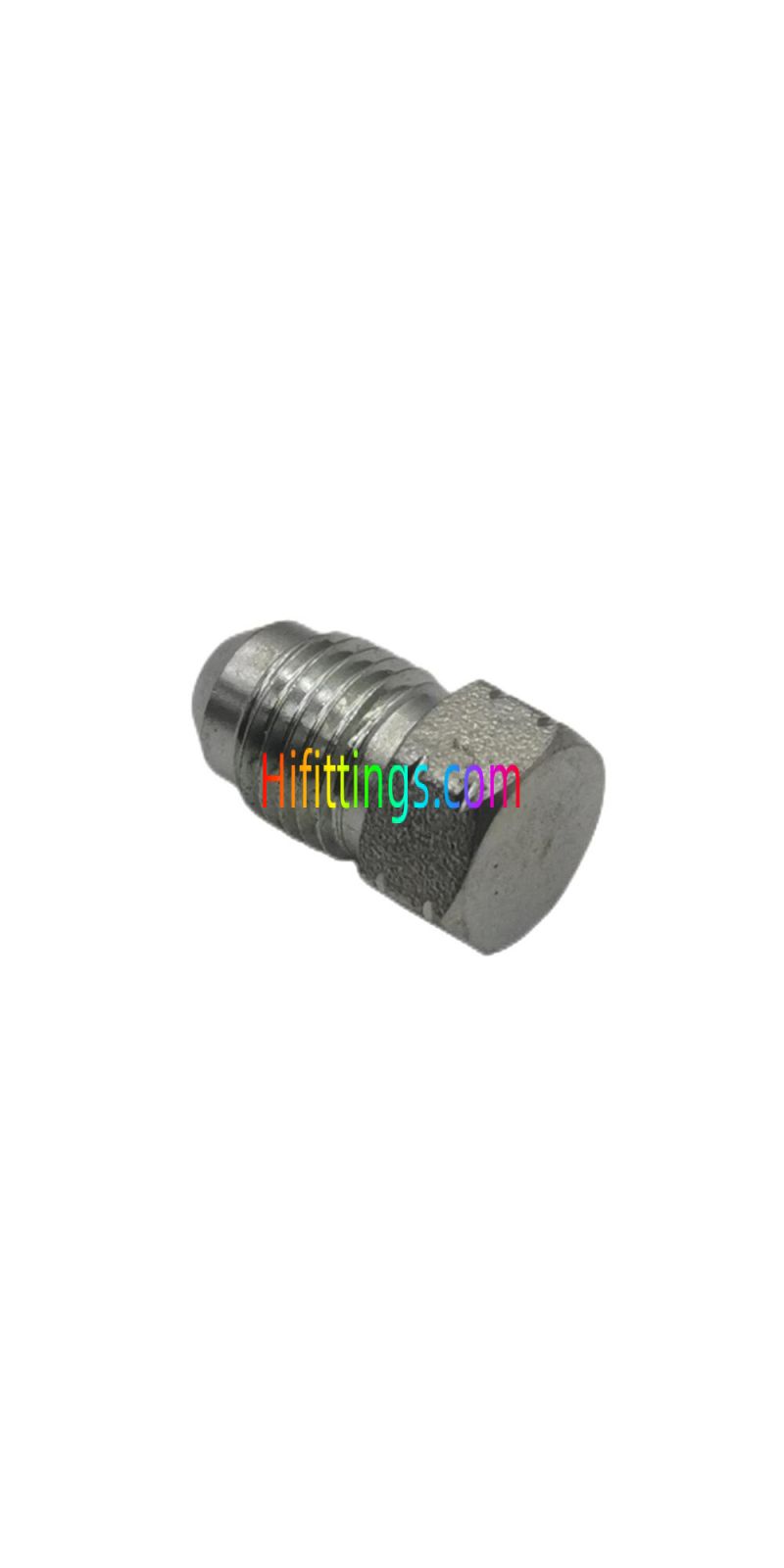

JIC Male 74° Cone Plug 4J
|
Part NO. |
E |
A |
L |
S1 |
Working Pressure bar |
|
4J-04 |
7/16"X20 |
14 |
20 |
12 |
PN345 |
|
4J-05 |
1/2"X20 |
14 |
20 |
14 |
PN345 |
|
4J-06 |
9/16"X18 |
14.1 |
20 |
17 |
PN345 |
|
4J-08 |
3/4"X16 |
16.7 |
25 |
22 |
PN310 |
|
4J-10 |
7/8"X14 |
19.3 |
27.5 |
24 |
PN240 |
|
4J-12 |
1.1/16"X12 |
21.9 |
32 |
30 |
PN240 |
|
4J-14 |
1.3/16"X12 |
22.6 |
33.5 |
32 |
PN210 |
|
4J-16 |
1.5/16"X12 |
23.1 |
34 |
36 |
PN210 |
|
4J-20 |
1.5/8"X12 |
24.3 |
38 |
46 |
PN170 |
|
4J-24 |
1.7/8"X12 |
27.5 |
44.5 |
50 |
PN140 |
|
4J-32 |
2.1/2"X12 |
33.9 |
51 |
65 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
|||||
| Forma | Plug |
|---|---|
| Tipo di montaggio | Cone Flared |
| Tipo di filettatura | Male |
| Connection Type | JIC |
