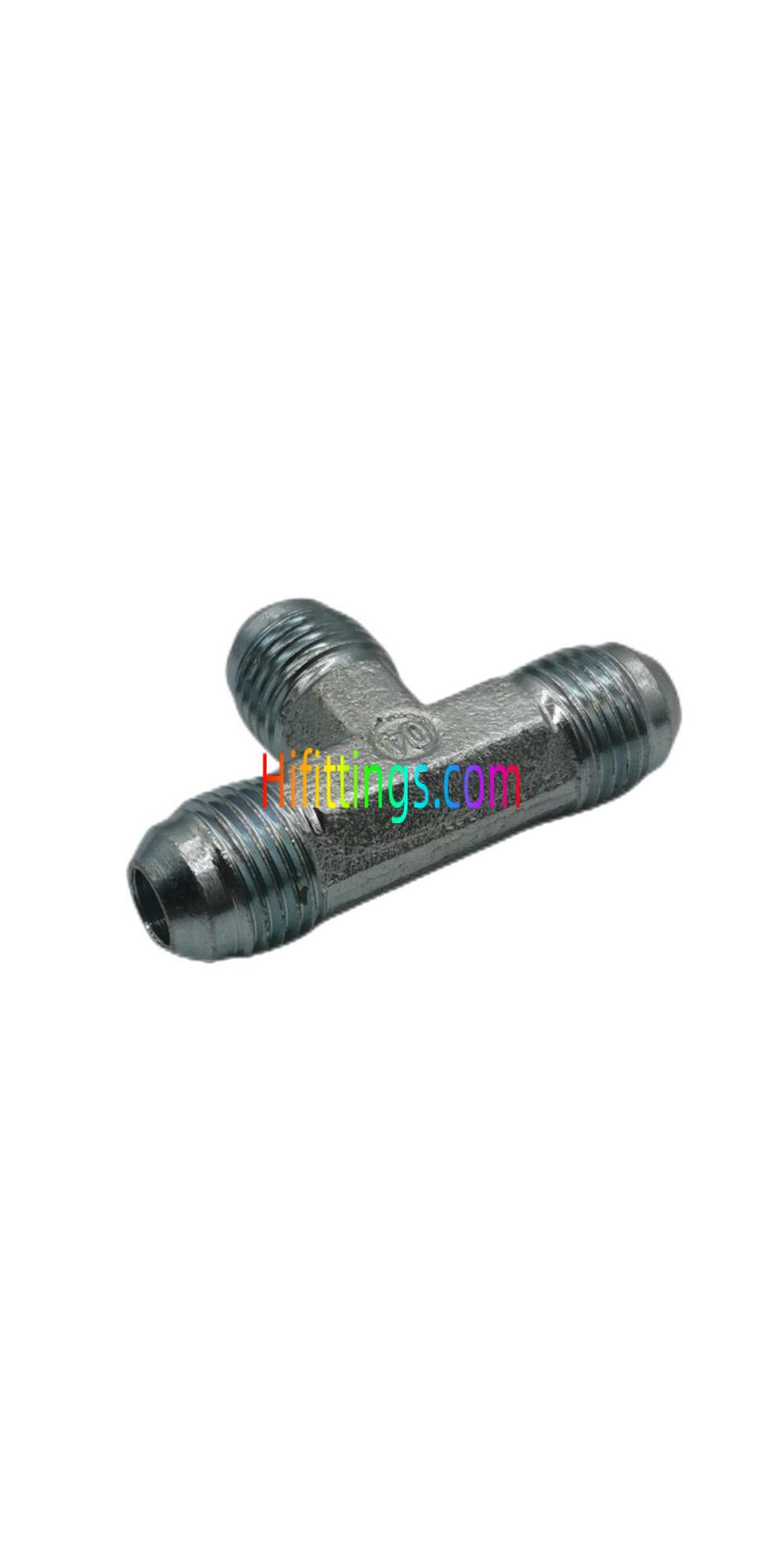

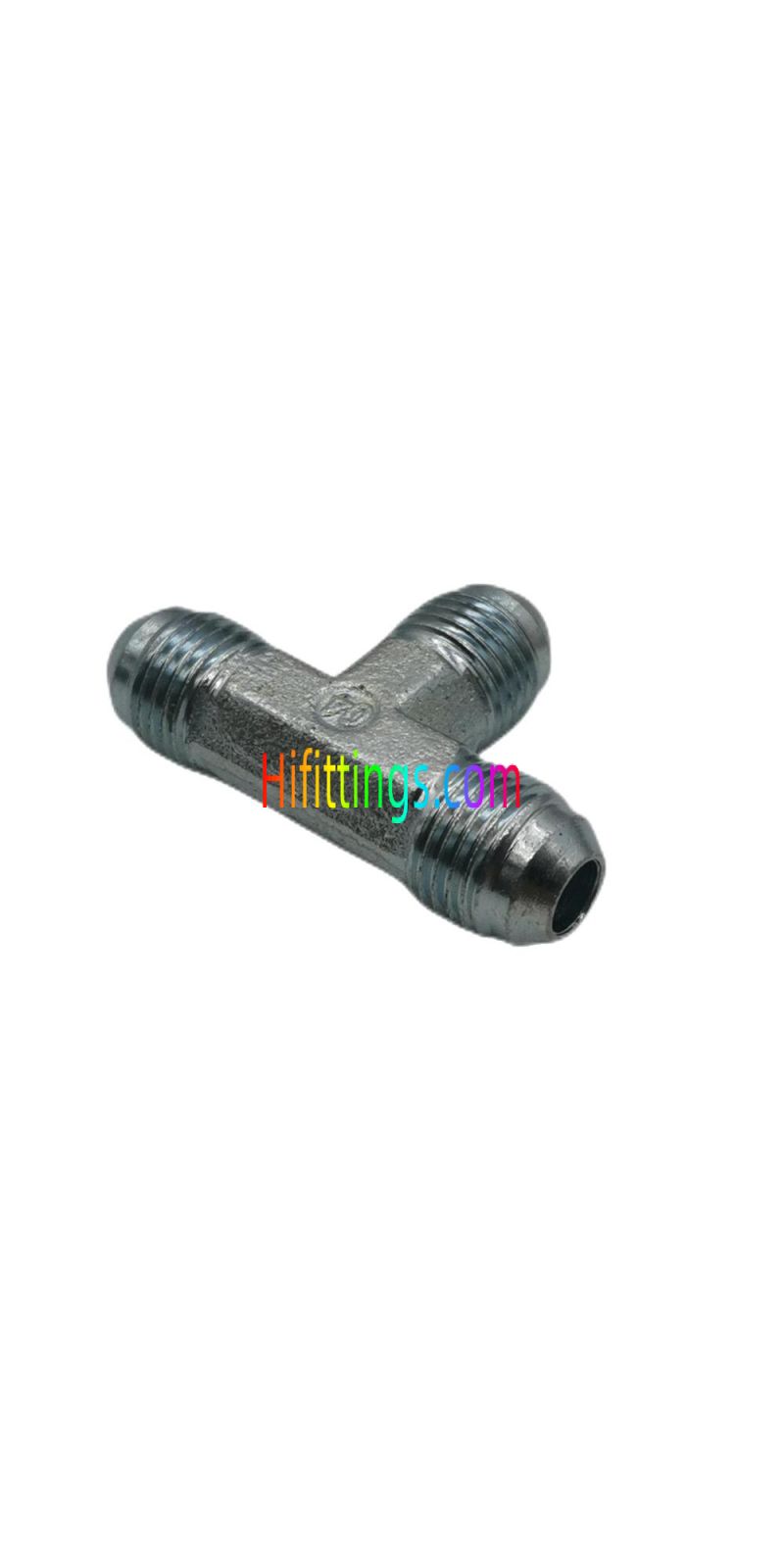

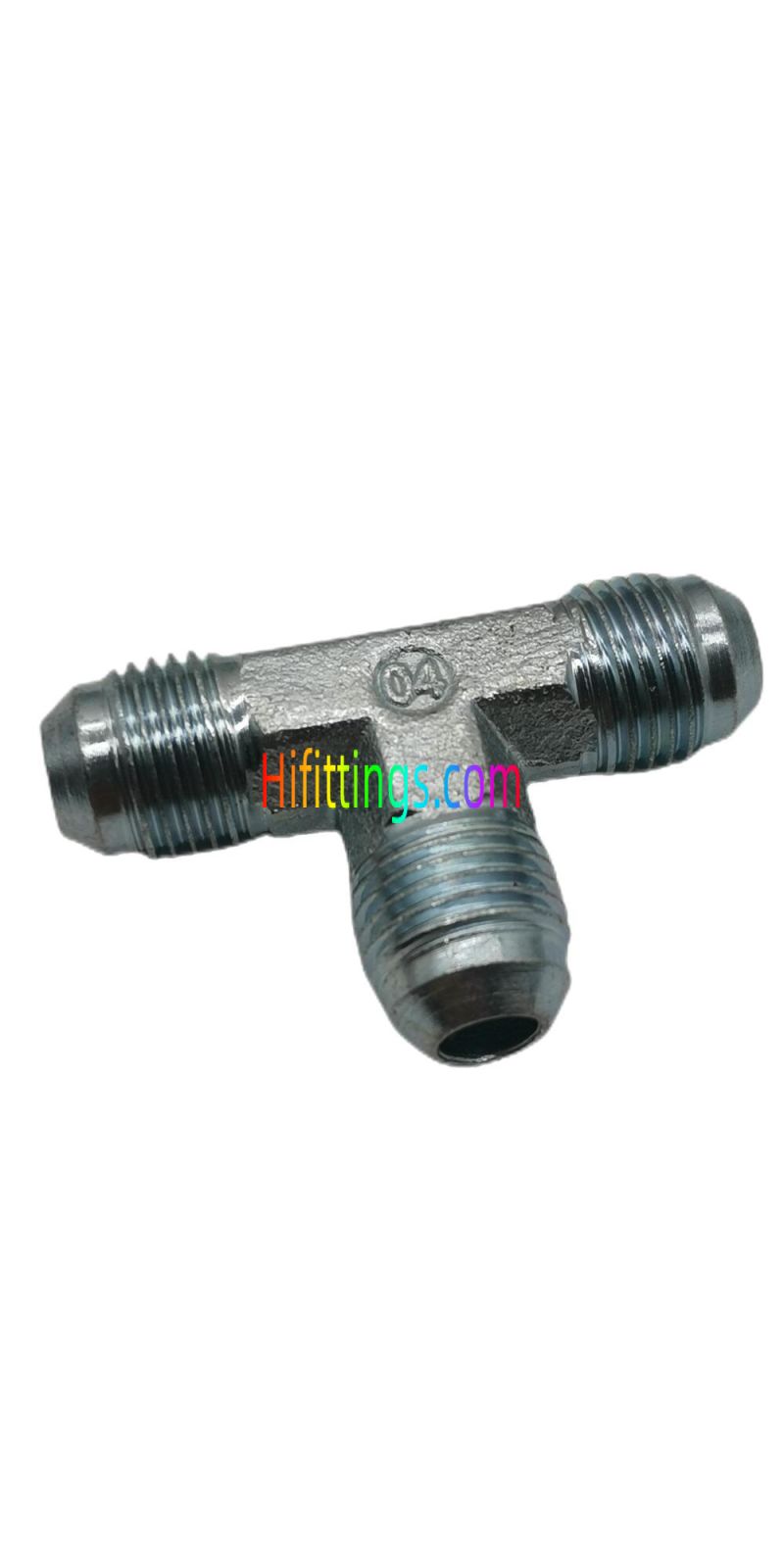

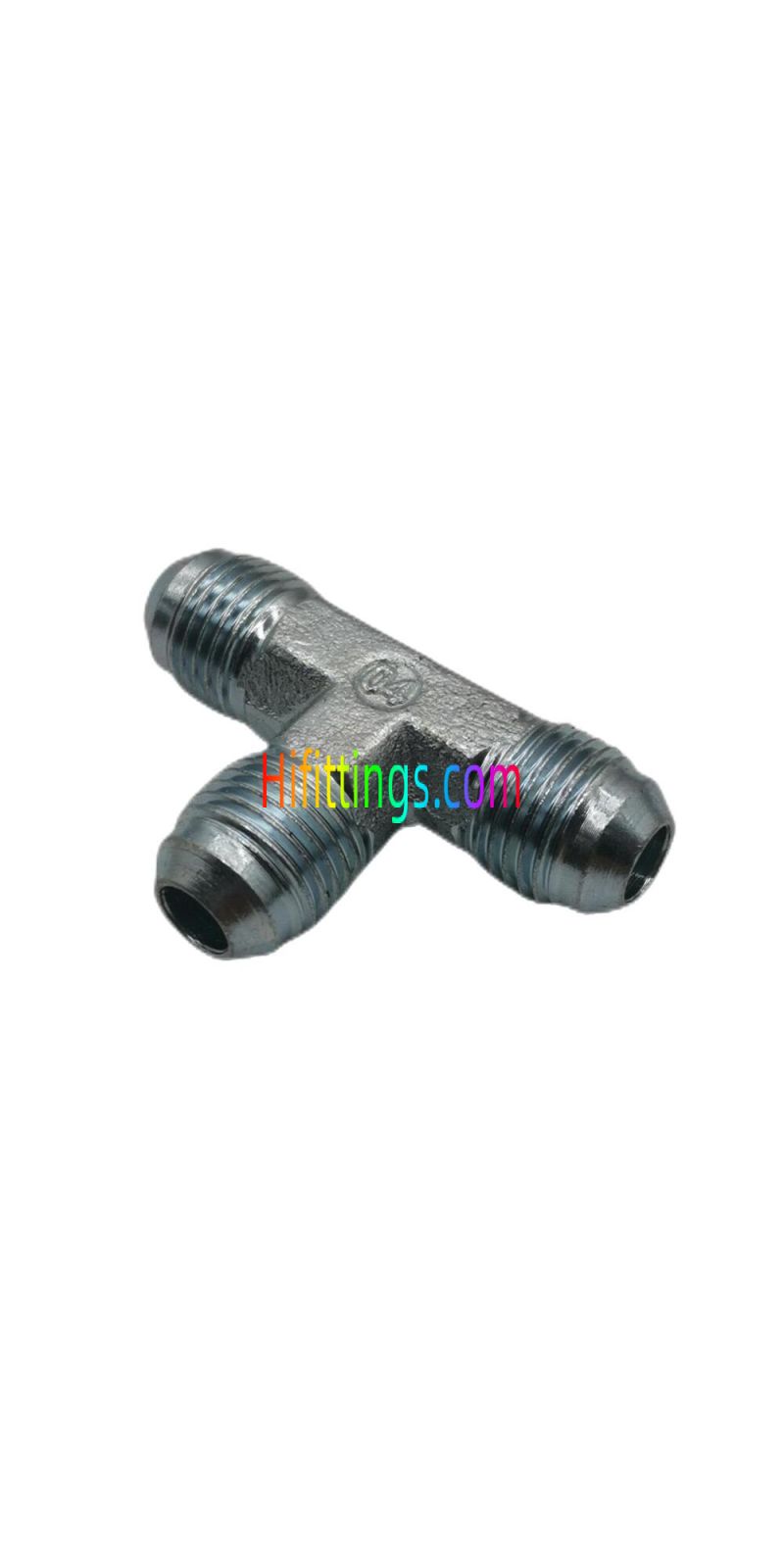

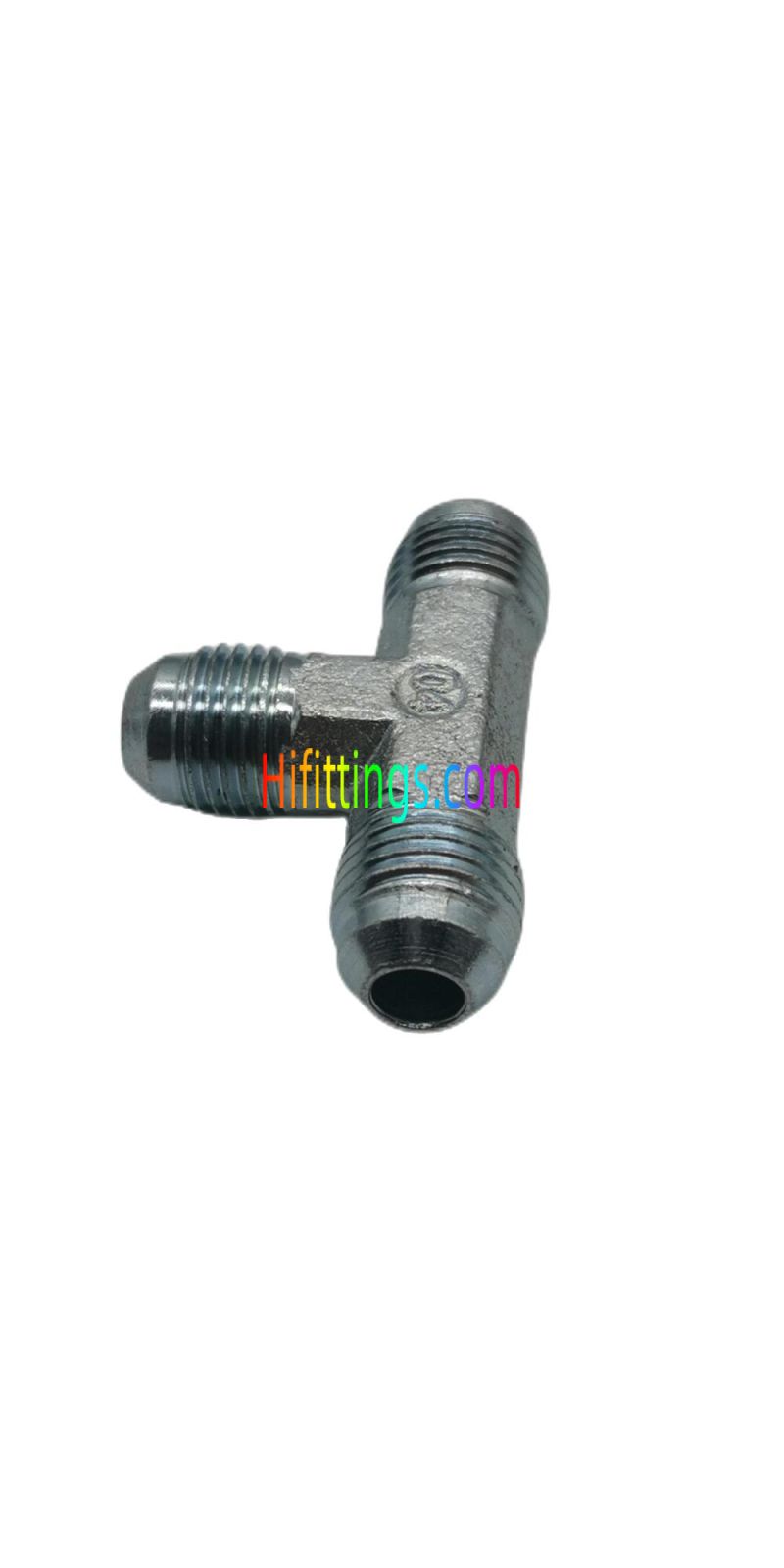

JIC Male 74° Cone Tee Flared Tube Fittings AJ
|
Part NO. |
E |
F |
G |
A |
B |
C |
S1 |
Working Pressure bar |
|
AJ-02 |
5/16"X24 |
5/16"X24 |
5/16"X24 |
21 |
21 |
21 |
11 |
PN345 |
|
AJ-03 |
3/8"X24 |
3/8"X24 |
3/8"X24 |
22 |
22 |
22 |
11 |
PN345 |
|
AJ-04 |
7/16"X20 |
7/16"X20 |
7/16"X20 |
24.5 |
24.5 |
24.5 |
11 |
PN345 |
|
AJ-04-06-04 |
7/16"X20 |
9/16"X18 |
7/16"X20 |
26.6 |
26.9 |
26.6 |
14 |
PN345 |
|
AJ-05 |
1/2"X20 |
1/2"X20 |
1/2"X20 |
26 |
26 |
26 |
14 |
PN345 |
|
AJ-06-04-06 |
9/16"X18 |
7/16"X20 |
9/16"X18 |
26.9 |
26.6 |
26.9 |
14 |
PN345 |
|
AJ-06 |
9/16"X18 |
9/16"X18 |
9/16"X18 |
26.9 |
26.9 |
26.9 |
14 |
PN345 |
|
AJ-08 |
3/4"X16 |
3/4"X16 |
3/4"X16 |
32 |
32 |
32 |
19 |
PN310 |
|
AJ-08-06-08 |
3/4"X16 |
9/16"X18 |
3/4"X16 |
32 |
30 |
32 |
19 |
PN310 |
|
AJ-10 |
7/8"X14 |
7/8"X14 |
7/8"X14 |
37.8 |
37.8 |
37.8 |
22 |
PN240 |
|
AJ-12 |
1.1/16"X12 |
1.1/16"X12 |
1.1/16"X12 |
44.2 |
44.2 |
44.2 |
27 |
PN240 |
|
AJ-16 |
1.5/16"X12 |
1.5/16"X12 |
1.5/16"X12 |
49 |
49 |
49 |
33 |
PN210 |
|
AJ-16-12-16 |
1.5/16"X12 |
1.1/16"X12 |
1.5/16"X12 |
49 |
48 |
49 |
33 |
PN210 |
|
AJ-20 |
1.5/8"X12 |
1.5/8"X12 |
1.5/8"X12 |
56.5 |
56.5 |
56.5 |
41 |
PN170 |
|
AJ-24 |
1.7/8"X12 |
1.7/8"X12 |
1.7/8"X12 |
63 |
63 |
63 |
48 |
PN140 |
|
AJ-32 |
2.1/2"X12 |
2.1/2"X12 |
2.1/2"X12 |
78 |
78 |
78 |
63 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
||||||||
| Forma | Tee |
|---|---|
| Tipo di montaggio | Cone Flared |
| Tipo di filettatura | Male |
| Connection Type | JIC |
