| KZD Specifications | |||||||||
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
| Rated Pressure(PSI) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 |
| Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 | 75 | 100 | 150 |
| Temperature Range(NBR) | -20℃ 〜+120℃ | ||||||||

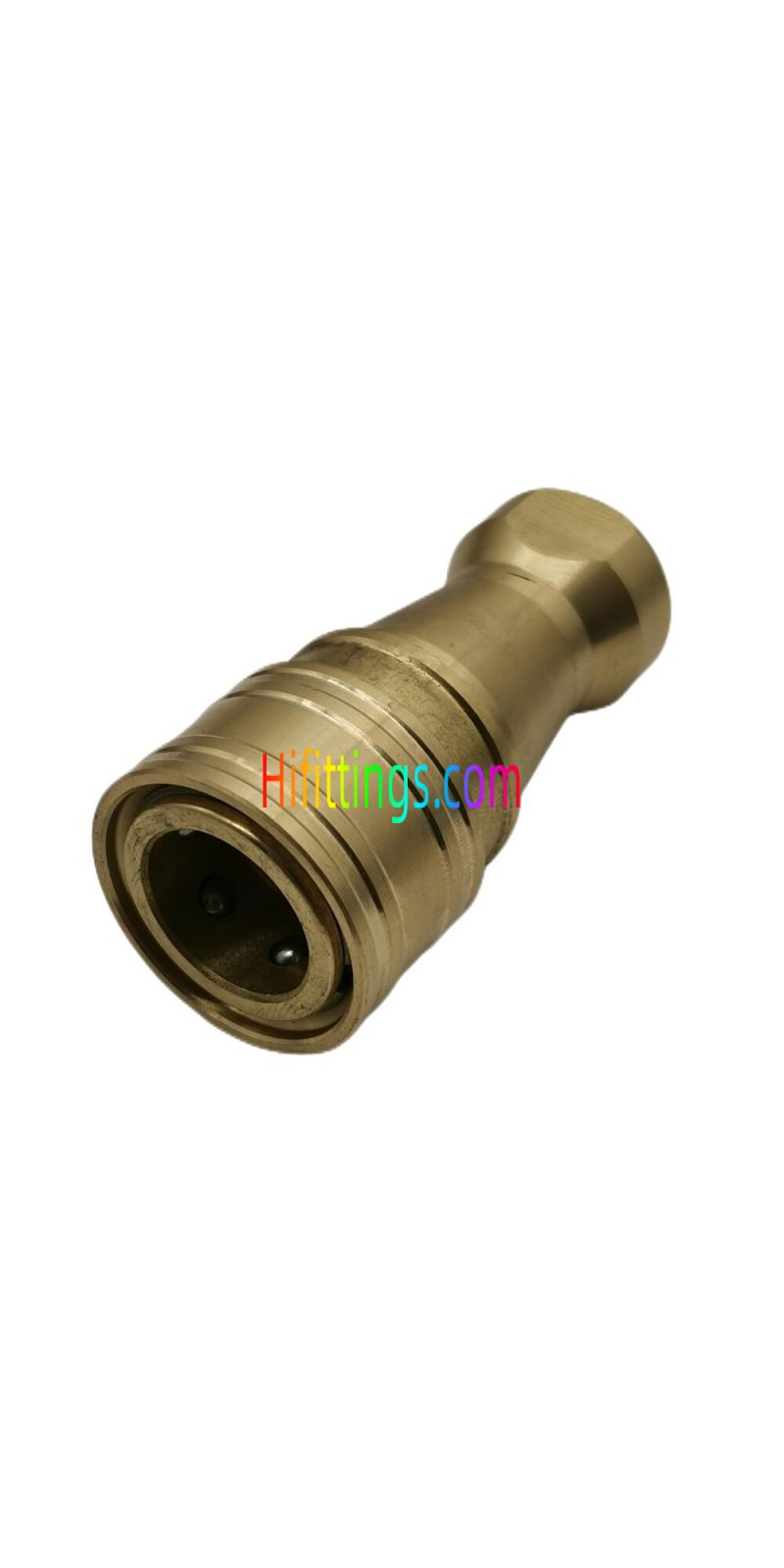

Socket
| Part NO. | ISO | Thread | LS | φD | S1 | A |
| KZD-G01SF | 5 | Rcl/8 | 48 | 24 | 14 | 8 |
| KZD-R02SF | 6.3 | Rcl/4 | 58 | 27 | 19 | 12.5 |
| KZD-R03SF | 10 | Rc3/8 | 65 | 35 | 22 | 13 |
| KZD-R04SF | 12.5 | Rcl/2 | 72.5 | 45 | 29 | 14 |
| KZD-R06SF | 20 | Rc3/4 | 88 | 54 | 36 | 17 |
| KZD-R08SF | 25 | Rcl | 102 | 64.5 | 41 | 23 |
| KZD-R10SF | 31.5 | Rcl-l/4 | 115 | 69 | 54 | 27 |
| KZD-R12SF | 40 | Rcl-1/2 | 124 | 79 | 60 | 27 |
| KZD-R16SF | 50 | Rc2 | 132 | 102 | 77 | 30 |

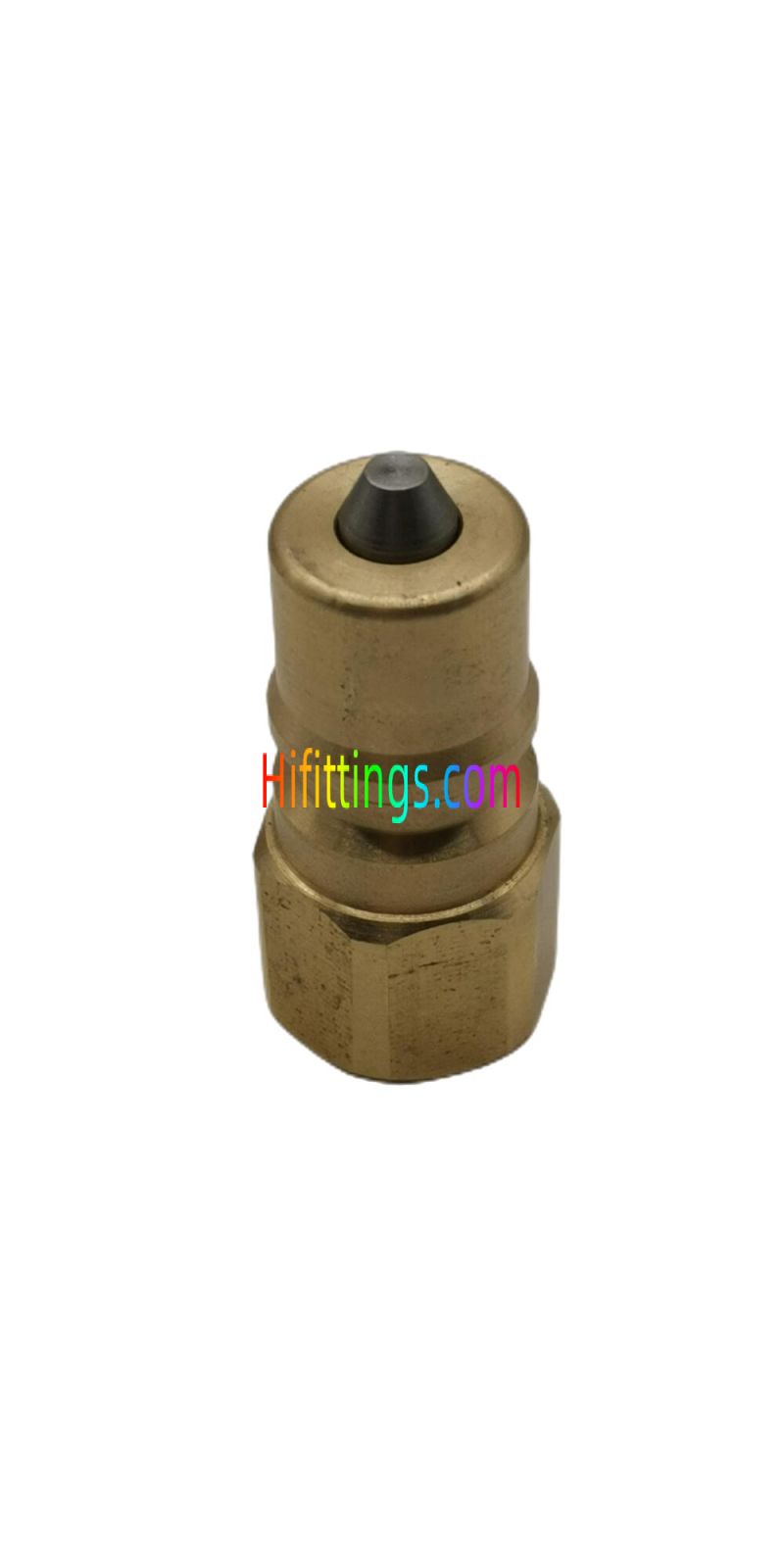

Plug
| Part NO. | ISO | Thread | LP | φd | C | S2 |
| KZD-G01PF | 5 | Rcl/8 | 29 | 10.8 | 19 | 14 |
| KZD-R02PF | 6.3 | Rcl/4 | 36 | 14.2 | 22.5 | 17 |
| KZD-R03PF | 10 | Rc3/8 | 40 | 19 | 25 | 22 |
| KZD-R04PF | 12.5 | Rcl/2 | 44 | 23.5 | 28 | 27 |
| KZD-R06PF | 20 | Rc3/4 | 52 | 31.4 | 36 | 36 |
| KZD-R08PF | 25 | Rcl | 62 | 37.8 | 40 | 41 |
| KZD-R10PF | 31.5 | Rcl-l/4 | 70 | 45 | 45 | 52 |
| KZD-R12PF | 40 | Rcl-1/2 | 75 | 50 | 49 | 60 |
| KZD-R16PF | 50 | Rc2 | 80 | 70 | 52 | 77 |

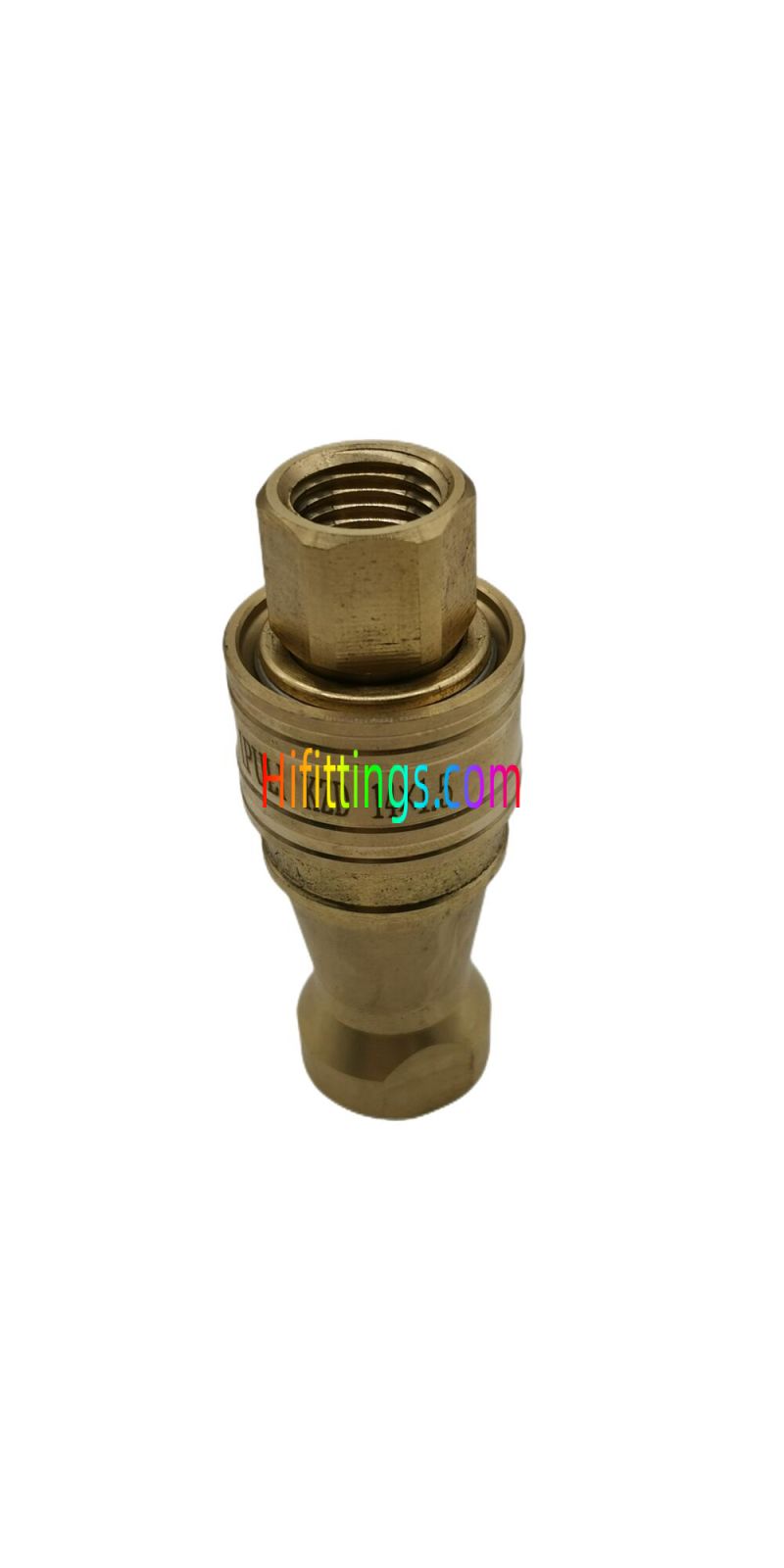

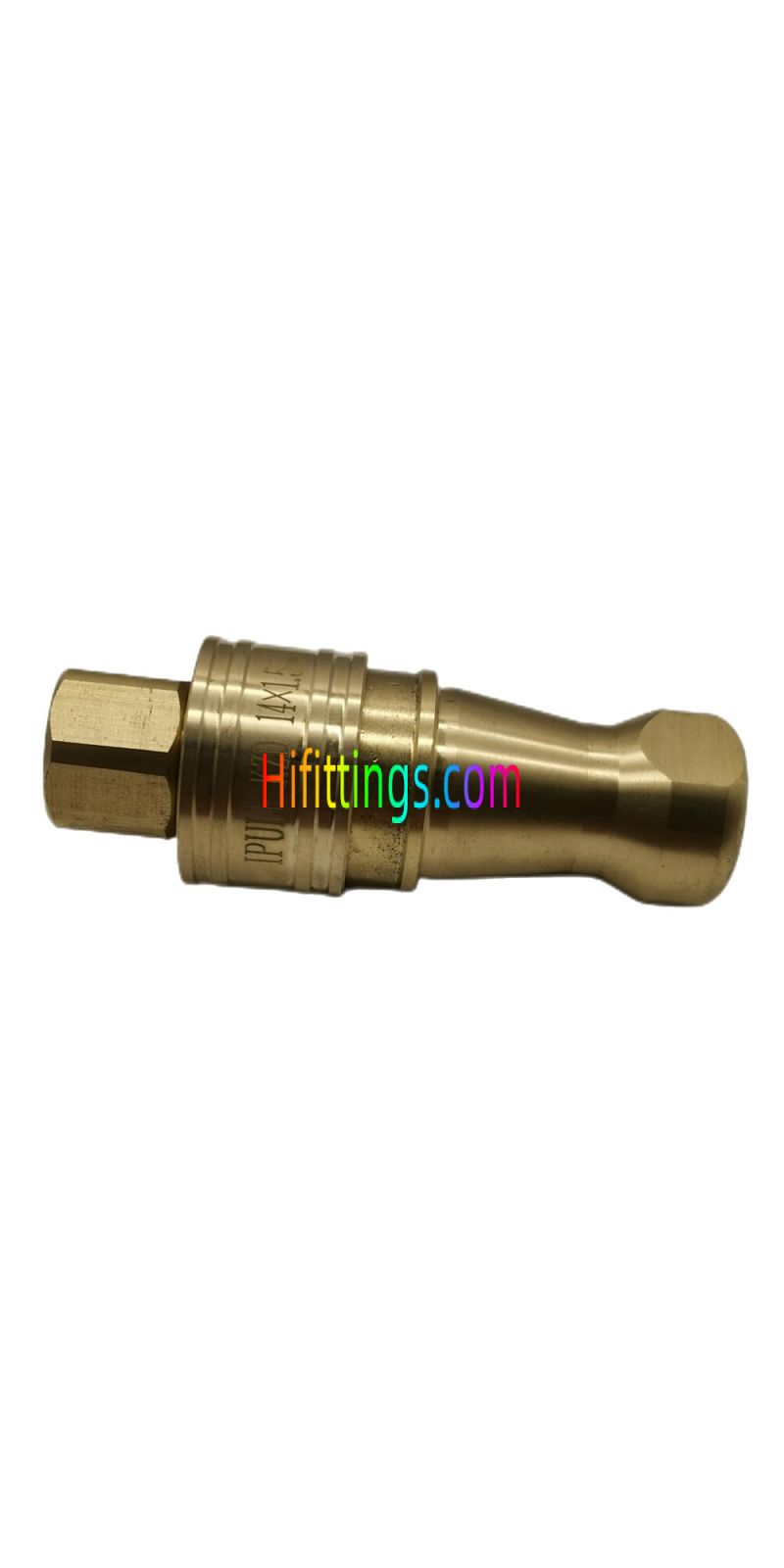

Coupling Fitting
| Part NO. | ISO | Thread | L | φD | S1 | S2 |
| KZD-GO1SP | 5 | Rcl/8 | 58.5 | 24 | 14 | 14 |
| KZD-R02SP | 6.3 | Rcl/4 | 72.5 | 28 | 19 | 17 |
| KZD-R03SP | 10 | Rc3/8 | 80.5 | 35 | 22 | 22 |
| KZD-R04SP | 12.5 | Rcl/2 | 89 | 45 | 29 | 27 |
| KZD-R06SP | 20 | Rc3/4 | 105 | 54 | 36 | 36 |
| KZD-R08SP | 25 | Rcl | 124.5 | 64.5 | 41 | 41 |
| KZD-R1OSP | 31.5 | Rcl-l/4 | 140.5 | 69 | 54 | 52 |
| KZD-R12SP | 40 | Rcl-1/2 | 150.5 | 79 | 60 | 60 |
| KZD-R16SP | 50 | Rc2 | 160.5 | 102 | 77 | 77 |
| Tipo di filettatura | Female |
|---|
