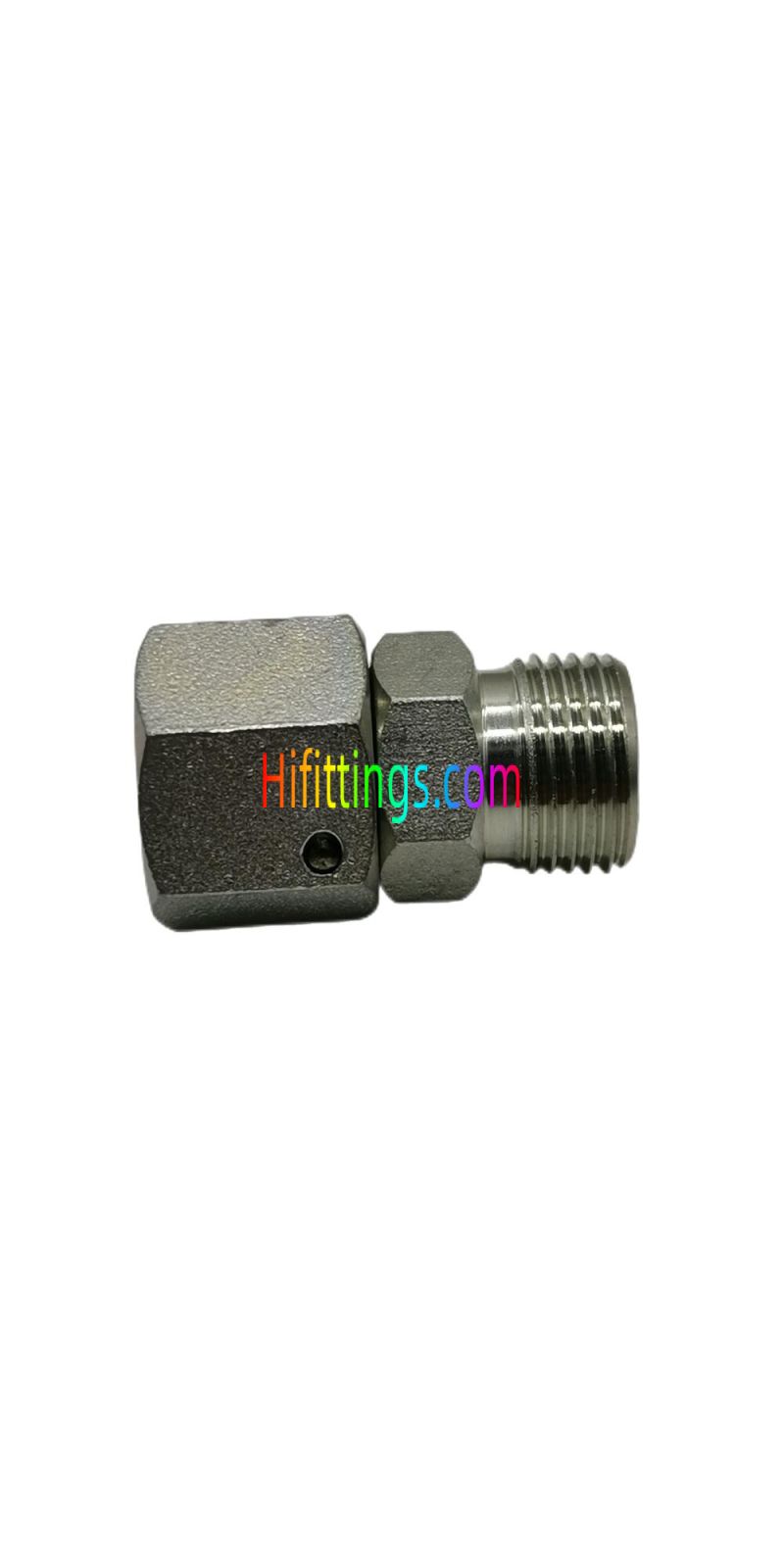

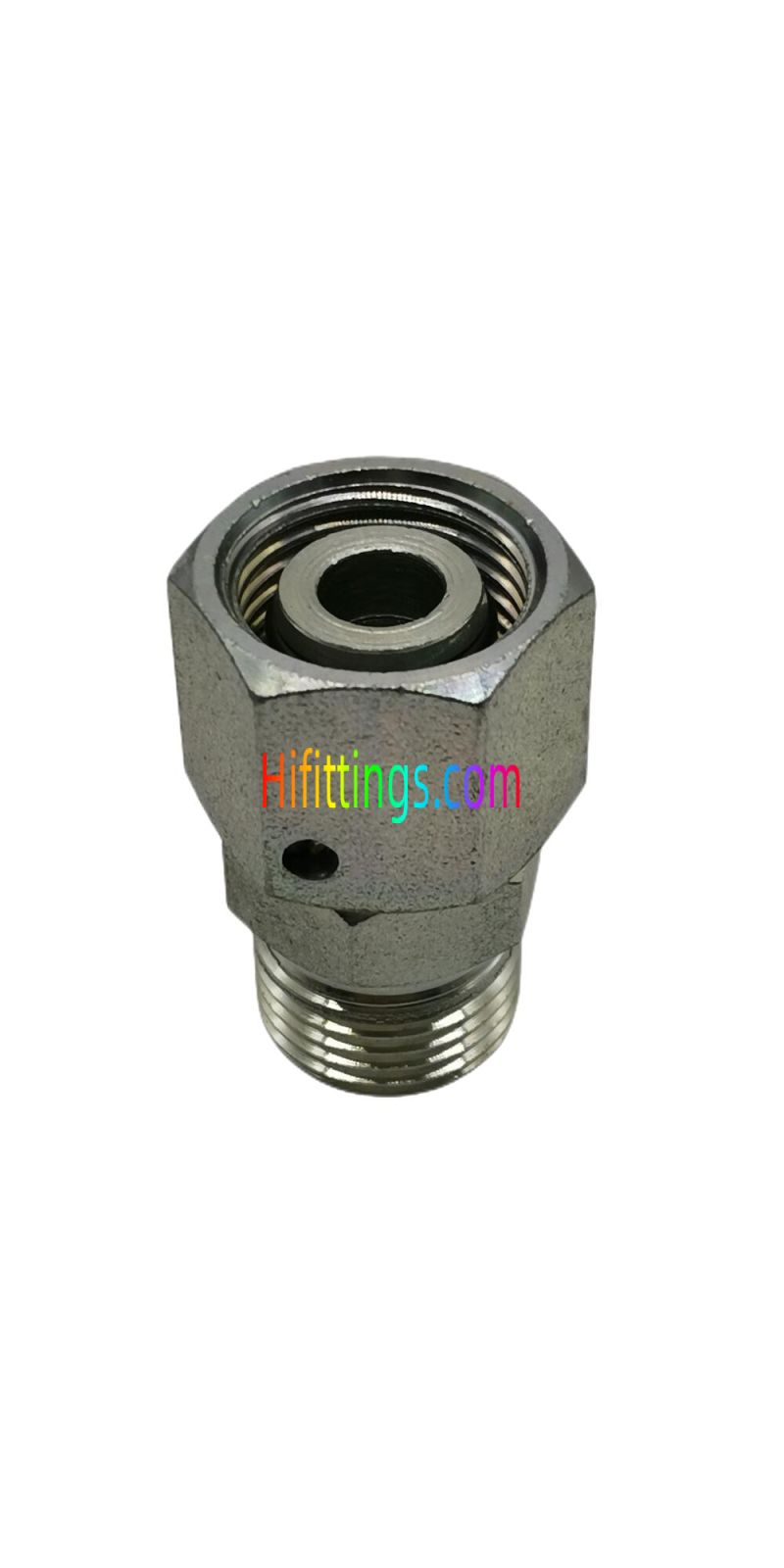

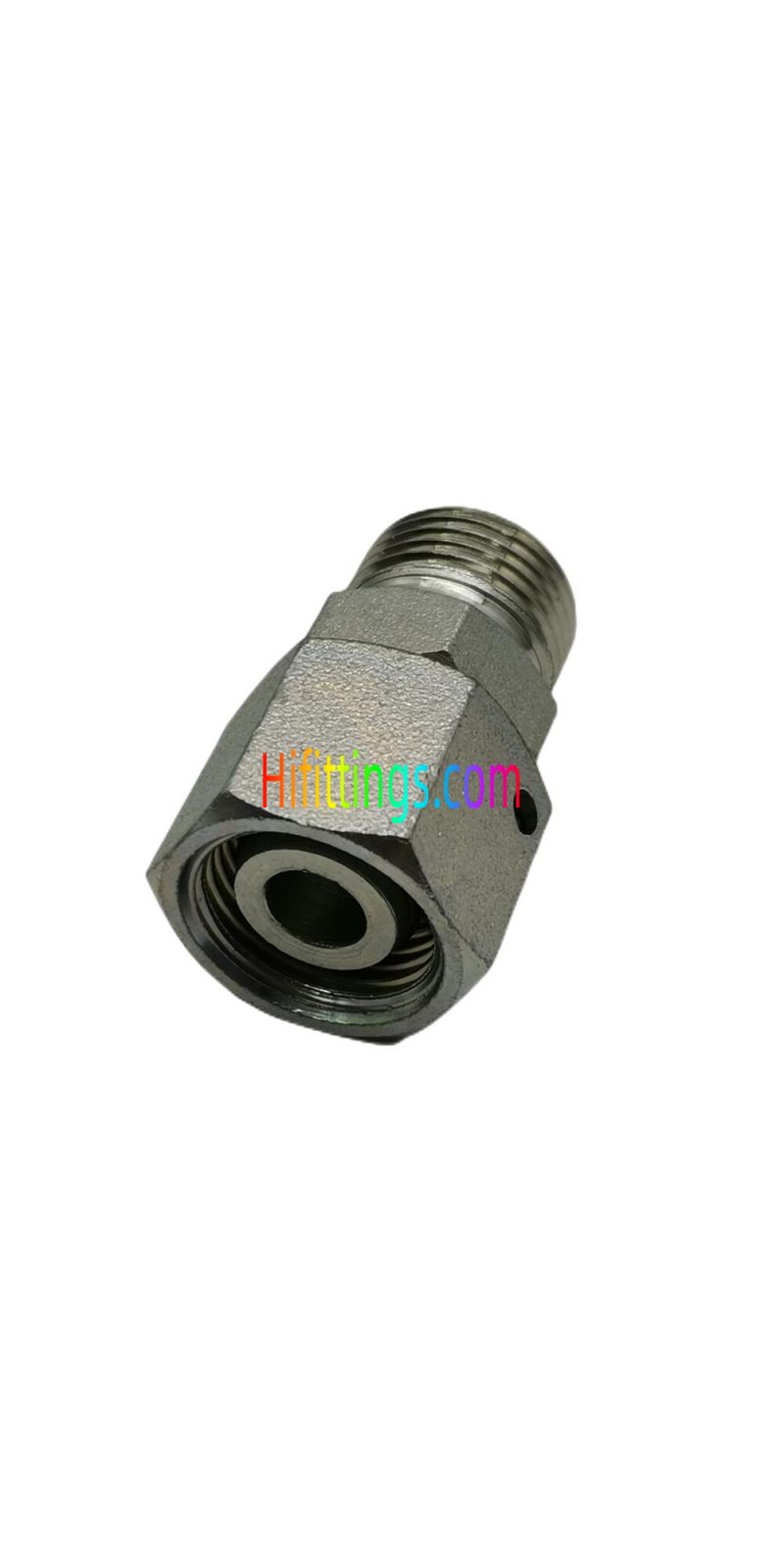

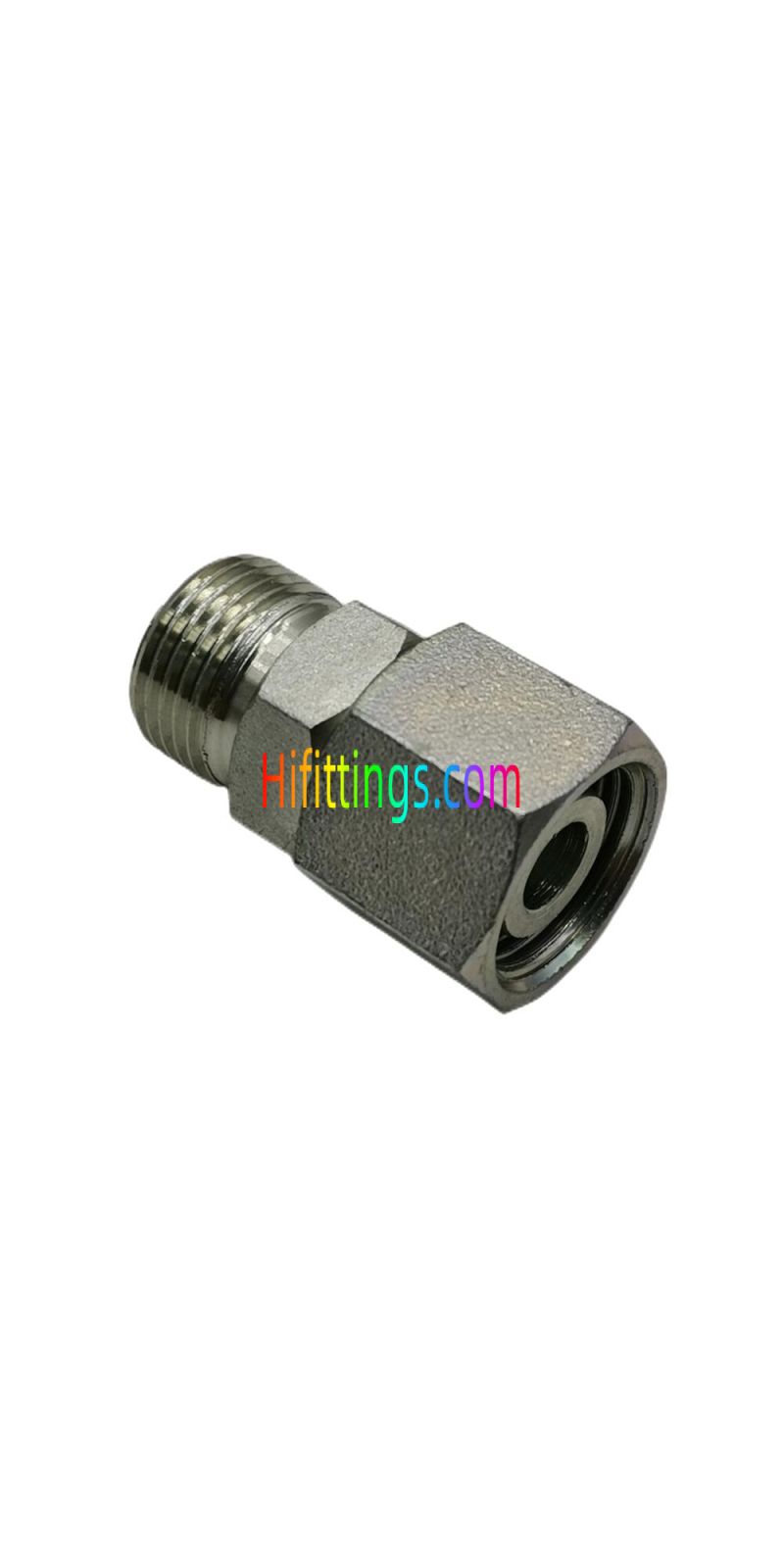

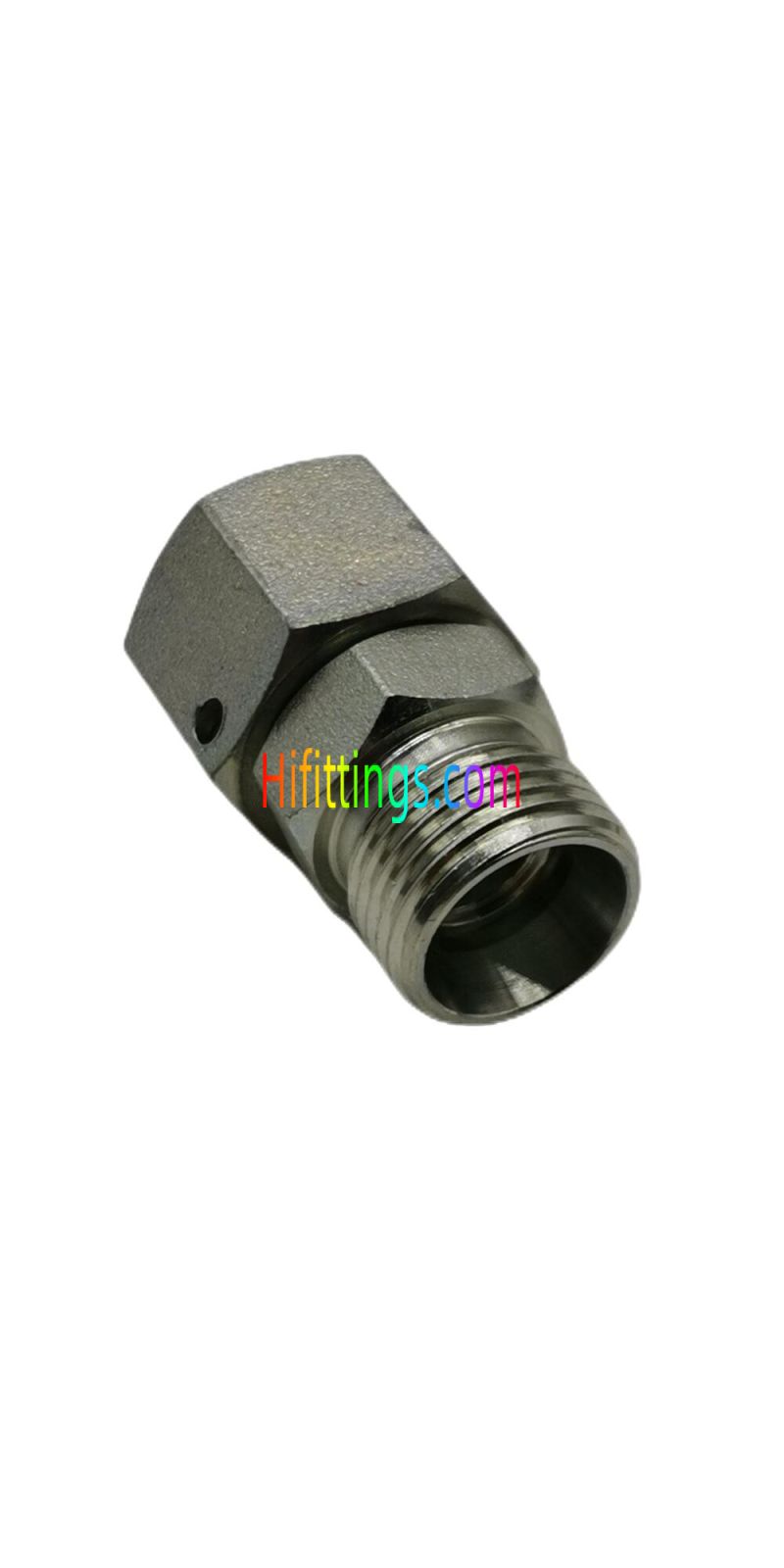

Raccordi metrici maschio metrico femmina riduttore adattatore tubo girevole 2C

Aggiungi alla lista desideri

As low as 3,11 €

Sii il primo a recensire questo prodotto

Disponibile

Solo %1 rimasto/i

SKU

Categories: Adattatori Raccordi per tubi con filettatura metrica di tipo Bite

Guarantee safe & secure checkout

Details

Metric Male Metric Female Reducer Hydraulic Adapter Pipe Fittings 2C

Part NO.	E	F	D1	D2	11	L1	S1	S2	S3	Working Pressure bar
2C-12-14	M12X1.5	M14X1.5	6	8	23.5	38	12	14	17	PN315
2C-12-16	M12X1.5	M16X1.5	6	10	25	40	14	14	19	PN315
2C-14-16	M14X1.5	M16X1.5	8	10	25	40	14	17	19	PN315
2C-12-18	M12X1.5	M18X1.5	6	12	25	40	17	14	22	PN315
2C-14-18	M14X1.5	M18X1.5	8	12	25	40	17	17	22	PN315
2C-16-18	M16X1.5	M18X1.5	10	12	26	41	17	19	22	PN315
2C-12-22	M12X1.5	M22X1.5	6	15	28.5	43	19	14	27	PN315
2C-14-22	M14X1.5	M22X1.5	8	15	28.5	43	19	17	27	PN315
2C-16-22	M16X1.5	M22X1.5	10	15	29.5	44	19	19	27	PN315
2C-18-22	M18X1.5	M22X1.5	12	15	29.5	44	19	22	27	PN315
2C-12-26	M12X1.5	M26X1.5	6	18	28	43	24	14	32	PN315
2C-14-26	M14X1.5	M26X1.5	8	18	28	43	24	17	32	PN315
2C-16-26	M16X1.5	M26X1.5	10	18	29	44	24	19	32	PN315
2C-18-26	M18X1.5	M26X1.5	12	18	29	44	24	22	32	PN315
2c-22-26	M22X1.5	M26X1.5	15	18	30	45	24	27	32	PN315
2C-12-30	M12X1.5	M30X2	6	22	32	47	27	14	36	PN160
2C-14-30	M14X1.5	M30X2	8	22	32	47	27	17	36	PN160
2C-16-30	M16X1.5	M30X2	10	22	33	48	27	19	36	PN160
2C-18-30	M18X1.5	M30X2	12	22	33	48	27	22	36	PN160
2C-22-30	M22X1.5	M30X2	15	22	34	49	27	27	36	PN160
2C-26-30	M26X1.5	M30X2	18	22	33.5	50	27	32	36	PN160
2C-12-36	M12X1.5	M36X2	6	28	34	49	36	14	41	PN160
2C-14-36	M14X1.5	M36X2	8	28	34	49	36	17	41	PN160
2C-16-36	M16X1.5	M36X2	10	28	35	50	36	19	41	PN160
2C-18-36	M18X1.5	M36X2 .	12	28	35	50	36、	22	41	PN160
2C-22-36	M22X1.5	M36X2	15	28	36	51	36	27	41	PN160
2C-26-36	M26X1.5	M36X2	18	28	35.5	52	36	32	41	PN160
2C-30-36	M30X2	M36X2	22	28	37.5	54	36	36	41	PN160
2C-12-45	M12X1.5	M45X2	6	35	37	52	41	14	50	PN160
2C-14-45	M14X1.5	M45X2	8	35	37	52	41	17	50	PN160
2C-16-45	M16X1.5	M45X2	10	35	38	53	41	19	50	PN160
2C-18-45	M18X1.5	M45X2	12	35	38	53	41	22	50	PN160
2C-22-45	M22X1.5	M45X2	15	35	39	54	41	27	50	PN160
2C-26-45	M26X1.5	M45X2	18	35	38.5	55	41	32	50	PN160
2C-30-45	M30X2	M45X2	22	35	40.5	57	41	36	50	PN160
2C-36-45	M36X2	M45X2	28	35	40.5	57	41	41	50	PN160
2C-12-52	M12X1.5	M52X2	6	42	40.5	55	50	14	60	PN160
2C-14-52	M14X1.5	M52X2	8	42	40.5	55	50	17	60	PN160
2C-16-52	M16X1.5	M52X2	10	42	41.5	56	50	19	60	PN160
2C-18-52	M18X1.5	M52X2	12	42	41.5	56	50	22	60	PN160
2C-22-52	M22X1.5	M52X2	15	42	42.5	58	50	27	60	PN160
2C-26-52	M26X1.5	M52X2	18	42	42	58	50	32	60	PN160
2C-30-52	M30X2	M52X2	22	42	44	60	50	36	60	PN160
2C-36-52	M36X2	M52X2	28	42	44	61	50	41	60	PN160
2C-45-52	M45X2	M52X2	35	42	43	65	50	50	60	PN160
Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 2C-30-52RN. 2. PN = Nominal Pressure

Maggiori Informazioni

Maggiori Informazioni
Forma	Straight
Tipo di filettatura	Male-Female
Connection Type	Metric
Tipo di montaggio	Bite Type
