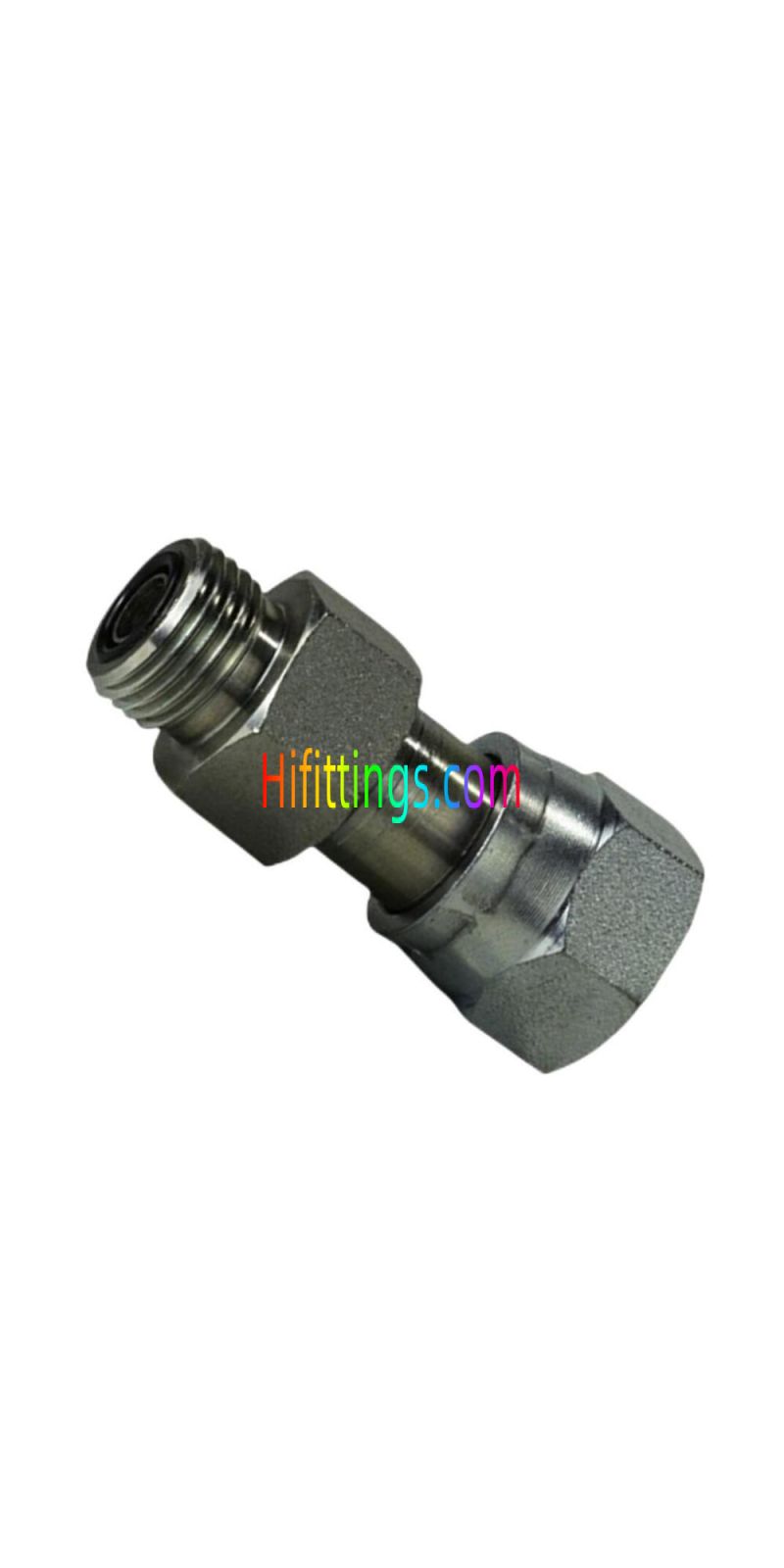

ORFS Male O-Ring / ORFS Female Swivel Hydraulic Pipe Fittings 2F
|
Part NO. |
E |
F |
E End |
A |
B |
L |
S1 |
S2 |
Working Pressure bar |
|
2F-04 |
9/16"X18 |
9/16"X18 |
11 |
9.8 |
8.5 |
33 |
17 |
19 |
PN630 |
|
2F-04-06 |
9/16"X18 |
11/16"X16 |
11 |
9.8 |
10 |
34.5 |
17 |
22 |
PN630 |
|
2F-04-08 |
9/16"X18 |
13/16"X16 |
11 |
9.8 |
11 |
36.5 |
19 |
27 |
PN630 |
|
2F-06-04 |
11/16"X16 |
9/16"X18 |
12 |
11.2 |
8.5 |
35.5 |
19 |
19 |
PN630 |
|
2F-06 |
11/16"X16 |
11/16"X16 |
12 |
11.2 |
10 |
38.5 |
19 |
22 |
PN630 |
|
2F-06-08 |
11/16"X16 |
13/16"X16 |
12 |
11.2 |
11 |
377 |
19 |
27 |
PN630 |
|
2F-06-10 |
11/16"X16 |
1"X14 |
12 |
11.2 |
13.5 |
43.7 |
24 |
30 |
PN400 |
|
2F-08-06 |
13/16"X16 |
11/16"X16 |
14 |
13 |
10 |
41 |
22 |
22 |
PN630 |
|
2F-08 |
13/16"X16 |
13/16"X16 |
14 |
13 |
11 |
43 |
22 |
27 |
PN630 |
|
2F-08-10 |
13/16"X16 |
1"X14 |
14 |
13 |
13.5 |
45.5 |
24 |
30 |
PN400 |
|
2F-08-12 |
13/16"X16 |
1.3/16"X12 |
14 |
13 |
15 |
49 |
30 |
36 |
PN400 |
|
2F-10-08 |
1"X14 |
13/16"X16 |
16 |
15.5 |
11 |
47.5 |
27 |
27 |
PN400 |
|
2F-10 |
1"X14 |
1"X14 |
16 |
15.5 |
13.5 |
51.5 |
27 |
30 |
PN400 |
|
2F-10-12 |
1"X14 |
1.3/16"X12 |
16 |
15.5 |
15 |
51.5 |
30 |
36 |
PN400 |
|
2F-10-16 |
1"X14 |
1.7/16"X12 |
16 |
15.5 |
15 |
56 |
36 |
41 |
PN400 |
|
2F-12-08 |
1.3/16"X12 |
13/16"X16 |
18 |
17 |
11 |
50.5 |
32 |
27 |
PN400 |
|
2F-12-10 |
1.3/16"X12 |
1"X14 |
18 |
17 |
13.5 |
54.5 |
32 |
30 |
PN400 |
|
2F-12 |
1.3/16"X12 |
1.3/16"X12 |
18 |
17 |
15 |
56 |
32 |
36 |
PN400 |
|
2F-12-16 |
1.3/16"X12 |
1.7/16"X12 |
18 |
17 |
15 |
58 |
36 |
41 |
PN400 |
|
2F-16-12 |
1.7/16"X12 |
1.3/16"X12 |
21 |
17.5 |
15 |
58 |
38 |
36 |
PN400 |
|
2F-16 |
1.7/16"X12 |
1.7/16"X12 |
21 |
17.5 |
15 |
60 |
38 |
41 |
PN400 |
|
2F-16-20 |
1.7/16"X12 |
1.11/16"X12 |
21 |
17.5 |
15 |
62 |
41 |
50 |
PN250 |
|
2F-20-16 |
1.11/16"X12 |
1.7/16"X12 |
25 |
17.5 |
15 |
58.5 |
46 |
41 |
PN250 |
|
2F-20 |
1.11/16"X12 |
1.11/16"X12 |
25 |
17.5 |
15 |
62 |
46 |
50 |
PN250 |
|
2F-20-24 |
1.11/16"X12 |
2"X12 |
25 |
17.5 |
16 |
65.5 |
50 |
60 |
PN250 |
|
2F-24-20 |
2"X12 |
1.11/16"X12 |
29 |
17.5 |
15 |
64 |
55 |
50 |
PN250 |
|
2F-24 |
2"X12 |
2"X12 |
29 |
17.5 |
16 |
64 |
55 |
60 |
PN250 |
| Forma | Straight |
|---|---|
| Tipo di montaggio | Face Seal |
| Tipo di filettatura | Male-Female |
| Connection Type | ORFS |
