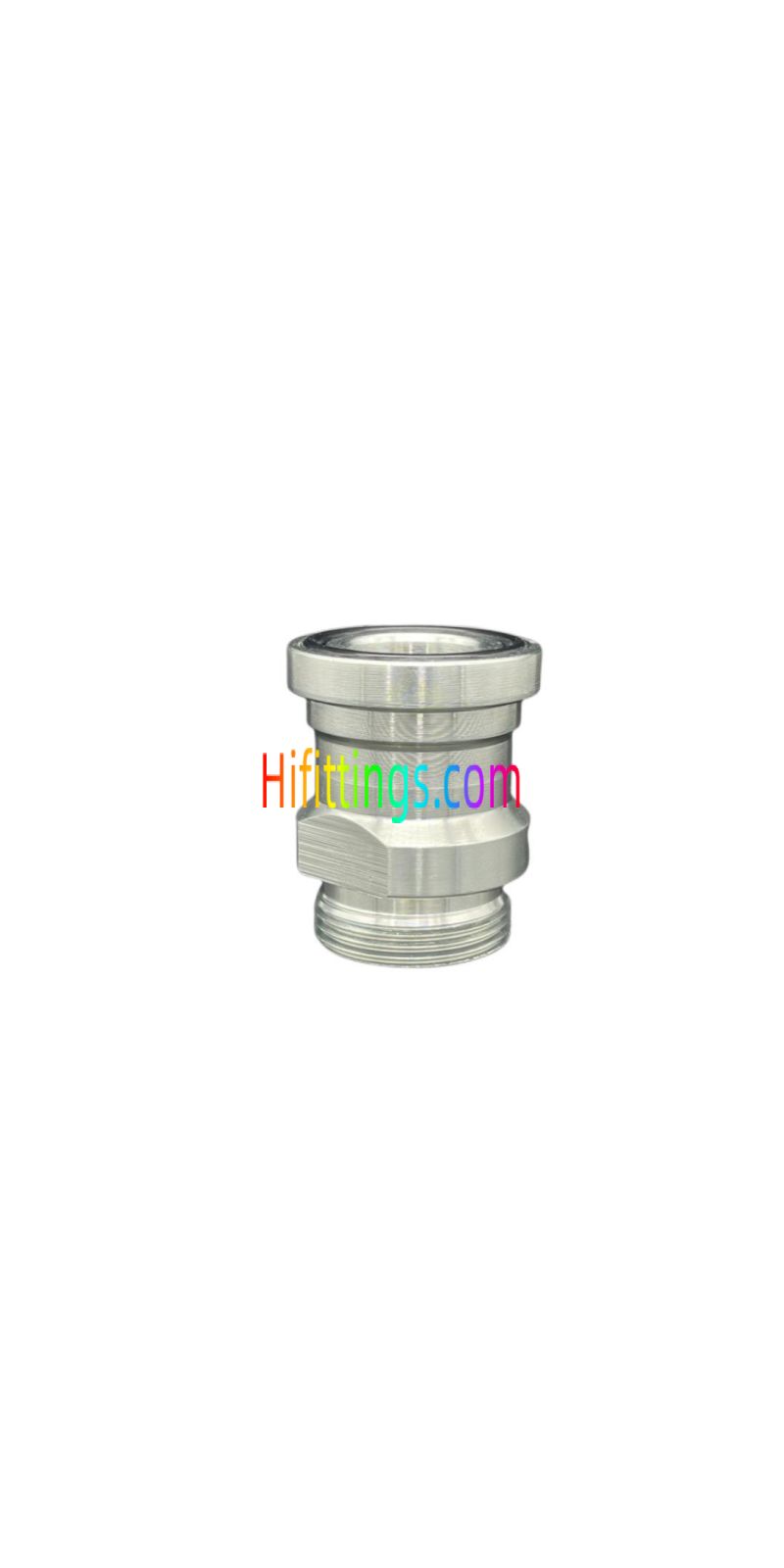

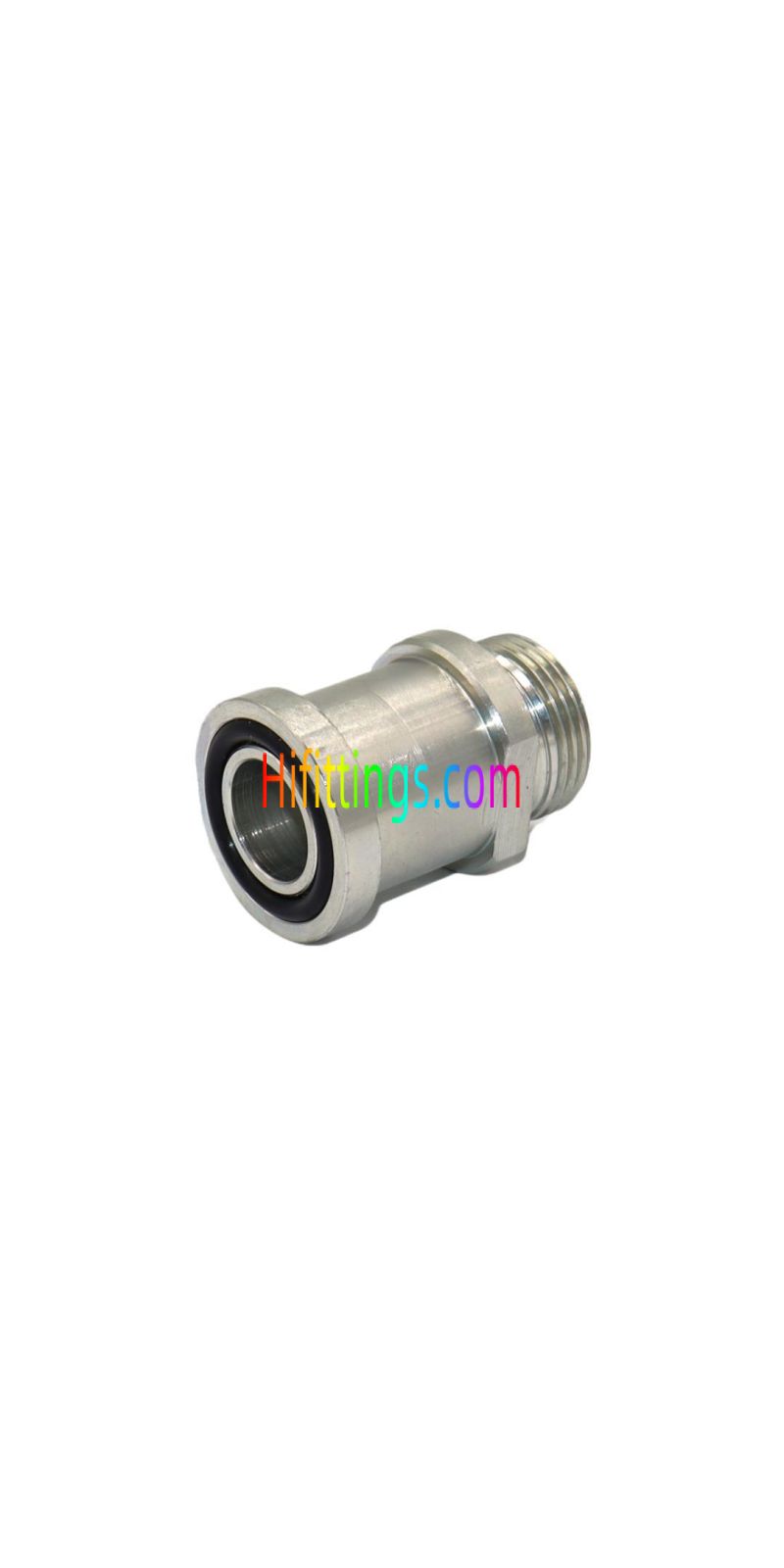

Metric Male Bite Type /SAE L-Series Hydraulic Flange Fittings ISO 6162-1 1CFL/1DFL
|
Part NO. |
E |
Flange Size |
D1 |
d1 |
I |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1CFL-22-08 |
M22X1.5 |
1/2" |
15 |
30.2 |
6.7 |
41 |
56 |
24 |
27 |
PN315 |
|
1CFL-26-12 |
M26X1.5 |
3/4" |
18 |
38.1 |
6.73 |
45.5 |
62 |
30 |
32 |
PN315 |
|
1CFL-30-12 |
M30X2 |
3/4" |
22 |
38.1 |
6.7 |
45.5 |
62 |
32 |
36 |
PN160 |
|
1CFL-36-16 |
M36X2 |
1" |
28 |
44.4 |
8 |
46.5 |
63 |
38 |
41 |
PN160 |
|
1CFL-45-20 |
M45X2 |
1.1/4" |
35 |
50.8 |
8 |
47.5 |
69 |
41 |
50 |
PN160 |
|
1CFL-52-24 |
M52X2 |
1.1/2" |
42 |
60.3 |
8 |
53 |
76 |
46 |
60 |
PN160 |
|
1DFL-24-08 |
M24X1.5 |
1/2" |
16 |
30.2 |
6.7 |
41.5 |
60 |
24 |
30 |
PN350 |
|
1DFL-30-12 |
M30X2 |
3/4" |
20 |
38.1 |
6.7 |
46.5 |
68 |
30 |
36 |
PN350 |
|
1DFL-36-12 |
M36X2 |
3/4" |
25 |
38.1 |
6.73 |
45 |
69 |
30 |
46 |
PN280 |
|
1DFL-42-16 |
M42X2 |
11! |
30 |
44.4 |
8 |
49.5 |
76 |
36 |
50 |
PN280 |
|
1DFL-36-20 |
M36X2 |
1.1/4" |
25 |
50.8 |
8 |
48 |
72 |
41 |
46 |
PN280 |
|
1DFL-42-20 |
M42X2 |
1.1/4" |
30 |
50.8 |
8 |
48.5 |
75 |
41 |
50 |
PN280 |
|
1DFL-52-20 |
M52X2 |
1.1/4" |
38 |
50.8 |
8 |
50 |
81 |
46 |
60 |
PN280 |
|
1DFL-52-24 |
M52X2 |
1.1/2" |
38 |
60.3 |
8 |
54 |
85 |
46 |
60 |
PN210 |
|
Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no, for example 1DFL-52-24RN 2. PN = Nominal Pressure |
||||||||||
| Connection Type | JIC, Metric |
|---|---|
| Tipo di filettatura | Male |
| Forma | Straight |
| Tipo di montaggio | Bite Type, Flange |
