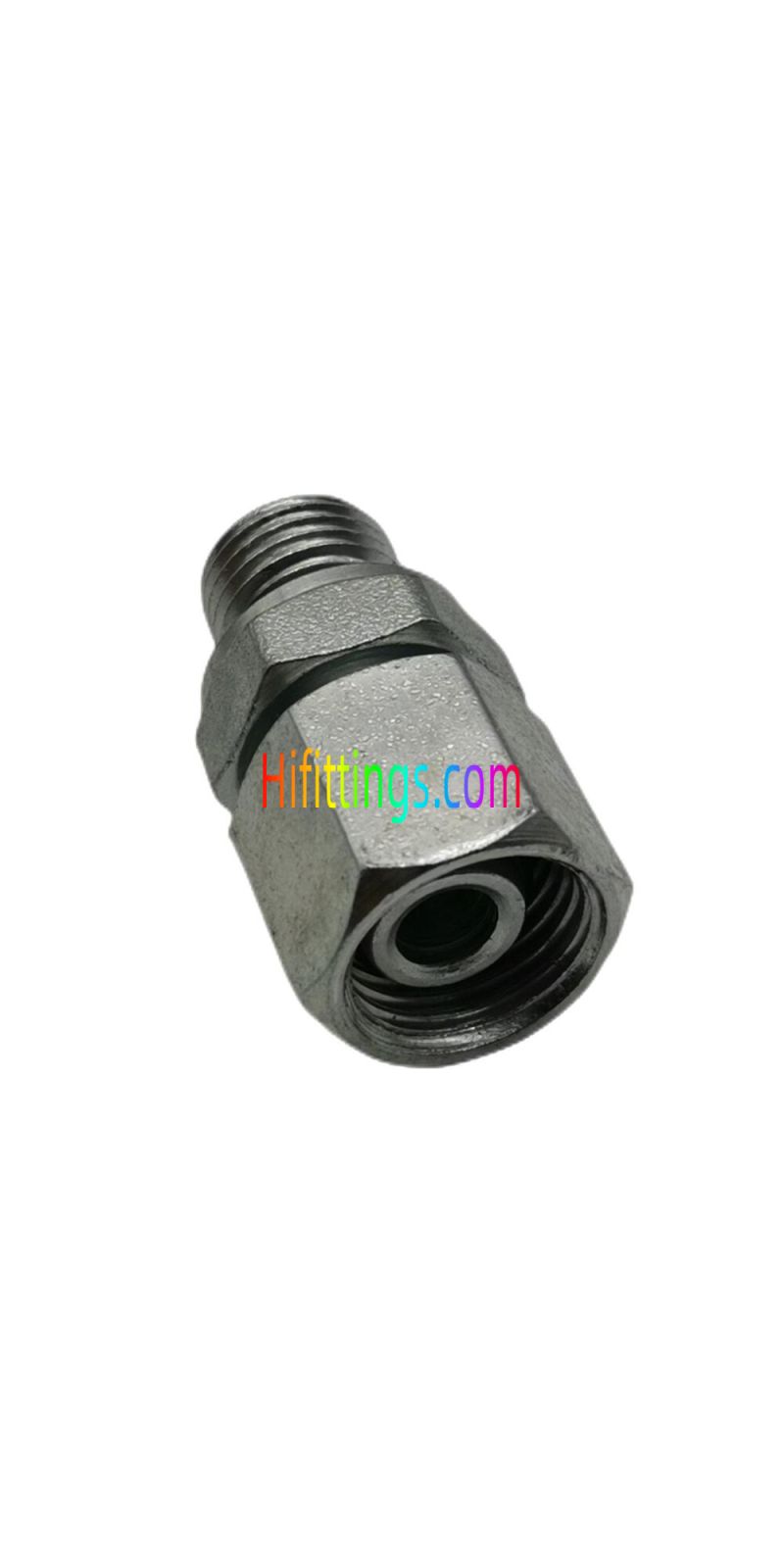

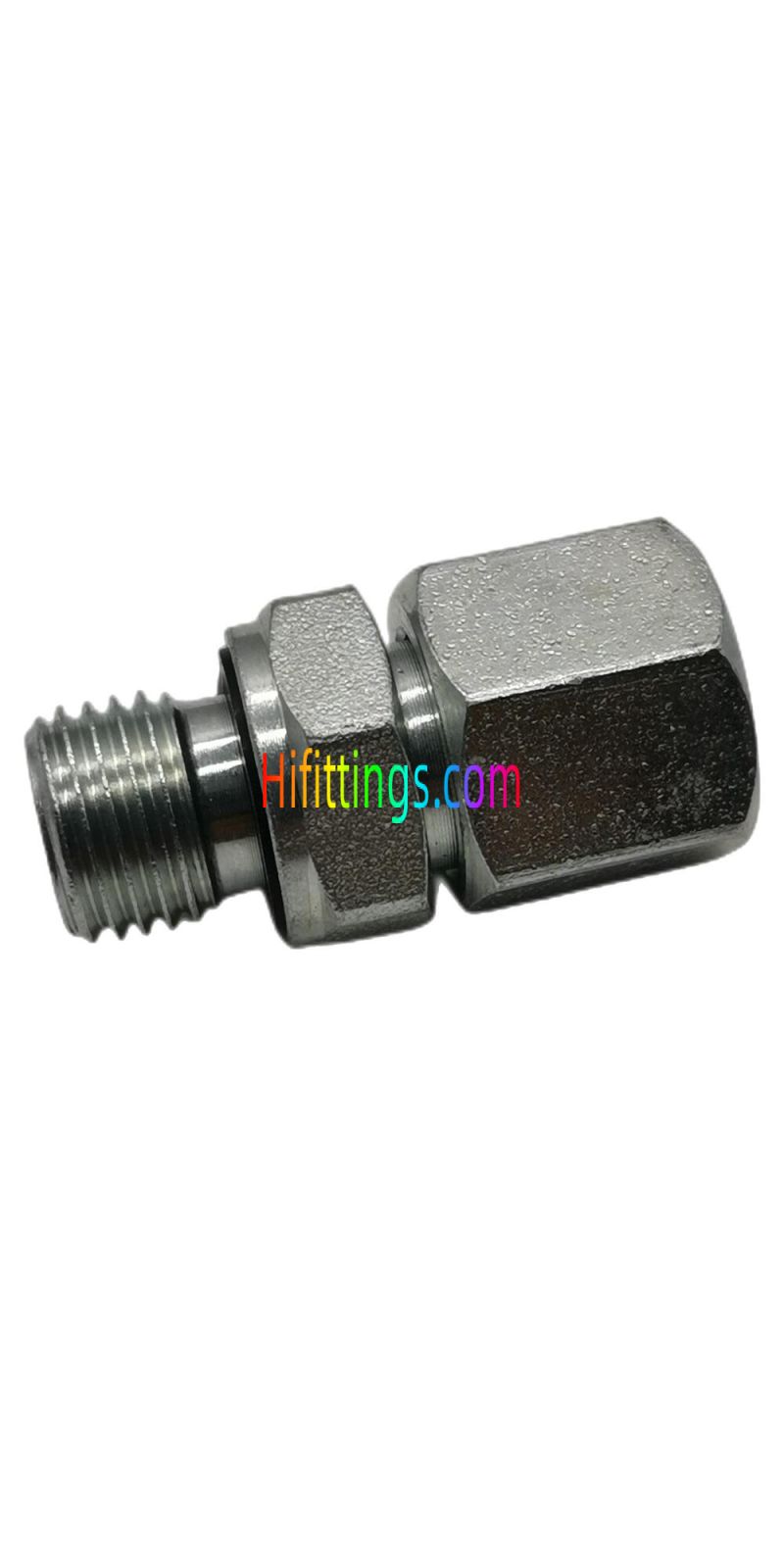

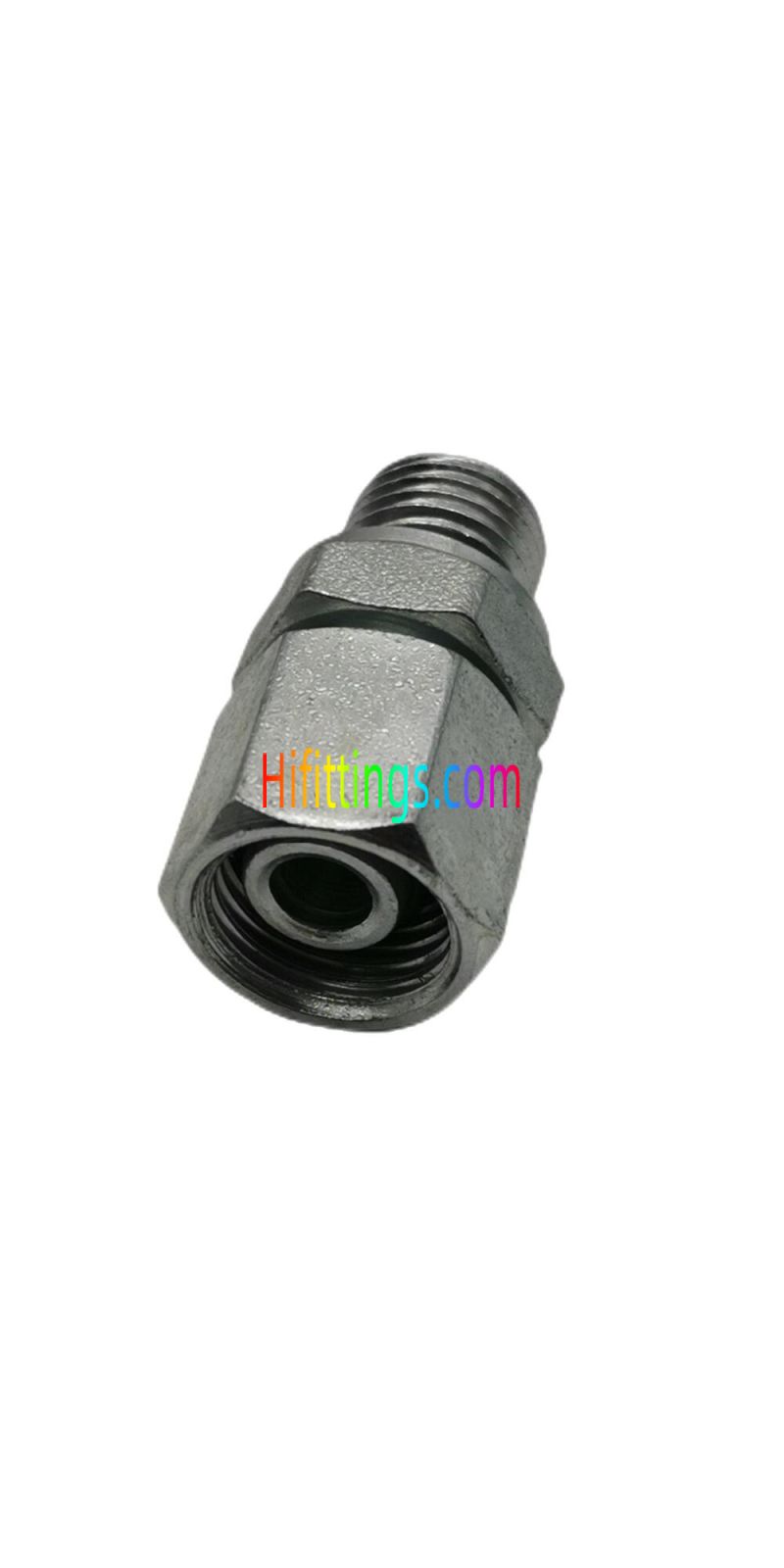

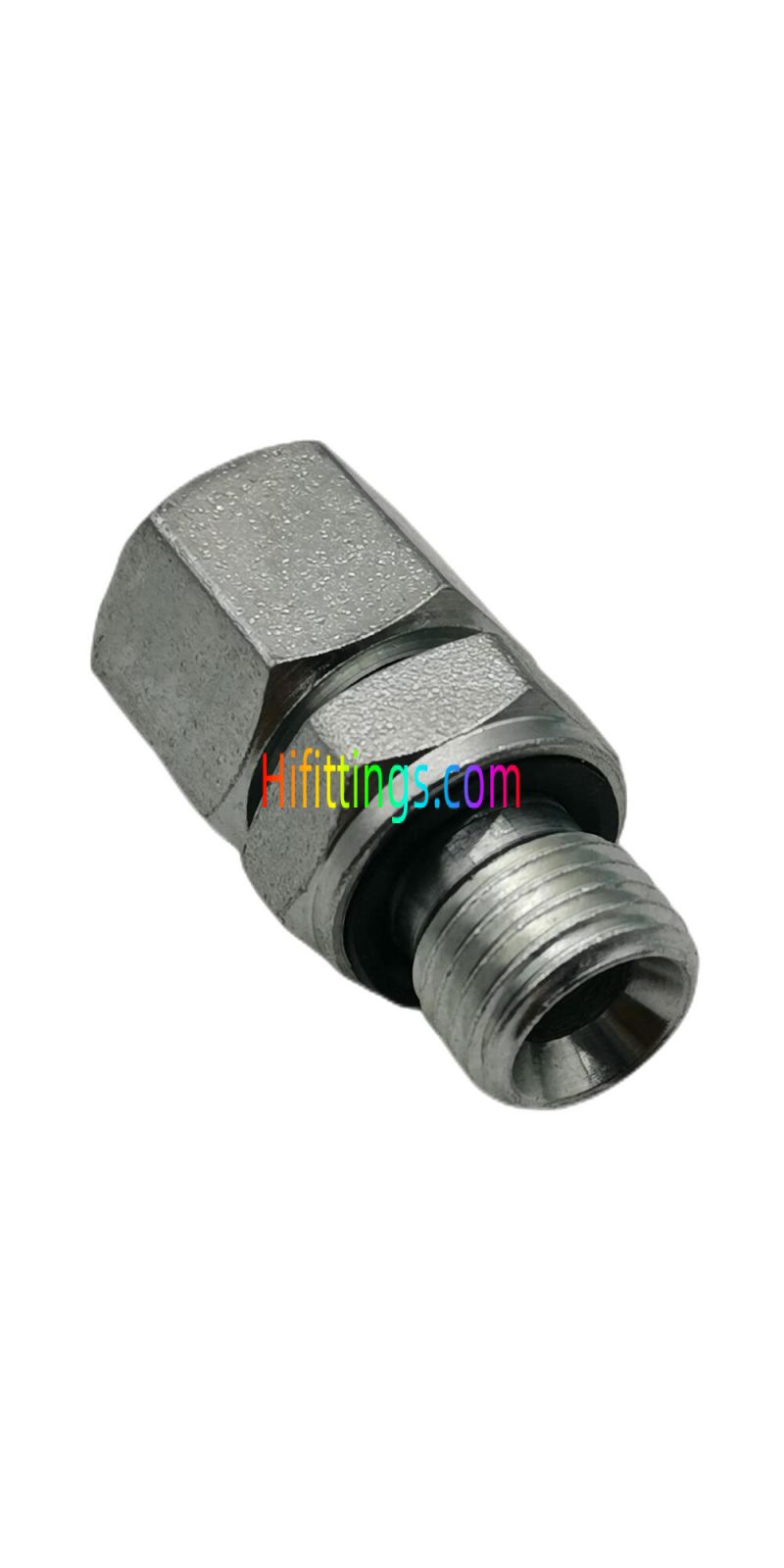

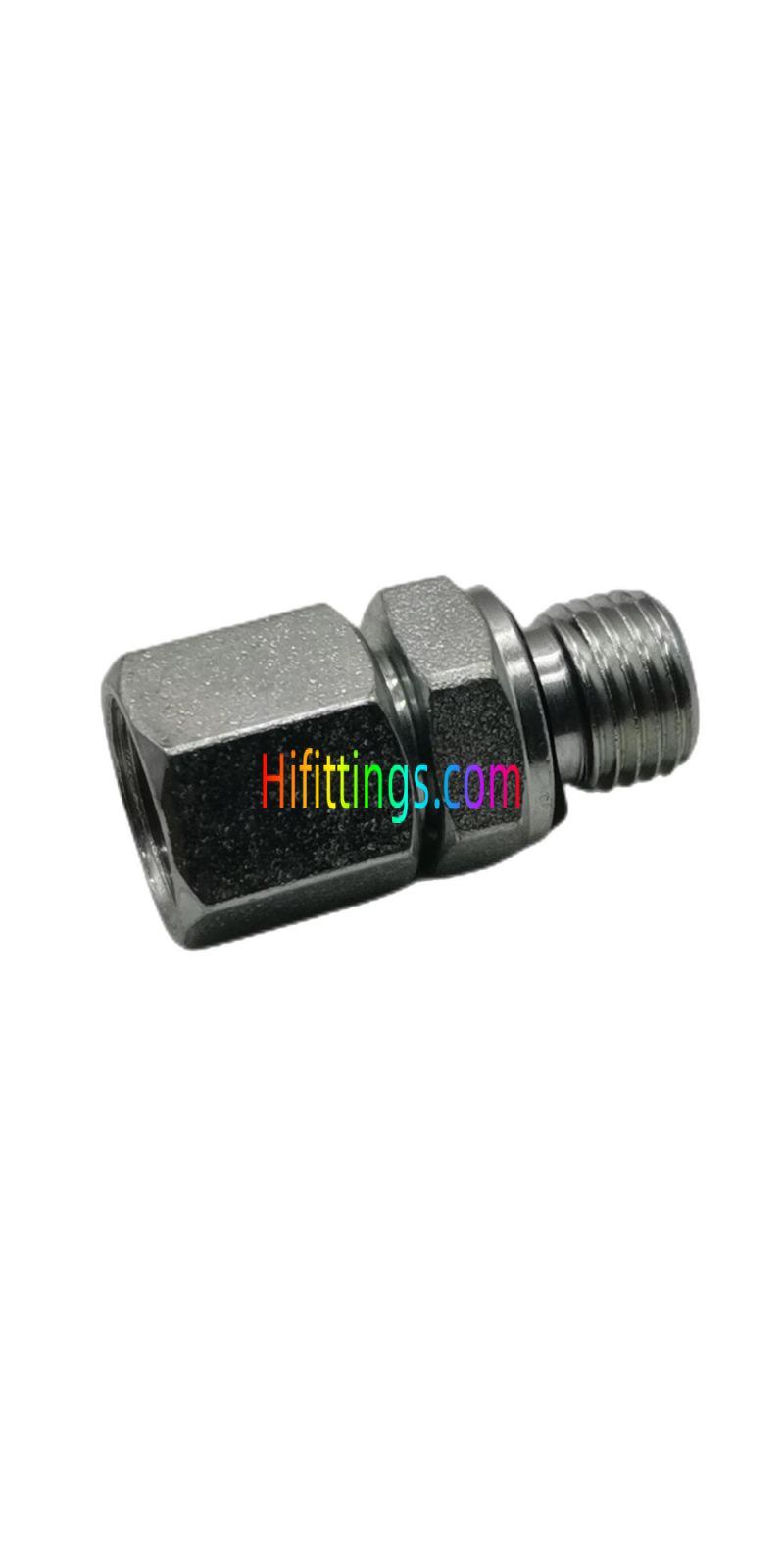

Straight BSP Male With Captive Seal / Metric Female 24° Cone O-Ring Sealing Hydraulic Adapter Unions
|
Part NO. |
E |
F |
D1 |
SEAL |
A |
L1 |
S1 |
S2 |
Working Pressure bar |
|
2BC-02-12WD |
G1/8"X28 |
M12X1.5 |
6 |
WD-B02 |
8 |
24.5 |
14 |
14 |
PN315 |
|
2BC-04-14WD |
G1/4"X19 |
M14X1.5 |
8 |
WD-B04 |
12 |
29.5 |
19 |
17 |
PN315 |
|
2BC-04-16WD |
G1/4"X19 |
M16X1.5 |
10 |
WD-B04 |
12 |
27.5 |
19 |
19 |
PN315 |
|
2BC-06-18WD |
G3/8"X19 |
M18X1.5 |
12 |
WD-B06 |
12 |
34 |
22 |
22 |
PN315 |
|
2BC-08-22WD |
G1/2"X14 |
M22X1.5 |
15 |
WD-B08 |
14 |
32 |
27 |
27 |
PN315 |
|
2BC-08-26WD |
G1/2"X14 |
M26X1.5 |
18 |
WD-B08 |
14 |
31.5 |
27 |
32 |
PN315 |
|
2BC-12-30WD |
G3/4"X14 |
M30X2 |
22 |
WD-B12 |
16 |
32.5 |
32 |
36 |
PN160 |
|
2BC-16-36WD |
G1"X11 |
M36X2 |
28 |
WD-B16 |
18 |
35 |
41 |
41 |
PN160 |
|
2BC-20-45WD |
G1.1/4"X11 |
M45X2 |
35 |
WD-B20 |
20 |
42.5 |
50 |
50 |
PN160 |
|
2BC-24-52WD |
G1.12X11 |
M52X2 |
42 |
WD-B24 |
22 |
46.5 |
55 |
60 |
PN160 |
|
2BD-04-14WD |
G1/4"X19 |
M14X1.5 |
6 |
WD-B04 |
12 |
27 |
19 |
17 |
PN630 |
|
2BD-04-16WD |
G1/4"X19 |
M16X1.5 |
8 |
WD-B04 |
12 |
29.5 |
19 |
19 |
PN630 |
|
2BD-06-18WD |
G3/8"X19 |
M18X1.5 |
10 |
WD-B06 |
12 |
32 |
22 |
22 |
PN630 |
|
2BD-06-20WD |
G3/8"X19 |
M20X1.5 |
12 |
WD-B06 |
12 |
34 |
22 |
24 |
PN630 |
|
2BD-08-22WD |
G1/2"X14 |
M22X1.5 |
14 |
WD-B08 |
14 |
36.5 |
27 |
27 |
PN630 |
|
2BD-08-24WD |
G1/2"X14 |
M24X1.5 |
16 |
WD-B08 |
14 |
37 |
27 |
30 |
PN400 |
|
2BD-12-30WD |
G3/4"X14 |
M30X2 |
20 |
WD-B12 |
16 |
43 |
32 |
36 |
PN400 |
|
2BD-16-36WD |
G1"X11 |
M36X2 |
25 |
WD-B16 |
18 |
48 |
41 |
46 |
PN400 |
|
2BD-20-42WD |
G1.1/4"X11 |
M42X2 |
30 |
WD-B20 |
20 |
51 |
50 |
50 |
PN400 |
|
2BD-24-52WD |
G1.1/2"X11 |
M52X2 |
38 |
WD-B24 |
22 |
60 |
55 |
60 |
PN315 |
| Forma | Straight |
|---|---|
| Tipo di filettatura | Male-Female |
| Connection Type | BSP, Metric |
| Tipo di montaggio | Bite Type |
