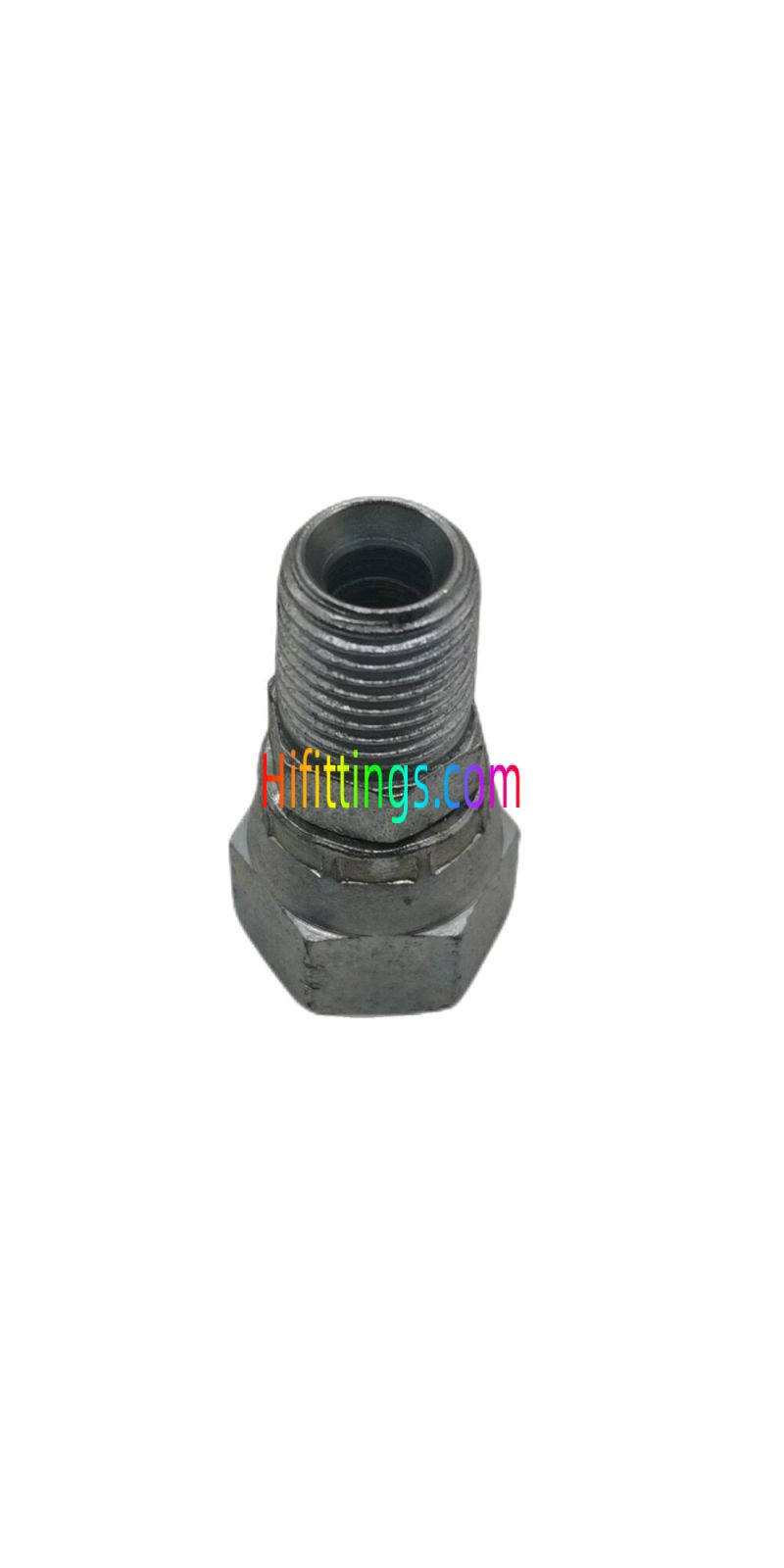

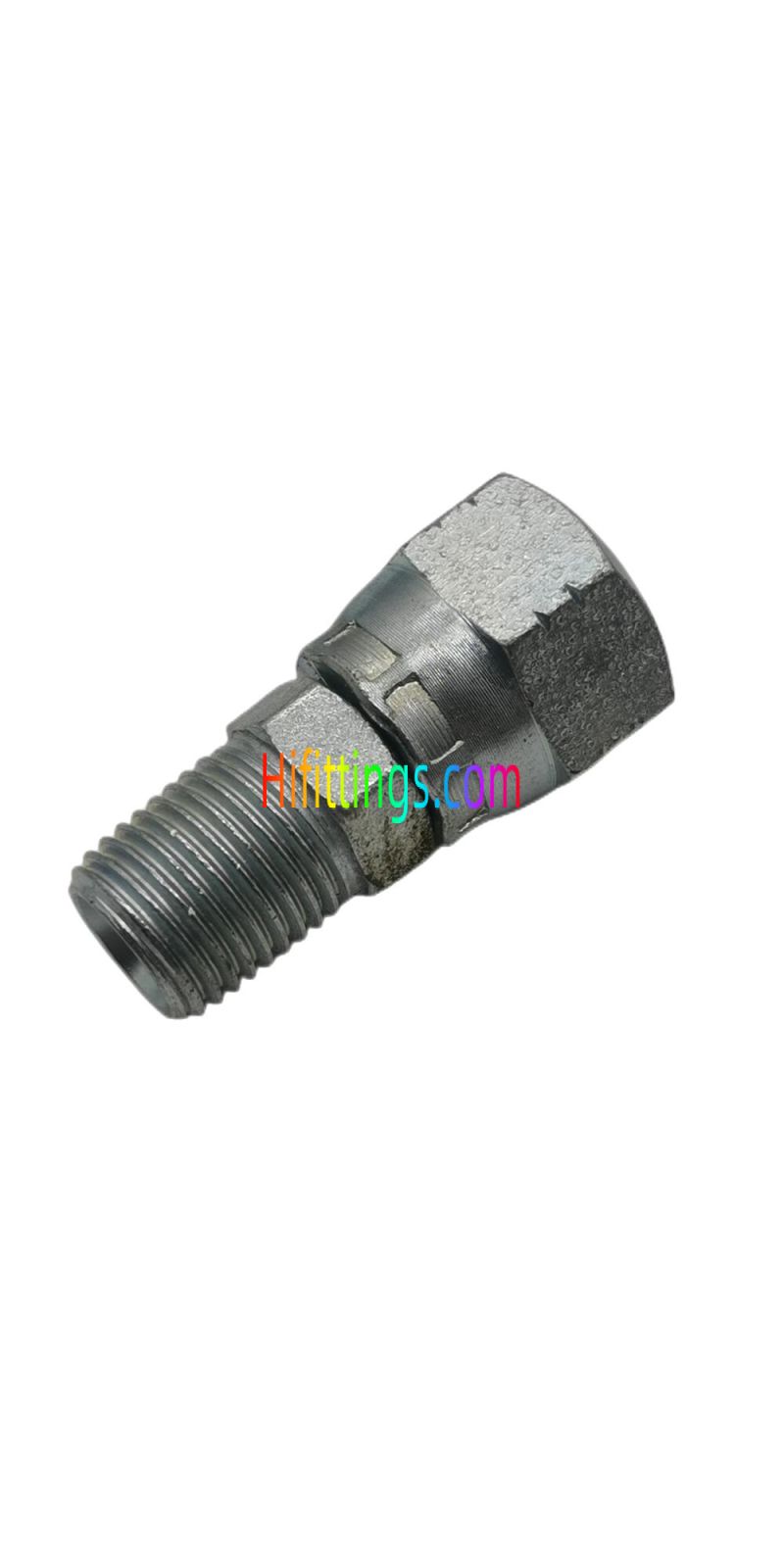

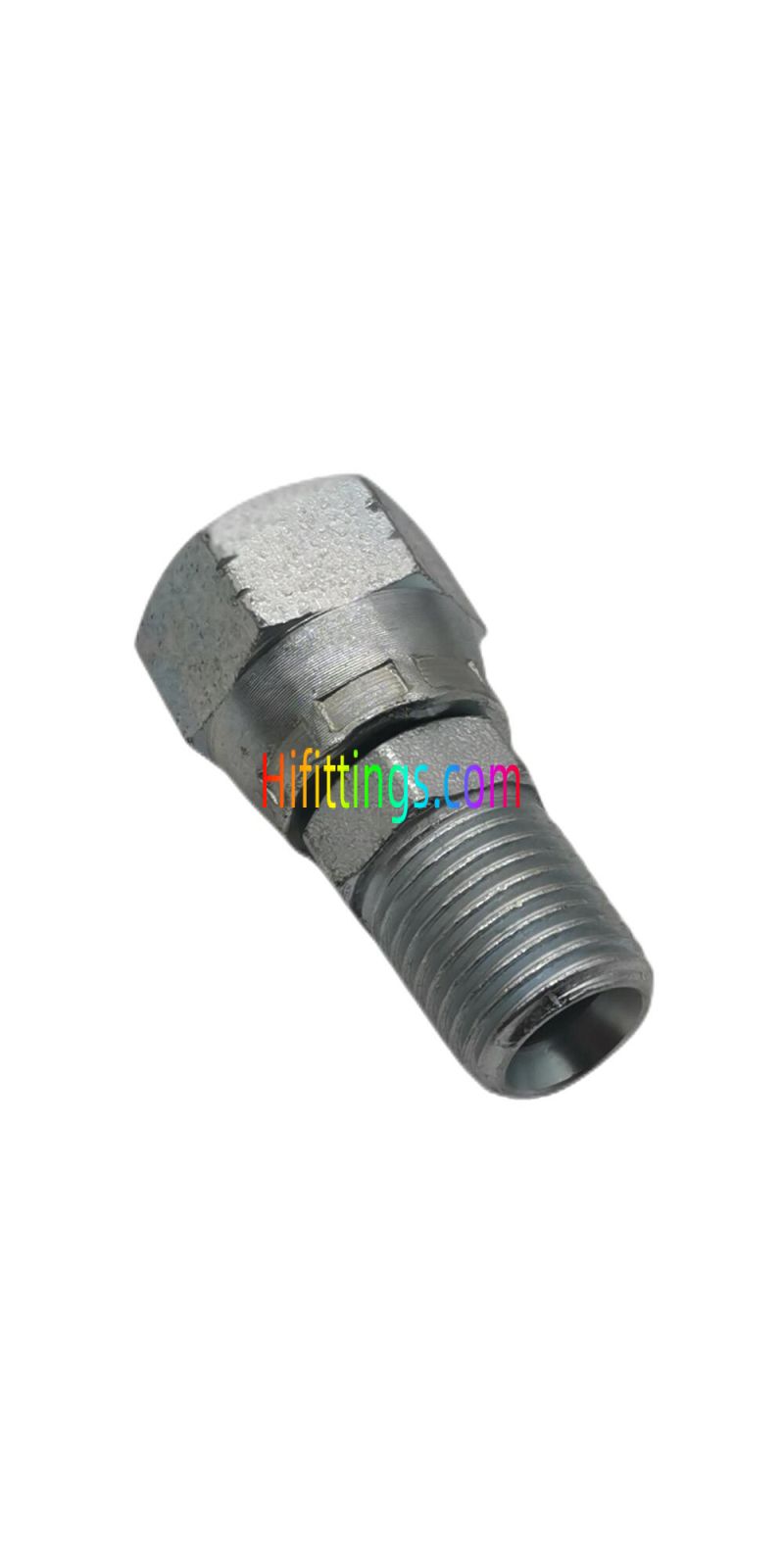

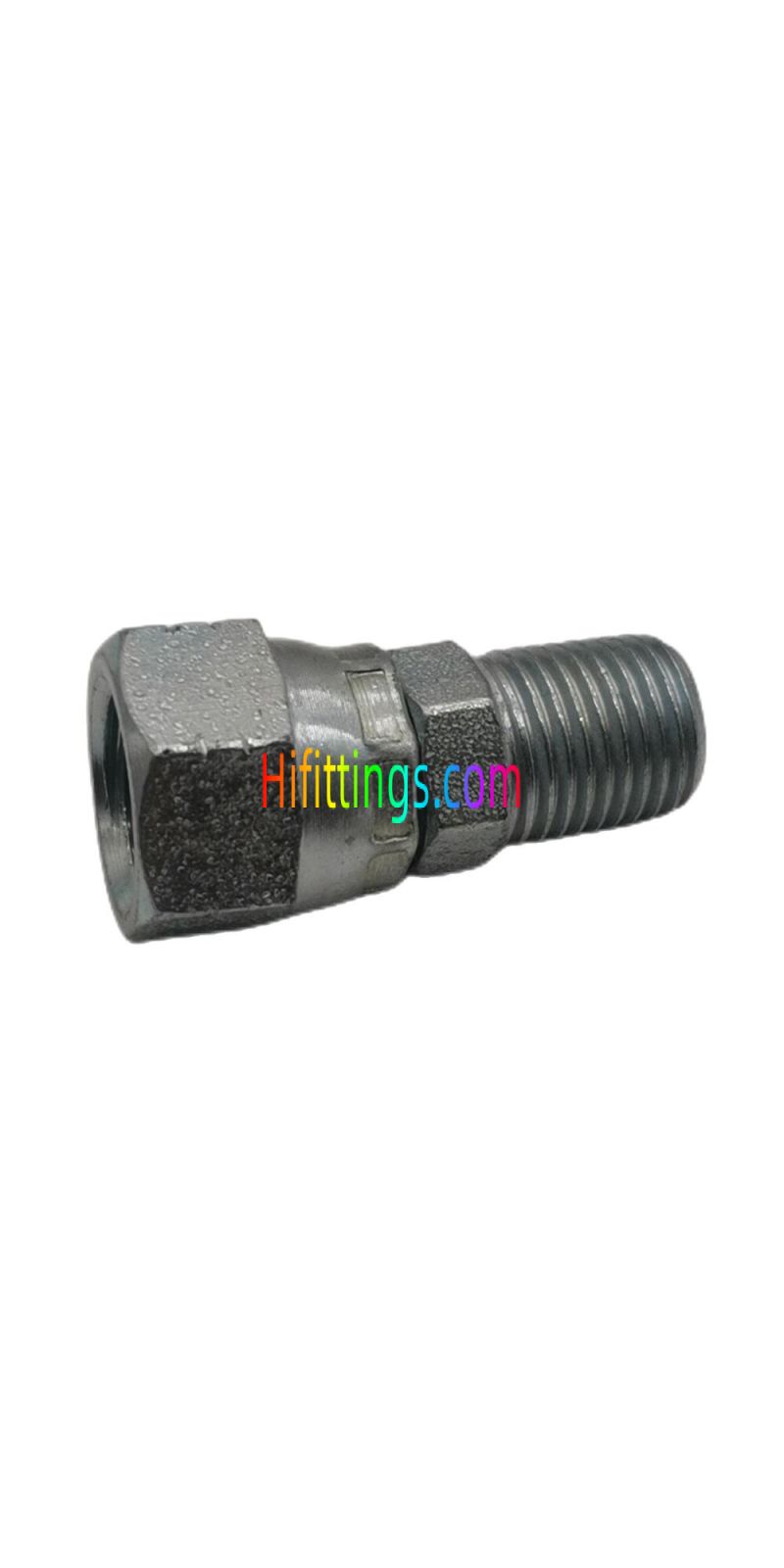

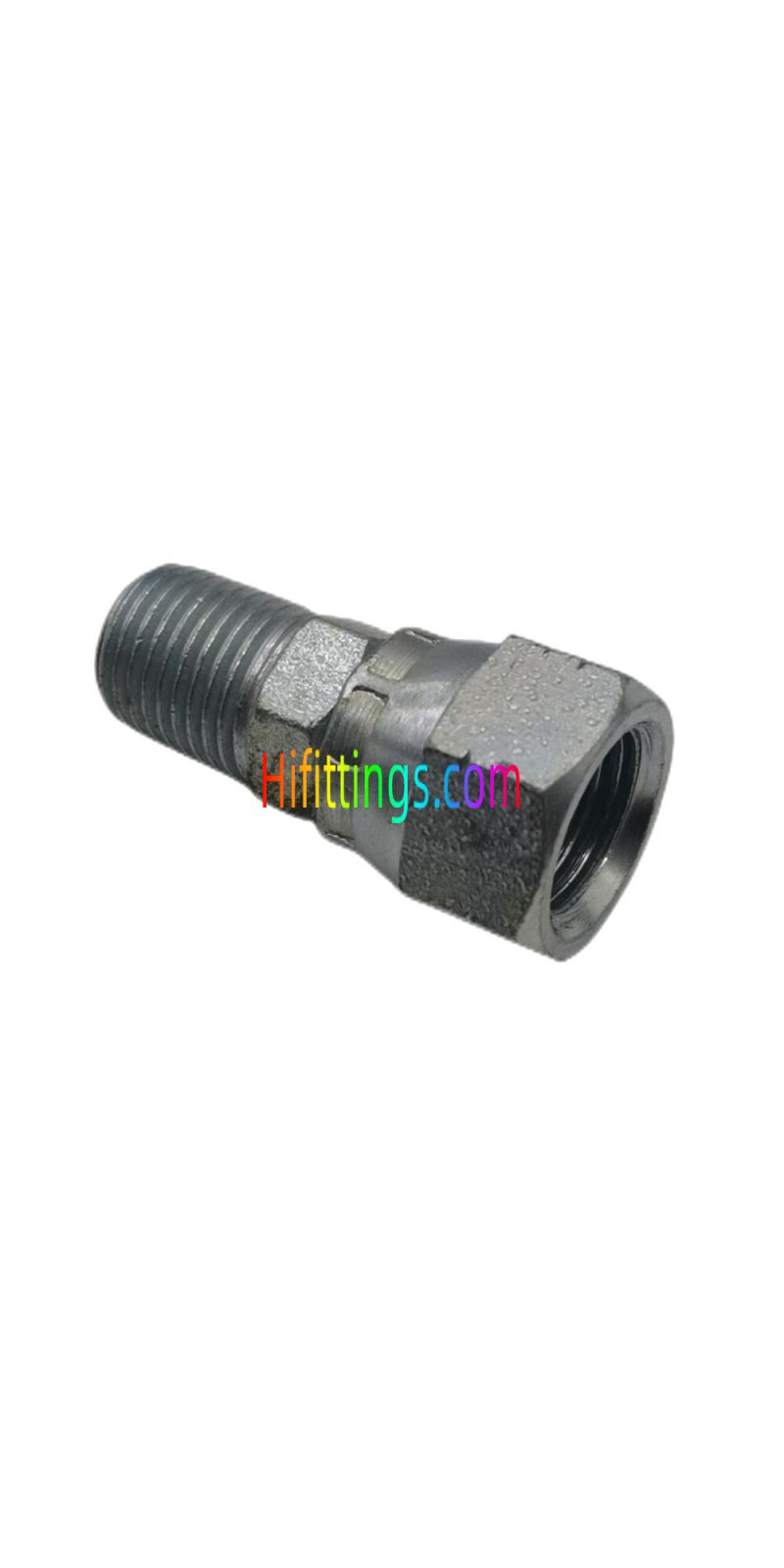

Straight BSPT Male / JIC Female 74 Degree Seat Flared Adapter Swivel Hydraulic Tube Fittings 2TJ-SP
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
S2 |
Working Pressure bar |
|
2TJ-02-04SP |
R1/8"X28 |
7/16"X20 |
10 |
9 |
24 |
12 |
17 |
PN345 |
|
2TJ-04SP |
R1/4'X19 |
7/16"X20 |
14 |
9 |
28 |
14 |
17 |
PN345 |
|
2TJ-04-05SP |
R1/4'X19 |
1/2"X20 |
14 |
9 |
28.5 |
14 |
17 |
PN345 |
|
2TJ-04-06SP |
R1/4'X19 |
9/16"X18 |
14 |
10.5 |
28.5 |
14 |
19 |
PN345 |
|
2TJ-06-05SP |
R3/8X19 |
1/2"X20 |
15 |
9 |
29.5 |
19 |
17 |
PN345 |
|
2TJ-06SP |
R3/8"X19 |
9/16"X18 |
15 |
10.5 |
29.5 |
17 |
19 |
PN345 |
|
2TJ-06-08SP |
R3/8"X19 |
3/4"X16 |
15 |
10.5 |
31.5 |
19 |
24 |
PN310 |
|
2TJ-08SP |
R1/2"X14 |
3/4"X16 |
19 |
10.5 |
37.5 |
24 |
24 |
PN310 |
|
2TJ-08-10SP |
R1/2"X14 |
7/8"X14 |
19 |
12 |
38 |
24 |
27 |
PN240 |
|
2TJ-08-12SP |
R1/2"X14 |
1.1/16"X12 |
20 |
15 |
41.5 |
27 |
32 |
PN240 |
|
2TJ-12SP |
R3/4"X14 |
1.1/16"X12 |
19 |
15 |
41.5 |
30 |
32 |
PN240 |
|
2TJ-12-16SP |
R3/4"X14 |
1.5/16"X12 |
20 |
16 |
43.5 |
32 |
41 |
PN210 |
|
2TJ-16SP |
R1"X11 |
1.5/16"X12 |
24 |
16 |
47.5 |
36 |
41 |
PN210 |
|
2TJ-20SP |
R1.1/4"X11 |
1.5/8"X12 |
25 |
17 |
52 |
46 |
50 |
PN170 |
|
2TJ-24SP |
R1.1/2"X11 |
1.7/8"X12 |
26.5 |
20 |
56 |
50 |
55 |
PN105 |
| Forma | Straight |
|---|---|
| Tipo di montaggio | Cone Flared |
| Tipo di filettatura | Male-Female |
| Connection Type | BSPT, JIC |
