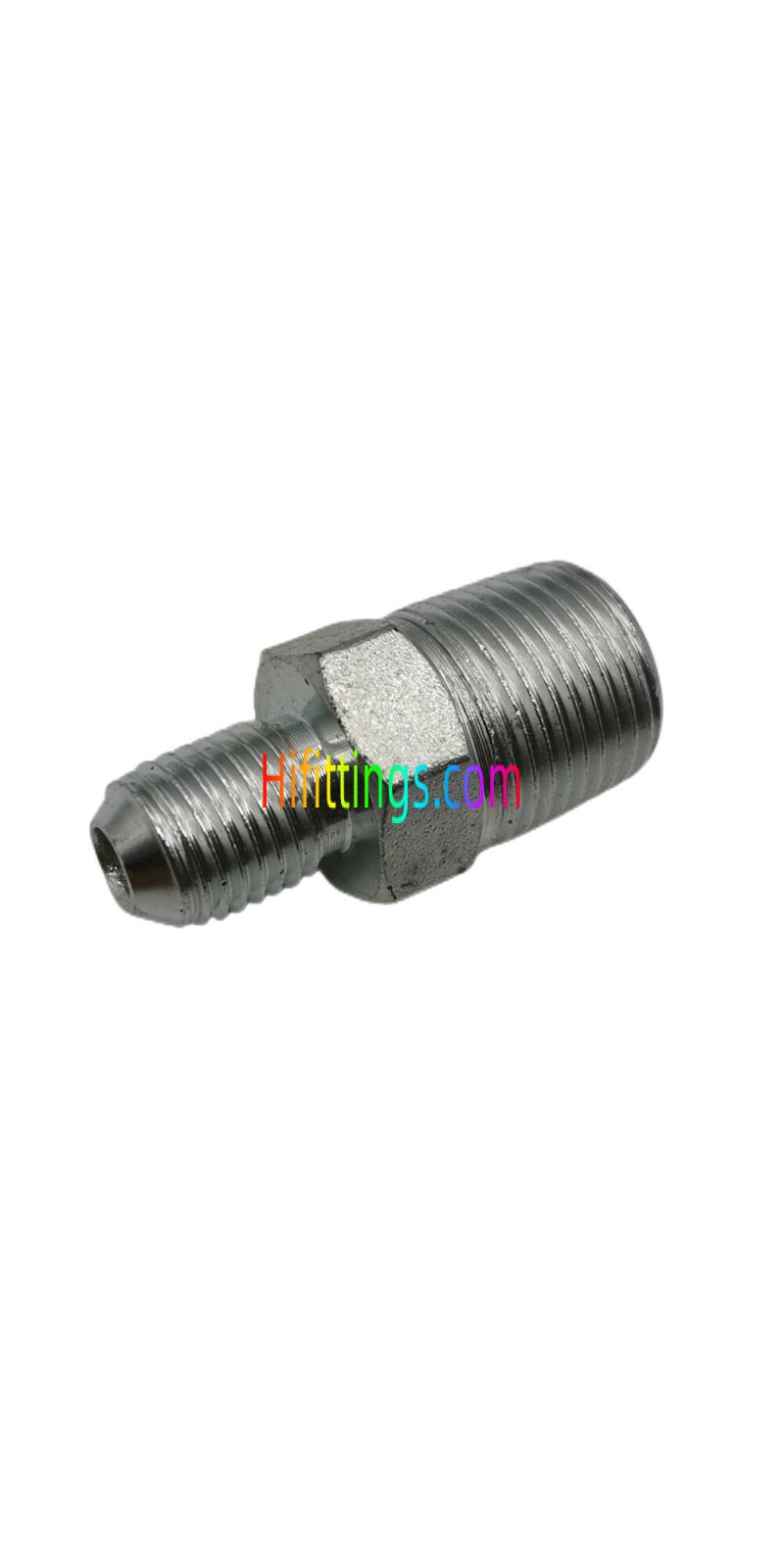

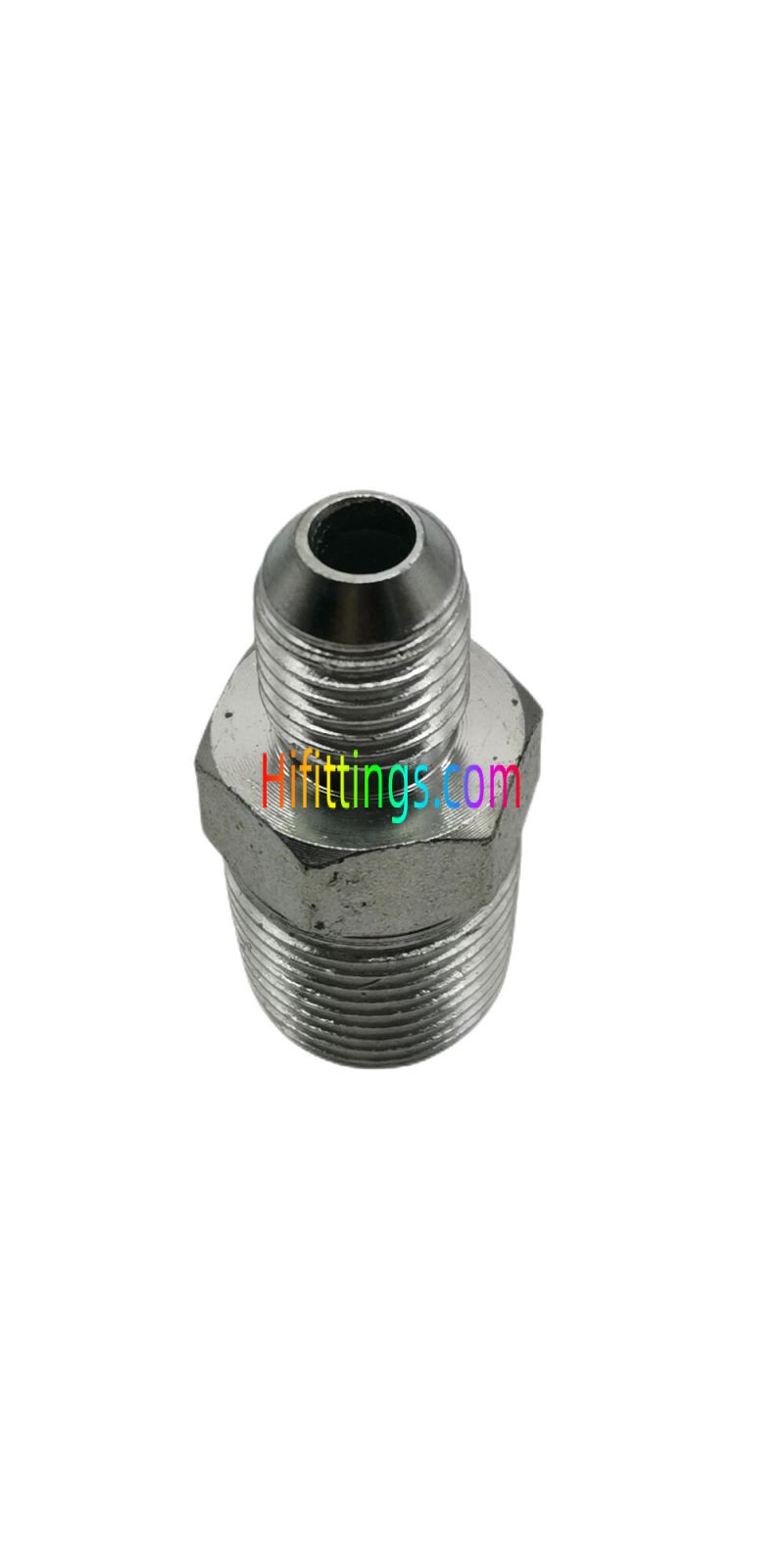

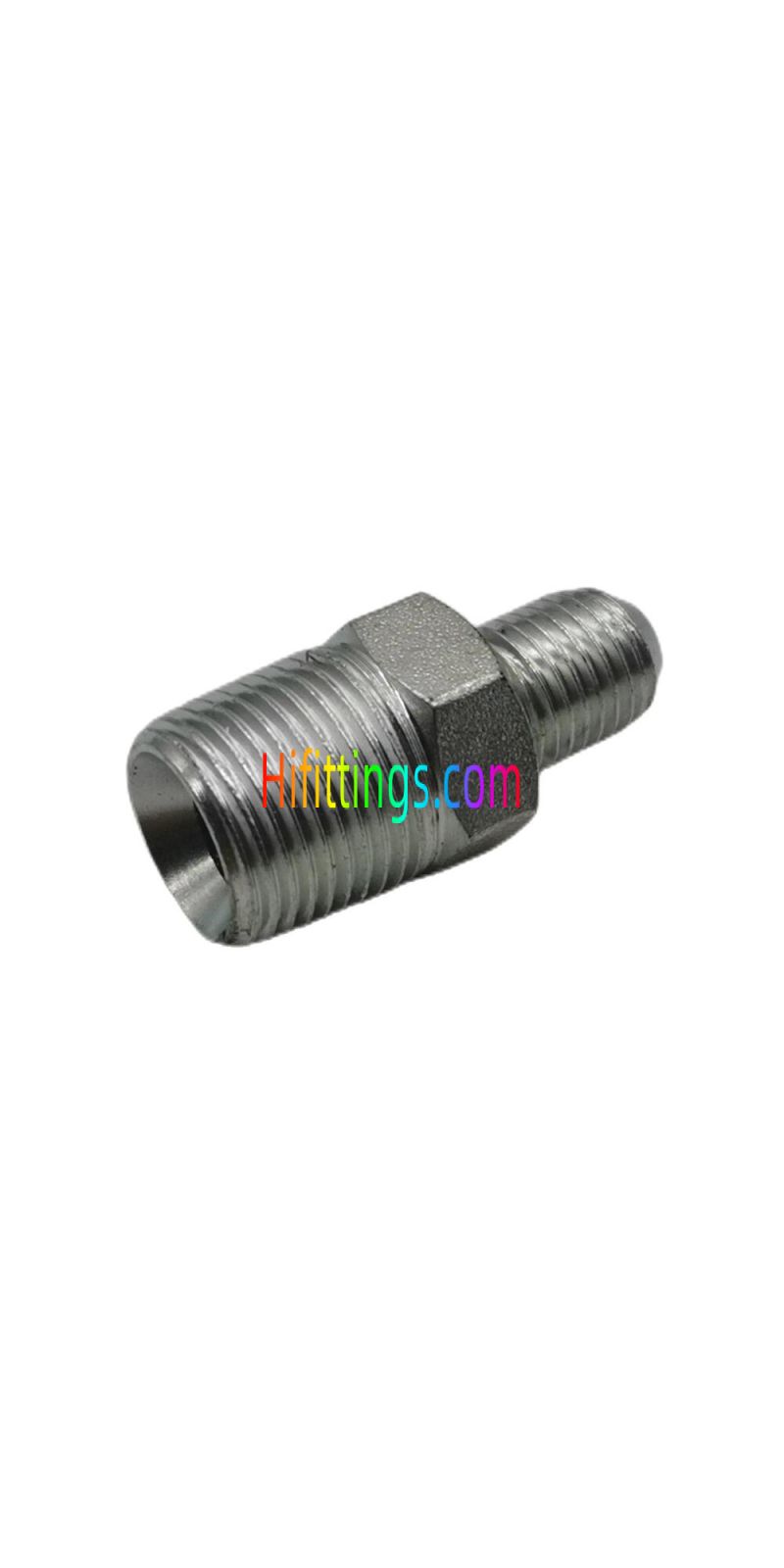

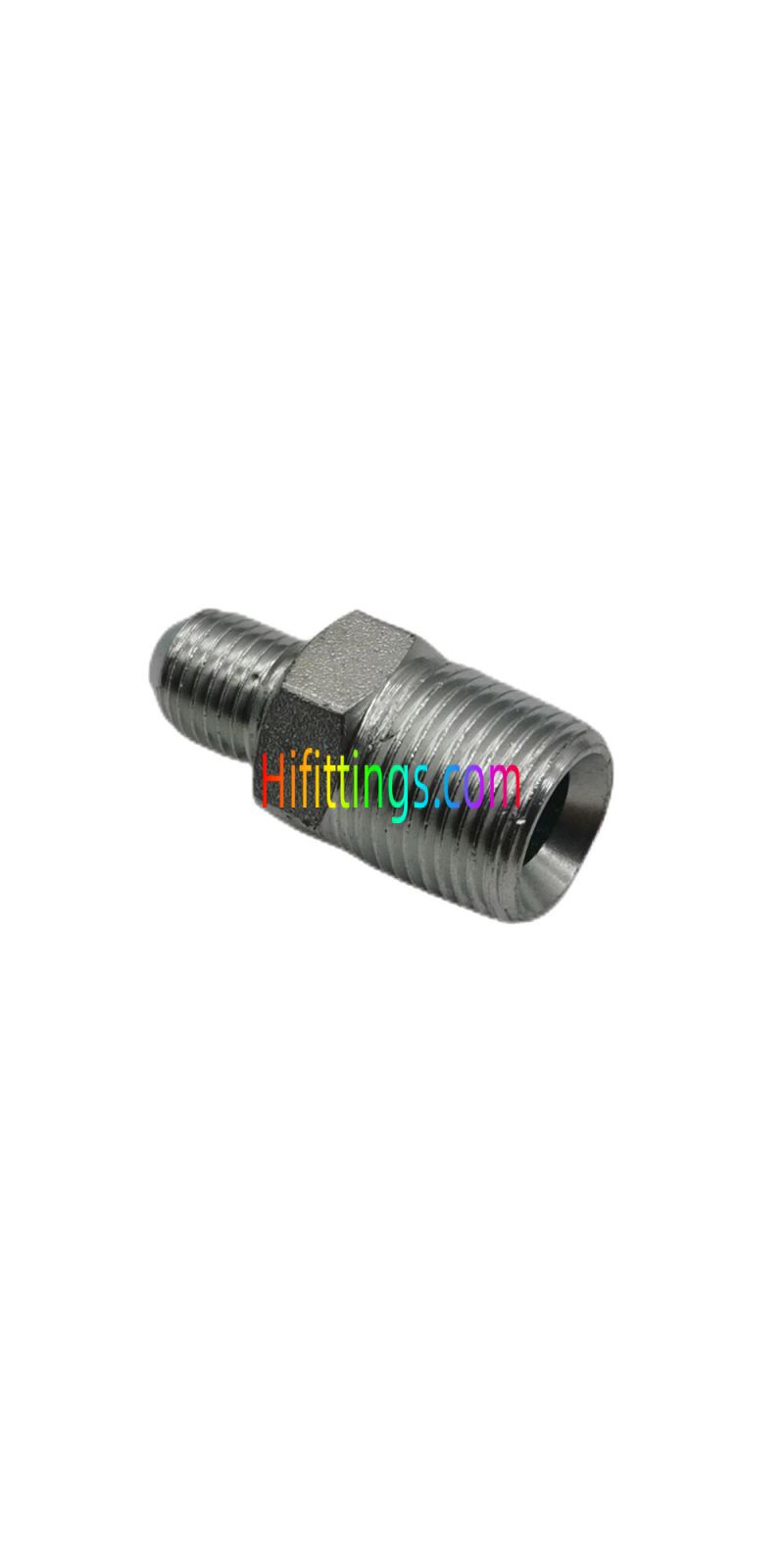

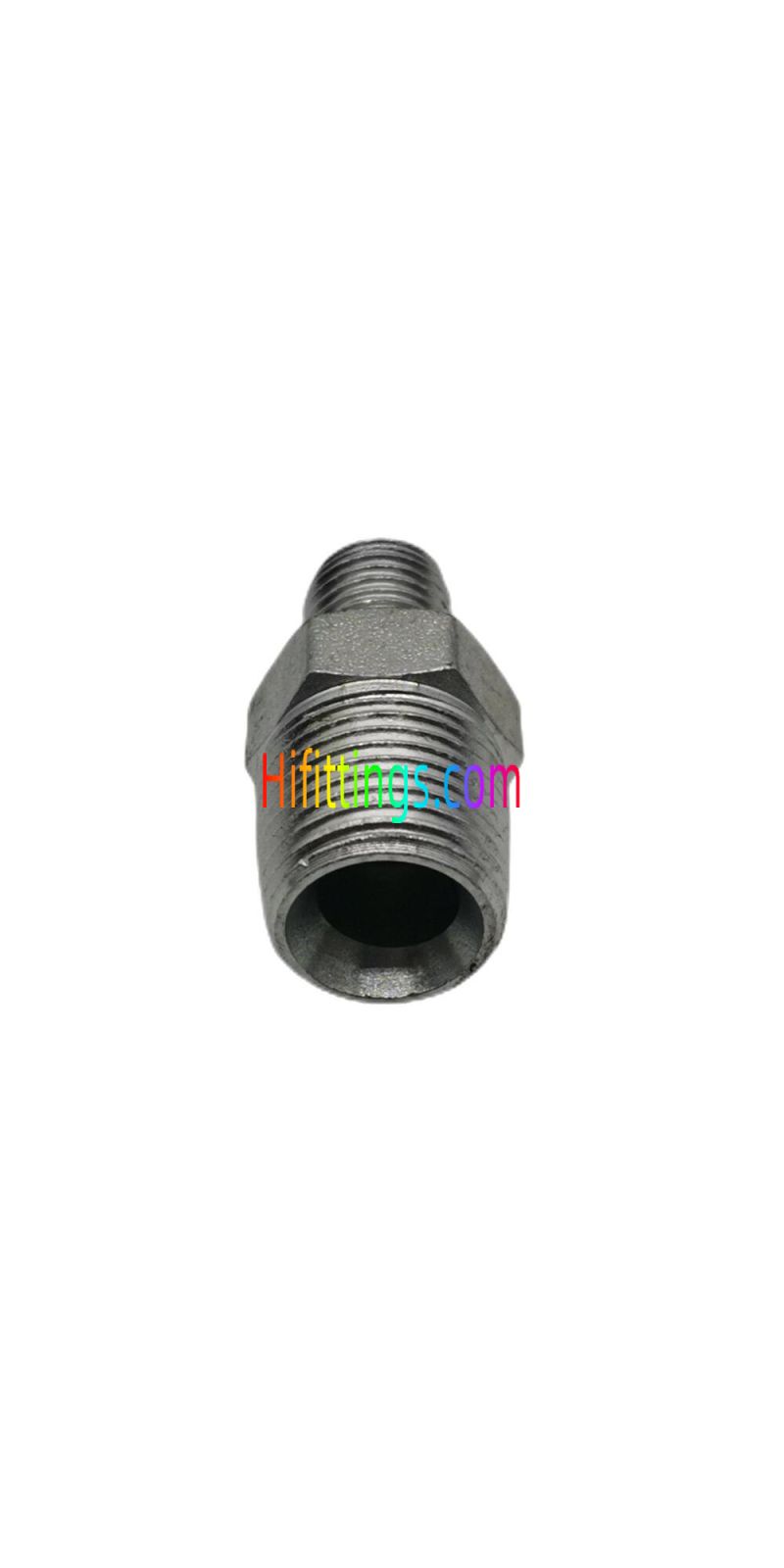

Straight BSPT Male / JIC Male 74 Degree Cone Flared Hydraulic Tube Fittings 1JT-SP
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
Working Pressure bar |
|
1JT-04-02SP |
7/16"X20 |
R1/8"X28 |
14 |
10 |
30 |
12 |
PN345 |
|
1JT-04SP |
7/16"X20 |
R1/4"X19 |
14 |
14.5 |
34.5 |
14 |
PN345 |
|
1JT-04-06SP |
7/16"X20 |
R3/8"X19 |
14 |
15 |
35 |
17 |
PN345 |
|
1JT-05-02SP |
1/2"X20 |
R1/8"X28 |
14 |
10.5 |
30.5 |
14 |
PN345 |
|
1JT-05-04SP |
1/2"X20 |
R1/4"X19 |
14 |
14.5 |
34 |
14 |
PN345 |
|
1JT-05-06SP |
1/2"X20 |
R3/8"X19 |
14 |
15 |
35 |
19 |
PN345 |
|
1JT-06-02SP |
9/16"X18 |
R1/8"X28 |
14.1 |
10.5 |
30.5 |
17 |
PN345 |
|
1JT-06-04SP |
9/16"X18 |
R1/4"X19 |
14.1 |
14.5 |
34 |
17 |
PN345 |
|
1JT-06SP |
9/16"X18 |
R3/8"X19 |
14.1 |
15 |
34 |
17 |
PN345 |
|
1JT-06-08SP |
9/16"X18 |
R1/2"X14 |
14.1 |
20 |
41 |
22 |
PN345 |
|
1JT-08-06SP |
3/4"X16 |
R3/8"X19 |
16.7 |
15 |
39 |
22 |
PN310 |
|
1JT-08SP |
3/4"X16 |
R1/2"X14 |
16.7 |
20 |
44.5 |
22 |
PN310 |
|
1JT-08-12SP |
3/4"X16 |
R3/4"X14 |
16.7 |
20 |
46 |
30 |
PN310 |
|
1JT-10-06SP |
7/8"X14 |
R3/8"X19 |
19.3 |
15 |
42.5 |
24 |
PN240 |
|
1JT-10-08SP |
7/8"X14 |
R1/2"X14 |
19.3 |
20 |
46.5 |
24 |
PN240 |
|
1JT-10-12SP |
7/8"X14 |
R3/4"X14 |
19.3 |
20 |
48.5 |
30 |
PN240 |
|
1JT-12-08SP |
1.1/16"X12 |
R1/2"X14 |
21.9 |
20 |
51 |
30 |
PN240 |
|
1JT-12SP |
1.1/16"X12 |
R3/4"X14 |
21.9 |
20 |
51 |
30 |
PN240 |
|
1JT-12-16SP |
1.1/16"X12 |
R1"X11 |
21.9 |
25.5 |
57.5 |
36 |
PN205 |
|
1JT-14-12SP |
1.3/16"X12 |
R3/4"X14 |
22.6 |
20 |
52.5 |
32 |
PN210 |
|
1JT-14-16SP |
1.3/16"X12 |
R1"X11 |
22.6 |
25.5 |
57.5 |
36 |
PN205 |
|
1JT-16-12SP |
1.5/16"X12 |
R3/4"X14 |
23.1 |
20 |
53 |
36 |
PN210 |
|
1JT-16SP |
1.5/16"X12 |
R1"X11 |
23.1 |
25.5 |
59 |
36 |
PN205 |
|
1JT-16-20SP |
1.5/16"X12 |
R1.1/4"X11 |
23.1 |
26.5 |
61.5 |
46 |
PN210 |
|
1JT-20-16SP |
1.5/8"X12 |
R1"X11 |
24.3 |
25.5 |
62.5 |
46 |
PN170 |
|
1JT-20SP |
1.5/8"X12 |
R1.1/4"X11 |
24.3 |
26.5 |
63 |
46 |
PN170 |
|
1JT-20-24SP |
1.5/8"X12 |
R1.1/2"X11 |
24.3 |
26.5 |
66.5 |
50 |
PN105 |
|
1JT-24-20SP |
1.7/8"X12 |
R1.1/4"X11 |
27.5 |
26.5 |
67.5 |
50 |
PN140 |
|
1JT-24SP |
1.7/8"X12 |
R1.1/2"X11 |
27.5 |
26.5 |
69.5 |
50 |
PN105 |
|
1JT-24-32SP |
1.7/8"X12 |
R2"X11 |
27.5 |
30 |
74.5 |
65 |
PN105 |
|
1JT-32-24SP |
2.1/2"X12 |
R1.1/2"X11 |
33.9 |
26.5 |
77.5 |
65 |
PN105 |
|
1JT-32SP |
2.1/2"X12 |
R2"X11 |
33.9 |
30 |
80 |
65 |
PN105 |
|
Note：1.Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.PN = Nominal Pressure |
|||||||
| Forma | Straight |
|---|---|
| Tipo di montaggio | Cone Flared |
| Tipo di filettatura | Male |
| Connection Type | BSPT, JIC |
