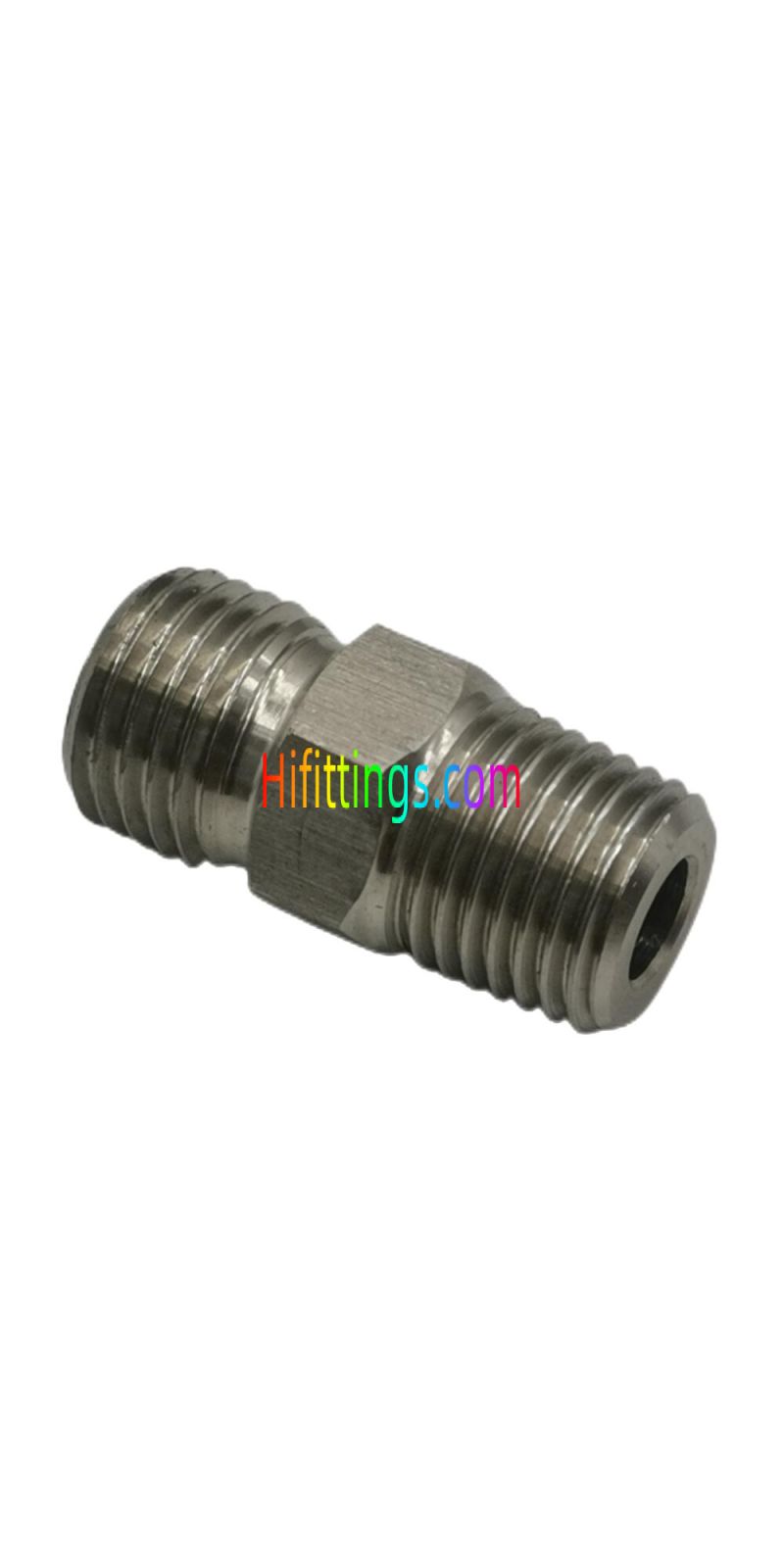

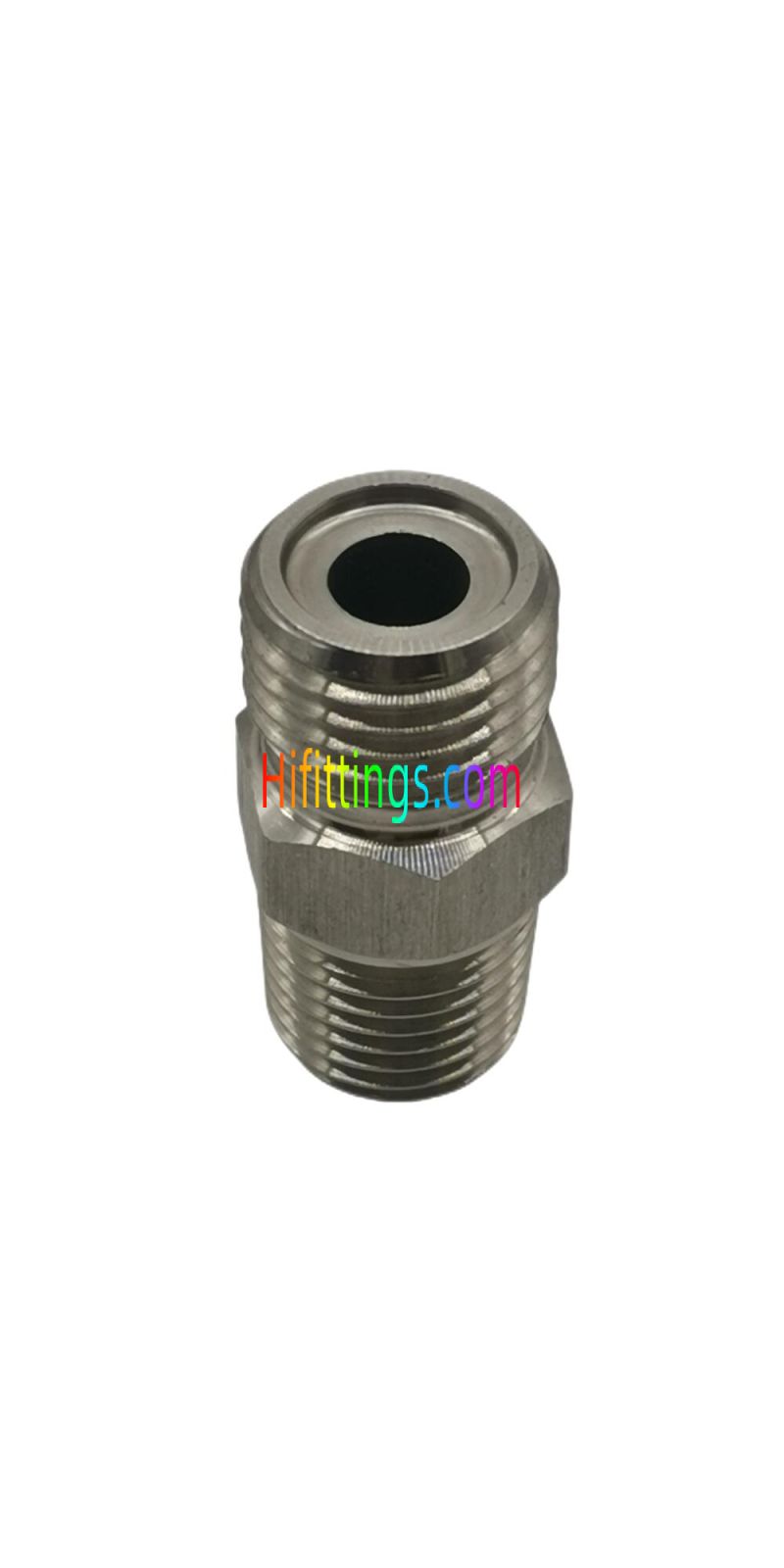

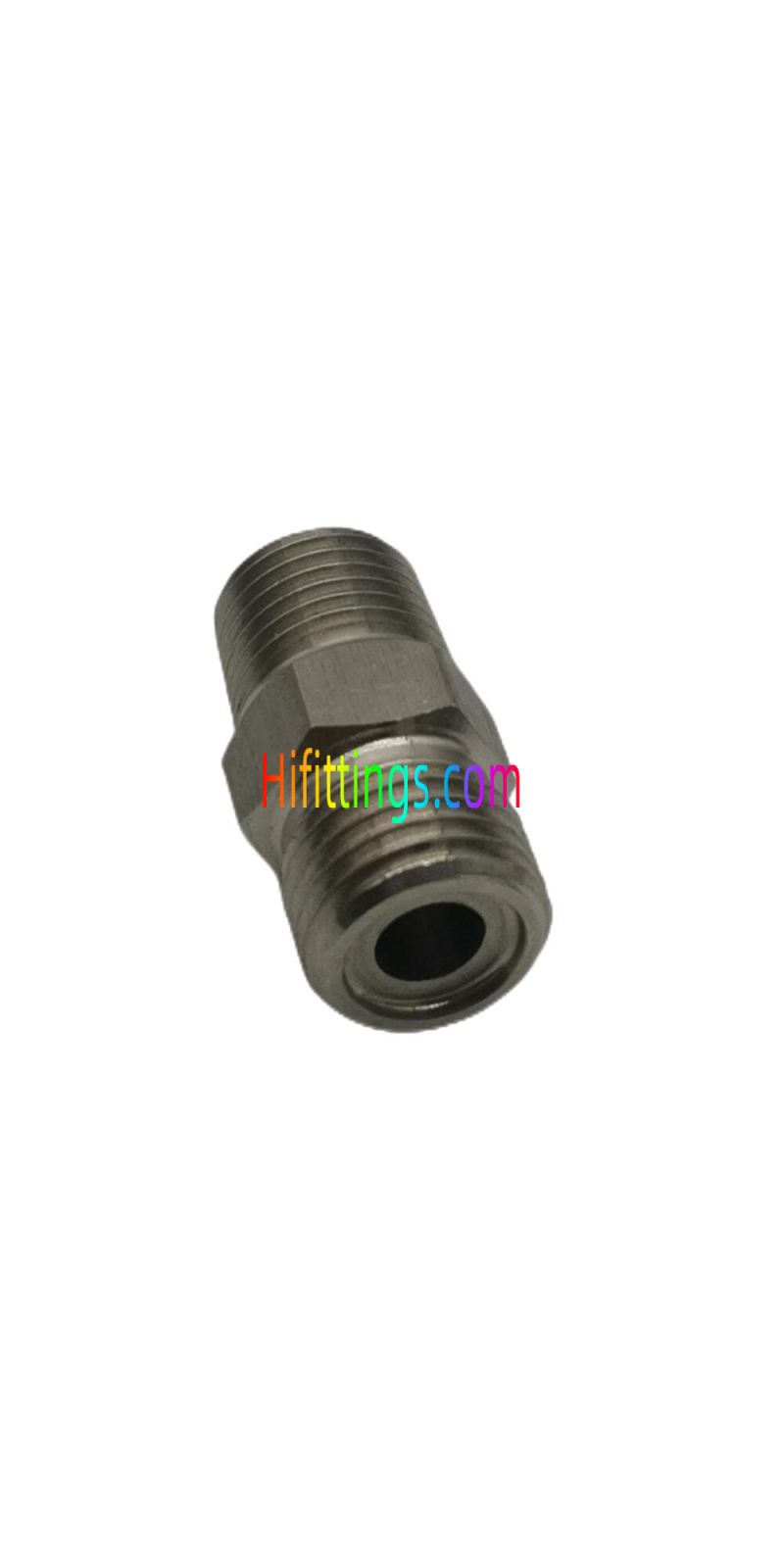

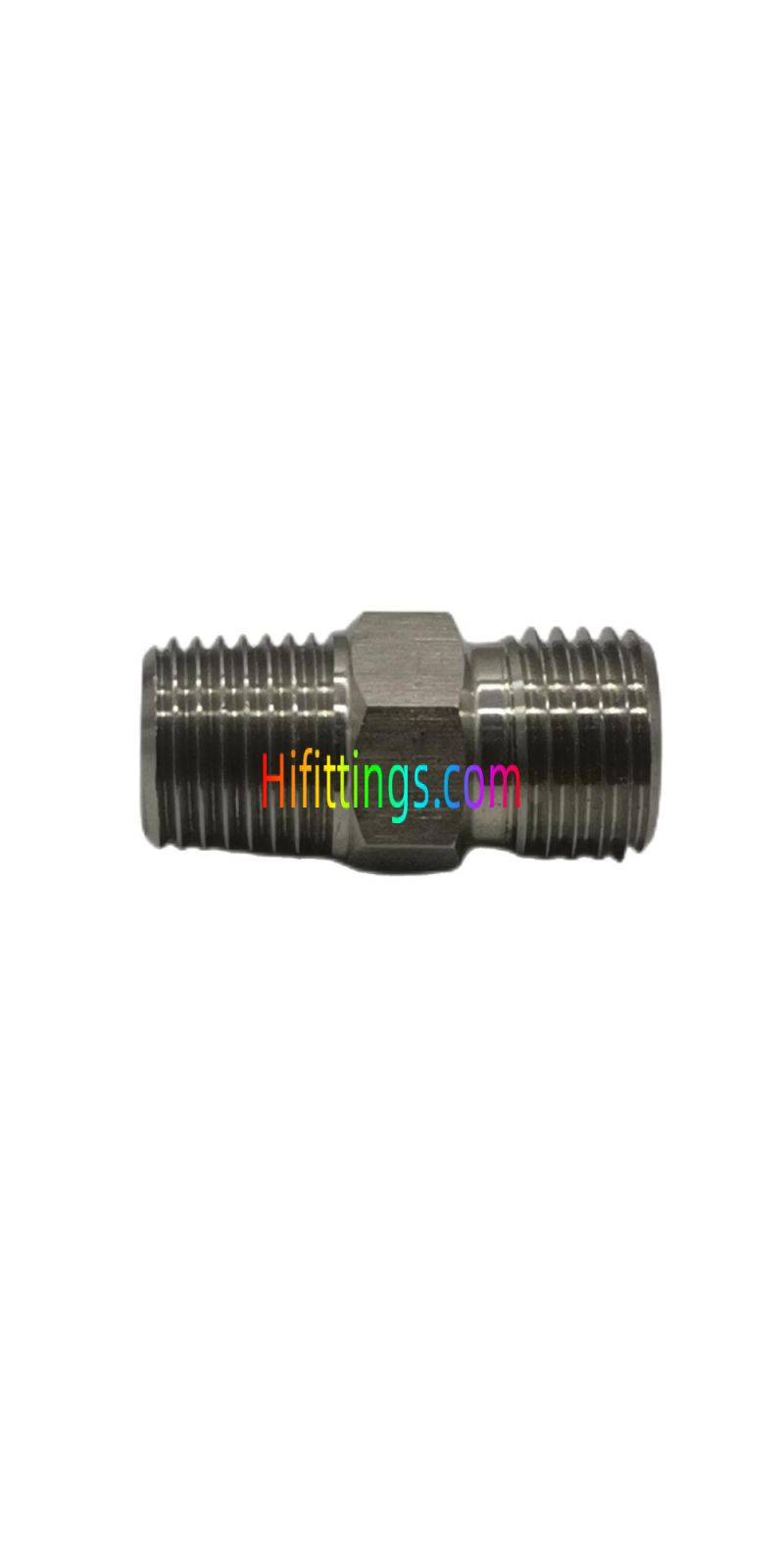

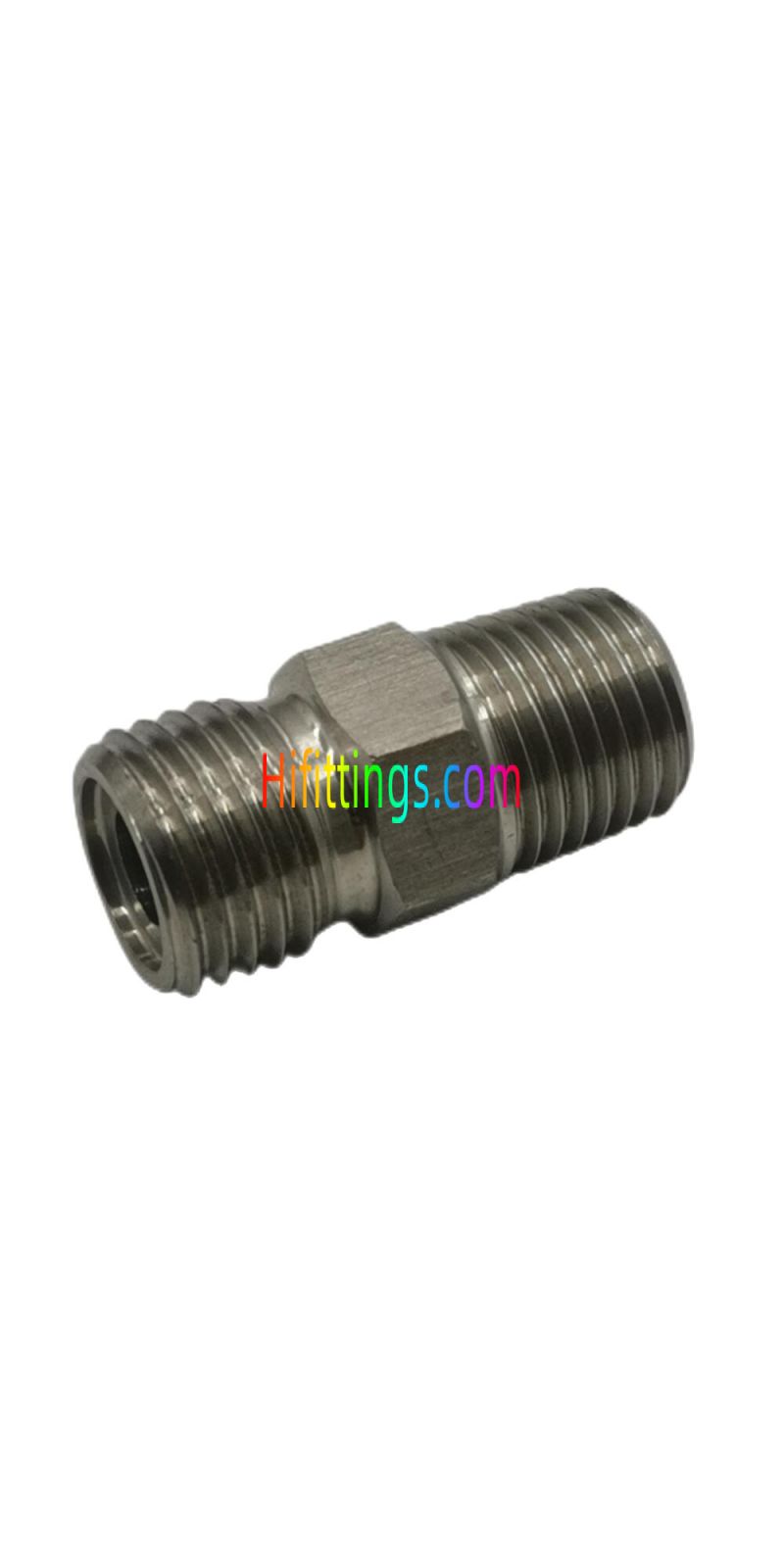

Straight BSPT Male Metric Male O-Ring Face Seal Fittings 1ET-SP
|
Part NO. |
E |
F |
O-Ring - E End |
A |
B |
L |
S1 |
Working Pressure bar |
|
1ET-14-04SP |
M14X1.5 |
R1/4"X19 |
10X1.9 |
11 |
14.5 |
31.5 |
14 |
PN345 |
|
1ET-14-06SP |
M14X1.5 |
R3/8"X19 |
10X1.9 |
11 |
15 |
32 |
17 |
PN345 |
|
1ET-16-04SP |
M16X1.5 |
R1/4"X19 |
11X1.9 |
11 |
14.5 |
31.5 |
17 |
PN345 |
|
1ET-16-06SP |
M16X1.5 |
R3/8"X19 |
11X1.9 |
11 |
15 |
32 |
17 |
PN345 |
|
1ET-18-06SP |
M18X1.5 |
R3/8"X19 |
13X1.9 |
11 |
15 |
32 |
19 |
PN345 |
|
1ET-18-08SP |
M18X1.5 |
R1/2"X14 |
13X1.9 |
11 |
20 |
37 |
22 |
PN345 |
|
1ET-22-08SP |
M22X1.5 |
R1/2"X14 |
16X2.4 |
12 |
20 |
40 |
24 |
PN345 |
|
1ET-22-12SP |
M22X1.5 |
R3/4"X14 |
16X2.4 |
12 |
20 |
40 |
27 |
PN275 |
|
1ET-24-06SP |
M24X1.5 |
R3/8"X19 |
18X2.4 |
13 |
15 |
38 |
27 |
PN345 |
|
1ET-24-08SP |
M24X1.5 |
R1/2"X14 |
18X2.4 |
13 |
20 |
43 |
27 |
PN345 |
|
1ET-27-08SP |
M27X1.5 |
R1/2"X14 |
20X2.4 |
13 |
20 |
43 |
30 |
PN345 |
|
1ET-27-12SP |
M27X1.5 |
R3/4"X14 |
,20X2.4 |
13 |
20 |
43 |
30 |
PN275 |
|
1ET-30-12SP |
M30X1.5 |
R3/4"X14 |
24X2.4 |
14 |
20 |
45 |
32 |
PN275 |
|
1ET-36-12SP |
M36X2 |
R3/4"X14 |
30X3.1 |
16 |
20 |
47 |
38 |
PN275 |
|
1ET-36-16SP |
M36X2 |
R1"X11 |
30X3.1 |
16 |
25.5 |
52.5 |
38 |
PN205 |
|
1ET-39-16SP |
M39X2 |
R1"X11 |
32X3.1 |
18 |
25.5 |
56.5 |
41 |
PN205 |
|
1ET-39-20SP |
M39X2 |
R1.1/4"X11 |
32X3.1 |
18 |
26.5 |
57.5 |
46 |
PN170 |
|
1ET-42-20SP |
M42X2 |
R1.1/4"X11 |
35X3.1 |
20 |
26.5 |
59.5 |
46 |
PN170 |
|
1ET-45-20SP |
M45X2 |
R1.1/4"X11 |
38X3.1 |
21 |
26.5 |
60.5 |
46 |
PN170 |
|
1ET-52-24SP |
M52X2 |
R1.1/2"X11 |
40X3.1 |
22 |
26.5 |
63.5 |
55 |
PN105 |
|
Note: 1. The parameter of E end O-ring is ring outside diameter and ring width. 2. PN = Nominal Pressure |
||||||||
| Forma | Straight |
|---|---|
| Tipo di filettatura | Male |
| Connection Type | BSPT, Metric |
| Tipo di montaggio | Face Seal |
