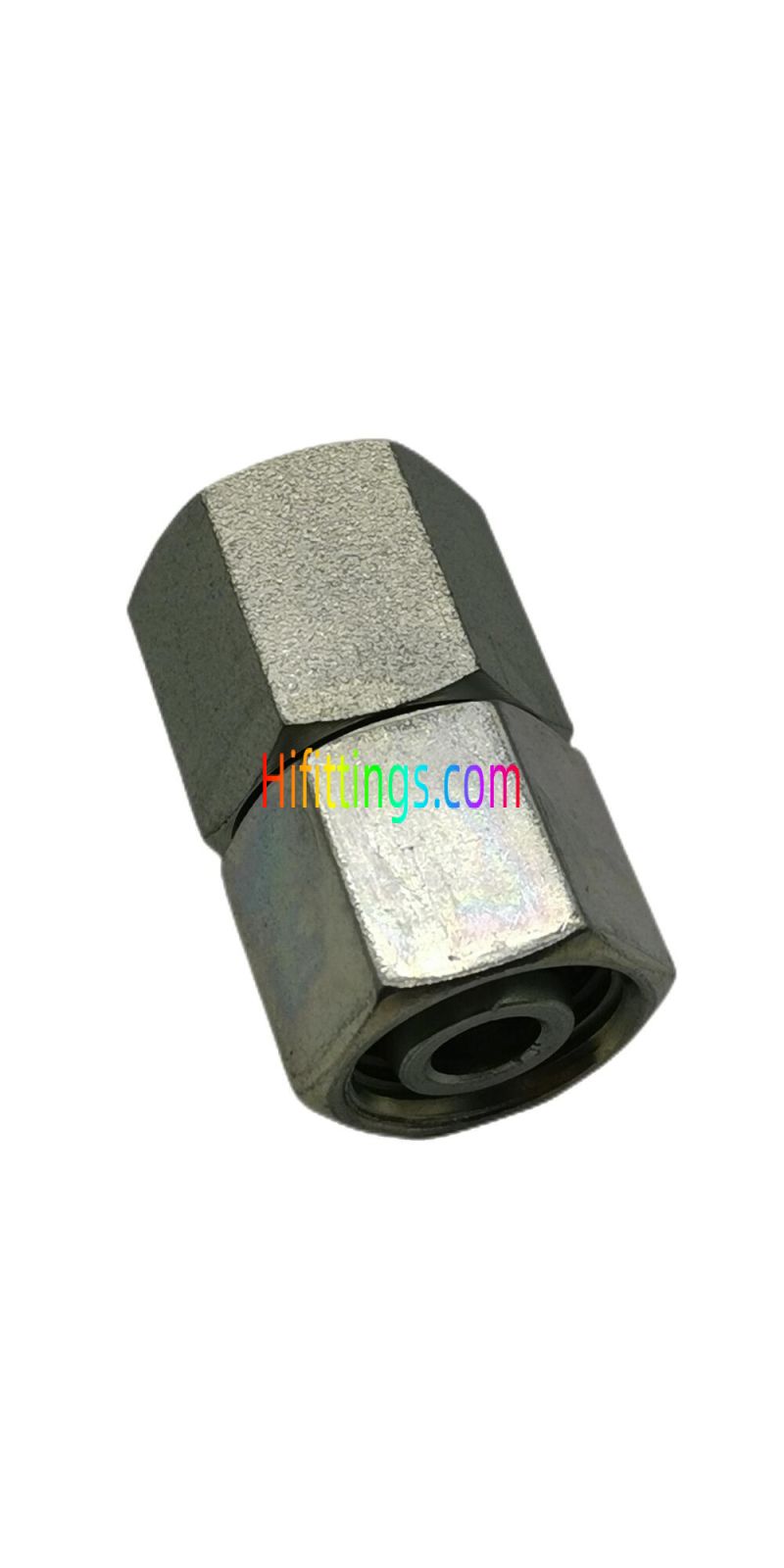

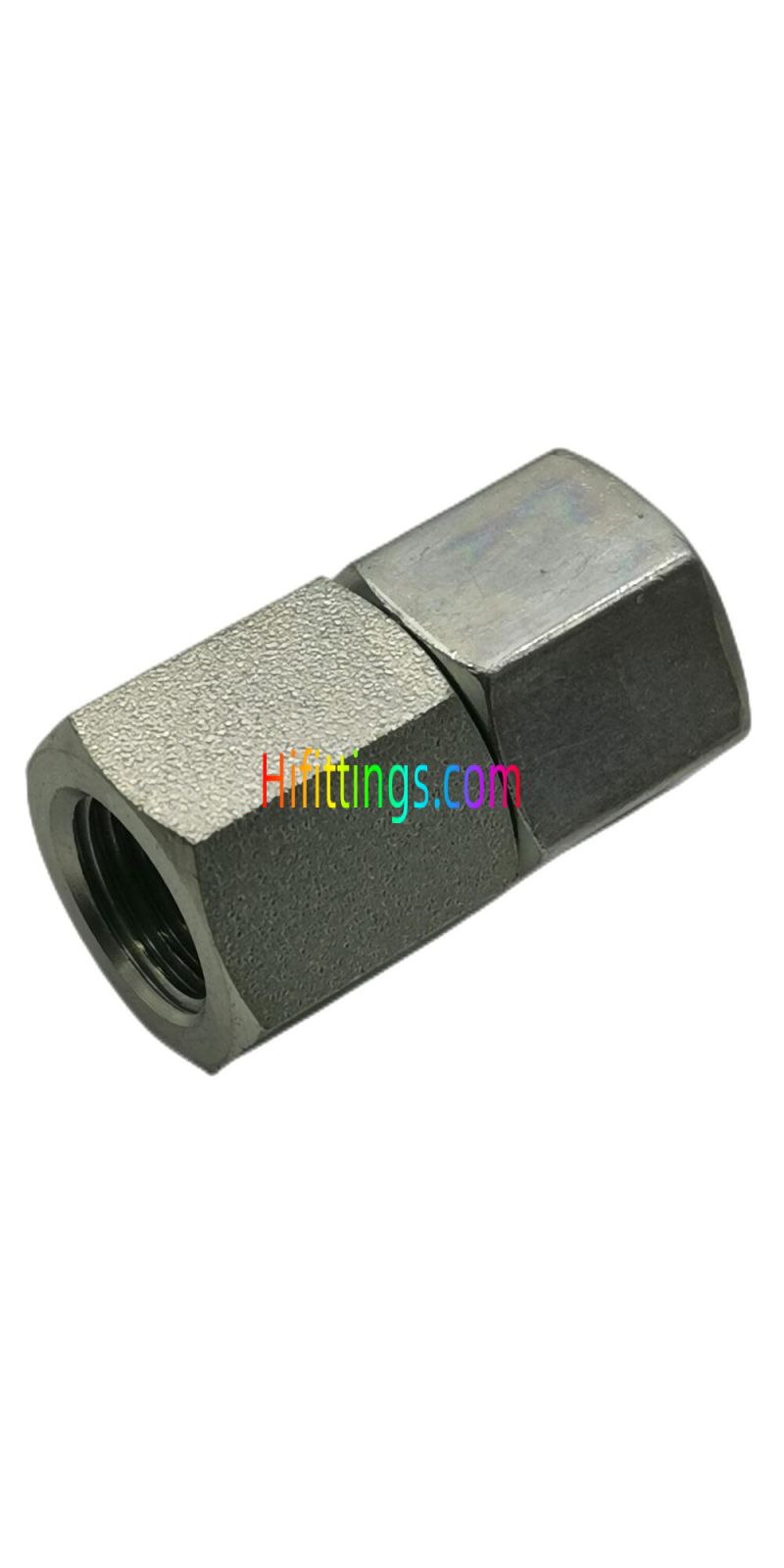

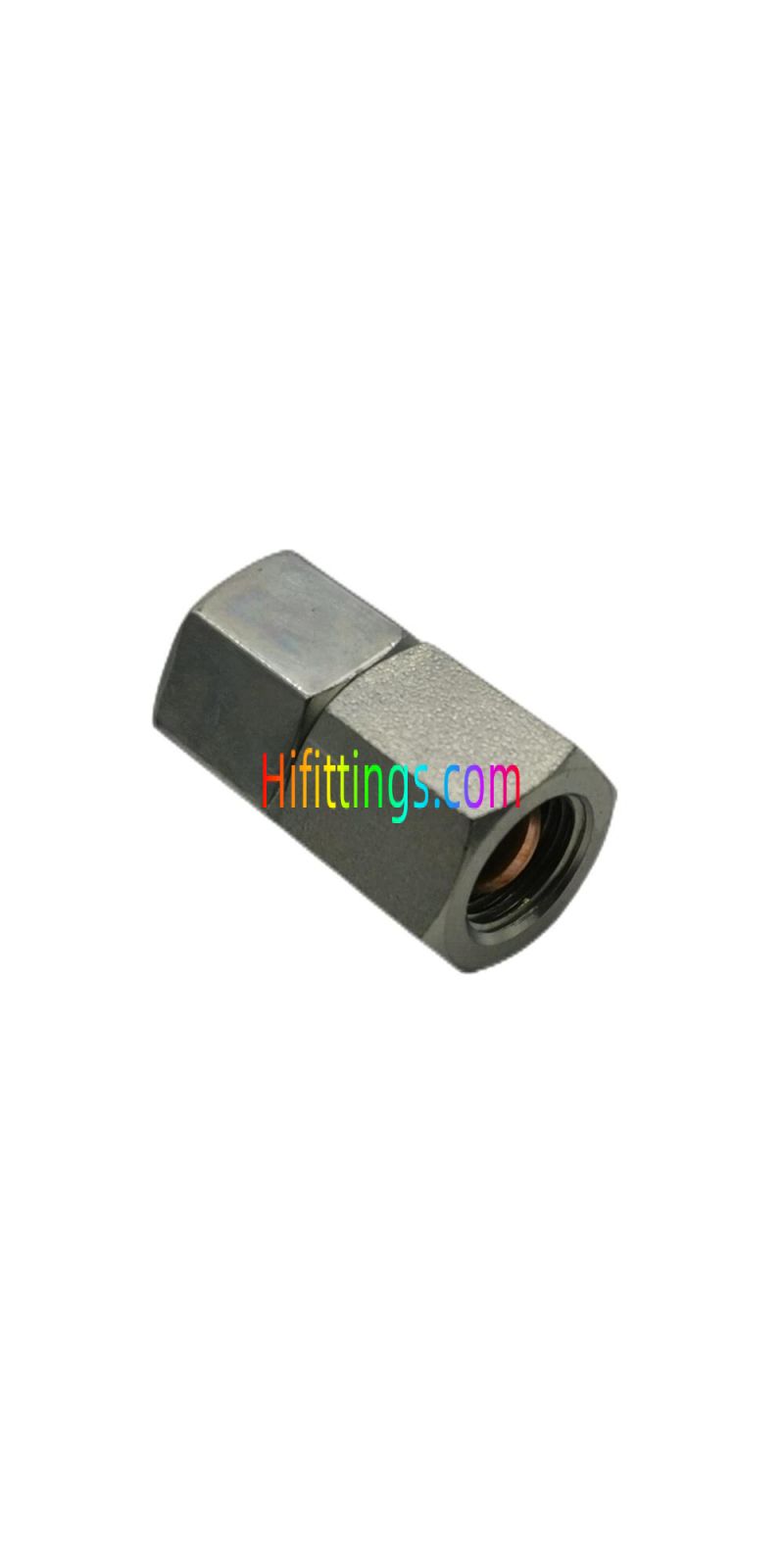

Straight Metric Female BSP Female Pressure Gauge Connector 7BC-GDK/S/7BD-GDK/S
|
Part NO. |
E |
F |
D1 |
11 |
L1 |
S1 |
S2 |
Sealing Ring DKI |
Working Pressure bar |
|
7BC-04-12GDK/S |
G1/4"X19 |
M12X1.5 |
6 |
14.5 |
35.5 |
19 |
14 |
DP-B04DK |
PN315 |
|
7BC-04-14GDK/S |
G1/4"X19 |
M14X1.5 |
8 |
14.5 |
35.5 |
19 |
17 |
DP-B04DK |
PN315 |
|
7BC-04-16GDK/S |
G1/4"X19 |
M16X1.5 |
10 |
14.5 |
36 |
19 |
19 |
DP-B04DK |
PN315 |
|
7BC-04-18GDK/S |
G1/4"X19 |
M18X1.5 |
12 |
14.5 |
36 |
19 |
22 |
DP-B04DK |
PN315 |
|
7BD-04-14GDK/S |
G1/4"X19 |
M14X1.5 |
6 |
14.5 |
35.5 |
19 |
17 |
DP-B04DK |
PN630 |
|
7BD-04-16GDK/S |
G1/4"X19 |
M16X1.5 |
8 |
14.5 |
35.5 |
19 |
19 |
DP-B04DK |
PN630 |
|
7BD-04-18GDK/S |
G1/4"X19 |
M18X1.5 |
10 |
14.5 |
36 |
19 |
22 |
DP-B04DK |
PN630 |
|
7BD-04-20GDK/S |
G1/4"X19 |
M20X1.5 |
12 |
14.5 |
39 |
19 |
24 |
DP-B04DK |
PN630 |
|
7BD-08-14GDK/S |
G1/2"X14 |
M14X1.5 |
6 |
20 |
42.5 |
27 |
17 |
DP-B08DK |
PN630 |
|
7BD-08-16GDK/S |
G1/2"X14 |
M16X1.5 |
8 |
20 |
43 |
27 |
19 |
DP-B08DK |
PN630 |
|
7BD-08-18GDK/S |
G1/2"X14 |
M18X1.5 |
10 |
20 |
43.5 |
27 |
22 |
DP-B08DK |
PN630 |
|
7BD-08-20GDK/S |
G1/2"X14 |
M20X1.5 |
12 |
20 |
45 |
27 |
24 |
DP-B08DK |
PN630 |
| Forma | Straight |
|---|---|
| Tipo di filettatura | Female |
| Connection Type | BSP, Metric |
| Tipo di montaggio | Bite Type |
