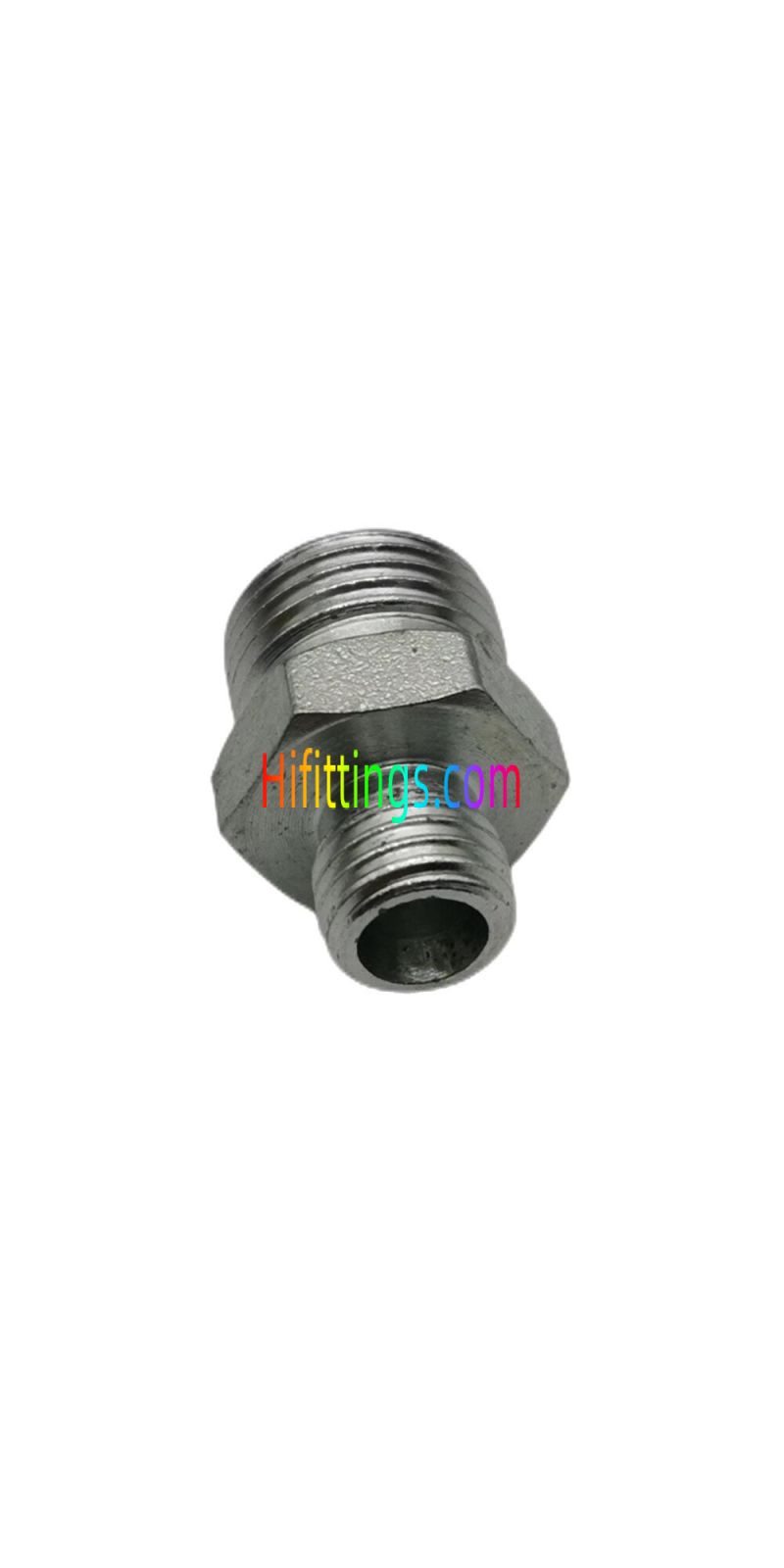

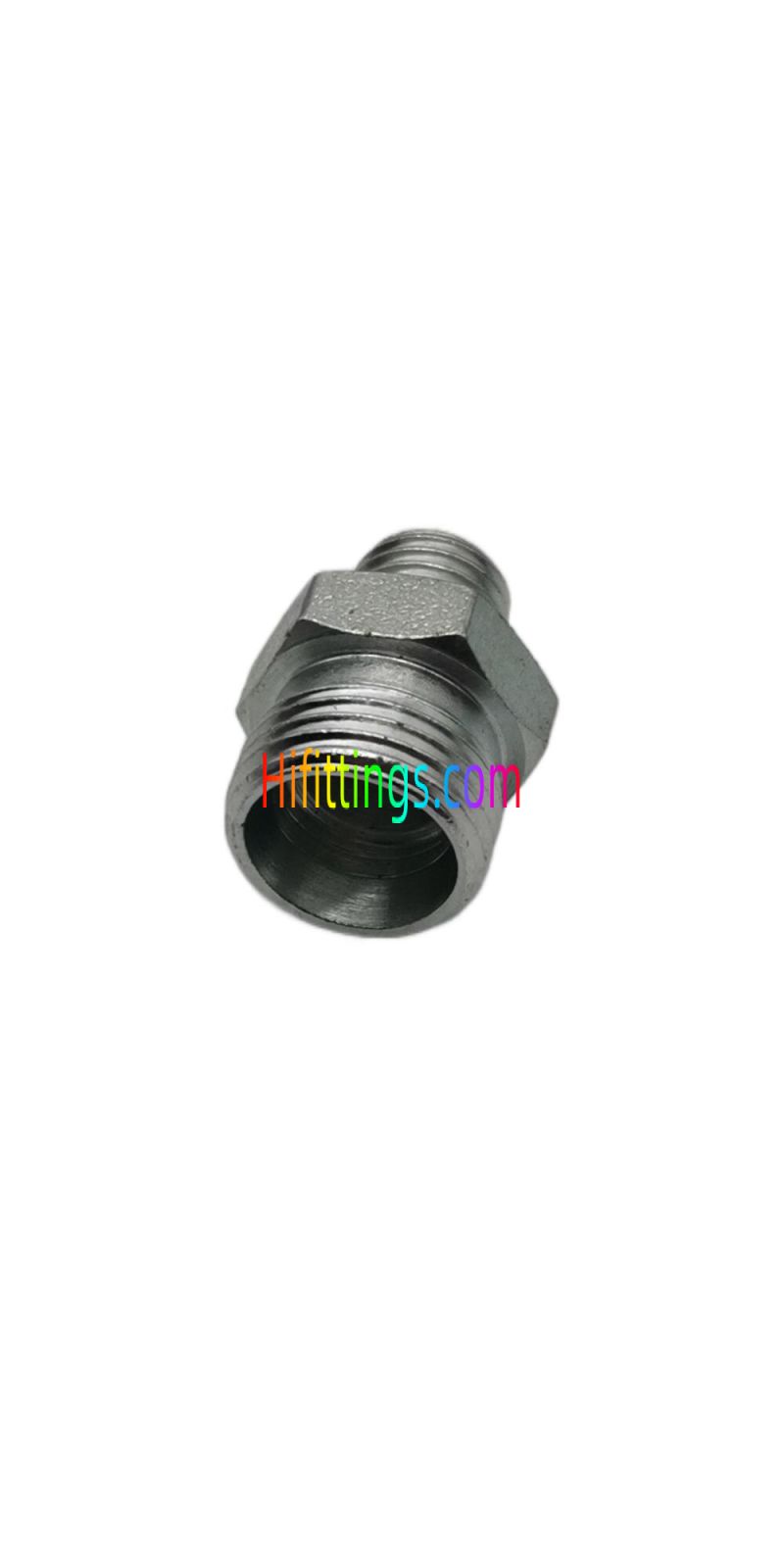

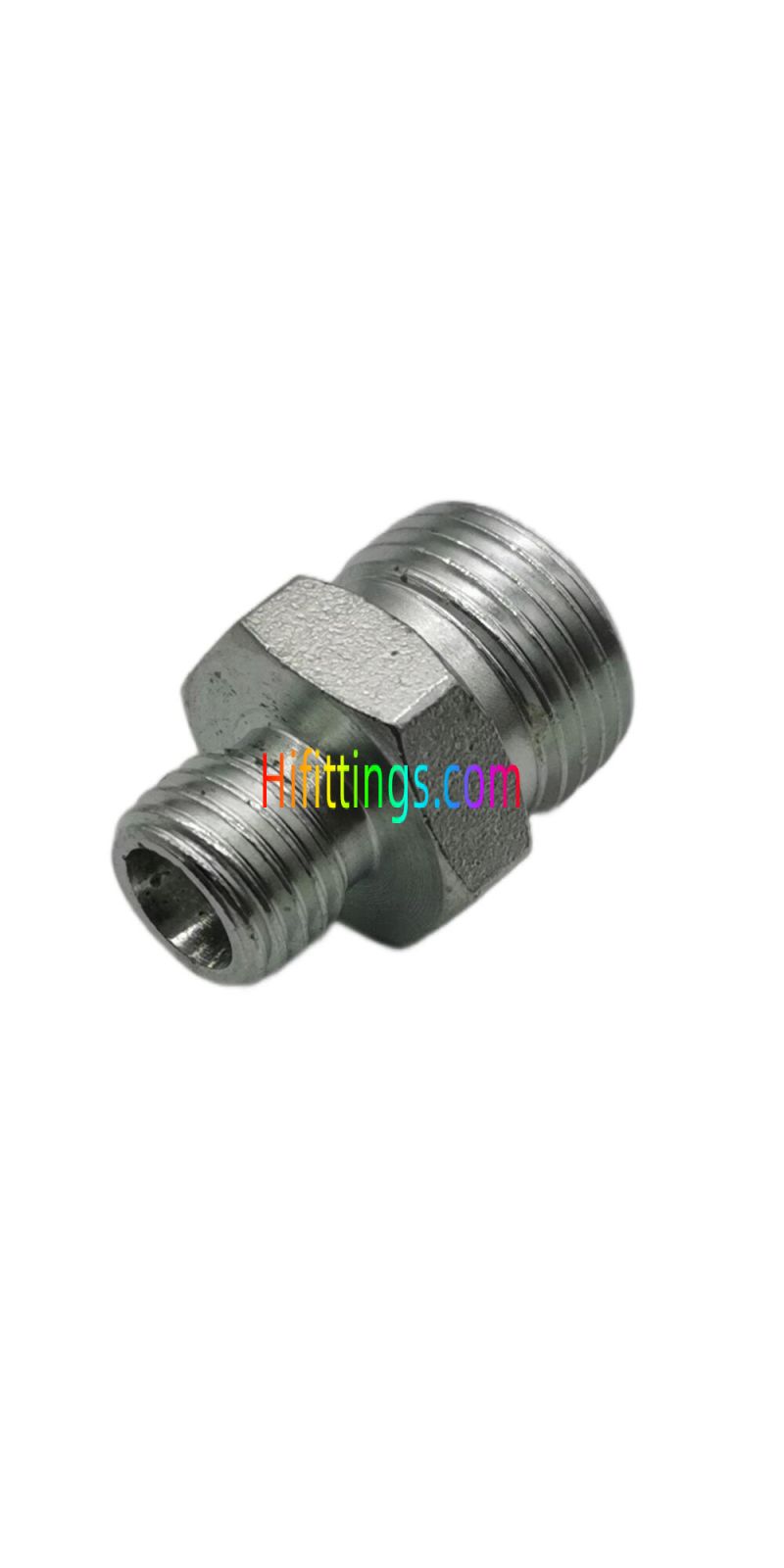

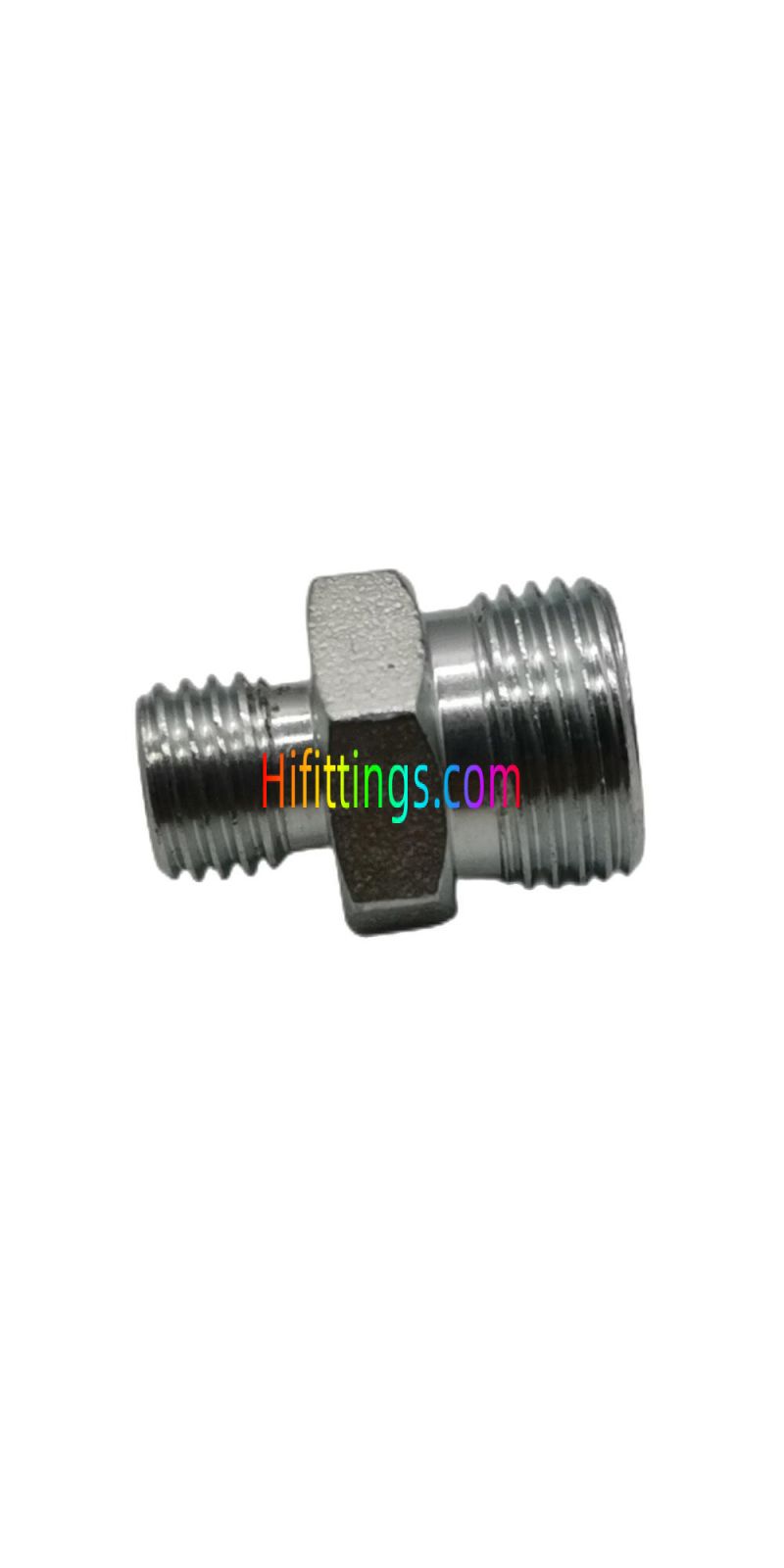

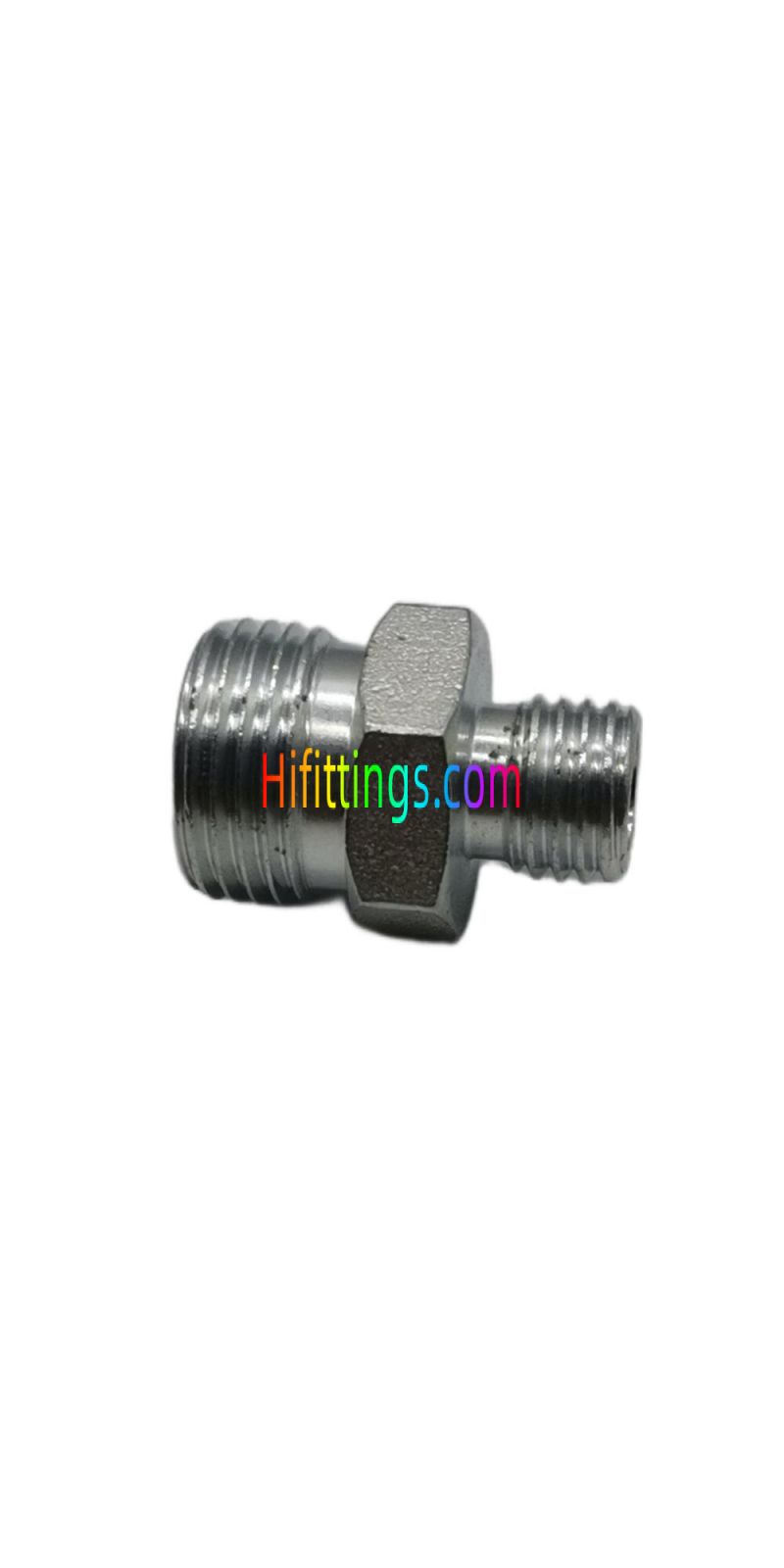

DIN Straight Metric Male Bite Type Reducer Hydraulic Adapter Pipe Fittings 1C/1D
|
Part NO. |
E |
F |
D1 |
D2 |
L1 |
I1 |
S1 |
S2 |
S3 |
Working Pressure bar |
|
1C-12-14 |
M12X1.5 |
M14X1.5 |
6 |
8 |
40 |
11 |
14 |
15 |
17 |
PN315 |
|
1C-12-16 |
M12X1.5 |
M16X1.5 |
6 |
10 |
41 |
12 |
17 |
15 |
19 |
PN315 |
|
1C-12-18 |
M12X1.5 |
M18X1.5 |
6 |
12 |
42 |
13 |
19 |
15 |
22 |
PN315 |
|
1C-14-16 |
M14X1.5 |
M16X1.5 |
8 |
10 |
41 |
13 |
17 |
17 |
19 |
PN315 |
|
1C-14-18 |
M14X1.5 |
M18X1.5 |
8 |
12 |
42 |
13 |
19 |
17 |
22 |
PN315 |
|
1C-16-18 |
M16X1.5 |
M18X1.5 |
10 |
12 |
43 |
14 |
19 |
19 |
22 |
PN315 |
|
1C-16-22 |
M16X1.5 |
M22X1.5 |
10 |
15 |
44.5 |
15 |
24 |
19 |
27 |
PN315 |
|
1C-16-26 |
M16X1.5 |
M26X1.5 |
10 |
18 |
46 |
15.5 |
27 |
19 |
32 |
PN315 |
|
1C-18-22 |
M18X1.5 |
M22X1.5 |
12 |
15 |
44.5 |
15 |
24 |
22 |
27 |
PN315 |
|
1C-18-26 |
M18X1.5 |
M26X1.5 |
12 |
18 |
46 |
15.5 |
27 |
22 |
32 |
PN315 |
|
1C-18-30 |
M18X1.5 |
M30X2 |
12 |
22 |
48 |
17.5 |
32 |
22 |
36 |
PN315 |
|
1C-22-26 |
M22X1.5 |
M26X1.5 |
15 |
18 |
47.5 |
16.5 |
27 |
27 |
32 |
PN160 |
|
1C-22-30 |
M22X1.5 |
M30X2 |
15 |
22 |
49.5 |
18.5 |
32 |
27 |
36 |
PN160 |
|
1C-26-30 |
M26X1.5 |
'M30X2 |
18 |
22 |
50 |
18 |
32 |
32 |
36 |
PN160 |
|
1C-26-36 |
M26X1.5 |
M36X2 |
18 |
28 |
51.5 |
19 |
41 |
32 |
41 |
PN160 |
|
1C-30-36 |
M30X2 |
M36X2 |
22 |
28 |
53.5 |
21 |
41 |
36 |
41 |
PN160 |
|
1C-30-45 |
M30X2 |
M45X2 |
22 |
35 |
58.5 |
21 |
46 |
36 |
50 |
PN160 |
|
1C-36-45 |
M36X2 |
M45X2 |
28 |
35 |
59 |
21 |
46 |
41 |
50 |
PN160 |
|
1D-14-16 |
M14X1.5 |
M16X1.5 |
6 |
8 |
47 |
18 |
17 |
17 |
19 |
PN630 |
|
1D-14-18 |
M14X1.5 |
M18X1.5 |
6 |
10 |
48 |
17.5 |
19 |
17 |
22 |
PN630 |
|
1D-14-20 |
M14X1.5 |
M20X1.5 |
6 |
12 |
50 |
19.5 |
22 |
17 |
24 |
PN630 |
|
1D-16-18 |
M16X1.5 |
M18X1.5 |
8 |
10 |
48 |
17.5 |
19 |
19 |
22 |
PN630 |
|
1D-16-20 |
M16X1.5 |
M20X1.5 |
8 |
12 |
50 |
19.5 |
22 |
19 |
24 |
PN630 |
|
1D-18-20 |
M18X1.5 |
M20X1.5 |
10 |
12 |
51 |
19 |
22 |
22 |
24 |
PN630 |
|
1D-18-22 |
M18X1.5 |
M22X1.5 |
10 |
14 |
54 |
20.5 |
24 |
22 |
27 |
PN630 |
|
1D-18-30 |
M18X1.5 |
M30X2 |
10 |
20 |
59.5 |
22 |
32 |
22 |
36 |
PN630 |
|
1D-20-22 |
M20X1.5 |
M22X1.5 |
12 |
14 |
54 |
20.5 |
24 |
24 |
27 |
PN400 |
|
1D-20-24 |
M20X1.5 |
M24X1.5 |
12 |
16 |
54 |
20 |
27 |
24 |
30 . |
PN400 |
|
1D-20-30 |
M20X1.5 |
M30X2 |
12 |
20 |
59.5 |
22 |
32 |
24 |
36 |
PN400 |
|
1D-22-24 |
M22X1.5 |
M24X1.5 |
14 |
16 |
57 |
21.5 |
27 |
27 |
30 |
PN400 |
|
1D-24-30 |
M24X1.5 |
M30X2 |
16 |
20 |
62.5 |
23 |
32 |
30 |
36 |
PN400 |
|
1D-24-36 |
M24X1.5 |
M36X2 |
16 |
25 |
67.5 |
25.5 |
41 |
30 |
46 |
PN400 |
|
1D-30-36 |
M30X2 |
M36X2 |
20 |
25 |
71 |
25.5 |
41 |
36 |
46 |
PN400 |
|
1D-30-42 |
M30X2 |
M42X2 |
20 |
30 |
74 |
26 |
46 |
36 |
50 |
PN400 |
|
1D-36-42 |
M36X2 |
M42X2 |
25 |
30 |
77 |
26.5 |
46 |
46 |
50 |
PN400 |
|
1D-42-52 |
M42X2 |
M52X2 |
30 |
38 |
86.5 |
28.5 |
55 |
50 |
60 |
PN315 |
|
Note：1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO.,for example 1C-30-36RN. 2. PN = Nominal Pressure |
||||||||||
| Forma | Straight |
|---|---|
| Tipo di filettatura | Male |
| Connection Type | Metric |
| Tipo di montaggio | Bite Type |
