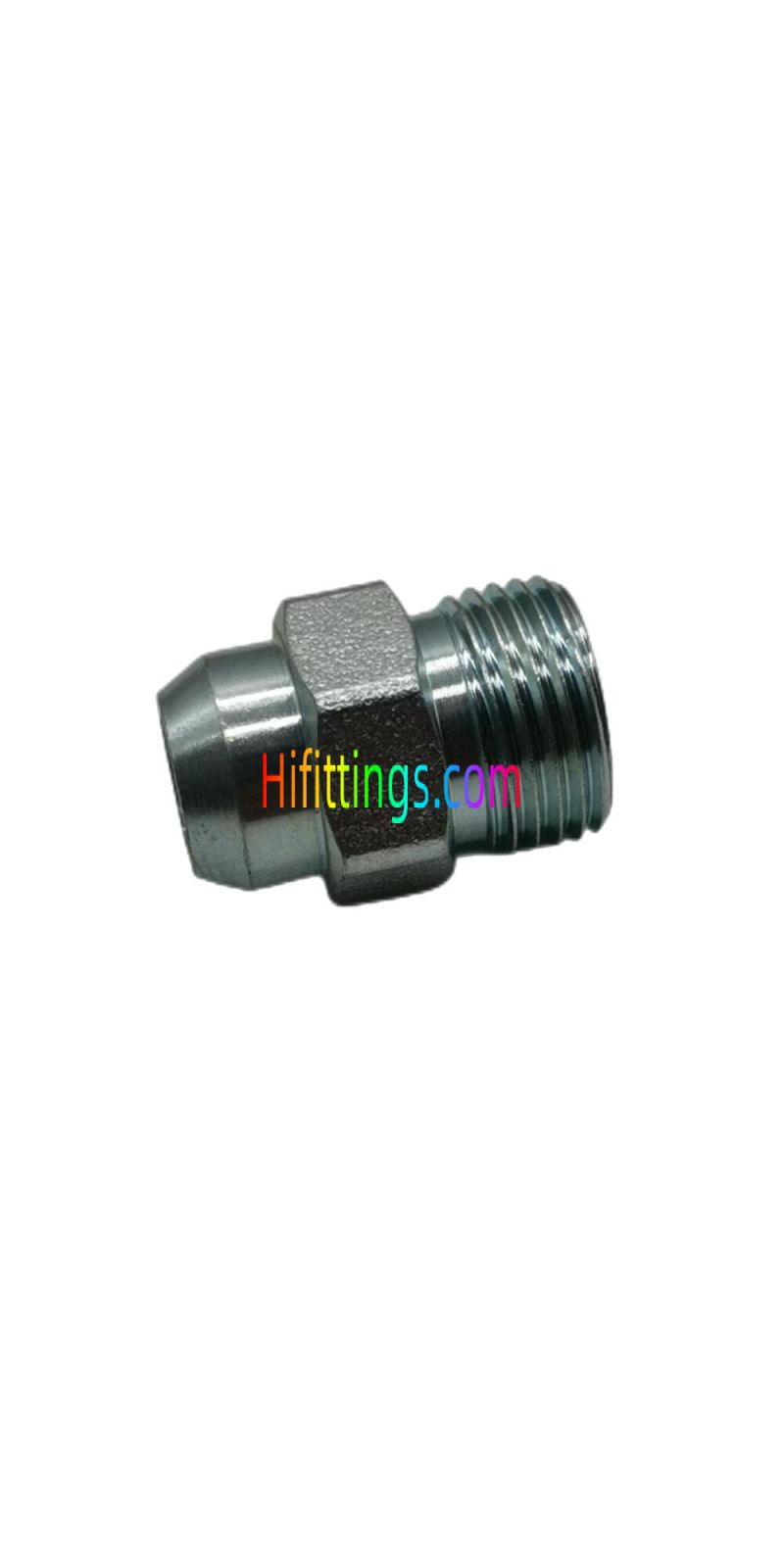

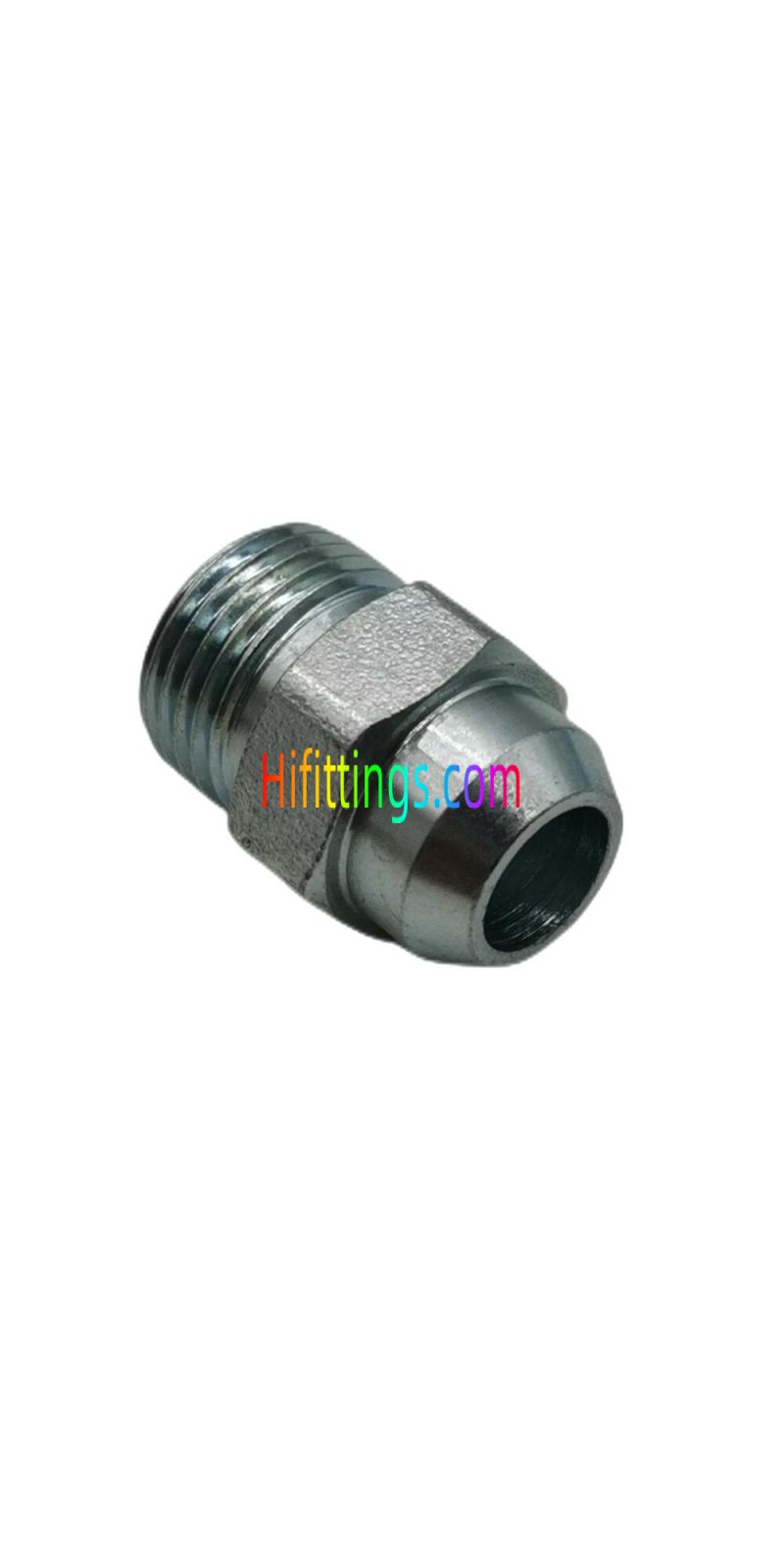

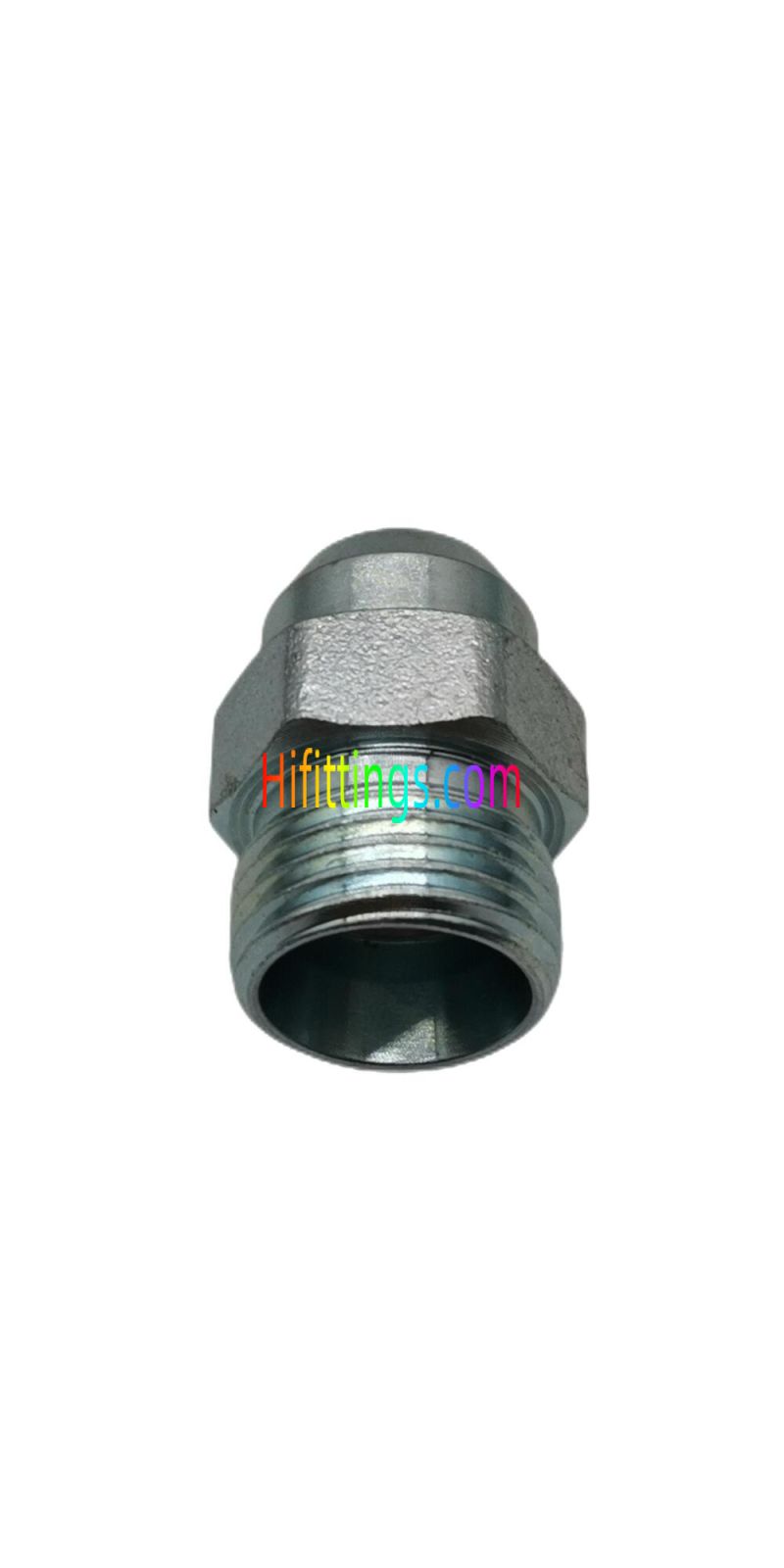

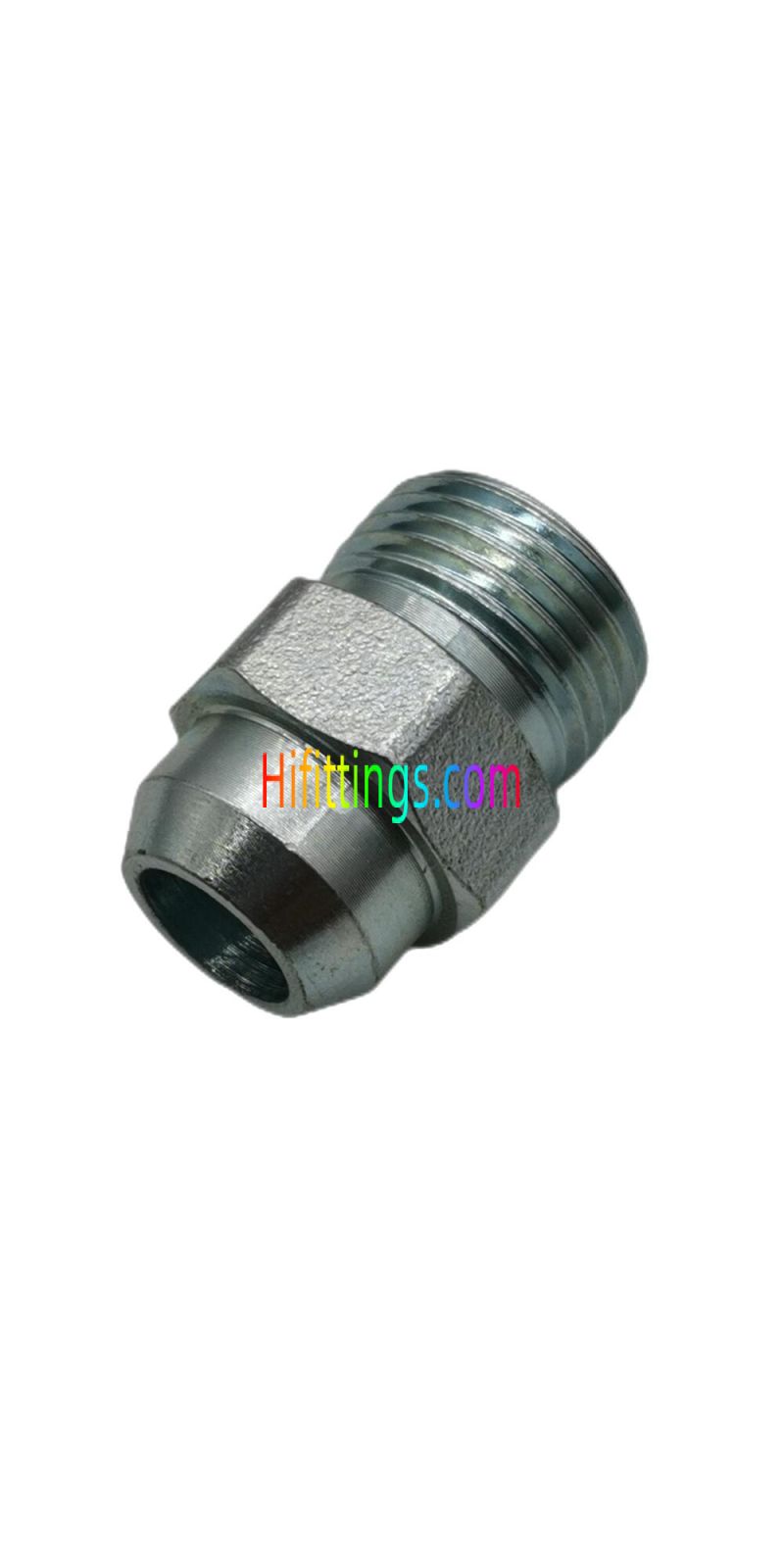

Straight Metric Male Bite Type Weld Tube Fittings 1CW/1DW
|
Part NO. |
E |
D1 |
D2 |
B |
D |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1 CW-12-06 |
M12x1.5 |
6 |
6 |
7 |
10 |
7 |
22 |
12 |
14 |
PN315 |
|
1 CW-14-08 |
M 14x1.5 |
8 |
8 |
8 |
12 |
8 |
23 |
14 |
17 |
PN315 |
|
1 CW-16-10 |
M16x1.5 |
10 |
10 |
8 |
14 |
9 |
24 |
17 |
19 |
PN315 |
|
1 CW-18-12 |
M18x1.5 |
12 |
12 |
8 |
16 |
10 |
25 |
19 |
22 |
PN315 |
|
1 CW-22-15 |
M22x1.5 |
15 |
15 |
10 |
19 |
11 |
26 |
22 |
27 |
PN315 |
|
1 CW-26-18 |
M26X1.5 |
18 |
18 |
10 |
22 |
11.5 |
28 |
27 |
32 |
PN315 |
|
1 CW-26-22 |
M26X1.5 |
18 |
22 |
10 |
27 |
13.5 |
28 |
27 |
32 |
PN160 |
|
1 CW-30-22 |
M30x2 |
22 |
22 |
12 |
27 |
13.5 |
30 |
32 |
36 |
PN160 |
|
1 CW-30-25 |
M30x2 |
22 |
25 |
12 |
31 |
13.5 |
30 |
32 |
36 |
PN160 |
|
1 CW-36-28 |
M36x2 |
28 |
28 |
12 |
32 |
16.5 |
33 |
38 |
41 |
PN160 |
|
1 CW-45-35 |
M45X2 |
35 |
35 |
14 |
40 |
14.5 |
36 |
46 |
50 |
PN160 |
|
1 CW-52-42 |
M52X2 |
42 |
42 |
16 |
46 |
16 |
39 |
55 |
60 |
PN160 |
|
1DW-14-06 |
M 14x1.5 |
6 |
6 |
7 |
11 |
11 |
26 |
14 |
17 |
PN630 |
|
1DW-16-08 |
M 16x1.5 |
8 |
8 |
8 |
13 |
13 |
28 |
17 |
19 |
PN630 |
|
1DW-18-10 |
M 18x1.5 |
10 |
10 |
8 |
15 |
12.5 |
29 |
19 |
22 |
PN630 |
|
1DW-20-12 |
M20X1.5 |
12 |
12 |
10 |
17 |
14.5 |
31 |
22 |
24 |
PN630 |
|
1DW-22-14 |
M22x1.5 |
14 |
14 |
10 |
19 |
16 |
34 |
24 |
27 |
PN630 |
|
1DW-24-16 |
M24x1.5 |
16 |
16 |
10 |
21 |
15.5 |
34 |
27 |
30 |
PN400 |
|
1DW-30-20 |
M30x2 |
20 |
20 |
12 |
26 |
17.5 |
39 |
32 |
36 |
PN400 |
|
1DW-36-25 |
M36x2 |
25 |
25 |
12 |
31 |
20 |
44 |
41 |
46 |
PN400 |
|
1DW-42-30 |
M42x2 |
30 |
30 |
14 |
36 |
20.5 |
47 |
46 |
50 |
PN400 |
|
1DW-52-38 |
M52X2 |
38 |
38 |
16 |
44 |
23 |
54 |
55 |
60 |
PN315 |
|

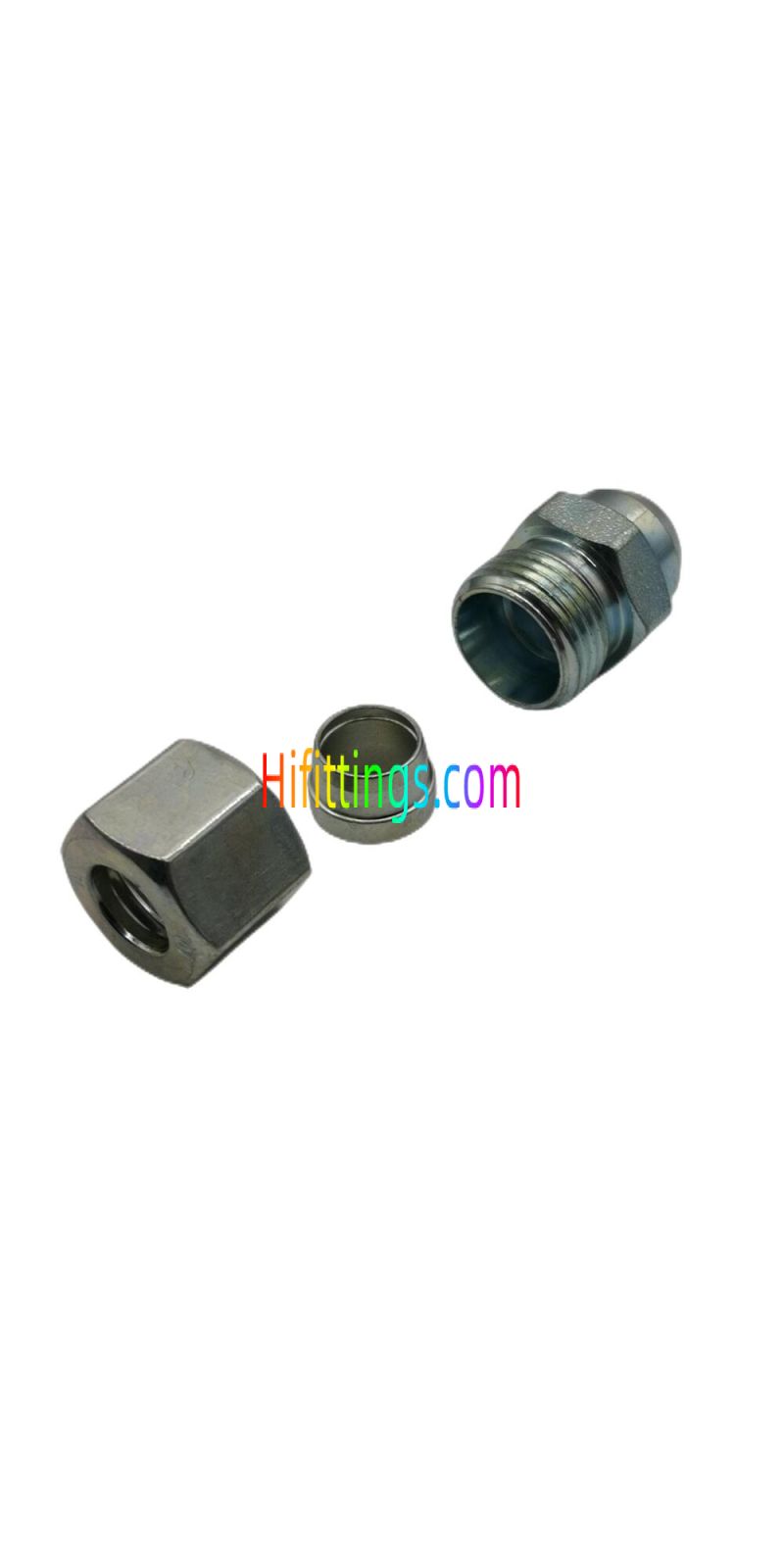

Note: 1.In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO., for example 1DW-20-12RN. 2. PN = Nominal Pressure |
||||||||||
| Forma | Straight |
|---|---|
| Tipo di filettatura | Male |
| Connection Type | Metric, Weld |
| Tipo di montaggio | Bite Type, Weld |
