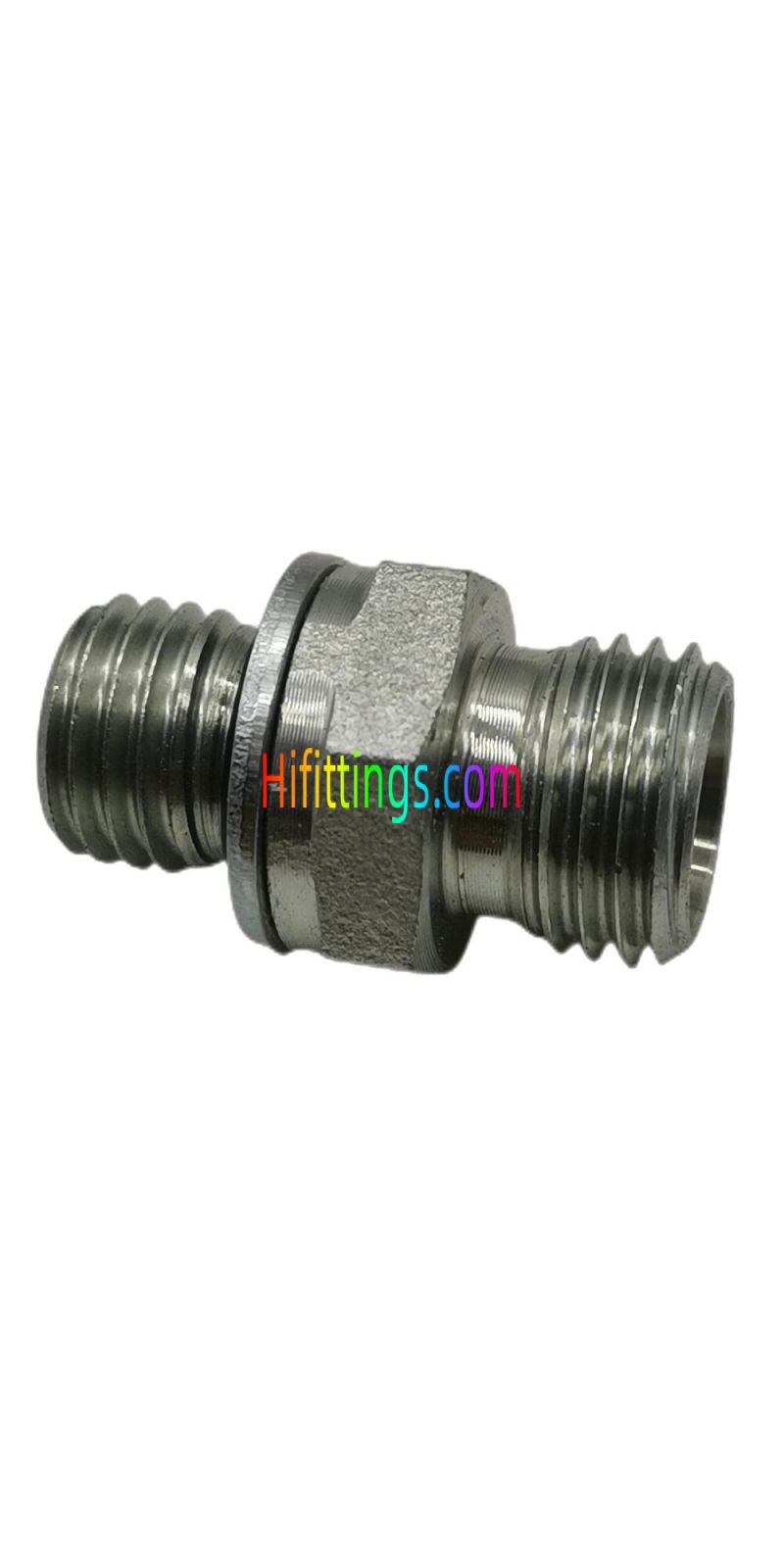

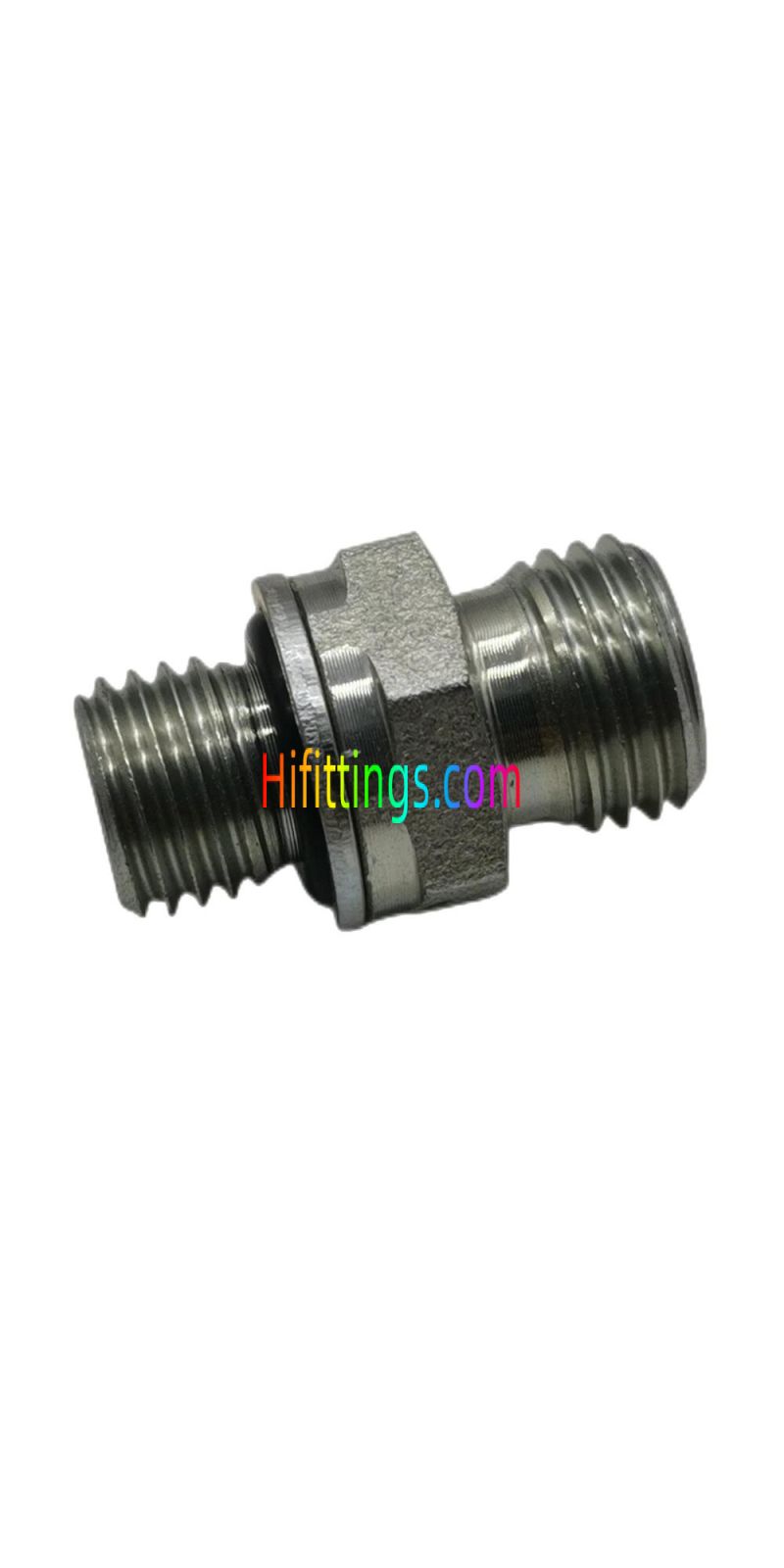

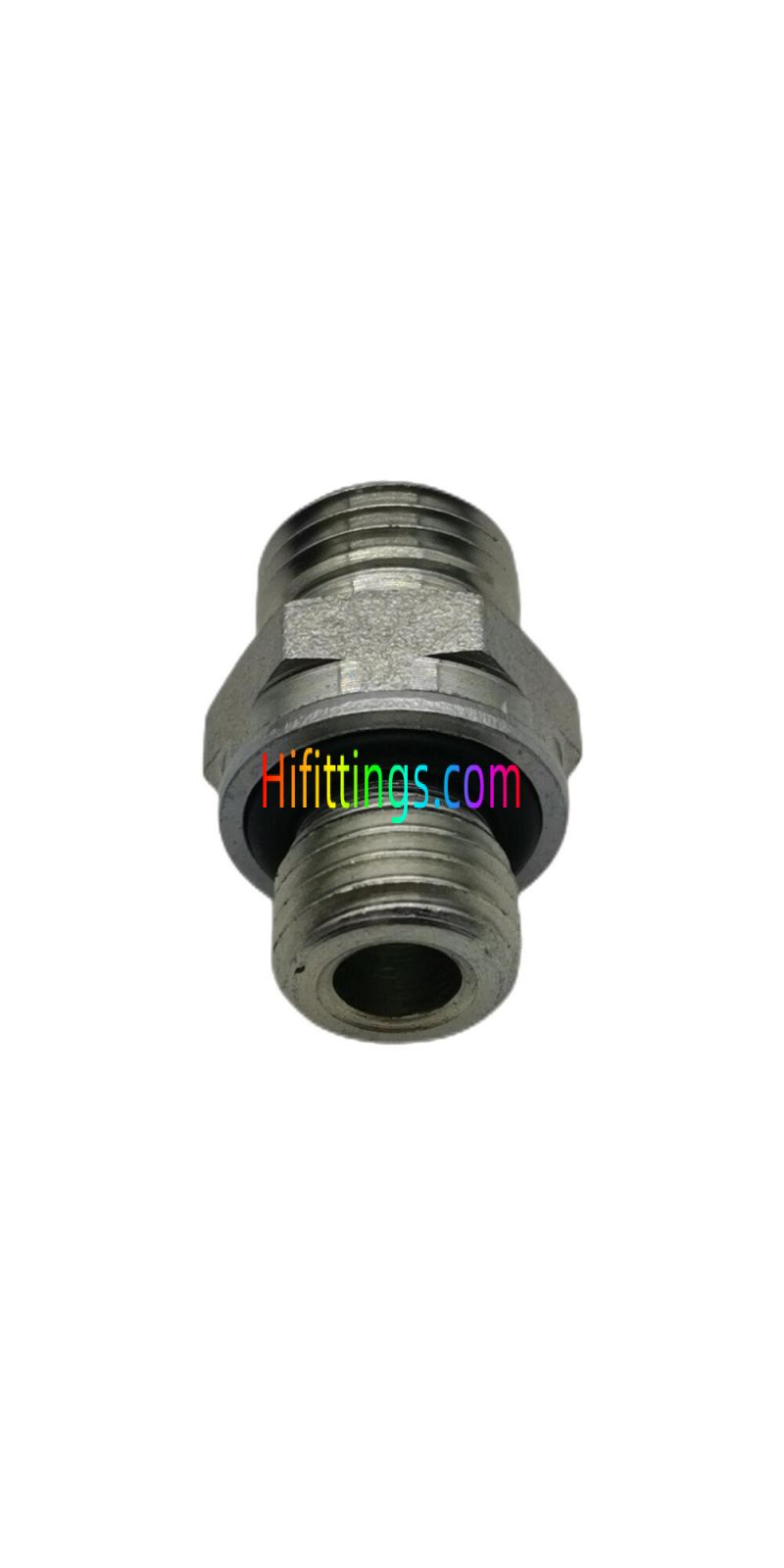

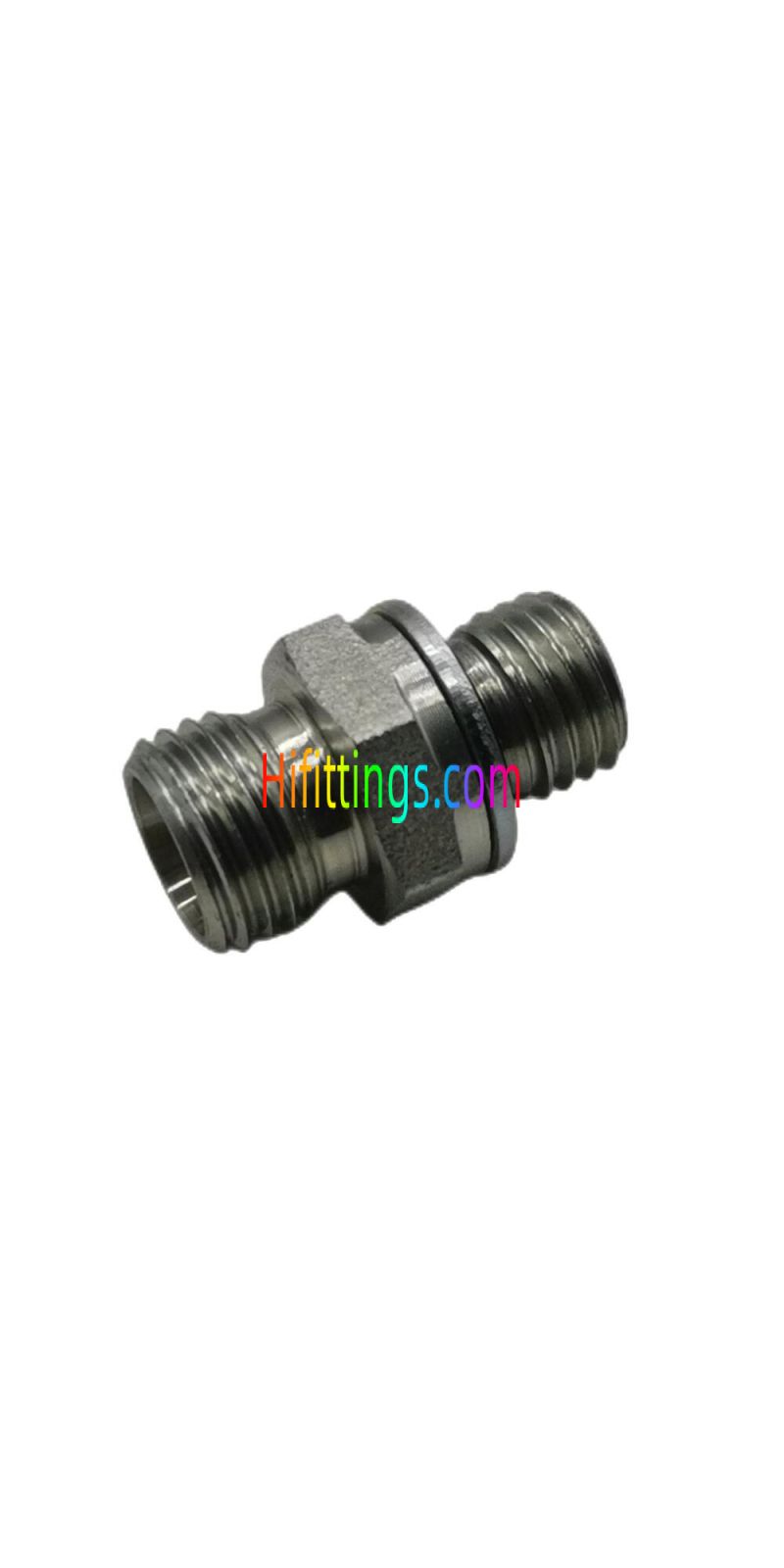

Straight Metric Male Stud End Bite Type Tube Fittings 1CH/1DH
|
Part NO. |
E |
F |
D1 |
O-Ring |
B |
11 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1CH-12-10 |
M12X1.5 |
M10X1 |
6 |
8.1X1.6 |
8.5 |
9.5 |
23 |
14 |
14 |
PN315 |
|
1CH-14 |
M14X1.5 |
M14X1.5 |
8 |
11.3X2.4 |
11 |
10 |
25 |
19 |
17 |
PN315 |
|
1CH-14-12 |
M14X1.5 |
M12X1.5 |
8 |
9.3X2.4 |
11 |
10 |
25 |
17 |
17 |
PN315 |
|
1CH-16-14 |
M16X1.5 |
M14X1.5 |
10 |
11.3X2.4 |
11 |
13 |
26 |
19 |
19 |
PN315 |
|
1CH-18-14 |
M18X1.5 |
M14X1.5 |
12 |
11.3X2.4 |
11 |
11 |
25.5 |
19 |
22 |
PN315 |
|
1CH-14-18 |
M14X1.5 |
M18X1.5 |
8 |
15.3X2.4 |
12.5 |
11.5 |
26.5 |
24 |
17 |
PN315 |
|
1CH-16 |
M16X1.5 |
M16X1.5 |
10 |
13.3X2.4 |
11.5 |
13 |
28 |
22 |
19 |
PN315 |
|
1CH-16-18 |
M16X1.5 |
M18X1.5 |
10 |
15.3X2.4 |
12.5 |
12.5 |
28 |
24 |
19 |
PN315 |
|
1CH-18-16 |
M18X1.5 |
M16X1.5 |
12 |
13.3X2.4 |
11.5 |
12 |
27 |
22 |
22 |
PN315 |
|
1CH-22-16 |
M22X1.5 |
M16X1.5 |
12 |
13.3X2.4 |
11.5 |
13.5 |
29.5 |
24 |
27 |
PN315 |
|
1CH-22-18 |
M22X1.5 |
M18X1.5 |
15 |
15.3X2.4 |
12.5 |
13.5 |
29 |
24 |
27 |
PN315 |
|
1CH-16-22 |
M16X1.5 |
M22X1.5 |
10 |
19.3X2.4 |
13 |
14 |
29.5 |
27 |
19 |
PN315 |
|
1CH-22-20 |
M22X1.5 |
M20X1.5 |
15 |
17.3X2.4 |
12 |
15 |
30.5 |
27 |
27 |
PN315 |
|
1CH-22 |
M22X1.5 |
M22X1.5 |
12 |
19.3X2.4 |
13 |
15 |
31 |
27 |
27 |
PN315 |
|
1CH-26-22 |
M26X1.5 |
M22X1.5 |
18 |
19.3X2.4 |
13 |
14.5 |
31 |
27 |
32 |
PN315 |
|
1CH-26 |
M26X1.5 |
M26X1.5 |
18 |
23.5X3.0 |
13.5 |
13.5 |
31 |
32 |
32 |
PN315 |
|
1CH-26-27 |
M26X1.5 |
M27X2 |
18 |
23.5X3.0 |
16 |
14.5 |
32 |
32 |
32 |
PN315 |
|
1CH-26-33 |
M26X1.5 |
M33X2 |
18 |
29.5X3.0 |
16 |
15.5 |
33 |
41 |
32 |
PN315 |
|
1CH-30-22 |
M30X2 |
M22X1.5 |
22 |
19.3X2.4 |
13 |
17.5 |
33 |
32 |
41 |
PN160 |
|
1CH-30-27 |
M30X2 |
M27X2 |
22 |
23.5X3.0 |
16 |
16.5 |
33 |
32 |
36 |
PN160 |
|
1CH-30 |
M30X2 |
M30X2 |
22 |
26.5X3.0 |
16 |
17.5 |
33 |
36 |
36 |
PN160 |
|
1CH-36-27 |
M36X2 |
M27X2 |
28 |
23.5X3.0 |
16 |
17.5 |
34 |
41 |
41 |
PN160 |
|
1CH-36-33 |
M36X2 |
M33X2 |
28 |
29.5X3.0 |
16 |
17.5 |
34 |
41 |
41 |
PN160 |
|
1CH-36-42 |
M36X2 |
M42X2 |
28 |
38.5X3.0 |
16 |
18.5 |
35 |
50 |
41 |
PN160 |
|
1CH-45-33 |
M45X2 |
M33X2 |
35 |
29.5X3.0 |
16 |
17.5 |
37 |
46 |
50 |
PN160 |
|
1CH-45-42 |
M45X2 |
M42X2 |
35 |
38.5X3.0 |
16 |
17.5 |
37 |
50 |
50 |
PN160 |
|
1CH-52-48 |
M52X2 |
M48X2 |
42 |
44.5X3.0 |
17.5 |
19 |
42 |
55 |
60 |
PN160 |
|
1DH-14 |
M14X1.5 |
M14X1.5 |
6 |
11.3X2.4 |
11 |
15 |
28 |
19 |
17 |
PN630 |
|
1DH-14-12 |
M14X1.5 |
M12X1.5 |
6 |
9.3X2.4 |
11 |
13 |
28 |
17 |
17 |
PN630 |
|
1DH-16-14 |
M16X1.5 |
M14X1.5 |
8 |
11.3X2.4 |
11 |
15 |
30 |
19 |
19 |
PN630 |
|
1DH-18-16 |
M18X1.5 |
M16X1.5 |
10 |
13.3X2.4 |
11.5 |
15 |
31 |
22 |
22 |
PN630 |
|
1DH-20-14 |
M20X1.5 |
M14X1.5 |
12 |
11.3X2.4 |
11 |
15 |
31 |
22 |
24 |
PN630 |
|
1DH-20-16 |
M20X1.5 |
M16X1.5 |
12 |
13.3X2.4 |
11.5 |
15 |
31 |
22 |
24 |
PN630 |
|
1DH-20-18 |
M20X1.5 |
M18X1.5 |
12 |
15.3X2.4 |
12.5 |
17 |
33 |
24 |
24 |
PN630 |
|
1DH-20-22 |
M20X1.5 |
M22X1.5 |
12 |
19.3X2.4 |
13 |
17.5 |
35 |
27 |
30 |
PN630 |
|
1DH-24-22 |
M24X1.5 |
M22X1.5 |
16 |
19.3X2.4 |
13 |
18.5 |
37 |
27 |
30 |
PN400 |
|
1DH-30 |
M30X2 |
M30X2 |
20 |
26.5X3.0 |
16 |
20.5 |
42 |
36 |
36 |
PN400 |
|
1DH-30-27 |
M30X2 |
M27X2 |
20 |
23.5X3.0 |
16 |
20.5 |
42 |
32 |
36 |
PN400 |
|
1DH-30-33 |
M30X2 |
M33X2 |
20 |
29.5X3.0 |
16 |
22.5 |
42 |
41 |
36 |
PN400 |
|
1DH-36-27 |
M36X2 |
M27X2 |
25 |
23.5X3.0 |
16 |
23 |
47 |
41 |
46 |
PN400 |
|
1DH-36-33 |
M36X2 |
M33X2 |
25 |
29.5X3.0 |
16 |
23 |
47 |
41 |
46 |
PN400 |
|
1DH-42 |
M42X2 |
M42X2 |
30 |
38.5X3.0 |
16 |
23.5 |
50 |
50 |
50 |
PN400 |
|
1DH-42-48 |
M42X2 |
M48X2 |
30 |
44.5X3.0 |
17.5 |
26.5 |
52 |
55 |
50 |
PN400 |
|

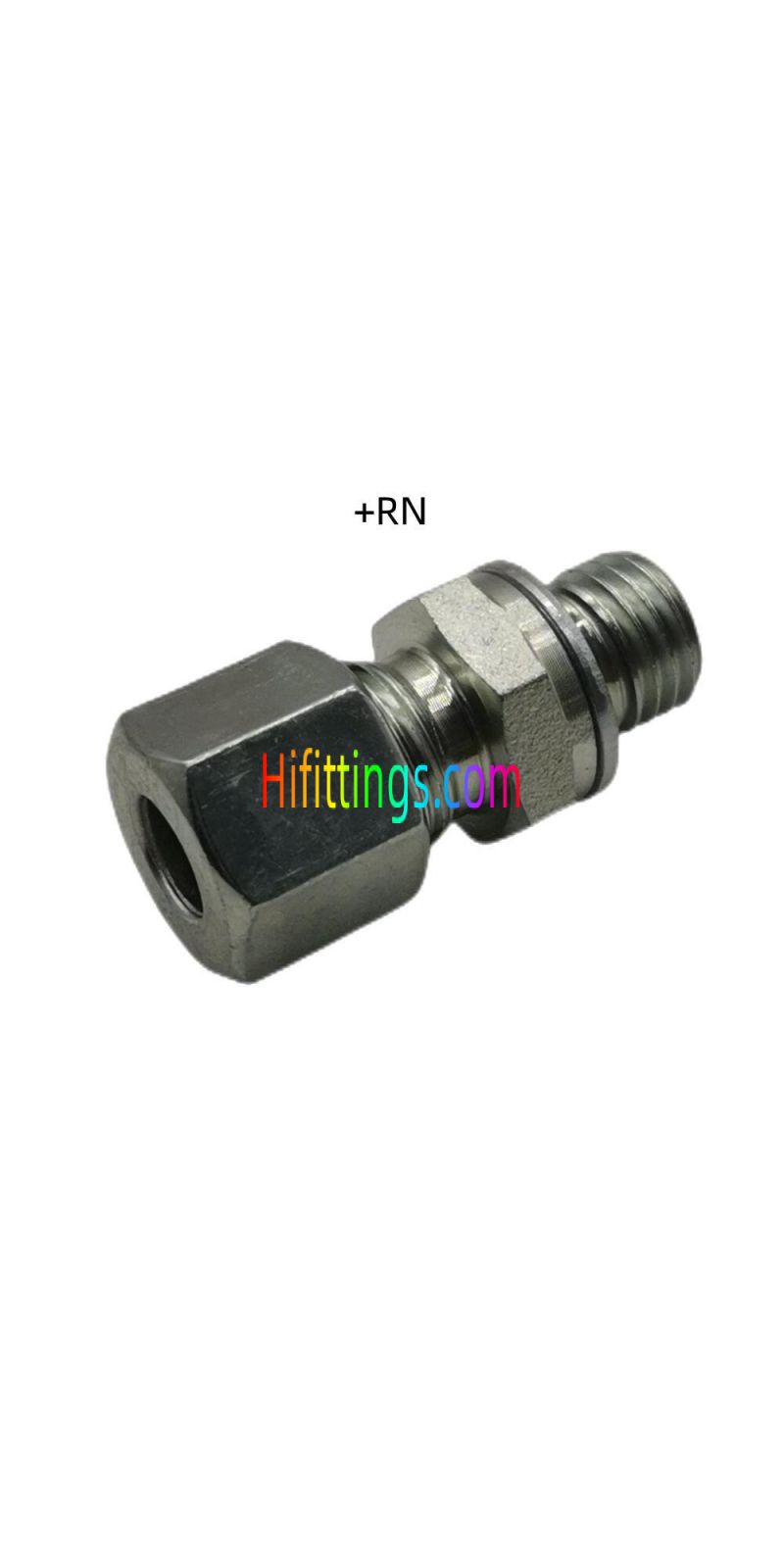

Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 1DH-20-18RN. 2. PN = Nominal Pressure |
||||||||||
| Forma | Straight |
|---|---|
| Tipo di filettatura | Male |
| Connection Type | Metric |
| Tipo di montaggio | Bite Type |
