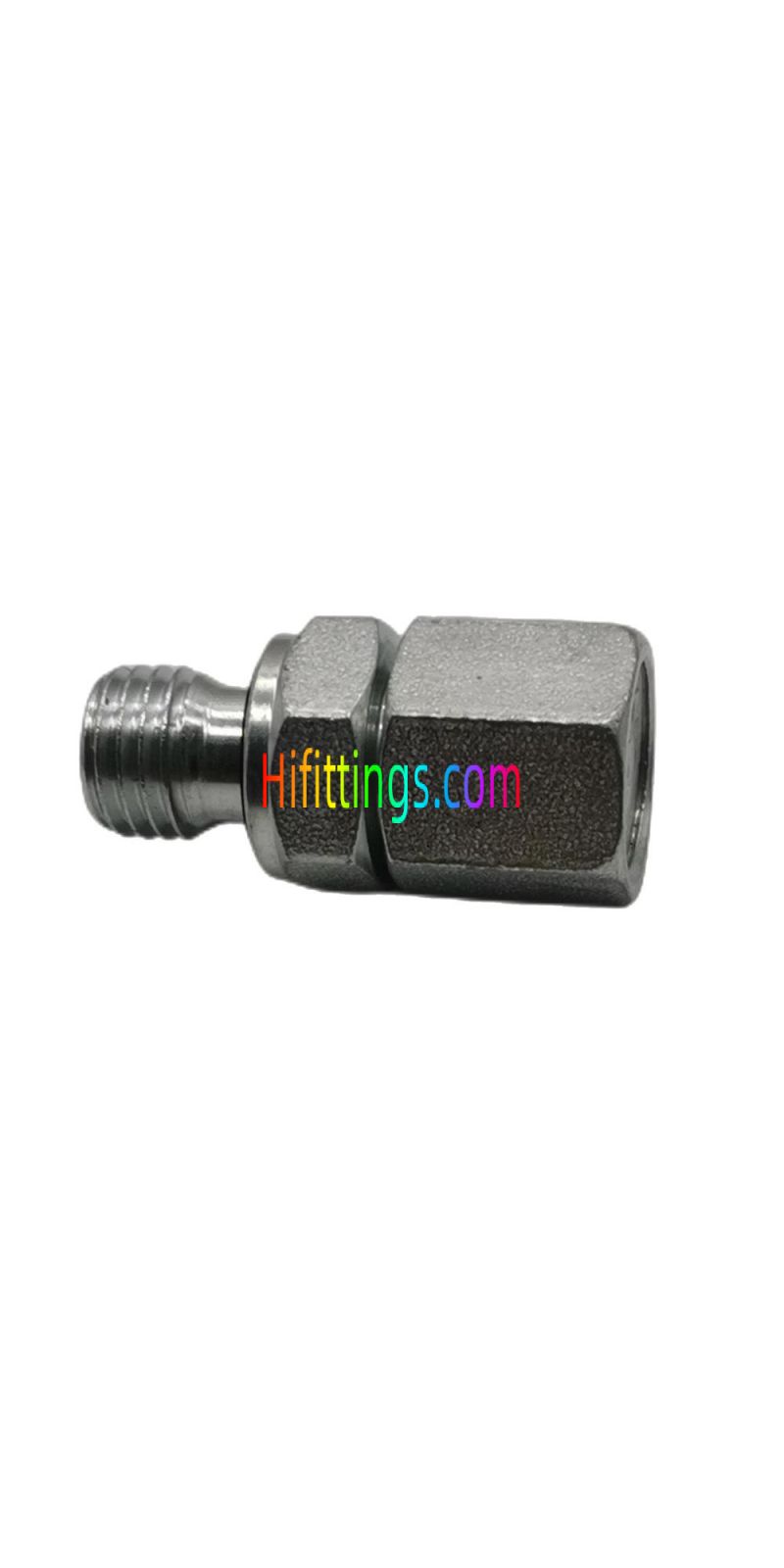

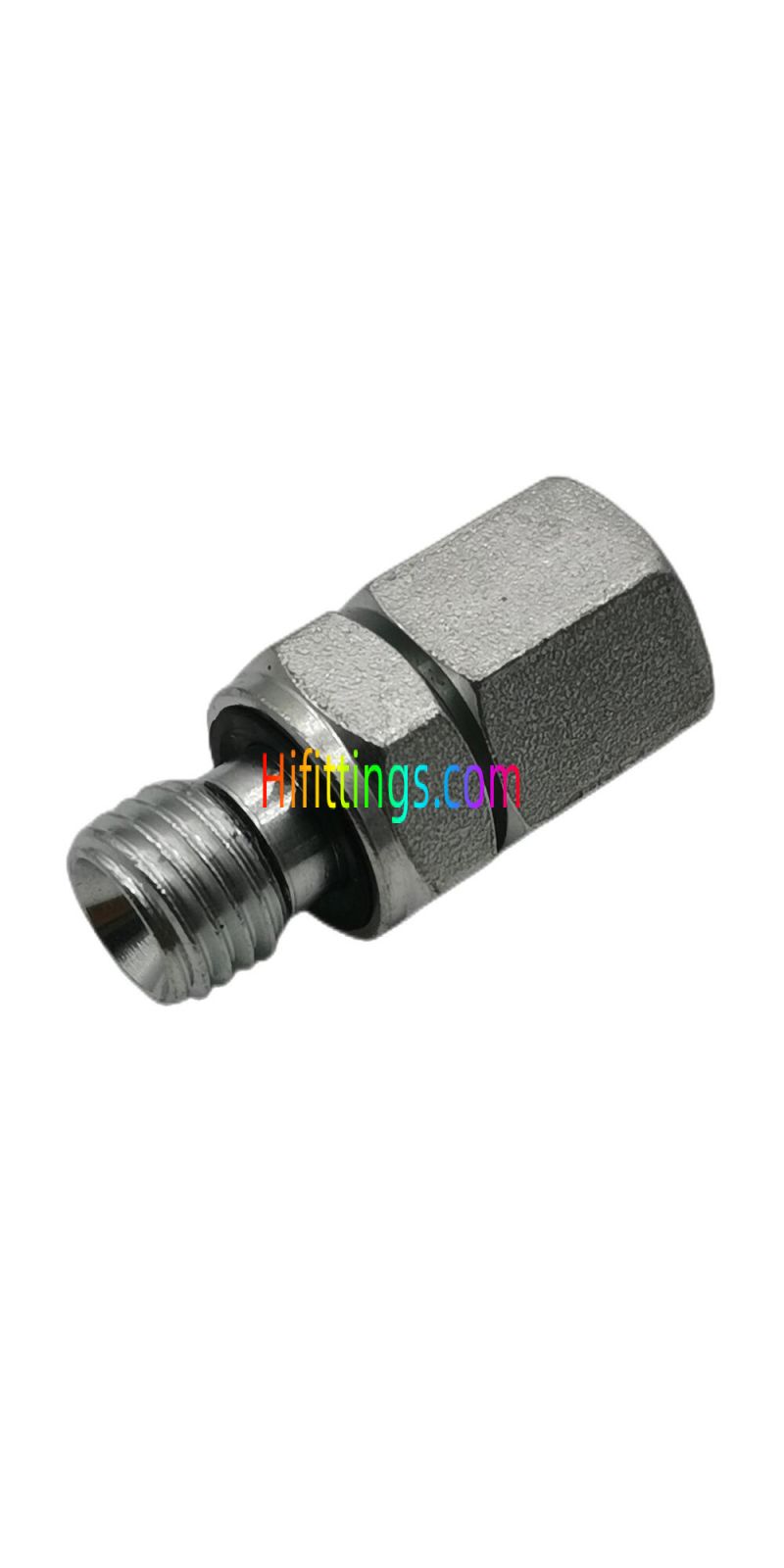

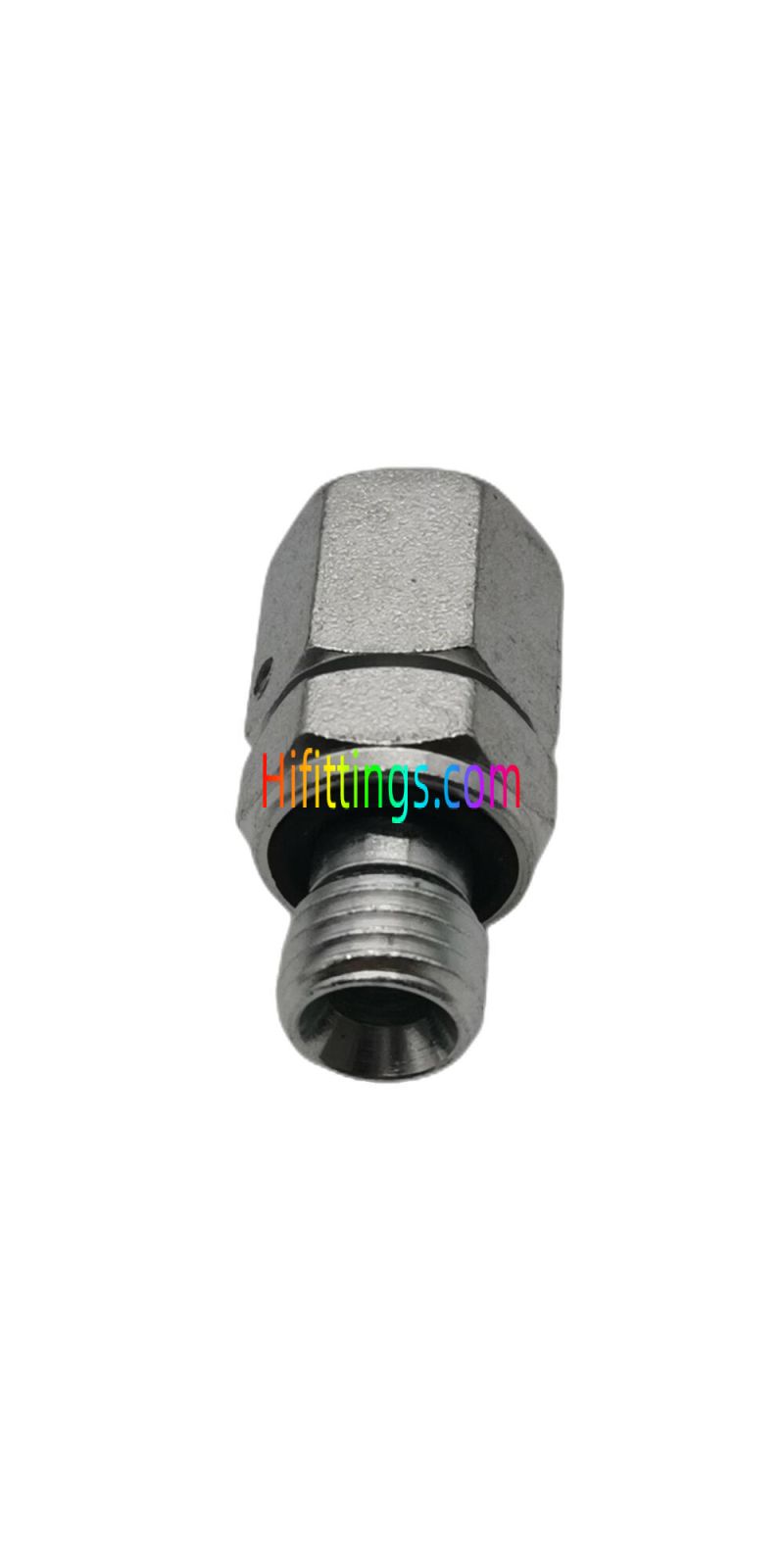

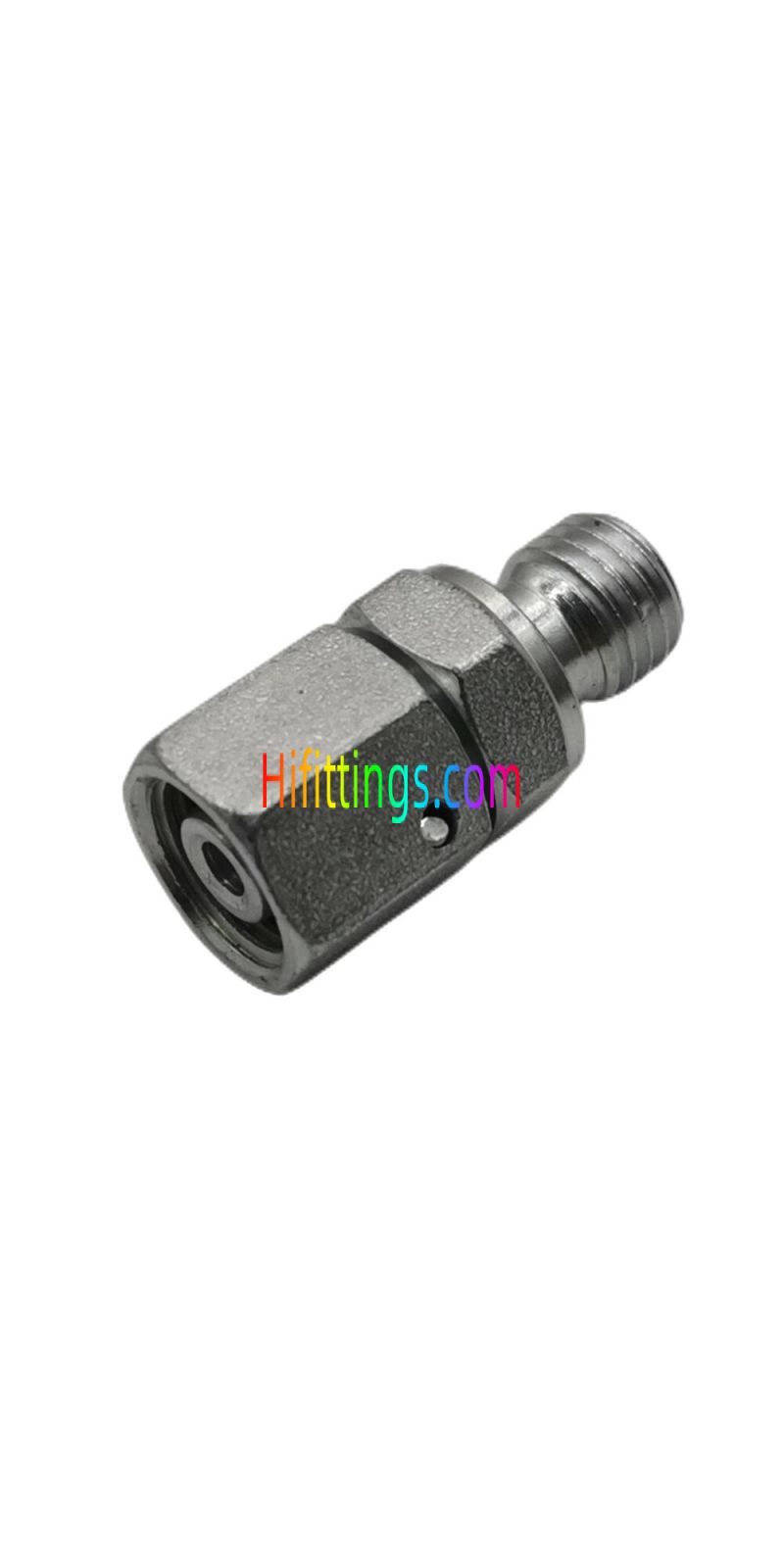

Straight Metric Thread With Captive Seal / Metric Female 24°Cone O-Ring Sealing Swivel Hydraulic Adapter Pipe Fittings 2MC-WD/2MD-WD
|
Part NO. |
E |
F |
D1 |
SEAL |
A |
L1 |
S1 |
S2 |
Working Pressure bar |
|
2MC-10-12WD |
M10X1 |
M12X1.5 |
6 |
WD-B02 |
8 |
24.5 |
14 |
14 |
PN315 |
|
2MC-12-14WD |
M12X1.5 |
M14X1.5 |
8 |
WD-M12 |
12 |
26.5 |
17 |
17 |
PN315 |
|
2MC-14-16WD |
M14X1.5 |
M16X1.5 |
10 |
WD-B04 |
12 |
27.5 |
19 |
19 |
PN315 |
|
2MC-16-18WD |
M16X1.5 |
M18X1.5 |
12 |
WD-M16 |
12 |
30.5 |
22 |
22 |
PN315 |
|
2MC-18-22WD |
M18X1.5 |
M22X1.5 |
15 |
WD-M18 |
12 |
31.5 |
24 |
27 |
PN315 |
|
2MC-22-26WD |
M22X1.5 |
M26X1.5 |
18 |
WD-M22 |
14 |
31.5 |
27 |
32 |
PN315 |
|
2MC-26-30WD |
M26X1.5 |
M30X2 |
22 |
WD-B12 |
16 |
32.5 |
32 |
36 |
PN160 |
|
2MC-33-36WD |
M33X2 |
M36X2 |
28 |
WD-B16 |
18 |
35 |
41 |
41 |
PN160 |
|
2MC-42-45WD |
M42X2 |
M45X2 |
35 |
WD-B20 |
20 |
42.5 |
50 |
50 |
PN160 |
|
2MC-48-52WD |
M48X2 |
M52X2 |
42 |
WD-B24 |
22 |
46.5 |
55 |
60 |
PN160 |
|
2MD-12-14WD |
M12X1.5 |
M14X1.5 |
6 |
WD-M12 |
12 |
27 |
17 |
17 |
PN630 |
|
2MD-14-16WD |
M14X1.5 |
M16X1.5 |
8 |
WD-B04 |
12 |
29.5 |
19 |
19 |
PN630 |
|
2MD-16-18WD |
M16X1.5 |
M18X1.5 |
10 |
WD-M16 |
12 |
32 |
22 |
22 |
PN630 |
|
2MD-18-20WD |
M18X1.5 |
M20X1.5 |
12 |
WD-M18 |
12 |
34 |
24 |
24 |
PN630 |
|
2MD-20-22WD |
M20X1.5 |
M22X1.5 |
14 |
WD-M20 |
14 |
36.5 |
27 |
27 |
PN630 |
|
2MD-22-24WD |
M22X1.5 |
M24X1.5 |
16 |
WD-M22 |
14 |
37 |
27 |
30 |
PN400 |
|
2MD-27-30WD |
M27X2 |
M30X2 |
20 |
WD-B12 |
16 |
43 |
32 |
36 |
PN400 |
|
2MD-33-36WD |
M33X2 |
M36X2 |
25 |
WD-B16 |
18 |
48 |
41 |
46 |
PN400 |
|
2MD-42-42WD |
M42X2 |
M42X2 |
30 |
WD-B20 |
20 |
51 |
50 |
50 |
PN400 |
|
2MD-48-52WD |
M48X2 |
M52X2 |
38 |
WD-B24 |
22 |
60 |
55 |
60 |
PN315 |
| Forma | Straight |
|---|---|
| Tipo di filettatura | Male-Female |
| Connection Type | Metric |
| Tipo di montaggio | Bite Type |
