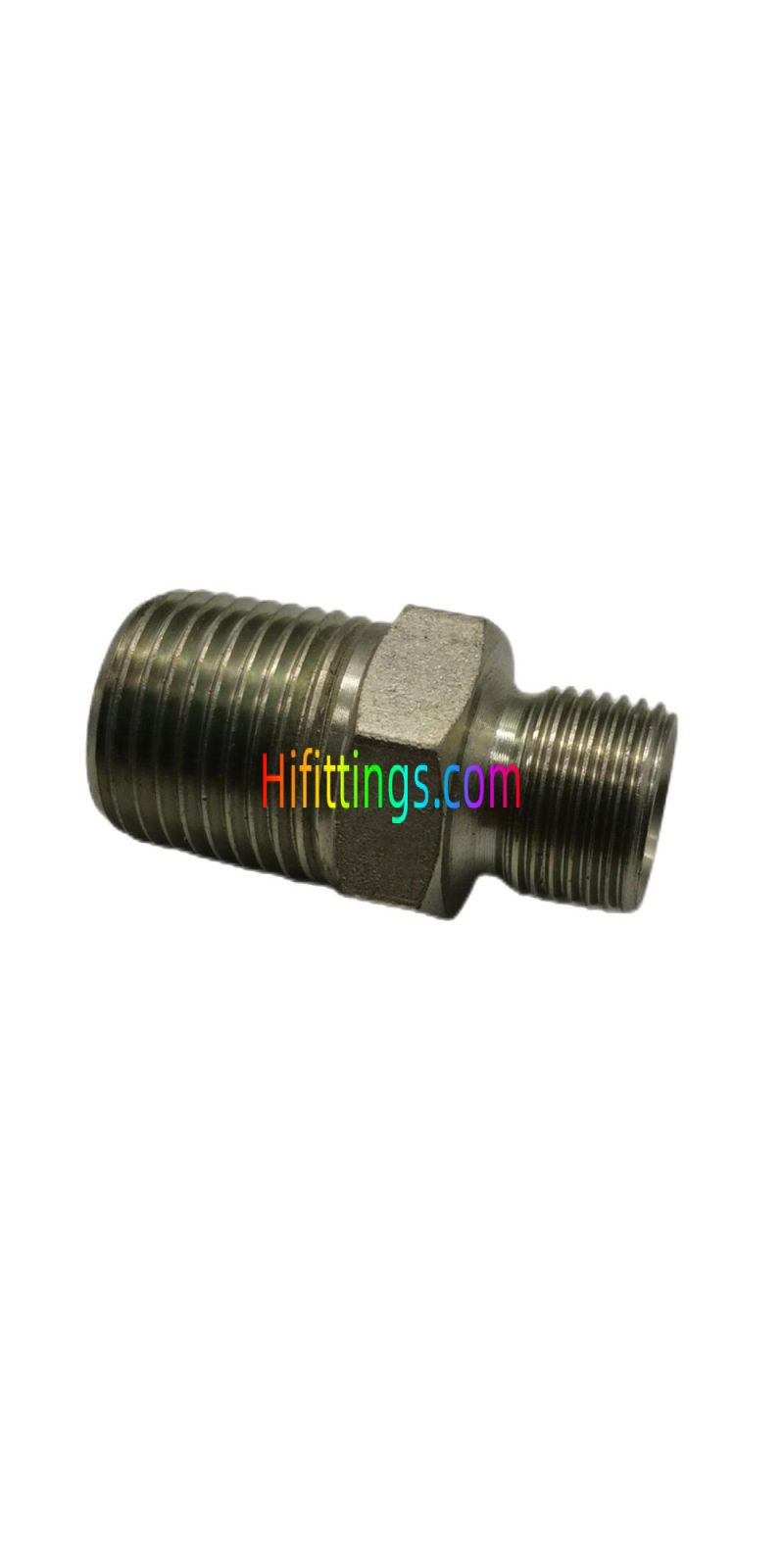

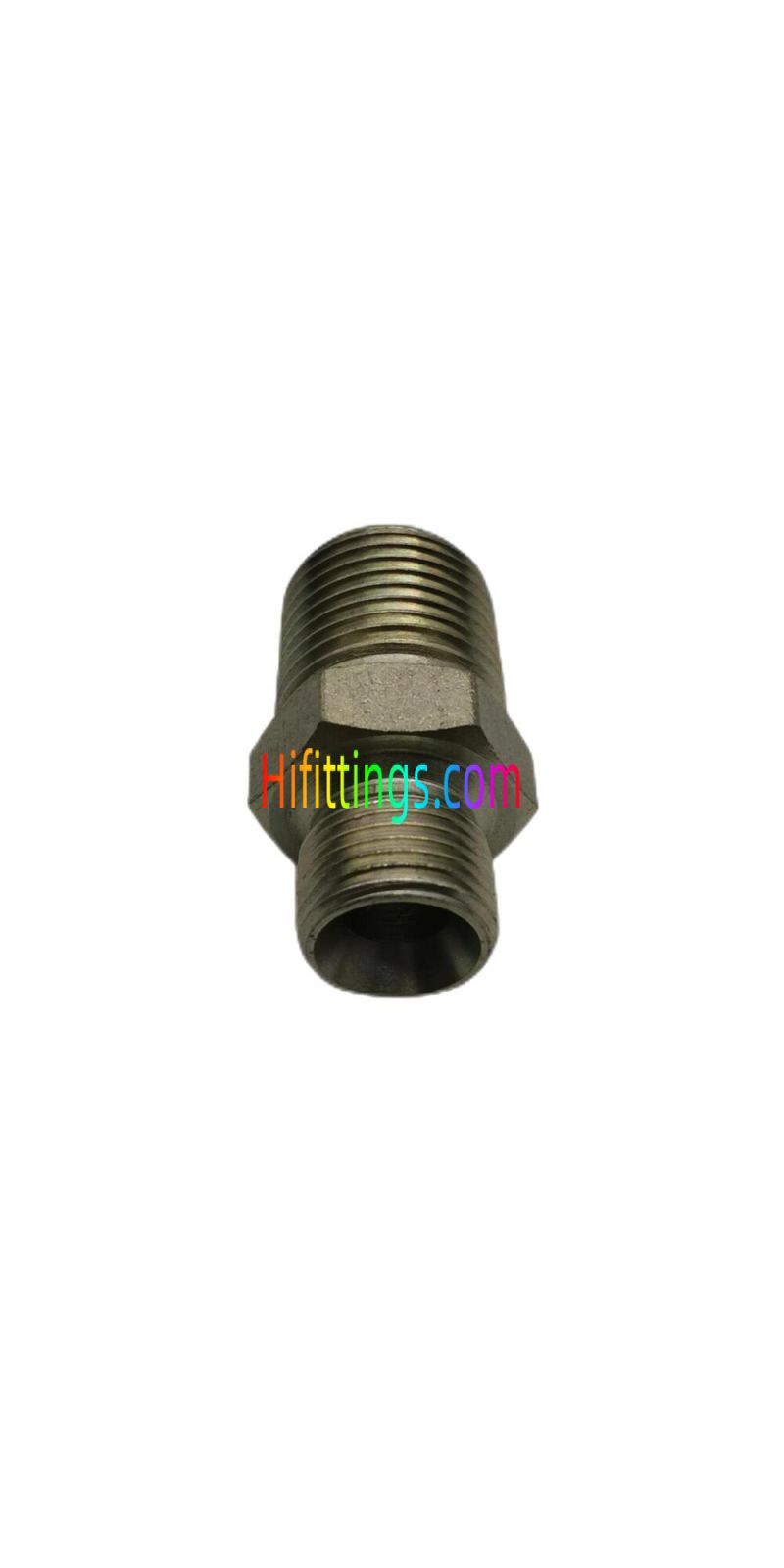

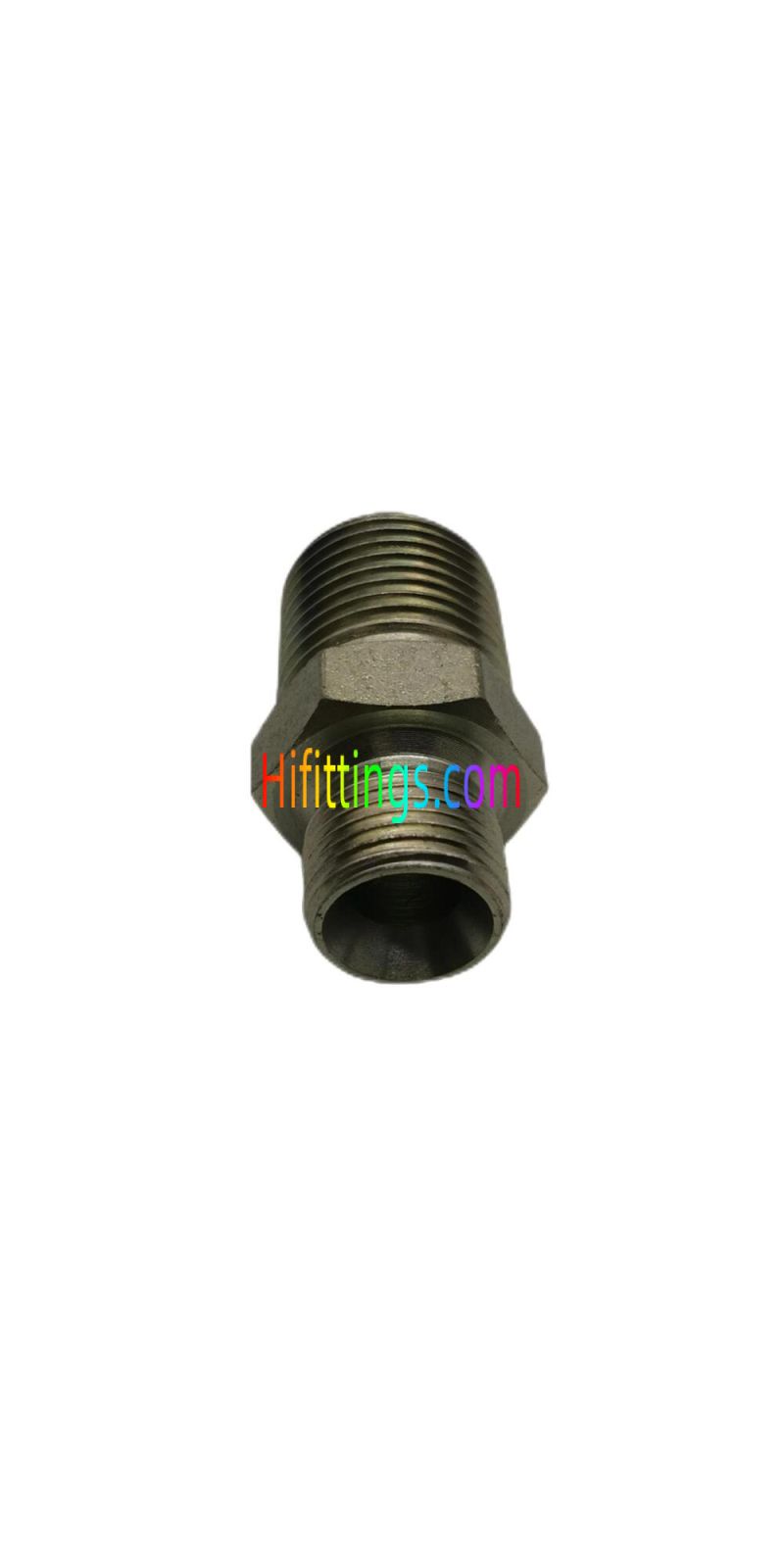

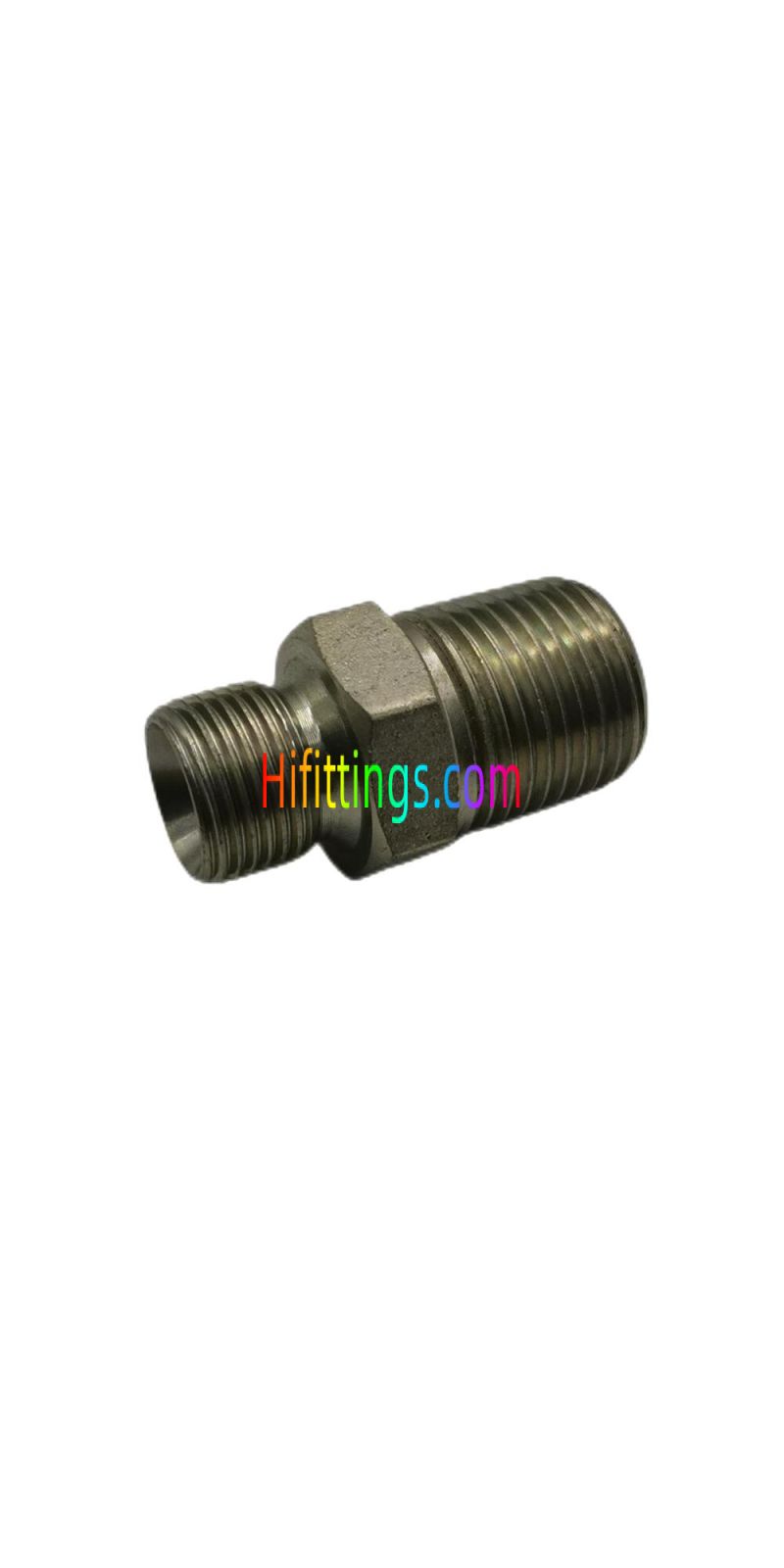

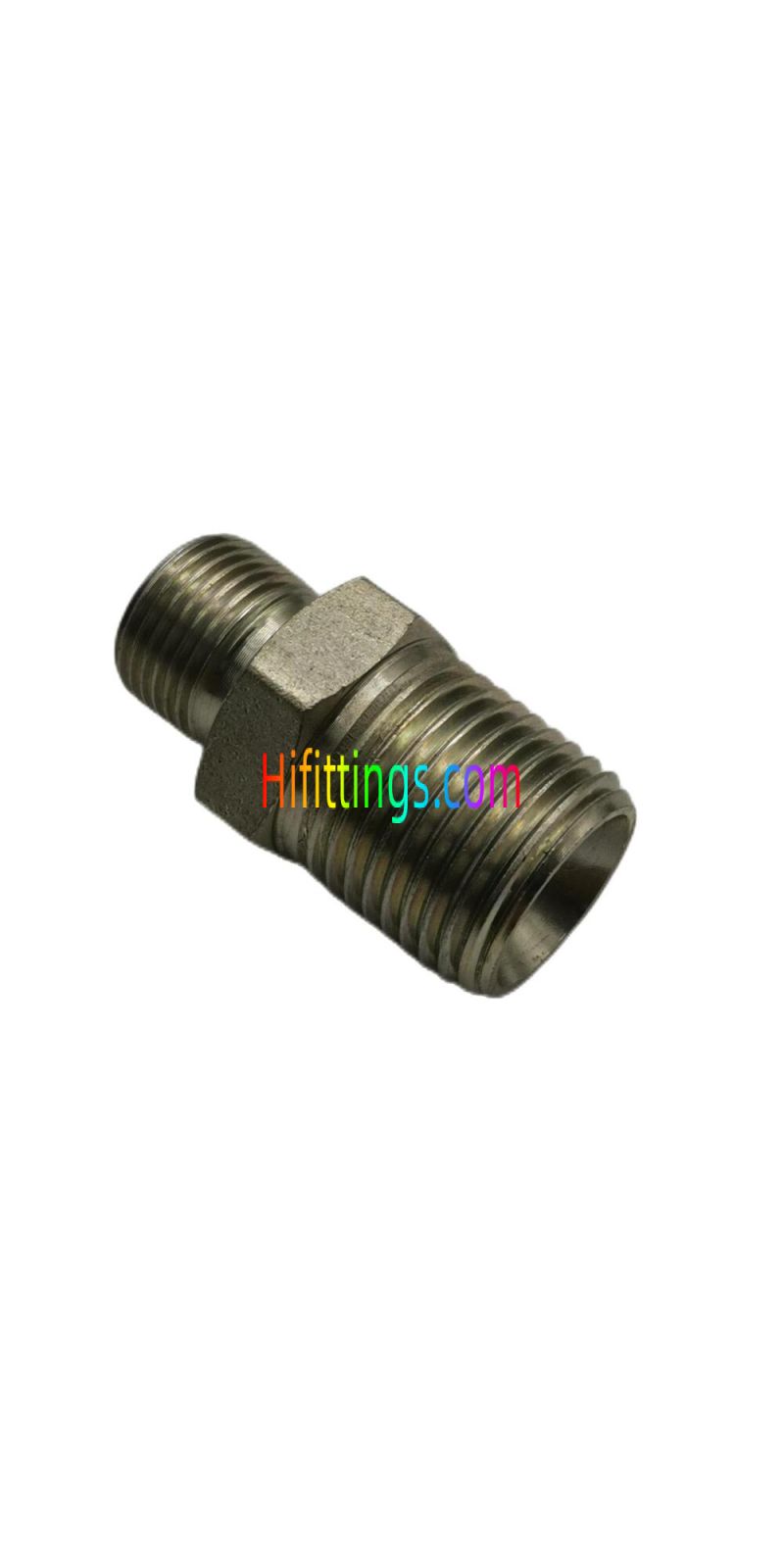

Straight BSP Male Double Use For 60° Seat Or Bonded Seal / NPT Male Adapter Hydraulic Fittings 1BN
|
Part NO. |
E |
F |
A |
B |
L |
S1 |
Working Pressure bar |
|
1BN-02 |
G1/8"X28 |
Z1/8"X27 |
10 |
10.5 |
26 |
14 |
PN345 |
|
1BN-02-04 |
G1/8"X28 |
Z1/4"X18 |
10 |
15 |
31 |
17 |
PN275 |
|
1BN-04 |
G1/4"X19 |
Z1/4"X18 |
12 |
15 |
33 |
19 |
PN275 |
|
1BN-04-02 |
G1/4"X19 |
Z1/8"X27 |
12 |
10.5 |
28 |
19 |
PN345 |
|
1BN-04-06 |
G1/4"X19 |
Z3/8"X18 |
12 |
16 |
34 |
19 |
PN210 |
|
1BN-04-08 |
G1/4"X19 |
Z1/2"X14 |
12 |
19.5 |
39.5 |
22 |
PN210 |
|
1BN-06 |
G3/8"X19 |
Z3/8"X18 |
13.5 |
16 |
37.5 |
22 |
PN210 |
|
1BN-06-04 |
G3/8"X19 |
Z1/4"X18 |
13.5 |
15 |
36 |
22 |
PN275 |
|
1BN-06-08 |
G3/8"X19 |
Z1/2"X14 |
13.5 |
19.5 |
41 |
22 |
PN210 |
|
1BN-06-12 |
G3/8"X19 |
Z3/4"X14 |
13.5 |
19.5 |
43 |
30 |
PN170 |
|
1BN-08 |
G1/2"X14 |
Z1/2"X14 |
16 |
19.5 |
45.5 |
27 |
PN210 |
|
1BN-08-06 |
G1/2"X14 |
Z3/8"X18 |
16 |
16 |
42 |
27 |
PN210 |
|
1BN-08-12 |
G1/2"X14 |
Z3/4''X14 |
16 |
19.5 |
45.5 |
30 |
PN170 |
|
1BN-08-16 |
G1/2"X14 |
Z1"X11.5 |
16 |
25.5 |
52.5 |
36 |
PN140 |
|
1BN-10-08 |
G5/8"X14 |
Z1/2"X14 |
17.5 |
19.5 |
47 |
30 |
PN210 |
|
1BN-10-12 |
G5/8"X14 |
Z3/4"X14 |
17.5 |
19.5 |
47 |
30 |
PN170 |
|
1BN-12 |
G3/4"X14 |
Z3/4"X14 |
18.5 |
19.5 |
49 |
32 |
PN170 |
|
1BN-12-06 |
G3/4"X14 |
Z3/8"X18 |
18.5 |
16 |
45.5 |
32 |
PN210 |
|
1BN-12-08 |
G3/4"X14 |
Z1/2"X14 |
18.5 |
19.5 |
49 |
32 |
PN210 |
|
1BN-12-16 |
G3/4"X14 |
Z1"X11.5 |
18.5 |
25.5 |
55 |
36 |
PN140 |
|
1BN-16 |
G1"X11 |
Z1"X11.5 |
20.5 |
25.5 |
59 |
41 |
PN140 |
|
1BN-16-12 |
G1"X11 |
Z3/4"X14 |
20.5 |
19.5 |
53 |
41 |
PN170 |
|
1BN-16-20 |
G1"X11 |
Z1.1/4"X11.5 |
20.5 |
26.5 |
60 |
46 |
PN80 |
|
1BN-20 |
G1.1/4"X11 |
Z1.1/4"X11.5 |
20.5 |
26.5 |
62 |
50 |
PN80 |
|
1BN-20-16 |
G1.1/4"X11 |
Z1"X11.5 |
20.5 |
25.5 |
61 |
50 |
PN140 |
|
1BN-20-24 |
G1.1/4"X11 |
Z1.1/2"X11.5 |
20.5 |
27.5 |
63 |
50 |
PN70 |
|
1BN-24 |
G1.1/2"X11 |
Z1.1/2"X11.5 |
23 |
27.5 |
65.5 |
55 |
PN70 |
|
1BN-24-20 |
G1.1/2"X11 |
Z1.1/4"X11.5 |
23 |
26.5 |
64.5 |
55 |
PN80 |
|
1BN-24-32 |
G1.1/2"X11 |
Z2"X11.5 |
23 |
27.5 |
67.5 |
65 |
PN70 |
|
1BN-32 |
G2"X11 |
Z2"X11.5 |
25.5 |
27.5 |
70 |
70 |
PN70 |
|
1BN-32-20 |
G2"X11 |
Z1.1/4"X11.5 |
25.5 |
26.5 |
69 |
70 |
PN80 |
|
1BN-32-24 |
G2"X11 |
Z1.1/2"X11.5 |
25.5 |
27.5 |
70 |
70 |
PN70 |
| Forma | Straight |
|---|---|
| Tipo di montaggio | Cone |
| Tipo di filettatura | Male |
| Connection Type | BSP, NPT |
