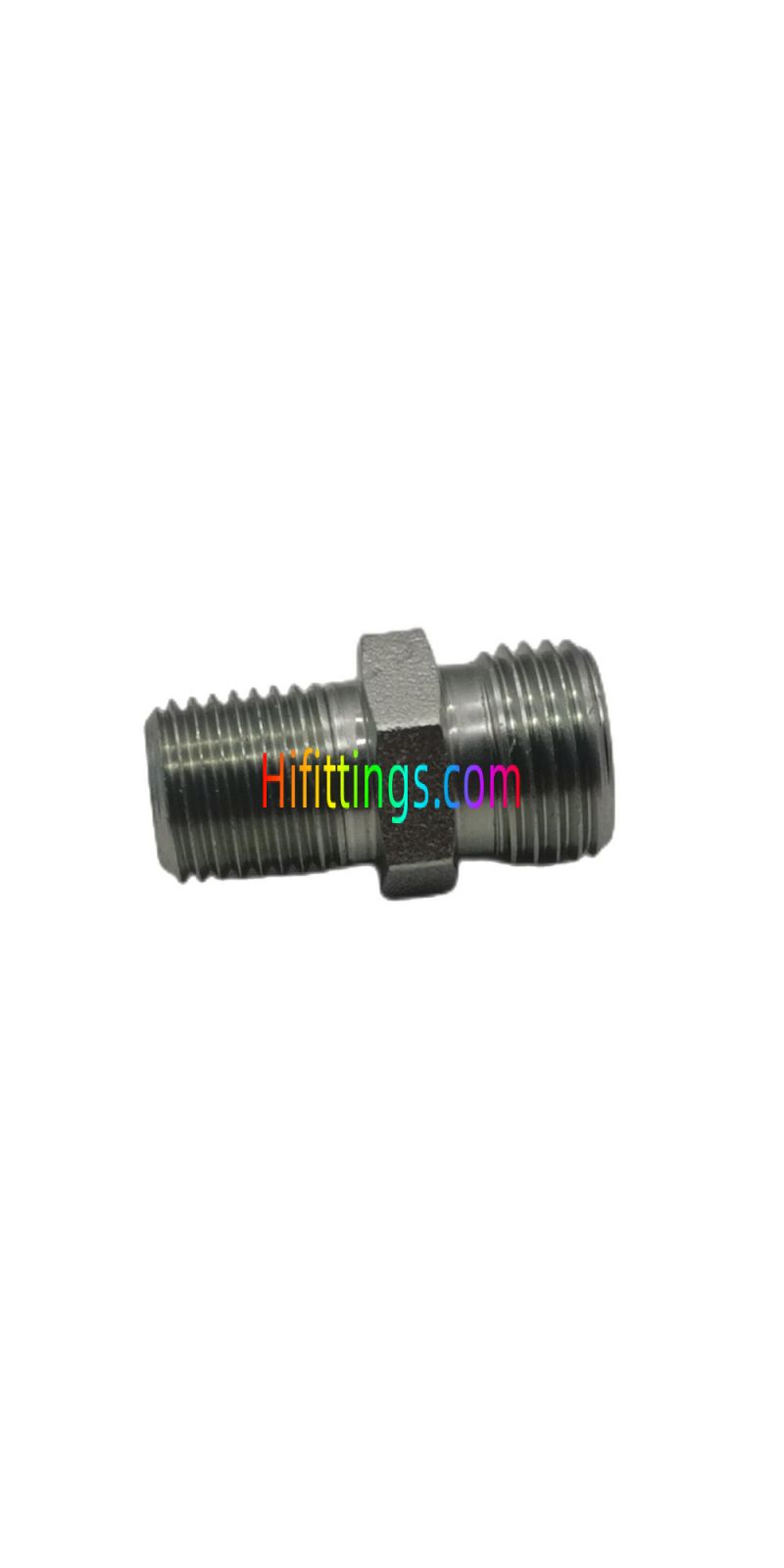

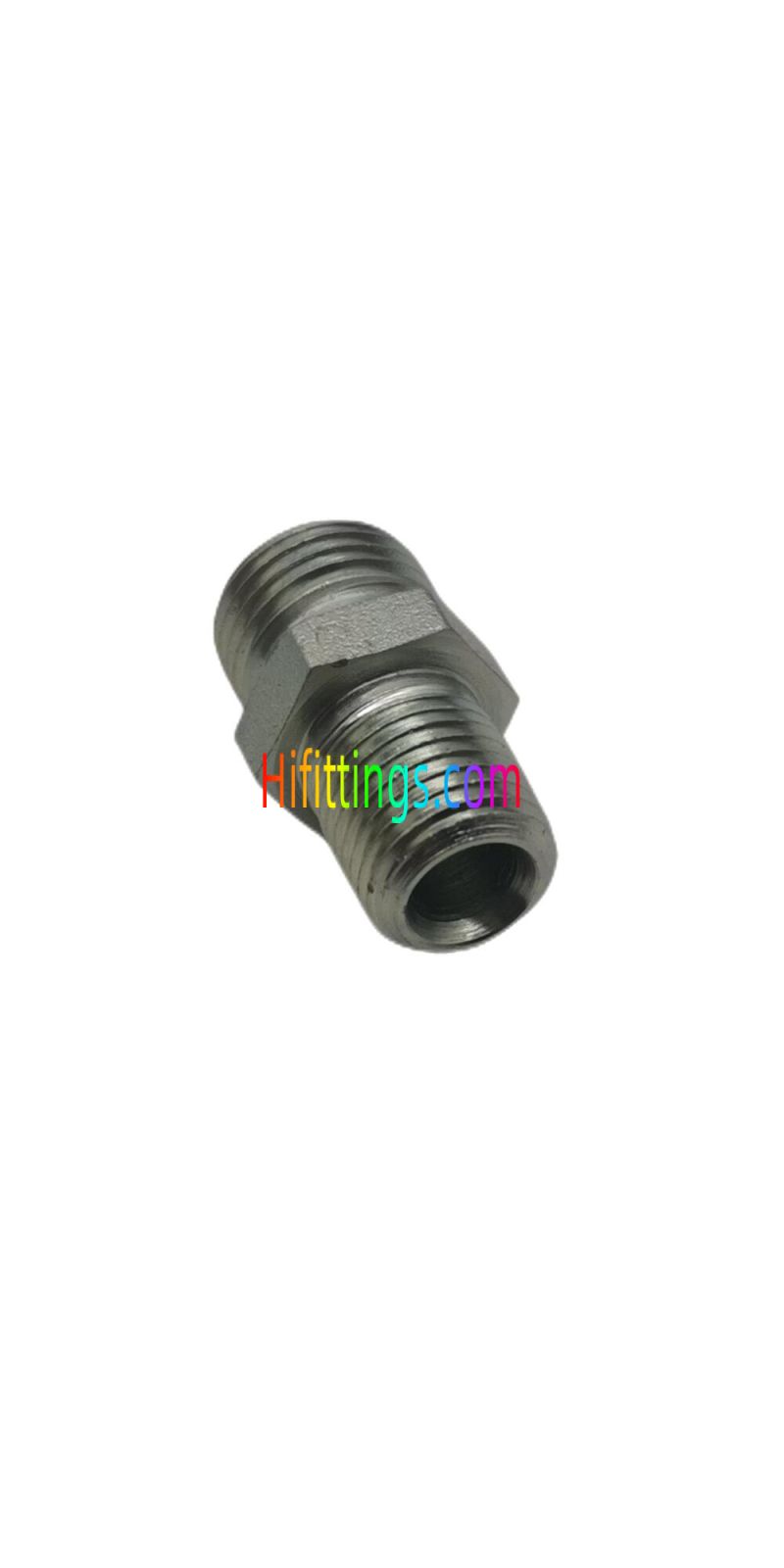

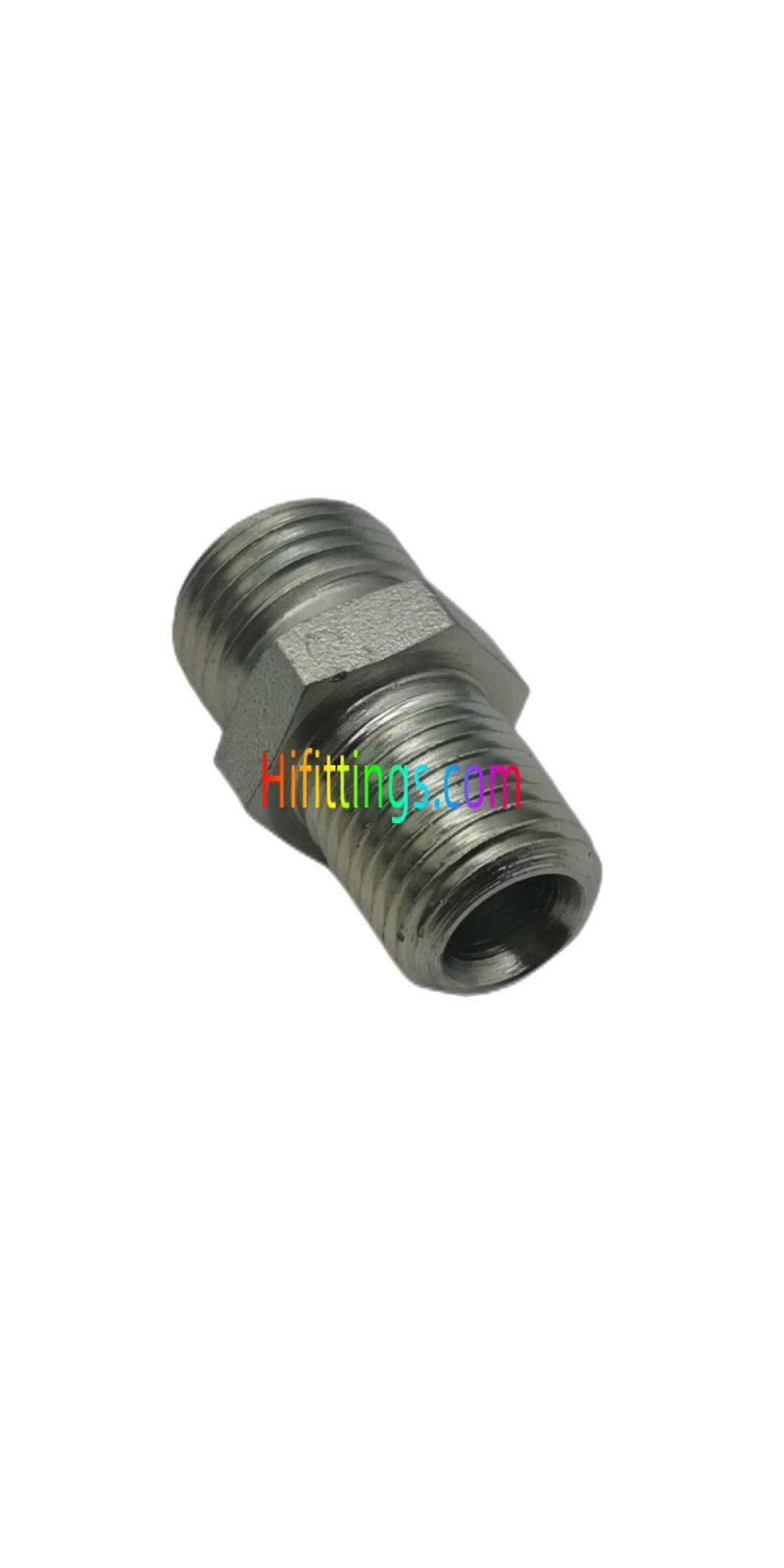

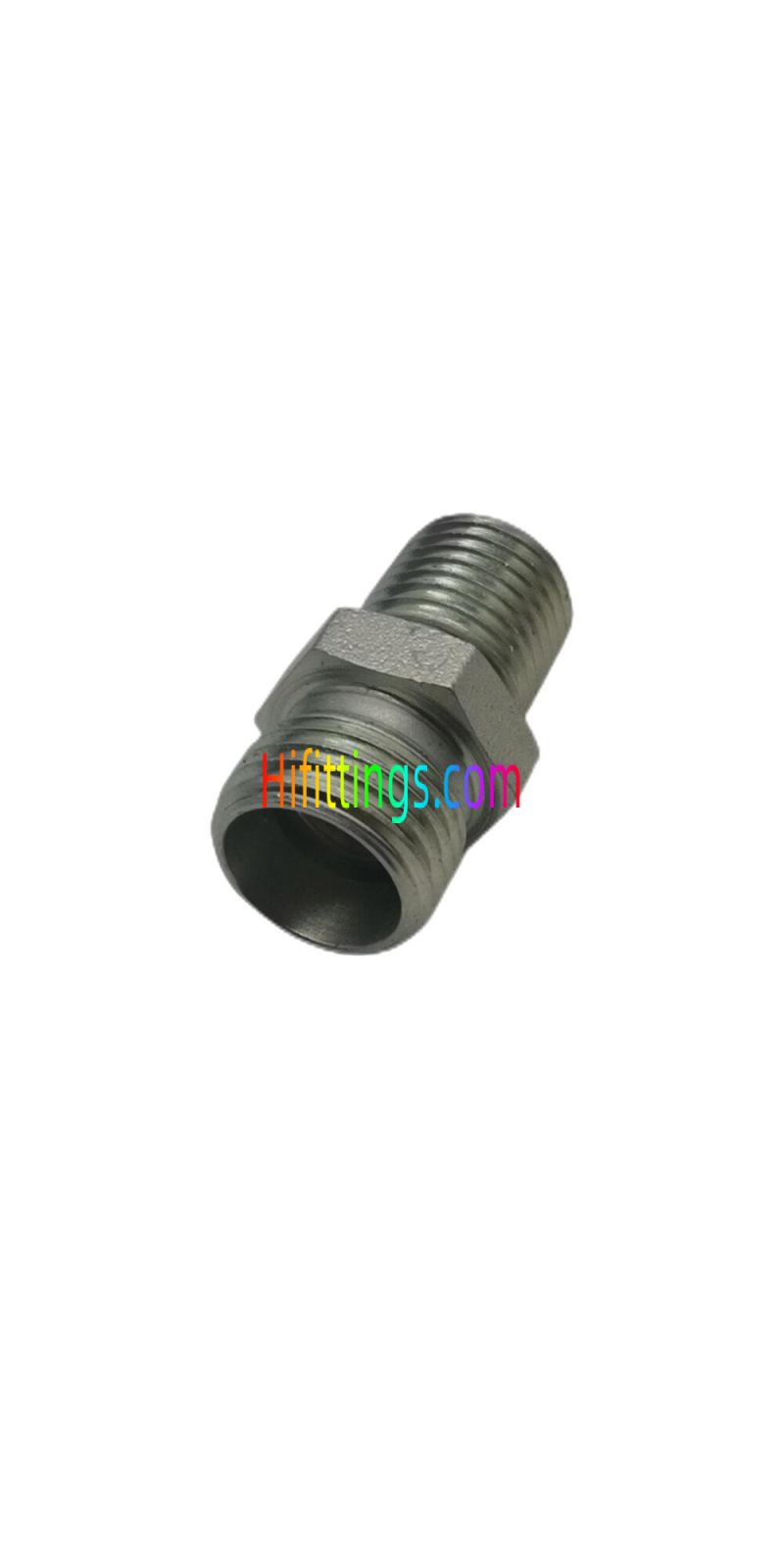

DIN Straight NPT Male / Metric Male Bite Type Hydraulic Adapter Pipe Fittings1CN/1DN
|
Part NO. |
E |
F |
D1 |
l1 |
L1 |
S1 |
S2 |
Working Pressure bar |
|
1CN-12-02 |
M12X1.5 |
Z1/8"X27 |
6 |
13.4 |
28.4 |
12 |
14 |
PN250 |
|
1CN-12-04 |
M12X1.5 |
Z1/4"X18 |
6 |
17.2 |
32.2 |
17 |
14 |
PN250 |
|
1CN-14-04 |
M14X1.5 |
Z1/4"X18 |
8 |
17.2 |
32.2 |
14 |
17 |
PN250 |
|
1CN-16-04 |
M16X1.5 |
Z1/4"X18 |
10 |
18.2 |
33.2 |
17 |
19 |
PN250 |
|
1CN-16-06 |
M16X1.5 |
Z3/8"X18 |
10 |
19.9 |
53 |
19 |
19 |
PN250 |
|
1CN-18-04 |
M18X1.5 |
Z1/4"X18 |
12 |
19.2 |
34.2 |
19 |
22 |
PN250 |
|
1CN-18-06 |
M18X1.5 |
Z3/8"X18 |
12 |
19.9 |
34.9 |
19 |
22 |
PN250 |
|
1CN-18-08 |
M18X1.5 |
Z1/2"X14 |
12 |
21.4 |
36.4 |
22 |
22 |
PN250 |
|
1CN-22-08 |
M22X1.5 |
Z1/2"X14 |
15 |
22.4 |
37.4 |
24 |
27 |
PN250 |
|
1CN-22-20 |
M22X1.5 |
Z1.1/4"X11.5 |
15 |
29.8 |
37.4 |
46 |
27 |
PN250 |
|
1CN-26-08 |
M26X1.5 |
Z1/2"X14 |
18 |
22.9 |
39.4 |
27 |
32 |
PN160 |
|
1CN-26-12 |
M26X1.5 |
Z3/4"X14 |
18 |
22.4 |
38.9 |
30 |
32 |
PN160 |
|
1CN-30-08 |
M30X2 |
Z1/2"X14 |
22 |
24.4 |
40.5 |
32 |
36 |
PN160 |
|
1CN-30-12 |
M30X2 |
Z3/4"X14 |
22 |
24.4 |
40.9 |
32 |
36 |
PN160 |
|
1CN-36-16 |
M36X2 |
Z1"X11.5 |
28 |
29.8 |
46.3 |
41 |
41 |
PN160 |
|
1CN-36-20 |
M36X2 |
Z1.1/4"X11.5 |
28 |
31.3 |
46.3 |
46 |
41 |
PN160 |
|
1CN45-20 |
M45X2 |
Z1.1/4"X11.5 |
35 |
30.3 |
51.8 |
46 |
50 |
PN160 |
|
1CN-52-20 |
M52X2 |
Z1.1/4"X11.5 |
42 |
31.8 |
55.8 |
55 |
60 |
PN160 |
|
1CN-52-24 |
M52X2 |
Z1.1/2"X11.5 |
42 |
32.8 |
55.8 |
55 |
60 |
PN160 |
|
1DN-14-04 |
M14X1.5 |
Z1/4"X18 |
6 |
22.2 |
37.2 |
17 |
17 |
PN400 |
|
1DN-16-04 |
M16X1.5 |
Z1/4"X18 |
8 |
22.2 |
37.2 |
17 |
19 |
PN400 |
|
1DN-18-04 |
M18X1.5 |
Z1/4"X18 |
10 |
21.7 |
38.2 |
19 |
22 |
PN400 |
|
1DN-18-06 |
M18X1.5 |
Z3/8"X18 |
10 |
22.4 |
38.9 |
19 |
22 |
PN400 |
|
1DN-20-04 |
M20X1.5 |
Z1/4"X18 |
12 |
23.7 |
40.2 |
22 |
24 |
PN400 |
|
1DN-20-06 |
M20X1.5 |
Z3/8"X18 |
12 |
24.4 |
40.9 |
22 |
24 |
PN400 |
|
1DN-20-08 |
M20X1.5 |
Z1/2"X14 |
12 |
25.9 |
42.4 |
22 |
24 |
PN400 |
|
1DN-22-08 |
M22X1.5 |
Z1/2"X14 |
14 |
27.4 |
45.4 |
24 |
27 |
PN400 |
|
1DN-24-08 |
M24X1.5 |
Z1/2"X14 |
16 |
26.9 |
45.4 |
27 |
30 |
PN400 |
|
1DN-30-12 |
M30X2 |
Z3/4"X14 |
20 |
28.4 |
49.9 |
32 |
36 |
PN250 |
|
1DN-36-12 |
M36X2 |
Z3/4"X14 |
25 |
30.9 |
34 |
41 |
46 |
PN250 |
|
1DN-36-16 |
M36X2 |
Z1"X11.5 |
25 |
35.3 |
59.3 |
41 |
46 |
PN250 |
|
1DN-42-16 |
M42X2 |
Z1"X11.5 |
25 |
35.8 |
59.3 |
46 |
46 |
PN250 |
|
1DN-42-20 |
M42X2 |
Z1.1/4"X11.5 |
30 |
36.3 |
62.8 |
46 |
50 |
PN250 |
|
1DN-52-24 |
M52X2 |
Z1.1/2"X11.5 |
38 |
39.8 |
70.8 |
55 |
60 |
PN250 |
|

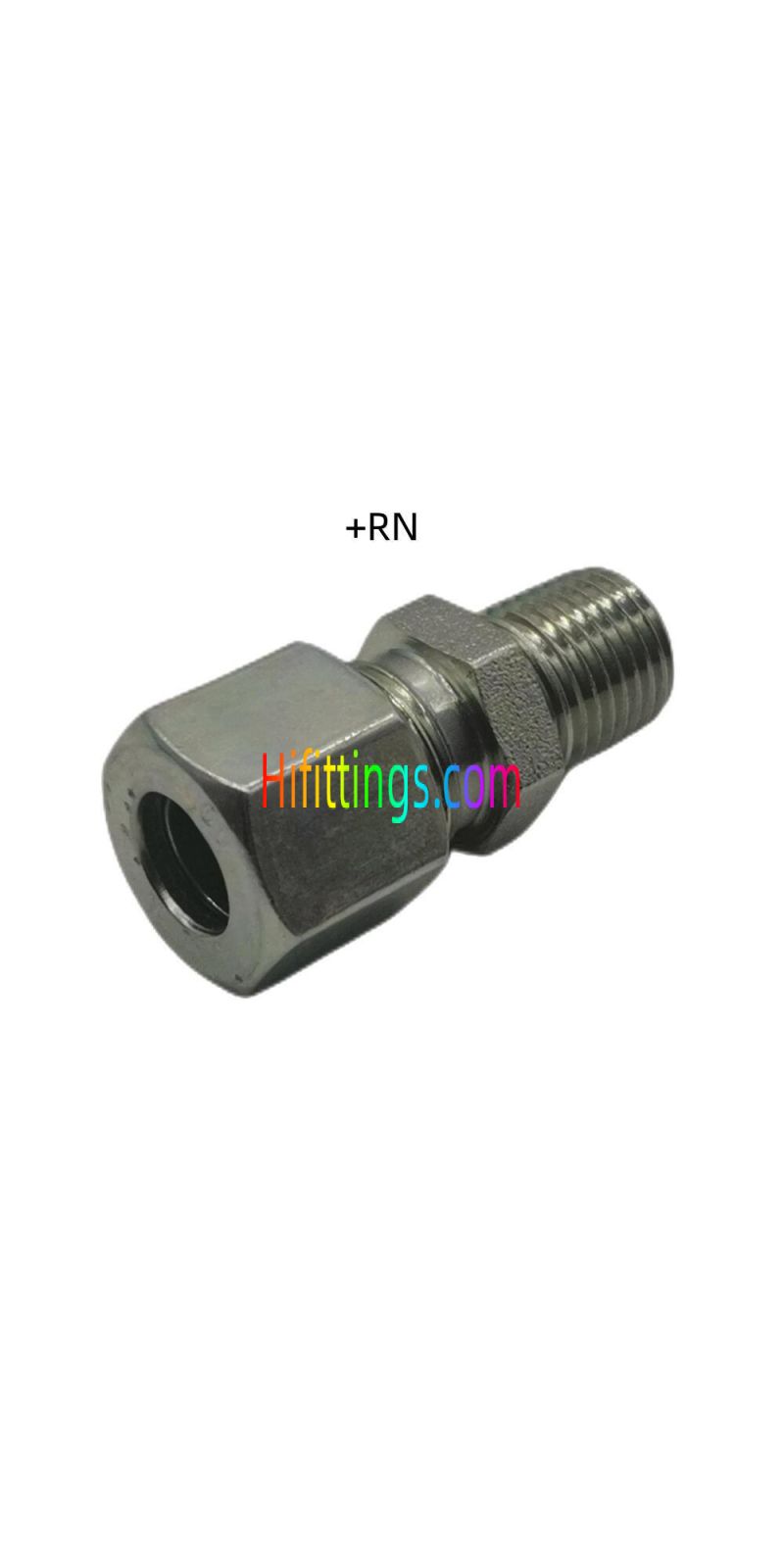

Note: 1. In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO. , for example 1DN-30-12RN. 2. PN = Nominal Pressure |
||||||||
| Forma | Straight |
|---|---|
| Tipo di filettatura | Male |
| Connection Type | Metric, NPT |
| Tipo di montaggio | Bite Type |
